YAMAHA WR 250F 2017 Owners Manual

SWINGARM
5-67

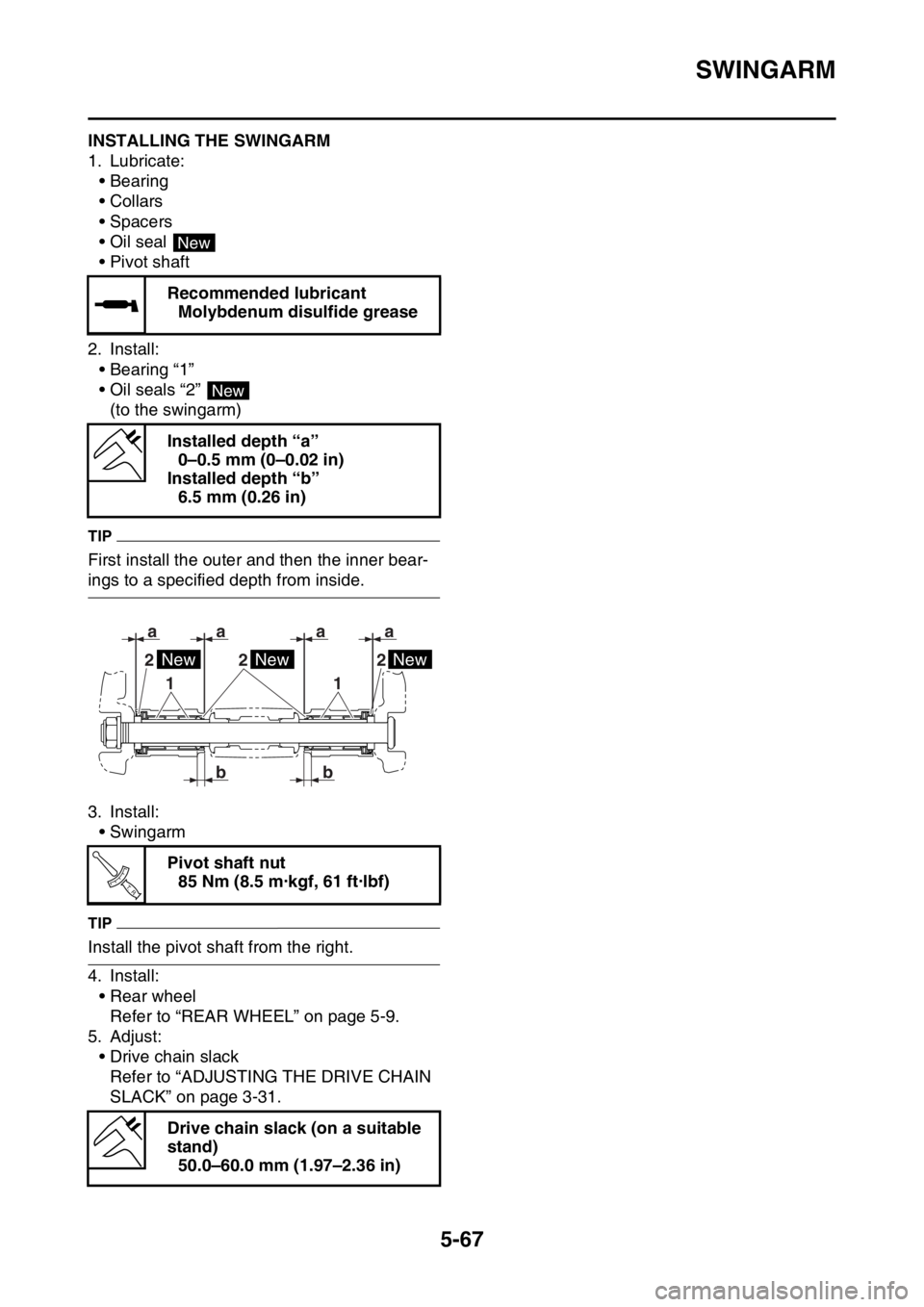

EAS2GBB220INSTALLING THE SWINGARM
1. Lubricate:
• Bearing
•Collars
• Spacers
• Oil seal
• Pivot shaft
2. Install:
• Bearing “1”
• Oil seals “2”
(to the swingarm)
TIP
First install the outer and then the inner bear-
ings to a specified depth from inside.
3. Install:
• Swingarm
TIP
Install the pivot shaft from the right.
4. Install:
• Rear wheel
Refer to “REAR WHEEL” on page 5-9.
5. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-31.Recommended lubricant
Molybdenum disulfide grease
Installed depth “a”
0–0.5 mm (0–0.02 in)
Installed depth “b”
6.5 mm (0.26 in)
Pivot shaft nut
85 Nm (8.5 m·kgf, 61 ft·lbf)
Drive chain slack (on a suitable
stand)
50.0–60.0 mm (1.97–2.36 in)
New
New
2 22
1 1
aaa
b ba
NewNewNew
T R..

CHAIN DRIVE
5-68
EAS2GBB221
CHAIN DRIVE
Removing the drive chain
Job Order Part name Q’ty Servicing Information
Drive sprocket Refer to “ENGINE REMOVAL” on page 6-1.
1 Drive chain 1
For installation, reverse the removal proce-
dure.
1
T.R.75 Nm (7.5 mlbf) kgf, 54 ft
T.R.7 Nm (0.7 mlbf) kgf, 5.1 ft

CHAIN DRIVE
5-69

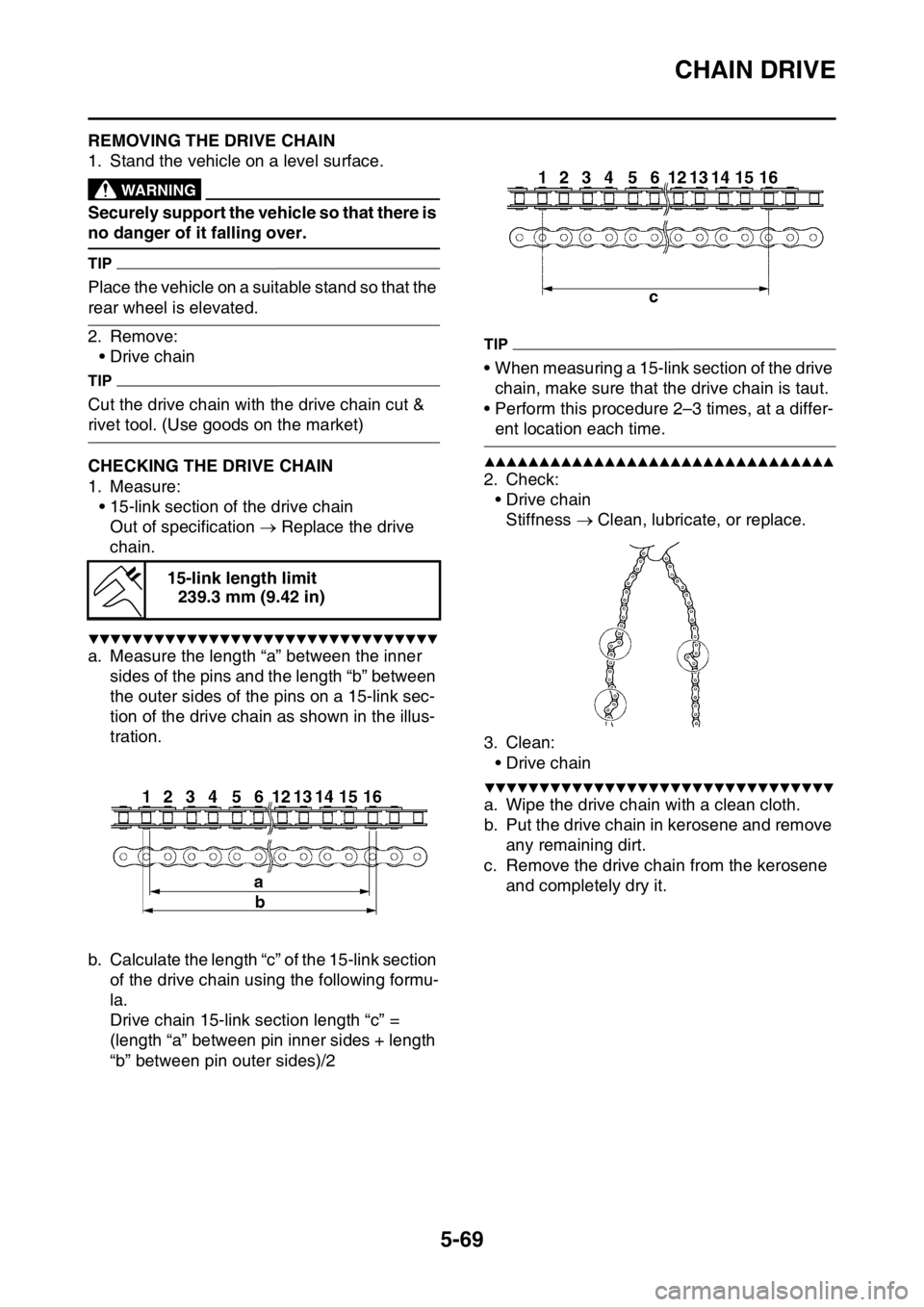

EAS23420REMOVING THE DRIVE CHAIN
1. Stand the vehicle on a level surface.
EWA
WARNING
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on a suitable stand so that the
rear wheel is elevated.
2. Remove:
•Drive chain
TIP
Cut the drive chain with the drive chain cut &
rivet tool. (Use goods on the market)
EAS23441CHECKING THE DRIVE CHAIN
1. Measure:
• 15-link section of the drive chain
Out of specification  Replace the drive
chain.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Measure the length “a” between the inner
sides of the pins and the length “b” between
the outer sides of the pins on a 15-link sec-
tion of the drive chain as shown in the illus-
tration.
b. Calculate the length “c” of the 15-link section
of the drive chain using the following formu-
la.
Drive chain 15-link section length “c” =
(length “a” between pin inner sides + length
“b” between pin outer sides)/2
TIP
• When measuring a 15-link section of the drive
chain, make sure that the drive chain is taut.
• Perform this procedure 2–3 times, at a differ-
ent location each time.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Check:
•Drive chain
Stiffness  Clean, lubricate, or replace.
3. Clean:
•Drive chain
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Wipe the drive chain with a clean cloth.
b. Put the drive chain in kerosene and remove
any remaining dirt.
c. Remove the drive chain from the kerosene
and completely dry it. 15-link length limit
239.3 mm (9.42 in)

CHAIN DRIVE
5-70

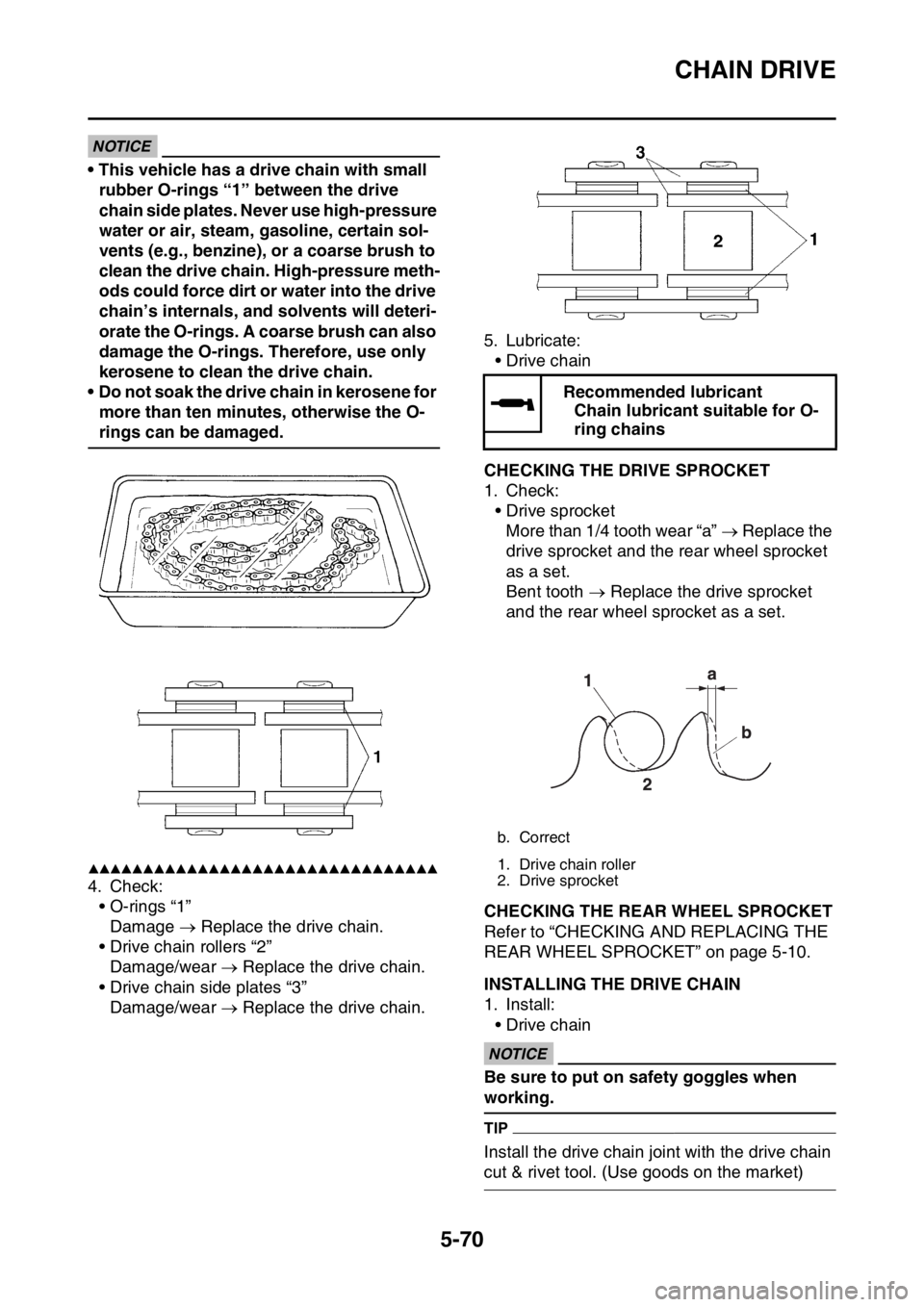

ECA
NOTICE
• This vehicle has a drive chain with small
rubber O-rings “1” between the drive
chain side plates. Never use high-pressure
water or air, steam, gasoline, certain sol-
vents (e.g., benzine), or a coarse brush to
clean the drive chain. High-pressure meth-
ods could force dirt or water into the drive
chain’s internals, and solvents will deteri-
orate the O-rings. A coarse brush can also
damage the O-rings. Therefore, use only
kerosene to clean the drive chain.
• Do not soak the drive chain in kerosene for
more than ten minutes, otherwise the O-
rings can be damaged.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
4. Check:
• O-rings “1”
Damage  Replace the drive chain.
• Drive chain rollers “2”
Damage/wear  Replace the drive chain.
• Drive chain side plates “3”
Damage/wear  Replace the drive chain.5. Lubricate:
•Drive chain
EAS2GBB222CHECKING THE DRIVE SPROCKET
1. Check:
• Drive sprocket
More than 1/4 tooth wear “a”  Replace the
drive sprocket and the rear wheel sprocket
as a set.
Bent tooth  Replace the drive sprocket
and the rear wheel sprocket as a set.
EAS2GBB223CHECKING THE REAR WHEEL SPROCKET
Refer to “CHECKING AND REPLACING THE
REAR WHEEL SPROCKET” on page 5-10.
EAS2GBB224INSTALLING THE DRIVE CHAIN
1. Install:
•Drive chain
ECA
NOTICE
Be sure to put on safety goggles when
working.
TIP
Install the drive chain joint with the drive chain
cut & rivet tool. (Use goods on the market)
Recommended lubricant
Chain lubricant suitable for O-
ring chains
b. Correct
1. Drive chain roller
2. Drive sprocket

CHAIN DRIVE
5-71
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. When press fitting the connecting plate “1”,
make sure the space “a” between the end of
the connecting pin “2” and the connecting
plate is 1.2–1.4 mm (0.05–0.06 in).
b. After riveting, make sure the diameter be-
tween the edges “b” of the connecting pin “2”
is 5.5–5.8 mm (0.22–0.23 in).
c. After riveting, make sure the space “c”,
which is inside of the connecting link “3” and
inside of the connecting plate “1”, is 14.1–
14.3 mm (0.56–0.65 in).
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Lubricate:
•Drive chain3. Install:
• Drive sprocket
• Lock washer
• Drive sprocket nut
Refer to “ENGINE REMOVAL” on page 6-1.
ECA
NOTICE
Never install a new drive chain onto worn
drive chain sprockets; this will dramatically
shorten the drive chain’s life.
4. Adjust:
• Drive chain slack
Refer to “ADJUSTING THE DRIVE CHAIN
SLACK” on page 3-31.
ECA
NOTICE
A drive chain that is too tight will overload
the engine and other vital parts, and one
that is too loose can skip and damage the
swingarm or cause an accident. Therefore,
keep the drive chain slack within the speci-
fied limits.
Recommended lubricant
Chain lubricant suitable for O-
ring chains
Drive sprocket nut
75 Nm (7.5 m·kgf, 54 ft·lbf)
Drive chain slack (on a suitable
stand)
50.0–60.0 mm (1.97–2.36 in)
New
T R..

CHAIN DRIVE
5-72

6
ENGINE
ENGINE REMOVAL......................................................................................... 6-1
REMOVING THE SILENCER ..................................................................... 6-6
REMOVING THE EXHAUST PIPE 2.......................................................... 6-6
REMOVING THE DRIVE SPROCKET ....................................................... 6-6
REMOVING THE ENGINE ......................................................................... 6-7
CLEANING THE SPARK ARRESTER ....................................................... 6-7
CHECKING THE SILENCER AND EXHAUST PIPE.................................. 6-8
INSTALLING THE ENGINE........................................................................ 6-8
INSTALLING THE BRAKE PEDAL ............................................................ 6-9
INSTALLING THE DRIVE SPROCKET...................................................... 6-9
INSTALLING THE EXHAUST PIPE AND MUFFLER............................... 6-10
CAMSHAFT.................................................................................................... 6-12
REMOVING THE CAMSHAFT ................................................................. 6-14
CHECKING THE CAMSHAFT.................................................................. 6-15
CHECKING THE TIMING CHAIN AND CAMSHAFT SPROCKET .......... 6-16
CHECKING THE TIMING CHAIN TENSIONERS .................................... 6-16
CHECKING THE DECOMPRESSION SYSTEM...................................... 6-17
INSTALLING THE CAMSHAFTS ............................................................. 6-17
CYLINDER HEAD........................................................................................... 6-20
REMOVING THE CYLINDER HEAD........................................................ 6-22
CHECKING THE TIMING CHAIN GUIDE (INTAKE SIDE) ...................... 6-22
CHECKING THE CYLINDER HEAD ........................................................ 6-22
INSTALLING THE CYLINDER HEAD ...................................................... 6-23
VALVES AND VALVE SPRINGS................................................................... 6-24
REMOVING THE VALVES ....................................................................... 6-25
CHECKING THE VALVES AND VALVE GUIDES ................................... 6-26
CHECKING THE VALVE SEATS ............................................................. 6-27
CHECKING THE VALVE SPRINGS......................................................... 6-29
CHECKING THE VALVE LIFTERS .......................................................... 6-29
INSTALLING THE VALVES ..................................................................... 6-30
CYLINDER AND PISTON............................................................................... 6-32
REMOVING THE PISTON ....................................................................... 6-33
CHECKING THE CYLINDER AND PISTON ............................................ 6-33
CHECKING THE PISTON RINGS............................................................ 6-34
CHECKING THE PISTON PIN ................................................................. 6-35
INSTALLING THE PISTON AND CYLINDER .......................................... 6-35
ELECTRIC STARTER.................................................................................... 6-37
CHECKING THE STARTER MOTOR ...................................................... 6-39
ASSEMBLING THE STARTER MOTOR .................................................. 6-40

CLUTCH......................................................................................................... 6-42
REMOVING THE CLUTCH ...................................................................... 6-45
CHECKING THE FRICTION PLATES...................................................... 6-45
CHECKING THE CLUTCH PLATES ........................................................ 6-45
CHECKING THE CLUTCH SPRINGS...................................................... 6-45
CHECKING THE CLUTCH HOUSING ..................................................... 6-46
CHECKING THE CLUTCH BOSS ............................................................ 6-46
CHECKING THE PRESSURE PLATE ..................................................... 6-46
CHECKING THE PUSH LEVER SHAFT .................................................. 6-46
CHECKING THE CLUTCH PUSH RODS ................................................ 6-46
CHECKING THE PRIMARY DRIVE GEAR .............................................. 6-46
CHECKING THE PRIMARY DRIVEN GEAR ........................................... 6-47
INSTALLING THE OIL SEAL................................................................... 6-47
INSTALLING THE RIGHT CRANKCASE COVER ................................... 6-47
INSTALLING THE CLUTCH ..................................................................... 6-47
INSTALLING THE KICKSTARTER LEVER ............................................. 6-50
KICKSTATER................................................................................................. 6-51
REMOVING THE KICK SHAFT ASSEMBLY ........................................... 6-52
CHECKING THE KICK SHAFT AND RATCHET WHEEL ........................ 6-52
CHECKING THE KICK GEAR, KICK IDLE GEAR AND RATCHET
WHEEL .................................................................................................... 6-52
INSTALLING THE KICK SHAFT ASSEMBLY .......................................... 6-52
INSTALLING THE KICK IDLE GEAR ....................................................... 6-53
SHIFT SHAFT................................................................................................. 6-54
REMOVING THE SHIFT GUIDE AND SHIFT LEVER ASSEMBLY ......... 6-56
REMOVING THE SEGMENT ................................................................... 6-56
CHECKING THE SHIFT SHAFT .............................................................. 6-56
CHECKING THE SHIFT GUIDE AND SHIFT LEVER ASSEMBLY ......... 6-56
CHECKING THE STOPPER LEVER ....................................................... 6-56
INSTALLING THE STOPPER LEVER ..................................................... 6-56
INSTALLING THE SEGMENT.................................................................. 6-57
INSTALLING THE SHIFT GUIDE AND SHIFT LEVER ASSEMBLY ....... 6-57
INSTALLING THE SHIFT SHAFT ............................................................ 6-58
INSTALLING THE SHIFT PEDAL ............................................................ 6-58
OIL PUMP AND BALANCER GEAR............................................................. 6-59
REMOVING THE BALANCER ................................................................. 6-62
CHECKING THE PRIMARY DRIVE GEAR, BALANCER DRIVE GEAR,
AND BALANCER WEIGHT GEAR .......................................................... 6-62
CHECKING THE BALANCER .................................................................. 6-62
CHECKING THE OIL PUMP .................................................................... 6-62
ASSEMBLING THE OIL PUMP ................................................................ 6-63
INSTALLING THE OIL PUMP AND BALANCER GEAR .......................... 6-63

GENERATOR AND STARTER CLUTCH....................................................... 6-66
REMOVING THE GENERATOR .............................................................. 6-68
CHECKING THE STARTER CLUTCH ..................................................... 6-68
INSTALLING THE STARTER CLUTCH ................................................... 6-68
INSTALLING THE GENERATOR............................................................. 6-69
CRANKCASE................................................................................................. 6-72
DISASSEMBLING THE CRANKCASE..................................................... 6-75
REMOVING THE CRANKCASE BEARING ............................................. 6-75
CHECKING THE TIMING CHAIN, TIMING CHAIN GUIDE, OIL
STRAINER .............................................................................................. 6-75
CHECKING THE CRANKCASE ............................................................... 6-75
INSTALLING THE OIL SEAL................................................................... 6-76
ASSEMBLING THE CRANKCASE........................................................... 6-76
CRANKSHAFT ASSEMBLY AND BALANCER SHAFT............................... 6-78
REMOVING THE CRANKSHAFT ASSEMBLY ........................................ 6-79
CHECKING THE CRANKSHAFT ASSEMBLY......................................... 6-79
INSTALLING THE CRANKSHAFT ASSEMBLY....................................... 6-80
INSTALLING THE BALANCER SHAFT ................................................... 6-80
TRANSMISSION............................................................................................. 6-81
REMOVING THE TRANSMISSION ......................................................... 6-82
CHECKING THE SHIFT FORKS.............................................................. 6-82
CHECKING THE SHIFT DRUM ASSEMBLY ........................................... 6-82
CHECKING THE TRANSMISSION .......................................................... 6-83
INSTALLING THE TRANSMISSION ........................................................ 6-83

ENGINE REMOVAL
6-1
EAS2GBB225
TIP
This section is intended for those who have basic knowledge and skill concerning the servicing of
Yamaha motorcycles (e.g., Yamaha dealers, service engineers, etc.). Those who have little knowl-
edge and skill concerning servicing are requested not to undertake inspection, adjustment, disas-
sembly, or reassembly only by reference to this manual. It may lead to servicing trouble and
mechanical damage.
EAS2GBB226

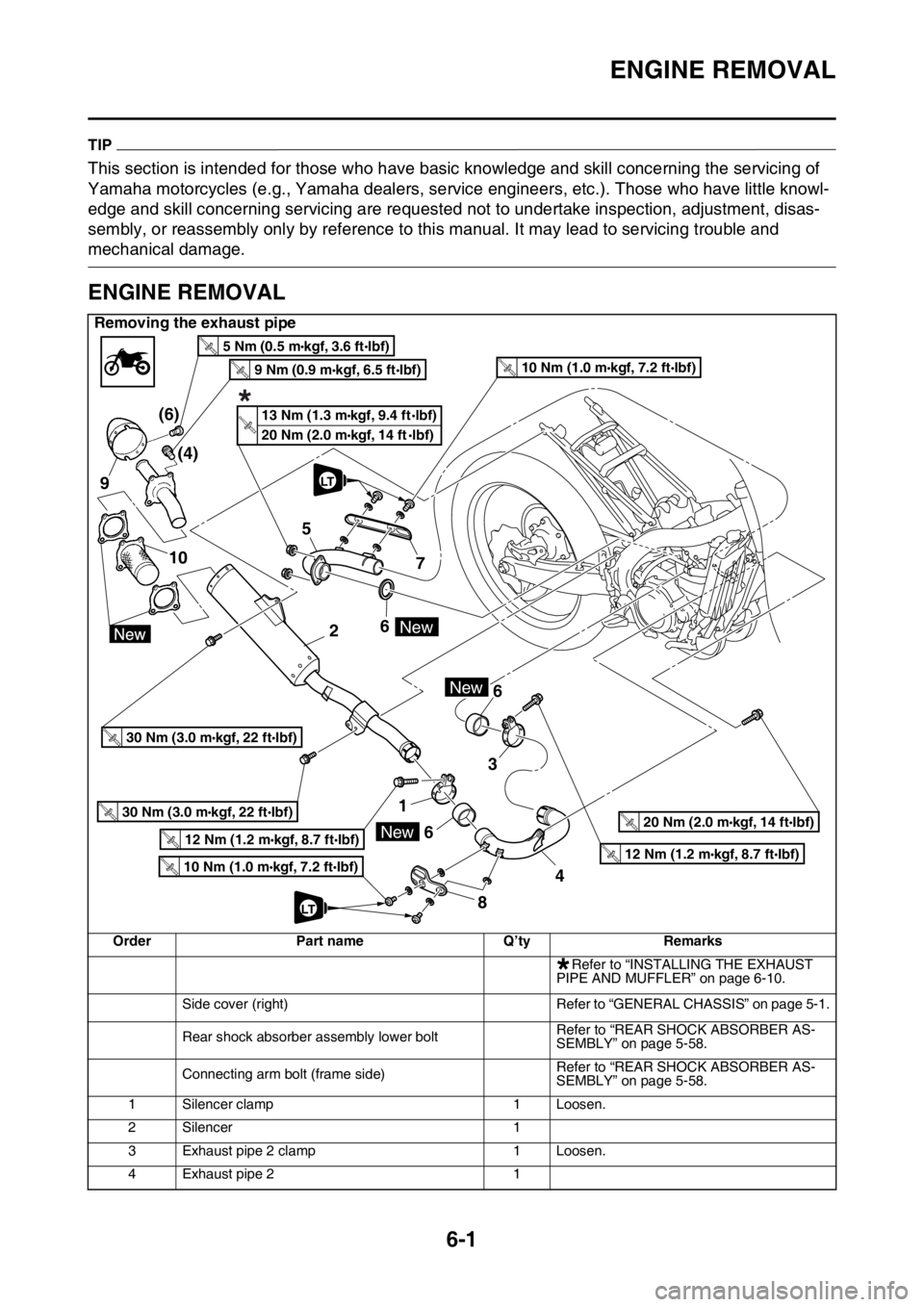

ENGINE REMOVAL
Removing the exhaust pipe
Order Part name Q’ty Remarks
Refer to “INSTALLING THE EXHAUST
PIPE AND MUFFLER” on page 6-10.
Side cover (right) Refer to “GENERAL CHASSIS” on page 5-1.
Rear shock absorber assembly lower boltRefer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 5-58.
Connecting arm bolt (frame side)Refer to “REAR SHOCK ABSORBER AS-
SEMBLY” on page 5-58.
1 Silencer clamp 1 Loosen.
2 Silencer 1
3 Exhaust pipe 2 clamp 1 Loosen.
4 Exhaust pipe 2 1
105 9
26
1
66
3
84 7 (4) (6)
30 Nm (3.0 m kgf, 22 ft Ibf)T
.R.
30 Nm (3.0 m kgf, 22 ft Ibf)T
.R.
New
New
10 Nm (1.0 m kgf, 7.2 ft Ibf)T.R.
12 Nm (1.2 m kgf, 8.7 ft Ibf)T.R.12 Nm (1.2 m kgf, 8.7 ft Ibf)T.R.
20 Nm (2.0 m kgf, 14 ft Ibf)T
.R.New
LT
LT
10 Nm (1.0 m kgf, 7.2 ft Ibf)T.R.9 Nm (0.9 m kgf, 6.5 ft Ibf)T
.R.
5 Nm (0.5 m kgf, 3.6 ft Ibf)T
.R.
T
.R.*kgf 13 Nm (1.3 m , 9.4 ft lbf)
kgf, 14 ft 20 Nm (2.0 m lbf)
*
