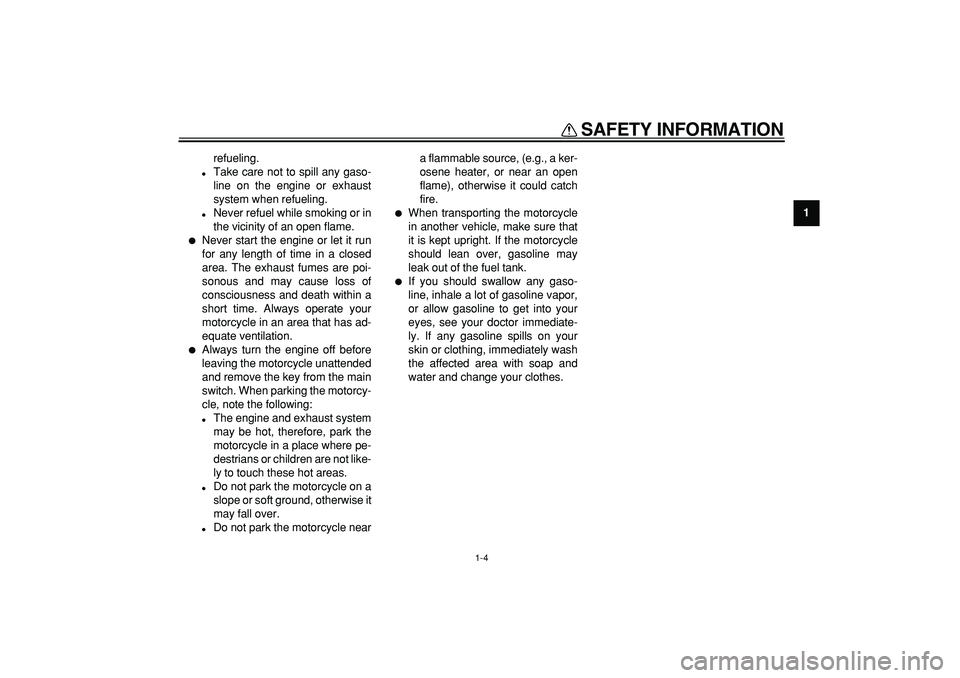

SAFETY INFORMATION
1-4
1
refueling.

Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.

Never refuel while smoking or in
the vicinity of an open flame.

Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has ad-
equate ventilation.

Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motorcy-
cle, note the following:

The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pe-
destrians or children are not like-
ly to touch these hot areas.

Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.

Do not park the motorcycle neara flammable source, (e.g., a ker-
osene heater, or near an open
flame), otherwise it could catch
fire.

When transporting the motorcycle
in another vehicle, make sure that
it is kept upright. If the motorcycle
should lean over, gasoline may
leak out of the fuel tank.

If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediate-
ly. If any gasoline spills on your
skin or clothing, immediately wash
the affected area with soap and
water and change your clothes.

2-1
1
2
3
4
5
6
7
8
9

DESCRIPTION
EAU10410
Left view
4
5
1
2
3
6
7
8
9

1. Front fork rebound damping force adjusting screw (page 3-13)
2. Fuse box (page 6-32)
3. Coolant reservoir (page 6-12)
4. Shock absorber assembly compression damping force adjusting
screw (page 3-15)
5. Battery (page 6-31)
6. Main fuse (page 6-32)
7. Owner’s tool kit (page 6-1)8. Helmet holder (page 3-13)
9. Front fork compression damping force adjusting screw (page 3-13)

DESCRIPTION
2-2
2
3
4
5
6
7
8
9

EAU10420
Right view
3
1
2
5
4
6

1. Rear brake fluid reservoir (page 6-23)
2. Air filter element (page 6-15)
3. Rear brake light switch (page 6-22)
4. Engine oil filler cap (page 6-9)
5. Engine oil level check window (page 6-9)
6. Shock absorber assembly rebound damping force adjusting dial
(page 3-15)

DESCRIPTION
2-3
1
2
3
4
5
6
7
8
9

EAU10430

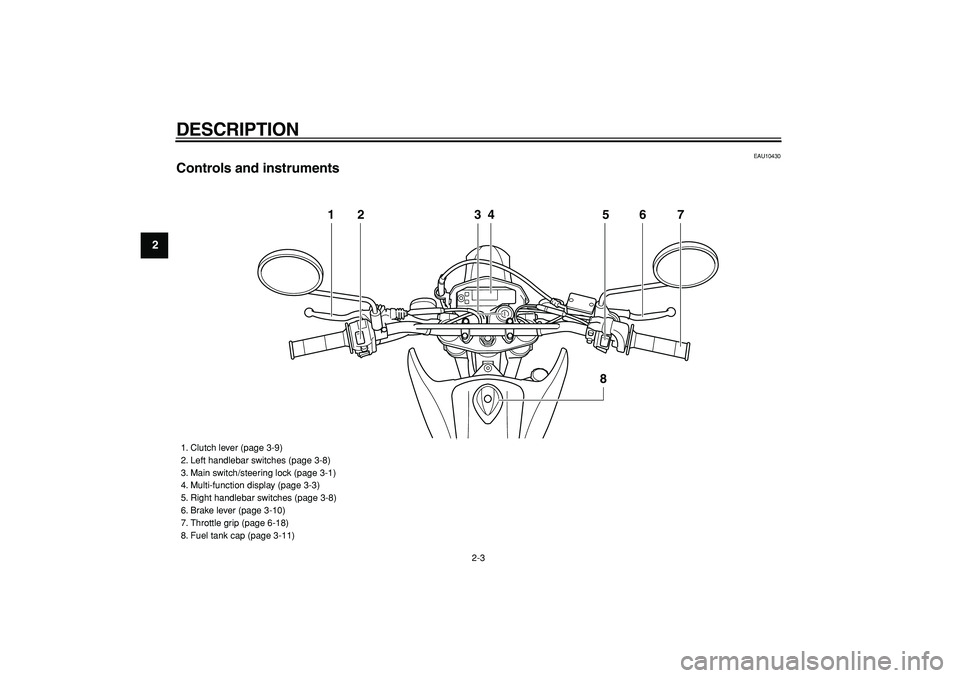

Controls and instruments
12 34 5 6
8
7

1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Main switch/steering lock (page 3-1)
4. Multi-function display (page 3-3)
5. Right handlebar switches (page 3-8)
6. Brake lever (page 3-10)
7. Throttle grip (page 6-18)
8. Fuel tank cap (page 3-11)

3-1
2
34
5
6
7
8
9

INSTRUMENT AND CONTROL FUNCTIONS
EAU10460

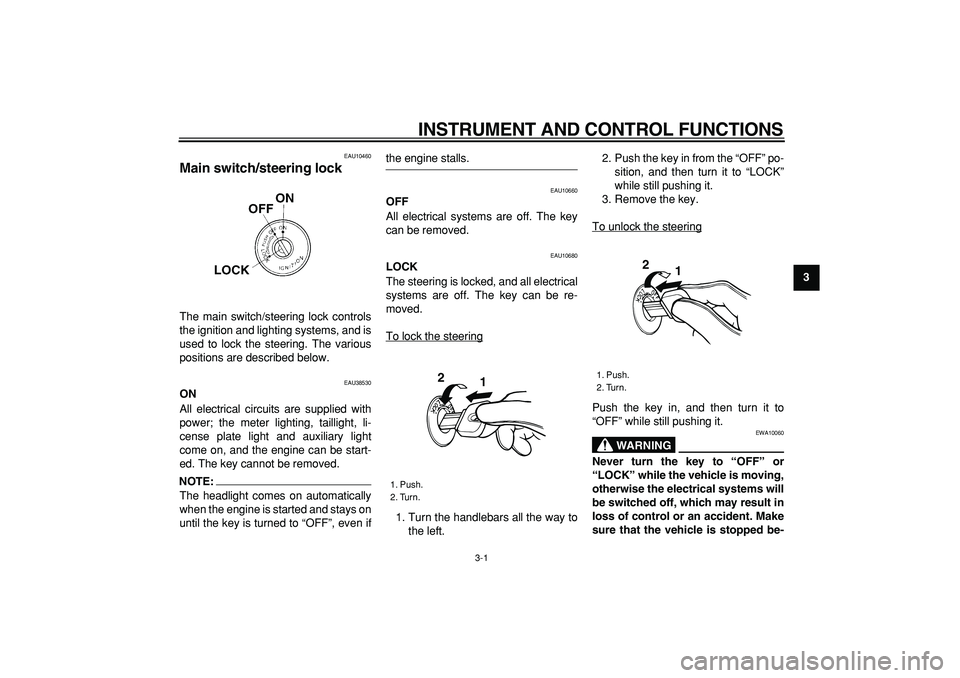

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38530
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, li-
cense plate light and auxiliary light
come on, and the engine can be start-
ed. The key cannot be removed.
NOTE:

The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
WARNING

EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
1. Push.
2. Turn.
1
2

1. Push.
2. Turn.
1 2

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
2
3
4
5
6
7
8
9fore turning the key to “OFF” or

“LOCK”.
EAU11003
Indicator and warning lights
EAU11020
Turn signal indicator light “”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11060
Neutral indicator light “”
This indicator light comes on when thetransmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11350
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
2.1 L (0.55 US gal) (0.46 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EAU11440
Coolant temperature warning light
“”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
1. Coolant temperature warning light “ ”
2. Fuel level warning light “ ”
3. Neutral indicator light “ ”
4. Turn signal indicator light “ ”
5. High beam indicator light “ ”
6. Engine trouble warning light “ ”
1234
5 6

INSTRUMENT AND CONTROL FUNCTIONS
3-3
2
34
5
6
7
8
9
the engine to cool.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
CAUTION:

ECA10020
Do not operate the engine if it is
overheated.
EAU43020
Engine trouble warning light “”
This warning light comes on when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
NOTE:

This warning light will come on whenthe key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU45272
Multi-function display
WARNING

EWA12311
Be sure to stop the vehicle before
making any setting changes to the
multi-function display.
1. “RESET” button
2. “SELECT 1” button
3. “SELECT 2” button
4. Clock/stopwatch
5. Speedometer
6. Odometer/tripmeter/fuel reserve tripmeter
1
23
4
5
6

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9
NOTE:


The multi-function display can be
set to the basic mode or the mea-
surement mode.

Tripmeter A will automatically re-
set to zero when changing from
the basic mode to the measure-
ment mode or vice versa.
Basic mode:

a speedometer (which shows the
riding speed)

an odometer (which shows the to-tal distance traveled)

two tripmeters (which show the
distance traveled since they were
last set to zero)

a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)

a clock

a self-diagnosis device
Measurement mode:

a speedometer (which shows the
riding speed)

a distance-compensation tripme-
ter (which shows the accumulated
distance traveled since set to zero
and which can be calibrated to pro-
vide a more accurate tripmeter
reading)

a stopwatch (which shows the time
that has been accumulated since
the start of stopwatch measure-
ment)

a self-diagnosis device
NOTE:


Be sure to turn the key to “ON” be-
fore using the “SELECT 1”,“SELECT 2” and “RESET” but-
tons.

When the key is turned to “ON”, all
of the display segments of the
multi-function display will appear
and then disappear, in order to test
the electrical circuit.

For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SELECT 2”
button until the display changes af-
ter the main switch is turned to
“ON”.
Basic mode
Odometer and tripmeter modes
Push the “SELECT 2” button to switch
the display between the odometer
mode and the tripmeter modes A and B
in the following order:
odometer
→
tripmeter A
→
tripmeter B
→
odometer

1. Stopwatch indicator “ ”
2. Tripmeter A indicator “ ”/
Distance-compensation tripmeter “ ”
3. Tripmeter B indicator “ ”
1
3
2

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
NOTE:

Indicator “ ” comes on when tripmeter
A is selected, and indicator “ ” comes
on when tripmeter B is selected.If the fuel level warning light comes on
(see page 3-2), the display will auto-
matically change to the fuel reserve
tripmeter mode “F” and start counting
the distance traveled from that point. In
this case, push the “SELECT 2” button
to switch the display between the vari-
ous tripmeter and odometer modes in
the following order:
fuel reserve tripmeter “F”
→
odometer
→
tripmeter A
→
tripmeter B
→
fuel re-
serve tripmeter “F”
NOTE:

The fuel level warning light may not
function accurately while riding off road
as the fuel level reading changes due to
the movement and inclination of the ve-
hicle.
If the fuel level warning light comes on
while riding in the measurement mode,
change to the basic mode and push the
“SELECT 2” button to display the fuel
reserve tripmeter.
NOTE:

To change from the measurement
mode to the basic mode, the stopwatch
and the distance-compensation tripme-
ter must be stopped.
To reset a tripmeter, select it by push-
ing the “SELECT 2” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Clock
Turn the key to “ON”.NOTE:

When setting the clock, push the
“SELECT 1” button to increase the dig-
its or “SELECT 2” button to decrease
1. Tripmeter A indicator “ ”
1. Tripmeter B indicator “ ”
11

1. Fuel reserve tripmeter “F”
1

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
the digits. Pushing and holding either
button will increase or decrease the
digits continuously until the button is re-

leased.
To set the clock
1. Push the “SELECT 1” button for at
least two seconds.
2. When the hour digits start flashing,
push either select button to set the
hours.
3. Push the “RESET” button, and the
minute digits will start flashing.
4. Push either select button to set the
minutes.
5. Push the “RESET” button, and the
second digits will start flashing.
6. Push either select button to set the
second digits to zero.
7. Push the “RESET” button for at
least two seconds, and then re-
lease it to start the clock.NOTE:

If the “RESET” button is not pushed
within 30 seconds, the clock will not be
set and will return to the prior time.
Changing from the basic mode to
the measurement mode
With the odometer selected, push the
“SELECT 1” button and “SELECT 2”
button together for at least two seconds
to change to the measurement mode.
Changing from the measurement
mode to the basic mode
NOTE:

The stopwatch must be stopped before
changing to the basic mode.
1. Check that the stopwatch is not in
operation. If the stopwatch is in op-
eration, stop it by pushing the
“SELECT 1” button and “SELECT
2” button together.
2. Push the “SELECT 1” button and
“SELECT 2” button together for at
least two seconds to change to the
basic mode.
Measurement mode (for the stop-
watch)
When the measurement mode is select-
ed, the stopwatch is displayed and it can
be started manually or automatically.Manual start
The manual start is the default setting
for the stopwatch. The stopwatch indi-
cator “ ” and the distance-compensa-
tion tripmeter indicator “ ” will start
flashing.
1. Push the “RESET” button to start
the stopwatch.
2. Push the “SELECT 1” button and
“SELECT 2” button together to
stop the stopwatch.
3. To resume stopwatch counting,
push the “SELECT 1” button and
“SELECT 2” button together.
To reset the stopwatch to zero,
see “Resetting the distance-com-
pensation tripmeter or the dis-
tance-compensation tripmeter in
combination with the stopwatch”
