INSTRUMENT AND CONTROL FUNCTIONS
3-7
2
34
5
6
7
8
9
on page 3-8.
NOTE:

The stopwatch will continue counting
when the vehicle is stopped. To stop
and/or resume counting, repeat steps 2
and 3.
Auto start
1. Push the “SELECT 1” button for at
least two seconds to set the auto
start.NOTE:

When the stopwatch is set to auto start,
the stopwatch indicator “ ” and the
distance-compensation tripmeter indi-
cator “ ” will start flashing, and the
digits in the display will start scrolling
from left to right.2. When the vehicle starts moving,
the stopwatch will start counting.
3. Push the “SELECT 1” button and
“SELECT 2” button together to
stop the stopwatch.
4. To resume counting, push the
“SELECT 1” button and “SELECT
2” button together again.
NOTE:

The stopwatch will continue counting
when the vehicle is stopped. To stop
and/or resume counting, repeat steps 3
and 4.
Measurement mode (for calibrating
the distance-compensation tripme-
ter’s reading)
The distance-compensation tripmeteris a feature intended to provide a more
accurate tripmeter reading for enduro
riding. Calibrating this meter in accor-
dance with the distances specified on
the enduro course map will help famil-
iarize the rider with the course. In addi-
tion, calibrating the meter may also be
necessary when using tire, wheel,
chain sprocket sizes, etc. other than
specified. For further information con-
cerning the use of this meter, please
consult your nearby Yamaha dealer.
Calibrate the distance-compensation
tripmeter as follows.
To increase the reading, push the
“SELECT 1” button. To decrease the
reading, push the “SELECT 2” button.
Pushing and holding either button will
increase or decrease the reading con-
tinuously until the button is released.
NOTE:

Calibrating the reading of the dis-
tance-compensation tripmeter is possi-
ble regardless of the stopwatch
operation.

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9Resetting the distance-compensa-
tion tripmeter or the distance-com-
pensation tripmeter in combination
with the stopwatch
NOTE:

Resetting can be made only to the dis-
tance-compensation tripmeter or to the
distance-compensation tripmeter in
combination with the stopwatch.
Resetting the distance-compensation
tripmeter1. Check that the stopwatch mea-
surement is in operation.
2. Reset the distance-compensation
tripmeter to zero by pushing the
“RESET” button for at least two
seconds.
Resetting the distance-compensationtripmeter in combination with the stop-watch1. Stop the stopwatch.
2. Reset the distance-compensation
tripmeter and the stopwatch to
zero by pushing the “RESET” but-
ton for at least two seconds.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the display will indicate a
two-digit error code.
If the display indicates any error codes,
note the code number, and then have a
Yamaha dealer check the vehicle.
CAUTION:

ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
EAU12347
Handlebar switches
Left
1. Error code display
1

1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “ ”
1
2
3

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8

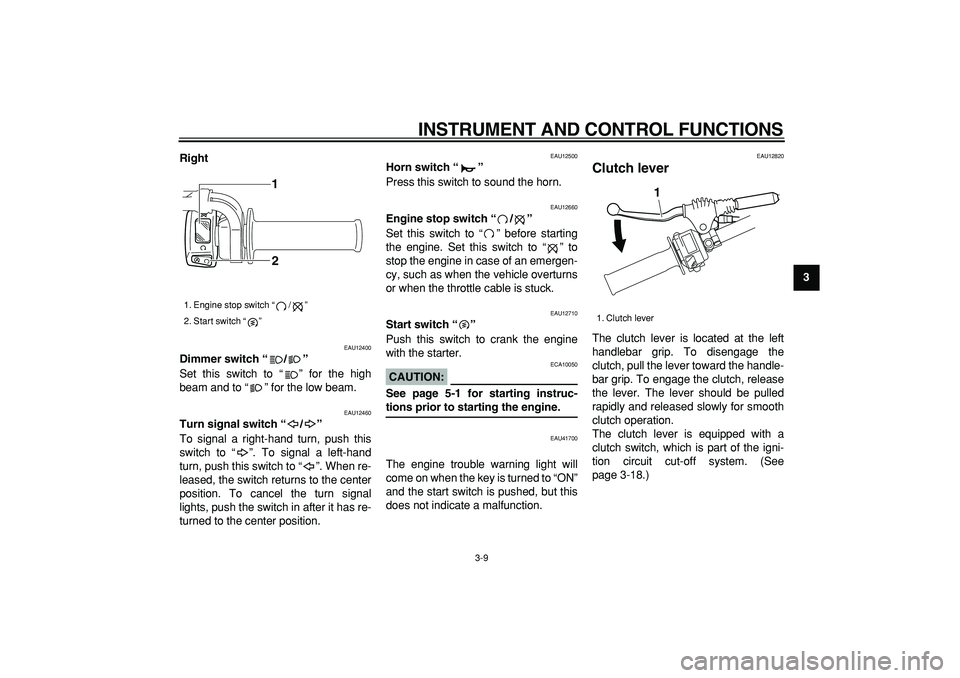

9 Right

EAU12400
Dimmer switch “/”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “ ” before starting
the engine. Set this switch to “ ” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-18.)
1. Engine stop switch “ / ”
2. Start switch “ ”
1
2

1. Clutch lever
1

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9

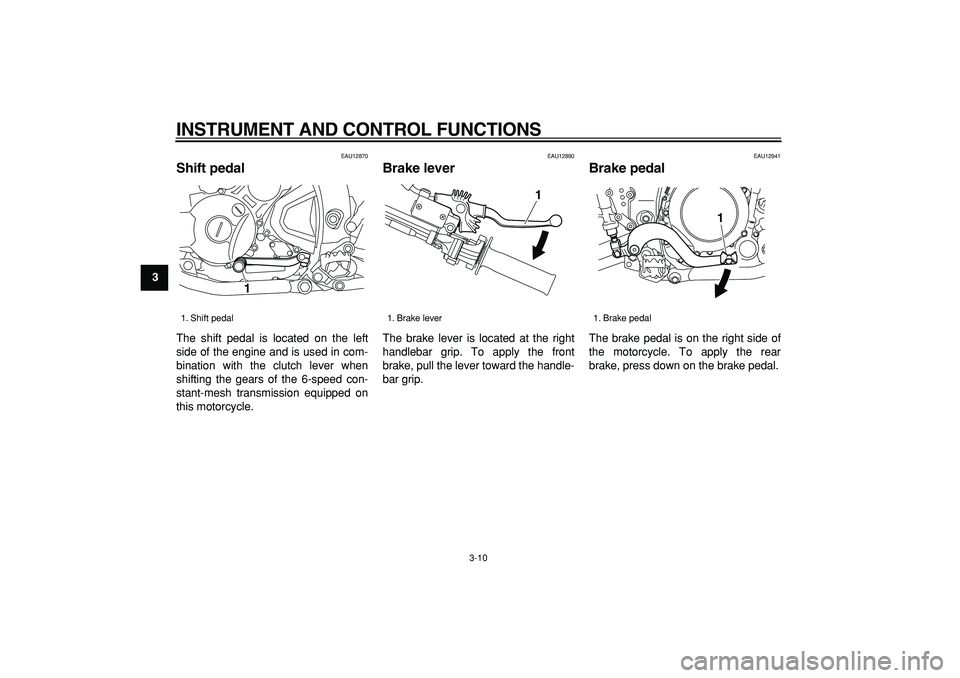

EAU12870
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
1. Shift pedal
1

1. Brake lever
1

1. Brake pedal
1

INSTRUMENT AND CONTROL FUNCTIONS
3-11
2
34
5
6
7
8
9

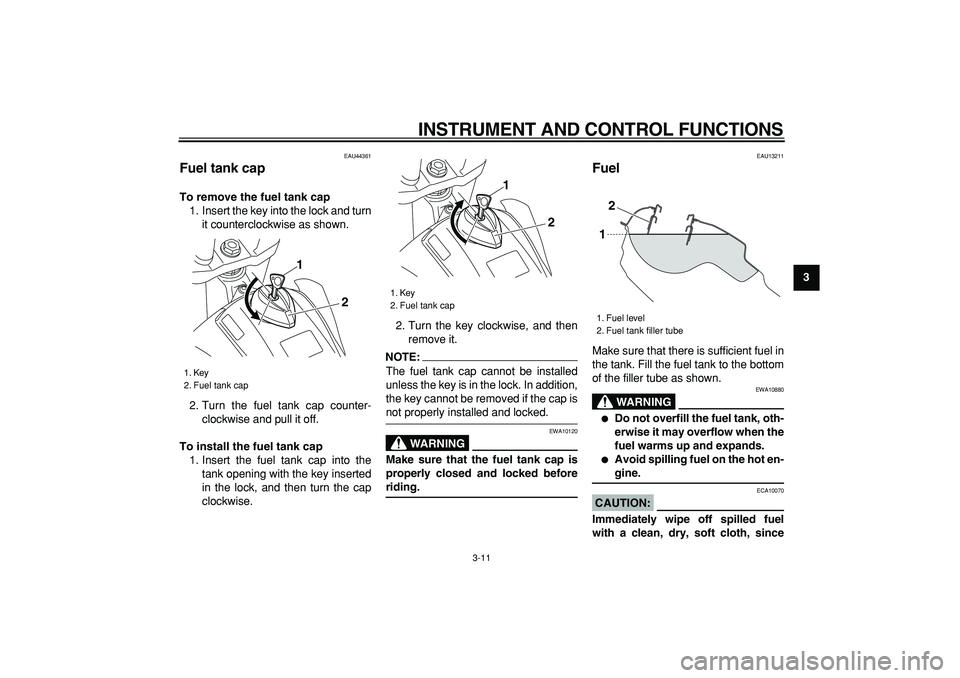

EAU44361
Fuel tank cap
To remove the fuel tank cap
1. Insert the key into the lock and turn
it counterclockwise as shown.
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock, and then turn the cap
clockwise.2. Turn the key clockwise, and then
remove it.
NOTE:

The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
WARNING

EWA10120
Make sure that the fuel tank cap is
properly closed and locked before
riding.
EAU13211
Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
1. Key
2. Fuel tank cap
1
2

1. Key
2. Fuel tank cap
1
2
1. Fuel level
2. Fuel tank filler tube
2
1

INSTRUMENT AND CONTROL FUNCTIONS
3-12
1
2
3
4
5
6
7
8
9fuel may deteriorate painted surfac-

es or plastic parts.

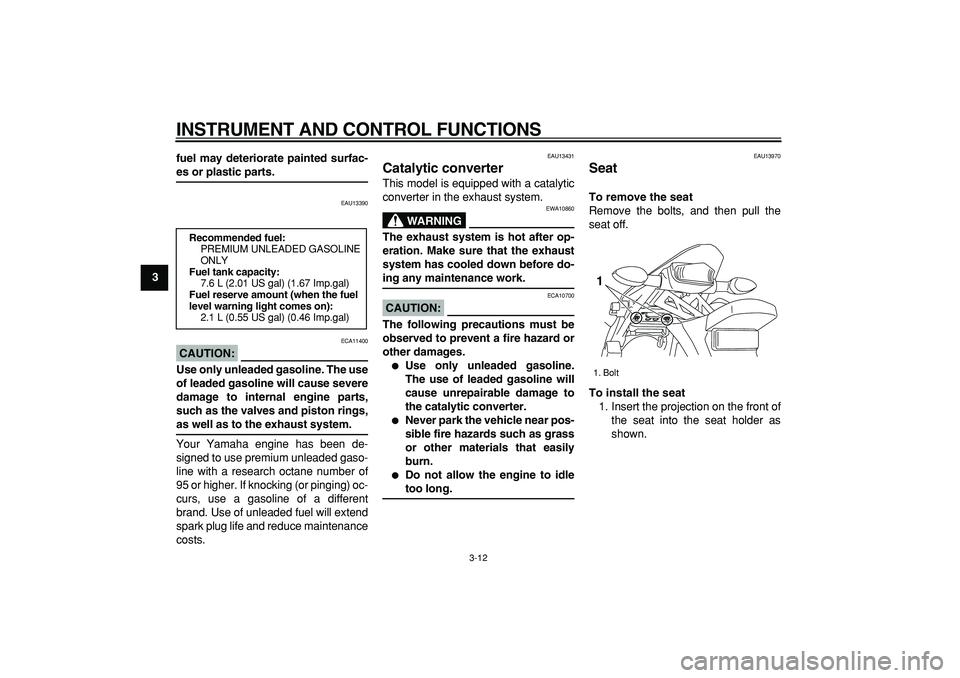

EAU13390
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU13431
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
EAU13970
Seat
To remove the seat
Remove the bolts, and then pull the
seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.

Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
7.6 L (2.01 US gal) (1.67 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
2.1 L (0.55 US gal) (0.46 Imp.gal)

1. Bolt
1

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9
2. Place the seat in the original posi-
tion, and then tighten the bolts.
NOTE:

Make sure that the seat is properly se-
cured before riding.

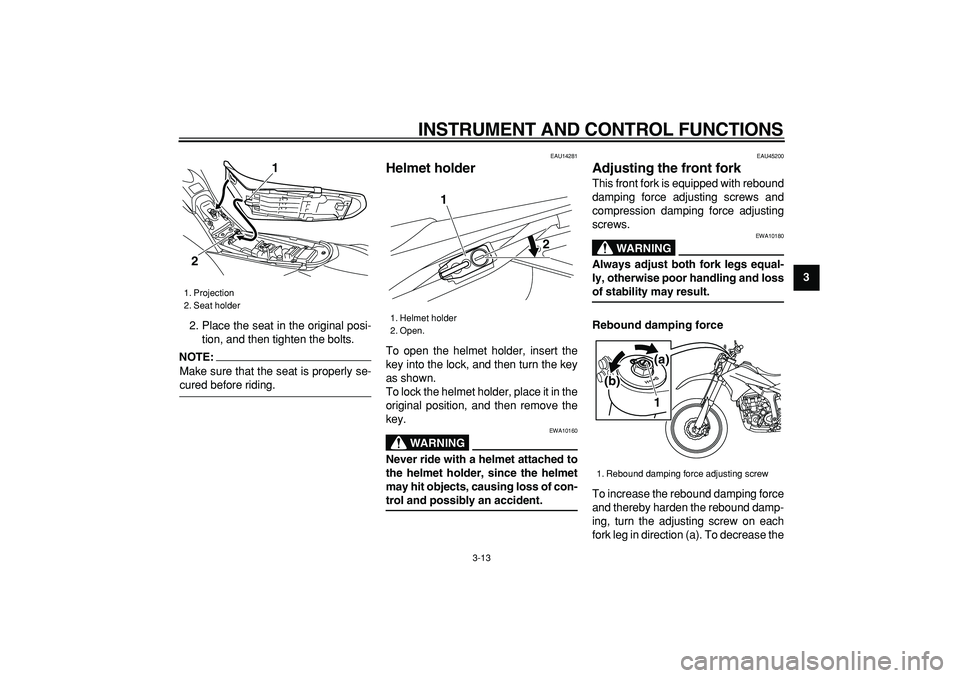

EAU14281
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in the
original position, and then remove the
key.
WARNING

EWA10160
Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of con-
trol and possibly an accident.
EAU45200
Adjusting the front fork
This front fork is equipped with rebound
damping force adjusting screws and
compression damping force adjusting
screws.
WARNING

EWA10180
Always adjust both fork legs equal-
ly, otherwise poor handling and loss
of stability may result.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw on each
fork leg in direction (a). To decrease the
1. Projection
2. Seat holder
1
2

1. Helmet holder
2. Open.
1
2

1. Rebound damping force adjusting screw
1
(b)
(a)

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9
rebound damping force and thereby
soften the rebound damping, turn the
adjusting screw on each fork leg in di-
rection (b).

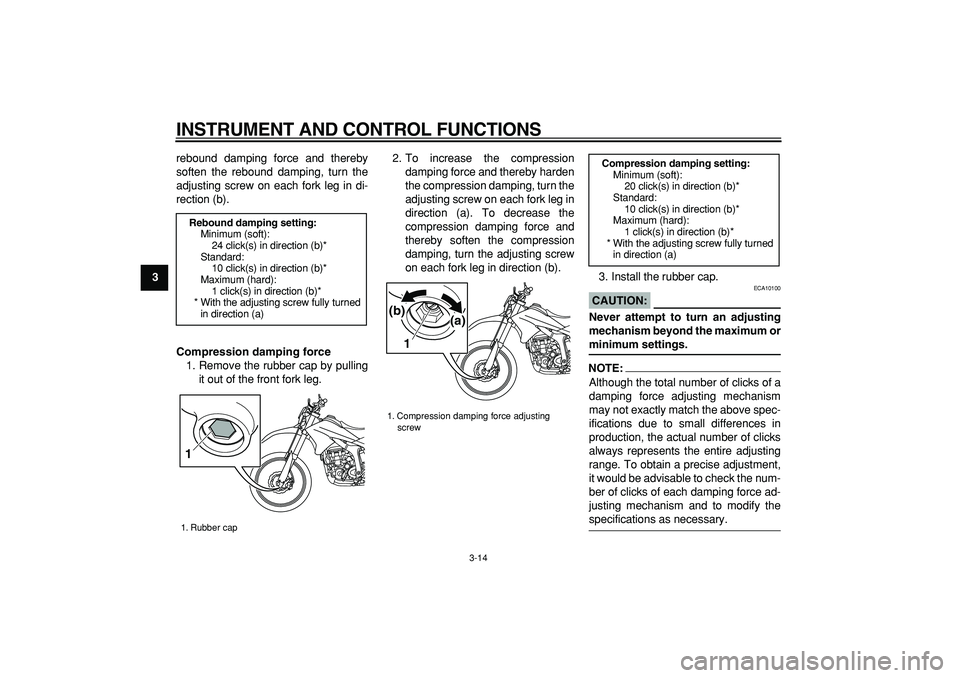

Compression damping force
1. Remove the rubber cap by pulling
it out of the front fork leg.2. To increase the compression
damping force and thereby harden
the compression damping, turn the
adjusting screw on each fork leg in
direction (a). To decrease the
compression damping force and
thereby soften the compression
damping, turn the adjusting screw
on each fork leg in direction (b).
3. Install the rubber cap.
CAUTION:

ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
NOTE:

Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
always represents the entire adjusting
range. To obtain a precise adjustment,
it would be advisable to check the num-
ber of clicks of each damping force ad-
justing mechanism and to modify the
specifications as necessary.
Rebound damping setting:
Minimum (soft):
24 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1. Rubber cap
1

1. Compression damping force adjusting
screw
1(a) (b)

Compression damping setting:
Minimum (soft):
20 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)

INSTRUMENT AND CONTROL FUNCTIONS
3-15
2
34
5
6
7
8
9

EAU14790

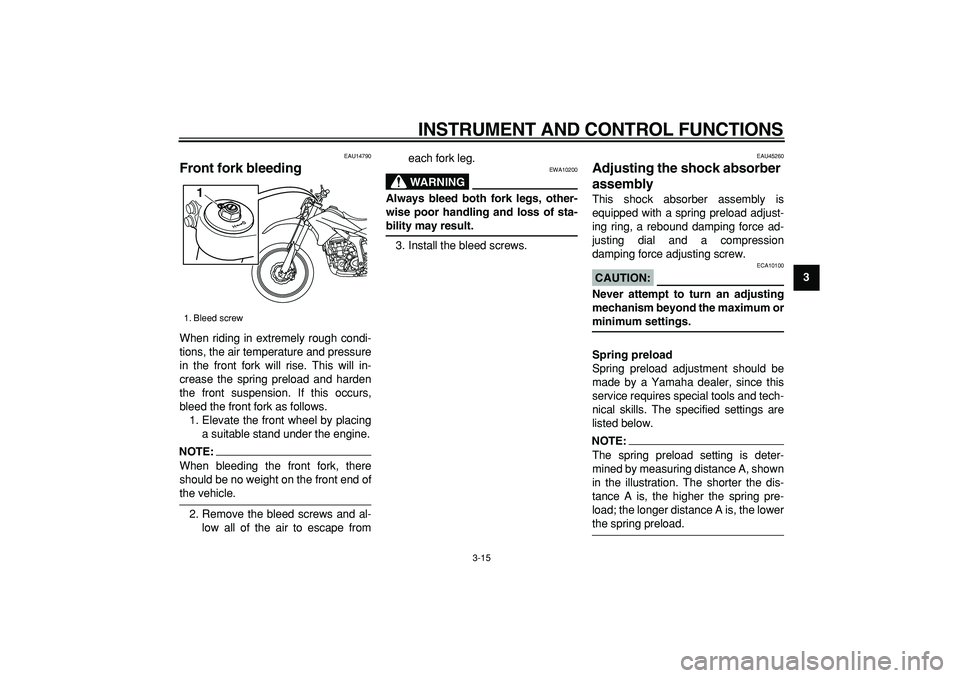

Front fork bleeding
When riding in extremely rough condi-
tions, the air temperature and pressure
in the front fork will rise. This will in-
crease the spring preload and harden
the front suspension. If this occurs,
bleed the front fork as follows.
1. Elevate the front wheel by placing
a suitable stand under the engine.
NOTE:

When bleeding the front fork, there
should be no weight on the front end of
the vehicle.
2. Remove the bleed screws and al-
low all of the air to escape fromeach fork leg.
WARNING

EWA10200
Always bleed both fork legs, other-
wise poor handling and loss of sta-
bility may result.
3. Install the bleed screws.
EAU45260
Adjusting the shock absorber
assembly
This shock absorber assembly is
equipped with a spring preload adjust-
ing ring, a rebound damping force ad-
justing dial and a compression
damping force adjusting screw.
CAUTION:

ECA10100
Never attempt to turn an adjusting
mechanism beyond the maximum or
minimum settings.
Spring preload
Spring preload adjustment should be
made by a Yamaha dealer, since this
service requires special tools and tech-
nical skills. The specified settings are
listed below.
NOTE:

The spring preload setting is deter-
mined by measuring distance A, shown
in the illustration. The shorter the dis-
tance A is, the higher the spring pre-
load; the longer distance A is, the lower
the spring preload.
1. Bleed screw
1

INSTRUMENT AND CONTROL FUNCTIONS
3-16
1
2
3
4
5
6
7
8

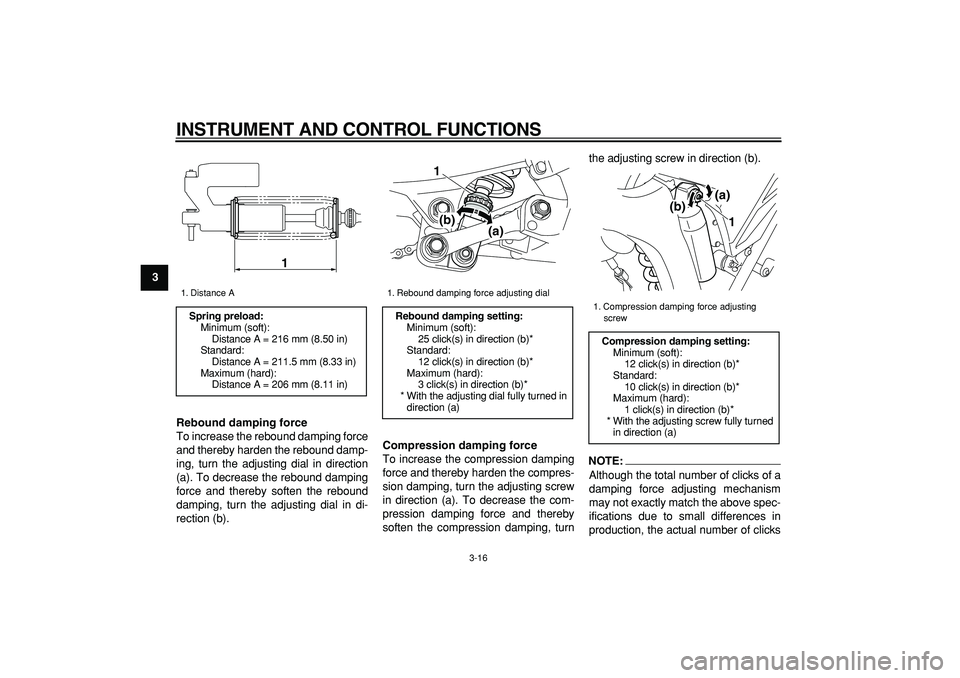

9Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting dial in direction
(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting dial in di-
rection (b).
Compression damping force
To increase the compression damping
force and thereby harden the compres-
sion damping, turn the adjusting screw
in direction (a). To decrease the com-
pression damping force and thereby
soften the compression damping, turnthe adjusting screw in direction (b).
NOTE:

Although the total number of clicks of a
damping force adjusting mechanism
may not exactly match the above spec-
ifications due to small differences in
production, the actual number of clicks
1. Distance A
Spring preload:
Minimum (soft):
Distance A = 216 mm (8.50 in)
Standard:
Distance A = 211.5 mm (8.33 in)
Maximum (hard):
Distance A = 206 mm (8.11 in)
1

1. Rebound damping force adjusting dial
Rebound damping setting:
Minimum (soft):
25 click(s) in direction (b)*
Standard:
12 click(s) in direction (b)*
Maximum (hard):
3 click(s) in direction (b)*
* With the adjusting dial fully turned in
direction (a)(a) (b) 1
1. Compression damping force adjusting
screw
Compression damping setting:
Minimum (soft):
12 click(s) in direction (b)*
Standard:
10 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting screw fully turned
in direction (a)
1 (a)
(b)
