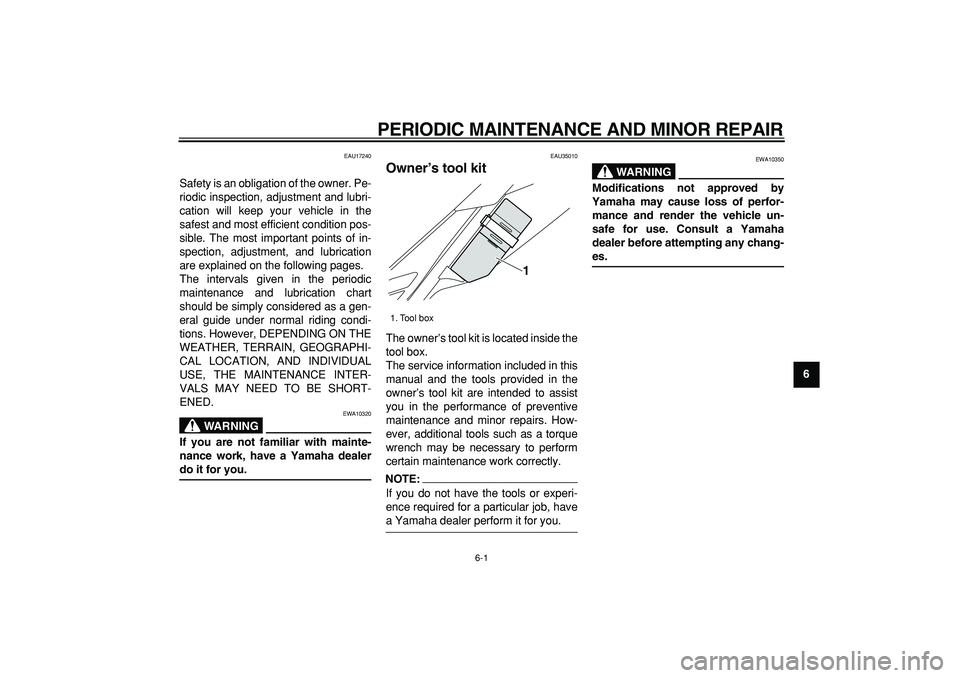

PERIODIC MAINTENANCE AND MINOR REPAIR
EAU17240
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING

EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealer
do it for you.
EAU35010
Owner’s tool kit
The owner’s tool kit is located inside the
tool box.
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:

If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you.
WARNING

EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es.
1. Tool box
1

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
1
2
3
4
5
6
7
8
9

EAU1770A
Periodic maintenance and lubrication chart
NOTE:


The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.

From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technical
skills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*
Fuel line

Check fuel hoses for cracks or
damage.
√√√√√
2*
Spark plug

Check condition.

Clean and regap.
√√

Replace.
√√
3*
Valves

Check valve clearance.

Adjust.Every 40000 km (24000 mi)
4
Air filter element

Clean.
√√

Replace.
√√
5
Clutch

Check operation.

Adjust.
√√√√√
6*
Front brake

Check operation, fluid level
and vehicle for fluid leakage.

Adjust brake lever free play.
√√√√√√

Replace brake pads. Whenever worn to the limit
7*
Rear brake

Check operation, fluid level
and vehicle for fluid leakage.
√√√√√√

Replace brake pads. Whenever worn to the limit

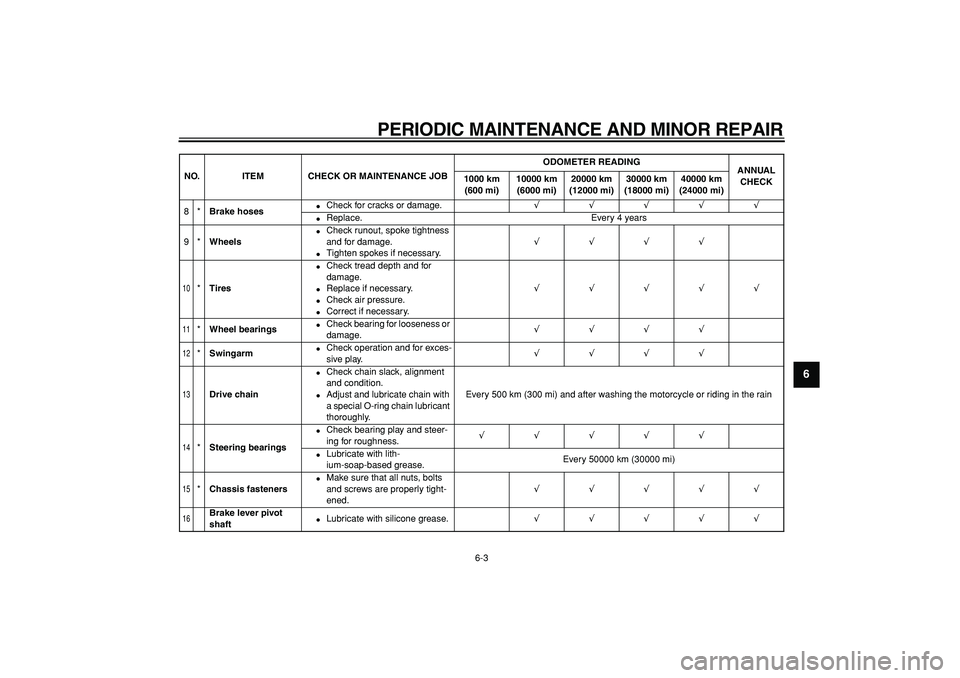

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
2
3
4
5
67
8
9

8*
Brake hoses

Check for cracks or damage.
√√√√√

Replace. Every 4 years
9*
Wheels

Check runout, spoke tightness
and for damage.

Tighten spokes if necessary.
√√√√
10

*
Tires

Check tread depth and for
damage.

Replace if necessary.

Check air pressure.

Correct if necessary.
√√√√√
11

*
Wheel bearings

Check bearing for looseness or
damage.
√√√√
12

*
Swingarm

Check operation and for exces-
sive play.
√√√√
13

Drive chain

Check chain slack, alignment
and condition.

Adjust and lubricate chain with
a special O-ring chain lubricant
thoroughly.Every 500 km (300 mi) and after washing the motorcycle or riding in the rain
14

*
Steering bearings

Check bearing play and steer-
ing for roughness.
√√√√√

Lubricate with lith-
ium-soap-based grease.Every 50000 km (30000 mi)
15

*
Chassis fasteners

Make sure that all nuts, bolts
and screws are properly tight-
ened.
√√√√√
16

Brake lever pivot
shaft

Lubricate with silicone grease.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

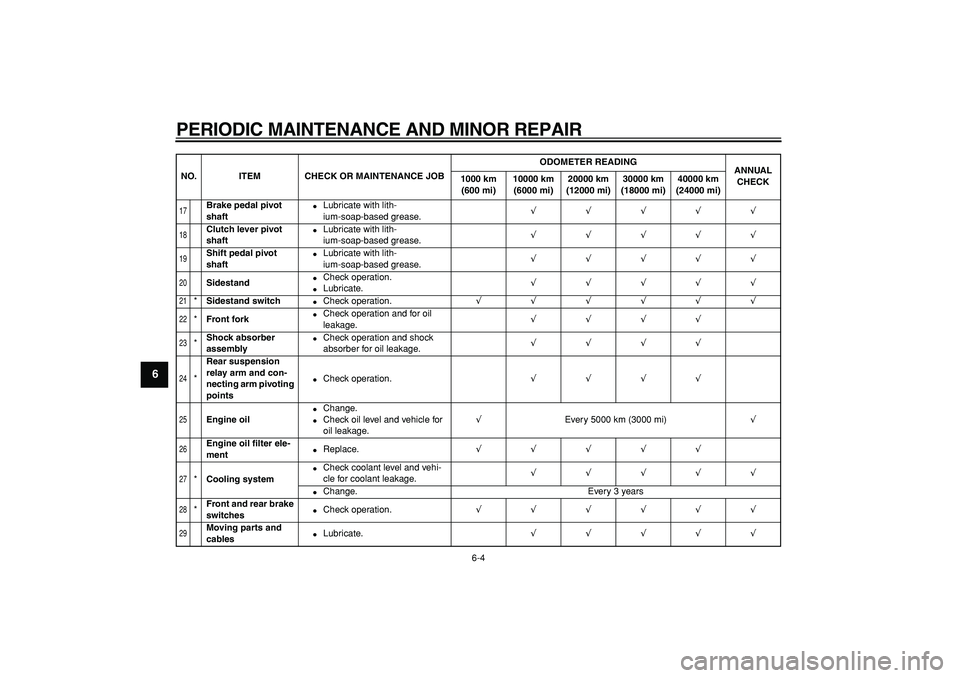

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
1
2
3
4
5
6
7
8
9

17

Brake pedal pivot
shaft

Lubricate with lith-
ium-soap-based grease.
√√√√√
18

Clutch lever pivot
shaft

Lubricate with lith-
ium-soap-based grease.
√√√√√
19

Shift pedal pivot
shaft

Lubricate with lith-
ium-soap-based grease.
√√√√√
20

Sidestand

Check operation.

Lubricate.
√√√√√
21

*
Sidestand switch

Check operation.
√√√√√√
22

*
Front fork

Check operation and for oil
leakage.
√√√√
23

*
Shock absorber
assembly

Check operation and shock
absorber for oil leakage.
√√√√
24

*
Rear suspension
relay arm and con-
necting arm pivoting
points

Check operation.
√√√√
25

Engine oil

Change.

Check oil level and vehicle for
oil leakage.
√
Every 5000 km (3000 mi)
√
26

Engine oil filter ele-
ment

Replace.
√√√√√
27

*
Cooling system

Check coolant level and vehi-
cle for coolant leakage.
√√√√√

Change. Every 3 years
28

*
Front and rear brake
switches

Check operation.
√√√√√√
29

Moving parts and
cables

Lubricate.
√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

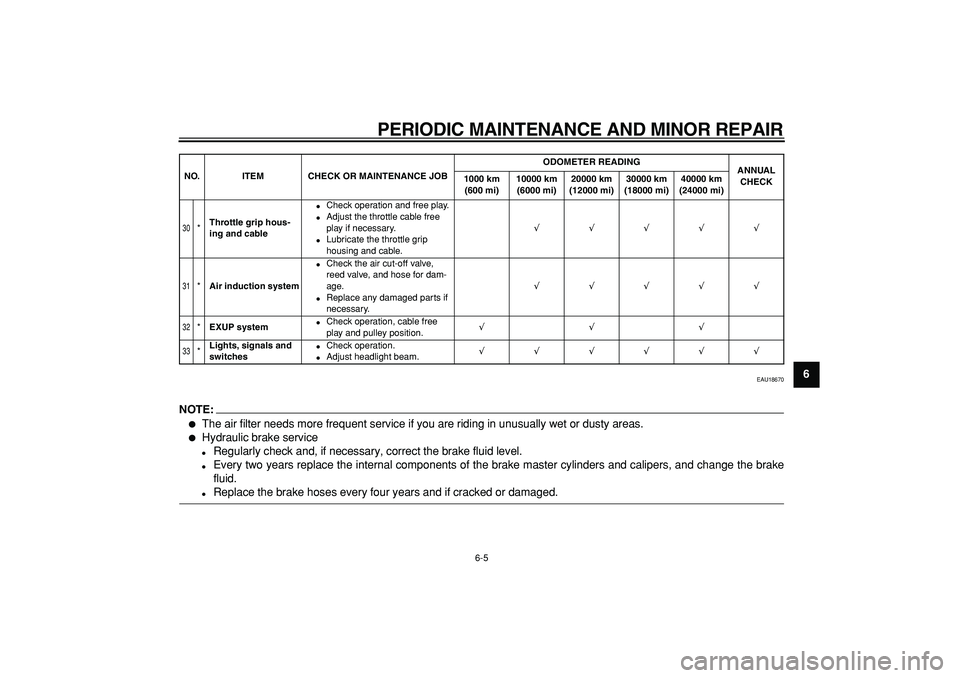

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
2
3
4
5
67
8
9

EAU18670
NOTE:


The air filter needs more frequent service if you are riding in unusually wet or dusty areas.

Hydraulic brake service

Regularly check and, if necessary, correct the brake fluid level.

Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.

Replace the brake hoses every four years and if cracked or damaged.
30

*
Throttle grip hous-
ing and cable

Check operation and free play.

Adjust the throttle cable free
play if necessary.

Lubricate the throttle grip
housing and cable.
√√√√√
31

*
Air induction system

Check the air cut-off valve,
reed valve, and hose for dam-
age.

Replace any damaged parts if
necessary.
√√√√√
32

*
EXUP system

Check operation, cable free
play and pulley position.
√√√
33

*
Lights, signals and
switches

Check operation.

Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)

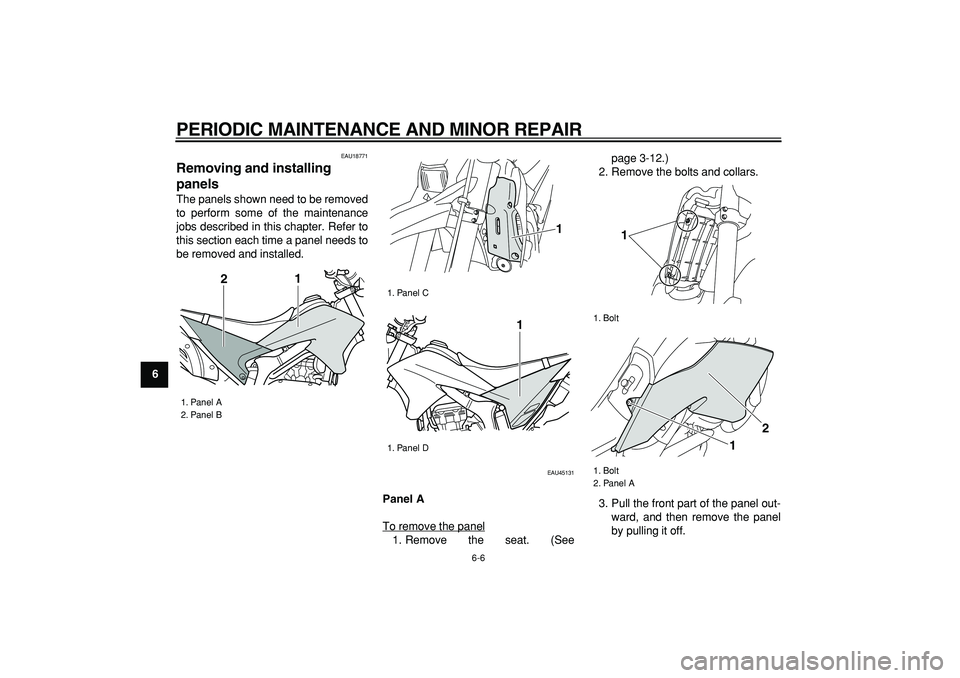

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
1
2
3
4
5
6
7
8
9

EAU18771
Removing and installing
panels
The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU45131
Panel A
To remove the panel
1. Remove the seat. (Seepage 3-12.)
2. Remove the bolts and collars.
3. Pull the front part of the panel out-
ward, and then remove the panel
by pulling it off.

1. Panel A
2. Panel B
1
2

1. Panel C
1. Panel D
1
1

1. Bolt
1. Bolt
2. Panel A
1
1
2

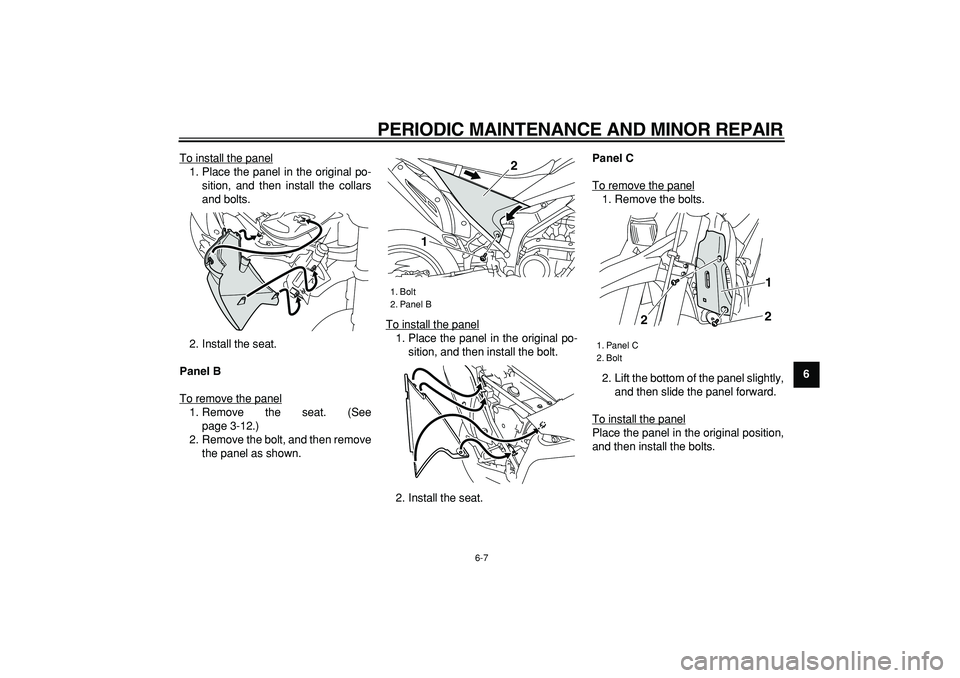

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
2
3
4
5
67
8
9
To install the panel
1. Place the panel in the original po-
sition, and then install the collars
and bolts.
2. Install the seat.
Panel B
To remove the panel1. Remove the seat. (See
page 3-12.)
2. Remove the bolt, and then remove
the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the bolt.
2. Install the seat.
Panel C
To remove the panel
1. Remove the bolts.
2. Lift the bottom of the panel slightly,
and then slide the panel forward.
To install the panelPlace the panel in the original position,
and then install the bolts.

1. Bolt
2. Panel B
12

1. Panel C
2. Bolt
12
2

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
1
2
3
4
5
6
7
8
9Panel D
To remove the panel
1. Remove the seat. (See
page 3-12.)
2. Remove the bolt and washer, and
then remove the panel as shown.To install the panel
1. Place the panel in the original po-
sition, and then install the washer
and bolt.
2. Install the seat.

EAU19621
Checking the spark plug
The spark plug is an important engine
component, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode, it
should be removed and checked in ac-
cordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plug can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of the spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally). If
the spark plug shows a distinctly differ-
ent color, the engine could be operating
improperly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If the spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced.
Before installing a spark plug, the spark
1. Bolt
2. Washer
3. Panel D
3
2
1

Specified spark plug:
NGK/CR9EK

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
2
3
4
5
67
8
9
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:

If a torque wrench is not available when
installing a spark plug, a good estimateof the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU45140
Engine oil and oil filter
element
The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:

Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in a
false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-right side of the
crankcase.
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
13 Nm (1.3 m·kgf, 9.4 ft·lbf)
11

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
1
2
3
4
5
6
7
8
9
NOTE:

The engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To change the engine oil (with or
without oil filter element replace-
ment)
1. Place the vehicle on a level sur-
face.2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the engine

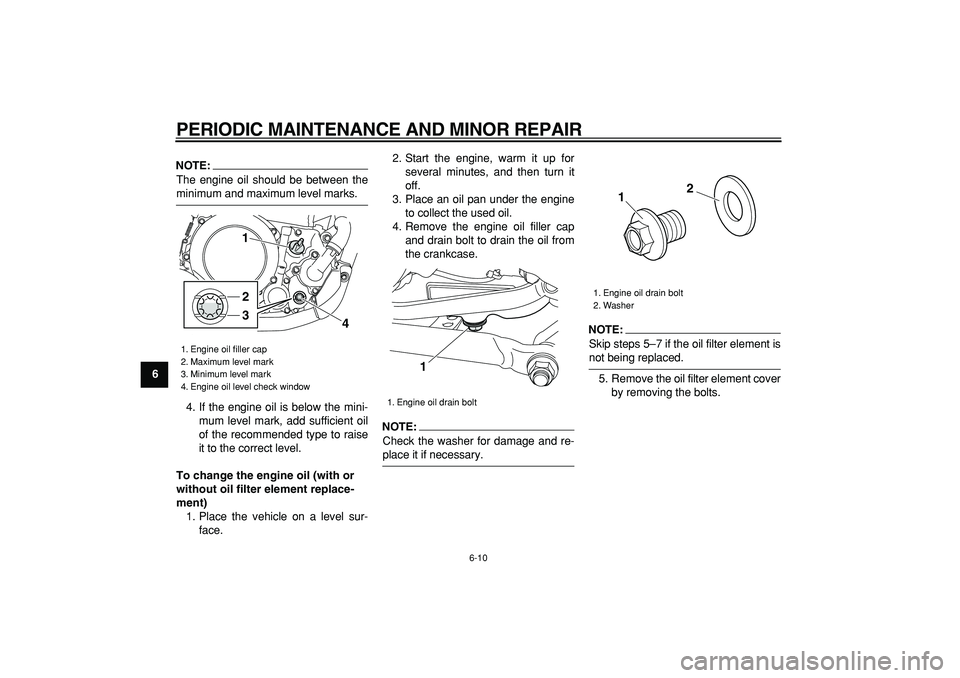

to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:

Check the washer for damage and re-
place it if necessary.
NOTE:

Skip steps 5–7 if the oil filter element is
not being replaced.
5. Remove the oil filter element cover
by removing the bolts.
1. Engine oil filler cap
2. Maximum level mark
3. Minimum level mark
4. Engine oil level check window
1
2
3
4

1. Engine oil drain bolt
1

1. Engine oil drain bolt
2. Washer
2
1
