YAMAHA WR 250R 2008 Repair Manual

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
2
3
4
5
67
8
9

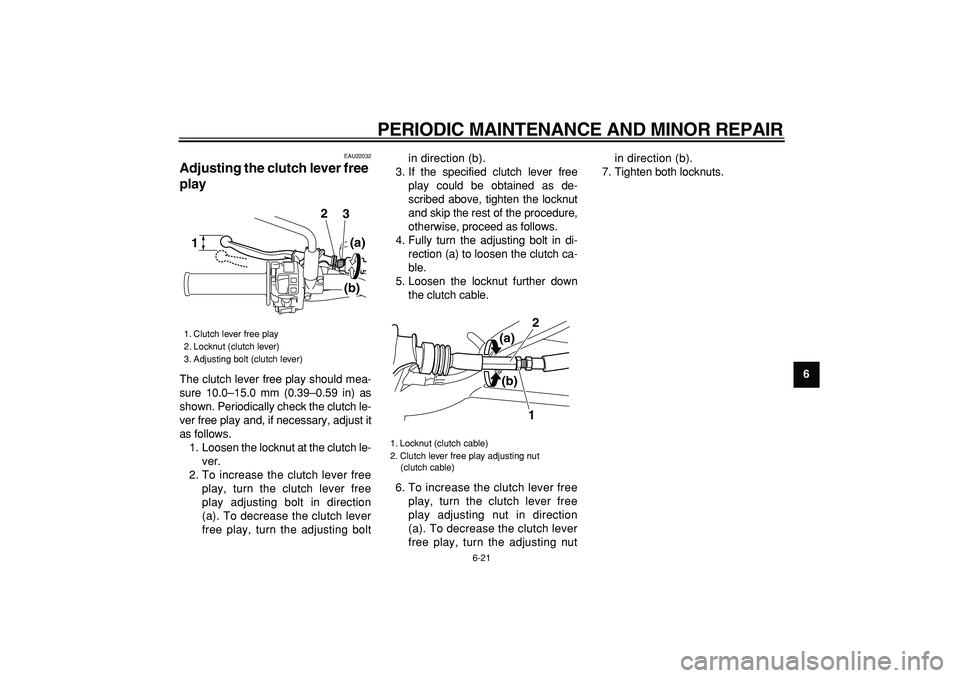

EAU22032
Adjusting the clutch lever free
play
The clutch lever free play should mea-
sure 10.0–15.0 mm (0.39–0.59 in) as
shown. Periodically check the clutch le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch le-
ver.
2. To increase the clutch lever free
play, turn the clutch lever free
play adjusting bolt in direction
(a). To decrease the clutch lever
free play, turn the adjusting boltin direction (b).
3. If the specified clutch lever free
play could be obtained as de-
scribed above, tighten the locknut
and skip the rest of the procedure,
otherwise, proceed as follows.
4. Fully turn the adjusting bolt in di-
rection (a) to loosen the clutch ca-
ble.
5. Loosen the locknut further down
the clutch cable.
6. To increase the clutch lever free
play, turn the clutch lever free
play adjusting nut in direction
(a). To decrease the clutch lever
free play, turn the adjusting nutin direction (b).
7. Tighten both locknuts.
1. Clutch lever free play
2. Locknut (clutch lever)
3. Adjusting bolt (clutch lever)
3 2
1(a)(b)

1. Locknut (clutch cable)
2. Clutch lever free play adjusting nut
(clutch cable)
12
(a)
(b)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
1
2
3
4
5
6
7
8
9

EAU22093

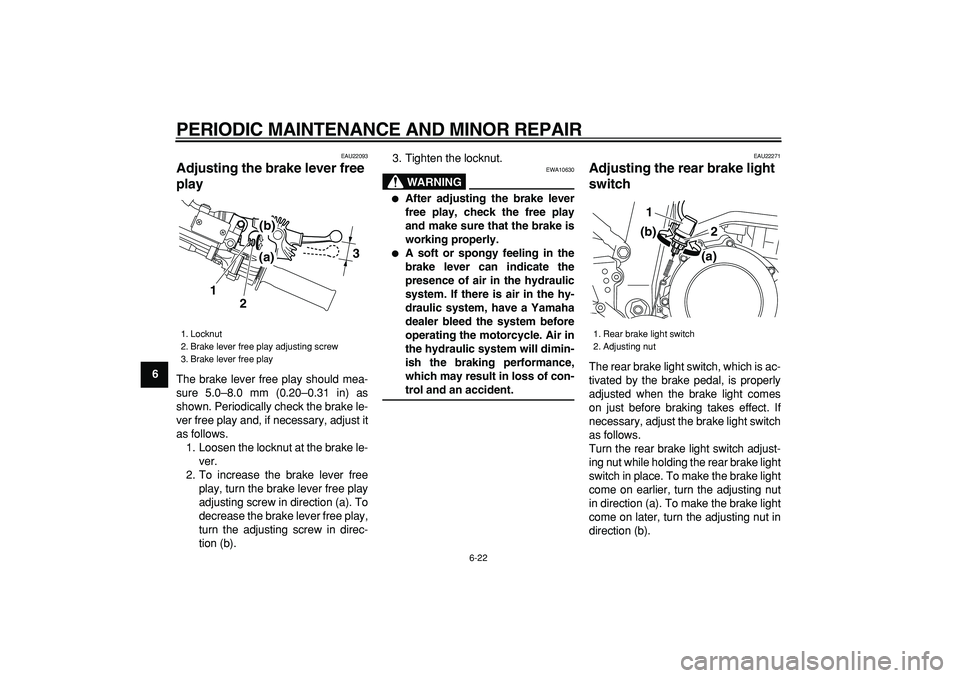

Adjusting the brake lever free
play
The brake lever free play should mea-
sure 5.0–8.0 mm (0.20–0.31 in) as
shown. Periodically check the brake le-
ver free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the brake le-
ver.
2. To increase the brake lever free
play, turn the brake lever free play
adjusting screw in direction (a). To
decrease the brake lever free play,
turn the adjusting screw in direc-
tion (b).3. Tighten the locknut.
WARNING

EWA10630

After adjusting the brake lever
free play, check the free play
and make sure that the brake is
working properly.

A soft or spongy feeling in the
brake lever can indicate the
presence of air in the hydraulic
system. If there is air in the hy-
draulic system, have a Yamaha
dealer bleed the system before
operating the motorcycle. Air in
the hydraulic system will dimin-
ish the braking performance,
which may result in loss of con-
trol and an accident.
EAU22271
Adjusting the rear brake light
switch
The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
1. Locknut
2. Brake lever free play adjusting screw
3. Brake lever free play
3
1
2
(b)
(a)

1. Rear brake light switch
2. Adjusting nut
1
2
(b)
(a)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
2
3
4
5
67
8
9

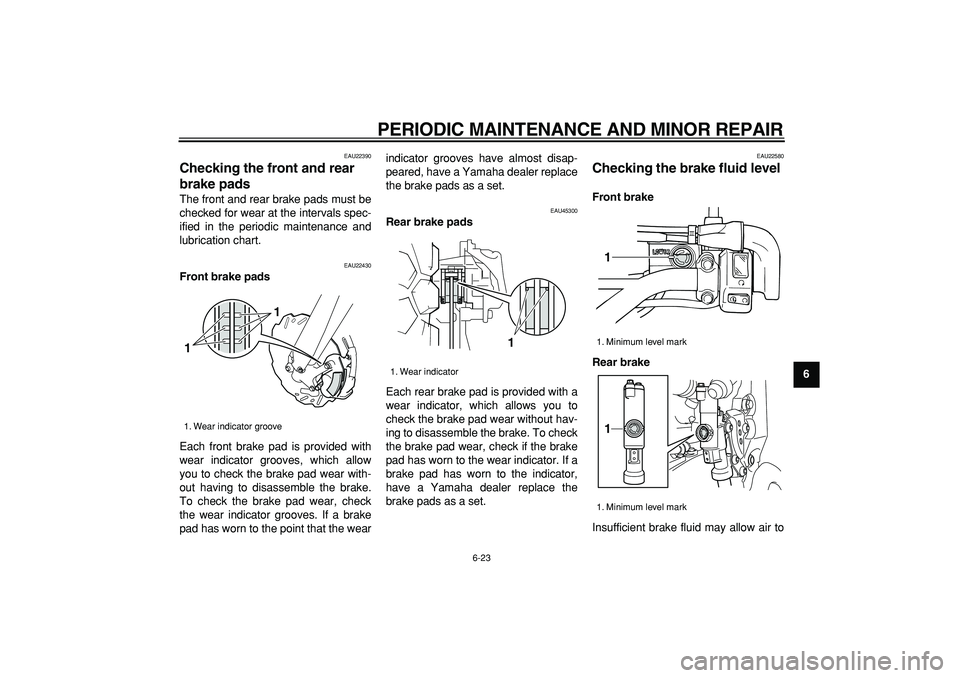

EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU45300
Rear brake pads
Each rear brake pad is provided with a
wear indicator, which allows you to
check the brake pad wear without hav-
ing to disassemble the brake. To check
the brake pad wear, check if the brake
pad has worn to the wear indicator. If a
brake pad has worn to the indicator,
have a Yamaha dealer replace the
brake pads as a set.
EAU22580
Checking the brake fluid level
Front brake
Rear brake
Insufficient brake fluid may allow air to
1. Wear indicator groove
11

1. Wear indicator
1
1. Minimum level mark
1. Minimum level mark
11

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
1
2
3
4
5
6
7
8
9

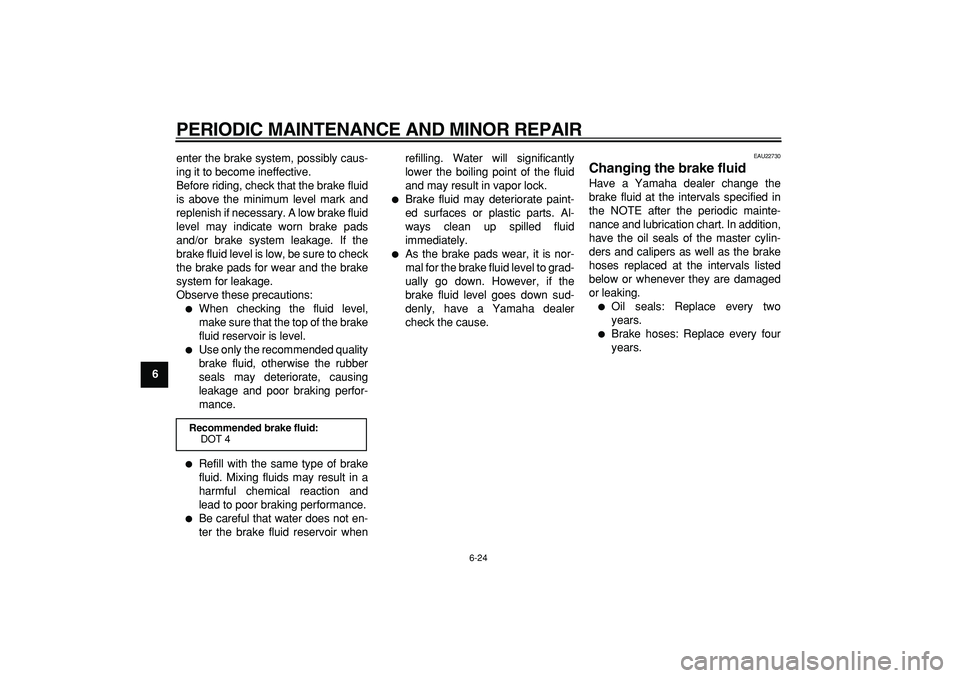

enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:


When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.

Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.

Be careful that water does not en-
ter the brake fluid reservoir whenrefilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.

Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.

As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22730
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

Oil seals: Replace every two
years.

Brake hoses: Replace every four
years.
Recommended brake fluid:
DOT 4

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
2
3
4
5
67
8
9

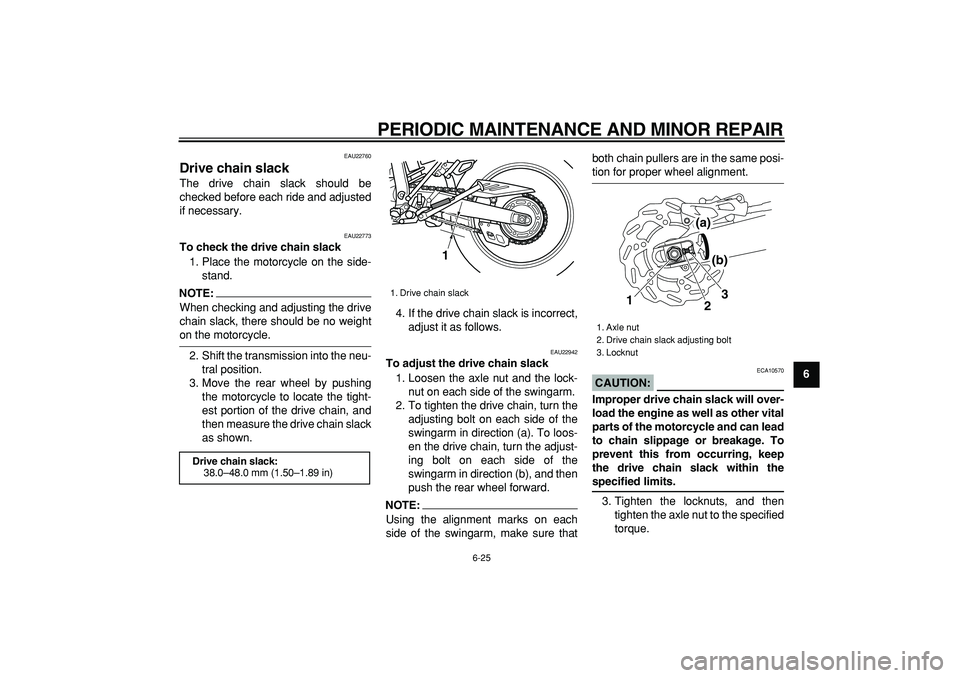

EAU22760
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22773
To check the drive chain slack
1. Place the motorcycle on the side-
stand.
NOTE:

When checking and adjusting the drive
chain slack, there should be no weight
on the motorcycle.
2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.4. If the drive chain slack is incorrect,
adjust it as follows.
EAU22942
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:

Using the alignment marks on each
side of the swingarm, make sure thatboth chain pullers are in the same posi-
tion for proper wheel alignment.
CAUTION:

ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits.
3. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
Drive chain slack:
38.0–48.0 mm (1.50–1.89 in)
1. Drive chain slack
1

1. Axle nut
2. Drive chain slack adjusting bolt
3. Locknut
1
23
(b)
(a)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
1
2
3
4
5
6
7
8
9

EAU23022

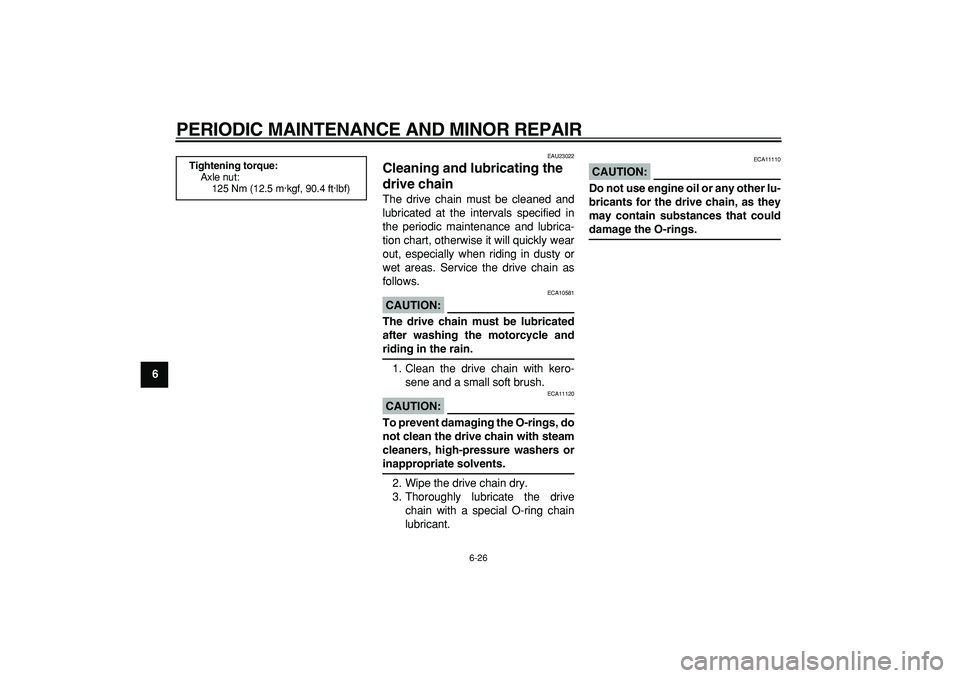

Cleaning and lubricating the
drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
CAUTION:

ECA10581
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.
CAUTION:

ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers or
inappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:

ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that could
damage the O-rings.
Tightening torque:
Axle nut:
125 Nm (12.5 m·kgf, 90.4 ft·lbf)

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
2
3
4
5
67
8
9

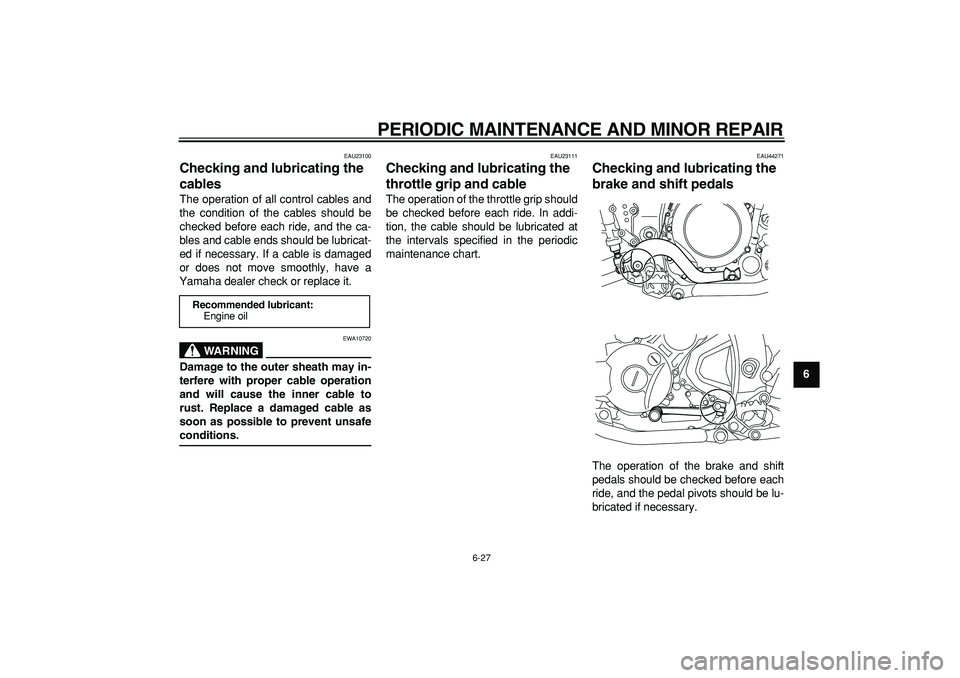

EAU23100
Checking and lubricating the
cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING

EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
EAU44271
Checking and lubricating the
brake and shift pedals
The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Recommended lubricant:
Engine oil

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
1
2
3
4
5
6
7
8
9

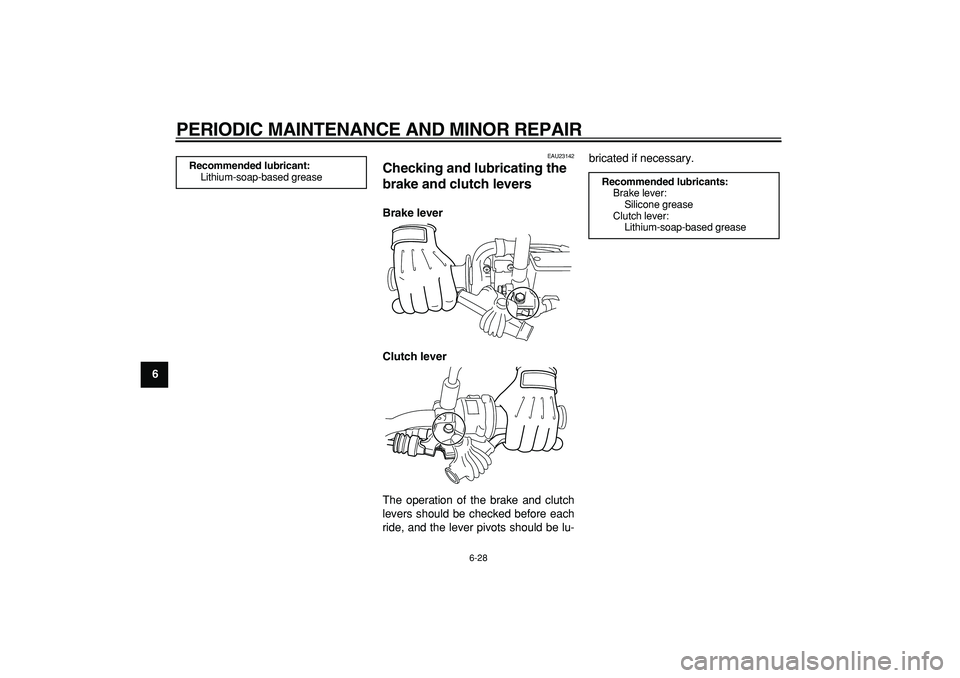

EAU23142
Checking and lubricating the
brake and clutch levers
Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease

PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
2
3
4
5
67
8
9

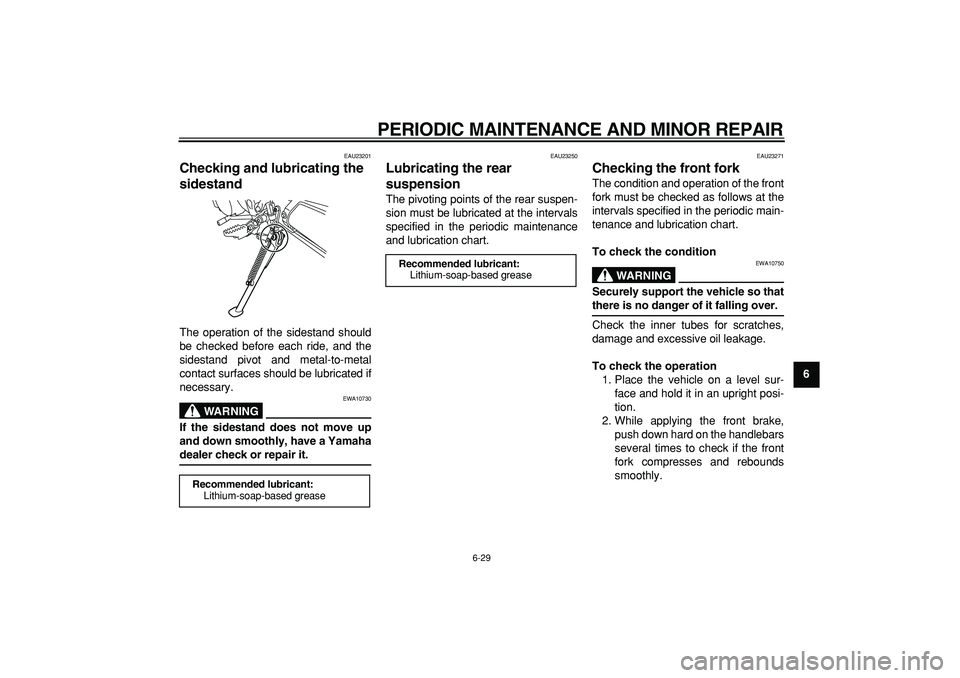

EAU23201
Checking and lubricating the
sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING

EWA10730
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it.
EAU23250
Lubricating the rear
suspension
The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23271
Checking the front fork
The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.

Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease

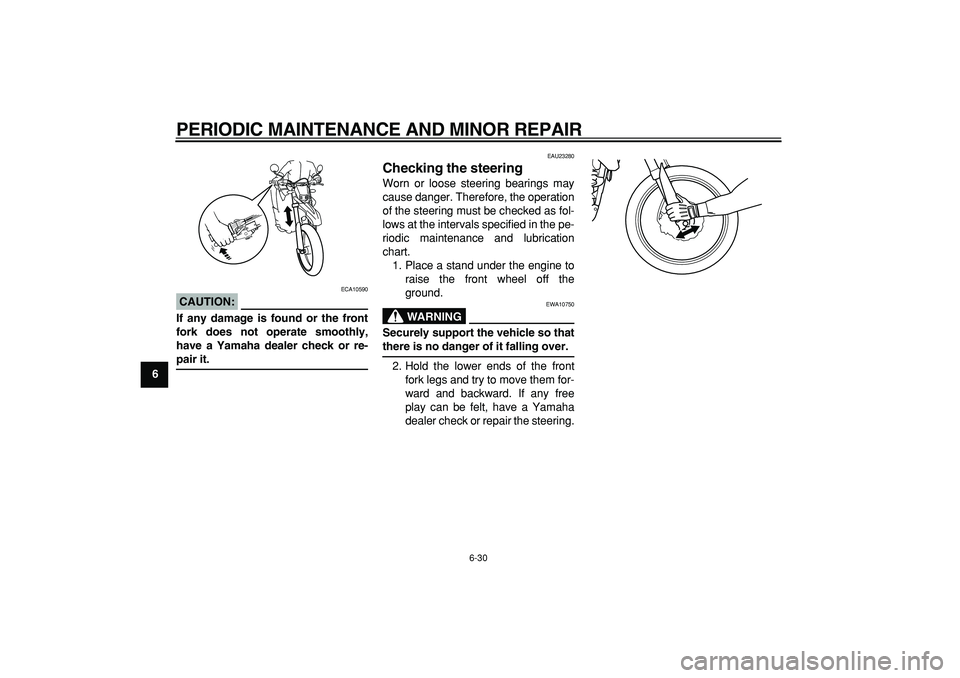

PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
1
2
3
4
5
6
7
8
9
CAUTION:

ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23280
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING

EWA10750
Securely support the vehicle so that
there is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
