PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
1
2
3
4
567
8
9
10
11
12
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
TIPIf a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible.
EAU52967
Engine oil and oil filter
elementThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, remove the engine oil tank
cap, wipe the dipstick clean, insert
it back into the oil tank (without
screwing it in), and then remove it
again to check the oil level.
WARNING! Never remove the
engine oil tank cap after
high-speed operation, other-
wise hot engine oil could spout
out and cause damage or injury.
1. Spark plug gapSpark plug gap:0.7–0.8 mm (0.028–0.031 in)
Tightening torque: Spark plug: 13 Nm (1.3 m·kgf, 9.4 ft·lbf)
1DX-9-E3.book 8 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
1
2
3
4
56
7
8
9
10
11
12 And do not touch the radiator
pipe after high-speed operation,
otherwise the cooling system is
hot and cause burns. Always let
the engine oil cool down suffi-
ciently before removing the oil
tank cap.
[EWA16141]

NOTICE: Do not
operate the vehicle until you
know that the engine oil level is
sufficient.
[ECA10012]
4. The engine oil should be above the minimum level mark. If the engine
oil level is above the minimum lev-
el mark, continue to the next step.
If the engine oil level is below the
minimum level mark, remove the
engine oil filler cap and add the
recommended oil to bring the en-
gine oil level above the minimum
level mark.
5. Place an oil pan under the engine and then remove the engine oil
check bolt and gasket. 6. The engine oil level should be be-
low the level of the check bolt hole.
If any oil does come out, allow it to
drain.
7. Install the engine oil tank cap and
1. Engine oil tank cap
2. Engine oil filler cap
1
2
1. Engine oil tank cap
2. Dipstick
3. Minimum level mark
312
1. Engine oil check bolt
2. Gasket
1. Engine oil check bolt hole
21
1
1DX-9-E3.book 9 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
1
2
3
4
567
8
9
10
11
12
engine oil filler cap.
8. Install the engine oil check bolt and gasket, and then tighten the bolt to
the specified torque.
9. Start the engine and warm it up for a few minutes. Then turn the en-
gine off and wait a few minutes to
allow the oil to settle. Use the en-
gine oil tank cap and dipstick to
confirm that the engine oil level is
correct.
To change the engine oil (with or
without oil filter element replace-
ment) 1. Place the vehicle on a level sur- face.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine guard by re- moving the bolts. 5. Remove the engine oil tank cap
and the engine oil filler cap.
6. Remove the engine oil drain bolts and their gasket to drain the oil from the oil tank and crankcase.
7. Remove the engine oil filter ele- ment drain bolt and its gasket to
drain the oil from the oil filter ele-
Tightening torque:Engine oil check bolt: 10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1. Bolt
2. Engine guard
1. Engine oil tank cap
2. Engine oil filler cap2
1
1
1
2
1. Engine oil drain bolt (oil tank)
2. Gasket
1. Engine oil drain bolt (crankcase)
2. Gasket
21
21
1DX-9-E3.book 10 ページ ２０１４年２月１７日　月曜日　午後２時２１分

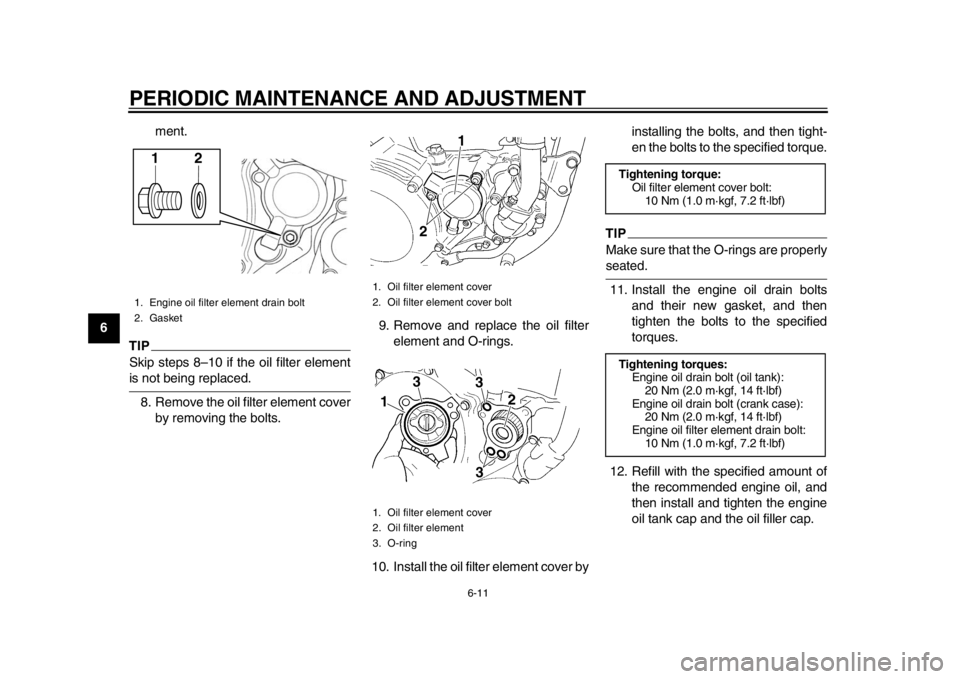

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
1
2
3
4
56
7
8
9
10
11
12 ment.
TIPSkip steps 8–10 if the oil filter elementis not being replaced.
8. Remove the oil filter element cover by removing the bolts. 9. Remove and replace the oil filter
element and O-rings.
10. Install the oil filter element cover by installing the bolts, and then tight-
en the bolts to the specified torque.
TIPMake sure that the O-rings are properlyseated.
11. Install the engine oil drain bolts and their new gasket, and then
tighten the bolts to the specified
torques.
12. Refill with the specified amount of the recommended engine oil, and
then install and tighten the engine
oil tank cap and the oil filler cap.
1. Engine oil filter element drain bolt
2. Gasket
21
1. Oil filter element cover
2. Oil filter element cover bolt
1. Oil filter element cover
2. Oil filter element
3. O-ring
1
2
1 2
3
3
3
Tightening torque: Oil filter element cover bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Tightening torques: Engine oil drain bolt (oil tank):20 Nm (2.0 m·kgf, 14 ft·lbf)
Engine oil drain bolt (crank case): 20 Nm (2.0 m·kgf, 14 ft·lbf)
Engine oil filter element drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1DX-9-E3.book 11 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
1
2
3
4
567
8
9
10
11
12
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.NOTICE
ECA11621

In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.

Make sure that no foreign mate-rial enters the crankcase.
13. Start the engine, and then let it idle for several minutes while checking it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
14. Turn the engine off and wait a few minutes to allow the oil to settle.
Use the engine oil tank cap and
dipstick to confirm that the engine
oil level is correct.
15. Install the engine guard by install- ing the bolts.
NOTICE
ECA11232
After changing the engine oil, make
sure to check the oil pressure as de-
scribed below.
Loosen the bleed bolt.

Start the engine and keep it
idling until oil flows out. If no oil
comes out after one minute,
turn the engine off immediately
so it will not seize. If this occurs,
have a Yamaha dealer repair the
vehicle.

After checking the oil pressure, tighten the bleed bolt to the
specified torque.
Recommended engine oil:
See page 8-1.
Oil quantity: Without oil filter element replace-
ment:
0.95 L (1.00 US qt, 0.84 Imp.qt)
With oil filter element replacement:
1.00 L (1.06 US qt, 0.88 Imp.qt)
Tightening torque:Engine guard bolt:7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1. Bleed bolt
2. GasketTightening torque:
Bleed bolt:10 Nm (1.0 m·kgf, 7.2 ft·lbf)
21
1DX-9-E3.book 12 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
1
2
3
4
56
7
8
9
10
11
12
EAU20071
CoolantThe coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUM1296
To check the coolant level 1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion.TIP
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.

Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Remove the radiator cap and check the coolant level in the radi-
ator. WARNING! Never attempt
to remove the radiator cap when
the engine is hot.
[EWA10382]
TIPThe coolant should be at the bottom of
the radiator filler neck. The level will
change with variation of engine temper-ature. 3. If the coolant is below the correct
coolant level, add coolant, and
then install the radiator cap.
NOTICE: If coolant is not avail-
able, use distilled water or soft
tap water instead. Do not use
hard water or salt water since it
is harmful to the engine. If water
has been used instead of cool-
ant, replace it with coolant as
soon as possible, otherwise the
cooling system will not be pro-
tected against frost and corro-
sion. If water has been added to
the coolant, have a Yamaha
dealer check the antifreeze con-
tent of the coolant as soon as
possible, otherwise the effec-
tiveness of the coolant will be
reduced.
[ECA10473]
EAUM1316
To change the coolant1. Place the vehicle on a level sur- face and let the engine cool if nec-
essary.
2. Place a container under the engine to collect the used coolant.
3. Remove the coolant drain bolt and
1. Radiator cap
1. Radiator filler neck
2. Correct coolant level
1
2
1
1DX-9-E3.book 13 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
1
2
3
4
567
8
9
10
11
12
its gasket, and then the radiator
cap to drain the cooling system.
WARNING! Never attempt to re-
move the radiator cap when the
engine is hot.
[EWA10382]
4. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
5. Install the coolant drain bolt and its new gasket, and then tighten the
bolt to the specified torque.
6. Pour the recommended coolant into the radiator until it is full.
7. Install the radiator cap, start the engine, let it idle for several min-
utes, and then turn it off.
8. Remove the radiator cap to check the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the bottom of the
radiator filler neck, and then install
the radiator cap.
9. Start the engine, and then check the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
EAU52933
Cleaning the air filter element
and check hoseThe air filter element should be cleaned
or replaced at the intervals specified in
the periodic maintenance and lubrica-
tion chart. Clean or, if necessary, re-
place the air filter element more
frequently if you are riding in unusually
wet or dusty areas. In addition, the air
filter check hose must be frequently
checked and cleaned if necessary.
To clean the air filter element
1. Open the air filter case cover by loosening the quick fastener screw
and pulling the case cover outward
as shown.
1. Coolant drain bolt
2. GasketTightening torque:Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
21
Antifreeze/water mixture ratio:1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing co rrosion inhibitors
for aluminum engines
Coolant quantity: Radiator capacity (including all
routes):1.04 L (1.10 US qt, 0.92 Imp.qt)
1DX-9-E3.book 14 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
1
2
3
4
56
7
8
9
10
11
12 2. Unhook the holding clip, and then
pull the air filter element out.
3. Remove the sponge material from the air filter element frame, clean it with solvent, and then squeeze the
remaining solvent out.
WARNING!
Use only a dedicated parts
cleaning solvent. To avoid the
risk of fire or explosion, do not
use gasoline or solvents with a
low flash point.
[EWA10432]
NOTICE:
To avoid damaging the foam
material, handle it gently and
carefully, and do not twist or
wring it.
[ECA10512]
4. Apply oil of the recommended type to the entire surface of the sponge
material, and then squeeze the ex-
cess oil out.TIPThe sponge material should be wet butnot dripping.
5. Pull the sponge material over the air filter element frame.TIP
Align the projection on the air filter
element frame with the hole in the
sponge material.

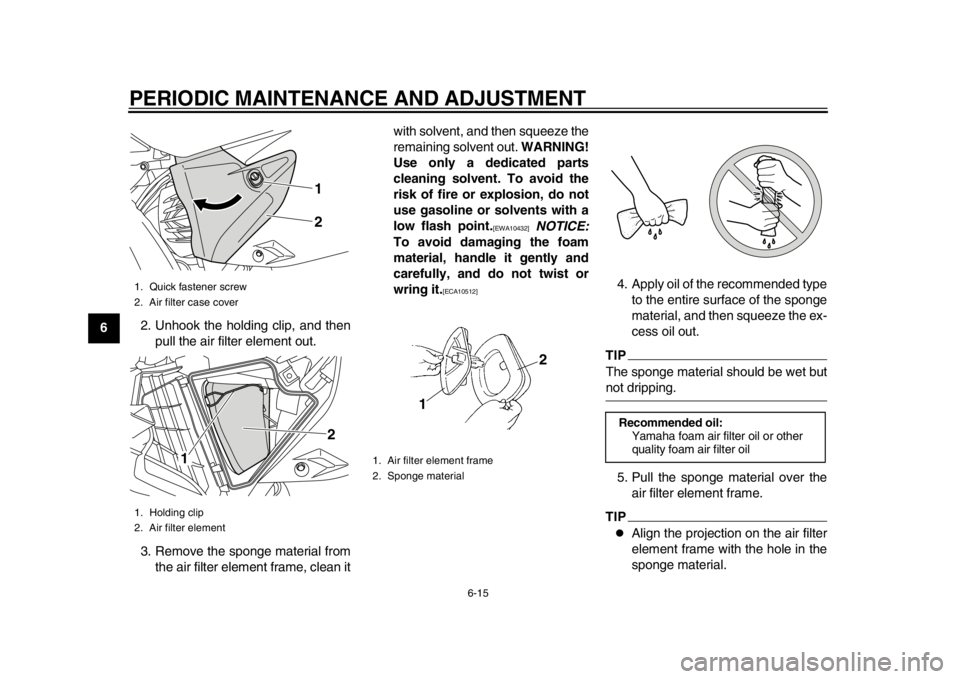

1. Quick fastener screw
2. Air filter case cover
1. Holding clip
2. Air filter element
12
1 2
1. Air filter element frame
2. Sponge material
12
Recommended oil:
Yamaha foam air filt er oil or other
quality foam air filter oil
1DX-9-E3.book 15 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
1
2
3
4
567
8
9
10
11
12

Apply the lithium soap base
grease on the matching surface onthe sponge material.
6. Insert the air filter element into the air filter case. NOTICE: Make sure
that the air filter element is prop-
erly seated in the air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
[ECA10482]
TIPAlign the projection on the air filter ele-
ment with the hole in the air filter case.
7. Place the holding clip in the origi- nal position.TIPHook the holding clip so that it contactsthe filter guide projections. 8. Close the air filter case cover, and
then tighten the quick fastener
screw.
To clean the air filter check hose 1. Check the hose at the bottom of the air filter case for accumulated
dirt or water.
1. Projection
2. Hole
3. Matching surface
1 23
1. Hole
2. Projection
3. Air filter element
1 2
3
1. Holding clip
2. Projection
1
2
1DX-9-E3.book 16 ページ ２０１４年２月１７日　月曜日　午後２時２１分

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
1
2
3
4
56
7
8
9
10
11
12 2. If dirt or water is visible, remove
the hose, clean it, and then install
it.
EAU52461
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted as
follows.TIPA digital tachometer is needed to makethis adjustment.
1. Position the digital tachometer at the ignition coil, which is located in
the spark plug cap.
2. Check the engine idling speed and, if necessary, adjust it to spec-
ification by turning the starter
knob/idle adjusting screw. To in-
crease the engine idling speed,
turn the screw in direction (a). To
decrease the engine idling speed,
turn the screw in direction (b).
TIPIf the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
1. Air filter check hose
1
1. Starter knob/idle adjusting screwEngine idling speed:1900–2100 r/min
1(a)
(b)
1DX-9-E3.book 17 ページ ２０１４年２月１７日　月曜日　午後２時２１分
