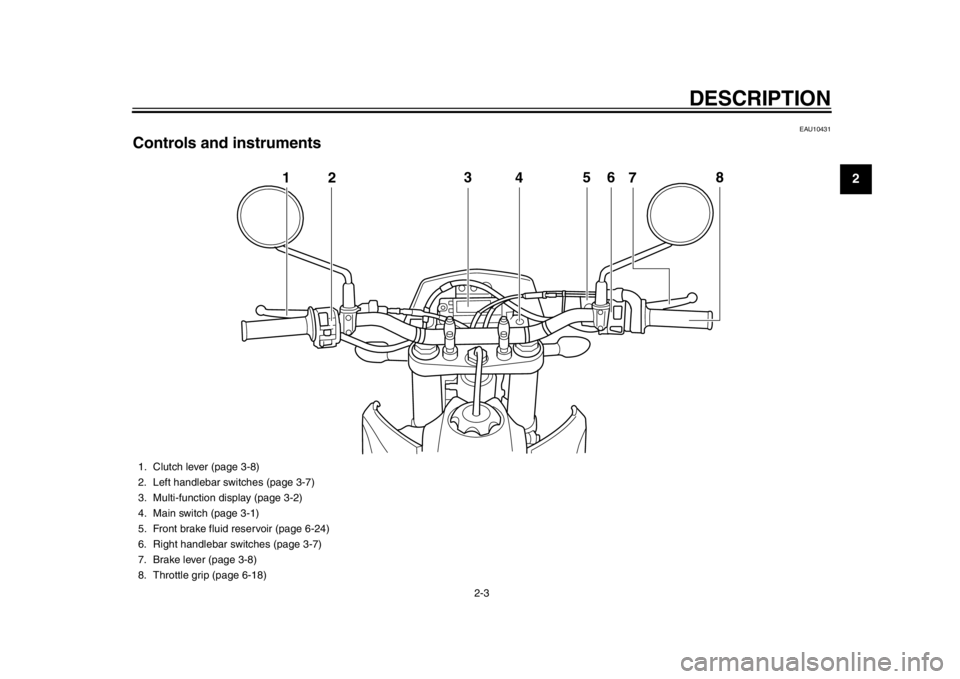

Controls and instruments
12 3
4 5
6
8
7
1. Clutch lever (page 3-8)
2. Left handlebar switches (page 3-7)
3. Multi-function display (page 3-2)
4. Main switch (page 3-1)
5. Front brake fluid reservoir (page 6-24)
6. Right handlebar switches (page 3-7)
7. Brake lever (page 3-8)
8. Throttle grip (page 6-18)
1DX-9-E3.book 3 ページ ２０１４年２月１７日　月曜日　午後２時２１分

INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
234
5
6
7
8
9
10
11
12
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU52391
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal, 0.66 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by pushing the main
switch to “ON”. The warning light
should come on for a few seconds, and
then go off.
If the warning light does not come on
initially when the main switch is pushed
to “ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
EAU52401
Engine trouble warning light “ ”
This warning light comes on or flashes
if a problem is detected in the electrical
circuit monitoring the engine. If this oc-
curs, have a Yamaha dealer check the
vehicle. The electrical circuit of the warning light
can be checked by pushing the main
switch to “ON”. The warning light
should come on for a few seconds, and
then go off.
If the warning light does not come on
initially when the main switch is pushed
to “ON”, or if the warning light remains
on, have a Yamaha dealer check the
electrical circuit.
EAU52923
Multi-function display
WARNING
EWA12313
Be sure to stop the vehicle before
making any setting changes to the
multi-function display. Changing
settings while riding can distract the
operator and increase the risk of anaccident.1. “RST” button
2. “SLCT 1” button
3. “SLCT 2” button
4. Clock/stopwatch
5. Speedometer
6. Odometer/tripmeter
123
4
6
5
1DX-9-E3.book 2 ページ ２０１４年２月１７日　月曜日　午後２時２１分

INSTRUMENT AND CONTROL FUNCTIONS
3-3
1
23
4
5
6
7
8
9
10
11
12
TIP
The multi-function display can be
set to the basic mode or the mea-
surement mode.

Tripmeter A will automatically re-
set to zero when changing from
the basic mode to the measure-ment mode or vice versa.
Basic mode:

a speedometer

an odometer

two tripmeters (which show the
distance traveled since they were last set to zero)

a clock
Measurement mode:

a speedometer

a distance-compensation tripme-
ter (which shows the accumulated
distance traveled since set to zero
and which can be calibrated to pro-
vide a more accurate tripmeter
reading)

a stopwatch (which shows the time
that has been accumulated since
the start of stopwatch measure-
ment)
TIP
Be sure to push the main switch to
“ON” before using the “SLCT 1”,
“SLCT 2” and “RST” buttons.

When the main switch is pushed to
“ON”, all of the display segments
of the multi-function display will ap-
pear and then disappear, in order
to test the electrical circuit.

For the U.K. only: To switch the
speedometer and odometer/trip-
meter displays between kilometers
and miles, press the “SLCT 2” but- ton until the display changes after
the main switch is pushed to “ON”.
Basic mode
Odometer and tripmeter modes
Push the “SLCT 2” button to switch the
display between the odometer mode
and the tripmeter modes A and B in the
following order:
odometer  tripmeter A  tripmeter B
 odometer
1. Stopwatch indicator “ ”
2. Tripmeter A indicator “ ”/
Distance-compensation tripmeter “ ”
3. Tripmeter B indicator “ ”
12
3
1. Tripmeter A indicator “ ”
1
1DX-9-E3.book 3 ページ ２０１４年２月１７日　月曜日　午後２時２１分

INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
234
5
6
7
8
9
10
11
12
TIPIndicator “ ” comes on when tripmeter
A is selected, and indicator “ ” comeson when tripmeter B is selected.
To reset a tripmeter, select it by push-
ing the “SLCT 2” button, and then push
the “RST” button for at least one sec-
ond.
ClockThe clock displays when the main
switch is pushed to “ON”.
To set the clock1. Push the “SLCT 1” button for at least two seconds.
2. When the hour digits start flashing, push either select button to set the
hours.
3. Push the “RST” button, and the minute digits will start flashing.
4. Push either select button to set the minutes.
5. Push the “RST” button, and the second digits will start flashing.
6. Push either select button to set the second digits to zero.
7. Push the “RST” button for at least two seconds, and then release it to
start the clock.
TIP
When setting the clock, push the
“SLCT 1” button to increase the
digits or “SLCT 2” button to de-
crease the digits. Pushing and
holding either button will increase
or decrease the digits continuously
until the button is released.

If a button is not pushed within 30
seconds while setting the clock,
the clock will be set to the currentlydisplayed time. Changing from the basic mode to
the measurement mode
With the odometer selected, push the
“SLCT 1” button and “SLCT 2” button
together for at least two seconds to
change to the measurement mode.
Changing from the measurement
mode to the basic mode
TIPThe stopwatch must be stopped beforechanging to the basic mode.
1. Check that the stopwatch is not in operation. If the stopwatch is in op-
eration, stop it by pushing the
“SLCT 1” button and “SLCT 2” but-
ton together.
2. Push the “SLCT 1” button and “SLCT 2” button together for at
least two seconds to change to the
basic mode.
Measurement mode (for the stop-
watch)
When the measurement mode is se-
lected, the stopwatch is displayed and it
can be started manually or automatical-
ly.
1. Tripmeter B indicator “ ”
1
1DX-9-E3.book 4 ページ ２０１４年２月１７日　月曜日　午後２時２１分

INSTRUMENT AND CONTROL FUNCTIONS
3-5
1
23
4
5
6
7
8
9
10
11
12
TIPStarting measurement consists of the
following two starts, either of which can
be selected.
Manual start
Starting measurement by the rider
himself operating the button. (A
long push on the “SLCT 2” button
will put measurement on standby.)

Auto start
Starting timer measurement auto-
matically on detection of the move-
ment of the machine. (A long push
on the “SLCT 1” button will putmeasurement on standby.)
Manual start
The manual start is the default setting
for the stopwatch. The stopwatch indi-
cator “ ” and the distance-compensa-
tion tripmeter indicator “ ” will start
flashing. 1. Push the “RST” button to start the
stopwatch.
2. Push the “SLCT 1” button and “SLCT 2” button together to stop
the stopwatch.
3. To resume stopwatch counting, push the “SLCT 1” button and
“SLCT 2” button together.
To reset the stopwatch to zero,
push the “RST” button for at least
two seconds.
TIPThe stopwatch will continue counting
when the vehicle is stopped. To stop
and/or resume counting, repeat steps 2and 3. Auto start
1. Push the “SLCT 1” button for at
least two seconds to set the auto
start.TIPWhen the stopwatch is set to auto start,
the stopwatch indicator “ ” and the
distance-compensation tripmeter indi-
cator “ ” will start flashing, and the dig-
its in the display will start scrolling fromleft to right.
2. When the vehicle starts moving, the stopwatch will start counting.
3. Push the “SLCT 1” button and “SLCT 2” button together to stop
the stopwatch.
4. To resume counting, push the “SLCT 1” button and “SLCT 2” but-
1DX-9-E3.book 5 ページ ２０１４年２月１７日　月曜日　午後２時２１分

5-1
1
2
3
456
7
8
9
10
11
12
OPERATION AND IMPORT ANT RIDING POINTS
EAU15952
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10272
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU56890
TIPThis model is equipped with:
a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Push the main
switch to “OFF” and then to “ON”
to clear the error code. Failing to
do so will prevent the engine from
starting even though the engine
will crank when pushing the start
switch.

an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restartthe engine.
EAU52906
Starting a cold engineNOTICE
ECA11043
For maximum engine life, never ac-
celerate hard when the engine iscold!
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.

The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-19 for more informa-
tion.
1. Push the main switch to “ON” and make sure that the engine stop
switch is set to “ ”.
The following warning lights
should come on for a few seconds,
then go off.
Fuel level warning light

Engine trouble warning light
NOTICE
ECA17782
If a warning light does not come on
1DX-9-E3.book 1 ページ ２０１４年２月１７日　月曜日　午後２時２１分

10-1
1
2
3
4
5
6
7
8
910
11
12
INDEXAAir filter element and check hose, cleaning .................................................6-14
Auxiliary light bulb, replacing ...................6-36BBattery......................................................6-31
Brake and clutch levers, checking and lubricating ..............................................6-28
Brake fluid, changing ...............................6-25
Brake fluid level, checking .......................6-24
Brake lever .................................................3-8
Brake lever free play, checking ................6-22
Brake light switches .................................6-23
Brake pedal ................................................3-9
Brake pedal, checking and lubricating .....6-29CCables, checking and lubricating .............6-27
Care ...........................................................7-1
Catalytic converter ...................................3-11
Clutch lever ................................................3-8
Clutch lever free play, adjusting ...............6-21
Coolant.....................................................6-13DDimmer switch ...........................................3-7
Drive chain, cleaning and lubricating .......6-27
Drive chain slack ......................................6-25EEngine break-in ..........................................5-4
Engine idling speed..................................6-17
Engine oil and oil filter element ..................6-8
Engine serial number .................................9-1
Engine, starting a warm .............................5-3
Engine stop switch .....................................3-7
Engine trouble warning light.......................3-2
FFront and rear brake pads, checking ....... 6-23
Front fork, adjusting ................................. 3-14
Front fork, bleeding.................................. 3-15
Front fork, checking ................................. 6-30
Fuel.......................................................... 3-10
Fuel consumption, tips for reducing........... 5-4
Fuel level warning light .............................. 3-2
Fuel tank breather hose........................... 3-11
Fuel tank cap ............................................. 3-9
Fuse, replacing ........................................ 6-32HHandlebar switches ................................... 3-7
Headlight bulb, replacing ......................... 6-33
High beam indicator light ........................... 3-2
Horn switch ................................................ 3-7IIdentification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Indicator lights and warning lights ............. 3-1KKickstarter................................................ 3-12LLicense plate light bulb, replacing ........... 6-35MMain switch ................................................ 3-1
Maintenance and lubrication, periodic ....... 6-4
Maintenance, emission control system...... 6-3
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-2NNeutral indicator light ................................. 3-1
PPanel, removing and installing .................. 6-7
Parking ...................................................... 5-5
Part locations ............................................ 2-1SSafety information ..................................... 1-1
Seat ......................................................... 3-13
Shifting ...................................................... 5-3
Shift pedal ................................................. 3-8
Shift pedal, checking ............................... 6-23
Shock absorber assembly, adjusting ...... 3-16
Sidestand ................................................ 3-18
Sidestand, checking an d lubricating........ 6-29
Spark plug, checking ................................. 6-7
Specifications ............................................ 8-1
Starter knob............................................. 3-12
Starting a cold engine ............................... 5-1
Start switch................................................ 3-7
Steering, checking................................... 6-30
Steering lock ........................................... 3-13
Storage...................................................... 7-3
Supporting the motorcycle ...................... 6-37
Swingarm pivots, lubricating ................... 6-29TTail/brake light ......................................... 6-34
Throttle grip and cable, checking and lubricating ............................................. 6-28
Throttle grip free play, checking .............. 6-18
Tires ........................................................ 6-18
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-40
Troubleshooting charts............................ 6-42
Turn signal indicator light .......................... 3-1
Turn signal light bulb, replacing .............. 6-35
1DX-9-E3.book 1 ページ ２０１４年２月１７日　月曜日　午後２時２１分
