Scooter care and storage
7-2
1
2
3
4
5
678
9
10
11
12
plenty of water, as it is harmful
to plastic parts.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.

Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For scooters equipped with a
windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid- den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on the
roads during winter are extremely cor-
rosive in combination with water, carry
out the following steps after each ride in
the rain, near the sea or on
salt-sprayed roads.TIPSalt sprayed on roads in the winter may
remain well into spring. 1. Clean the scooter with cold water and a mild detergent after the en-
gine has cooled down. NOTICE:
Do not use warm water since it
increases the corrosive action
of the salt.
[ECA10792]
2. Apply a corrosion protection spray on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
Cleaning the windshieldAvoid using any alkaline or strong acid
cleaner, gasoline, brake fluid, or any
other solvent. Clean the windshield with
a cloth or sponge dampened with a mild
detergent, and then wash it off thor-
oughly with water. For additional clean-
ing, use Yamaha Windshield Cleaner
or another high-quality windshield
cleaner. Some cleaning compounds for
plastics may leave scratches on the
windshield. Before using such clean-
ers, test an area of the windshield
which does not affect your visibility and
which cannot be easily recognized.
U52SE1E0 2 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Scooter care and storage
7-3
1
2
3
4
5
67
8
9
10
11
12 After cleaning
1. Dry the scooter with a chamois or an absorbing cloth.
2. Use a chrome polish to shine chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
3. To prevent corrosion, it is recom- mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean- er to remove any remaining dirt.
5. Touch up minor paint damage caused by stones, etc.
6. Wax all painted surfaces.
7. Let the scooter dry completely be- fore storing or covering it.
WARNING
EWA10943
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires. If
necessary, clean the brake discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent.

Before operating the scooter
test its braking performanceand cornering behavior.
NOTICE
ECA10801

Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.

Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.

Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.

Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from the
lens.
U52SE1E0 3 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Scooter care and storage
7-4
1
2
3
4
5
678
9
10
11
12
EAU36564
StorageShort-term
Always store your scooter in a cool, dry
place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the scoot-
er.NOTICE
ECA10821

Storing the scooter in a poorly
ventilated room or covering it
with a tarp, while it is still wet,
will allow water and humidity to
seep in and cause rust.

To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your scooter for several
months: 1. Follow all the instructions in the “Care” section of this chapter. 2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to pro- tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap and spark plug.
b. Pour a teaspoonful of engine oil into the spark plug bore.
c. Install the spark plug cap onto the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10952]
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0  C (30 F) or more than 30
 C (90 F)]. For more information
on storing the battery, see page
6-26.TIPMake any necessary repairs beforestoring the scooter.
U52SE1E0 4 ページ ２０１５年９月１６日　水曜日　午後５時２７分

8-1
1
2
3
4
5
6
78
9
10
11
12
Specifications
EAU72940
Dimensions:Overall length: 1990 mm (78.3 in)
Overall width: 690 mm (27.2 in)
Overall height: 1135 mm (44.7 in)
Seat height:
785 mm (30.9 in)
Wheelbase: 1385 mm (54.5 in)
Ground clearance: 140 mm (5.51 in)Weight:Curb weight:142 kg (313 lb)Engine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: SOHC
Number of cylinders:
Single cylinder
Displacement: 155 cm
3
Bore  stroke:
58.0  58.7 mm (2.28  2.31 in)
Compression ratio:
11.0 : 1
Starting system: Electric starter Lubrication system:
Wet sump
Engine oil:Recommended brand:YAMALUBE
Type: SAE 10W-40
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA or MB
Engine oil quantity:
Periodic oil change:1.10 L (1.16 US qt, 0.97 Imp.qt)Final transmission oil:Type:SAE 10W-30 type SE motor oil
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant reservoir (up to the maximum level
mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes):
0.56 L (0.59 US qt, 0.49 Imp.qt)Air filter:Air filter element:Oil-coated paper element
V-belt filter element:
Dry elementFuel:Recommended fuel:Regular unleaded gasoline only
Fuel tank capacity:
8.0 L (2.1 US gal, 1.8 Imp.gal)
Fuel injection:Throttle body: ID mark:52S1 01Spark plug(s):Manufacturer/model: NGK / CPR9EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Dry, centrifugal automaticTransmission:Primary reduction ratio:
1.000
Final drive: Gear
Secondary reduction ratio: 10.320 (46 / 13 )×(35 / 12)
Transmission type:
V-belt automatic
Gear ratio:Chassis:Frame type: Underbone
Caster angle: 23.8 
Trail:
84 mm (3.3 in)Front tire:Type:Tubeless
Size:
100 / 80 - 16M/C 50P
U52SE1E0 1 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Specifications
8-2
1
2
3
4
5
6
789
10
11
12
Manufacturer/model: DURO / DM1157FRear tire:Type:Tubeless
Size: 120 / 80 - 16M/C 60P
Manufacturer/model:
DURO / DM1157Loading:Maximum load:179 kg (395 lb)
* (Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measured on cold
tires):Loading condition:90 kg (198 lb)
Front: 175 kPa (1.75 kgf/cm
2, 25 psi)
Rear: 200 kPa (2.00 kgf/cm2, 29 psi)
Loading condition:
90 kg - maximum load
Front: 175 kPa (1.75 kgf/cm2, 25 psi)
Rear: 225 kPa (2.25 kgf/cm2, 33 psi)
Front wheel:Wheel type:Cast wheel
Rim size: J 16M/C × MT2.50
Rear wheel:Wheel type:Cast wheel
Rim size: J 16M/C × MT2.75Front brake:Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4Rear brake:Type:
Mechanical leading trailing drum brakeFront suspension:Type:Telescopic fork
Spring:
Coil spring
Shock absorber: Hydraulic damper
Wheel travel: 100 mm (3.9 in)Rear suspension:Type:Unit swing
Spring: Coil spring
Shock absorber:
Gas-hydraulic damper
Wheel travel: 92 mm (3.6 in)Electrical system:System voltage:
12 V Ignition system:
TCI
Charging system:
AC magneto
Battery:Model:GT7B-4
Voltage, capacity:
10 V, 6.5 Ah (10 HR)Headlight:Bulb type:Halogen bulbBulb voltage, wattage  quantity:Headlight:
12 V, 55.0 W  2
Brake/tail light: LED
Front turn signal light:
12 V, 10.0 W  2
Rear turn signal light: 12 V, 10.0 W  2
Auxiliary light: 12 V, 5.0 W  2
License plate light:
12 V, 5.0 W  1
Meter lighting: LED
High beam indicator light: LED
Turn signal indicator light:
LED
Coolant temperature warning light: LED
U52SE1E0 2 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Specifications
8-3
1
2
3
4
5
6
78
9
10
11
12
Engine trouble warning light: LEDFuse:Main fuse:20.0 A
Headlight fuse: 15.0 A
Signaling system fuse:
15.0 A
Ignition fuse: 7.5 A
Backup fuse: 7.5 A
U52SE1E0 3 ページ ２０１５年９月１６日　水曜日　午後５時２７分

9-1
1
2
3
4
5
6
7
8910
11
12
Consumer information
EAU53562

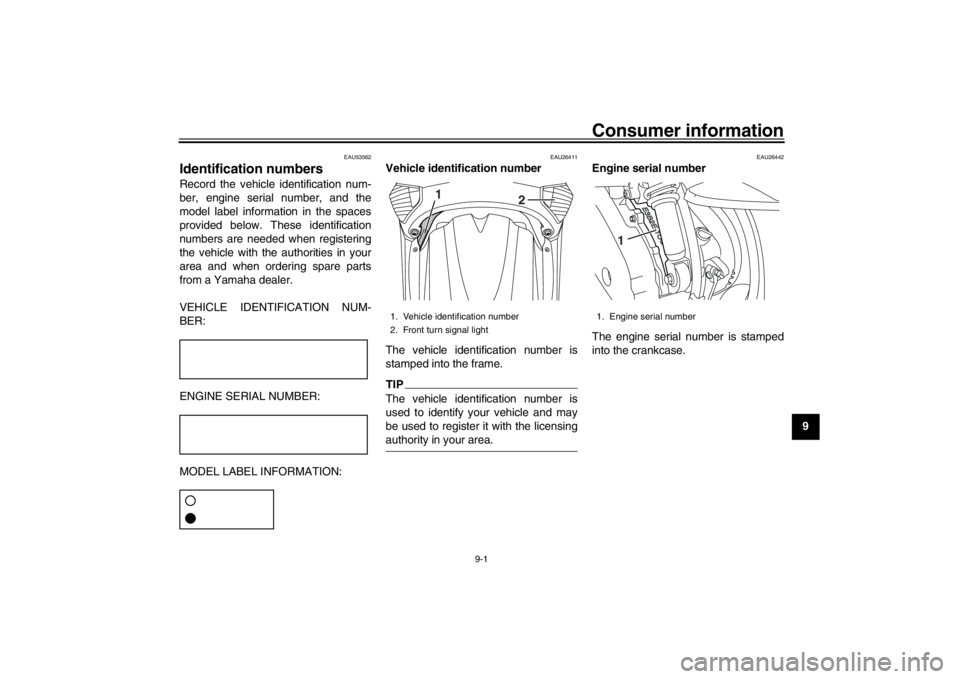

Identification numbersRecord the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUM-
BER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26411
Vehicle identification number
The vehicle identification number is
stamped into the frame.TIPThe vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
EAU26442
Engine serial number
The engine serial number is stamped
into the crankcase.
1. Vehicle identification number
2. Front turn signal light
1
2
1. Engine serial number
1
U52SE1E0 1 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Consumer information
9-2
1
2
3
4
5
6
7
89
10
11
12
EAU26491
Model label
The model label is affixed to the bottom
of the seat. (See page 3-11.) Record
the information on this label in the
space provided. This information will be
needed when ordering spare parts from
a Yamaha dealer.1. Model label
1
U52SE1E0 2 ページ ２０１５年９月１６日　水曜日　午後５時２７分

Index
AAcceleration and deceleration ................... 5-2
Air filter and V-belt case air filter
elements ................................................ 6-16
Auxiliary light bulb, replacing ................... 6-29BBattery ..................................................... 6-26
Brake fluid, changing ............................... 6-23
Brake fluid level, checking ....................... 6-22
Brake lever, front ....................................... 3-7
Brake lever, rear ........................................ 3-8
Brake levers, lubricating .......................... 6-24
Brake pads and shoes, checking............. 6-21
Braking ...................................................... 5-3CCables, checking and lubricating ............. 6-23
Care ........................................................... 7-1
Carrier...................................................... 3-14
Catalytic converter ................................... 3-10
Centerstand, checking and lubricating .... 6-24
Coolant .................................................... 6-14
Coolant temperature warning light............. 3-2
Cowling and panels, removing and installing .................................................. 6-8DDimmer switch ........................................... 3-7EEngine break-in ......................................... 5-3
Engine idling speed, checking ................. 6-17
Engine oil ................................................. 6-11
Engine serial number................................. 9-1
Engine trouble warning light ...................... 3-3FFinal transmission oil ............................... 6-13 Front brake lever free play, checking ...... 6-20
Front fork, checking................................. 6-25
Fuel ........................................................... 3-9
Fuel consumption, tips for reducing .......... 5-3
Fuel tank cap............................................. 3-8
Fuses, replacing ...................................... 6-28
HHandlebar switches ................................... 3-7
Headlight bulb, replacing......................... 6-28
High beam indicator light........................... 3-2
Horn switch ............................................... 3-7IIdentification numbers ............................... 9-1
Indicator lights and warning lights ............. 3-2LLicense plate light ................................... 6-32
Luggage holder ....................................... 3-14MMain switch/steering lock .......................... 3-1
Maintenance and lubricatio
n, periodic....... 6-5
Maintenance, emission control system ..... 6-4
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display................................. 3-3PParking ...................................................... 5-4
Part locations ............................................ 2-1
Passenger footrest .................................. 3-11RRear brake lever free play, adjusting ...... 6-20SSafe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-11 Shock absorber assembly .......................3-13
Spark plug, checking ...............................6-10
Specifications.............................................8-1
Starting off .................................................5-2
Starting the engine.....................................5-1
Start switch ................................................3-7
Steering, checking ...................................6-26
Storage ......................................................7-4
Storage compartments ............................3-12
TTail/brake light ......................................... 6-30
Throttle grip and cable, checking and
lubricating ..............................................6-24
Throttle grip free play, checking...............6-17
Tires .........................................................6-18
Tool kit .......................................................6-2
Troubleshooting .......................................6-32
Troubleshooting charts ............................6-33
Turn signal indicator lights .........................3-2
Turn signal light bulb (front), replacing ....6-30
Turn signal light bulb (r ear), replacing .....6-31
Turn signal switch ......................................3-7VValve clearance .......................................6-18
Vehicle identificat ion number .....................9-1WWheel bearings, checking........................6-26
Wheels .....................................................6-20
U52SE1E0 1 ページ ２０１５年９月１６日　水曜日　午後５時２７分
