YAMAHA XJ6-N 2009 Owner's Guide

INSTRUMENT AND CONTROL FUNCTIONS
3-17
3
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalyticconverter.
EAU32980

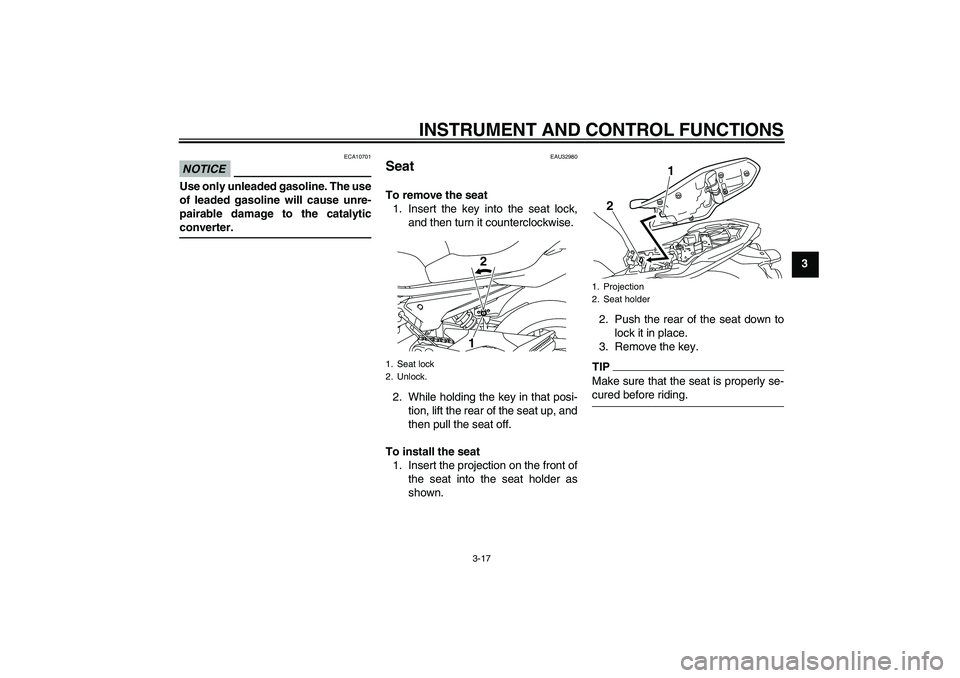

Seat To remove the seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the rear of the seat up, and
then pull the seat off.
To install the seat
1. Insert the projection on the front of
the seat into the seat holder as
shown.2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
TIPMake sure that the seat is properly se-cured before riding.
1. Seat lock
2. Unlock.
12
1. Projection
2. Seat holder
1
2
U20SE0E0.book Page 17 Friday, September 19, 2008 9:27 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
EAU46750

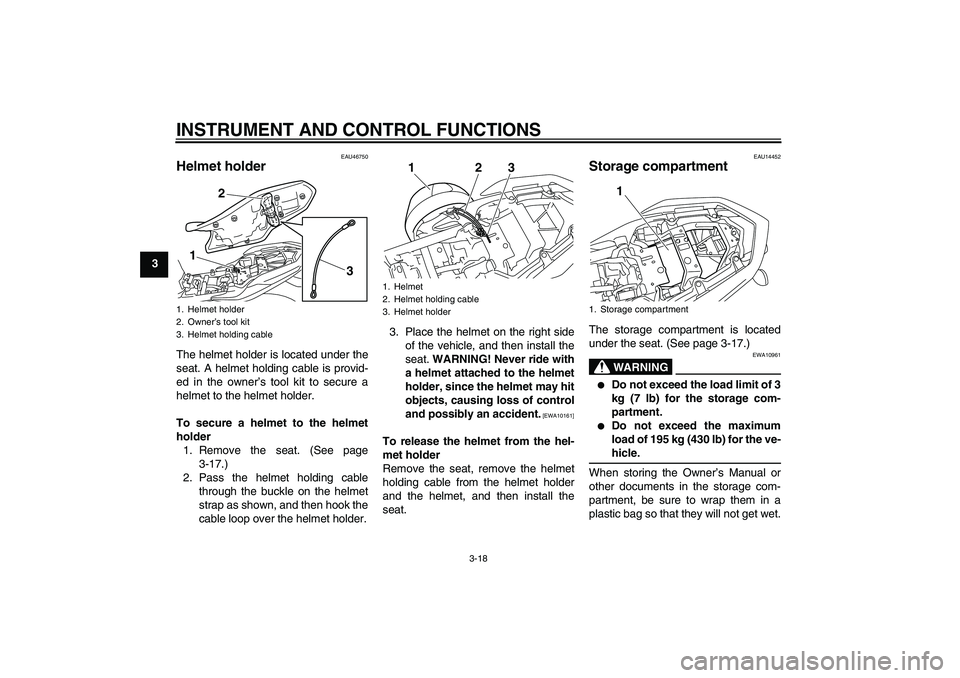

Helmet holder The helmet holder is located under the
seat. A helmet holding cable is provid-
ed in the owner’s tool kit to secure a
helmet to the helmet holder.
To secure a helmet to the helmet
holder
1. Remove the seat. (See page
3-17.)
2. Pass the helmet holding cable
through the buckle on the helmet
strap as shown, and then hook the
cable loop over the helmet holder.3. Place the helmet on the right side
of the vehicle, and then install the
seat. WARNING! Never ride with
a helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10161]
To release the helmet from the hel-
met holder
Remove the seat, remove the helmet
holding cable from the helmet holder
and the helmet, and then install the
seat.
EAU14452
Storage compartment The storage compartment is located
under the seat. (See page 3-17.)
WARNING
EWA10961


Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.


Do not exceed the maximum
load of 195 kg (430 lb) for the ve-hicle.
When storing the Owner’s Manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get wet.
1. Helmet holder
2. Owner’s tool kit
3. Helmet holding cable
2
3
1
1. Helmet
2. Helmet holding cable
3. Helmet holder
123
1. Storage compartment
1
U20SE0E0.book Page 18 Friday, September 19, 2008 9:27 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-19
3 When washing the vehicle, be careful
not to let any water enter the storage
compartment.
EAU46830

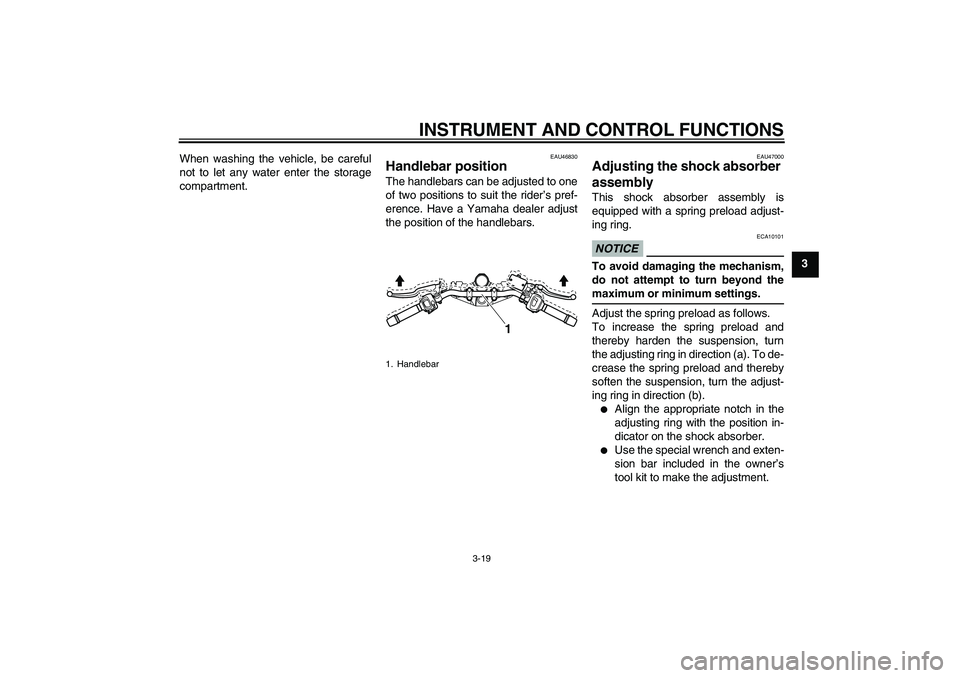

Handlebar position The handlebars can be adjusted to one
of two positions to suit the rider’s pref-
erence. Have a Yamaha dealer adjust
the position of the handlebars.
EAU47000
Adjusting the shock absorber
assembly This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond themaximum or minimum settings.
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction (b).

Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.


Use the special wrench and exten-
sion bar included in the owner’s
tool kit to make the adjustment.
1. Handlebar
1
U20SE0E0.book Page 19 Friday, September 19, 2008 9:27 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-20
3
WARNING
EWA10221

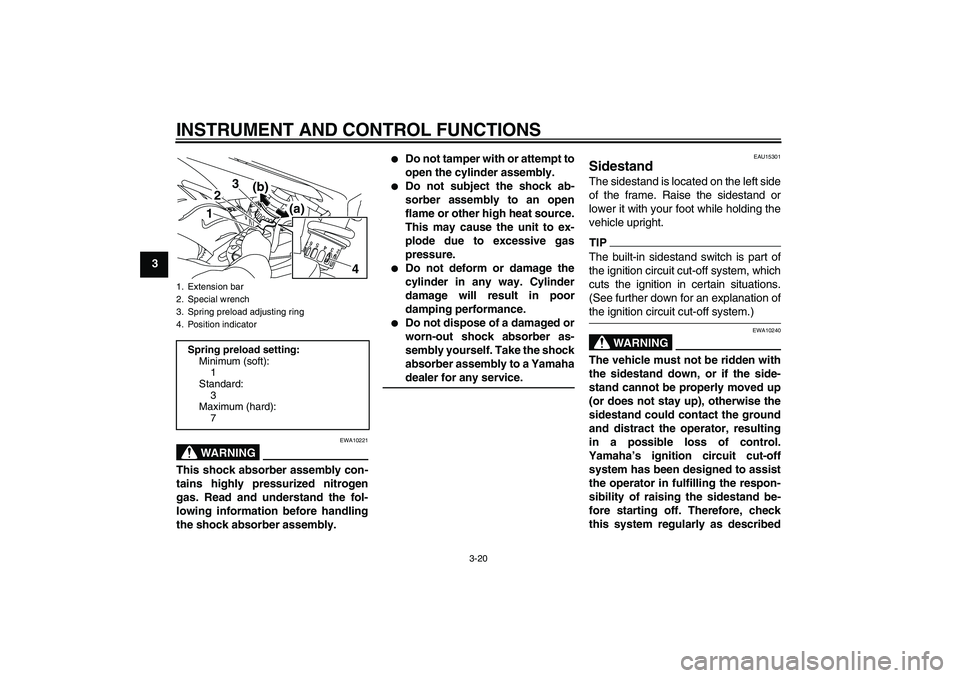

This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.


Do not tamper with or attempt to
open the cylinder assembly.


Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.


Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.


Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamahadealer for any service.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
1. Extension bar
2. Special wrench
3. Spring preload adjusting ring
4. Position indicatorSpring preload setting:
Minimum (soft):
1
Standard:
3
Maximum (hard):
7
123
(a) (b)
4
U20SE0E0.book Page 20 Friday, September 19, 2008 9:27 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-21
3 below and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
EAU44892

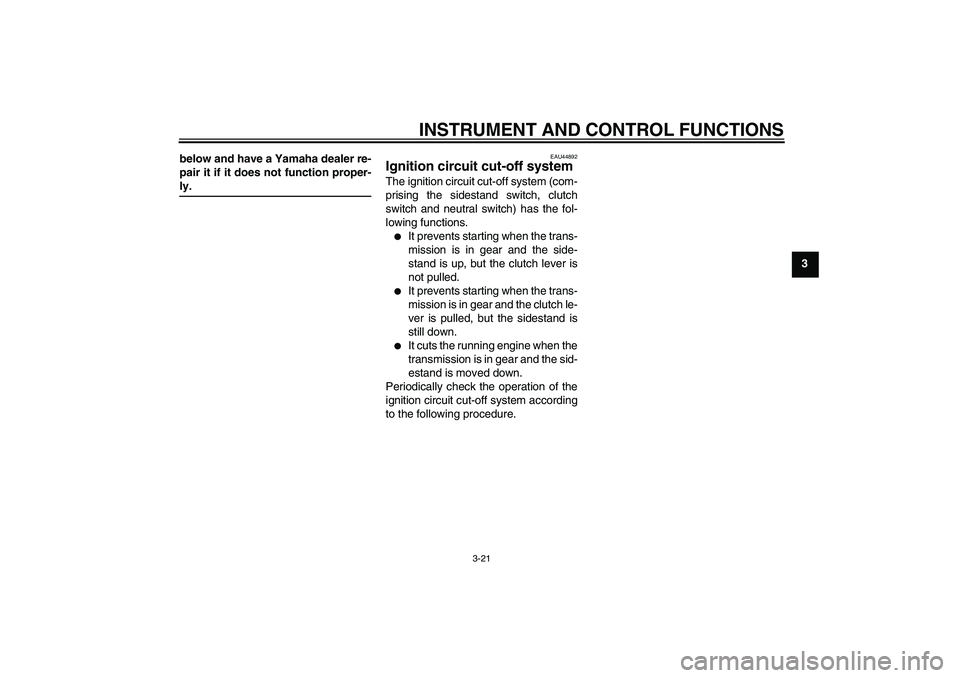

Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.

It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.


It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.


It cuts the running engine when the
transmission is in gear and the sid-
estand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
U20SE0E0.book Page 21 Friday, September 19, 2008 9:27 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-22
3

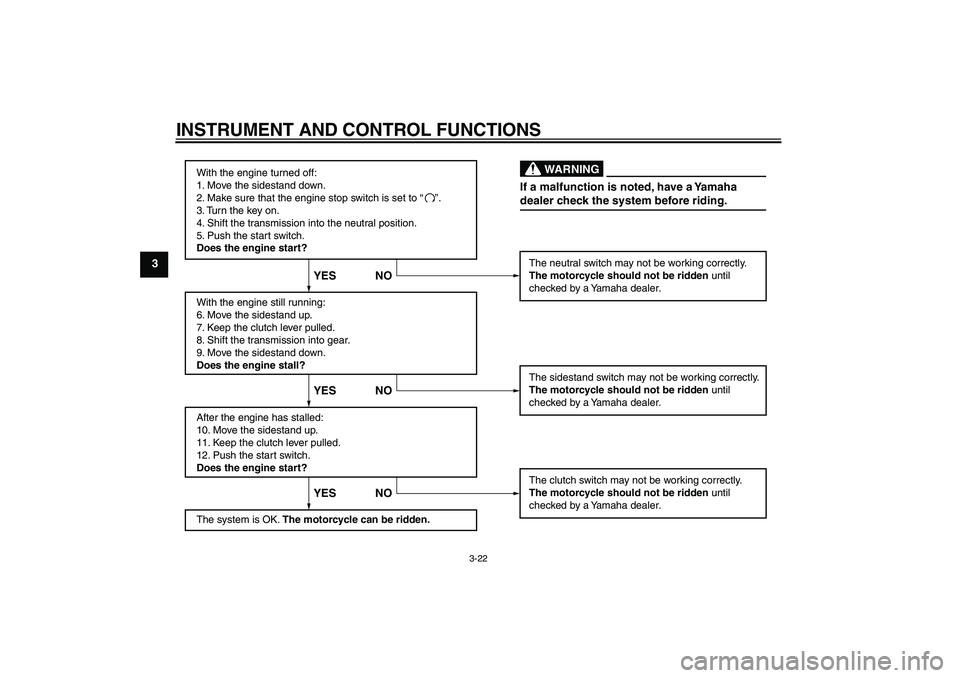

With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U20SE0E0.book Page 22 Friday, September 19, 2008 9:27 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596

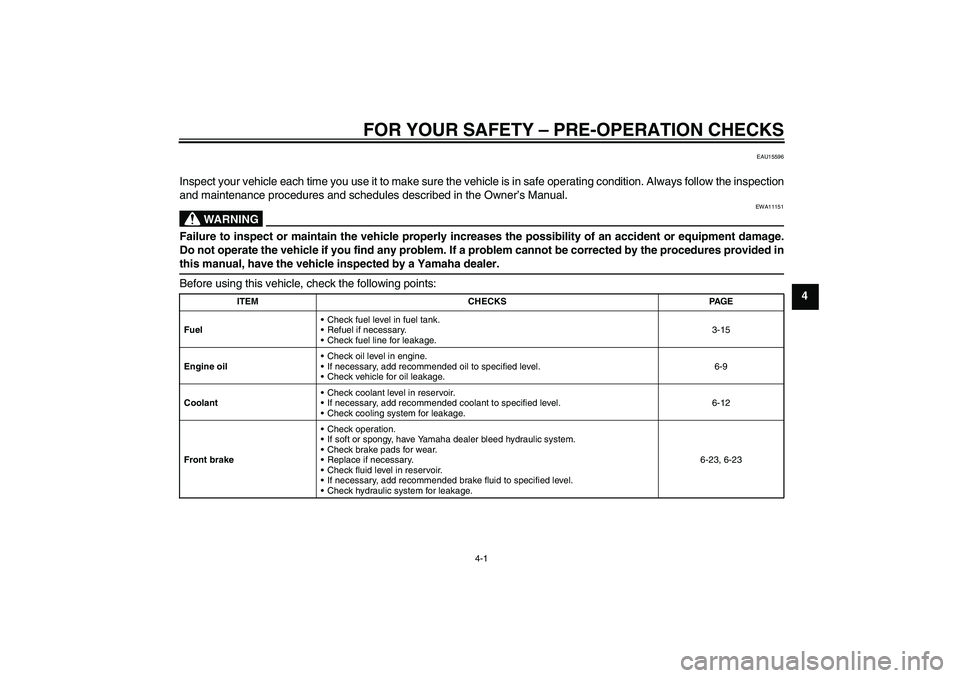

Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided inthis manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-15
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-12
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-23, 6-23
U20SE0E0.book Page 1 Friday, September 19, 2008 9:27 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-23, 6-23
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-21
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-18, 6-27
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-27
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-25, 6-26
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-19, 6-21
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-27
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-28
SidestandMake sure that operation is smooth.
Lubricate pivot if necessary.6-29 ITEM CHECKS PAGE
U20SE0E0.book Page 2 Friday, September 19, 2008 9:27 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-3
4

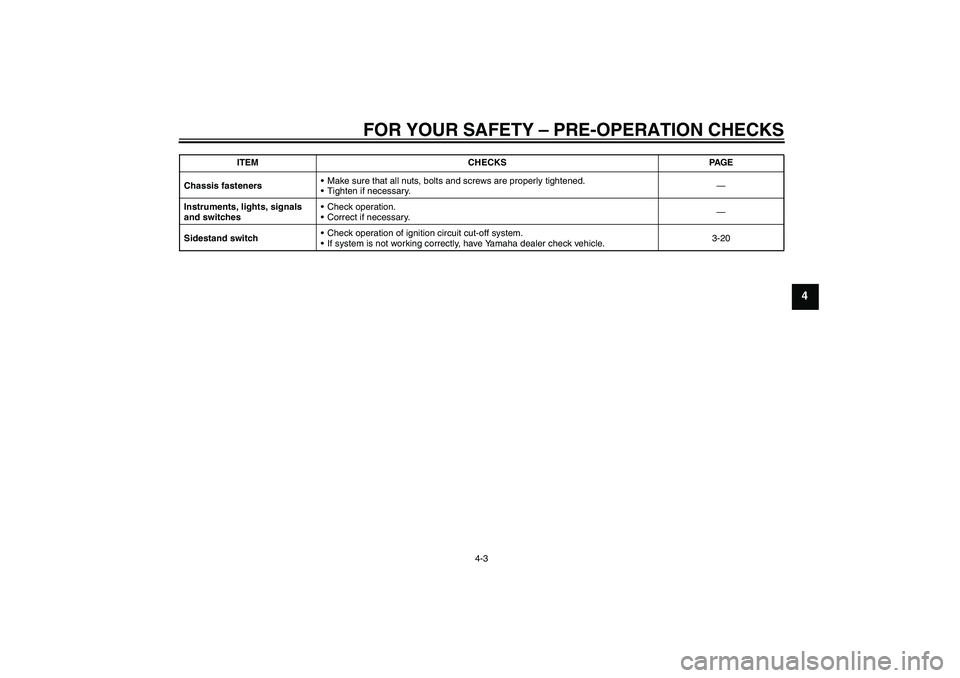

Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switch Check operation of ignition circuit cut-off system.
If system is not working correctly, have Yamaha dealer check vehicle.3-20 ITEM CHECKS PAGE
U20SE0E0.book Page 3 Friday, September 19, 2008 9:27 AM

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU46632
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restartthe engine.
EAU39359
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met.

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-21 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Oil level warning light


Coolant temperature warning
light


Engine trouble warning light


Immobilizer system indicator
light
U20SE0E0.book Page 1 Friday, September 19, 2008 9:27 AM
