Page 34 of 104
INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU00315
WARNING
@ This shock absorber contains high-
ly pressurized nitrogen gas. For
proper handling, read and under-
stand the following information be-
fore handling the shock absorber.
The manufacturer cannot be held re-
sponsible for property damage or
personal injury that may result from
improper handling.
Do not tamper with or attempt to
open the gas cylinder.
Do not subject the shock ab-
sorber to an open flame or other
high heat sources, otherwise it
may explode due to excessive
gas pressure.
Do not deform or damage the
gas cylinder in any way, as this
will result in poor damping per-
formance.
Always have a Yamaha dealer
service the shock absorber.
@
EAU01398

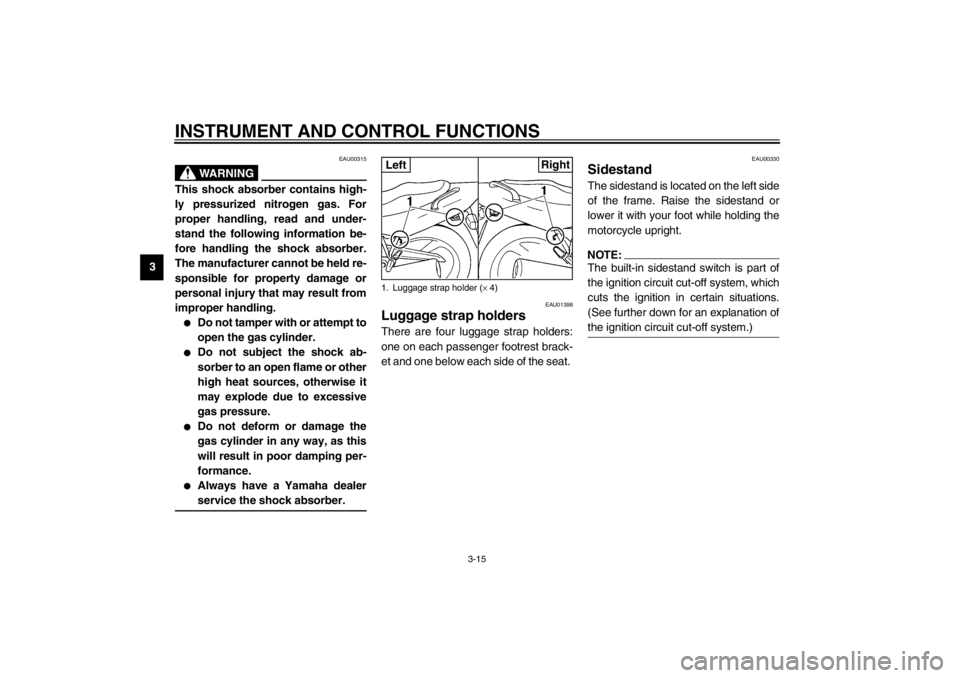

Luggage strap holders There are four luggage strap holders:
one on each passenger footrest brack-
et and one below each side of the seat.
EAU00330
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:@ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) @
1. Luggage strap holder (× 4)Left
Right
E_4br.book Page 15 Wednesday, July 25, 2001 1:40 PM
Page 48 of 104
6-1
6
EAU00462
6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
@ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. @
EAU00469

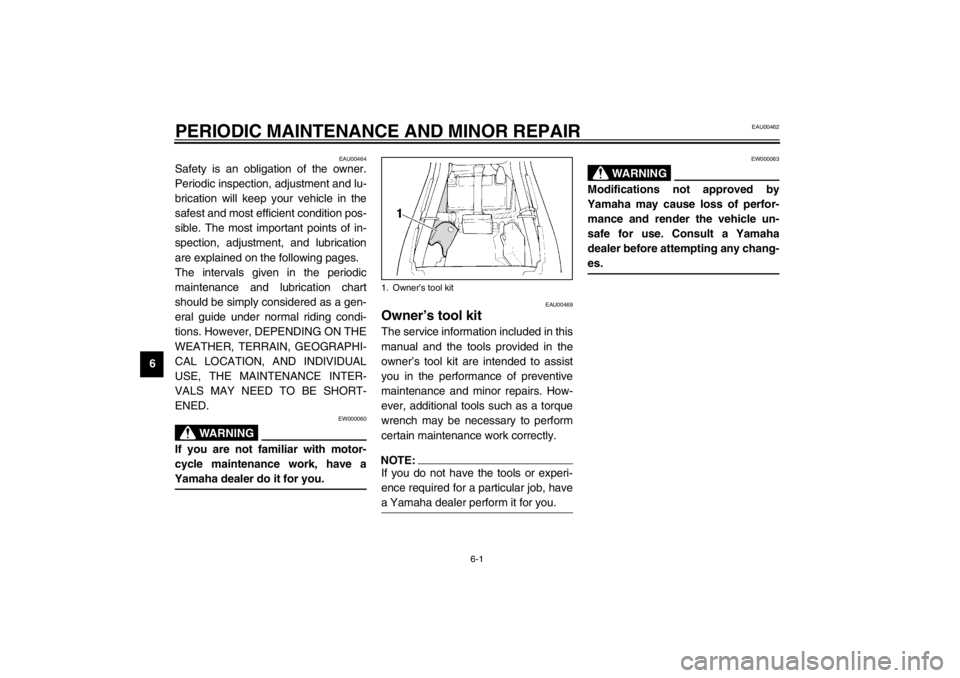

Owner’s tool kit The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:@ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. @
EW000063
WARNING
@ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. @
1. Owner’s tool kit
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM
Page 51 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03884
NOTE:_
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
_22
*CarburetorsCheck starter (choke) operation.
Adjust engine idling speed and synchronization.√√√√√ √
23 Engine oilChange.√√√√√ √
Check oil level and vehicle for oil leakage.√√√√√ √
24 Engine oil filter cartridgeReplace.√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26 Moving parts and cablesLubricate.√√√√ √
27*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (×1,000 km)
Annual
check
1 10203040
E_4br.book Page 4 Wednesday, July 25, 2001 1:40 PM
Page 59 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 7. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
8. Insert the air filter element into the
air filter case.
EC000082*
CAUTION:@
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
pistons and/or cylinders may
become excessively worn.
@9. Install the air filter case cover by
installing the screws.
10. Install the fuel tank by installing the
bolts.
11. Connect the hoses.
12. Install the fuel cock lever by install-
ing the screw.
13. Install the seat.
EAU00630
Adjusting the carburetors The carburetors are important parts of
the engine and require very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in
the following section, however, may be
serviced by the owner as part of routine
maintenance.
EC000095
CAUTION:@ The carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine. @
1. Air filter element
E_4br.book Page 12 Wednesday, July 25, 2001 1:40 PM
Page 70 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU03006
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
EC000097
CAUTION:@ The drive chain must be lubricated
after washing the motorcycle or
riding in the rain. @1. Clean the drive chain with kero-
sene and a small soft brush.
ECA00053
CAUTION:@ To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents. @
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
ECA00052
CAUTION:@ Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings. @
EAU02962
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
EW000112
WARNING
@ Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions. @
Recommended lubricant:
Engine oil
E_4br.book Page 23 Wednesday, July 25, 2001 1:40 PM
Page 80 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-33
6
EAU00868

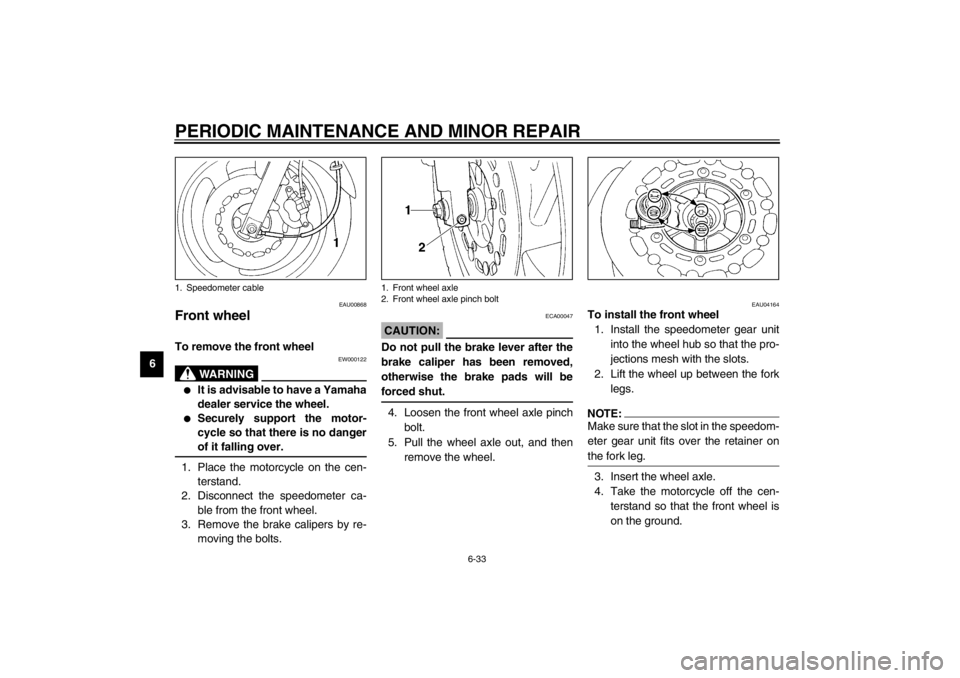

Front wheel To remove the front wheel
EW000122
WARNING
@
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no danger
of it falling over.
@1. Place the motorcycle on the cen-
terstand.
2. Disconnect the speedometer ca-
ble from the front wheel.
3. Remove the brake calipers by re-
moving the bolts.
ECA00047
CAUTION:@ Do not pull the brake lever after the
brake caliper has been removed,
otherwise the brake pads will be
forced shut. @4. Loosen the front wheel axle pinch
bolt.
5. Pull the wheel axle out, and then
remove the wheel.
EAU04164
To install the front wheel
1. Install the speedometer gear unit
into the wheel hub so that the pro-
jections mesh with the slots.
2. Lift the wheel up between the fork
legs.NOTE:_ Make sure that the slot in the speedom-
eter gear unit fits over the retainer on
the fork leg. _3. Insert the wheel axle.
4. Take the motorcycle off the cen-
terstand so that the front wheel is
on the ground.
1. Speedometer cable
1. Front wheel axle
2. Front wheel axle pinch bolt
E_4br.book Page 33 Wednesday, July 25, 2001 1:40 PM
Page 82 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-35
6
EAU01480

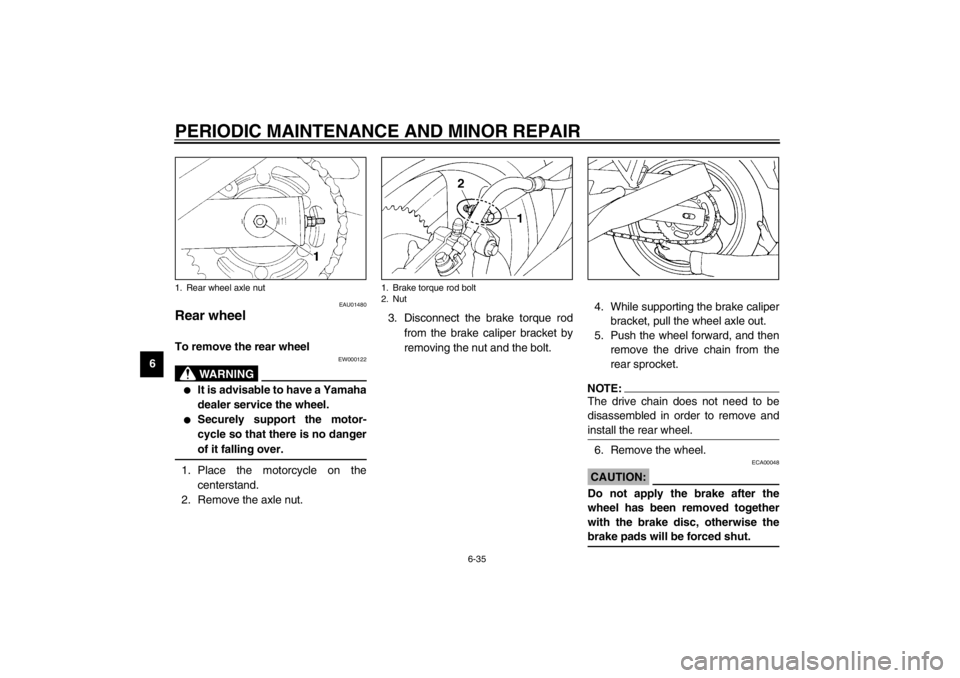

Rear wheel To remove the rear wheel
EW000122
WARNING
@
It is advisable to have a Yamaha
dealer service the wheel.
Securely support the motor-
cycle so that there is no danger
of it falling over.
@1. Place the motorcycle on the
centerstand.
2. Remove the axle nut.3. Disconnect the brake torque rod
from the brake caliper bracket by
removing the nut and the bolt.4. While supporting the brake caliper
bracket, pull the wheel axle out.
5. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
NOTE:@ The drive chain does not need to be
disassembled in order to remove and
install the rear wheel. @6. Remove the wheel.
ECA00048
CAUTION:@ Do not apply the brake after the
wheel has been removed together
with the brake disc, otherwise the
brake pads will be forced shut. @
1. Rear wheel axle nut
1. Brake torque rod bolt
2. Nut
E_4br.book Page 35 Wednesday, July 25, 2001 1:40 PM
Page 83 of 104
PERIODIC MAINTENANCE AND MINOR REPAIR
6-36
6
EAU01468
To install the rear wheel
1. Insert the wheel axle from the
right-hand side.
2. Install the drive chain onto the rear
sprocket, and then adjust the drive
chain slack. (See page 6-21 for
drive chain slack adjustment pro-
cedures.)
3. Install the axle nut and brake
torque rod bolt at the brake caliper
bracket.
4. Install the brake caliper by install-
ing the bolts.NOTE:@ Make sure that there is enough space
between the brake pads before install-
ing the brake caliper onto the brake
disc. @5. Take the motorcycle off the cen-
terstand so that the rear wheel is
on the ground.
6. Tighten the axle nut and brake
torque rod bolt to the specified
torques.
EAU01008
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills. Tightening torques:
Axle nut:
105 Nm (10.5 m·kgf)
Brake torque rod bolt:
23 Nm (2.3 m·kgf)
E_4br.book Page 36 Wednesday, July 25, 2001 1:40 PM
Page 92 of 104
8-1
8
EAU01038
8-SPECIFICATIONSSpecifications CS-01E
Model XJ600S/XJ600N
Dimensions
Overall length 2,170 mm
Overall width 735 mm
Overall height
XJ600S 1,205 mm
XJ600N 1,090 mm
Seat height 770 mm
Wheelbase 1,445 mm
Ground clearance 150 mm
Minimum turning radius 2,700 mm
Basic weight (with oil and
full fuel tank)
XJ600S 213 kg
XJ600N 210 kg
Engine
Engine type Air-cooled 4-stroke, DOHC
Cylinder arrangement Forward-inclined parallel
4-cylinder
Displacement 598 cm
3
Bore × Stroke 58.5 × 55.7 mm
Compression ratio 10:1
Starting system Electric starter
Lubrication system Wet sumpEngine oil
Ty p e
Recommended engine oil
classification API Service SE, SF, SG type or
higher
Quantity
Without oil filter cartridge
replacement 2.3 L
With oil filter car tridge
replacement 2.6 L
Total amount (dry engine) 3.1 L
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
CAUTION:Be sure to use motor oils that do not contain anti-friction
modifiers. Passenger car motor oils (often labeled
“ENERGY CONSERVING II”) contain anti-friction additives
which will cause clutch and/or starter clutch slippage, result-
ing in reduced component life and poor engine performance.
E_4br.book Page 1 Wednesday, July 25, 2001 1:40 PM
