YAMAHA XJR 1300 2003 Repair Manual
Manufacturer: YAMAHA, Model Year: 2003, Model line: XJR 1300, Model: YAMAHA XJR 1300 2003Pages: 102, PDF Size: 5.89 MB
Page 61 of 102

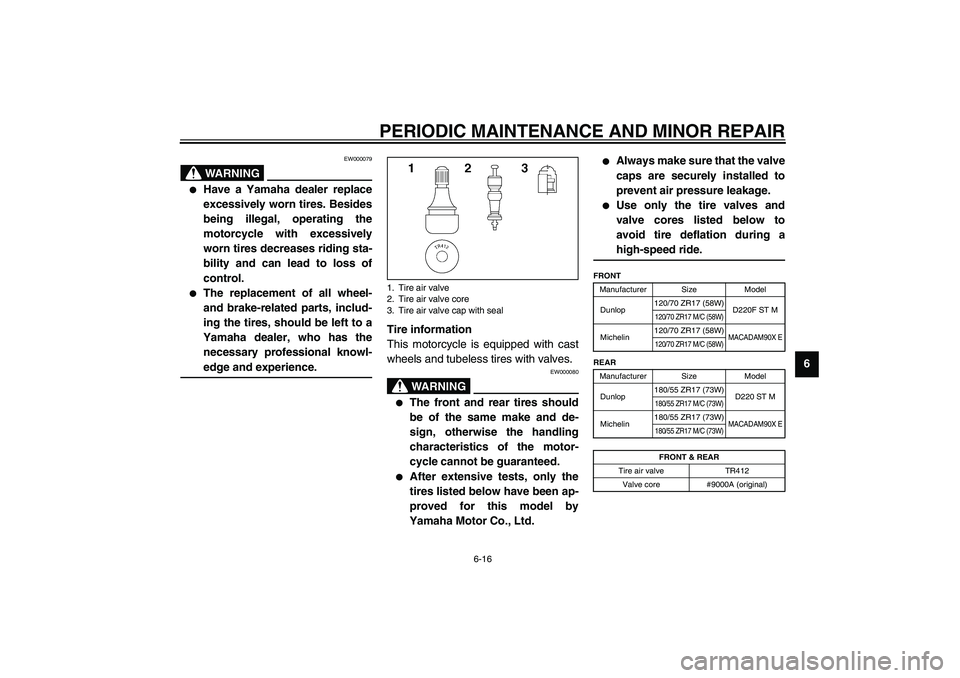

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EW000079
WARNING
_
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
motorcycle with excessively
worn tires decreases riding sta-
bility and can lead to loss of
control.
The replacement of all wheel-
and brake-related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-
edge and experience.
_
Tire information
This motorcycle is equipped with cast
wheels and tubeless tires with valves.
EW000080
WARNING
_
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during a
high-speed ride.
_CE-10E
CE-14E
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
FRONT
Manufacturer Size Model
Dunlop120/70 ZR17 (58W)
D220F ST M
120/70 ZR17 M/C (58W)
Michelin120/70 ZR17 (58W)
MACADAM90X E
120/70 ZR17 M/C (58W)
REAR
Manufacturer Size Model
Dunlop180/55 ZR17 (73W)
D220 ST M
180/55 ZR17 M/C (73W)
Michelin180/55 ZR17 (73W)
MACADAM90X E
180/55 ZR17 M/C (73W)FRONT & REAR
Tire air valve TR412
Valve core #9000A (original)
U5WME0.book Page 16 Monday, July 29, 2002 10:25 AM
Page 62 of 102

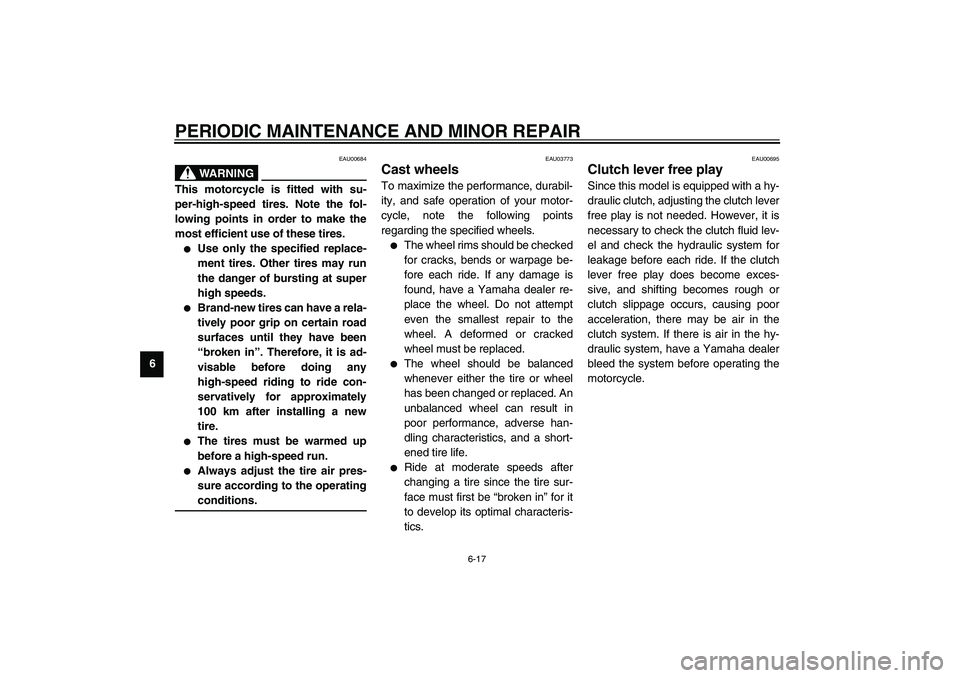

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU00684
WARNING
_ This motorcycle is fitted with su-
per-high-speed tires. Note the fol-
lowing points in order to make the
most efficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been
“broken in”. Therefore, it is ad-
visable before doing any
high-speed riding to ride con-
servatively for approximately
100 km after installing a new
tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operating
conditions.
_
EAU03773
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
EAU00695
Clutch lever free play Since this model is equipped with a hy-
draulic clutch, adjusting the clutch lever
free play is not needed. However, it is
necessary to check the clutch fluid lev-
el and check the hydraulic system for
leakage before each ride. If the clutch
lever free play does become exces-
sive, and shifting becomes rough or
clutch slippage occurs, causing poor
acceleration, there may be air in the
clutch system. If there is air in the hy-
draulic system, have a Yamaha dealer
bleed the system before operating the
motorcycle.
U5WME0.book Page 17 Monday, July 29, 2002 10:25 AM
Page 63 of 102

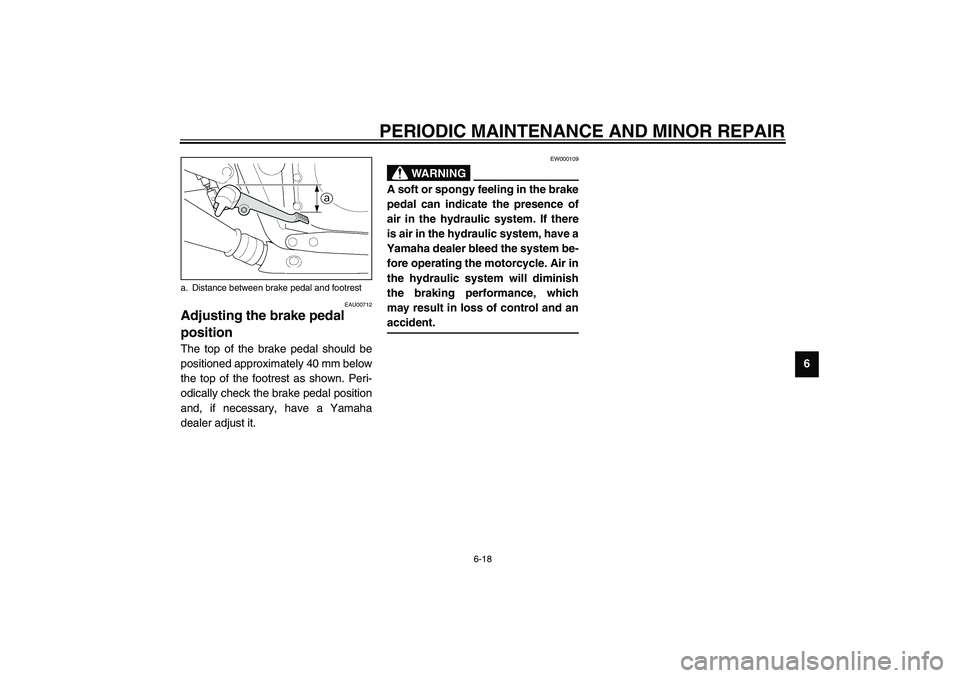

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
EAU00712
Adjusting the brake pedal
position The top of the brake pedal should be
positioned approximately 40 mm below
the top of the footrest as shown. Peri-
odically check the brake pedal position
and, if necessary, have a Yamaha
dealer adjust it.
EW000109
WARNING
_ A soft or spongy feeling in the brake
pedal can indicate the presence of
air in the hydraulic system. If there
is air in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the motorcycle. Air in
the hydraulic system will diminish
the braking performance, which
may result in loss of control and an
accident. _
a. Distance between brake pedal and footrest
U5WME0.book Page 18 Monday, July 29, 2002 10:25 AM
Page 64 of 102

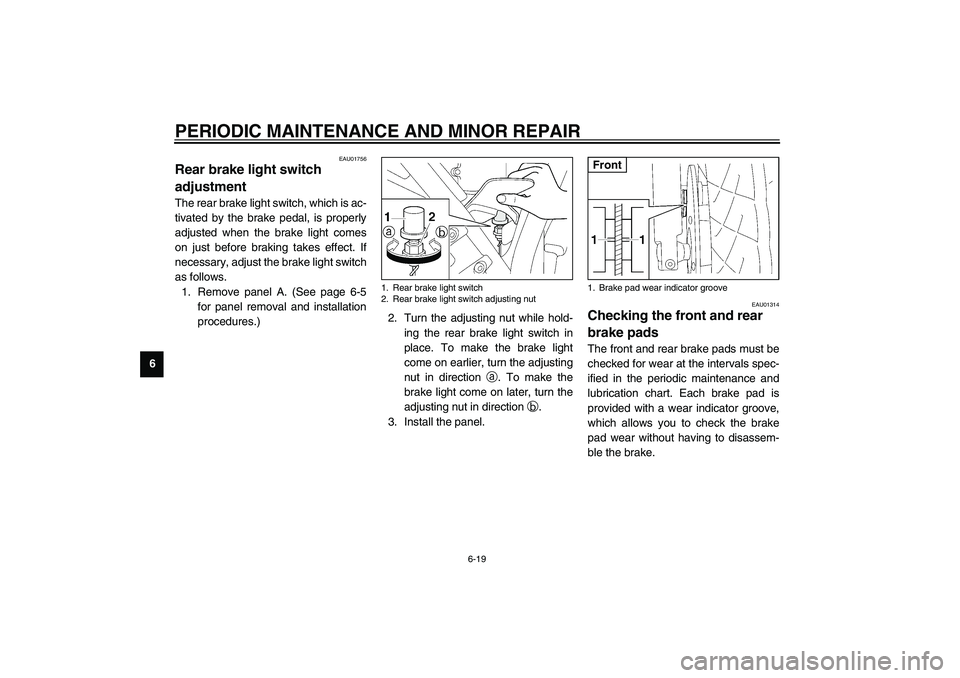

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU01756
Rear brake light switch
adjustment The rear brake light switch, which is ac-
tivated by the brake pedal, is properly
adjusted when the brake light comes
on just before braking takes effect. If
necessary, adjust the brake light switch
as follows.
1. Remove panel A. (See page 6-5
for panel removal and installation
procedures.)2. Turn the adjusting nut while hold-
ing the rear brake light switch in
place. To make the brake light
come on earlier, turn the adjusting
nut in direction
a. To make the
brake light come on later, turn the
adjusting nut in direction
b.
3. Install the panel.
EAU01314
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart. Each brake pad is
provided with a wear indicator groove,
which allows you to check the brake
pad wear without having to disassem-
ble the brake.
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator grooveFront
U5WME0.book Page 19 Monday, July 29, 2002 10:25 AM
Page 65 of 102

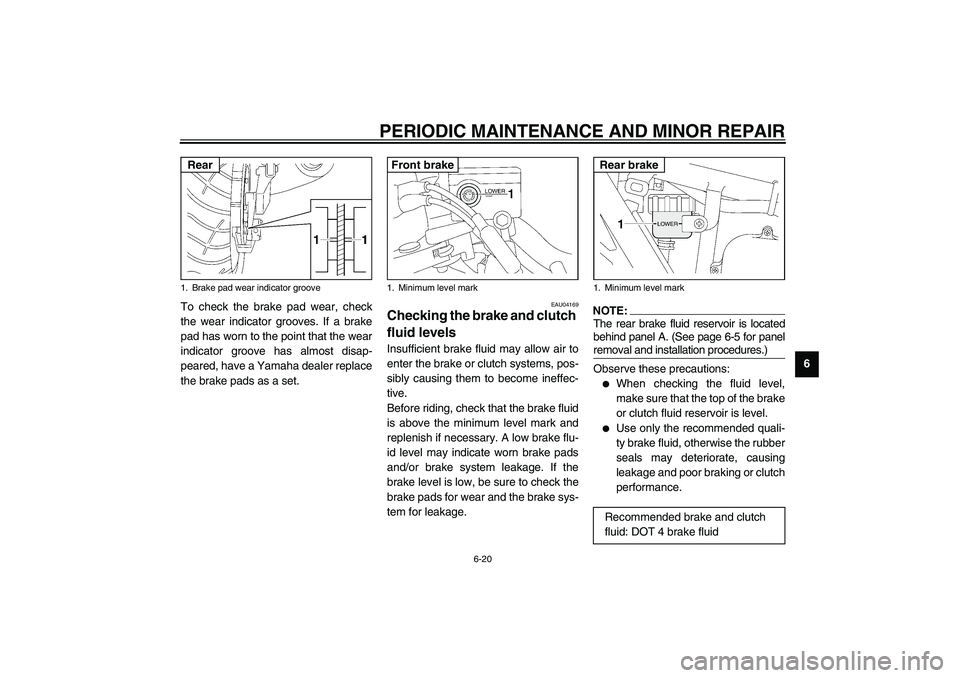

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6 To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU04169
Checking the brake and clutch
fluid levels Insufficient brake fluid may allow air to
enter the brake or clutch systems, pos-
sibly causing them to become ineffec-
tive.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake flu-
id level may indicate worn brake pads
and/or brake system leakage. If the
brake level is low, be sure to check the
brake pads for wear and the brake sys-
tem for leakage.
NOTE:_ The rear brake fluid reservoir is located
behind panel A. (See page 6-5 for panel
removal and installation procedures.) Observe these precautions:
When checking the fluid level,
make sure that the top of the brake
or clutch fluid reservoir is level.
Use only the recommended quali-
ty brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
1. Brake pad wear indicator grooveRear
1. Minimum level markFront brake
1. Minimum level markRecommended brake and clutch
fluid: DOT 4 brake fluidRear brake
U5WME0.book Page 20 Monday, July 29, 2002 10:25 AM
Page 66 of 102

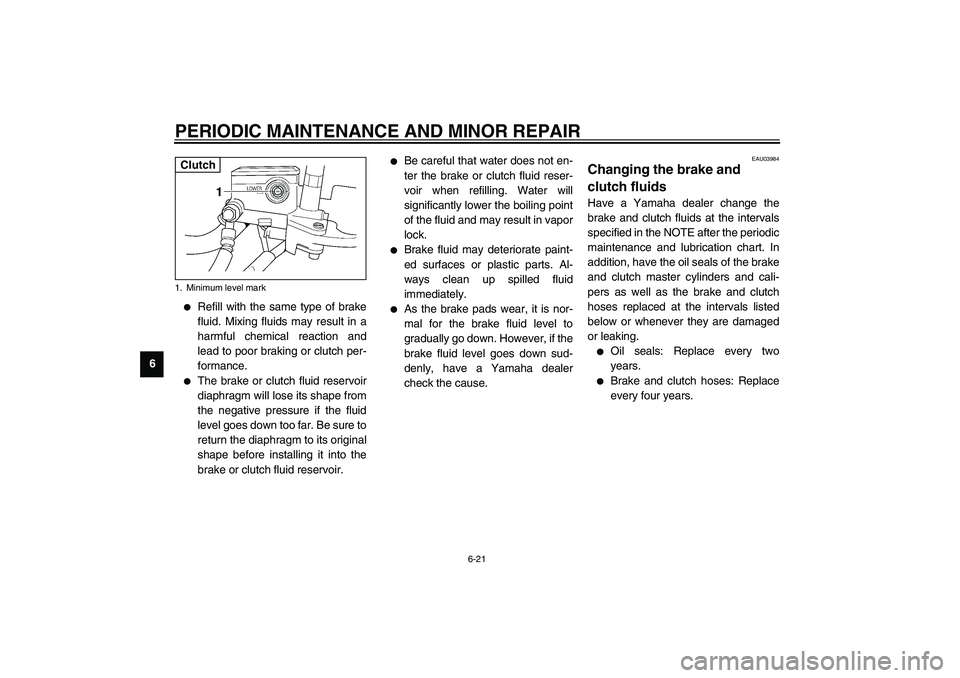

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.
The brake or clutch fluid reservoir
diaphragm will lose its shape from
the negative pressure if the fluid
level goes down too far. Be sure to
return the diaphragm to its original
shape before installing it into the
brake or clutch fluid reservoir.
Be careful that water does not en-
ter the brake or clutch fluid reser-
voir when refilling. Water will
significantly lower the boiling point
of the fluid and may result in vapor
lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU03984
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the NOTE after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake and clutch hoses: Replace
every four years.
1. Minimum level markClutch
U5WME0.book Page 21 Monday, July 29, 2002 10:25 AM
Page 67 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6
EAU00745
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.
5. If the drive chain slack is incorrect,
adjust it as follows.
a. Drive chain slackDrive chain slack:
20–30 mm
U5WME0.book Page 22 Monday, July 29, 2002 10:25 AM
Page 68 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU03608
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction
a. To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction
b, and then
push the rear wheel forward.
NOTE:_ Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-
tion for proper wheel alignment. _
EC000096
CAUTION:_ Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within the
specified limits. _3. Tighten the locknuts, and then
tighten the axle nut to the specified
torque.
EAU03006
Lubricating the drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.
EC000097
CAUTION:_ The drive chain must be lubricated
after washing the motorcycle or
riding in the rain. _1. Clean the drive chain with kero-
sene and a small soft brush.
ECA00053
CAUTION:_ To prevent damaging the O-rings,
do not clean the drive chain with
steam cleaners, high-pressure
washers or inappropriate solvents. _2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
1. Locknut
2. Drive chain slack adjusting bolt
3. Axle nut
4. Alignment marks
Tightening torque:
Axle nut:
150 Nm (15.0 m·kgf)
U5WME0.book Page 23 Monday, July 29, 2002 10:25 AM
Page 69 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
ECA00052
CAUTION:_ Do not use engine oil or any other
lubricants for the drive chain, as
they may contain substances that
could damage the O-rings. _
EAU02962
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
EW000112
WARNING
_ Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafe
conditions. _
EAU04034
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated or
replaced at the intervals specified in
the periodic maintenance chart.
Recommended lubricant:
Engine oil
U5WME0.book Page 24 Monday, July 29, 2002 10:25 AM
Page 70 of 102
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
EAU03370
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
EAU03164
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
EAU03371
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and met-
al-to-metal contact surfaces should be
lubricated if necessary.
EW000114
WARNING
_ If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. _
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
Recommended lubricant:
Lithium-soap-based grease
(all-purpose grease)
U5WME0.book Page 25 Monday, July 29, 2002 10:25 AM
