PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU36773
TIPAir filter
• This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com- pressed air to avoid damaging it.
• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.20 *Front fork • Check operation and for oil leak-
age. √√√√
21 *Shock a
bsor ber as-
sem blies • Check operation and shock ab-
sorbers for oil leakage. √√√√
22 En gine oil • Change.
• Check oil level and vehicle for oil
leakage. √√√√√√
23 En
gine oil filter ele-
ment •Replace.
√√√
24 *Front an
d rear
b rake switches • Check operation.
√√√√√√
25 Movin
g parts an d
ca bles • Lubricate.
√√√√√
26 *Throttle g rip • Check operation.
• Check throttle grip free play, and
adjust if necessary.
• Lubricate cable and grip housing. √√√√√
27 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
U2PNE0E0.book Page 6 Tuesday, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
Hydraulic brake and clutch service
• Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
• Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master and release cylinders, and change the brake and clutch fluids.
• Replace the brake and clutch hoses every four years and if cracked or damaged.
U2PNE0E0.book Page 7 Tuesday, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18773
Removing an d installin g pan-
elsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU65410
Panels A an d B
To remove a panelRemove the bolts, and then take the
panel off. To install a panel
Place the panel in the original position,
and then install the bolts.
1. Panel A
1
1. Panel B
1
1. Panel A
2. Bolt
1
2
U2PNE0E0.book Page 8 Tuesday, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU19643
Checking the spark plu gsThe spark plugs are important engine
components, which should be
checked periodically, preferably by a
Yamaha dealer. Since heat and depos- its will cause any spark plug to slowly
erode, they should be removed and
checked in accordance with the peri-
odic maintenance and lubrication
chart. In addition, the condition of the
spark plugs can reveal the condition of
the engine.
The porcelain insulator around the
center electrode of each spark plug
should be a medium-to-light tan (the
ideal color when the vehicle is ridden
normally), and all spark plugs installed
in the engine should have the same
color. If any spark plug shows a dis-
tinctly different color, the engine could
be operating improperly. Do not at-
tempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of elec-
trode erosion and excessive carbon or
other deposits, it should be replaced. Before installing a spark plug, the
spark plug gap should be measured
with a wire thickness gauge and, if
necessary, adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and
then wipe off any grime from the spark
plug threads.
TIPIf a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is 1/4–
1/2 turn past finger tight. However, the
spark plug should be tightened to the
specified torque as soon as possible.
Specifie
d spark plu g:
NGK/DPR8EA-91. Spark plug gapSpark plu g g ap:
0.8–0.9 mm (0.031–0.035 in)
Ti ghtenin g torque:
Spark plug: 18 Nm (1.8 m·kgf, 13 ft·lbf)
U2PNE0E0.book Page 9 Tuesday, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
EAU65421
Engine oil an d oil filter ele-
mentThe engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the en gine oil level
1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Wait a few minutes until the oil set- tles, and then check the oil level
through the check window locat-
ed at the bottom-right side of the
crankcase.TIPThe engine oil should be between the
minimum and maximum level marks.
4. If the engine oil is below the mini-mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.
To chan ge the en gine oil (with or
without oil filter element replace-
ment) 1. Place the vehicle on a level sur- face.
2. Start the engine, warm it up for several minutes, and then turn it
off.
3. Place an oil pan under the engine to collect the used oil. 4. Remove the engine oil filler cap,
the engine oil drain bolt and its
gasket to drain the oil from the
crankcase.
TIPSkip steps 5–15 if the oil filter element
is not being replaced.5. Remove the drive sprocket coverby removing the bolts.
1. Engine oil filler cap
2. Engine oil level check window
3. Maximum level mark
4. Minimum level mark
3
4
1. Engine oil filler cap
2. Engine oil drain bolt
3. Gasket
231
U2PNE0E0.book Page 10 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
66. Remove the oil filter element drain
screw and its gasket to drain the
oil from the oil filter element.
7. Remove the oil filter element cover by removing the oil filter element
cover bolt. 8. Remove the oil filter element and
O-rings.
TIPTake care not to lose the compression
spring and washer.
9. Install new O-rings onto the ele-ment cover bolt and element cov-
er.
10. Apply a thin coat of clean engine oil to the O-rings.
11. Insert the element cover bolt into the element cover.
12. Fit the spring, washer and a new oil filter element over the bolt.TIPMake sure the O-rings are properly
seated.

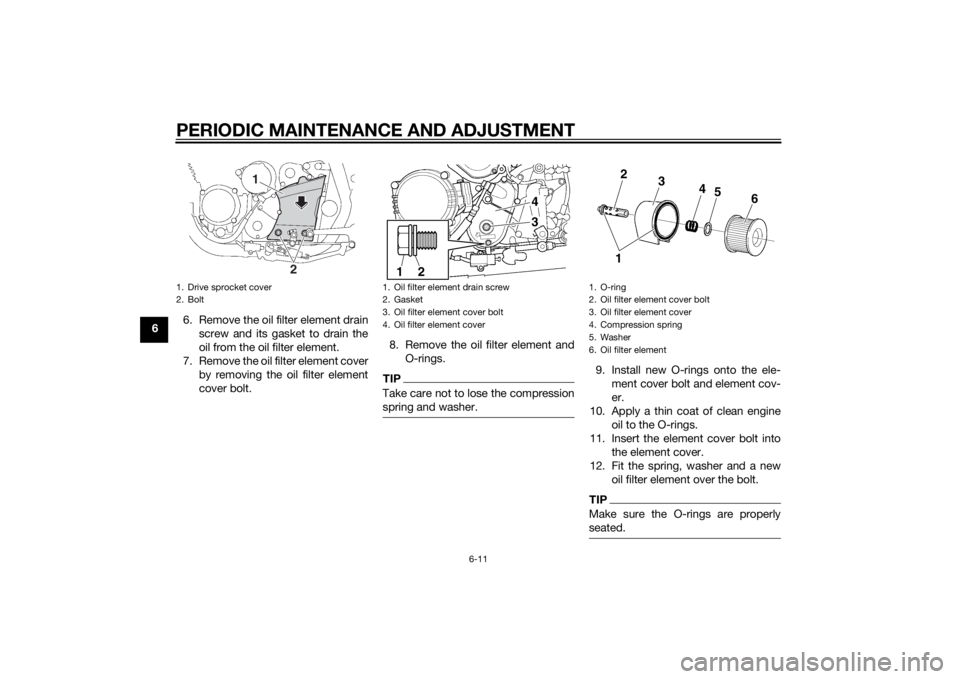

1. Drive sprocket cover
2. Bolt
2
1
1. Oil filter element drain screw
2. Gasket
3. Oil filter element cover bolt
4. Oil filter element cover
1
2
43
1. O-ring
2. Oil filter element cover bolt
3. Oil filter element cover
4. Compression spring
5. Washer
6. Oil filter element
2
3
4
5
6
1
U2PNE0E0.book Page 11 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
13. Install the engine oil filter element
cover (together with the spring,
washer and oil filter element) by
aligning the projection on the cov-
er with the slot in the crankcase,
and then tightening the bolt to the
specified torque.
14. Install the oil filter element drain screw and its new gasket, and
then tighten the screw to the
specified torque. 15. Install the drive sprocket cover by
placing it in the original position
and installing the bolts.
16. Install the engine oil drain bolt and its new gasket, and then tighten
the bolt to the specified torque.
17. Refill with the specified amount of the recommended engine oil, and
then install and tighten the oil filler
cap.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In or der to prevent clutch slip-
pa ge (since the en gine oil also
lu bricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a hi gh-
er quality than specifie d. In
a dd ition, do not use oils la bele d
“ENERGY CONSERVING II” or
hi gher.
 Make sure that no forei gn mate-
rial enters the crankcase.18. Start the engine, and then let it idle for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
1. Projection
2. SlotTightenin g torque:
Oil filter element cover bolt: 15 Nm (1.5 m·kgf, 11 ft·lbf)
Tightenin g torque:
Oil filter element drain screw:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)
Ti ghtenin g torque:
Engine oil drain bolt: 43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommen ded en gine oil:
See page 8-1.
Oil quantity: Without oil filter element replace-
ment:
2.80 L (2.96 US qt, 2.46 Imp.qt)
With oil filter element replacement: 3.15 L (3.33 US qt, 2.77 Imp.qt)
U2PNE0E0.book Page 12 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
TIPAfter the engine is started, the engine
oil level warning light should go off if
the oil level is sufficient.NOTICE
ECA10402
If the oil level warning lig ht flickers
or remains on even if the oil level is
correct, imme diately turn the en gine
off an d have a Yamaha d ealer check
the vehicle.19. Turn the engine off, and then check the oil level and correct it if
necessary.
EAU65431
Replacin g the air filter ele-
ment an d cleanin g the check
hoseThe air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas. In addition,
the air filter check hose must be fre-
quently checked and cleaned if neces-
sary.
To replace the air filter element
1. Remove panel A. (See page 6-8.)
2. Remove the right side cover by re- moving the bolt. 3. Remove the air filter case cover by
removing the screws.
4. Pull the air filter element out.
1. Bolt
2. Right side cover

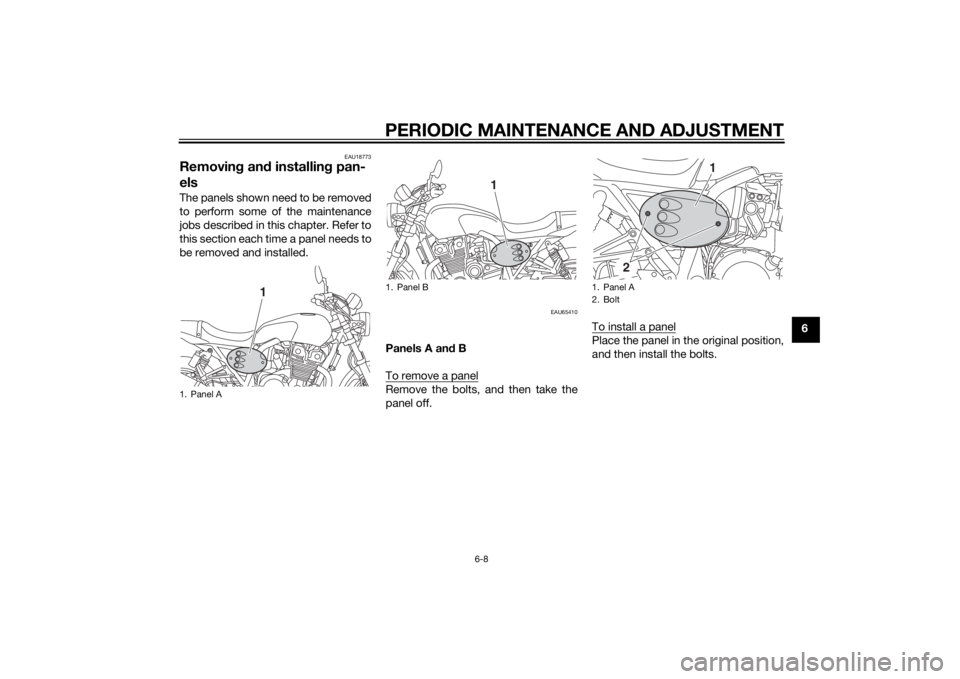

1. Air filter case cover
2. Screw
1
2
2
2
1
U2PNE0E0.book Page 13 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
5. Insert a new air filter element into
the air filter case. NOTICE: Make
sure that the air filter element is
properly seate d in the air filter
case. The en gine should never
b e operated without the air filter
element installed , otherwise the
piston(s) an d/or cylin der(s) may
b ecome excessively worn.
[ECA10482]
6. Install the air filter case cover by
installing the screws.
7. Install the right side cover as shown, and then install the bolt. 8. Install the panel.
To clean the air filter check hose 1. Check the hose on the front of the air filter case for accumulated dirt
or water. 2. If dirt or water is visible, remove
the hose, clean it, and then install

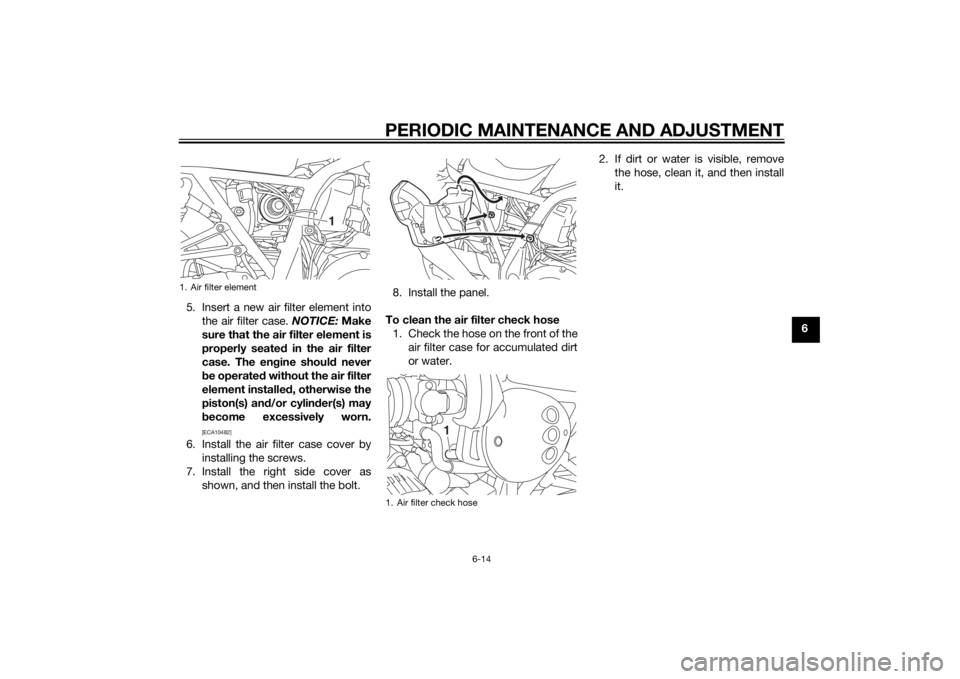

it.1. Air filter element
1
1. Air filter check hose
1
U2PNE0E0.book Page 14 Tuesda y, September 16, 2014 4:15 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
EAU21385
Checking the throttle grip free
playThe throttle grip free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
inner edge of the throttle grip. Periodi-
cally check the throttle grip free play
and, if necessary, have a Yamaha deal-
er adjust it.
EAU21402
Valve clearanceThe valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU2177A
TiresTires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.  The tire air pressure must be
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the amb ient
temperature).
 The tire air pressure must be
a d juste d in accor dance with the
ri din g speed and with the total
1. Throttle grip free play
1
U2PNE0E0.book Page 15 Tuesda y, September 16, 2014 4:15 PM
