YAMAHA XMAX 125 2008 Manual Online

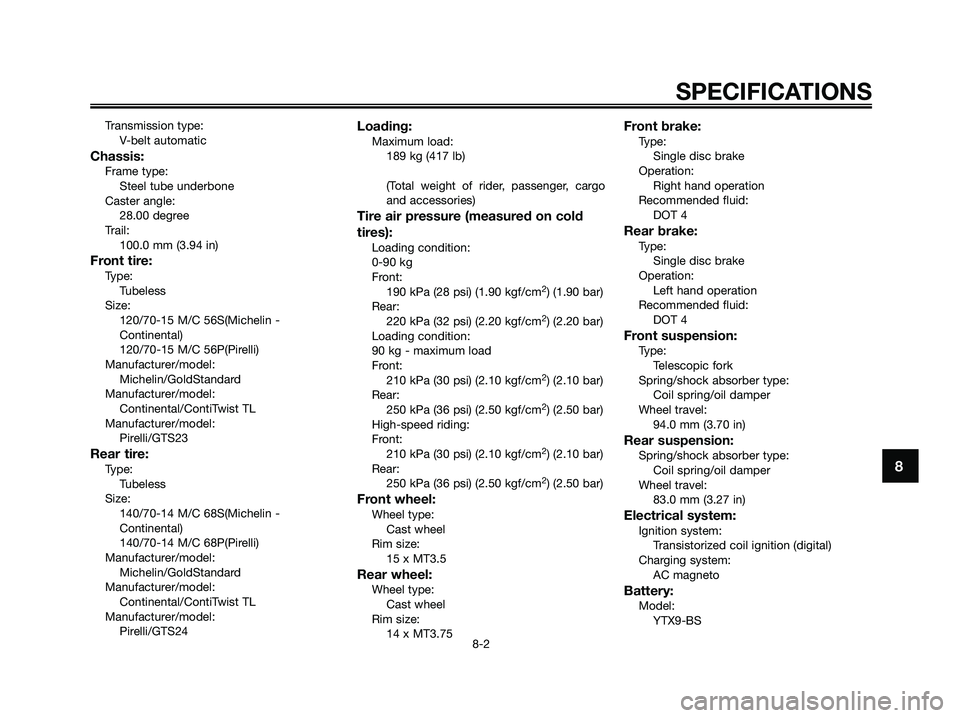

Transmission type:
V-belt automatic
Chassis:Frame type:
Steel tube underbone
Caster angle:
28.00 degree
Trail:
100.0 mm (3.94 in)
Front tire:Type:
Tubeless
Size:
120/70-15 M/C 56S(Michelin -
Continental)
120/70-15 M/C 56P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS23
Rear tire:Type:
Tubeless
Size:
140/70-14 M/C 68S(Michelin -
Continental)
140/70-14 M/C 68P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS24
Loading:Maximum load:
189 kg (417 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0-90 kg
Front:
190 kPa (28 psi) (1.90 kgf/cm
2) (1.90 bar)
Rear:
220 kPa (32 psi) (2.20 kgf/cm
2) (2.20 bar)
Loading condition:
90 kg - maximum load
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
High-speed riding:
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
15 x MT3.5
Rear wheel:Wheel type:
Cast wheel
Rim size:
14 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
94.0 mm (3.70 in)
Rear suspension:Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
83.0 mm (3.27 in)
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:Model:
YTX9-BS
SPECIFICATIONS
8-2
8
1B9-F8199-E2.qxd 13/11/07 12:18 Página 81

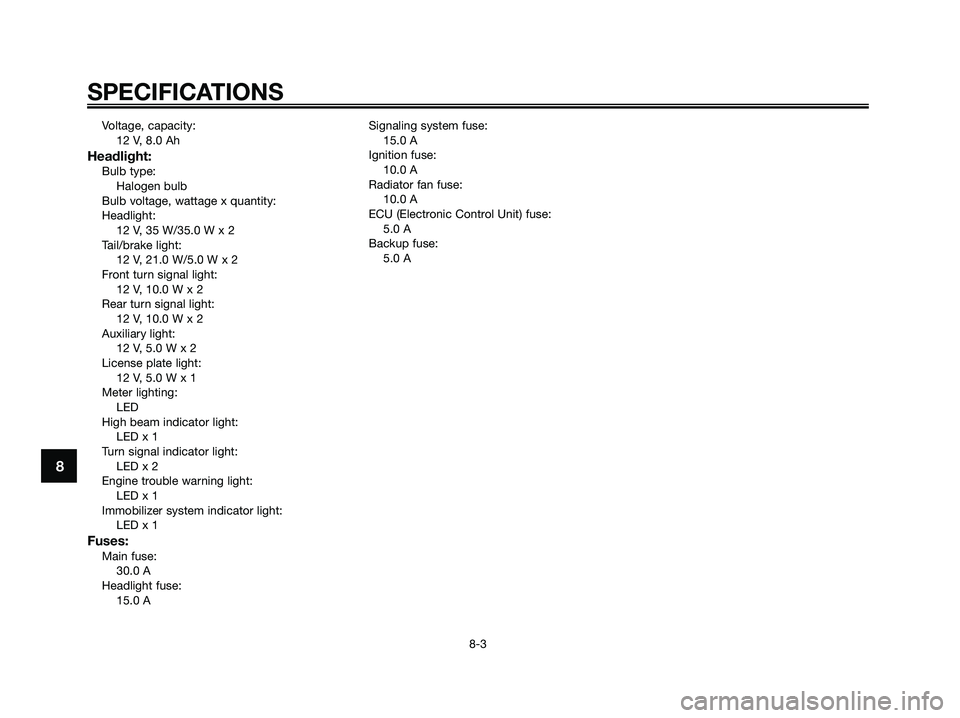

Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V, 35 W/35.0 W x 2
Tail/brake light:
12 V, 21.0 W/5.0 W x 2
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Auxiliary light:
12 V, 5.0 W x 2
License plate light:
12 V, 5.0 W x 1
Meter lighting:
LED
High beam indicator light:
LED x 1
Turn signal indicator light:
LED x 2
Engine trouble warning light:
LED x 1
Immobilizer system indicator light:
LED x 1
Fuses:Main fuse:
30.0 A
Headlight fuse:
15.0 ASignaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
ECU (Electronic Control Unit) fuse:
5.0 A
Backup fuse:
5.0 A
SPECIFICATIONS
8-3
8
1B9-F8199-E2.qxd 13/11/07 12:18 Página 82

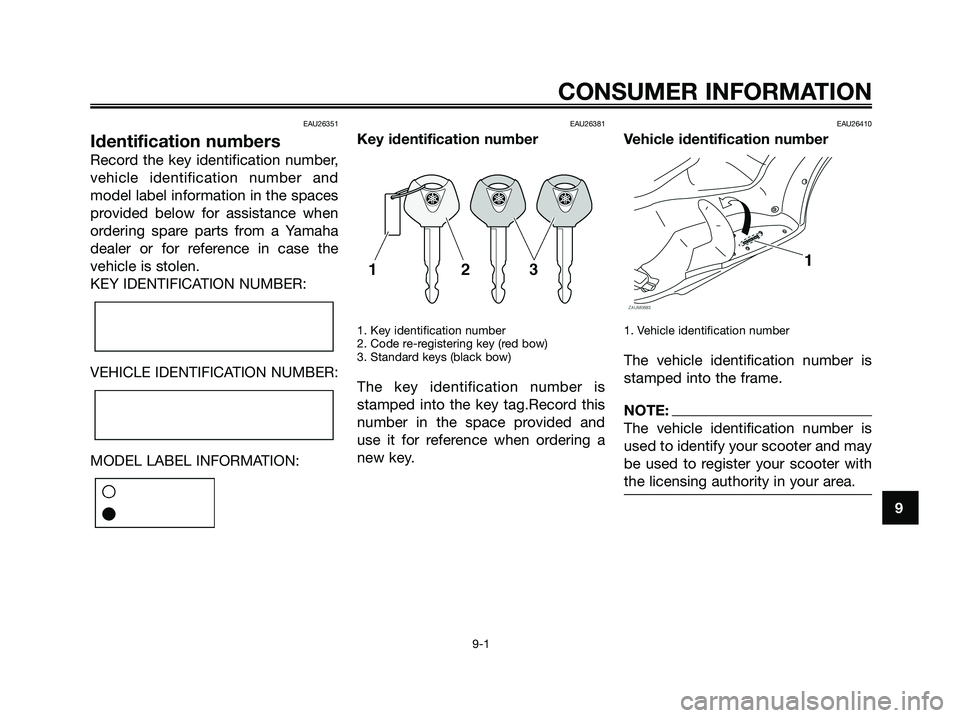

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
The key identification number is
stamped into the key tag.Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
NOTE:
The vehicle identification number is
used to identify your scooter and may
be used to register your scooter with
the licensing authority in your area.
CONSUMER INFORMATION
9-1
9
1B9-F8199-E2.qxd 13/11/07 12:18 Página 83

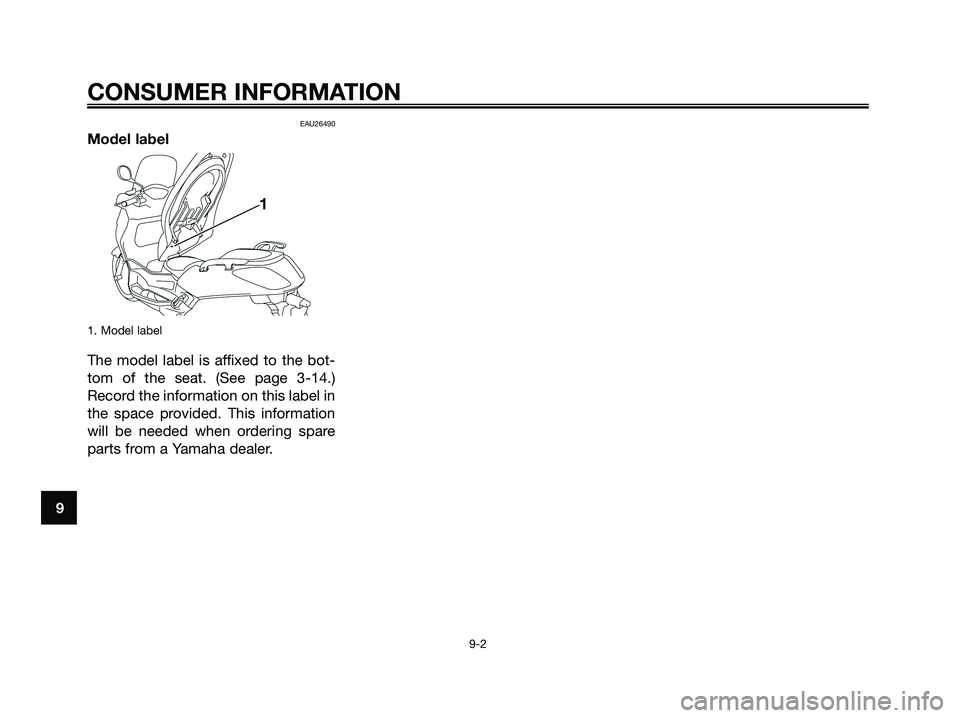

EAU26490
Model label
1. Model label
The model label is affixed to the bot-
tom of the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
CONSUMER INFORMATION
9-2
9
1B9-F8199-E2.qxd 13/11/07 12:18 Página 84

INDEX
AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-15
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-32
BBattery......................................................6-26
Brake fluid level, checking .......................6-21
Brake fluid, changing ...............................6-22
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-11
Brake levers, lubricating ..........................6-23
Braking .......................................................5-3
CCables, checking and lubricating ............6-23
Care............................................................7-1
Catalytic converters .................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-24
Coolant.....................................................6-14
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-7
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-6
EEngine break-in ..........................................5-4
Engine oil .................................................6-10
Engine trouble warning light ......................3-3
FFinal transmission oil ...............................6-13
Front and rear brake lever free play.........6-20Front and rear brake pads, checking ......6-21
Front fork, checking .................................6-24
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-3
Fuel gauge .................................................3-5
Fuel level warning light ..............................3-3
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-27
HHandlebar switches ...................................3-9
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-29
High beam indicator light...........................3-3
Horn switch ................................................3-9
I
Identification numbers ...............................9-1
Ignition circuit cut-off system ..................3-18
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-3
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-32
MMain switch/steering lock ..........................3-2
Matte color, caution ...................................7-4
Model label ................................................9-2
PParking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-1
Safety information ......................................1-1
Seat ..........................................................3-14
Self-diagnosis device.................................3-4
Shock absorber assemblies, adjusting....3-17
Sidestand .................................................3-18
Spark plug, checking .................................6-9
Specifications.............................................8-1
Speedometer .............................................3-4
Start switch ................................................3-9
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-25
Storage.......................................................7-3
Storage compartment (front) ...................3-15
Storage compartment (rear) .....................3-16
Storage compartments ............................3-14
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-30
Throttle cable free play, adjusting ............6-17
Throttle grip and cable, checking and
lubricating ..............................................6-23
Tires .........................................................6-18
Tool kit ........................................................6-1
Troubleshooting .......................................6-32
Troubleshooting charts ............................6-33
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-30
Turn signal switch ......................................3-9
VValve clearance ........................................6-17
Vehicle identification number .....................9-1
1B9-F8199-E2.qxd 13/11/07 12:18 Página 85

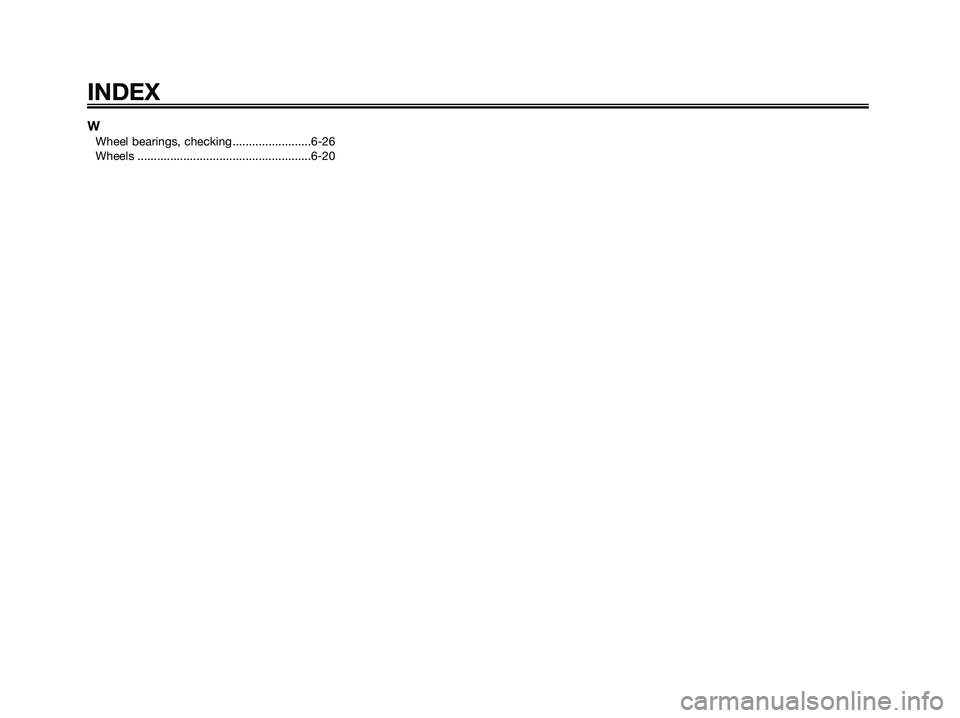

WWheel bearings, checking........................6-26
Wheels .....................................................6-20
INDEX
1B9-F8199-E2.qxd 13/11/07 12:18 Página 86

1B9-F8199-E2.qxd 13/11/07 12:18 Página 87

YAMAHA MOTOR ESPAÑA, S.A.
PRINTED IN SPAIN
2007.11-NOVOPRINT, S.A.
(E)
1B9-F8199-E2.qxd 13/11/07 12:18 Página 88
