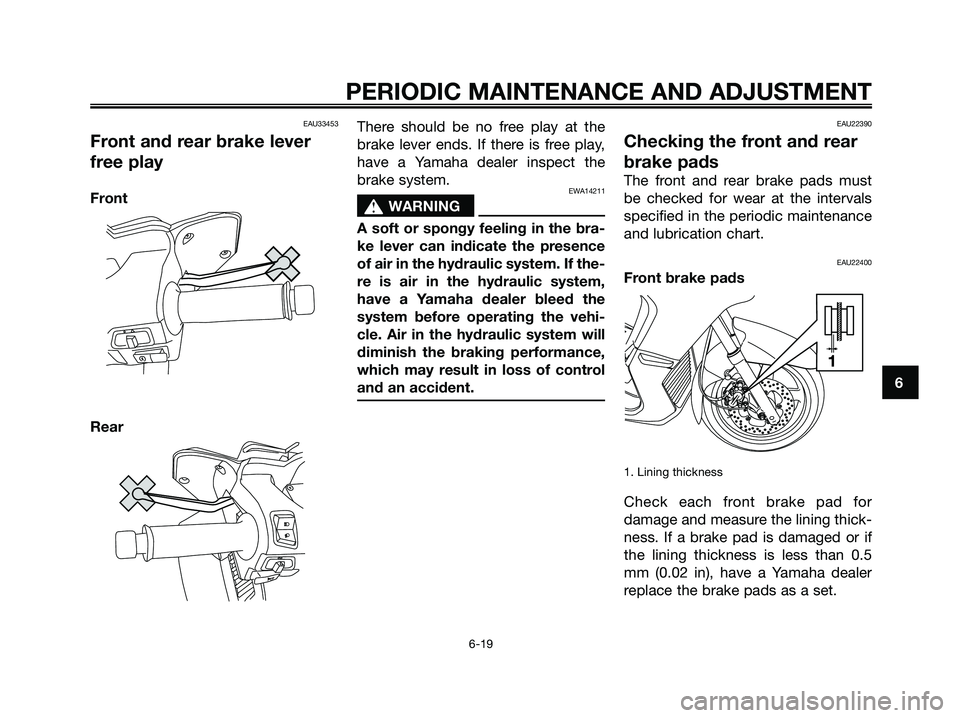

EAU33453
Front and rear brake lever
free play
Front
RearThere should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.EWA14211
s s
WARNING
A soft or spongy feeling in the bra-
ke lever can indicate the presence
of air in the hydraulic system. If the-
re is air in the hydraulic system,
have a Yamaha dealer bleed the
system before operating the vehi-
cle. Air in the hydraulic system will
diminish the braking performance,
which may result in loss of control
and an accident.
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU22400
Front brake pads
1. Lining thickness
Check each front brake pad for
damage and measure the lining thick-
ness. If a brake pad is damaged or if
the lining thickness is less than 0.5
mm (0.02 in), have a Yamaha dealer
replace the brake pads as a set.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 61

EAU22460

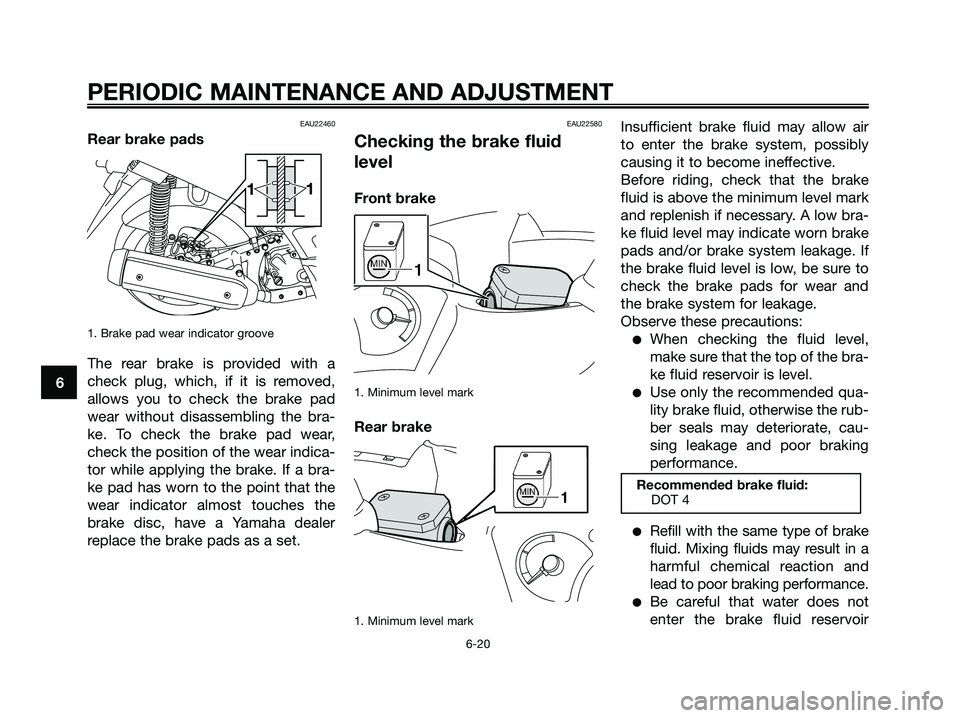

Rear brake pads
1. Brake pad wear indicator groove
The rear brake is provided with a
check plug, which, if it is removed,
allows you to check the brake pad
wear without disassembling the bra-
ke. To check the brake pad wear,
check the position of the wear indica-
tor while applying the brake. If a bra-
ke pad has worn to the point that the
wear indicator almost touches the
brake disc, have a Yamaha dealer
replace the brake pads as a set.
EAU22580
Checking the brake fluid
level
Front brake
1. Minimum level mark
Rear brake
1. Minimum level mark
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
●When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
●Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
●Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
●Be careful that water does not
enter the brake fluid reservoir
Recommended brake fluid:
DOT 4
PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 62

when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
●Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
●As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAU22721
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenan-
ce and lubrication chart. In addition,
have the oil seals of the brake master
cylinder and caliper as well as the
brake hose replaced at the intervals
listed below or whenever they are
damaged or leaking.
●Oil seals: Replace every two
years.
●Brake hose: Replace every four
years.
EAU23101
Checking and lubricating the
cables
The operation of all control cables
and the condition of the cables
should be checked before each ride,
and the cables and cable ends should
be lubricated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or repla-
ce it. WARNING! Damage to the
outer sheath may interfere with
proper cable operation and will
cause the inner cable to rust.
Replace a damaged cable as soon
as possible to prevent unsafe con-
ditions.
[EWA10721]
Recommended lubricant:
Engine oil
PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 63

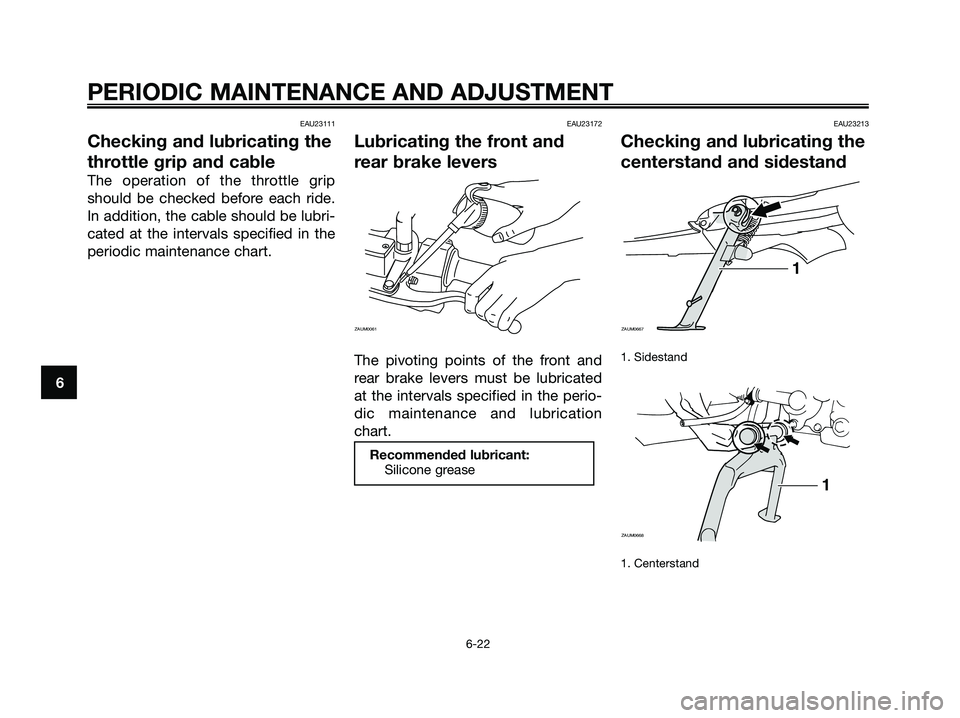

EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
EAU23172
Lubricating the front and
rear brake levers
The pivoting points of the front and
rear brake levers must be lubricated
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
EAU23213
Checking and lubricating the
centerstand and sidestand
1. Sidestand
1. Centerstand
1
ZAUM0668
ZAUM0667
1
Recommended lubricant:
Silicone grease
ZAUM0061
PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 64

The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-
to-metal contact surfaces should be
lubricated if necessary.
EWA10741
s s
WARNING
If the centerstand or sidestand
does not move up and down smo-
othly, have a Yamaha dealer check
or repair it. Otherwise, the centers-
tand or sidestand could contact the
ground and distract the operator,
resulting in a possible loss of con-
trol.
EAU23272

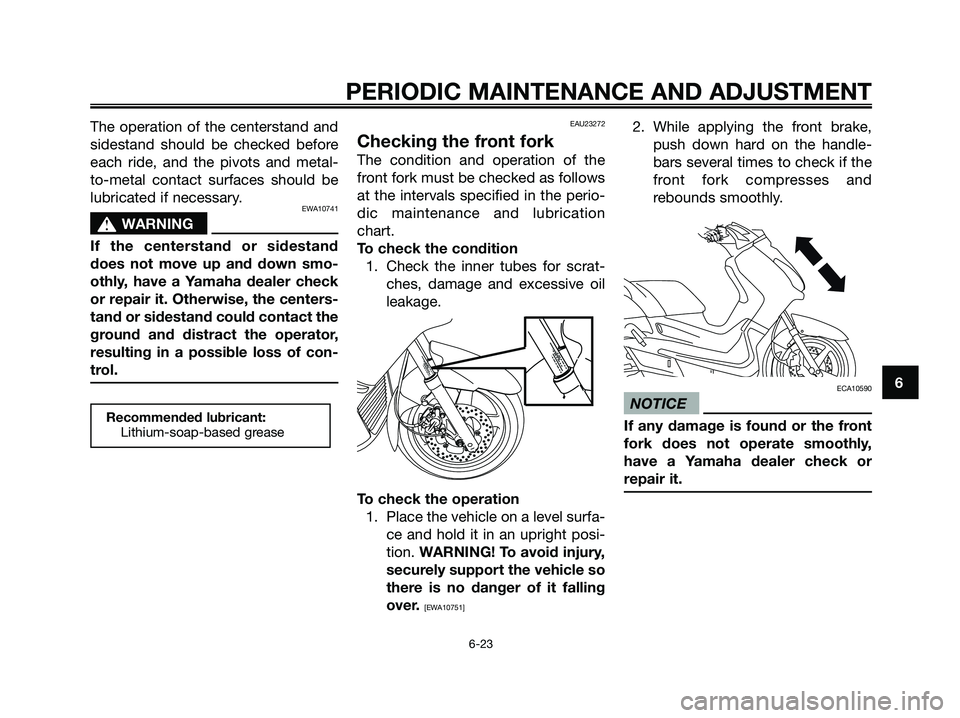

Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the perio-
dic maintenance and lubrication
chart.
To check the condition
1. Check the inner tubes for scrat-
ches, damage and excessive oil
leakage.
To check the operation
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and
rebounds smoothly.
ECA10590
NOTICE
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or
repair it.Recommended lubricant:
Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
6-23
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 65

EAU45511

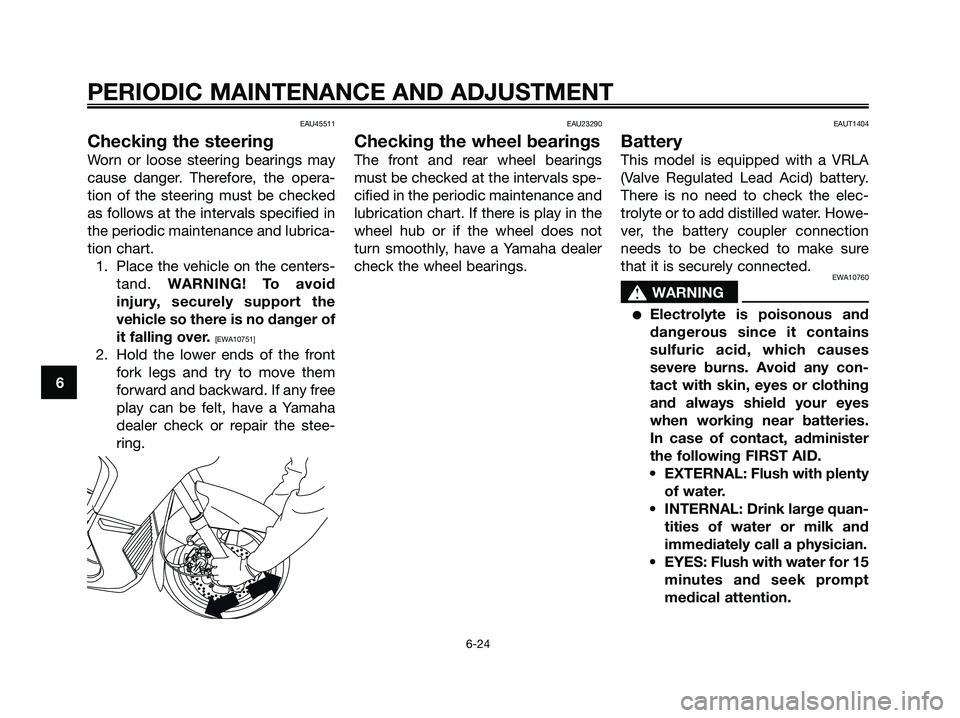

Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place the vehicle on the centers-
tand. WARNING! To avoid
injury, securely support the
vehicle so there is no danger of
it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the stee-
ring.
EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spe-
cified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAUT1404
Battery
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the elec-
trolyte or to add distilled water. Howe-
ver, the battery coupler connection
needs to be checked to make sure
that it is securely connected.
EWA10760
s s
WARNING
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 66

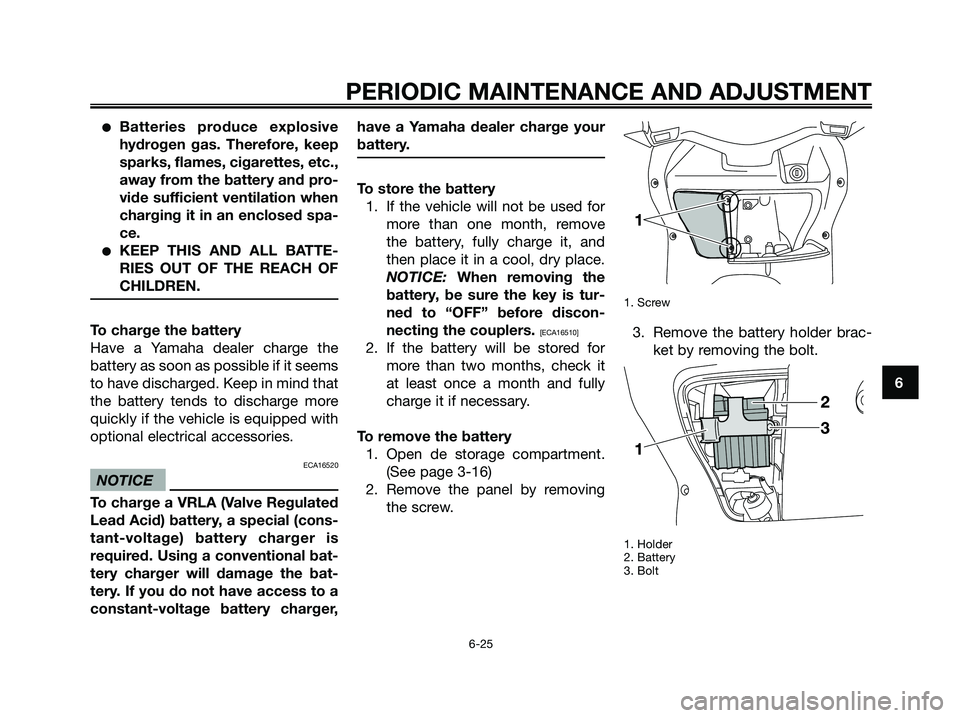

●Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed spa-
ce.
●KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
ECA16520
NOTICE
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (cons-
tant-voltage) battery charger is
required. Using a conventional bat-
tery charger will damage the bat-
tery. If you do not have access to a
constant-voltage battery charger,have a Yamaha dealer charge your
battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is tur-
ned to “OFF” before discon-
necting the couplers.
[ECA16510]
2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
To remove the battery
1. Open de storage compartment.
(See page 3-16)
2. Remove the panel by removing
the screw.
1. Screw
3. Remove the battery holder brac-
ket by removing the bolt.
1. Holder
2. Battery
3. Bolt
PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 67

4. Pull the battery out from the bat-
tery box, and then disconnect the
battery couplers.
1. Negative battery lead
2. Positive battery lead (red)
To install the battery
1. Connect the battery couplers,
and then place the battery in the
original position.
2. Install the battery holder bracket
by installing the bolt.
3. Install the panel by installing the
screw.
4. Close the storage compartment.
5. Fully charge the battery before
installation.
ECA16530
NOTICE
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU23526

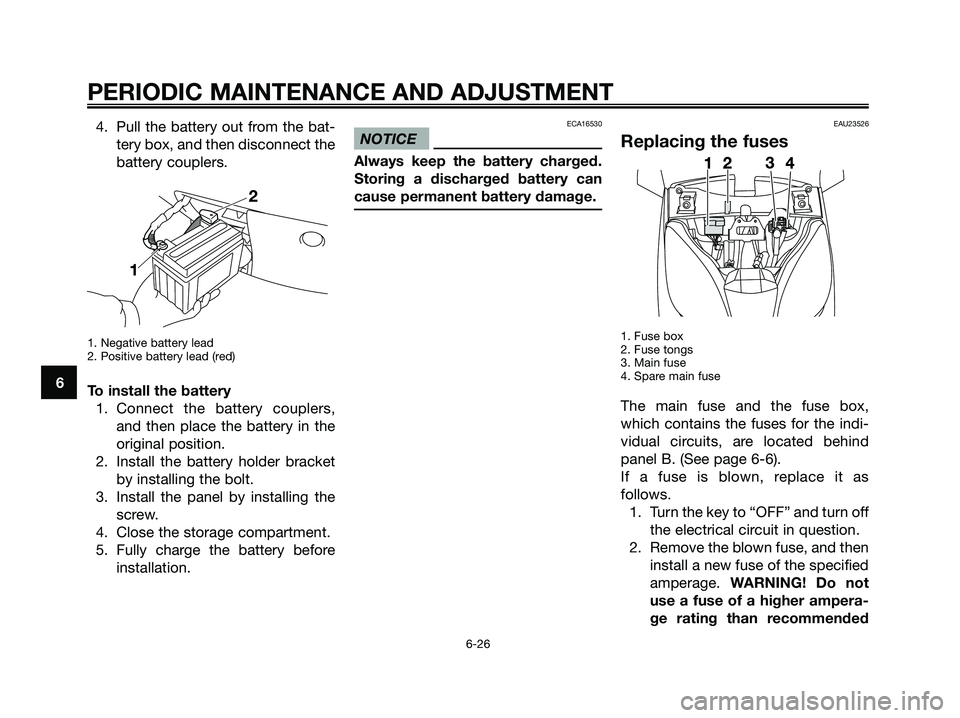

Replacing the fuses
1. Fuse box
2. Fuse tongs
3. Main fuse
4. Spare main fuse
The main fuse and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located behind
panel B. (See page 6-6).
If a fuse is blown, replace it as
follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher ampera-
ge rating than recommended
PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 68

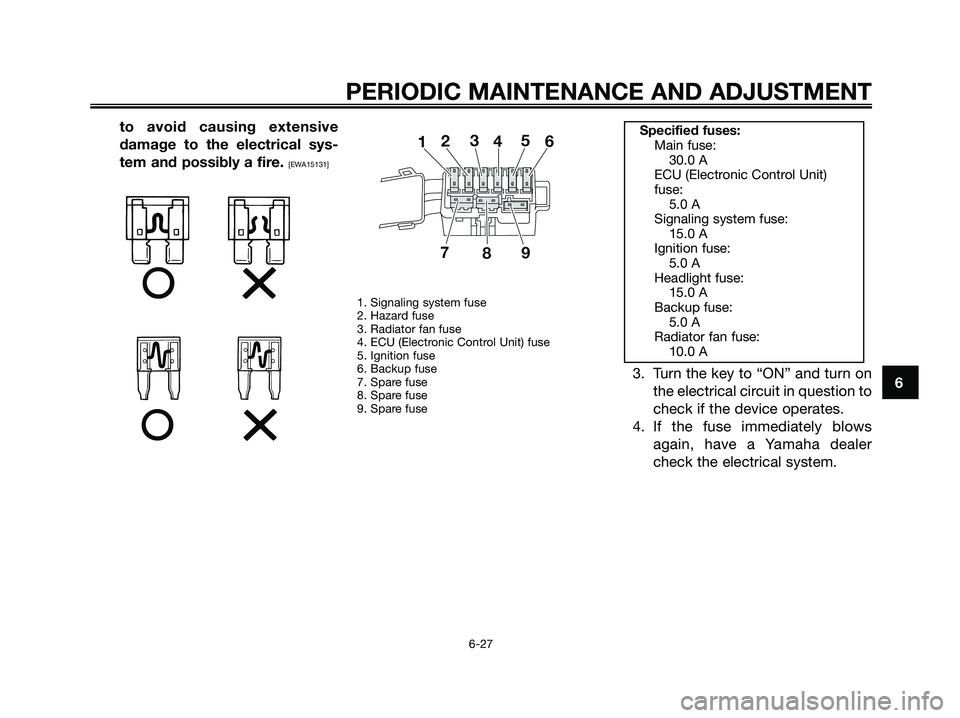

to avoid causing extensive
damage to the electrical sys-
tem and possibly a fire.
[EWA15131]
1. Signaling system fuse
2. Hazard fuse
3. Radiator fan fuse
4. ECU (Electronic Control Unit) fuse
5. Ignition fuse
6. Backup fuse
7. Spare fuse
8. Spare fuse
9. Spare fuse
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
Specified fuses:
Main fuse:
30.0 A
ECU (Electronic Control Unit)
fuse:
5.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
5.0 A
Headlight fuse:
15.0 A
Backup fuse:
5.0 A
Radiator fan fuse:
10.0 A
PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 69

EAU23911
Replacing a headlight bulb
This model is equipped with quartz
bulb headlights. If a headlight bulb
burns out, replace it as follows.
ECA10660
NOTICE
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the
bulb, and the bulb life will be adver-
sely affected. Thoroughly clean off
any dirt and fingerprints on the
headlight bulb using a cloth mois-
tened with alcohol or thinner.
1. Do not touch the glass part of the bulb.
1. Remove cowling B. (See page
6-6).
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
1. Headlight coupler
2. Headlight bulb cover
3. Remove the headlight bulb hol-
der according to the following
illustration, and then remove the
burnt out bulb.
1. Headlight bulb holder
TIP
The removal procedure depends on
the type of bulb holder installed on
your vehicle.
4. Place a new bulb into position,
and then secure it with the bulb
holder.
5. Install the bulb cover, and then
connect the coupler.
6. Install the cowling.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
1B9-F8199-E3.QXD 21/10/08 13:43 Página 70
