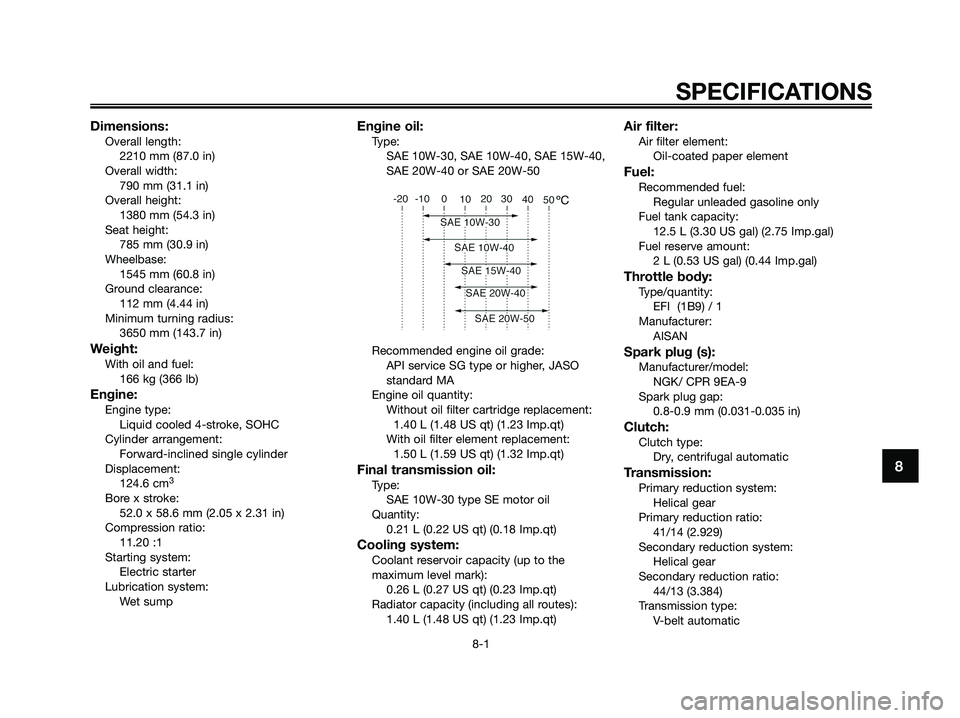

Dimensions:Overall length:
2210 mm (87.0 in)
Overall width:
790 mm (31.1 in)
Overall height:
1380 mm (54.3 in)
Seat height:
785 mm (30.9 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
112 mm (4.44 in)
Minimum turning radius:
3650 mm (143.7 in)
Weight:With oil and fuel:
166 kg (366 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
124.6 cm
3
Bore x stroke:
52.0 x 58.6 mm (2.05 x 2.31 in)
Compression ratio:
11.20 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 10W-30, SAE 10W-40, SAE 15W-40,
SAE 20W-40 or SAE 20W-50
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:
1.40 L (1.48 US qt) (1.23 Imp.qt)
With oil filter element replacement:
1.50 L (1.59 US qt) (1.32 Imp.qt)
Final transmission oil:Type:
SAE 10W-30 type SE motor oil
Quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)
Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.26 L (0.27 US qt) (0.23 Imp.qt)
Radiator capacity (including all routes):
1.40 L (1.48 US qt) (1.23 Imp.qt)
Air filter:Air filter element:
Oil-coated paper element
Fuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
12.5 L (3.30 US gal) (2.75 Imp.gal)
Fuel reserve amount:
2 L (0.53 US gal) (0.44 Imp.gal)
Throttle body:Type/quantity:
EFI (1B9) / 1
Manufacturer:
AISAN
Spark plug (s):Manufacturer/model:
NGK/ CPR 9EA-9
Spark plug gap:
0.8-0.9 mm (0.031-0.035 in)
Clutch:Clutch type:
Dry, centrifugal automatic
Transmission:Primary reduction system:
Helical gear
Primary reduction ratio:
41/14 (2.929)
Secondary reduction system:
Helical gear
Secondary reduction ratio:
44/13 (3.384)
Transmission type:
V-belt automatic
SPECIFICATIONS
8-1
8
1B9-F8199-E3.QXD 21/10/08 13:43 Página 81

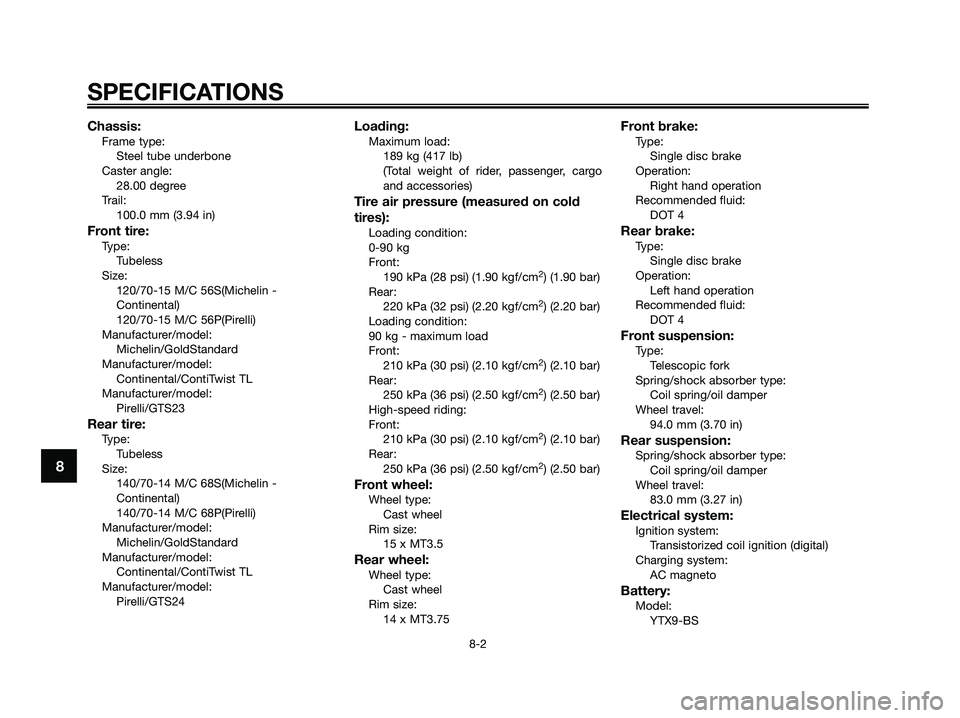

Chassis:Frame type:
Steel tube underbone
Caster angle:
28.00 degree
Trail:
100.0 mm (3.94 in)
Front tire:Type:
Tubeless
Size:
120/70-15 M/C 56S(Michelin -
Continental)
120/70-15 M/C 56P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS23
Rear tire:Type:
Tubeless
Size:
140/70-14 M/C 68S(Michelin -
Continental)
140/70-14 M/C 68P(Pirelli)
Manufacturer/model:
Michelin/GoldStandard
Manufacturer/model:
Continental/ContiTwist TL
Manufacturer/model:
Pirelli/GTS24
Loading:Maximum load:
189 kg (417 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0-90 kg
Front:
190 kPa (28 psi) (1.90 kgf/cm
2) (1.90 bar)
Rear:
220 kPa (32 psi) (2.20 kgf/cm
2) (2.20 bar)
Loading condition:
90 kg - maximum load
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
High-speed riding:
Front:
210 kPa (30 psi) (2.10 kgf/cm
2) (2.10 bar)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2) (2.50 bar)
Front wheel:Wheel type:
Cast wheel
Rim size:
15 x MT3.5
Rear wheel:Wheel type:
Cast wheel
Rim size:
14 x MT3.75
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4
Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
94.0 mm (3.70 in)
Rear suspension:Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
83.0 mm (3.27 in)
Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:Model:
YTX9-BS
SPECIFICATIONS
8-2
8
1B9-F8199-E3.QXD 21/10/08 13:43 Página 82

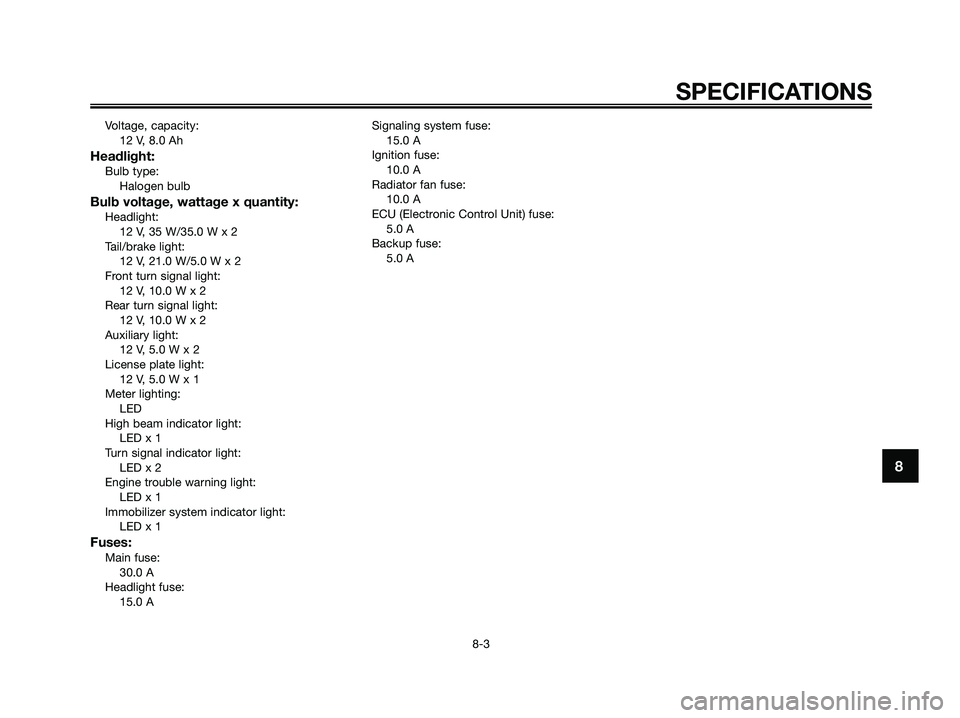

Voltage, capacity:
12 V, 8.0 Ah
Headlight:Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Headlight:
12 V, 35 W/35.0 W x 2
Tail/brake light:
12 V, 21.0 W/5.0 W x 2
Front turn signal light:
12 V, 10.0 W x 2
Rear turn signal light:
12 V, 10.0 W x 2
Auxiliary light:
12 V, 5.0 W x 2
License plate light:
12 V, 5.0 W x 1
Meter lighting:
LED
High beam indicator light:
LED x 1
Turn signal indicator light:
LED x 2
Engine trouble warning light:
LED x 1
Immobilizer system indicator light:
LED x 1
Fuses:Main fuse:
30.0 A
Headlight fuse:
15.0 ASignaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
10.0 A
ECU (Electronic Control Unit) fuse:
5.0 A
Backup fuse:
5.0 A
SPECIFICATIONS
8-3
8
1B9-F8199-E3.QXD 21/10/08 13:43 Página 83

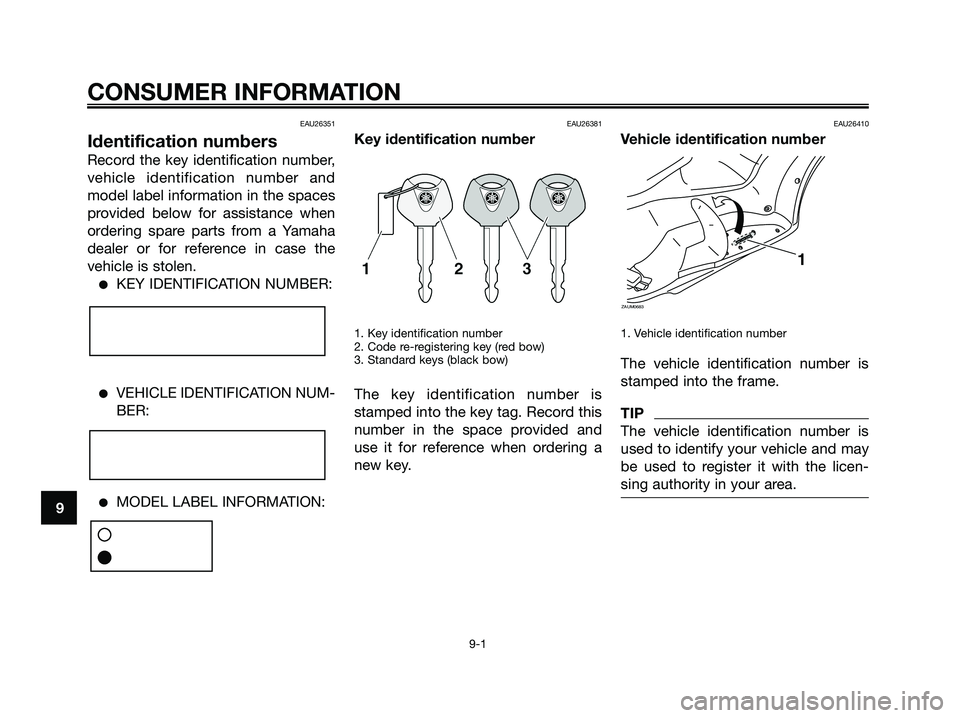

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
●KEY IDENTIFICATION NUMBER:
●VEHICLE IDENTIFICATION NUM-
BER:
●MODEL LABEL INFORMATION:
EAU26381
Key identification number
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
The key identification number is
stamped into the key tag. Record this
number in the space provided and
use it for reference when ordering a
new key.
EAU26410
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the frame.
TIP
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licen-
sing authority in your area.
ZAUM0683
1
CONSUMER INFORMATION
9-1
9
1B9-F8199-E3.QXD 21/10/08 13:43 Página 84

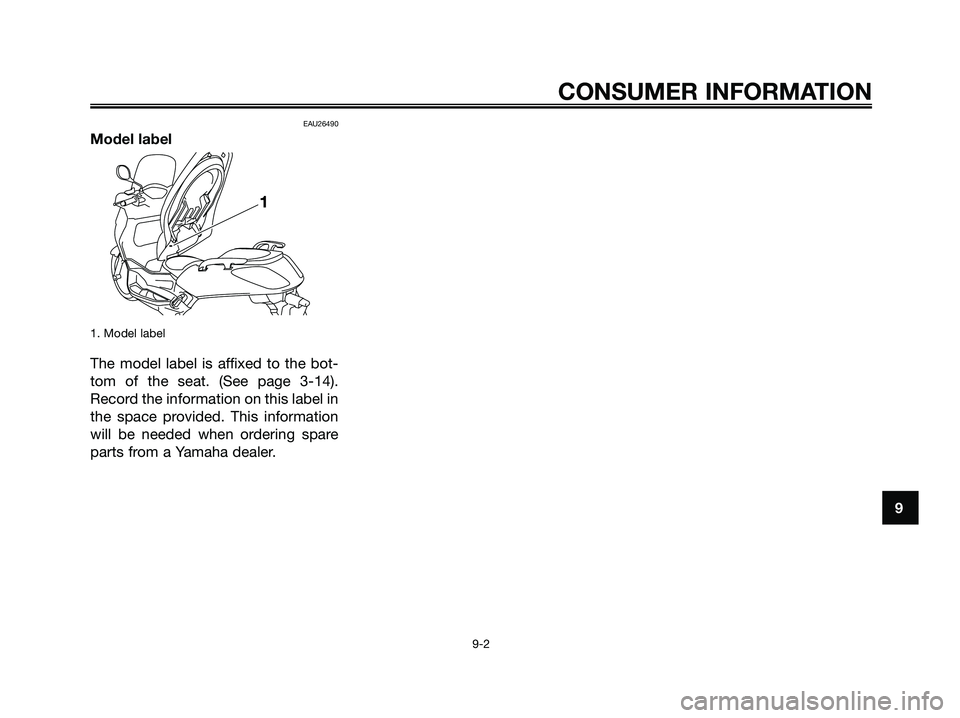

EAU26490
Model label
1. Model label
The model label is affixed to the bot-
tom of the seat. (See page 3-14).
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
CONSUMER INFORMATION
9-2
9
1B9-F8199-E3.QXD 21/10/08 13:43 Página 85

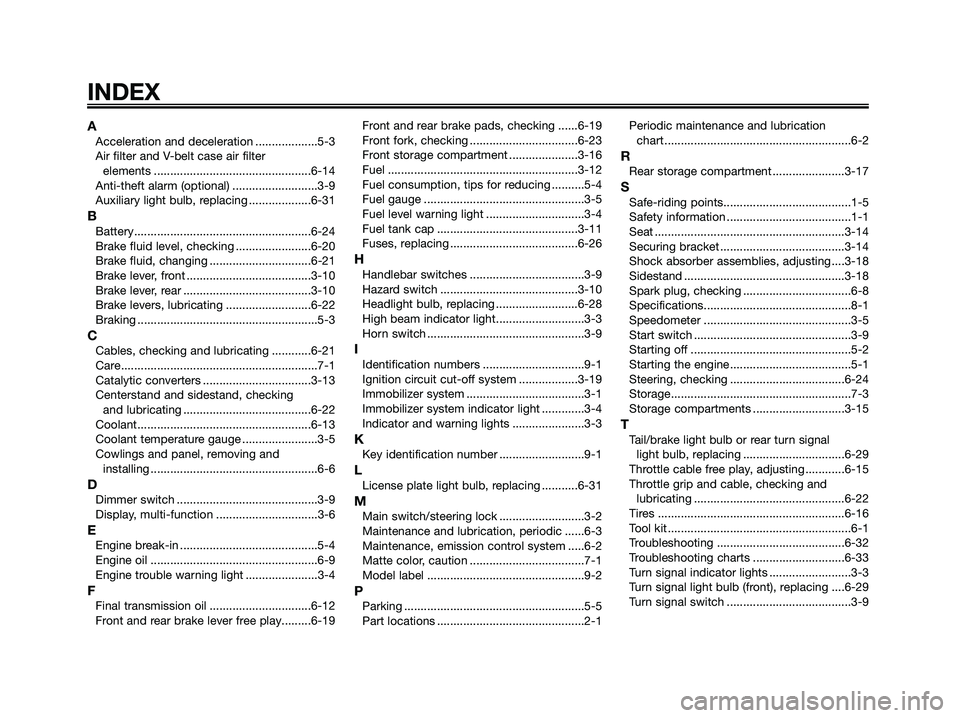

AAcceleration and deceleration ...................5-3
Air filter and V-belt case air filter
elements ................................................6-14
Anti-theft alarm (optional) ..........................3-9
Auxiliary light bulb, replacing ...................6-31
BBattery......................................................6-24
Brake fluid level, checking .......................6-20
Brake fluid, changing ...............................6-21
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-10
Brake levers, lubricating ..........................6-22
Braking .......................................................5-3
CCables, checking and lubricating ............6-21
Care............................................................7-1
Catalytic converters .................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-22
Coolant.....................................................6-13
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-6
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-6
EEngine break-in ..........................................5-4
Engine oil ...................................................6-9
Engine trouble warning light ......................3-4
FFinal transmission oil ...............................6-12
Front and rear brake lever free play.........6-19Front and rear brake pads, checking ......6-19
Front fork, checking .................................6-23
Front storage compartment .....................3-16
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-4
Fuel gauge .................................................3-5
Fuel level warning light ..............................3-4
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-26
HHandlebar switches ...................................3-9
Hazard switch ..........................................3-10
Headlight bulb, replacing .........................6-28
High beam indicator light...........................3-3
Horn switch ................................................3-9
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-19
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-4
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-31
MMain switch/steering lock ..........................3-2
Maintenance and lubrication, periodic ......6-3
Maintenance, emission control system .....6-2
Matte color, caution ...................................7-1
Model label ................................................9-2
PParking .......................................................5-5
Part locations .............................................2-1Periodic maintenance and lubrication
chart .........................................................6-2
RRear storage compartment ......................3-17
SSafe-riding points.......................................1-5
Safety information ......................................1-1
Seat ..........................................................3-14
Securing bracket ......................................3-14
Shock absorber assemblies, adjusting....3-18
Sidestand .................................................3-18
Spark plug, checking .................................6-8
Specifications.............................................8-1
Speedometer .............................................3-5
Start switch ................................................3-9
Starting off .................................................5-2
Starting the engine.....................................5-1
Steering, checking ...................................6-24
Storage.......................................................7-3
Storage compartments ............................3-15
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-29
Throttle cable free play, adjusting ............6-15
Throttle grip and cable, checking and
lubricating ..............................................6-22
Tires .........................................................6-16
Tool kit ........................................................6-1
Troubleshooting .......................................6-32
Troubleshooting charts ............................6-33
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-29
Turn signal switch ......................................3-9
INDEX
1B9-F8199-E3.QXD 21/10/08 13:43 Página 86

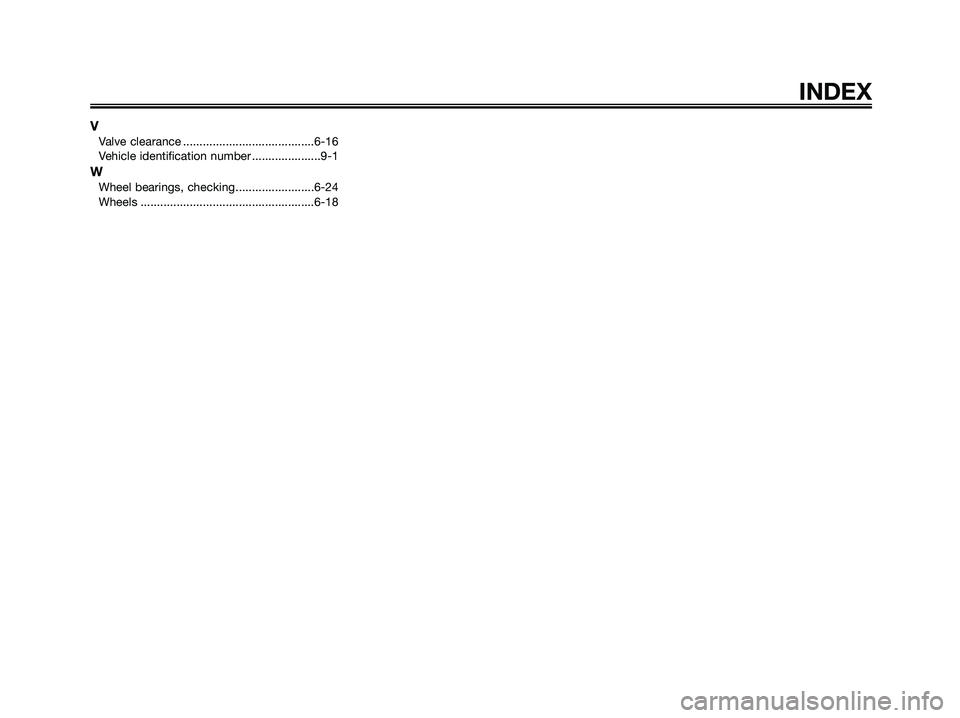

VValve clearance ........................................6-16
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-24
Wheels .....................................................6-18
INDEX
1B9-F8199-E3.QXD 21/10/08 13:43 Página 87

1B9-F8199-E3.QXD 21/10/08 13:43 Página 88

1B9-F8199-E3.QXD 21/10/08 13:43 Página 89

1B9-F8199-E3.QXD 21/10/08 13:43 Página 90
