YAMAHA XMAX 125 2010 Owners Manual

39D-F8199-E0
YP125R
OWNER’S MANUAL
Read this manual carefully before operating this vehicle.
39D-F8199-E0 4/11/09 20:21 Página 1

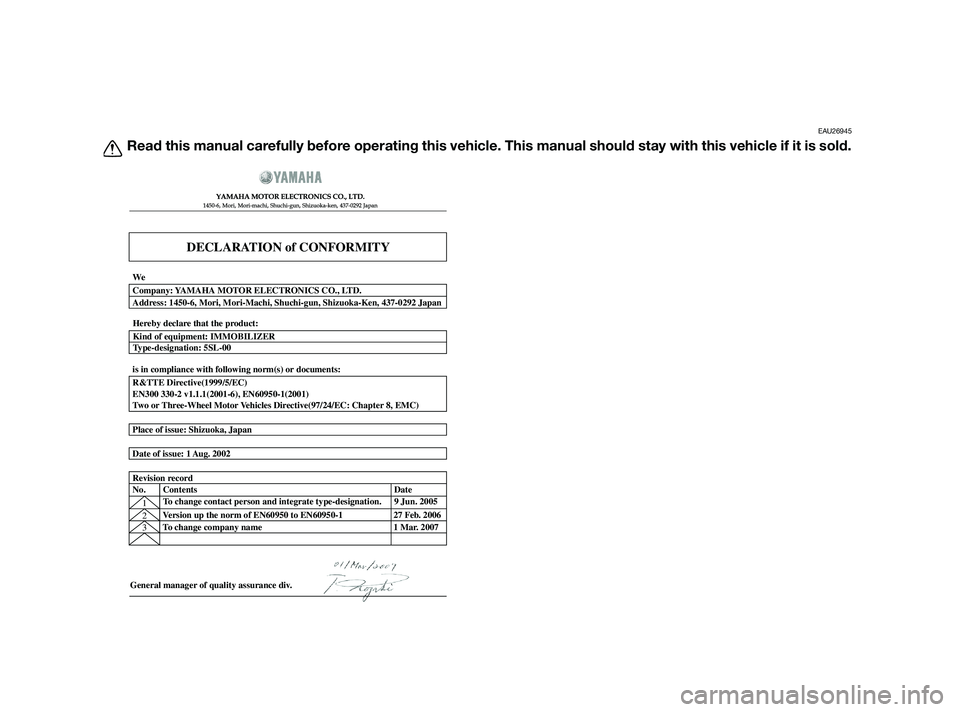

EAU26945
Read this manual carefully before operating this vehicle. This manual should stay with this vehicle if it is sold.
DECLARATION of CONFORMITY








General manager of quality assurance div.
1Version up the norm of EN60950 to EN60950-1
To change company name27 Feb. 2006
1 Mar. 20072
3
Revision record
No. Contents Date
To change contact person and integrate type-designation. 9 Jun. 2005
Date of issue: 1 Aug. 2002
Place of issue: Shizuoka, Japan
R&TTE Directive(1999/5/EC)
EN300 330-2 v1.1.1(2001-6), EN60950-1(2001)
Two or Three-Wheel Motor Vehicles Directive(97/24/EC: Chapter 8, EMC) is in compliance with following norm(s) or documents:
Kind of equipment: IMMOBILIZER
Type-designation: 5SL-00 Hereby declare that the product:
Company: YAMAHA MOTOR ELECTRONICS CO., LTD.
Address: 1450-6, Mori, Mori-Machi, Shuchi-gun, Shizuoka-Ken, 437-0292 JapanWe
39D-F8199-E0 4/11/09 20:21 Página 2

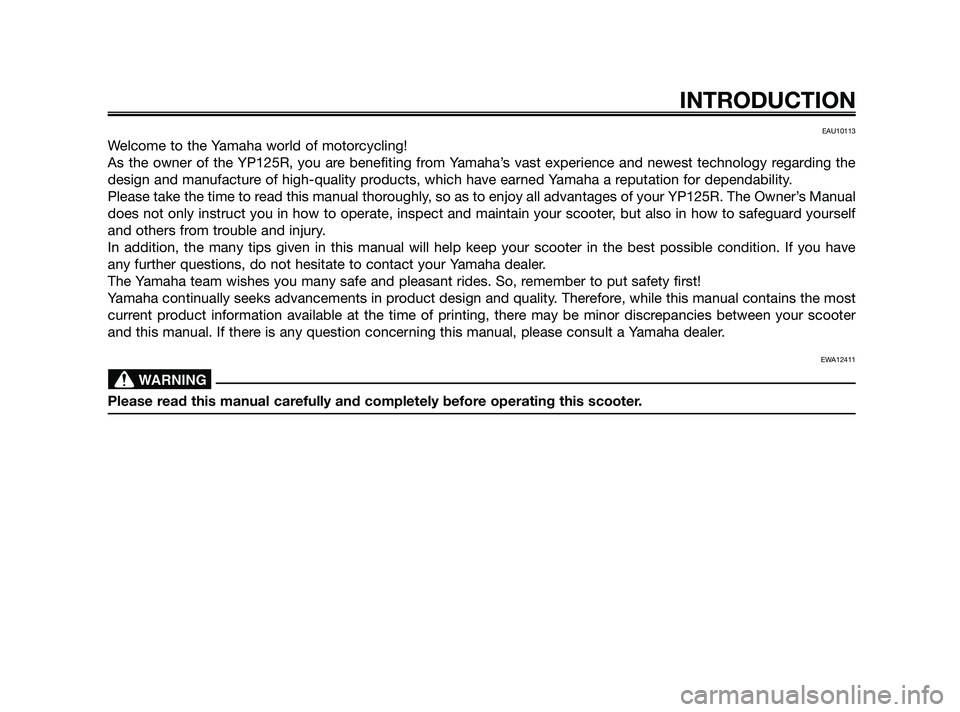

EAU10113
Welcome to the Yamaha world of motorcycling!
As the owner of the YP125R, you are benefiting from Yamaha’s vast experience and newest technology regarding the
design and manufacture of high-quality products, which have earned Yamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your YP125R. The Owner’s Manual
does not only instruct you in how to operate, inspect and maintain your scooter, but also in how to safeguard yourself
and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you have
any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your scooter
and this manual. If there is any question concerning this manual, please consult a Yamaha dealer.
EWA12411
Please read this manual carefully and completely before operating this scooter.
WARNING
INTRODUCTION
39D-F8199-E0 4/11/09 20:21 Página 3

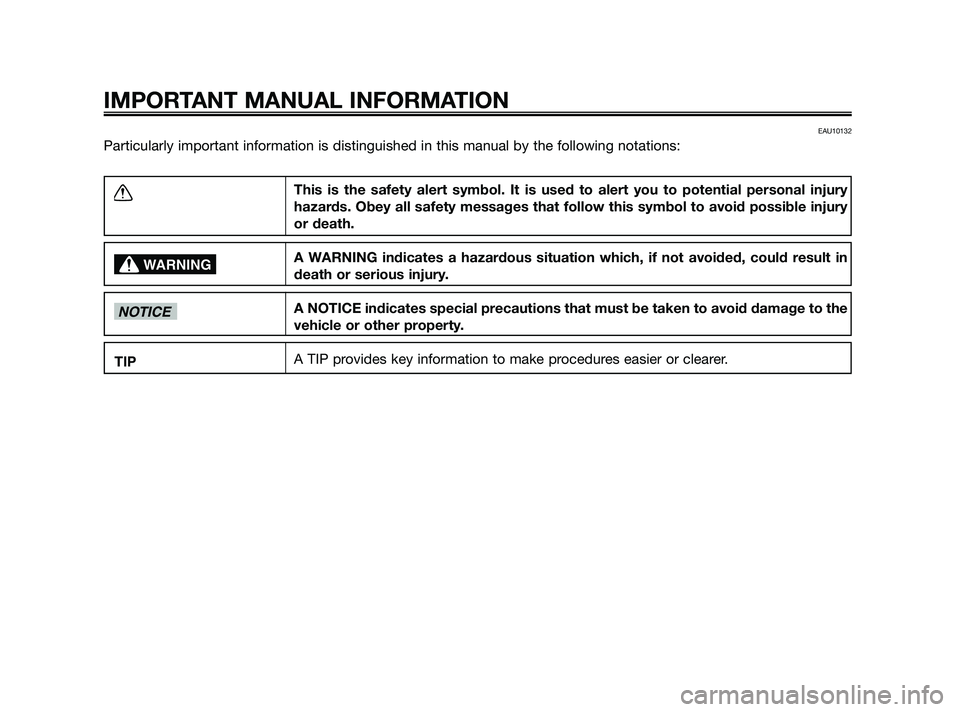

EAU10132
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
vehicle or other property.
A TIP provides key information to make procedures easier or clearer.
TIP
NOTICE
WARNING
39D-F8199-E0 4/11/09 20:21 Página 4

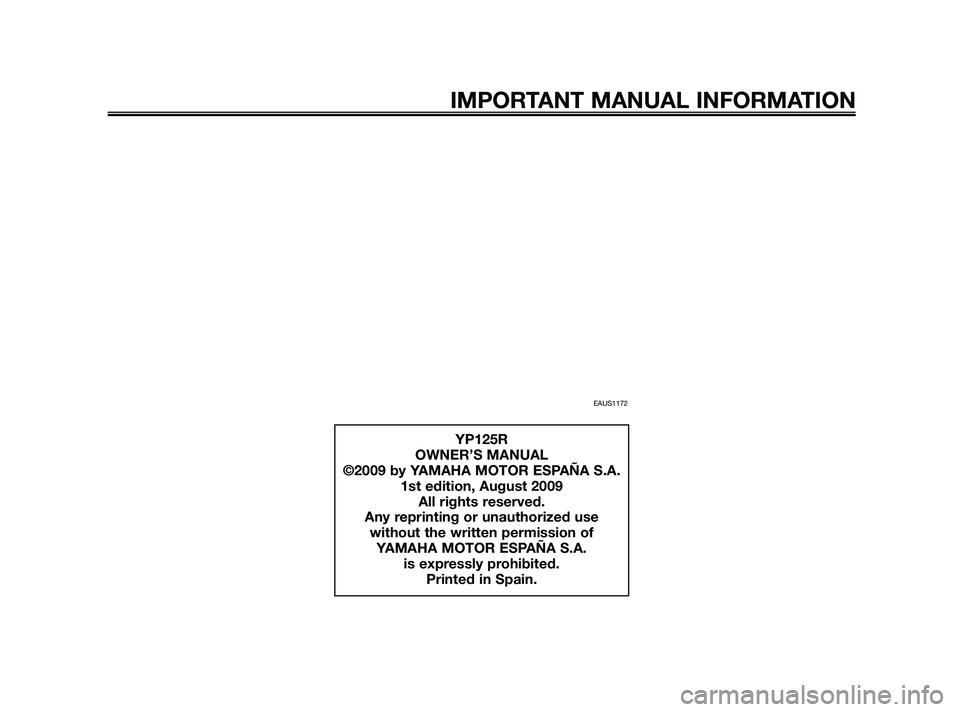

EAUS1172
IMPORTANT MANUAL INFORMATION
YP125R
OWNER’S MANUAL
©2009 by YAMAHA MOTOR ESPAÑA S.A.
1st edition, August 2009
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
YAMAHA MOTOR ESPAÑA S.A.
is expressly prohibited.
Printed in Spain.
39D-F8199-E0 4/11/09 20:21 Página 5

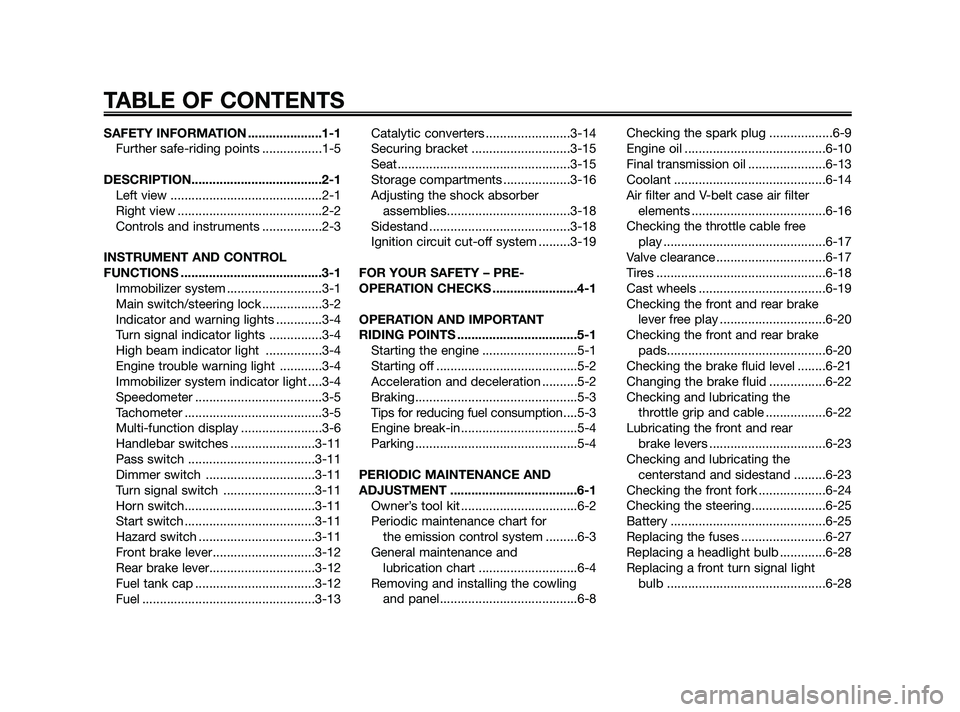

SAFETY INFORMATION .....................1-1
Further safe-riding points .................1-5
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS ........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-4
Turn signal indicator lights ...............3-4
High beam indicator light ................3-4
Engine trouble warning light ............3-4
Immobilizer system indicator light ....3-4
Speedometer ....................................3-5
Tachometer .......................................3-5
Multi-function display .......................3-6
Handlebar switches ........................3-11
Pass switch ....................................3-11
Dimmer switch ...............................3-11
Turn signal switch ..........................3-11
Horn switch.....................................3-11
Start switch .....................................3-11
Hazard switch .................................3-11
Front brake lever.............................3-12
Rear brake lever..............................3-12
Fuel tank cap ..................................3-12
Fuel .................................................3-13Catalytic converters ........................3-14
Securing bracket ............................3-15
Seat.................................................3-15
Storage compartments ...................3-16
Adjusting the shock absorber
assemblies...................................3-18
Sidestand ........................................3-18
Ignition circuit cut-off system .........3-19
FOR YOUR SAFETY – PRE-
OPERATION CHECKS ........................4-1
OPERATION AND IMPORTANT
RIDING POINTS ..................................5-1
Starting the engine ...........................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel consumption....5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT ....................................6-1
Owner’s tool kit .................................6-2
Periodic maintenance chart for
the emission control system .........6-3
General maintenance and
lubrication chart ............................6-4
Removing and installing the cowling
and panel.......................................6-8Checking the spark plug ..................6-9
Engine oil ........................................6-10
Final transmission oil ......................6-13
Coolant ...........................................6-14
Air filter and V-belt case air filter
elements ......................................6-16
Checking the throttle cable free
play ..............................................6-17
Valve clearance ...............................6-17
Tires ................................................6-18
Cast wheels ....................................6-19
Checking the front and rear brake
lever free play ..............................6-20
Checking the front and rear brake
pads.............................................6-20
Checking the brake fluid level ........6-21
Changing the brake fluid ................6-22
Checking and lubricating the
throttle grip and cable .................6-22
Lubricating the front and rear
brake levers .................................6-23
Checking and lubricating the
centerstand and sidestand .........6-23
Checking the front fork ...................6-24
Checking the steering.....................6-25
Battery ............................................6-25
Replacing the fuses ........................6-27
Replacing a headlight bulb .............6-28
Replacing a front turn signal light
bulb .............................................6-28
TABLE OF CONTENTS
39D-F8199-E0 4/11/09 20:21 Página 6

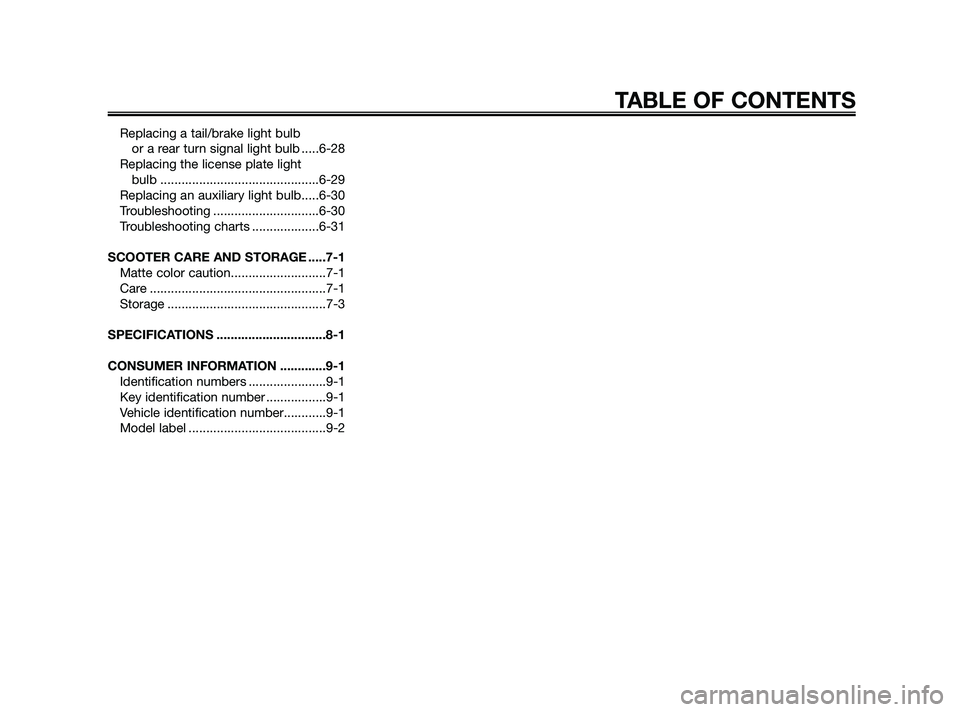

Replacing a tail/brake light bulb
or a rear turn signal light bulb .....6-28
Replacing the license plate light
bulb .............................................6-29
Replacing an auxiliary light bulb.....6-30
Troubleshooting ..............................6-30
Troubleshooting charts ...................6-31
SCOOTER CARE AND STORAGE .....7-1
Matte color caution...........................7-1
Care ..................................................7-1
Storage .............................................7-3
SPECIFICATIONS ...............................8-1
CONSUMER INFORMATION .............9-1
Identification numbers ......................9-1
Key identification number .................9-1
Vehicle identification number............9-1
Model label .......................................9-2
TABLE OF CONTENTS
39D-F8199-E0 4/11/09 20:21 Página 7

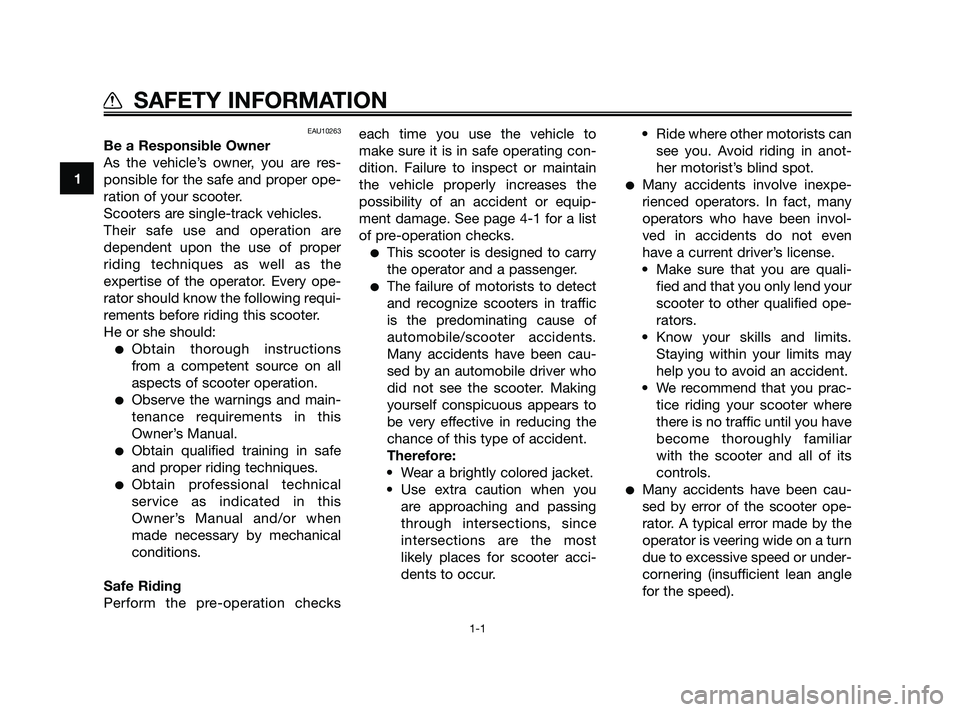

EAU10263
Be a Responsible Owner
As the vehicle’s owner, you are res-
ponsible for the safe and proper ope-
ration of your scooter.
Scooters are single-track vehicles.
Their safe use and operation are
dependent upon the use of proper
riding techniques as well as the
expertise of the operator. Every ope-
rator should know the following requi-
rements before riding this scooter.
He or she should:
Obtain thorough instructions
from a competent source on all
aspects of scooter operation.
Observe the warnings and main-
tenance requirements in this
Owner’s Manual.
Obtain qualified training in safe
and proper riding techniques.
Obtain professional technical
service as indicated in this
Owner’s Manual and/or when
made necessary by mechanical
conditions.
Safe Riding
Perform the pre-operation checkseach time you use the vehicle to
make sure it is in safe operating con-
dition. Failure to inspect or maintain
the vehicle properly increases the
possibility of an accident or equip-
ment damage. See page 4-1 for a list
of pre-operation checks.
This scooter is designed to carry
the operator and a passenger.
The failure of motorists to detect
and recognize scooters in traffic
is the predominating cause of
automobile/scooter accidents.
Many accidents have been cau-
sed by an automobile driver who
did not see the scooter. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you
are approaching and passing
through intersections, since
intersections are the most
likely places for scooter acci-
dents to occur.• Ride where other motorists can
see you. Avoid riding in anot-
her motorist’s blind spot.
Many accidents involve inexpe-
rienced operators. In fact, many
operators who have been invol-
ved in accidents do not even
have a current driver’s license.
• Make sure that you are quali-
fied and that you only lend your
scooter to other qualified ope-
rators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you prac-
tice riding your scooter where
there is no traffic until you have
become thoroughly familiar
with the scooter and all of its
controls.
Many accidents have been cau-
sed by error of the scooter ope-
rator. A typical error made by the
operator is veering wide on a turn
due to excessive speed or under-
cornering (insufficient lean angle
for the speed).
1
SAFETY INFORMATION
1-1
39D-F8199-E0 4/11/09 20:21 Página 8

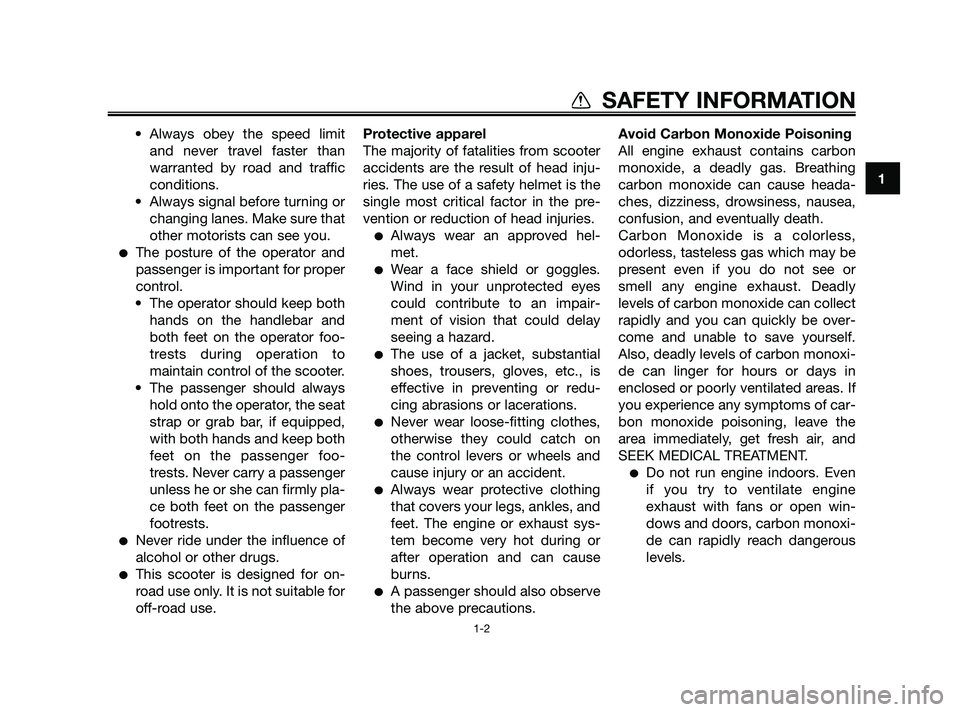

• Always obey the speed limit
and never travel faster than
warranted by road and traffic
conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator foo-
trests during operation to
maintain control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests. Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-
road use only. It is not suitable for
off-road use.Protective apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision that could delay
seeing a hazard.
The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or redu-
cing abrasions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.
Always wear protective clothing
that covers your legs, ankles, and
feet. The engine or exhaust sys-
tem become very hot during or
after operation and can cause
burns.
A passenger should also observe
the above precautions.Avoid Carbon Monoxide Poisoning
All engine exhaust contains carbon
monoxide, a deadly gas. Breathing
carbon monoxide can cause heada-
ches, dizziness, drowsiness, nausea,
confusion, and eventually death.
Carbon Monoxide is a colorless,
odorless, tasteless gas which may be
present even if you do not see or
smell any engine exhaust. Deadly
levels of carbon monoxide can collect
rapidly and you can quickly be over-
come and unable to save yourself.
Also, deadly levels of carbon monoxi-
de can linger for hours or days in
enclosed or poorly ventilated areas. If
you experience any symptoms of car-
bon monoxide poisoning, leave the
area immediately, get fresh air, and
SEEK MEDICAL TREATMENT.
Do not run engine indoors. Even
if you try to ventilate engine
exhaust with fans or open win-
dows and doors, carbon monoxi-
de can rapidly reach dangerous
levels.
1
SAFETY INFORMATION
1-2
39D-F8199-E0 4/11/09 20:21 Página 9

Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
• Do not run engine outdoors
where engine exhaust can be
drawn into a building through
openings such as windows
and doors.
Loading
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories.
Here, along with the information
about accessories below, are some
general guidelines to follow if loading
cargo to your scooter:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accident.When loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close
to the scooter as possible. Secu-
rely pack your heaviest items as
close to the center of the vehicle
as possible and make sure to dis-
tribute the weight as evenly as
possible on both sides of the
scooter to minimize imbalance or
instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
• Properly adjust the suspension
for your load (suspension-
adjustable models only), and
check the condition and pres-
sure of your tires.• Never attach any large or
heavy items to the handlebar,
front fork, or front fender. Such
items can create unstable
handling or a slow steering res-
ponse.
This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Maximum load:
186 kg (410 lb)
1
SAFETY INFORMATION
1-3
39D-F8199-E0 4/11/09 20:21 Página 10
