YAMAHA XMAX 125 2014 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
TIPThe ABS warning light may come on
while accelerating the engine with the
scooter on its centerstand, but this
does not indicate a malfunction.
EAU26878
Immobilizer system indicator
light “ ”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”. The indicator light should
come on for a few seconds, and then
go off.
If the indicator light does not come on
initially when the key is turned to “ON”,
or if the indicator light remains on, have
a Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.The self-diagnosis device also detects
problems in the immobilizer system
circuits. (See page 3-12 for an expla-
nation of the self-diagnosis device.)
EAUM3313

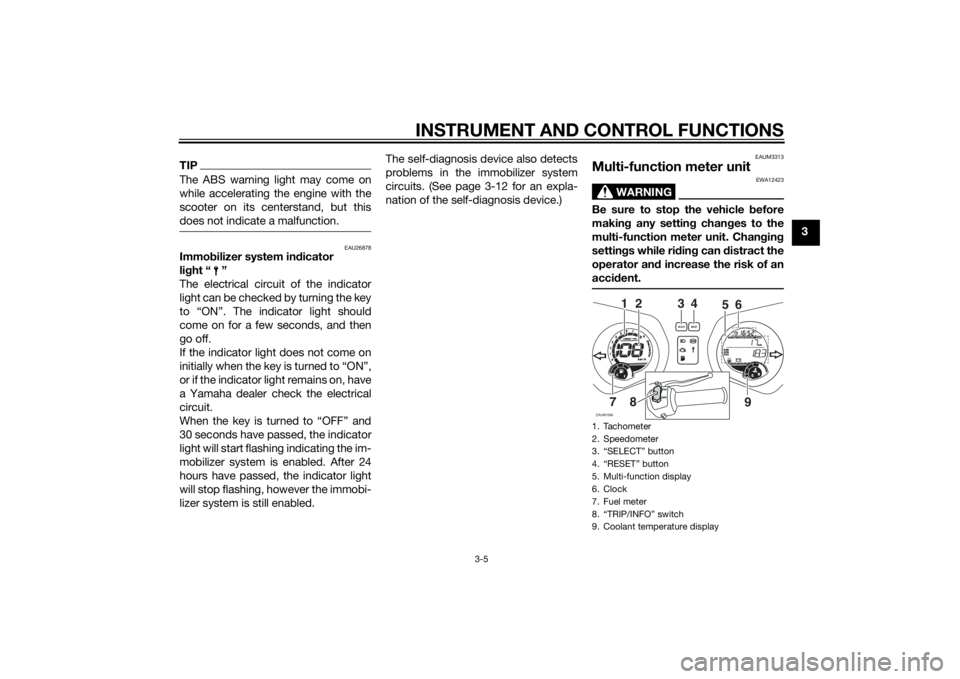

Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.1. Tachometer
2. Speedometer
3. “SELECT” button
4. “RESET” button
5. Multi-function display
6. Clock
7. Fuel meter
8. “TRIP/INFO” switch
9. Coolant temperature displayZAUM1099
3
987654321
11 10
12
0
1000r/minx
km/h
E
F
CHkm
Odo
AirA
veCo
ns
OilV- Be
lt
Ti
m
eTripOdo
SELECT
RESET
F
4
6
5
7
2
18
9
INFOTRIP
U2DME1E0.book Page 5 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3The multi-function meter unit is
equipped with the following:
a speedometer
a tachometer
a fuel meter
a clock
an odometer and tripmeter display
a multi-function display
a coolant temperature meter
TIPBe sure to turn the key to “ON” be-
fore using the “Select”, “Reset”,
“TRIP” and “INFO” buttons.
When the key is turned to “ON”, all
display segments of the multi-
function meter unit will momen-
tarily appear in order to test the
electrical circuit. The speedome-
ter and odometer will then perform
a display check and a welcome
message will scroll across the
multi-function display.
For the UK, traveling speed, dis-
tance traveled, and fuel consump-
tion measurements can be
displayed in kilometer or mileage
based units. To switch between
miles and kilometers; hold the“SELECT” switch pushed, turn the
main switch to “ON”, and keep the
“SELECT” switch pushed for an
additional 8 seconds.
For other countries, traveling
speed, distance traveled and fuel
consumption measurements are
displayed in kilometer base units.

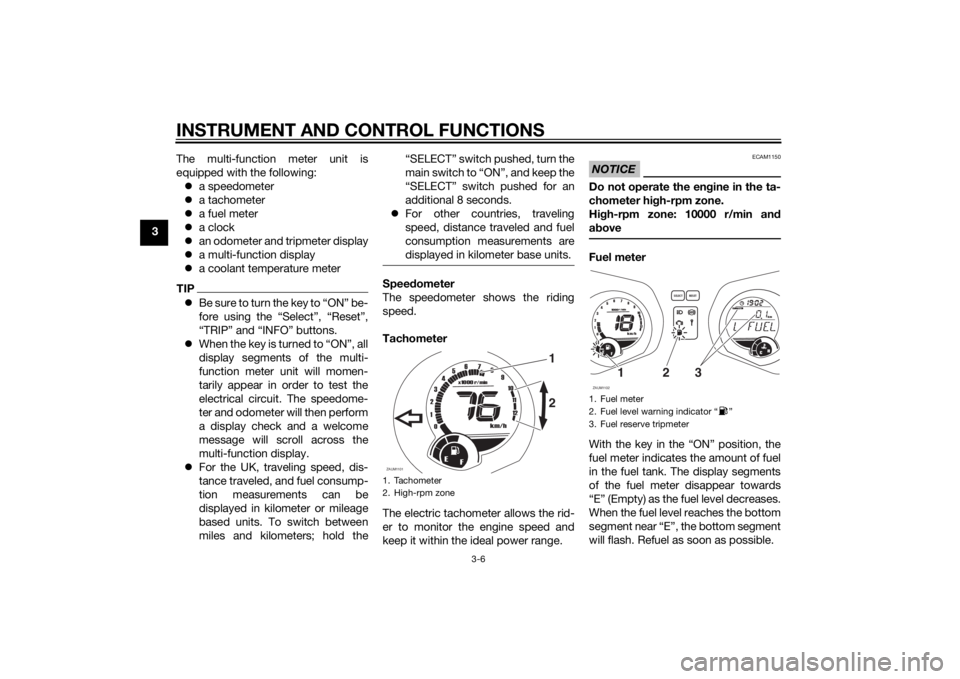

Speedometer
The speedometer shows the riding
speed.
Tachometer
The electric tachometer allows the rid-
er to monitor the engine speed and
keep it within the ideal power range.
NOTICE
ECAM1150
Do not operate the engine in the ta-
chometer high-rpm zone.
High-rpm zone: 10000 r/min and
aboveFuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter disappear towards
“E” (Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the bottom segment
will flash. Refuel as soon as possible.
1. Tachometer
2. High-rpm zoneZAUM1101
1
98
7
6
54321
11 10
12
0
1000
r/min
x
km/h
E
F
2
1. Fuel meter
2. Fuel level warning indicator Ž
3. Fuel reserve tripmeterZAUM1102
987654321
11 10
12
0
1000r/minkm/h
E
F
CHkm
T
ripOdo
SELECT
RESET
F
3
1
2
U2DME1E0.book Page 6 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Clock
To set the clock:
1. Push the “SELECT” button for 3
seconds, and the hour digits will
start flashing.
2. Use the “SELECT” button to set
the hours.
3. Push the “SELECT” button for 3
seconds, and the minute digits will
start flashing.
4. Use the “SELECT” button to set
the minutes.
5. Push the “SELECT” button for 3
seconds to complete setting the
clock.Odometer and tripmeter display

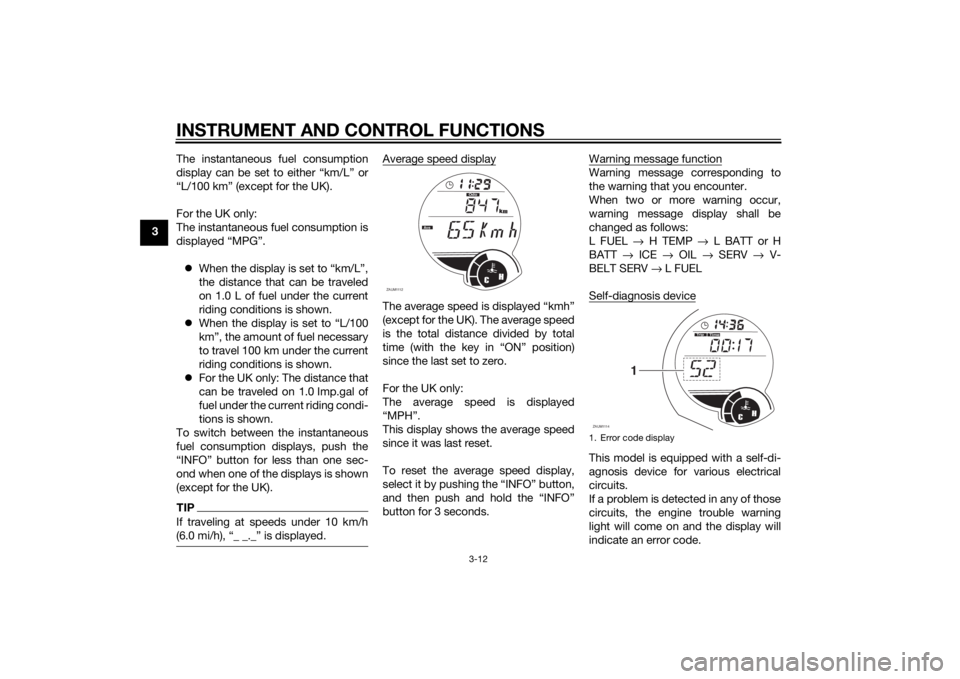

The odometer and tripmeter display is
equipped with the following:
a tripmeter (which shows the dis-
tance traveled since last set to ze-
ro)
a time tripmeter (which shows the
elapsed riding time since last set
to zero)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
Pushing the “TRIP” button switches
the display between the odometer
mode and the various tripmeter modes
in the following order:
Odo (odometer) → Trip (tripmeter) →
Trip Time (time tripmeter) → Oil (oil
change tripmeter) → V-Belt (v-belt re-
placement tripmeter) → Odo (odome-
ter)
When approximately 2.5 L (0.66 US
gal, 0.55 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F Trip” and start counting the
distance traveled from that point. In
that case, pushing the “TRIP” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
Odo → Trip → Trip Time → F Trip (fuel
reserve tripmeter) → Oil Trip → V-Belt
Trip → Odo

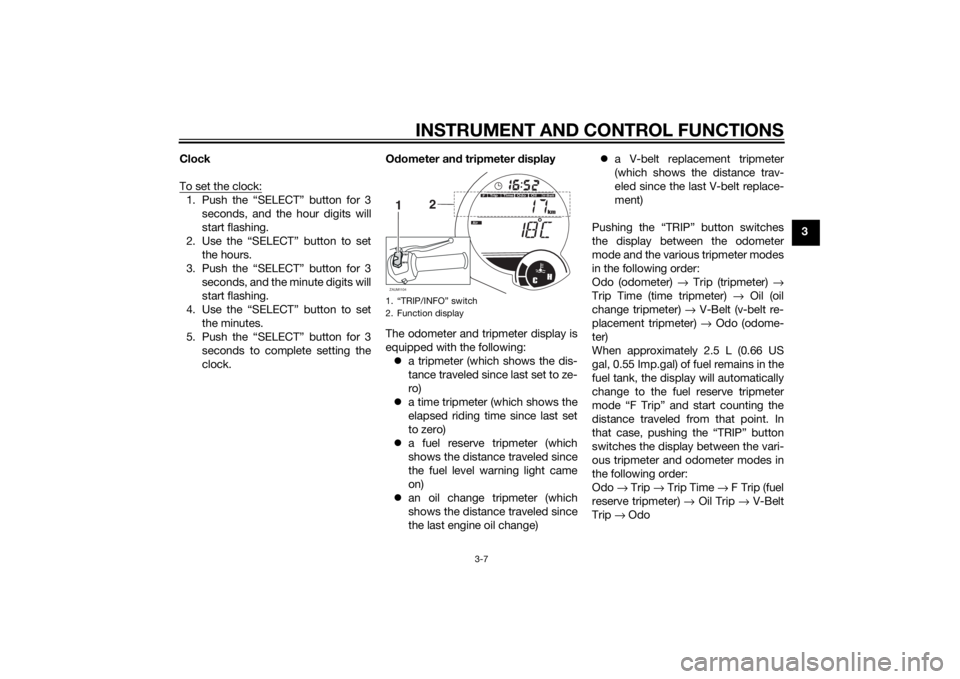

1. “TRIP/INFO” switch
2. Function displayZAUM1104
CH
km
Odo
Air
Oil
V-Belt
Time
T
ripOdoF
2
1INFOTRIP
U2DME1E0.book Page 7 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Oil Trip and V-Belt Trip display total
distance traveled from the first run or
when the last reset was done.
To reset a tripmeter, select it by push-
ing the “TRIP” button until “Trip, Trip
Time, F Trip” is displayed. While “Trip,
Trip Time, F Trip” is displayed, push
the “TRIP” button for 3 seconds. If you
do not reset the fuel reserve tripmeter
manually, it will reset itself automatical-
ly and the display will return to the prior
mode after refueling and traveling 5 km
(3 mi).
TIPThe display cannot be changed back

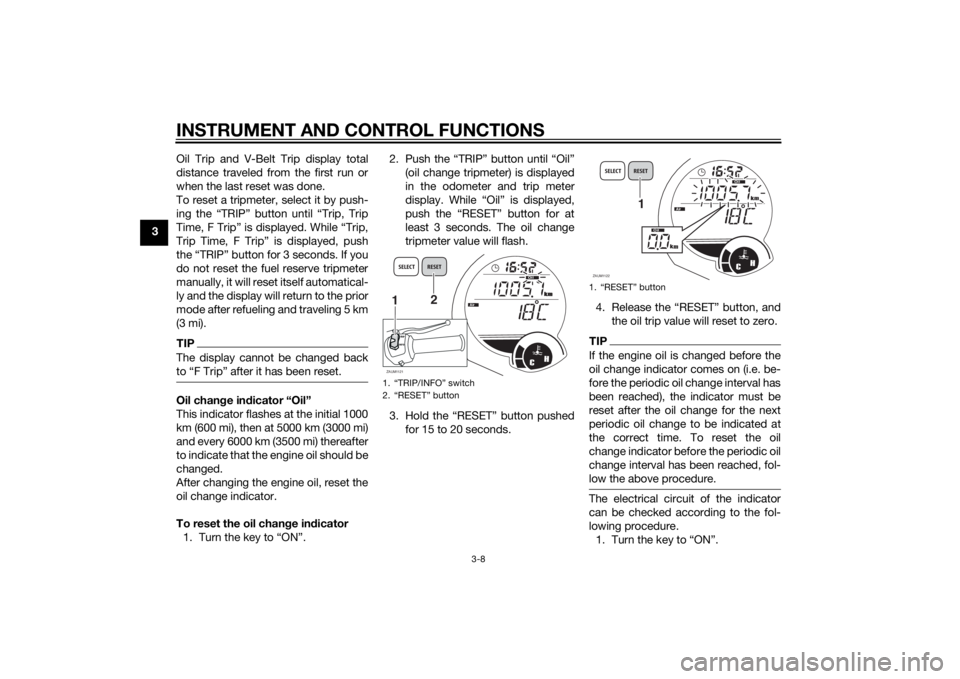

Oil change indicator “Oil”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 6000 km (3500 mi) thereafter
to indicate that the engine oil should be
changed.

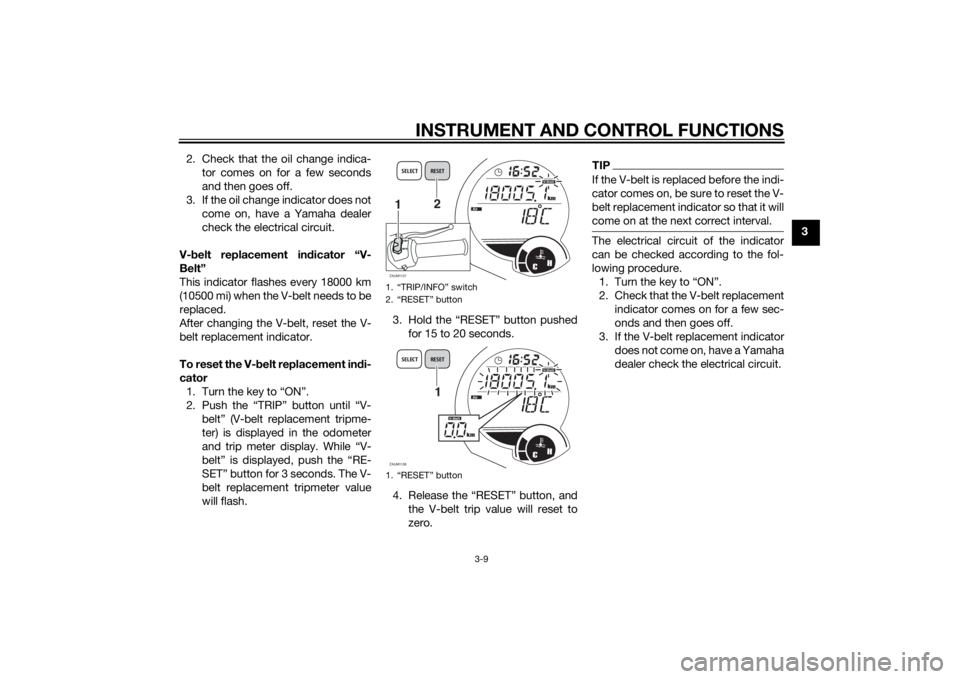

After changing the engine oil, reset the
oil change indicator.
To reset the oil change indicator
1. Turn the key to “ON”.2. Push the “TRIP” button until “Oil”
(oil change tripmeter) is displayed
in the odometer and trip meter
display. While “Oil” is displayed,
push the “RESET” button for at
least 3 seconds. The oil change
tripmeter value will flash.
3. Hold the “RESET” button pushed
for 15 to 20 seconds.4. Release the “RESET” button, and
the oil trip value will reset to zero.
TIPIf the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval has
been reached), the indicator must be
reset after the oil change for the next
periodic oil change to be indicated at
the correct time. To reset the oil
change indicator before the periodic oil
change interval has been reached, fol-
low the above procedure.The electrical circuit of the indicator
can be checked according to the fol-
lowing procedure.
1.
1.
2. ZAUM1121
CH
km
Air
Oil
Odo
1INFOTRIP
2
SELECT RESET
km
1. ZAUM1122
CH
km
Air
Oil
Odo
SELECT RESET
km
Oil
1
U2DME1E0.book Page 8 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 2. Check that the oil change indica-
tor comes on for a few seconds
and then goes off.
3. If the oil change indicator does not
come on, have a Yamaha dealer
check the electrical circuit.
V-belt replacement indicator “V-
Belt”
This indicator flashes every 18000 km
(10500 mi) when the V-belt needs to be
replaced.
After changing the V-belt, reset the V-
belt replacement indicator.
To reset the V-belt replacement indi-
cator
1. Turn the key to “ON”.
2. Push the “TRIP” button until “V-
belt” (V-belt replacement tripme-
ter) is displayed in the odometer
and trip meter display. While “V-
belt” is displayed, push the “RE-
SET” button for 3 seconds. The V-
belt replacement tripmeter value
will flash.3. Hold the “RESET” button pushed
for 15 to 20 seconds.
4. Release the “RESET” button, and
the V-belt trip value will reset to
zero.
TIPIf the V-belt is replaced before the indi-
cator comes on, be sure to reset the V-
belt replacement indicator so that it will
come on at the next correct interval.The electrical circuit of the indicator
can be checked according to the fol-
lowing procedure.
1.
2. Check that the V-belt replacement
indicator comes on for a few sec-
onds and then goes off.
3. If the V-belt replacement indicator
does not come on, have a Yamaha
dealer check the electrical circuit.
1.
2.
1. ZAUM1137
CH
km
AirOdo
1INFOTRIP
2
SELECT RESET
V- B el
t
ZAUM1138
CH
km
AirOdo
SELECT RESET
km
1
V- B el
t
V- B el
t
U2DME1E0.book Page 9 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10

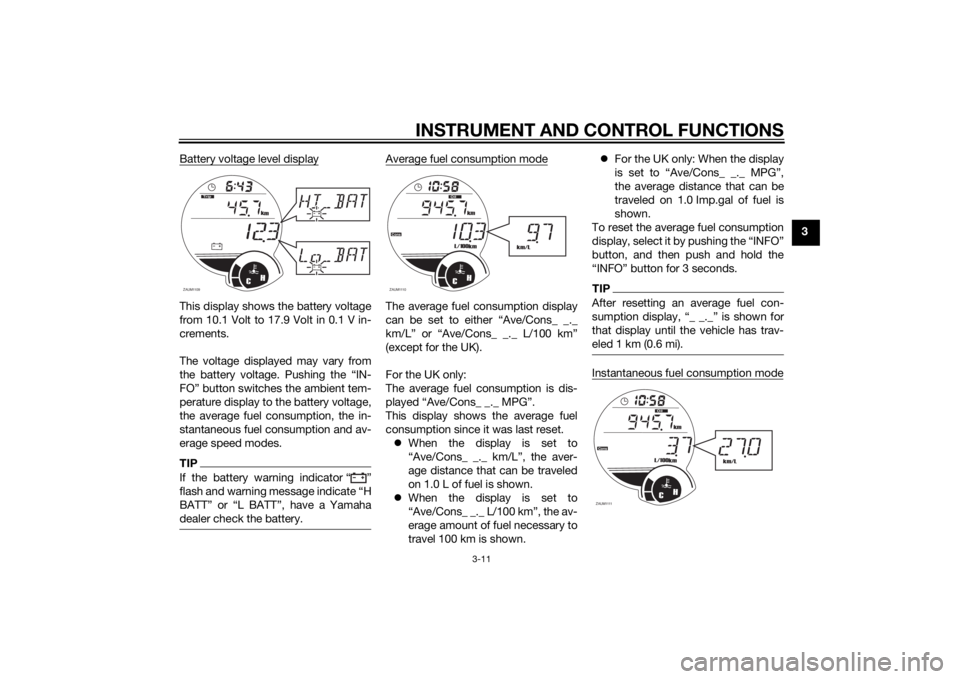

3Multi-function display
The multi-function display is equipped
with the following:
an ambient temperature display
a battery voltage level display
a fuel consumption display (aver-
age and instantaneous consump-
tion functions)
an average speed display (which
shows the average speed since
last set to zero)
a warning message functiona self-diagnosis device
Push the “INFO” button to switch the
display between the ambient tempera-
ture display “Air”, the battery voltage,
the average fuel consumption mode
“Ave/Cons__._km/L” or “Ave/Cons
__._ L/100 km”, the instantaneous fuel
consumption mode “Cons__._km/L”
or “Cons__._L/100 km”, and the aver-
age speed “Ave” in the following order:
Air → → Ave/Cons_ _._ km/L or
L/100 km → Cons__._km/L or L/100
km → Ave → Air
For the UK only:
Push the “INFO” button to switch the
display between the ambient tempera-
ture display “Air”, the battery voltage,
the average fuel consumption mode
“Ave/Cons__._ MPG”, the instanta-
neous fuel consumption mode
“Cons__._MPG”, and the average
speed “Ave” in the following order:
Air → → Ave/Cons_ _._ MPG →

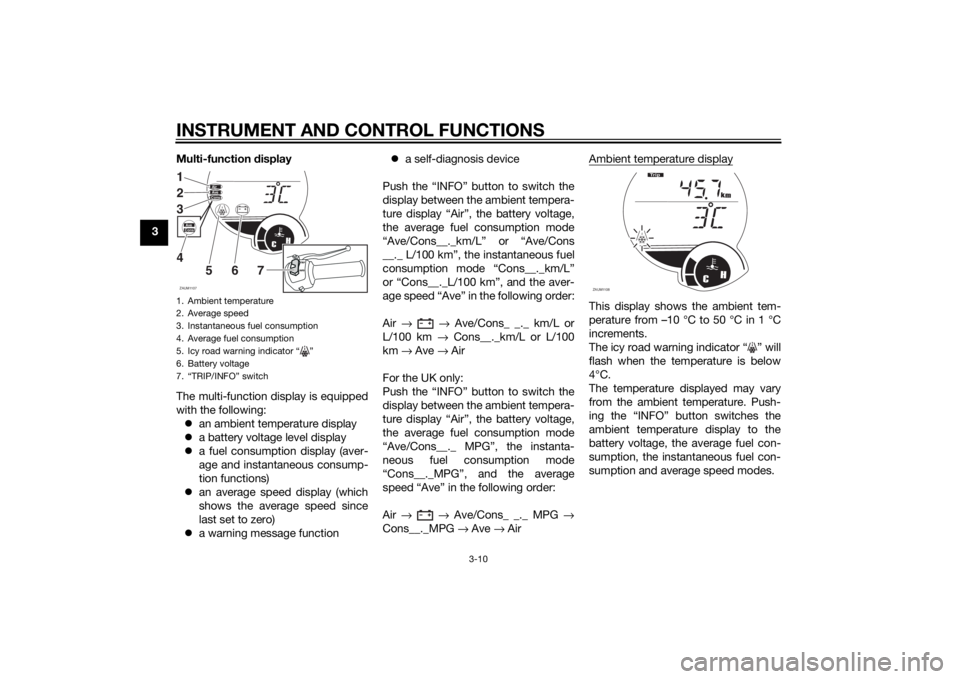

Cons__._MPG → Ave → AirAmbient temperature display
This display shows the ambient tem-
perature from –10 °C to 50 °C in 1 °C
increments.
The icy road warning indicator “ ” will
flash when the temperature is below
4°C.
The temperature displayed may vary
from the ambient temperature. Push-
ing the “INFO” button switches the
ambient temperature display to the
battery voltage, the average fuel con-
sumption, the instantaneous fuel con-
sumption and average speed modes.
1. Ambient temperature
2. Average speed
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Icy road warning indicator “ ”
6. Battery voltage
7. “TRIP/INFO” switchZAUM1107
CH
AirAveCons
1
2
3
4
5
6
7
INFOTRIP
AveCons
ZAUM1108
CH
km
Tr i p
U2DME1E0.book Page 10 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 Battery voltage level display
This display shows the battery voltage
from 10.1 Volt to 17.9 Volt in 0.1 V in-
crements.
The voltage displayed may vary from
the battery voltage. Pushing the “IN-
FO” button switches the ambient tem-
perature display to the battery voltage,
the average fuel consumption, the in-
stantaneous fuel consumption and av-
erage speed modes.TIPIf the battery warning indicator Ž


dealer check the battery.
Average fuel consumption modeThe average fuel consumption display


(except for the UK).
For the UK only:
The average fuel consumption is dis-

This display shows the average fuel
consumption since it was last reset.
When the display is set to
“Ave/Cons_ _._ km/L”, the aver-
age distance that can be traveled
on 1.0 L of fuel is shown.
When the display is set to
“Ave/Cons_ _._ L/100 km”, the av-
erage amount of fuel necessary to
travel 100 km is shown.For the UK only: When the display
is set to “Ave/Cons_ _._ MPG”,
the average distance that can be
traveled on 1.0 Imp.gal of fuel is
shown.
To reset the average fuel consumption
display, select it by pushing the “INFO”
button, and then push and hold the
“INFO” button for 3 seconds.
TIPAfter resetting an average fuel con-

that display until the vehicle has trav-
eled 1 km (0.6 mi).Instantaneous fuel consumption mode
ZAUM1109
CH
km
T
rip
ZAUM1110
CH
km
L/100km
Cons
Oil
km/L
ZAUM1111
CH
km
L/100km
Cons
Oil
km/L
U2DME1E0.book Page 11 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km” (except for the UK).
For the UK only:
The instantaneous fuel consumption is
displayed “MPG”.
When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.
When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
For the UK only: The distance that
can be traveled on 1.0 Imp.gal of
fuel under the current riding condi-
tions is shown.
To switch between the instantaneous
fuel consumption displays, push the
“INFO” button for less than one sec-
ond when one of the displays is shown
(except for the UK).
TIPIf traveling at speeds under 10 km/h

Average speed display
(except for the UK). The average speed
is the total distance divided by total

since the last set to zero.
For the UK only:
The average speed is displayed

This display shows the average speed
since it was last reset.
To reset the average speed display,


button for 3 seconds.Warning message function
Warning message corresponding to
the warning that you encounter.
When two or more warning occur,
warning message display shall be
changed as follows:
L FUEL → H TEMP → L BATT or H
BATT → ICE → OIL → SERV → V-
BELT SERV → L FUEL
Self-diagnosis deviceThis model is equipped with a self-di-
agnosis device for various electrical
circuits.
If a problem is detected in any of those
circuits, the engine trouble warning
light will come on and the display will
indicate an error code.
ZAUM1112
CH
km
Odo
Ave
Cons
V- B e lt
F
1. Error code displayZAUM1114
T
rip
CH
Time
1
U2DME1E0.book Page 12 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 If the display indicates any error codes,
note the code number, and then have
a Yamaha dealer check the vehicle.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with
changes in the weather and engine
load. If the top segment and coolant
temperature warning indicator flash,
stop the vehicle and let the engine
cool.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
EAU12332
Anti-theft alarm (optional)This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.

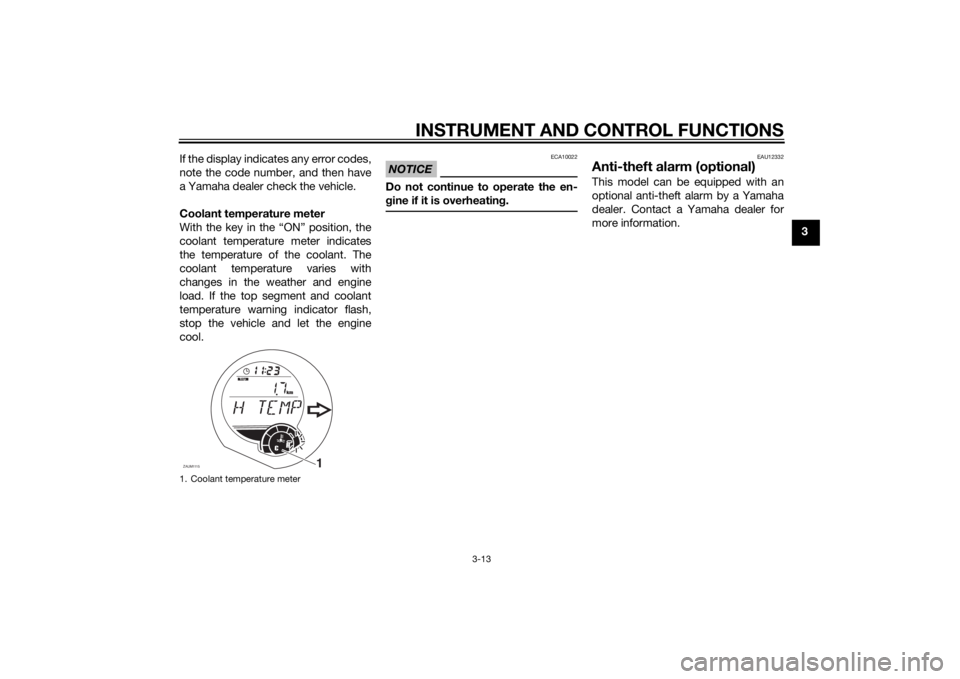

1. Coolant temperature meterZAUM1115
1
CH
km
Trip
U2DME1E0.book Page 13 Wednesday, October 23, 2013 1:37 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU1234F
Handlebar switchesLeftRight
EAU12351
Pass switch “ ”
Press this switch to flash the headlight.
EAU12401
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12722
Start switch “ ”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter. See
page 5-1 for starting instructions prior
to starting the engine.
EAU41701
The engine trouble warning light will
come on when the key is turned to
“ON” and the start switch is pushed,
but this does not indicate a malfunc-
tion.
EAU12734
Hazard switch “ ”
With the key in the “ON” or “ ” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).

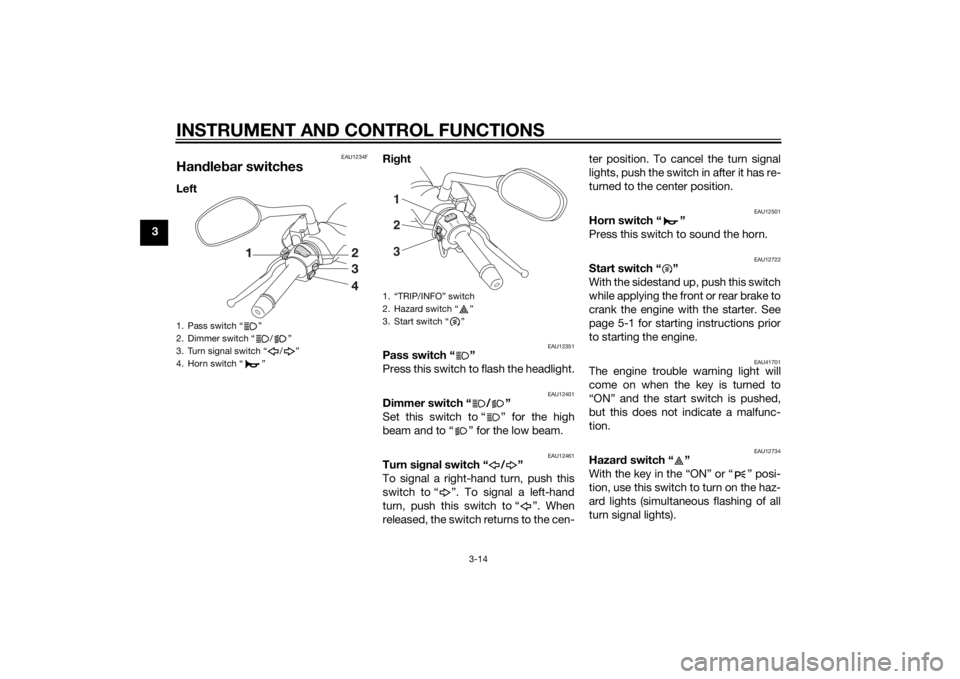

1. Pass switch “ ”
2. Dimmer switch “ / ”
3. Turn signal switch “ / ”
4. Horn switch “ ”
1. “TRIP/INFO” switch
2. Hazard switch “ ”
3. Start switch “ ”
I
N
FOTRI
P
1
3 2
U2DME1E0.book Page 14 Wednesday, October 23, 2013 1:37 PM
