Safety information
1-4
1
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avail- able only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and ac-
cessories or offer other modifications
for Yamaha vehicles. Yamaha is not in
a position to test the products that
these aftermarket companies produce.
Therefore, Yamaha can neither en-
dorse nor recommend the use of ac-
cessories not sold by Yamaha or
modifications not specifically recom-
mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories, an d
Mo difications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket products or having other modifications
performed to your vehicle that change
any of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or
death. You are responsible for injuries
related to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
 Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Careful-
ly inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
• Accessories fitted to the han- dlebar or the front fork area can
create instability due to improp-
er weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum. • Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodynamic
effects. Wind may attempt to lift
the scooter, or the scooter may
become unstable in cross
winds. These accessories may
also cause instability when
passing or being passed by lar-
ge vehicles.
• Certain accessories can dis- place the operator from his or
her normal riding position. This
improper position limits the
freedom of movement of the
operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
 Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the scooter’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
UB9YE0E0.book Page 4 Wednesday, January 6, 2021 3:03 PM

Safety information
1-5

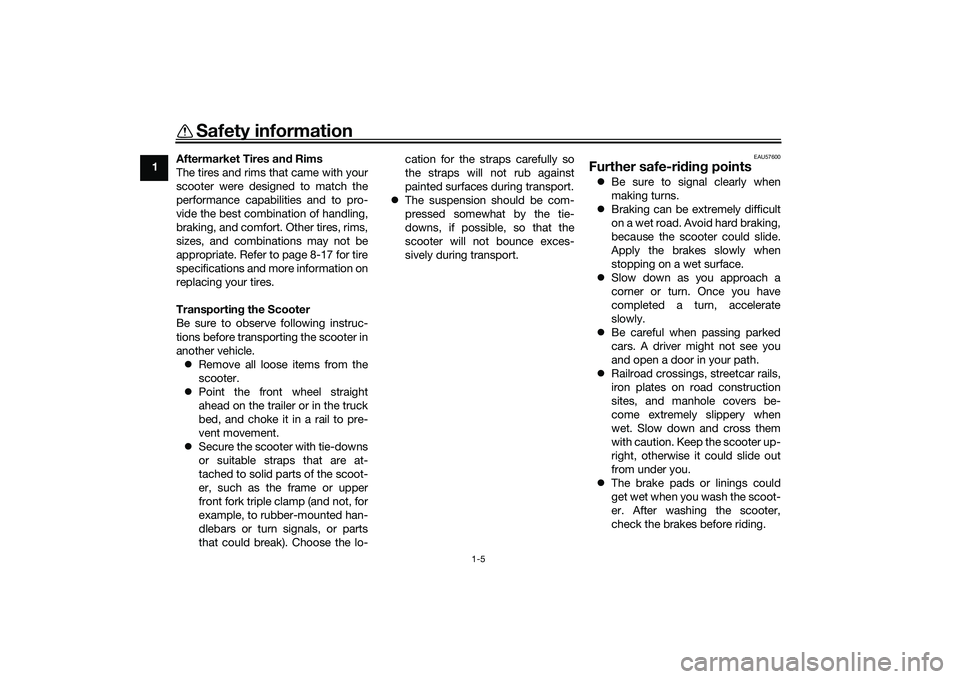

1Aftermarket Tires an
d Rims
The tires and rims that came with your
scooter were designed to match the
performance capabilities and to pro-
vide the best combination of handling,
braking, and comfort. Other tires, rims,
sizes, and combinations may not be
appropriate. Refer to page 8-17 for tire
specifications and more information on
replacing your tires.
Transportin g the Scooter
Be sure to observe following instruc-
tions before transporting the scooter in
another vehicle.  Remove all loose items from the
scooter.
 Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
 Secure the scooter with tie-downs
or suitable straps that are at-
tached to solid parts of the scoot-
er, such as the frame or upper
front fork triple clamp (and not, for
example, to rubber-mounted han-
dlebars or turn signals, or parts
that could break). Choose the lo- cation for the straps carefully so
the straps will not rub against
painted surfaces during transport.
 The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the
scooter will not bounce exces-
sively during transport.
EAU57600
Further safe-ri din g points Be sure to signal clearly when
making turns.
 Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when
stopping on a wet surface.
 Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
 Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
 Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers be-
come extremely slippery when
wet. Slow down and cross them
with caution. Keep the scooter up-
right, otherwise it could slide out
from under you.
 The brake pads or linings could
get wet when you wash the scoot-
er. After washing the scooter,
check the brakes before riding.
UB9YE0E0.book Page 5 Wednesday, January 6, 2021 3:03 PM

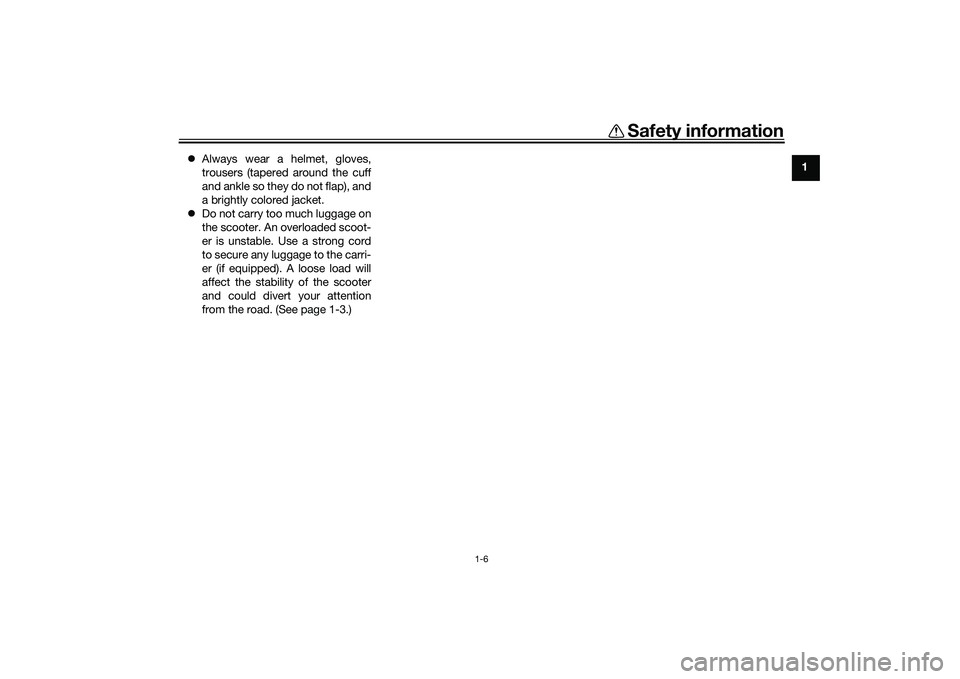

Safety information
1-6
1

Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap), and
a brightly colored jacket.
 Do not carry too much luggage on
the scooter. An overloaded scoot-
er is unstable. Use a strong cord
to secure any luggage to the carri-
er (if equipped). A loose load will
affect the stability of the scooter
and could divert your attention
from the road. (See page 1-3.)
UB9YE0E0.book Page 6 Wednesday, January 6, 2021 3:03 PM

Description
2-1
2
EAU10411

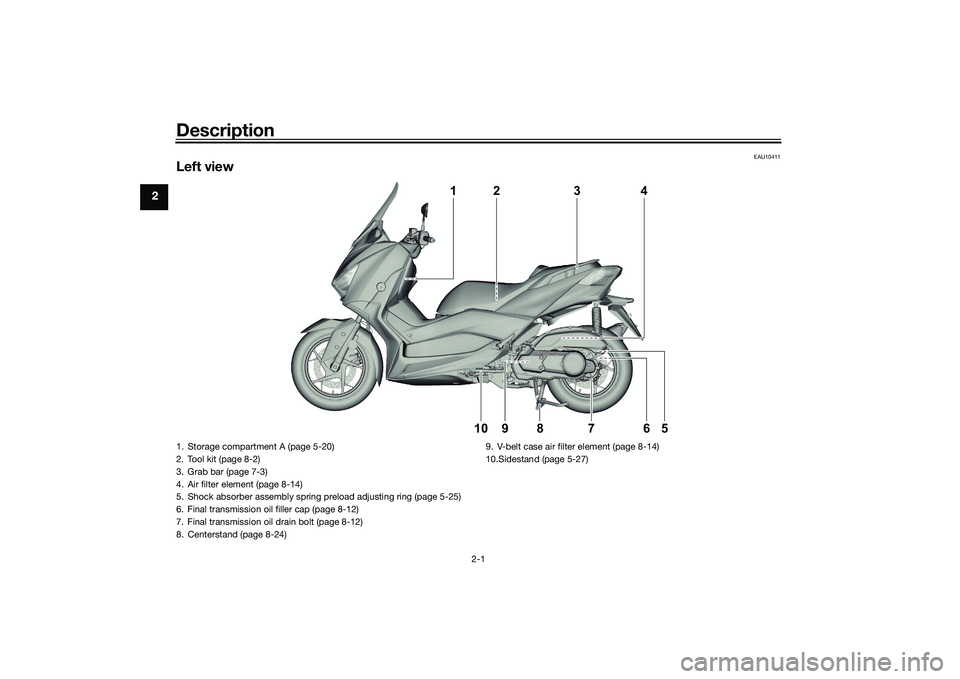

Left view
4
1
5
6
9
8
7
10
2
3
1. Storage compartment A (page 5-20)
2. Tool kit (page 8-2)
3. Grab bar (page 7-3)
4. Air filter element (page 8-14)
5. Shock absorber assembly spring preload adjusting ring (page 5-25)
6. Final transmission oil filler cap (page 8-12)
7. Final transmission oil drain bolt (page 8-12)
8. Centerstand (page 8-24)9. V-belt case air filter element (page 8-14)
10.Sidestand (page 5-27)UB9YE0E0.book Page 1 Wednesday, January 6, 2021 3:03 PM

Description
2-2
2
EAU10421

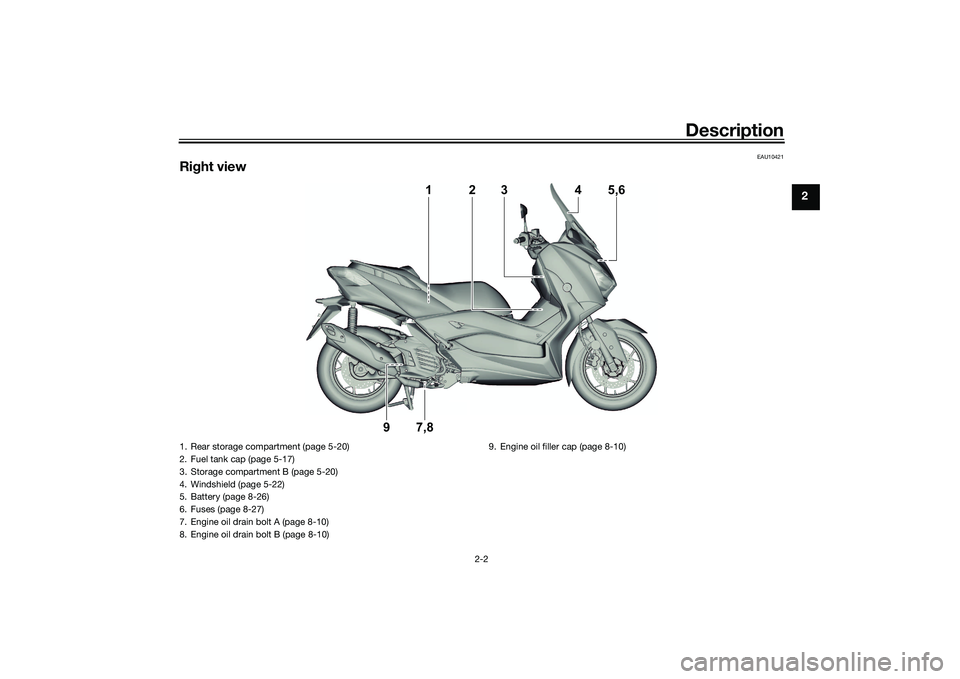

Right view
2
3
4
5,6
1
9
7,8
1. Rear storage compartment (page 5-20)
2. Fuel tank cap (page 5-17)
3. Storage compartment B (page 5-20)
4. Windshield (page 5-22)
5. Battery (page 8-26)
6. Fuses (page 8-27)
7. Engine oil drain bolt A (page 8-10)
8. Engine oil drain bolt B (page 8-10) 9. Engine oil filler cap (page 8-10)
UB9YE0E0.book Page 2 Wednesday, January 6, 2021 3:03 PM

Description
2-3
2
EAU10431
Controls and instruments
10
11
121
2
3
9
8
7
5
6
4
1. Rear brake lever (page 5-14)
2. Left handlebar switches (page 5-12)
3. Rear brake fluid reservoir (page 8-21)
4. Speedometer (page 5-3)
5. Multi-function display (page 5-4)
6. Tachometer (page 5-3)
7. Front brake fluid reservoir (page 8-21)
8. Right handlebar switches (page 5-12) 9. Front brake lever (page 5-14)
10.Throttle grip (page 8-17)
11.Main switch (page 3-8)
12.Auxiliary DC jack (page 5-26)UB9YE0E0.book Page 3 Wednesday, January 6, 2021 3:03 PM

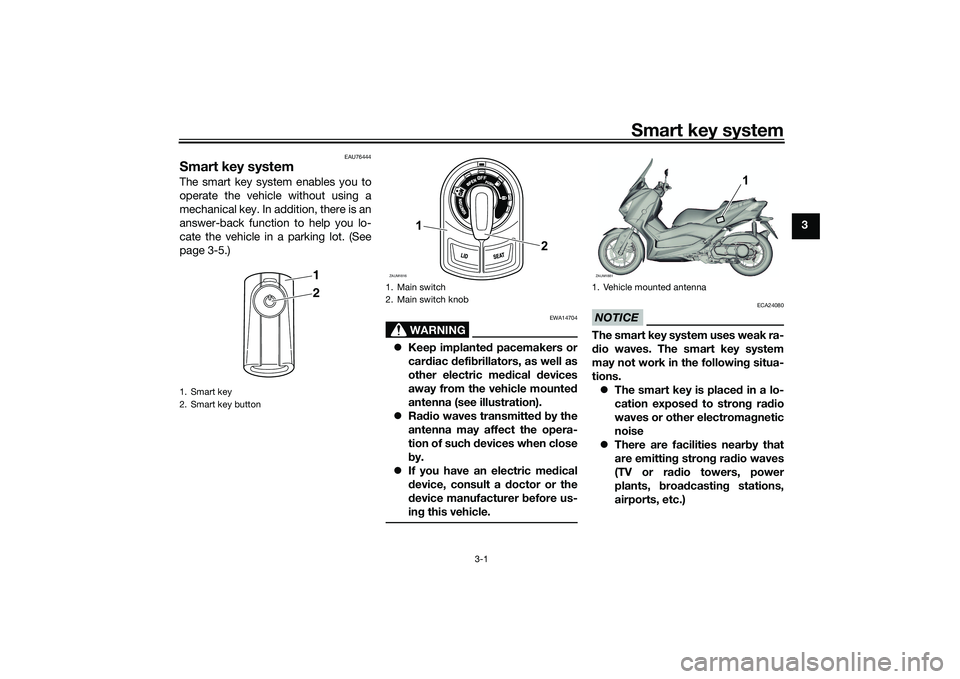

Smart key system
3-1
3
EAU76444
Smart key systemThe smart key system enables you to
operate the vehicle without using a
mechanical key. In addition, there is an
answer-back function to help you lo-
cate the vehicle in a parking lot. (See
page 3-5.)
WARNING
EWA14704
Keep implante d pacemakers or
car diac defi brillators, as well as
other electric med ical devices
away from the vehicle mounte d
antenna (see illustration).
 Radio waves transmitte d b y the
antenna may affect the opera-
tion of such devices when close
b y.
 If you have an electric me dical
d evice, consult a d octor or the
d evice manufacturer before us-
in g this vehicle.
NOTICE
ECA24080
The smart key system uses weak ra-
dio waves. The smart key system
may not work in the followin g situa-
tions.  The smart key is placed in a lo-
cation exposed to strong ra dio
waves or other electroma gnetic
noise
 There are facilities near by that
are emittin g stron g ra dio waves
(TV or ra dio towers, power
plants, broa dcastin g stations,
airports, etc.)
1. Smart key
2. Smart key button
12
1. Main switch
2. Main switch knobZAUM1816
2
1
1. Vehicle mounted antennaZAUM1881AUM1881
1
UB9YE0E0.book Page 1 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-2
3
You are carryin g or usin g com-
munication equipment such as
ra dios or mo bile phones in
close proximity of the smart key
 The smart key is in contact with
or covere d b y a metallic o bject
 Other vehicles equippe d with a
smart key system are near by
In such situations, move the smart
key to another location an d perform
the operation ag ain. If it still does
not work, operate the vehicle in
emer gency mo de. (See pag e 8-34.)
TIPTo preserve vehicle battery power, the
smart key system turns off approxi-
mately 9 days after the vehicle was last
used (the answer-back function is dis-
abled). In this situation, simply push
the main switch knob to turn the smart
key system back on.
EAUM3960
Operating ran ge of the smart
key systemThe operating range of the smart key
system is about 80 cm (31.5 in) from
the antenna.
TIP As the smart key system uses
weak radio waves, the operating
range may be affected by the sur-
rounding environment.
 When the battery of the smart key
is discharged, the smart key may
not work or its operating range
may become very small.
 If the smart key is turned off, the
vehicle will not recognize the
smart key even if it is within oper-
ating range. If the smart key sys-
tem does not operate, see page
3-5 and confirm that the smart key
is turned on.
 Placing the smart key in the front
or rear storage compartment may
block communication between
the smart key and the vehicle. If
the rear storage compartment is
locked with the smart key inside,
the smart key system may be dis-
abled. The smart key should al-
ways be carried with you.
1. Vehicle mounted antennaZAUM1882
1
ZAUM1883
1
UB9YE0E0.book Page 2 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-3
3

When leaving the vehicle, make
sure you lock the steering and
take the smart key with you. It is
recommended that you turn the
smart key off.
WARNING
EWA17952
The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.
EAU78624
Han dlin g of the smart key an d
mechanical keys
WARNING
EWA17952
 The smart key shoul d b e carrie d
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.Included with the vehicle is one smart
key, two mechanical keys, and one
identification number card.
If the vehicle battery is discharged, the
mechanical key can be used to open
the seat. Carry one mechanical key
in a ddition to the smart key.
If the smart key is lost or the smart key
battery has discharged, the identifica-
tion number can be used to operate
the vehicle in emergency mode. (See
page 8-34.) Write down the i dentifi-
cation num ber in case of emer gen-
cy.
If the smart key is lost and the smart
key system identification number is un-
known, the entire smart key system will
1. Smart key
1. Identification number card
2. Identification number
1
868588
1
2
UB9YE0E0.book Page 3 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-4
3need to be replaced at considerable
cost.
Keep the i dentification num ber
car d in a safe place.
NOTICE
ECA21573
The smart key has precision elec-
tronic components. O bserve the fol-
lowin g precautions to prevent
possi ble malfunction or damag e.
 Do not place or store the smart
key in a storag e compartment.
The smart key may b e damag ed
from roa d vi brations or exces-
sive heat.
 Do not drop, ben d, or su bject
the smart key to stron g impacts.
 Do not su bmer ge the smart key
in water or other liqui ds.
 Do not place heavy items or ex-
cessive stress on the smart key.
 Do not leave the smart key in a
place expose d to direct sun-
li g ht, hi gh temperature or hi gh
humi dity.
 Do not g rind or attempt to mo d-
ify the smart key. 
Keep the smart key away from
stron g ma gnetic fiel ds an d
ma gnetic o bjects such as key
hol ders, TVs, an d com
puters.
 Keep the smart key away from
electric me dical equipment.
 Do not allow oils, polishin g
a g ents, fuel, or any stron g
chemicals to come in contact
with the smart key. The smart
key body may become discol-
ore d or cracke d.
TIP The smart key battery life is ap-
proximately two years, but this
may vary according to operating
conditions.
 Replace the smart key battery
when the smart key system indi-
cator light flashes for 20 seconds
when the vehicle is turned on, or
when the smart key indicator light
does not come on when the smart
key button is pushed. (See page
3-6.) After changing the smart key
battery, if the smart key system still does not operate, check the
vehicle battery and then have a
Yamaha dealer check the vehicle.
 If the smart key continually re-
ceives radio waves, the smart key
battery will discharge quickly. (For
example, when placed in the vicin-
ity of electrical products such as
televisions, radios, or computers.)
 You can register up to six smart
keys for the same vehicle. See a
Yamaha dealer regarding spare
smart keys.
 If a smart key is lost, contact a
Yamaha dealer immediately to
prevent the vehicle from being
stolen.
UB9YE0E0.book Page 4 Wednesday, January 6, 2021 3:03 PM
