YAMAHA XMAX 125 2019 Owner's Manual

Smart key system
3-5
3
EAU76474
Smart key
WARNING
EWA17952
The smart key shoul d b e carried
with you. Do not store it on the
vehicle.
 When the smart key is within
operatin g ran ge, exercise due
care because other people not
carryin g the smart key can start
the en gine an d operate the vehi-
cle.
To turn the smart key on or off
Push the smart key button for approxi-
mately 1 second to turn the smart key
on or off. When the smart key is turned
off, the vehicle cannot be operated
even if the smart key is within operating
range. To operate the vehicle, turn the
smart key on and bring it within operat-
ing range.
To check whether the smart key is
turne d on or off
Push the smart key button to confirm
the current operating status of the
smart key.
If the smart key indicator light:  Comes on quickly for 0.1 sec-
onds: The smart key is turned on.
 Comes on slowly for 0.5 seconds:
The smart key is turned off.
Remote answer- back function
Push the smart key button to operate
the answer-back function remotely.
The beeper will sound twice and all of
the turn signal lights will flash twice.
This feature is convenient for locating
your vehicle in a parking lot and other
areas. Operatin
g ran ge of the answer- back
function
The approximate operating range of
the answer-back function is as shown.
As the smart key system uses weak ra-
dio waves, the operating range may be
affected by the surrounding environ-
ment.
To turn the answer- back beeper on
or off
The beeper, which sounds when the
answer-back function is operated, can
be turned on or off according to the fol-
lowing procedure. 1. Turn the smart key on and bring it within operating range.
1. Smart key indicator light
2. Smart key button
1
2
~20m
UB9YE0E0.book Page 5 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-6
32. Turn the main switch to “OFF”,
and then push the main switch
knob once.
3. Within 9 seconds of pushing the knob, push and hold the knob
again for 5 seconds.
4. When the beeper sounds, the set- ting is complete.
If the beeper: Sounds twice: The beeper is
turned off.
 Sounds once: The beeper is
turned on.
EAU76483
Replacin g the smart key bat-
teryReplace the battery in the following sit-
uations.
 The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
 The answer-back function does
not operate when the smart key
button is pushed.
WARNING
EWA20630
The smart key contains a button cell
b attery.
 Keep new an d use d b atteries
away from chil dren. 
If the b attery compartment does
not close securely, stop usin g
the smart key an d keep it away
from chil dren.
Explosion Hazar d - d o not mishan-
d le the battery.
 Dan ger of explosion if battery is
incorrectly replace d.
 Replace only with the same or
equivalent type.
 Do not expose smart key to ex-
cessive heat, such as sunshine
or fire.
Chemical Burn Hazar d - d o not in-
g est the battery.
 If the battery is swallowed , it
can cause severe internal burns
in just 2 hours an d can lead to
d eath.
 If you think batteries mi ght have
b een swallowed or placed in-
si de any part of the body, seek
imme diate me dical
attention.
1. Smart key system indicator light “ ”ZAUM1884
1
UB9YE0E0.book Page 6 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-7
3
NOTICE
ECA15785
Use a cloth when openin g the
smart key case with a screw-
d river. Direct contact with hard
o bjects may damag e or scratch
the smart key.
 Take precautions to prevent the
waterproof seal from bein g
d amag ed or contaminated by
d irt.
 Do not touch the internal cir-
cuits an d terminals. This may
cause malfunctions.
 Do not apply excessive force to
the smart key when replacin g
the battery.
 Make sure the battery is in-
stalle d correctly. Confirm the di-
rection of the positive “+” sid e
of the battery.To replace the smart key battery
1. Open the smart key case as shown. 2. Remove the battery.
TIPDispose of the removed battery in ac-
cordance with local regulations.3. Install a new battery as shown.
Note the polarity of the battery. 4. Gently snap the smart key case
closed.1. Battery
1
Specified b attery:
CR2032
1. Battery
1
UB9YE0E0.book Page 7 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-8
3
EAU76892
Main switchThe main switch is used to turn the ve-
hicle power on and off, lock and unlock
the steering, and open the seat, fuel
tank cap lid and storage compartmentA. After pushing the main switch knob
and confirmation with the smart key
has taken place, the main switch can
be turned while the smart key system
indicator light is on (approximately 4
seconds).
WARNING
EWA18720
Never turn the main switch to
“OFF”, “ ”, or “OPEN” while the ve-
hicle is movin
g. Otherwise the elec-
trical systems will be switche d off,
which may result in loss of control or
an acci dent.TIPDo not push the main switch knob re-
peatedly or turn the main switch back
and forth beyond normal use. Other-
wise, to protect the main switch from
damage, the smart key system will
temporarily disable and the smart key
system indicator light will flash. If this
occurs, wait until the indicator light
stops flashing before operating the
main switch again.The main switch positions are de-
scribed below.
EAU76502
ON
All electrical circuits are supplied with
power, and the engine can be started.
To turn the vehicle power on1. Turn the smart key on and bring it
within operating range.
2. Push the main switch knob and the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights will flash twice and the
vehicle power will turn on.
1. Main switch
2. Main switch knob
1. Smart key system indicator light “ ”ZAUM1816
2
1
ZAUM1884
1
1. Push.
2. Turn.ZAUM14711 2
UB9YE0E0.book Page 8 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-9
3
TIPIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
 See “Emergency mode” on page
8-34 for information on turning the
vehicle power on without the
smart key.
EAU76511
OFF
All electrical systems are off.
To turn the vehicle power off1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”. 2. The turn signal lights flash once
and the vehicle power turns off.
TIPWhen the main switch is turned to
“OFF” but the smart key cannot be
confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds. During this 30 seconds, the main
switch can be freely operated.
 After 30 seconds, the vehicle
power will turn off automatically.
 To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU79042
OPEN (open)
Power is supplied to the main switch.
The seat and storage compartment A
can be opened. To open the seat and storage compart-
ment A1. With the smart key turned on and
within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “OPEN”.
3. To open the seat, push the “SEAT” button, and then lift the
rear of the seat.
1. Turn.ZAUM1472
1
1. Push.
2. Turn.ZAUM14711 2
UB9YE0E0.book Page 9 Wednesday, January 6, 2021 3:03 PM

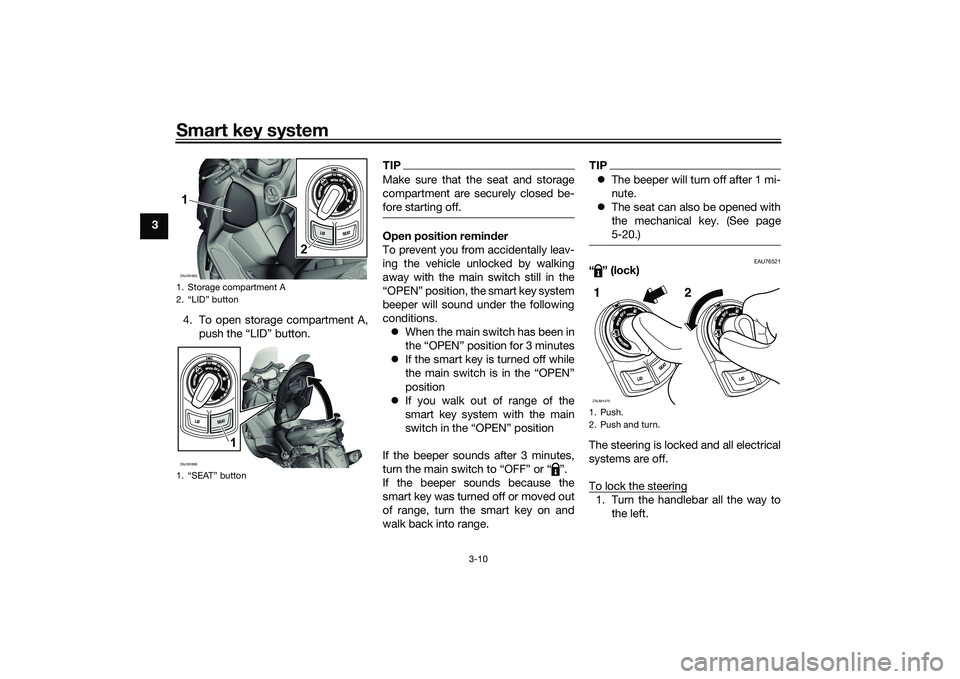

Smart key system
3-10
34. To open storage compartment A,push the “LID” button.
TIPMake sure that the seat and storage
compartment are securely closed be-
fore starting off.Open position remin der
To prevent you from accidentally leav-
ing the vehicle unlocked by walking
away with the main switch still in the
“OPEN” position, the smart key system
beeper will sound under the following
conditions.  When the main switch has been in
the “OPEN” position for 3 minutes
 If the smart key is turned off while
the main switch is in the “OPEN”
position
 If you walk out of range of the
smart key system with the main
switch in the “OPEN” position
If the beeper sounds after 3 minutes,
turn the main switch to “OFF” or “ ”.
If the beeper sounds because the
smart key was turned off or moved out
of range, turn the smart key on and
walk back into range.
TIP The beeper will turn off after 1 mi-
nute.
 The seat can also be opened with
the mechanical key. (See page
5-20.)
EAU76521
“” (lock)
The steering is locked and all electrical
systems are off.
To lock the steering1. Turn the handlebar all the way to
the left.
1. Storage compartment A
2. “LID” button
1. “SEAT” buttonZAUM1885
85
1
2
ZAUM1886
1
1. Push.
2. Push and turn.ZAUM14751
2
UB9YE0E0.book Page 10 Wednesday, January 6, 2021 3:03 PM

Smart key system
3-11
3
2. With the smart key turned on and
within operating range, push the
main switch knob.
3. While the smart key system indi- cator light is on, push and turn the
main switch to “ ”.
TIPIf the steering will not lock, try turning
the handlebar back to the right slightly.To unlock the steering1. With the smart key turned on andwithin operating range, push the
main switch knob. 2. While the smart key system indi-
cator light is on, push and turn the
main switch to the desired posi-
tion.
EAU79000
“ ” (fuel tank cap li d)
To open the fuel tank cap lid1. With the smart key turned on and within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “ ”. To close the fuel tank cap lid
Push the fuel tank cap lid down until it
is closed.TIPMake sure that fuel tank cap lid is se-
curely closed before starting off.
1. Push.
2. Push and turn.ZAUM182012
1. Push.
2. Turn.ZAUM14771
2
UB9YE0E0.book Page 11 Wednesday, January 6, 2021 3:03 PM

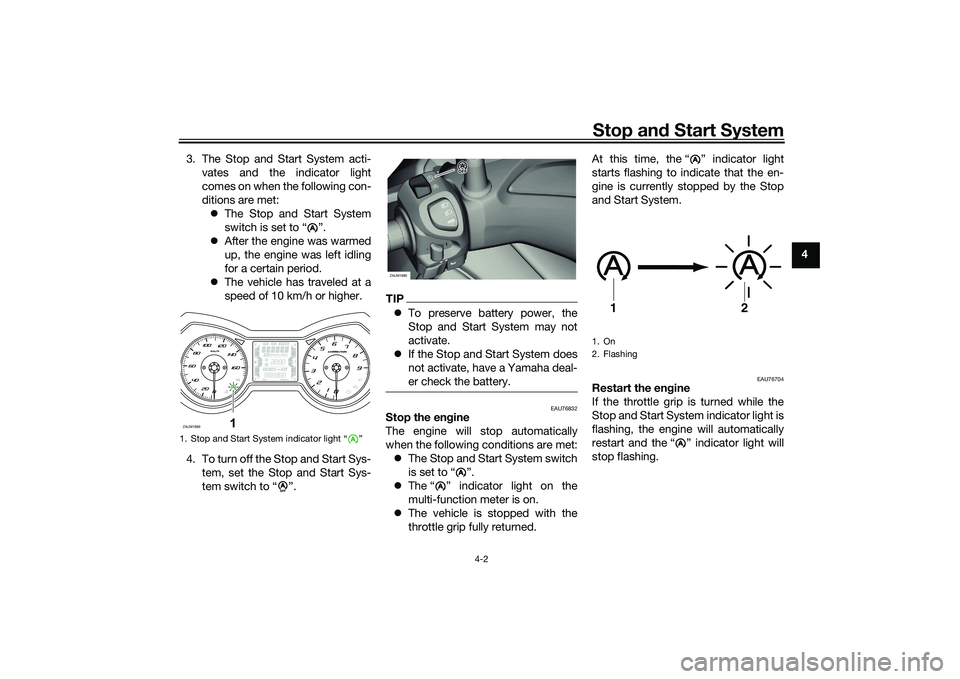

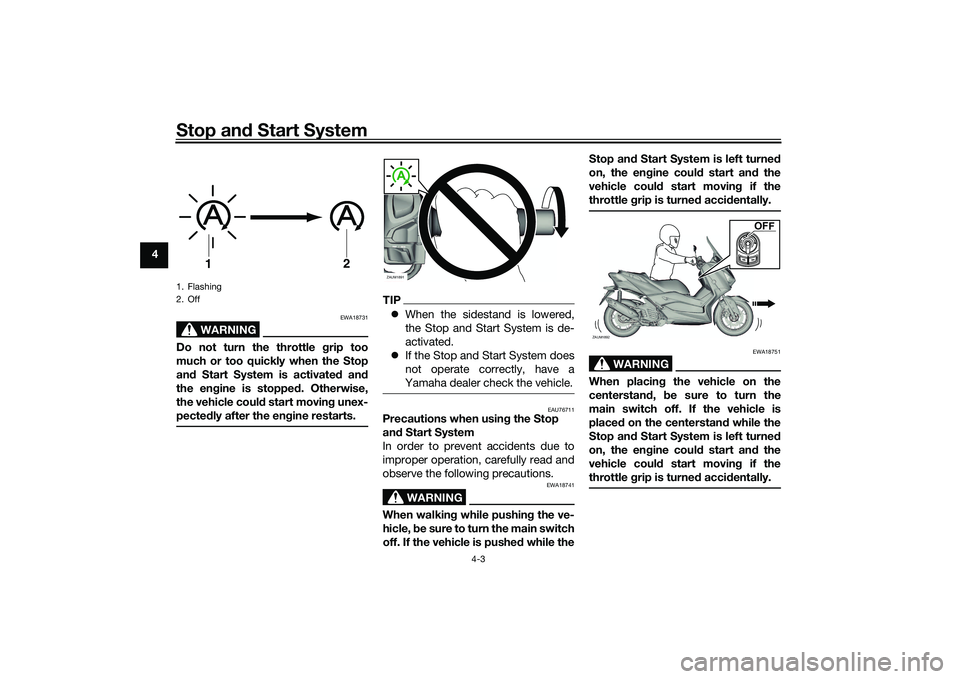

Stop and Start System
4-1
4
EAU76825
Stop and Start SystemThe Stop and Start System stops the
engine automatically when the vehicle
is stopped in order to prevent noise,
control exhaust emissions, and reduce
fuel consumption.
When the rider turns the throttle grip
slightly, the engine restarts automati-
cally and the vehicle starts off.NOTICE
ECA23961
When parkin g the vehicle or leavin g
the vehicle unatten ded , be sure to
turn the main switch off. If the Stop
an d Start System is left turne d on,
the battery coul d become dis- char
ged an d it may not be possi ble
to restart the en gine due to insuffi-
cient battery volta ge.
TIP Although the engine normally
stops at the same time as the ve-
hicle, there may be a delay when
operating the vehicle under 10
km/h, such as in heavy traffic.
 If you think the battery voltage is
low because the engine cannot be
started using the starter switch or
for some other reason, do not turn
on the Stop and Start System.
 Have a Yamaha dealer check the
battery at the intervals specified in
the periodic maintenance chart.
EAU76671
Stop and Start System opera-
tion
EAU76687
Activating the Stop an d Start Sys-
tem 1. Turn the main switch on.
2. Set the Stop and Start System switch to “ ”.
1. Stop and Start System indicator light “ ”ZAUM1887
1
ZAUM1983
ON
A
AA
ZAUM1888
UB9YE0E0.book Page 1 Wednesday, January 6, 2021 3:03 PM

Stop and Start System
4-2
4
3. The Stop and Start System acti-
vates and the indicator light
comes on when the following con-
ditions are met: The Stop and Start System
switch is set to “ ”.
 After the engine was warmed
up, the engine was left idling
for a certain period.
 The vehicle has traveled at a
speed of 10 km/h or higher.
4. To turn off the Stop and Start Sys- tem, set the Stop and Start Sys-
tem switch to “ ”.
TIPTo preserve battery power, the
Stop and Start System may not
activate.
 If the Stop and Start System does
not activate, have a Yamaha deal-
er check the battery.
EAU76832
Stop the en gine
The engine will stop automatically
when the following conditions are met:  The Stop and Start System switch
is set to “ ”.
 The “ ” indicator light on the
multi-function meter is on.
 The vehicle is stopped with the
throttle grip fully returned. At this time, the “ ” indicator light
starts flashing to indicate that the en-
gine is currently stopped by the Stop
and Start System.
EAU76704
Restart the en
gine
If the throttle grip is turned while the
Stop and Start System indicator light is
flashing, the engine will automatically
restart and the “ ” indicator light will
stop flashing.
1. Stop and Start System indicator light “ ”
A
ZAUM1889
1
A
AAAA
A
ZAUM1890
AA
A
1. On
2. Flashing
A
1
2
A
UB9YE0E0.book Page 2 Wednesday, January 6, 2021 3:03 PM

Stop and Start System
4-3
4
WARNING
EWA18731
Do not turn the throttle g rip too
much or too quickly when the Stop
an d Start System is activate d an d
the en gine is stoppe d. Otherwise,
the vehicle coul d start movin g unex-
pected ly after the en gine restarts.
TIP When the sidestand is lowered,
the Stop and Start System is de-
activated.
 If the Stop and Start System does
not operate correctly, have a
Yamaha dealer check the vehicle.
EAU76711
Precautions when usin g the Stop
an d Start System
In order to prevent accidents due to
improper operation, carefully read and
observe the following precautions.
WARNING
EWA18741
When walkin g while pushin g the ve-
hicle, be sure to turn the main switch
off. If the vehicle is pushe d while the Stop an
d Start System is left turne d
on, the en gine coul d start an d the
vehicle coul d start movin g if the
throttle grip is turne d acci dentally.
WARNING
EWA18751
When placin g the vehicle on the
centerstan d, be sure to turn the
main switch off. If the vehicle is
place d on the centerstan d while the
Stop an d Start System is left turne d
on, the en gine coul d start an d the
vehicle coul d start movin g if the
throttle grip is turne d acci dentally.
1. Flashing
2. Off
1
2
ZAUM1891
ZAUM1892UM1892
OFF
UB9YE0E0.book Page 3 Wednesday, January 6, 2021 3:03 PM
