Periodic maintenance an d a djustment
8-29
8
TIPIf the fuse immediately blows again,
have a Yamaha dealer check the elec-
trical system.5. Install the panel A. (See page 8-8.)
EAUN2261

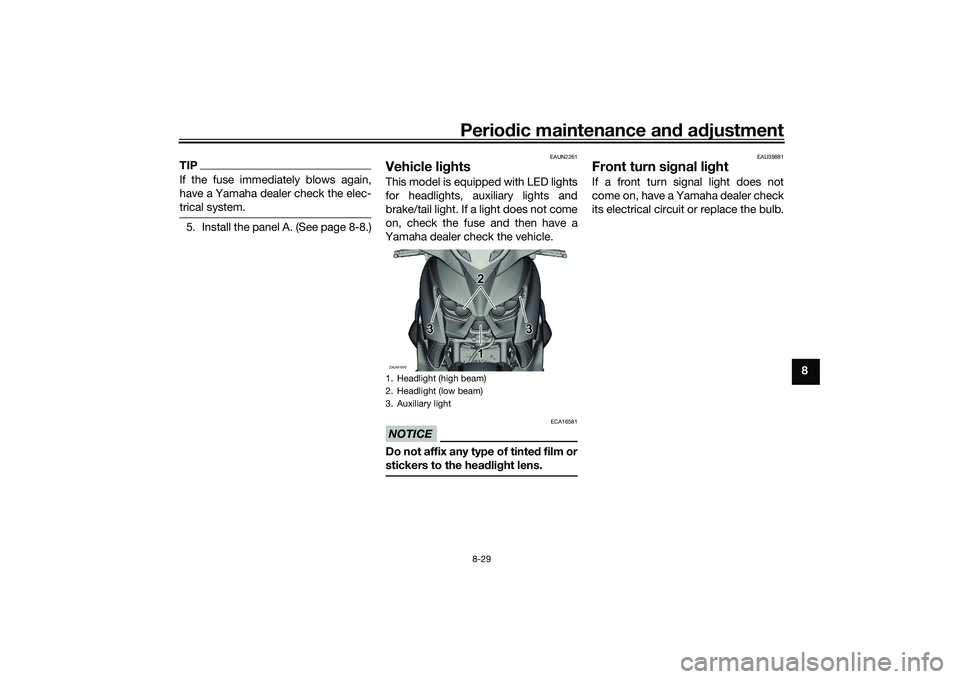

Vehicle li ghtsThis model is equipped with LED lights
for headlights, auxiliary lights and
brake/tail light. If a light does not come
on, check the fuse and then have a
Yamaha dealer check the vehicle.NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the head lig ht lens.
EAU39881
Front turn si gnal li ghtIf a front turn signal light does not
come on, have a Yamaha dealer check
its electrical circuit or replace the bulb.
1. Headlight (high beam)
2. Headlight (low beam)
3. Auxiliary lightZAUM1970
2 2
2
3
33 3
31
1
