length YAMAHA XMAX 125 2021 Owners Manual

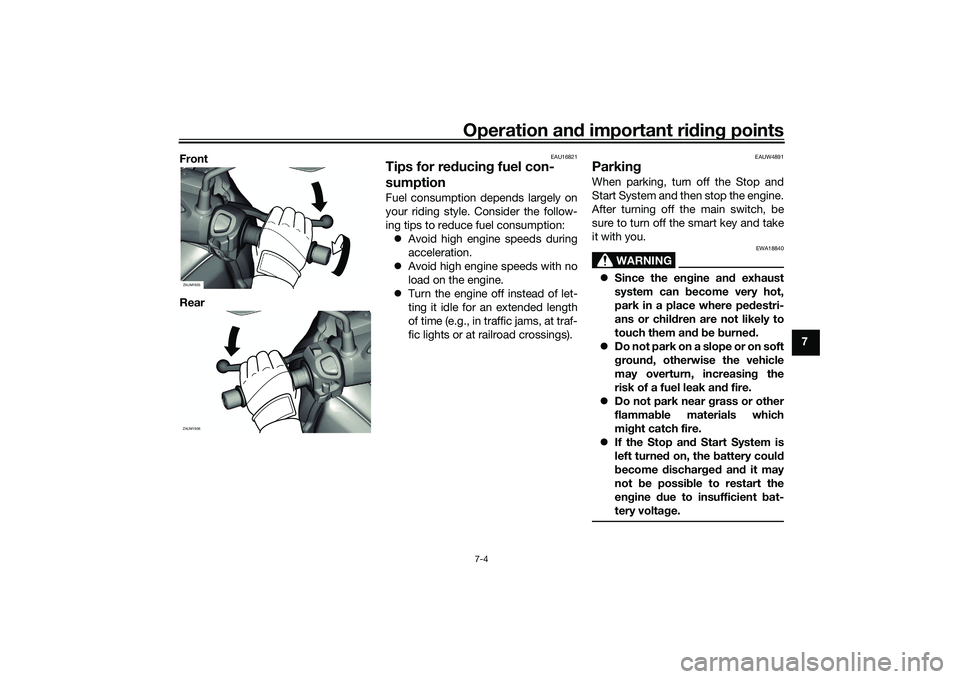

Operation and important ri din g points
7-4
7
Front
Rear
EAU16821
Tips for re
ducin g fuel con-
sumptionFuel consumption depends largely on
your riding style. Consider the follow-
ing tips to reduce fuel consumption:
 Avoid high engine speeds during
acceleration.
 Avoid high engine speeds with no
load on the engine.
 Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAUW4891
Parkin g When parking, turn off the Stop and
Start System and then stop the engine.
After turning off the main switch, be
sure to turn off the smart key and take
it with you.
WARNING
EWA18840
 Since the en gine an d exhaust
system can become very hot,
park in a place where pe destri-
ans or chil dren are not likely to
touch them and b e burne d.
 Do not park on a slope or on soft
groun d, otherwise the vehicle
may overturn, increasin g the
risk of a fuel leak an d fire.
 Do not park near grass or other
flammab le materials which
mi ght catch fire.
 If the Stop an d Start System is
left turne d on, the b attery coul d
b ecome dischar ged an d it may
not be possi ble to restart the
en gine due to insufficient b at-
tery volta ge.
ZAUM1935ZAUM1936
UB9YE0E0.book Page 4 Wednesday, January 6, 2021 3:03 PM

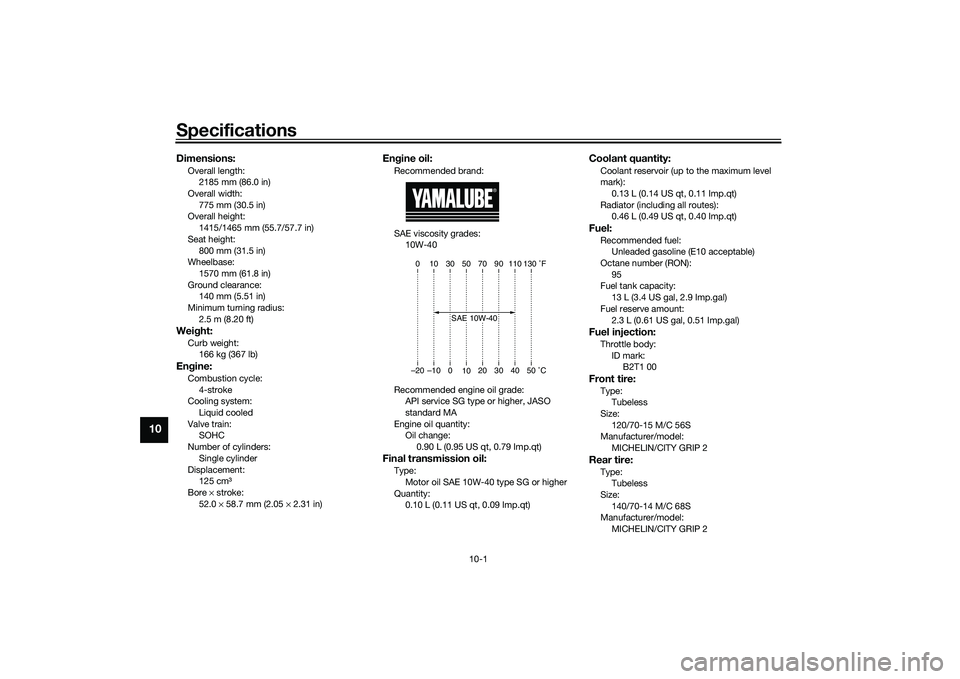

Specifications
10-1
10
Dimensions:Overall length:2185 mm (86.0 in)
Overall width:
775 mm (30.5 in)
Overall height: 1415/1465 mm (55.7/57.7 in)
Seat height: 800 mm (31.5 in)
Wheelbase:
1570 mm (61.8 in)
Ground clearance: 140 mm (5.51 in)
Minimum turning radius: 2.5 m (8.20 ft)Wei ght:Curb weight:
166 kg (367 lb)Engine:Combustion cycle:
4-stroke
Cooling system: Liquid cooled
Valve train: SOHC
Number of cylinders:
Single cylinder
Displacement: 125 cm³
Bore × stroke:
52.0 × 58.7 mm (2.05 × 2.31 in)
En gine oil:Recommended brand:
SAE viscosity grades:
10W-40
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity: Oil change: 0.90 L (0.95 US qt, 0.79 Imp.qt)Final transmission oil:Type:
Motor oil SAE 10W-40 type SG or higher
Quantity: 0.10 L (0.11 US qt, 0.09 Imp.qt)
Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.13 L (0.14 US qt, 0.11 Imp.qt)
Radiator (including all routes): 0.46 L (0.49 US qt, 0.40 Imp.qt)Fuel:Recommended fuel:Unleaded gasoline (E10 acceptable)
Octane number (RON): 95
Fuel tank capacity:
13 L (3.4 US gal, 2.9 Imp.gal)
Fuel reserve amount: 2.3 L (0.61 US gal, 0.51 Imp.gal)Fuel injection:Throttle body:
ID mark: B2T1 00Front tire:Type:Tubeless
Size: 120/70-15 M/C 56S
Manufacturer/model:
MICHELIN/CITY GRIP 2Rear tire:Type:Tubeless
Size:
140/70-14 M/C 68S
Manufacturer/model: MICHELIN/CITY GRIP 2
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 10W-40
