PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAU43601
Checking and lubricating the
brake and clutch levers The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.

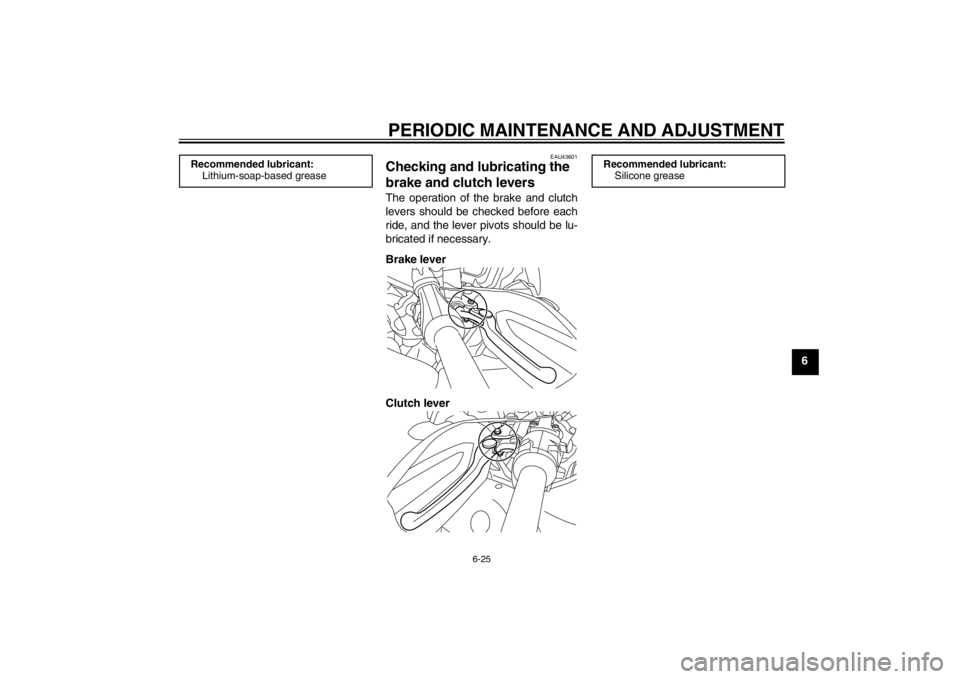

Brake lever
Clutch lever
Recommended lubricant:Lithium-soap-based grease
Recommended lubricant:Silicone grease
U23PE3E0.book Page 25 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
EAU23213
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10741
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-
pair it. Otherwise, the centerstand or
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.

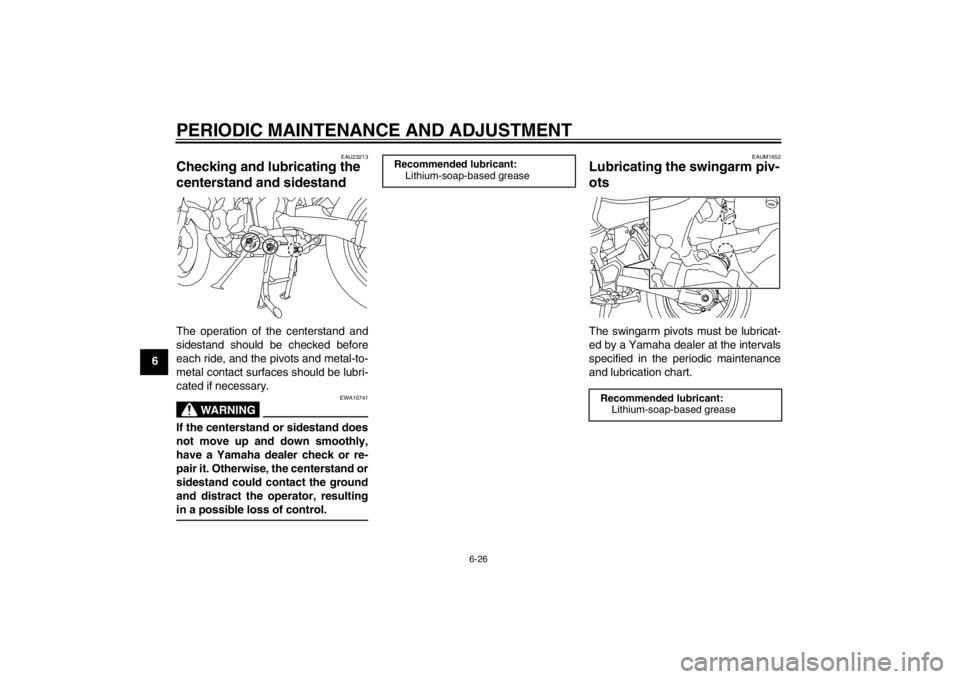

EAUM1652
Lubricating the swingarm piv-
ots The swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:Lithium-soap-based grease
U23PE3E0.book Page 26 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation1. Place the vehicle on a level sur- face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake, push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU45511

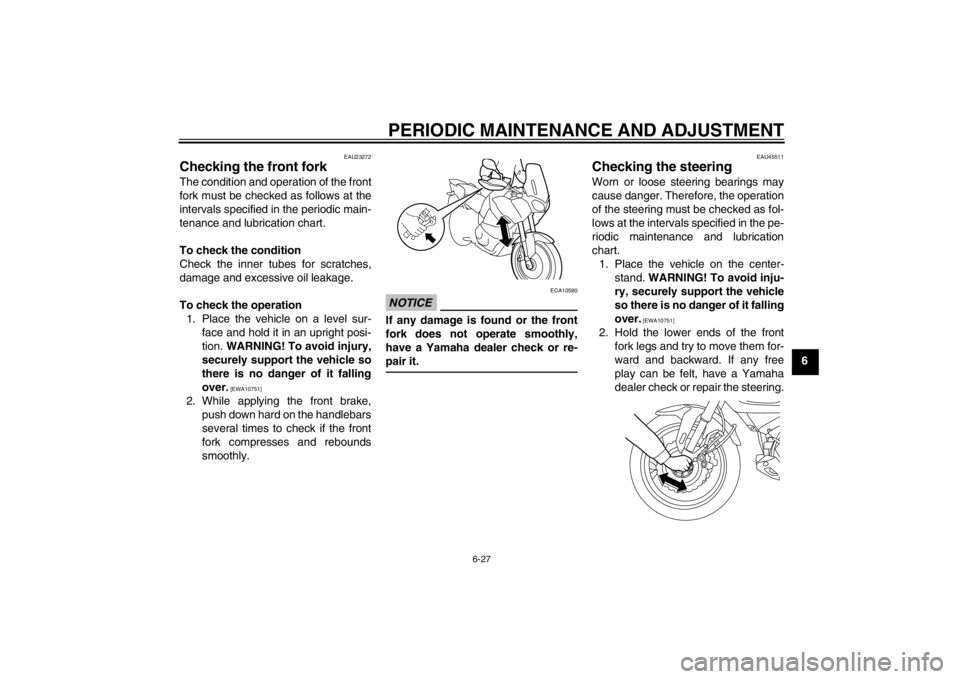

Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.1. Place the vehicle on the center- stand. WARNING! To avoid inju-
ry, securely support the vehicle
so there is no danger of it falling
over.
[EWA10751]
2. Hold the lower ends of the front fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U23PE3E0.book Page 27 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23291
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU34225
Battery The battery is located behind cowling
A. (See page 6-8.)
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10760
●
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact withskin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty of water.
INTERNAL: Drink large quan- tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15 minutes and seek prompt
medical attention.
●
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
●
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the

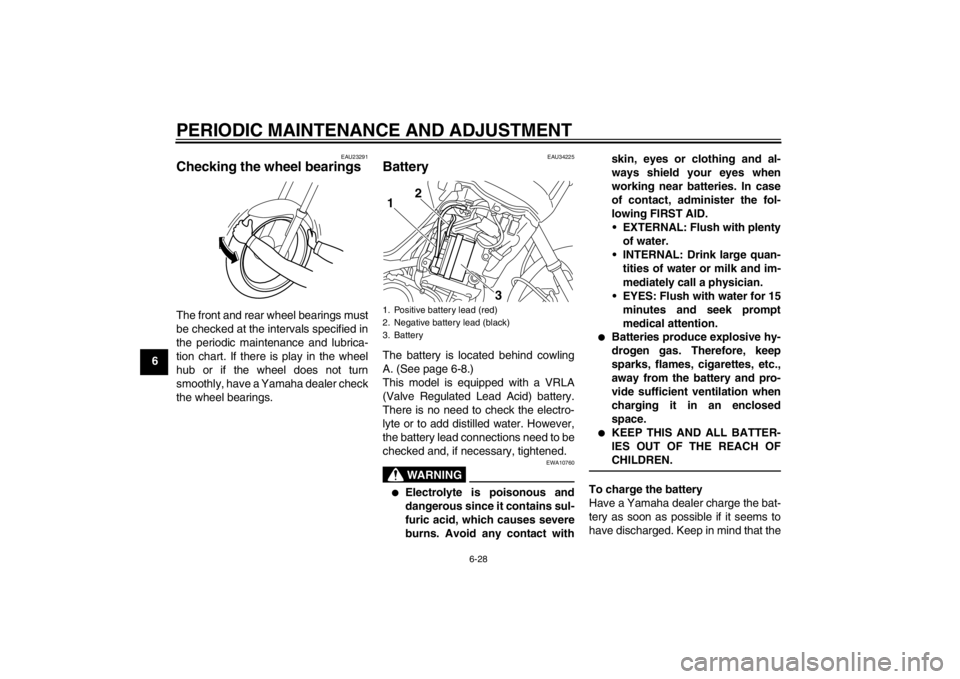

1. Positive battery lead (red)
2. Negative battery lead (black)
3. Battery1
3
2
U23PE3E0.book Page 28 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16521
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery.To store the battery
1. If the vehicle will not be used for more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in- stallation. NOTICE: When install-
ing the battery, be sure the key is turned to “OFF”, then con-
nect the positive lead before
connecting the negative lead.
[ECA16840]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU49581
Replacing the fuses The fuse boxes and the ABS motor
fuse are located behind cowling A, and
the main fuse is located behind cowling
B. (See page 6-8.)1. ABS motor fuse
2. ABS motor spare fuse
3. Main fuse
4. Fuse box
1 2
3
4
U23PE3E0.book Page 29 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.

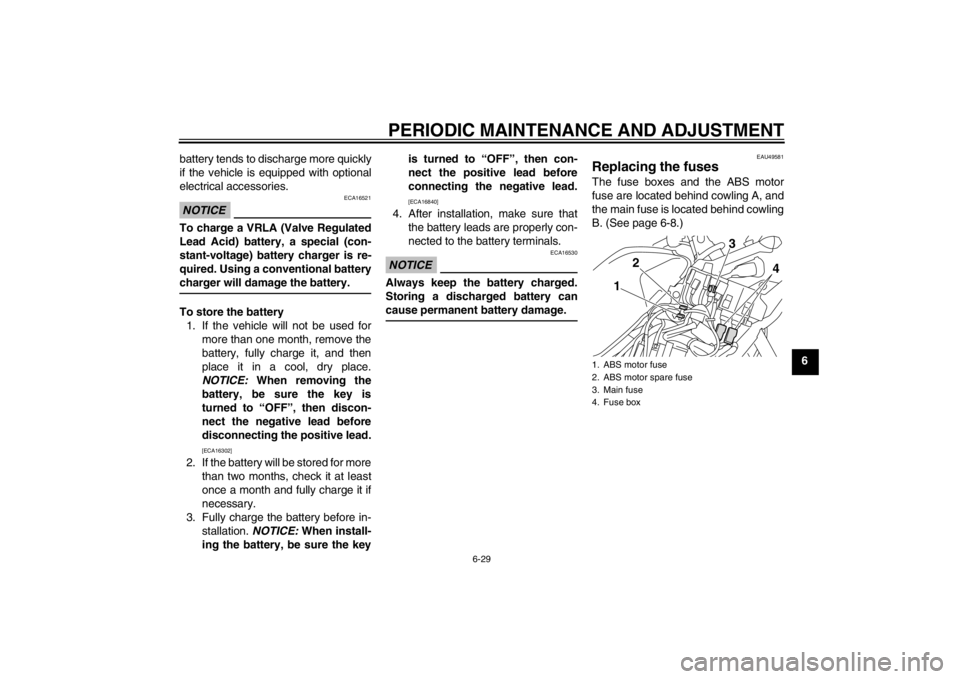

1. Headlight fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-tem)
6. Radiator fan fuse
7. Ignition fuse
8. Signaling system fuse
9. ABS control unit fuse
10.Auxiliary DC jack fuse
11.Taillight fuse
12.O/P (option) fuse
13.Spare fuse
78912
13
13
1110
124563
Specified fuses: Main fuse:
50.0 A
Headlight fuse:
20.0 A
Taillight fuse: 7.5 A
Signaling system fuse: 10.0 A
Ignition fuse:
20.0 A
Radiator fan fuse: 20.0 A
Backup fuse: 7.5 A
Electronic throttle valve fuse:
7.5 A
Fuel injection system fuse: 10.0 A
ABS solenoid fuse: 20.0 A
ABS control unit fuse:
7.5 A
Auxiliary DC jack fuse: 3.0 A
ABS motor fuse: 30.0 A
O/P (option) fuse:
20.0 A
U23PE3E0.book Page 30 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU39013
Replacing a he adlight bulb This model is equipped with halogen
bulb headlights. If a headlight bulb
burns out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:●
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
●
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Remove the headlight bulb cover
by turning it counterclockwise.

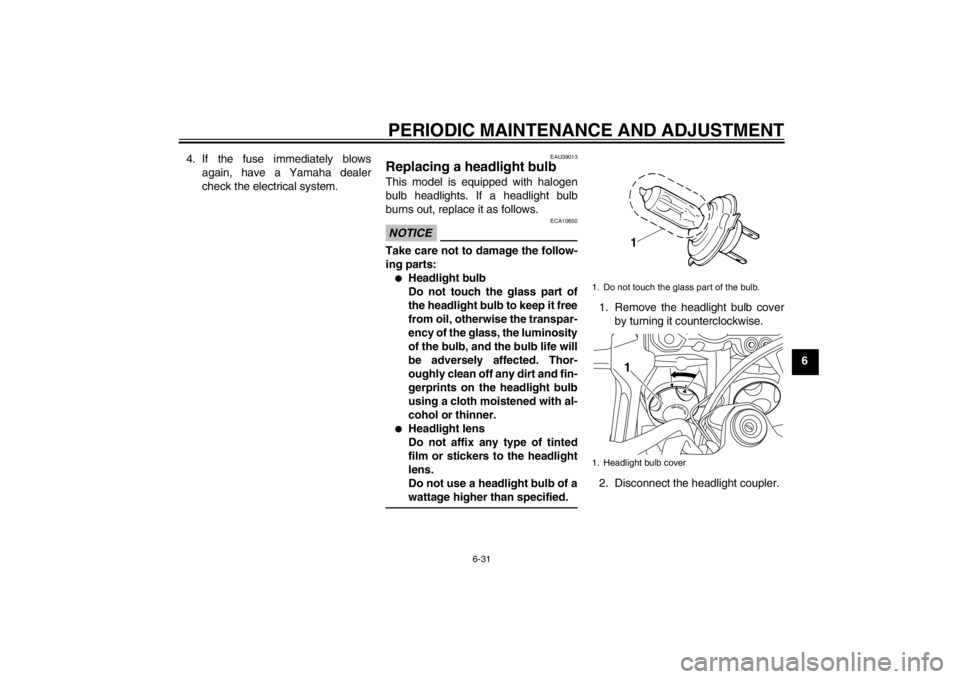

2. Disconnect the headlight coupler.1. Do not touch the glass part of the bulb.

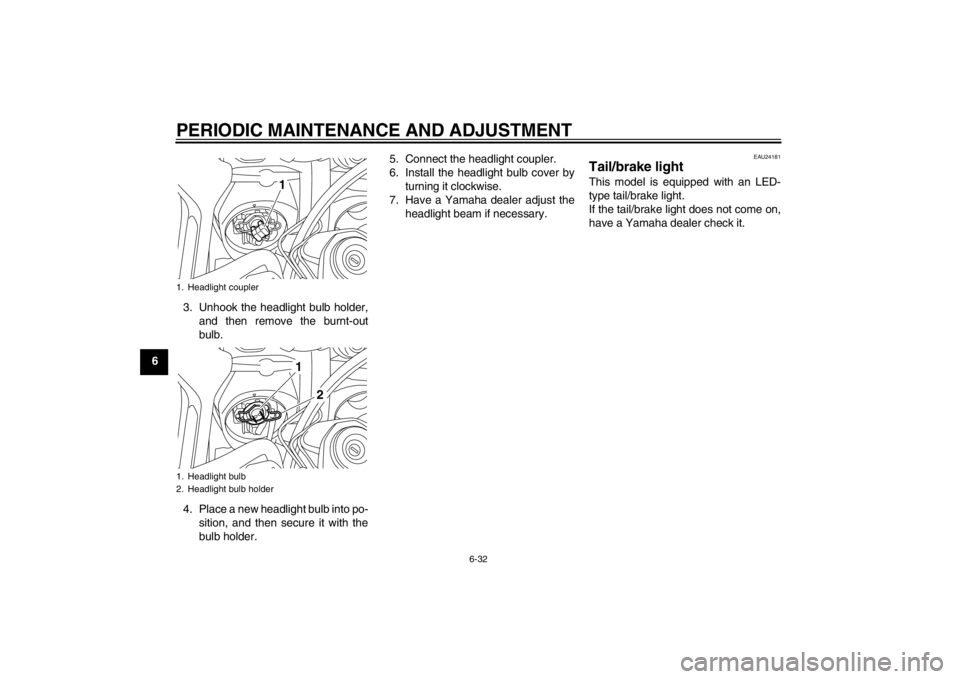

1. Headlight bulb cover
1
U23PE3E0.book Page 31 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
63. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into po- sition, and then secure it with the
bulb holder. 5. Connect the headlight coupler.
6. Install the headlight bulb cover by
turning it clockwise.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Headlight coupler
1. Headlight bulb
2. Headlight bulb holder
1
1
2
U23PE3E0.book Page 32 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU24204
Replacing a turn signal light
bulb 1. Remove the turn signal light lensby removing the screw.
2. Remove the burnt-out bulb by pushing it in and turning it counter-
clockwise. 3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11191] EAU49721
Replacing a license plate light
bulb 1. Remove the license plate light unit
bolts.
2. Remove the license plate light bulb socket (together with the bulb) by
turning it counterclockwise, and
then pulling it out.

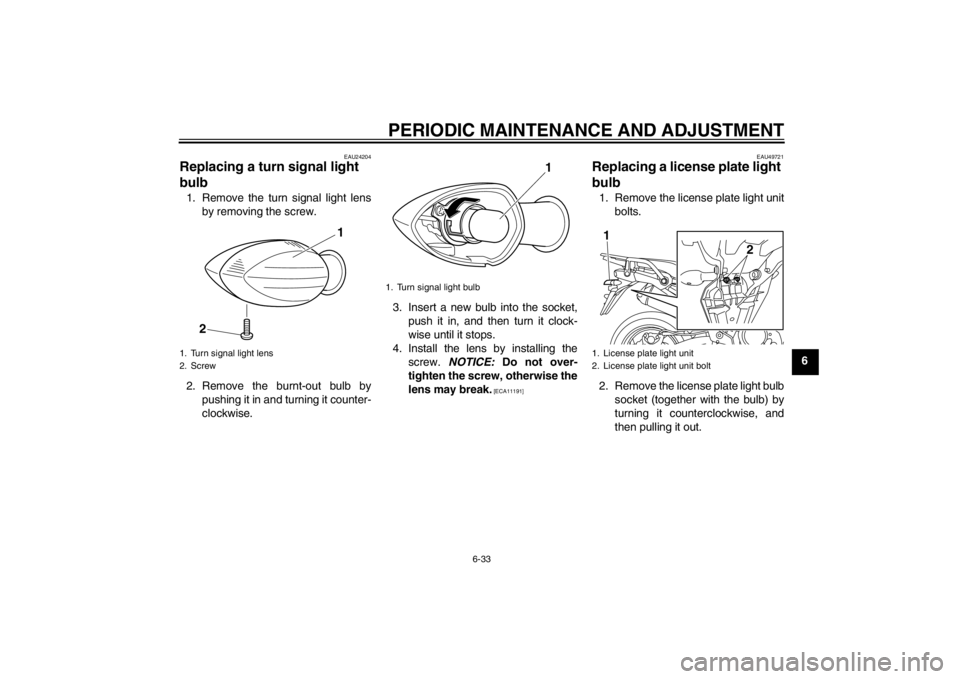

1. Turn signal light lens
2. Screw
1
2
1. Turn signal light bulb
1
1. License plate light unit
2. License plate light unit bolt
2
1
U23PE3E0.book Page 33 Monday, July 30, 2012 8:44 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
63. Remove the burnt-out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by pushing it in, and then
turning it clockwise until it stops. 6. Place the license plate light unit in
the original position, and then in-
stall the bolts.
EAU49624
Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.1. Remove the windshield by remov- ing the screws.
2. Remove the panel by removing the quick fasteners.
1. License plate light bulb socket
1. License plate light bulb
1
1

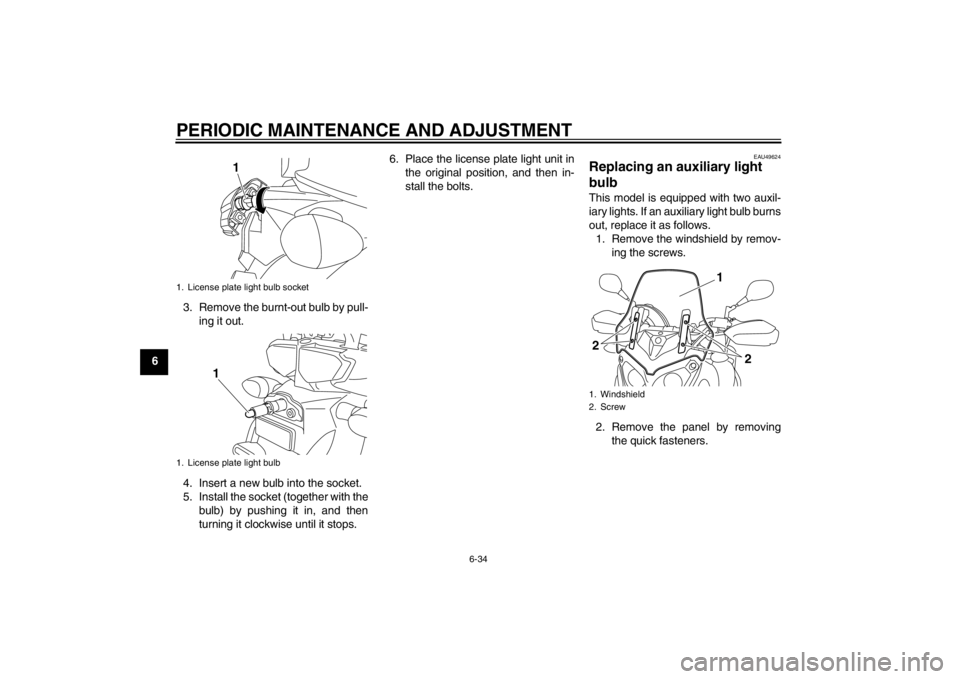

1. Windshield
