Do not run engine in poorly venti-
lated or partially enclosed areas
such as barns, garages, or car-
ports.
Do not run engine outdoors whe-
re engine exhaust can be drawn
into a building through openings
such as windows and doors.

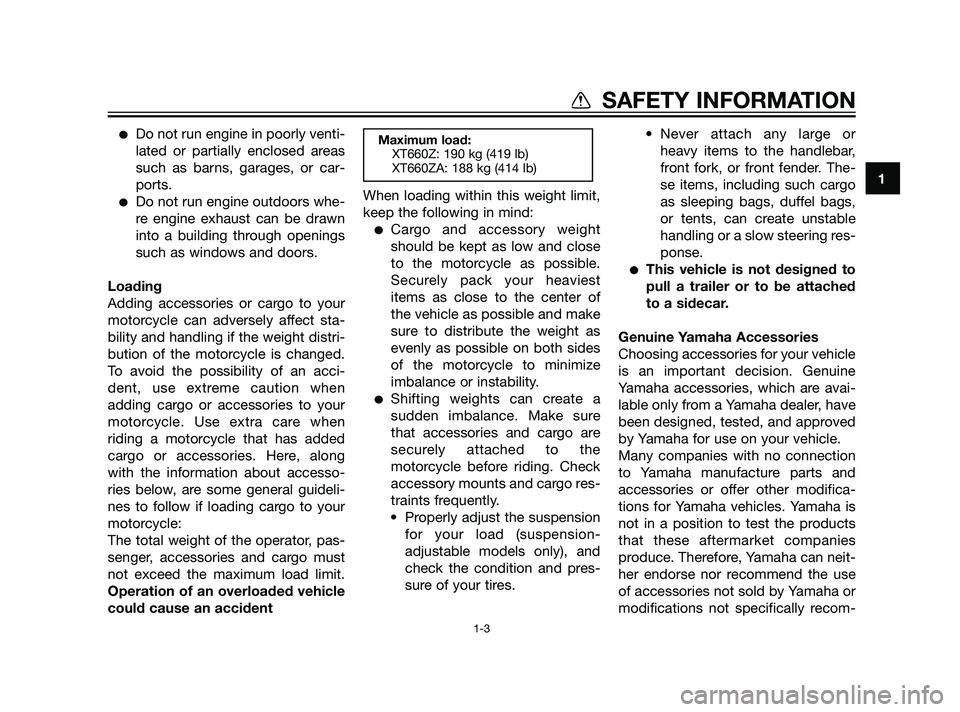

Loading
Adding accessories or cargo to your
motorcycle can adversely affect sta-
bility and handling if the weight distri-
bution of the motorcycle is changed.
To avoid the possibility of an acci-
dent, use extreme caution when
adding cargo or accessories to your
motorcycle. Use extra care when
riding a motorcycle that has added
cargo or accessories. Here, along
with the information about accesso-
ries below, are some general guideli-
nes to follow if loading cargo to your
motorcycle:
The total weight of the operator, pas-
senger, accessories and cargo must
not exceed the maximum load limit.
Operation of an overloaded vehicle
could cause an accidentWhen loading within this weight limit,
keep the following in mind:
Cargo and accessory weight
should be kept as low and close
to the motorcycle as possible.
Securely pack your heaviest
items as close to the center of
the vehicle as possible and make
sure to distribute the weight as
evenly as possible on both sides
of the motorcycle to minimize
imbalance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the
motorcycle before riding. Check
accessory mounts and cargo res-
traints frequently.
• Properly adjust the suspension
for your load (suspension-
adjustable models only), and
check the condition and pres-
sure of your tires.• Never attach any large or
heavy items to the handlebar,
front fork, or front fender. The-
se items, including such cargo
as sleeping bags, duffel bags,
or tents, can create unstable
handling or a slow steering res-
ponse.
This vehicle is not designed to
pull a trailer or to be attached
to a sidecar.
Genuine Yamaha Accessories
Choosing accessories for your vehicle
is an important decision. Genuine
Yamaha accessories, which are avai-
lable only from a Yamaha dealer, have
been designed, tested, and approved
by Yamaha for use on your vehicle.
Many companies with no connection
to Yamaha manufacture parts and
accessories or offer other modifica-
tions for Yamaha vehicles. Yamaha is
not in a position to test the products
that these aftermarket companies
produce. Therefore, Yamaha can neit-
her endorse nor recommend the use
of accessories not sold by Yamaha or
modifications not specifically recom-
Maximum load:
XT660Z: 190 kg (419 lb)
XT660ZA: 188 kg (414 lb)
1
SAFETY INFORMATION
1-3
56P-F8199-E0 30/6/10 09:24 Página 11

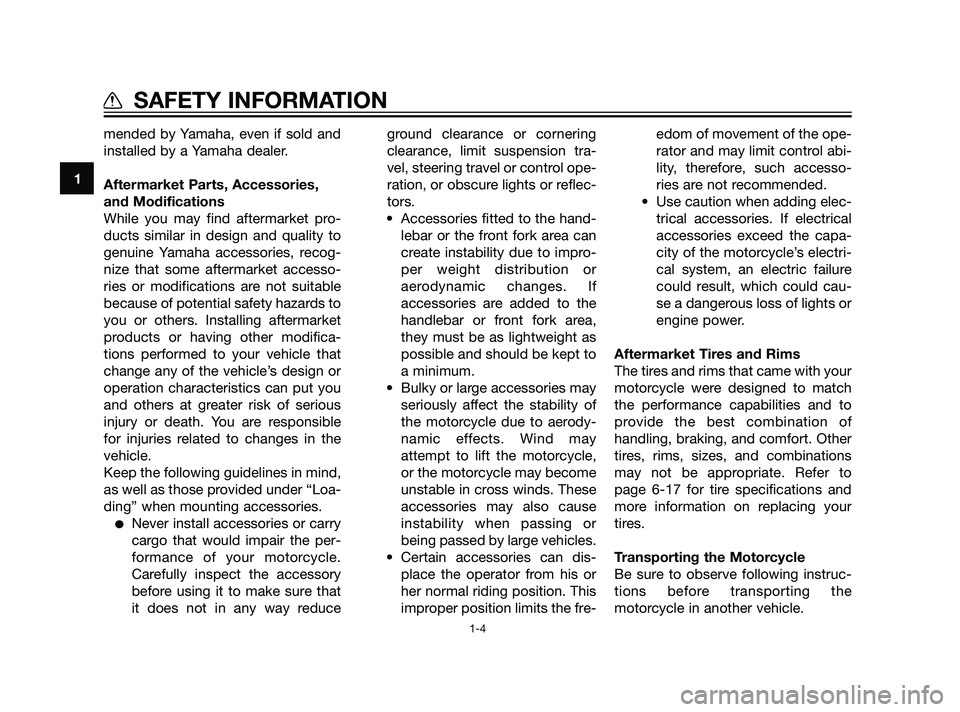

mended by Yamaha, even if sold and
installed by a Yamaha dealer.
Aftermarket Parts, Accessories,
and Modifications
While you may find aftermarket pro-
ducts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accesso-
ries or modifications are not suitable
because of potential safety hazards to
you or others. Installing aftermarket
products or having other modifica-
tions performed to your vehicle that
change any of the vehicle’s design or
operation characteristics can put you
and others at greater risk of serious
injury or death. You are responsible
for injuries related to changes in the
vehicle.
Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your motorcycle.
Carefully inspect the accessory
before using it to make sure that
it does not in any way reduceground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing or
being passed by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such accesso-
ries are not recommended.
• Use caution when adding elec-
trical accessories. If electrical
accessories exceed the capa-
city of the motorcycle’s electri-
cal system, an electric failure
could result, which could cau-
se a dangerous loss of lights or
engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of
handling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to
page 6-17 for tire specifications and
more information on replacing your
tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the
motorcycle in another vehicle.
1
SAFETY INFORMATION
1-4
56P-F8199-E0 30/6/10 09:24 Página 12

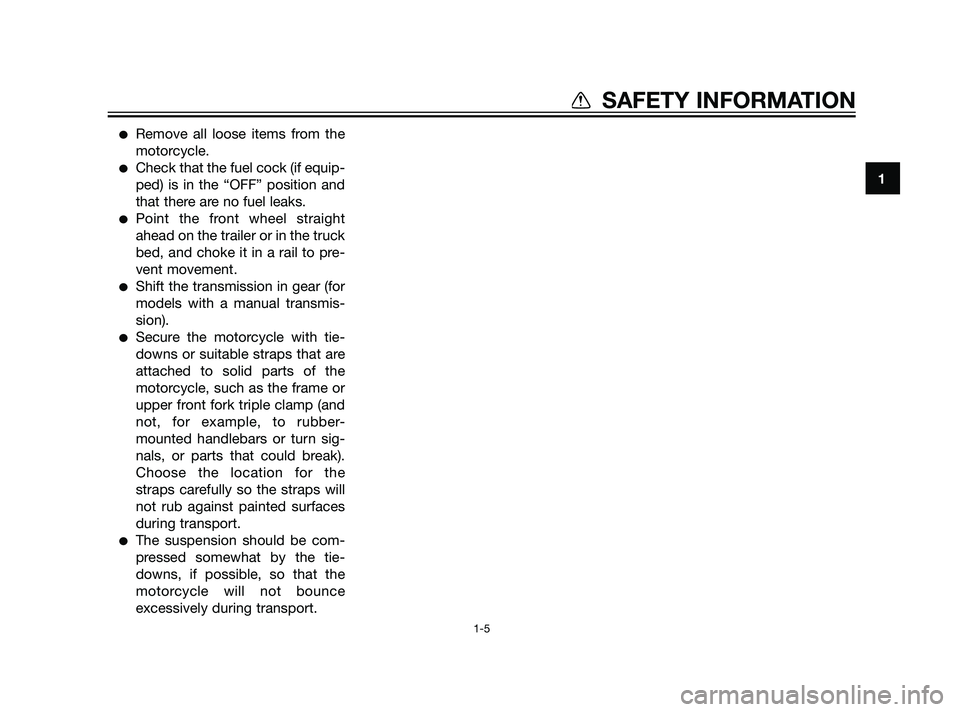

Remove all loose items from the
motorcycle.
Check that the fuel cock (if equip-
ped) is in the “OFF” position and
that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the
motorcycle, such as the frame or
upper front fork triple clamp (and
not, for example, to rubber-
mounted handlebars or turn sig-
nals, or parts that could break).
Choose the location for the
straps carefully so the straps will
not rub against painted surfaces
during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the
motorcycle will not bounce
excessively during transport.
1
SAFETY INFORMATION
1-5
56P-F8199-E0 30/6/10 09:24 Página 13

EAU32220

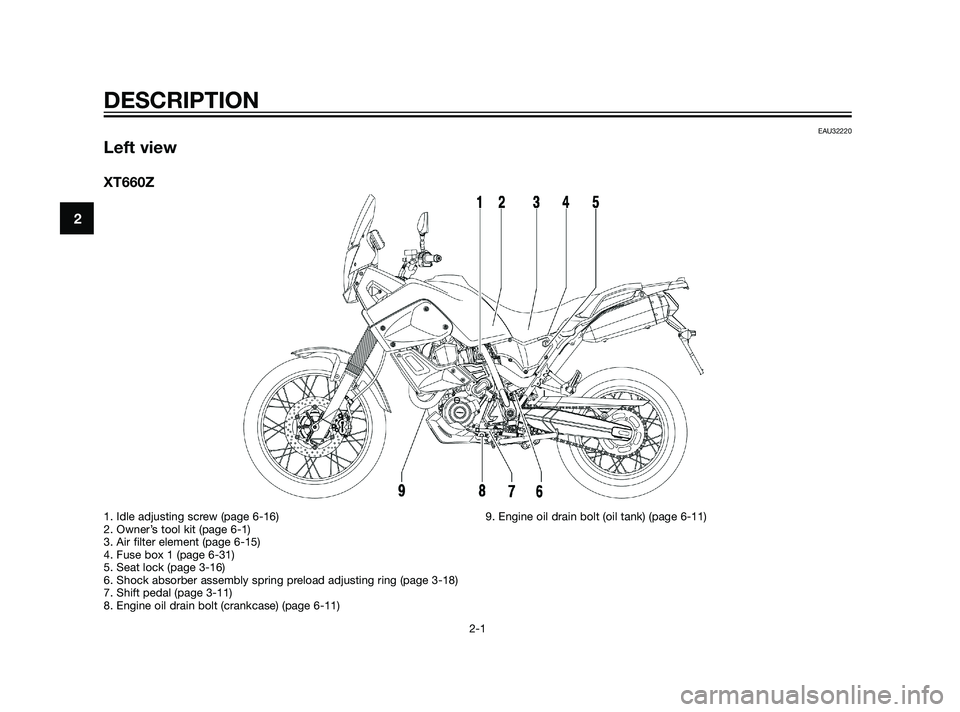

Left view
XT660Z
DESCRIPTION
2-1
2
1. Idle adjusting screw (page 6-16)
2. Owner’s tool kit (page 6-1)
3. Air filter element (page 6-15)
4. Fuse box 1 (page 6-31)
5. Seat lock (page 3-16)
6. Shock absorber assembly spring preload adjusting ring (page 3-18)
7. Shift pedal (page 3-11)
8. Engine oil drain bolt (crankcase) (page 6-11)9. Engine oil drain bolt (oil tank) (page 6-11)
56P-F8199-E0 30/6/10 09:24 Página 14

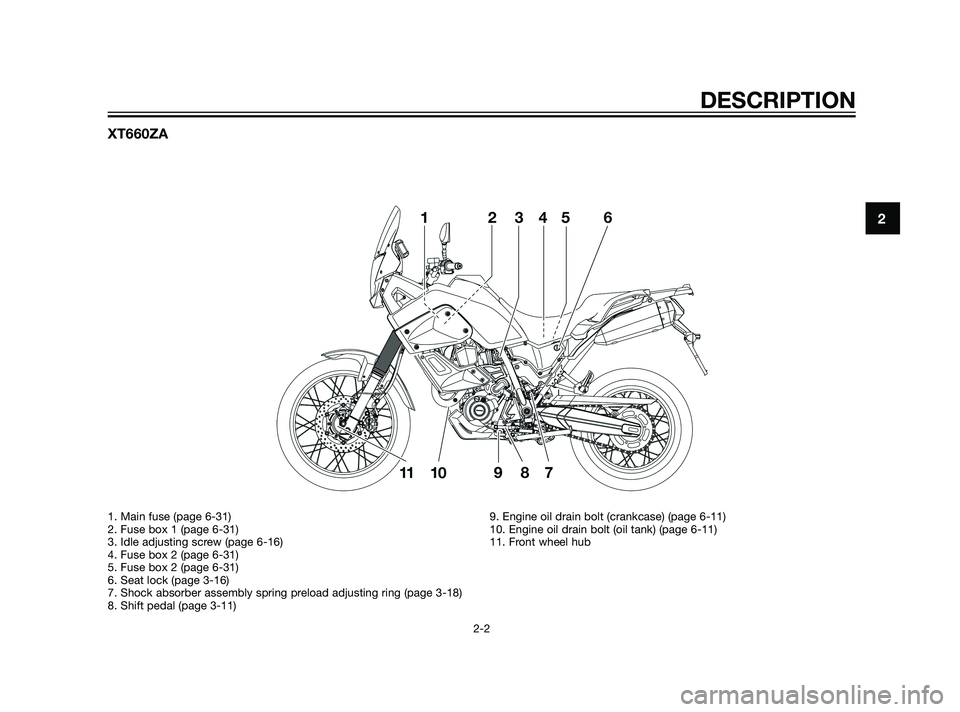

XT660ZA
DESCRIPTION
2-2
2
1. Main fuse (page 6-31)
2. Fuse box 1 (page 6-31)
3. Idle adjusting screw (page 6-16)
4. Fuse box 2 (page 6-31)
5. Fuse box 2 (page 6-31)
6. Seat lock (page 3-16)
7. Shock absorber assembly spring preload adjusting ring (page 3-18)
8. Shift pedal (page 3-11)9. Engine oil drain bolt (crankcase) (page 6-11)
10. Engine oil drain bolt (oil tank) (page 6-11)
11. Front wheel hub
56P-F8199-E0 30/6/10 09:24 Página 15

EAU32230

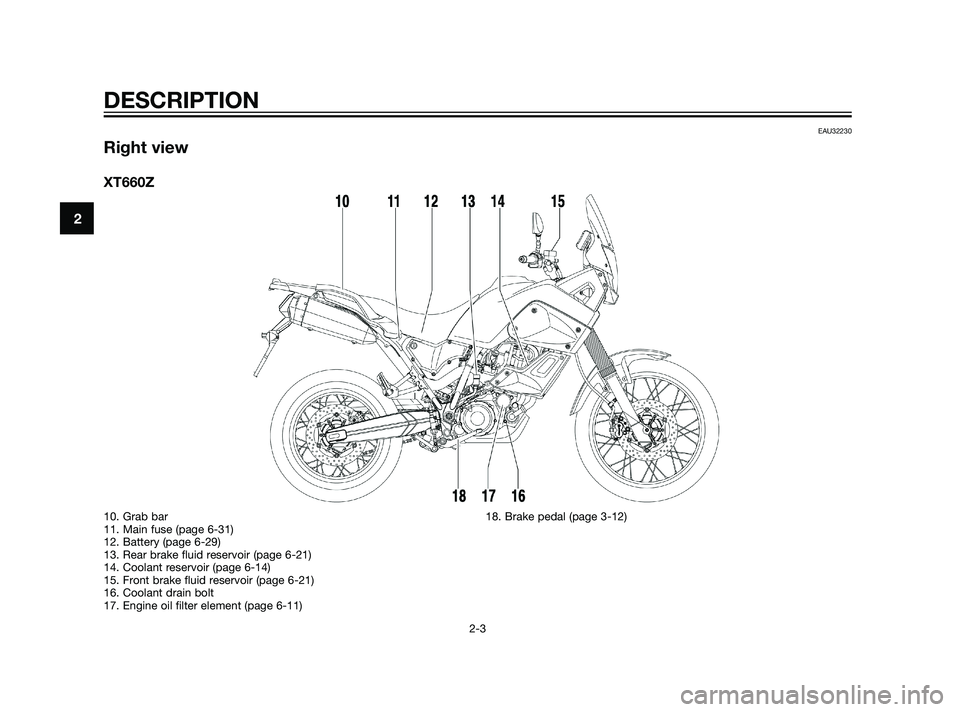

Right view
XT660Z
DESCRIPTION
2-3
2
10. Grab bar
11. Main fuse (page 6-31)
12. Battery (page 6-29)
13. Rear brake fluid reservoir (page 6-21)
14. Coolant reservoir (page 6-14)
15. Front brake fluid reservoir (page 6-21)
16. Coolant drain bolt
17. Engine oil filter element (page 6-11)18. Brake pedal (page 3-12)
56P-F8199-E0 30/6/10 09:24 Página 16

XT660ZA
DESCRIPTION
2-4
2
12. Rear brake fluid reservoir (page 6-21)
13. Fuse box 2 (page 6-31)
14. Owner’s tool kit (page 6-1)
15. Coolant reservoir (page 6-14)
16. Battery (page 6-29)
17. Front brake fluid reservoir (page 6-21)
18. Coolant drain bolt
19. Engine oil filter element (page 6-11)20. Brake pedal (page 3-12)
21. Rear wheel hub
56P-F8199-E0 30/6/10 09:24 Página 17

EAU10430

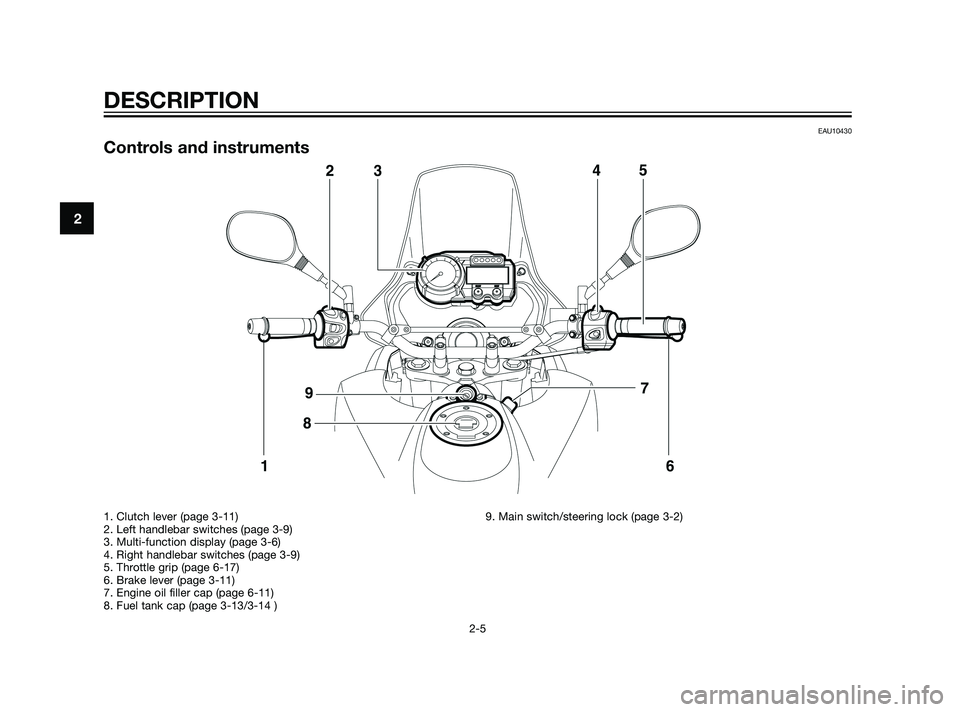

Controls and instruments
DESCRIPTION
2-5
2
1. Clutch lever (page 3-11)
2. Left handlebar switches (page 3-9)
3. Multi-function display (page 3-6)
4. Right handlebar switches (page 3-9)
5. Throttle grip (page 6-17)
6. Brake lever (page 3-11)
7. Engine oil filler cap (page 6-11)
8. Fuel tank cap (page 3-13/3-14 )9. Main switch/steering lock (page 3-2)
56P-F8199-E0 30/6/10 09:24 Página 18

EAU10976

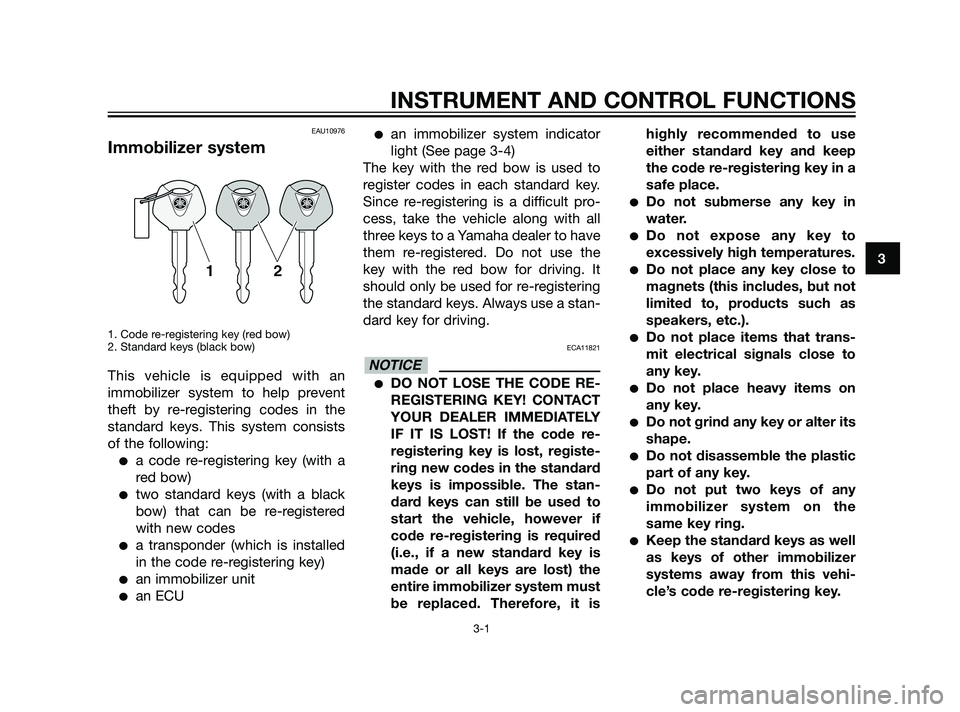

Immobilizer system
1. Code re-registering key (red bow)
2. Standard keys (black bow)
This vehicle is equipped with an
immobilizer system to help prevent
theft by re-registering codes in the
standard keys. This system consists
of the following:
a code re-registering key (with a
red bow)
two standard keys (with a black
bow) that can be re-registered
with new codes
a transponder (which is installed
in the code re-registering key)
an immobilizer unit
an ECU
an immobilizer system indicator
light (See page 3-4)
The key with the red bow is used to
register codes in each standard key.
Since re-registering is a difficult pro-
cess, take the vehicle along with all
three keys to a Yamaha dealer to have
them re-registered. Do not use the
key with the red bow for driving. It
should only be used for re-registering
the standard keys. Always use a stan-
dard key for driving.
ECA11821
DO NOT LOSE THE CODE RE-
REGISTERING KEY! CONTACT
YOUR DEALER IMMEDIATELY
IF IT IS LOST! If the code re-
registering key is lost, registe-
ring new codes in the standard
keys is impossible. The stan-
dard keys can still be used to
start the vehicle, however if
code re-registering is required
(i.e., if a new standard key is
made or all keys are lost) the
entire immobilizer system must
be replaced. Therefore, it ishighly recommended to use
either standard key and keep
the code re-registering key in a
safe place.
Do not submerse any key in
water.
Do not expose any key to
excessively high temperatures.
Do not place any key close to
magnets (this includes, but not
limited to, products such as
speakers, etc.).
Do not place items that trans-
mit electrical signals close to
any key.
Do not place heavy items on
any key.
Do not grind any key or alter its
shape.
Do not disassemble the plastic
part of any key.
Do not put two keys of any
immobilizer system on the
same key ring.
Keep the standard keys as well
as keys of other immobilizer
systems away from this vehi-
cle’s code re-registering key.
NOTICE
INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
56P-F8199-E0 30/6/10 09:24 Página 19

Keep other immobilizer system
keys away from the main
switch as they may cause sig-
nal interference.EAU10472
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
TIP
Be sure to use the standard key
(black bow) for regular use of the
vehicle. To minimize the risk of losing
the code re-registering key (red bow),
keep it in a safe place and only use it
for code re-registering.
EAU10550
ON

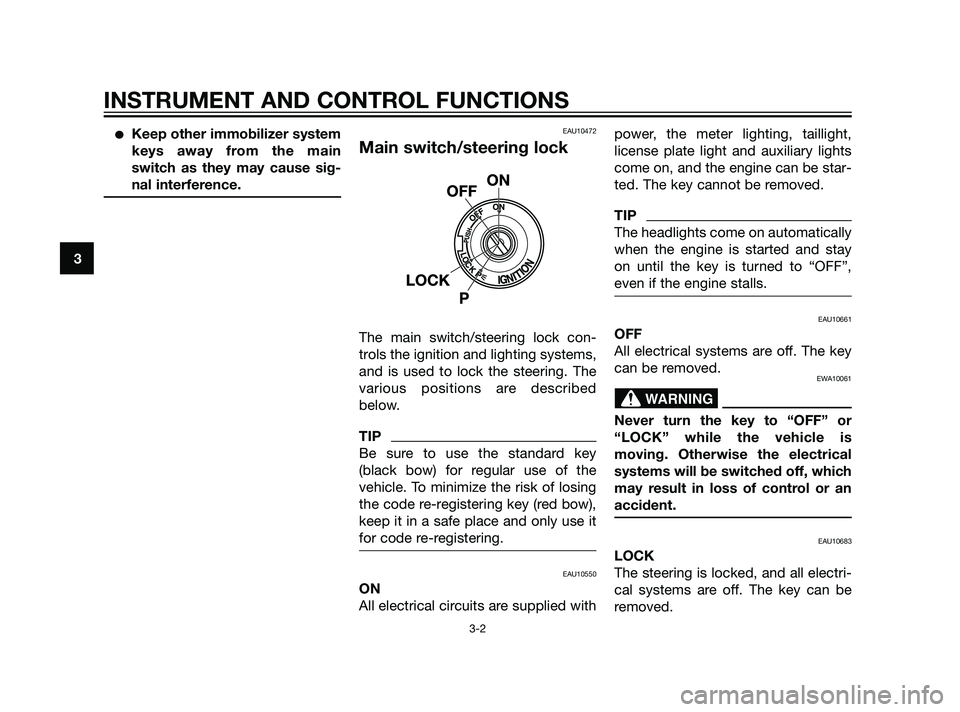

All electrical circuits are supplied withpower, the meter lighting, taillight,
license plate light and auxiliary lights
come on, and the engine can be star-
ted. The key cannot be removed.
TIP
The headlights come on automatically
when the engine is started and stay
on until the key is turned to “OFF”,
even if the engine stalls.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving. Otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident.
EAU10683
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
WARNING
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
56P-F8199-E0 30/6/10 09:24 Página 20
