SPECIFICATIONS
8-2
8
Secondary reduction ratio:
45/15 (3.000)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
30/12 (2.500)
2nd:
26/16 (1.625)
3rd:
23/20 (1.150)
4th:
20/22 (0.909)
5th:
20/26 (0.769)Chassis:Frame type:
Diamond
Caster angle:
28.00 °
Trail:
XT660Z 113 mm (4.4 in)
XT660ZA 120 mm (4.7 in)Front tire:Type:
With tube
Size:
XT660Z 90/90-21 M/C 54S(METZELER)-
54T(MICHELIN)
XT660ZA 90/90-21 M/C 54S(PIRELLI)Manufacturer/model:
XT660Z METZELER/TOURANCE FRONT
XT660ZA PIRELLI/SCORPION TRAIL
Manufacturer/model:
XT660Z MICHELIN/SIRAC
Rear tire:Type:
With tube
Size:
XT660Z 130/80-17 M/C 65S(METZELER)-
65T(MICHELIN)
XT660ZA 130/80-17 M/C 65S(PIRELLI)
Manufacturer/model:
XT660Z METZELER/TOURANCE FRONT
XT660ZA PIRELLI/SCORPION TRAIL
Manufacturer/model:
XT660Z MICHELIN/SIRACLoading:Maximum load:
190 kg (419 lb)
(Total weight of rider, passenger, cargo
and accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
210 kPa (2.10 kgf/cm², 30 psi)
Rear:
230 kPa (2.30 kgf/cm², 33 psi)
Loading condition:
90–190 kg (198–419 lb)Front:
XT660Z 210 kPa (2.10 kgf/cm², 30 psi)
XT660ZA 230 kPa (2.30 kgf/cm², 33 psi)
Rear:
XT660Z 230 kPa (2.30 kgf/cm², 33 psi)
XT660ZA 250 kPa (2.50 kgf/cm², 36 psi)
Off-road riding:
Front:
XT660Z 200 kPa (2.00 kgf/cm², 29 psi)
Rear:
XT660Z 200 kPa (2.00 kgf/cm², 29 psi)
High-speed riding:
Front:
210 kPa (2.10 kgf/cm², 30 psi)
Rear:
230 kPa (2.30 kgf/cm², 33 psi)
Front wheel:Wheel type:
Spoke wheel
Rim size:
21 x 1.85Rear wheel:Wheel type:
Spoke wheel
Rim size:
17 x 2.75Front brake:Type:
Dual disc brake
Operation:
Right hand operation
Specified brake fluid:
DOT 4
U2BDE1E0.book Page 2 Tuesday, December 16, 2014 5:38 PM

SPECIFICATIONS
8-3
8
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Specified brake fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
XT660Z 210 mm (8.3 in)
XT660ZA 160 mm (6.3 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
XT660Z 200 mm (7.9 in)
XT660ZA 145 mm (5.7 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
XT660Z GT9B-4
XT660ZA YTZ10SVoltage, capacity:
XT660Z 12 V, 8.0 Ah
XT660ZA 12 V, 8.6 Ah
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 55.0 W × 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Auxiliary light:
12 V, 3.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
ABS warning light:
XT660ZA LEDImmobilizer system indicator light:
LED
Fuses:Main fuse:
30.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan motor fuse:
7.5 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
XT660ZA 5.0 A
ABS motor fuse:
XT660ZA 30.0 A
ABS solenoid fuse:
XT660ZA 20.0 A
Backup fuse:
10.0 A
U2BDE1E0.book Page 3 Tuesday, December 16, 2014 5:38 PM

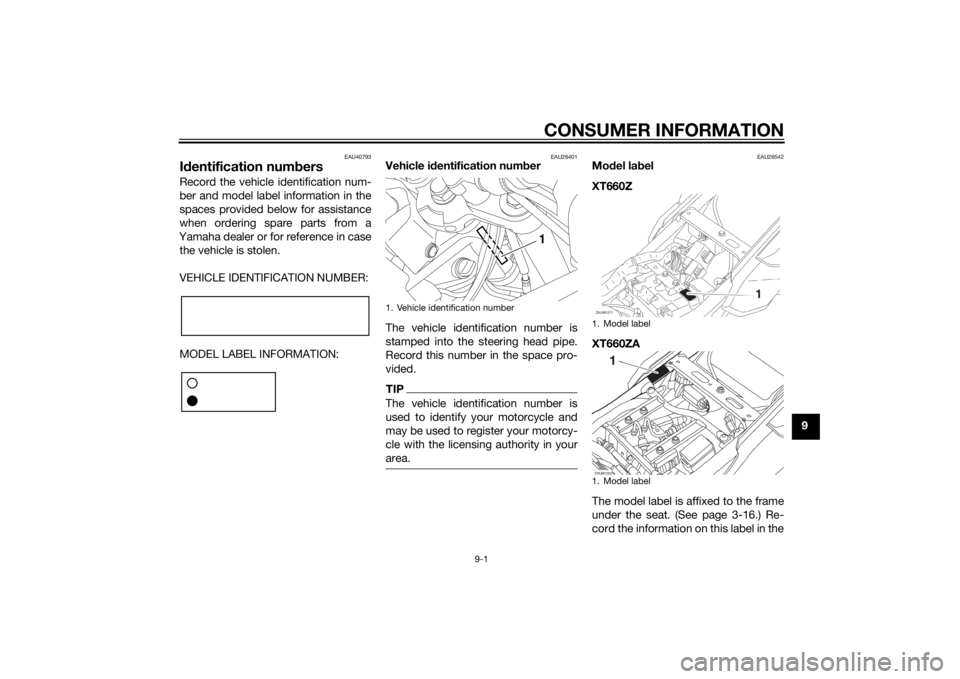

CONSUMER INFORMATION
