YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAUM1891

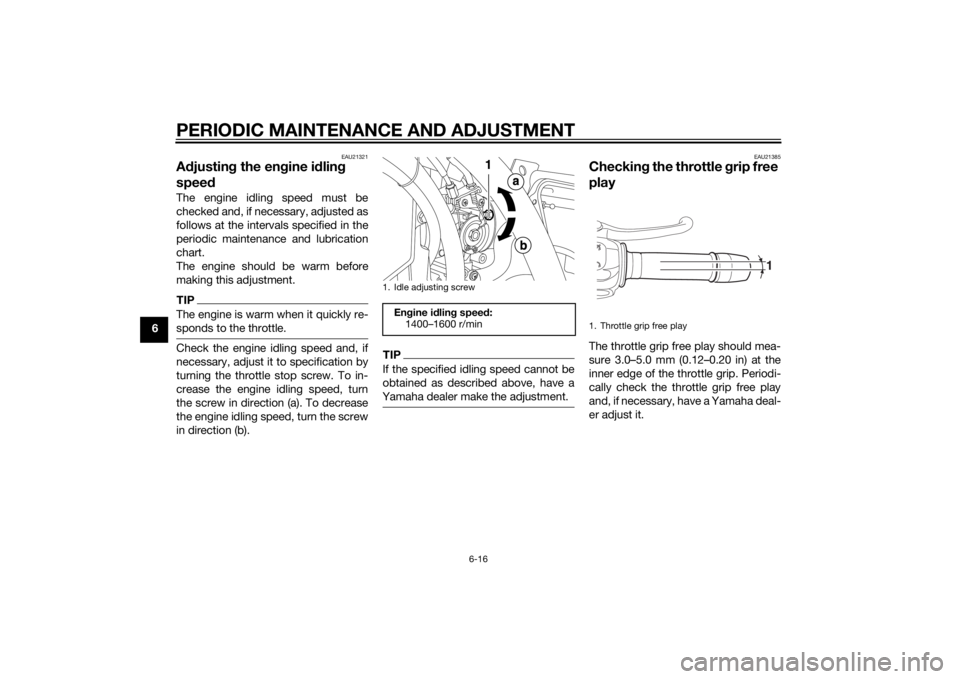

TIPReplace the air filter element more frequently if you are riding in unusually wet or dusty areas.
Hydraulic brake service
• Regularly chec

Page 52 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU18773
Removing and installing pan-

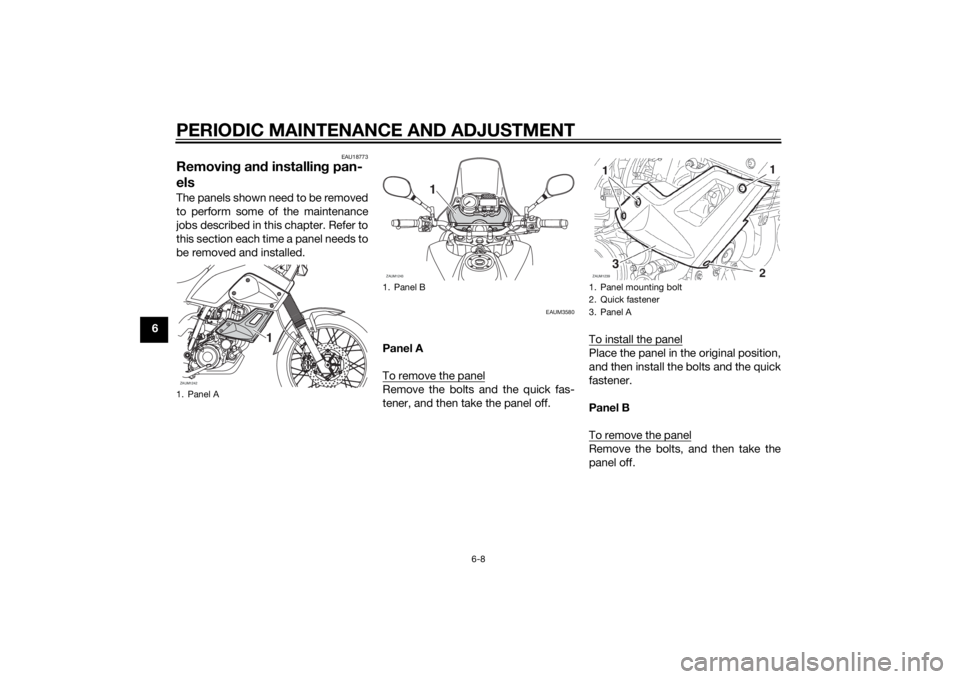

elsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this

Page 53 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6 To install the panel
Place the panel in the original position,
and then install the bolts.
EAU19605
Checking the spark plugThe spark plug is an important engi

Page 54 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
To install the spark plug
1. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
2.

Page 55 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-11

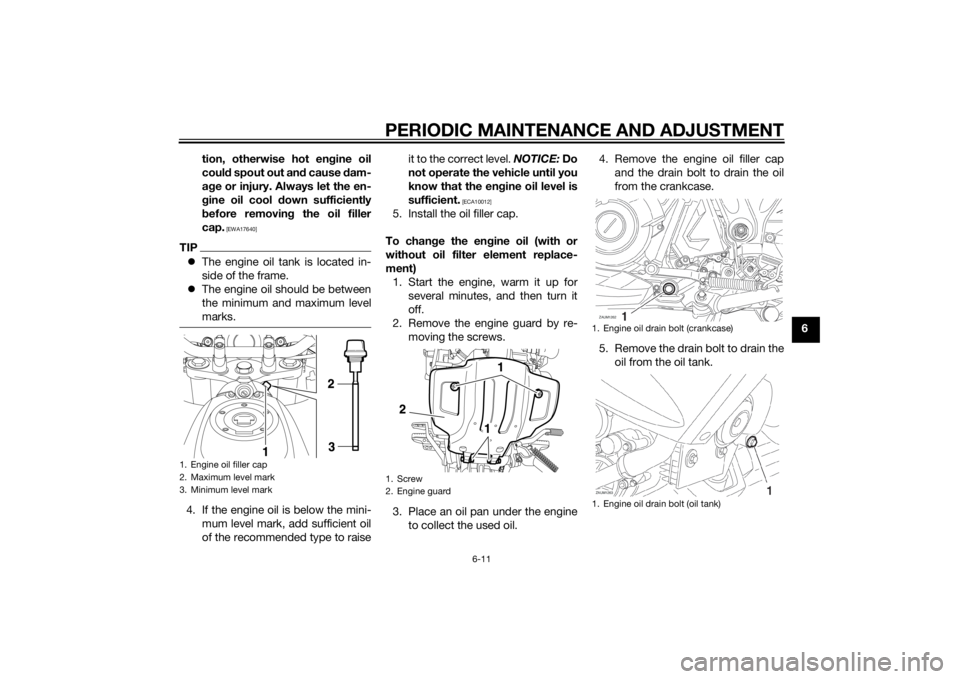

6 tion, otherwise hot engine oil
could spout out and cause dam-
age or injury. Always let the en-
gine oil cool down sufficiently
before removing the oil fille

Page 56 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-12

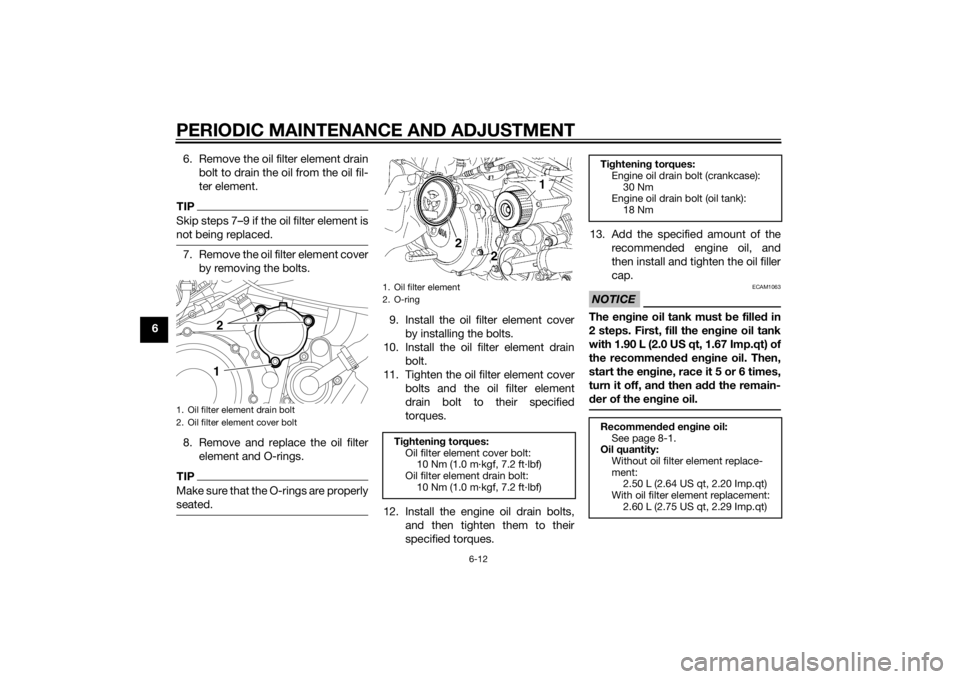

66. Remove the oil filter element drain
bolt to drain the oil from the oil fil-
ter element.
TIPSkip steps 7…9 if the oil filter element is
not being replace

Page 57 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11621
In order to prevent clutch slip-
pa

Page 58 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-14
6
3. If the coolant is at or below the
minimum level mark, remove pan-
el A (See page 6-8.), remove the
coolant reservoir cap, add coolant
to the maximum level

Page 59 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-15

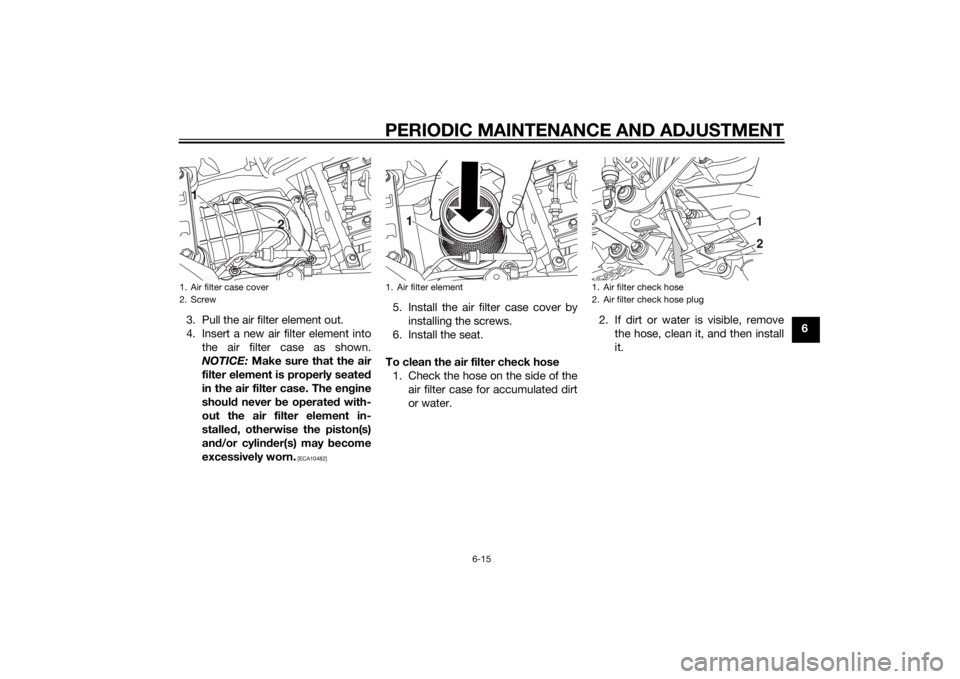

6 3. Pull the air filter element out.
4. Insert a new air filter element into
the air filter case as shown.
NOTICE: Make sure that the air
filter element is pr

Page 60 of 98

YAMAHA XT660Z 2015 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6
EAU21321
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
p
