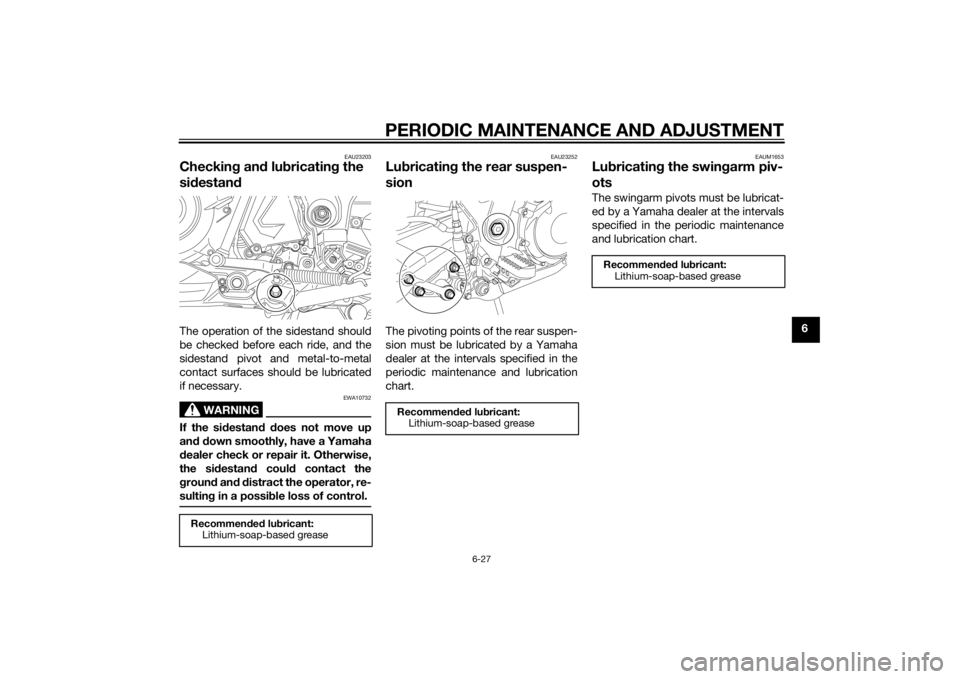

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6
EAU23203
Checking and lubricating the
sidestandThe operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
WARNING
EWA10732
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
EAU23252
Lubricating the rear suspen-
sionThe pivoting points of the rear suspen-
sion must be lubricated by a Yamaha
dealer at the intervals specified in the
periodic maintenance and lubrication
chart.
EAUM1653
Lubricating the swingarm piv-
otsThe swingarm pivots must be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U2BDE1E0.book Page 27 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23273
Checking the front forkThe condition and operation of the
front fork must be checked as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
NOTICE
ECA10591
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23285
Checking the steeringWorn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Raise the front wheel off the
ground. (See page 6-35.)
WARNING! To avoid injury, se-
curely support the vehicle so
there is no danger of it falling
over.
[EWA10752]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
U2BDE1E0.book Page 28 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU23292
Checking the wheel bearingsThe front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
EAUS1913

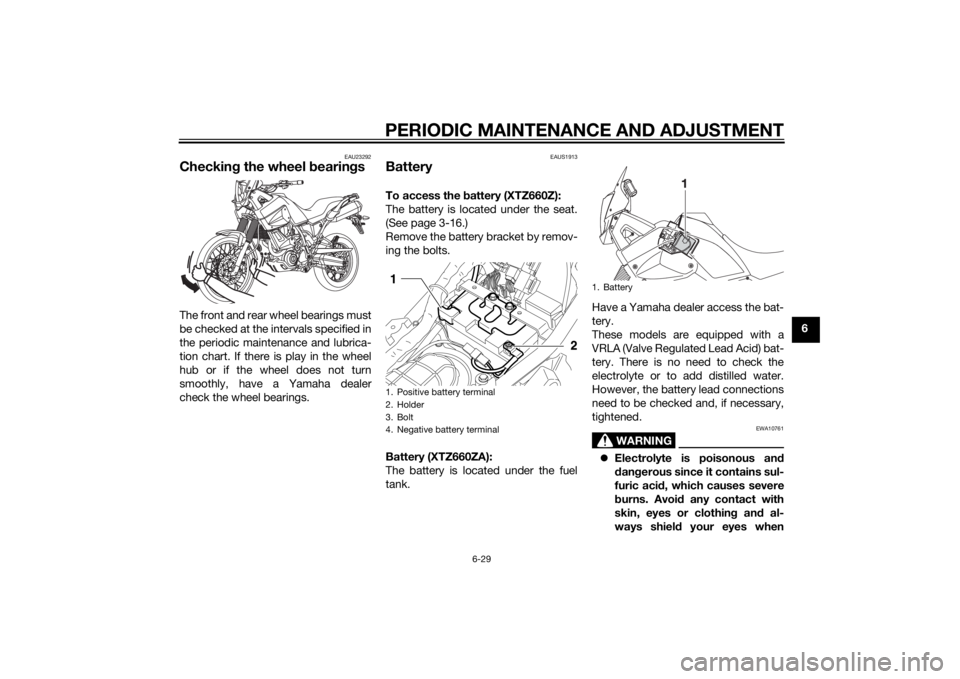

BatteryTo access the battery (XTZ660Z):
The battery is located under the seat.
(See page 3-16.)
Remove the battery bracket by remov-
ing the bolts.
Battery (XTZ660ZA):
The battery is located under the fuel
tank.Have a Yamaha dealer access the bat-
tery.
These models are equipped with a
VRLA (Valve Regulated Lead Acid) bat-
tery. There is no need to check the
electrolyte or to add distilled water.
However, the battery lead connections
need to be checked and, if necessary,
tightened.
WARNING
EWA10761
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
1. Positive battery terminal
2. Holder
3. Bolt
4. Negative battery terminal
1. Battery
U2BDE1E0.book Page 29 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
NOTICE
ECA10621
Never attempt to remove the battery
cell seals, as this would permanently
damage the battery.
To charge the battery:
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quick-
ly if the vehicle is equipped with op-
tional electrical accessories.NOTICE
ECA16522
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery.To store the battery:
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16303]
2. If the battery will be stored for
more than two months, check it at
least once a month and fully
charge it if necessary.
3. Fully charge the battery before in-
stallation. NOTICE: When install-
ing the battery, be sure the key
is turned to “OFF”, then connect
the positive lead before con-
necting the negative lead.
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
U2BDE1E0.book Page 30 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAUS1934
Replacing the fusesTo replace the fuses (XT660Z):
The main fuse and fuse box 1 (for indi-
vidual circuits) are located under the
seat. (See page 3-16.)
To replace the fuses (XT660ZA):
The main fuse and fuse box 1 (for ABS
model only), which are in a different
and hard-to-reach location, must be
replaced by a Yamaha dealer.
Fuse box 2 (for ABS model only) and
fuse box 3 (for individual circuits) are
located under the seat. (See page
3-16.)To access fuse box 2, pull it upward
and then open it.
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not1. Main fuse
2. Spare main fuse
1. Fuse box 1
2. Parking lighting fuse
3. Signaling system fuse
4. Headlight fuse
5. Ignition fuse
6. ECU fuse
7. Radiator fan motor fuse
8. Backup fuse
9. Spare fuseZAUM1269
1. Fuse box 2
2. ABS control unit fuse
3. Spare fuse
4. Fuse box 3
5. Parking lighting fuse
6. Signaling system fuse
7. Headlight fuse
8. Ignition fuse
9. ECU fuse
10.Radiator fan motor fuse
11.Backup fuse
2
34567
1SPA RE
SPA RE SPA RE
ZAUM1247
U2BDE1E0.book Page 31 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAUB1583
Replacing a headlight bulbThis model is equipped with halogen
bulb headlights. If a headlight bulb
burns out, replace it as follows.NOTICE
ECA10651
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
Specified fuses:
Main fuse:
30.0 A
Parking lighting fuse:
10.0 A
Signaling system fuse:
10.0 A
Headlight fuse:
20.0 A
Ignition fuse:
10.0 A
Fuel injection system fuse:
10.0 A
Radiator fan motor fuse:
7.5 A
Backup fuse:
10.0 A
ABS motor fuse:
XT660ZA 30.0 A
ABS solenoid fuse:
XT660ZA 20.0 A
ABS control unit fuse:
XT660ZA 5.0 A
U2BDE1E0.book Page 32 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-33

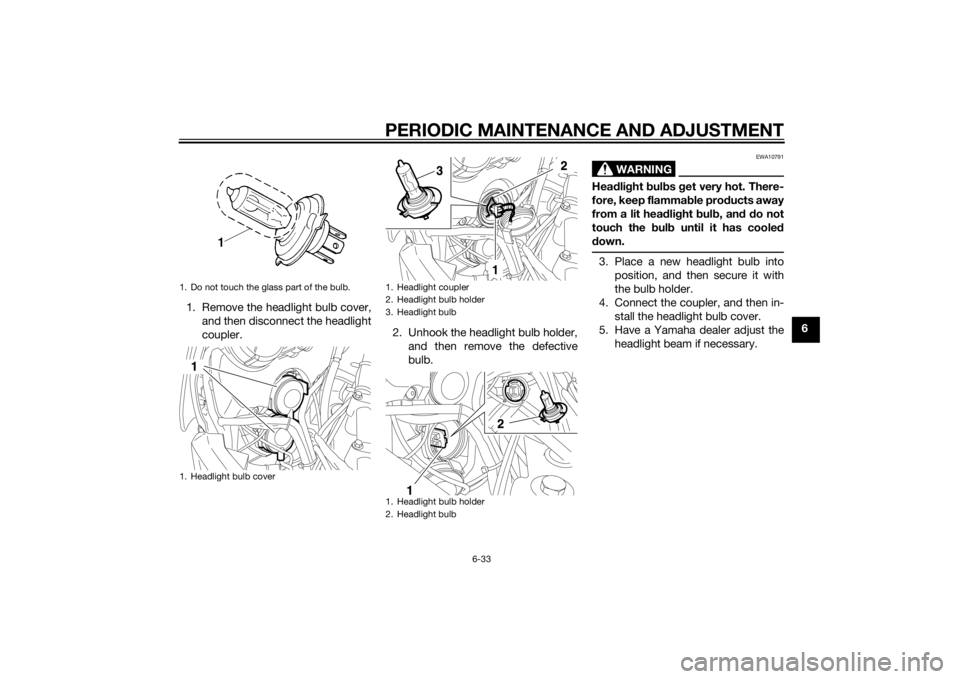

6 1. Remove the headlight bulb cover,
and then disconnect the headlight
coupler.2. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10791
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooled
down.3. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
4. Connect the coupler, and then in-
stall the headlight bulb cover.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1. Headlight coupler
2. Headlight bulb holder
3. Headlight bulb
1. Headlight bulb holder
2. Headlight bulb
U2BDE1E0.book Page 33 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
EAU42653
Replacing an auxiliary light
bulbThis model is equipped with two auxil-
iary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove panel B. (See page 6-8.)
2. Remove the auxiliary light socket
(together with the bulb) by pulling
it out.
3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the bulb) by pushing it
in.
6. Install the panel.
EAU24182
Tail/brake lightThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU24205
Replacing a turn signal light

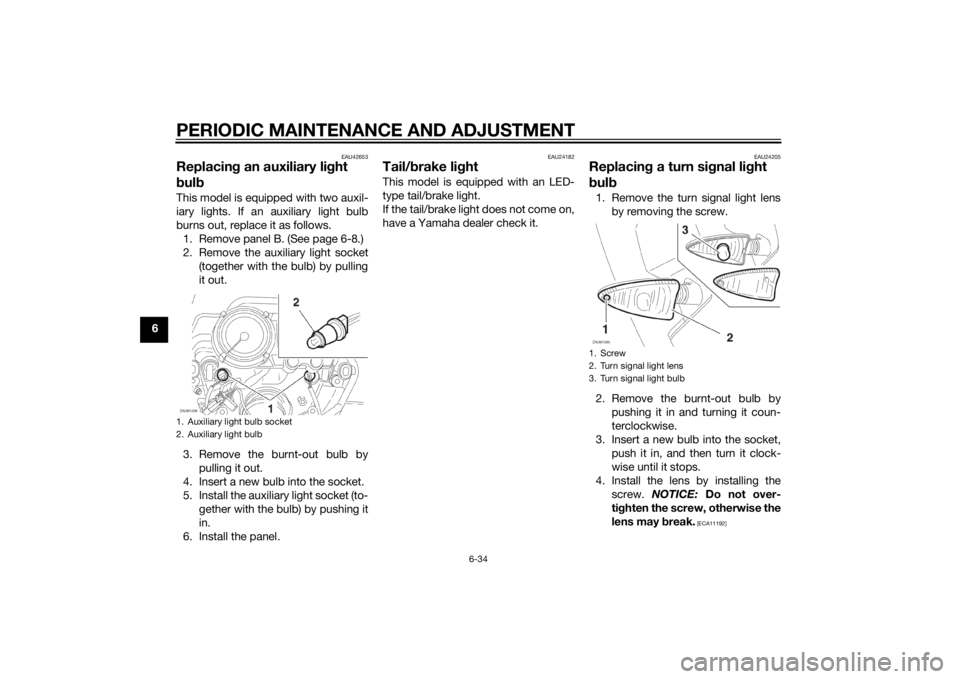

bulb1. Remove the turn signal light lens
by removing the screw.
2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw. NOTICE: Do not over-
tighten the screw, otherwise the
lens may break.
[ECA11192]
1. Auxiliary light bulb socket
2. Auxiliary light bulbZAUM1238
1. Screw
2. Turn signal light lens
3. Turn signal light bulb
1ZAUM1265
U2BDE1E0.book Page 34 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6
EAUM2203
Replacing the license plate
light bulb1. Remove the socket (together with
the bulb) by pulling it out.
2. Remove the burnt-out bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the socket (together with
the bulb) by pushing it in.
EAU24351
Supporting the motorcycleSince this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other mainte-
nance requiring the motorcycle to
stand upright. Check that the motorcy-
cle is in a stable and level position be-
fore starting any maintenance. A
strong wooden box can be placed un-
der the engine for added stability.
To service the front wheel
1. Stabilize the rear of the motorcy-
cle by using a motorcycle stand
or, if an additional motorcycle
stand is not available, by placing a
jack under the frame in front of the
rear wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
1. License plate light bulb socket
2. License plate light bulb
U2BDE1E0.book Page 35 Tuesday, December 16, 2014 5:38 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-36
6
EAU44792
Front wheel (for non-ABS
models)
WARNING
EWA14841
For the ABS model, have a Yamaha
dealer remove and install the wheel.
EAU56480
To remove the front wheel
WARNING
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.1. Loosen the front wheel axle pinch
bolts, the wheel axle and the
brake caliper bolts.2. Lift the front wheel off the ground
according to the procedure in the
previous section “Supporting the
motorcycle”.
3. Remove the brake caliper on each
side by removing the bolts.
NOTICE: Do not apply the brake
after the brake calipers have
been removed, otherwise the
brake pads will be forced shut.
[ECA11052]
4. Pull the wheel axle out, and then
remove the wheel.To install the front wheel
1. Lift the wheel up between the fork
legs.
2. Insert the wheel axle.
3. Install the brake calipers by install-
ing the bolts.
TIPMake sure that there is enough space
between the brake pads before install-
ing the brake calipers onto the brake
discs.4. Lower the front wheel so that it is
on the ground.
5. Tighten the wheel axle and the
brake caliper bolts to the specified
torques.NOTICE
ECAB0062
Be sure the right brake disc is posi-
tioned exactly between the brake
pads to prevent any brake drag. Tap
the side of the right fork leg to posi-
tion the disc correctly.6. Tighten wheel axle pinch bolt A,
and then pinch bolt B to their
specified torque.

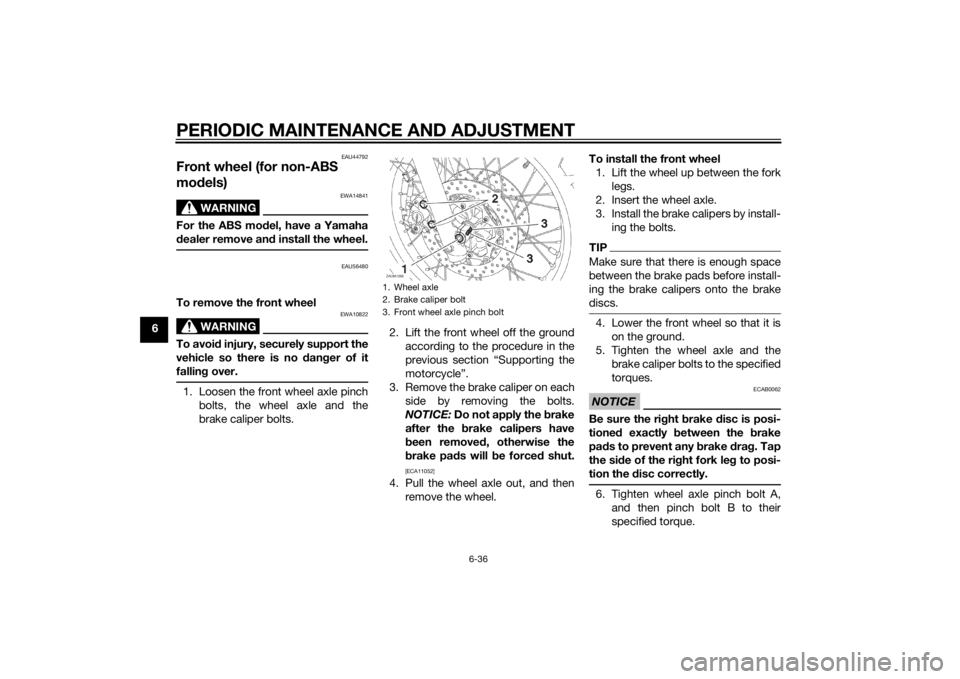

1. Wheel axle
2. Brake caliper bolt
3. Front wheel axle pinch boltZAUM1266
U2BDE1E0.book Page 36 Tuesday, December 16, 2014 5:38 PM
