ACCESSORIES AND LOADING
Adding accessories or cargo to your machine can adversely affect stability and handling if the weight distribution of the machine
is changed. To avoid the possibility of an accident, extreme caution should be used if adding cargo or accessories to your
machine.
Use extra care if riding a machine which has added cargo or acessories. Genuine Yamaha accessories have been specifically
designed for use on this machine. Since Yamaha cannot test all other accessories which may be available, you must personally
be responsible for the proper selection, installation and use of non-Yamaha accessories.
You should use extreme caution when selecting and installing any accessories. Keep in mind these guidelines for mounting
accessories in addition to those provided under “LOADING”.
1. Never install accessories or carry cargo that would impair the performance of your machine. Carefully inspect the accessory
before using it to make sure it does not in any way reduce ground clearance or cornering clearance, limit suspension travel,
steering travel or control operation, or obscure lights or reflectors.
a. Accessories fitted to the handlebar or the front fork area can create instability due to improper weight distribution or aerodynamic
changes. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept
to a minimum.
b. Bulky or large accessories may seriously affect the stability of the machine due to aerodynamic effects. Wind may attempt
to lift the machine, or the machine may become unstable in cross winds. These accessories may also cause instability when
being passed by or passing large vehicles.
c. Certain accessories can displace the operator from his or her normal riding position. This improper position limits the
freedom of movement of the operator and may limit control ability. Therefore such accessories are not recommended.
2. Caution must be used if adding electrical accessories. If these accessories exceed the capacity of the machine’s electrical
system, an electric failure could result, which could cause a dangerous loss of lights or engine power.
ACCESSORIES AND LOADING
Adding accessories or cargo to your machine can adversely affect stability and handling if the weight distribution of the machine
is changed. To avoid the possibility of an accident, extreme caution should be used if adding cargo or accessories to your
machine.
Use extra care if riding a machine which has added cargo or acessories. Genuine Yamaha accessories have been specifically
designed for use on this machine. Since Yamaha cannot test all other accessories which may be available, you must personally
be responsible for the proper selection, installation and use of non-Yamaha accessories.
You should use extreme caution when selecting and installing any accessories. Keep in mind these guidelines for mounting
accessories in addition to those provided under “LOADING”.
1. Never install accessories or carry cargo that would impair the performance of your machine. Carefully inspect the accessory
before using it to make sure it does not in any way reduce ground clearance or cornering clearance, limit suspension travel,
steering travel or control operation, or obscure lights or reflectors.
a. Accessories fitted to the handlebar or the front fork area can create instability due to improper weight distribution or aerodynamic
changes. If accessories are added to the handlebar or front fork area, they must be as lightweight as possible and should be kept
to a minimum.
b. Bulky or large accessories may seriously affect the stability of the machine due to aerodynamic effects. Wind may attempt
to lift the machine, or the machine may become unstable in cross winds. These accessories may also cause instability when
being passed by or passing large vehicles.
c. Certain accessories can displace the operator from his or her normal riding position. This improper position limits the
freedom of movement of the operator and may limit control ability. Therefore such accessories are not recommended.
2. Caution must be used if adding electrical accessories. If these accessories exceed the capacity of the machine’s electrical
system, an electric failure could result, which could cause a dangerous loss of lights or engine power.

XII
XII
Tool kit ...................................................... 6-2
PERIODIC MAINTENANCE/LUBRICATION ........ 6-3
Torque specifications................................ 6-5
Engine oil .................................................. 6-6
Oil pressure .............................................. 6-9
Air filter...................................................... 6-10
Carburetor adjustment.............................. 6-12
Valve clearance adjustment...................... 6-12
Idle speed adjustment............................... 6-13
Throttle cable adjustment ......................... 6-14
Spark plug inspection............................... 6-15
Clutch adjustment..................................... 6-16
Front brake adjustment............................. 6-17
Rear brake adjustment ............................. 6-18
Brake light switch adjustment ...................6-20
Checking the front brake pads and rear brake
shoes ........................................................ 6-20
Front brake............................................... 6-21
Rear brake................................................ 6-21
Inspecting the brake fluid level ................. 6-22
Brake fluid replacement ............................ 6-23
Drive chain slack check ............................ 6-24
Drive chain slack adjustment .................... 6-25
Drive chain lubrication.............................. 6-26
Cable inspection and lubrication............... 6-26Throttle cable and grip lubrication ............6-27
Brake and shift pedals ..............................6-27
Brake and clutch levers ............................6-27
Rear suspension....................................... 6-28
Sidestand .................................................. 6-28
Front fork inspection................................. 6-29
Rear shock absorber adjustment ..............6-30
Steering inspection................................... 6-31
Wheel bearings......................................... 6-31
Battery...................................................... 6-32
Replenishing the battery fluid ................... 6-33
Storage the battery................................... 6-34
Fuse replacement..................................... 6-34
Headlight bulb replacement...................... 6-35
Front wheel removal................................. 6-37
Front wheel installation............................. 6-38
Rear wheel removal.................................. 6-39
Rear wheel installation.............................. 6-40
Troubleshooting ........................................ 6-41
Troubleshooting chart ............................... 6-42
CLEANING AND STORAGE ................................ 7-1
Cleaning .................................................... 7-1
Storage ..................................................... 7-2
SPECIFICATIONS ................................................ 8-1
Tool kit ...................................................... 6-2
PERIODIC MAINTENANCE/LUBRICATION ........ 6-3
Torque specifications................................ 6-5
Engine oil .................................................. 6-6
Oil pressure .............................................. 6-9
Air filter...................................................... 6-10
Carburetor adjustment.............................. 6-12
Valve clearance adjustment...................... 6-12
Idle speed adjustment............................... 6-13
Throttle cable adjustment ......................... 6-14
Spark plug inspection............................... 6-15
Clutch adjustment..................................... 6-16
Front brake adjustment............................. 6-17
Rear brake adjustment ............................. 6-18
Brake light switch adjustment ...................6-20
Checking the front brake pads and rear brake
shoes ........................................................ 6-20
Front brake............................................... 6-21
Rear brake................................................ 6-21
Inspecting the brake fluid level ................. 6-22
Brake fluid replacement ............................ 6-23
Drive chain slack check ............................ 6-24
Drive chain slack adjustment .................... 6-25
Drive chain lubrication.............................. 6-26
Cable inspection and lubrication............... 6-26Throttle cable and grip lubrication ............6-27
Brake and shift pedals ..............................6-27
Brake and clutch levers ............................6-27
Rear suspension....................................... 6-28
Sidestand .................................................. 6-28
Front fork inspection................................. 6-29
Rear shock absorber adjustment ..............6-30
Steering inspection................................... 6-31
Wheel bearings......................................... 6-31
Battery...................................................... 6-32
Replenishing the battery fluid ................... 6-33
Storage the battery................................... 6-34
Fuse replacement..................................... 6-34
Headlight bulb replacement...................... 6-35
Front wheel removal................................. 6-37
Front wheel installation............................. 6-38
Rear wheel removal.................................. 6-39
Rear wheel installation.............................. 6-40
Troubleshooting ........................................ 6-41
Troubleshooting chart ............................... 6-42
CLEANING AND STORAGE ................................ 7-1
Cleaning .................................................... 7-1
Storage ..................................................... 7-2
SPECIFICATIONS ................................................ 8-1

4-6
4-6 Proper loading of your motorcycle is important for the
handling, braking, and other performance and safety
characteristics of your motorcyle. Do not carry loosely
packed items that can shift. Securely pack your heaviest
items close to the center of the motorcycle, and
distribute the weight evenly from side to side. Properly
adjust the suspension for your load, and check the
condition and pressure of your tires. NEVER
OVERLOAD YOUR MOTORCYCLE. Make sure the total
weight of the cargo, rider, passenger, and accessories
(fairing, saddlebags, etc. if approved for this model)
does not exceed the maximum load of the motorcycle.
Operation of an overloaded motorcycle could cause tire
damage, an accident, or even injury.

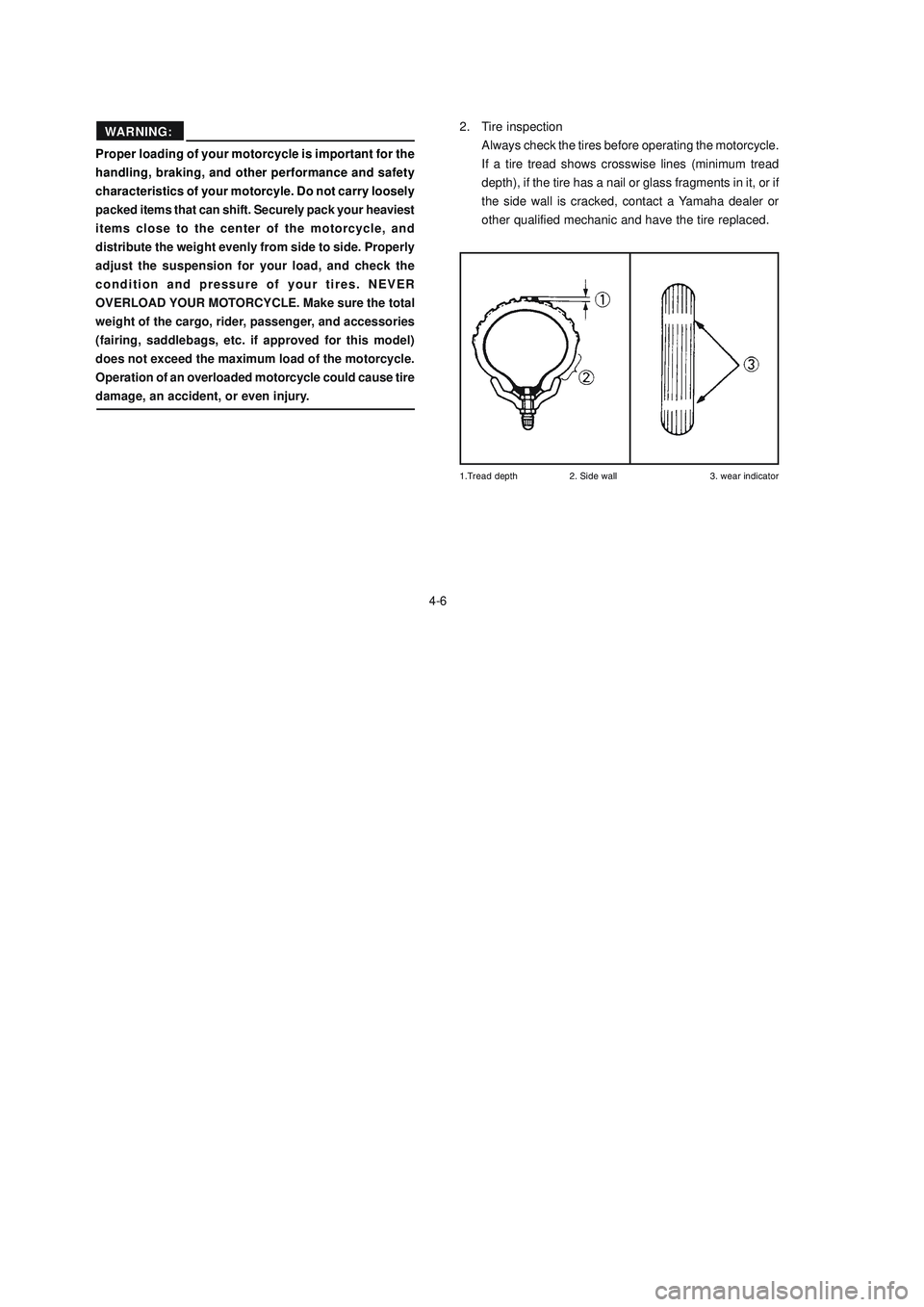

2. Tire inspection
Always check the tires before operating the motorcycle.
If a tire tread shows crosswise lines (minimum tread
depth), if the tire has a nail or glass fragments in it, or if
the side wall is cracked, contact a Yamaha dealer or
other qualified mechanic and have the tire replaced.




WARNING:
Proper loading of your motorcycle is important for the
handling, braking, and other performance and safety
characteristics of your motorcyle. Do not carry loosely
packed items that can shift. Securely pack your heaviest
items close to the center of the motorcycle, and
distribute the weight evenly from side to side. Properly
adjust the suspension for your load, and check the
condition and pressure of your tires. NEVER
OVERLOAD YOUR MOTORCYCLE. Make sure the total
weight of the cargo, rider, passenger, and accessories
(fairing, saddlebags, etc. if approved for this model)
does not exceed the maximum load of the motorcycle.
Operation of an overloaded motorcycle could cause tire
damage, an accident, or even injury.
2. Tire inspection
Always check the tires before operating the motorcycle.
If a tire tread shows crosswise lines (minimum tread
depth), if the tire has a nail or glass fragments in it, or if
the side wall is cracked, contact a Yamaha dealer or
other qualified mechanic and have the tire replaced.




WARNING:

6-28
6-28
Rear suspensionSidestand
Lubricate the pivoting parts. Check to see that the sidestand
moves up and down smoothly.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
If the sidestand does not move smoothly, consult a
Yamaha dealer.
Lubricate the rear suspension through the nipple.
RECOMMENDED LUBRICANT:
Molybdenum dissulfide grease

0
1


WARNING:
Rear suspensionSidestand
Lubricate the pivoting parts. Check to see that the sidestand
moves up and down smoothly.
RECOMMENDED LUBRICANT:
Engine oil SAE 20W50
If the sidestand does not move smoothly, consult a
Yamaha dealer.
Lubricate the rear suspension through the nipple.
RECOMMENDED LUBRICANT:
Molybdenum dissulfide grease

0
1


WARNING:

8-4
8-4
MODEL
Brakes:
Front brake type
Operation
Rear brake type
Operation
Shock absorber:
Front
Rear
Wheel travel
Front
Rear Suspension:
Front
Rear
Electrical:
Ignition system
Generator system
Battery type / capacity
XTZ 125E and XTZ 125K
Coil spring, Oil damper
Gas, Coil spring. Oil damper
180 mm (7.1 in)
180 mm (7.1 in) Telescopic fork
Swingarm (New monocross suspension)
C.D.I.
AC Magneto generator
YB5L-B/ 12V 5.0 Ah
Single, Disc brake
Right hand operation
Drum brake
Right foot operation
MODEL
Brakes:
Front brake type
Operation
Rear brake type
Operation
Shock absorber:
Front
Rear
Wheel travel
Front
Rear Suspension:
Front
Rear
Electrical:
Ignition system
Generator system
Battery type / capacity
XTZ 125E
Coil spring, Oil damper
Gas, Coil spring. Oil damper
180 mm (7.1 in)
180 mm (7.1 in) Telescopic fork
Swingarm (New monocross suspension)
C.D.I.
AC Magneto generator
YB5L-B/ 12V 5.0 Ah
Single, Disc brake
Right hand operation
Drum brake
Right foot operation
