PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU23200

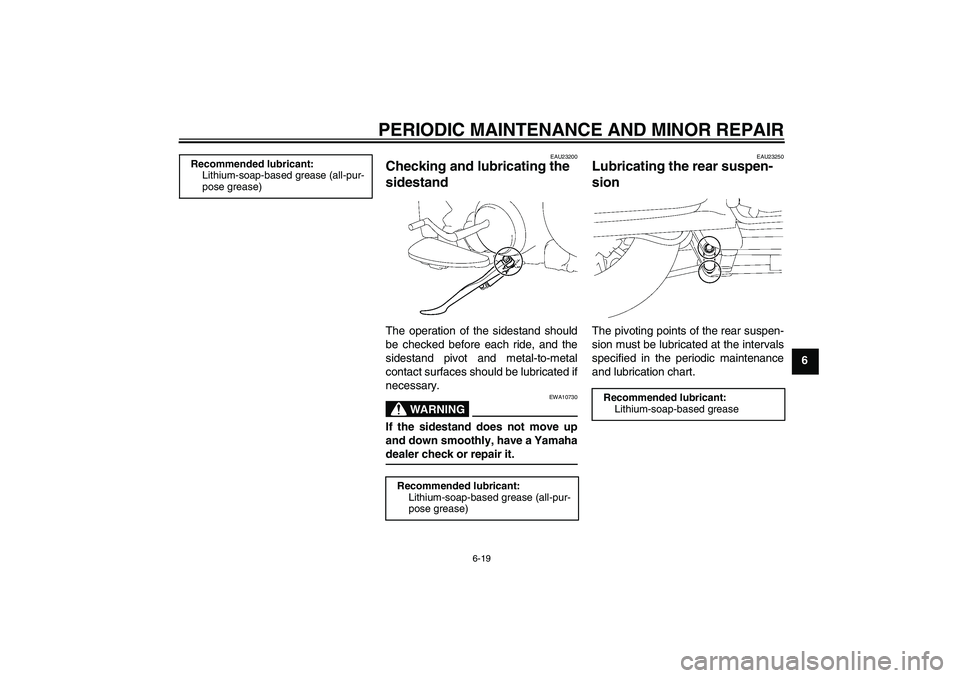

Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10730
If the sidestand does not move up
and down smoothly, have a Yamahadealer check or repair it.
EAU23250
Lubricating the rear suspen-
sion The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
Recommended lubricant:
Lithium-soap-based grease (all-pur-
pose grease)
Recommended lubricant:
Lithium-soap-based grease
U5C4E0E0.book Page 19 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
U5C4E0E0.book Page 20 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU23290

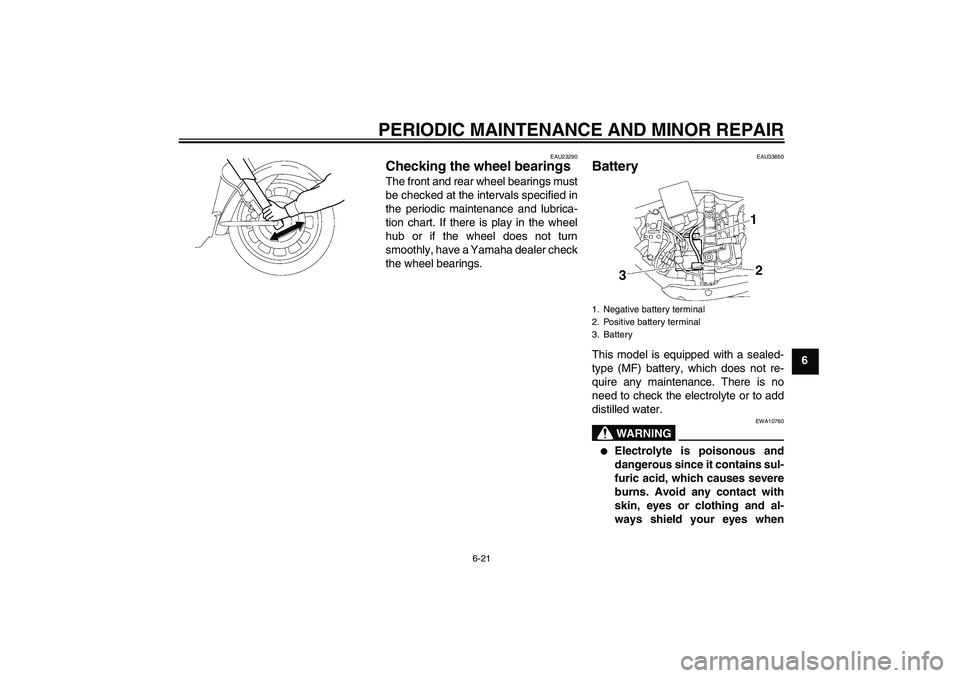

Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU33650
Battery This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
1. Negative battery terminal
2. Positive battery terminal
3. Battery
U5C4E0E0.book Page 21 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.

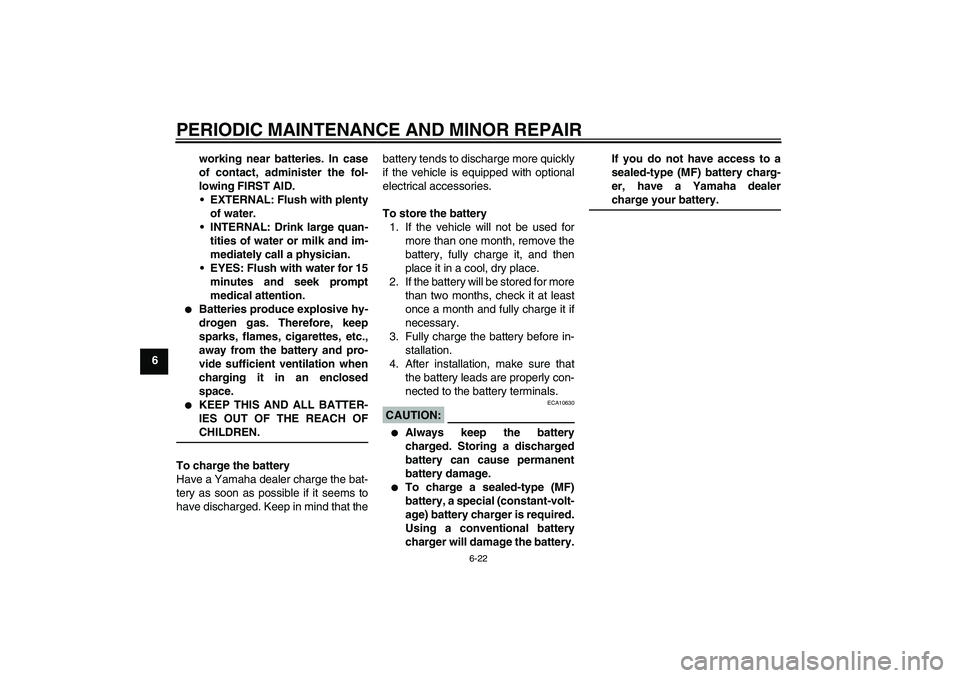

To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that thebattery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630


Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.


To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
U5C4E0E0.book Page 22 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU38372
Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the rider seat. (See page
3-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
1. Fuse box
2. Auxiliary DC connector fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse (for odometer and clock)
6. ECU fuse
7. Headlight fuse
8. Parking lighting fuse
9. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
ECU fuse:
10.0 A
Auxiliary DC connector fuse:
3.0 A
Parking lighting fuse:
10.0 A
Backup fuse:
10.0 A
U5C4E0E0.book Page 23 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
64. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU41190
Replacing a headlight bulb This model features a headlight
equipped with two quartz bulbs. If the
high beam or the low beam bulb burns
out, replace it as follows.
Removing the headlight unit
1. Remove the headlight cover by re-
moving the bolts.2. Disconnect the coupler shown.
3. Remove the headlight unit by re-
moving the screws.1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
2. Headlight cover
1. Coupler
U5C4E0E0.book Page 24 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-25

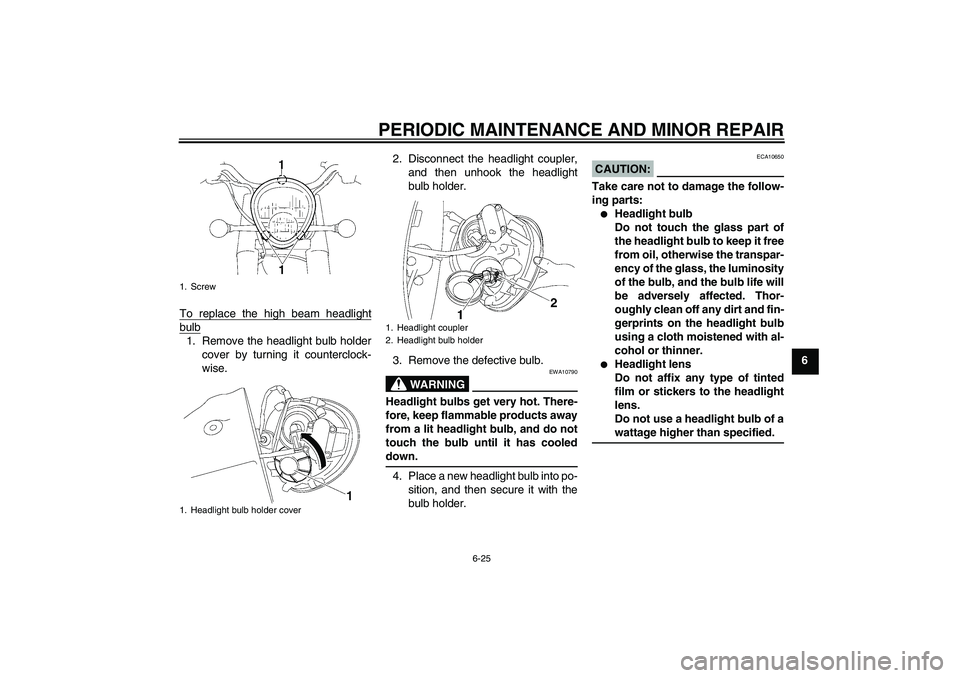

6 To replace the high beam headlight
bulb1. Remove the headlight bulb holder
cover by turning it counterclock-
wise.2. Disconnect the headlight coupler,
and then unhook the headlight
bulb holder.
3. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Screw
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
U5C4E0E0.book Page 25 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-26

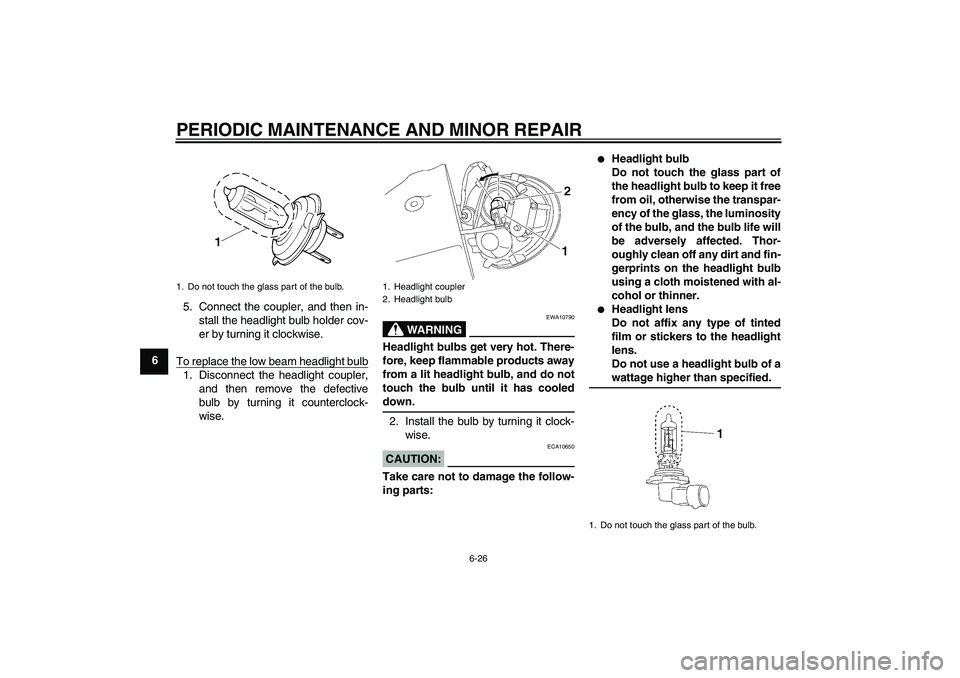

65. Connect the coupler, and then in-
stall the headlight bulb holder cov-
er by turning it clockwise.
To replace the low beam headlight bulb
1. Disconnect the headlight coupler,
and then remove the defective
bulb by turning it counterclock-
wise.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
2. Install the bulb by turning it clock-
wise.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:


Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Do not touch the glass part of the bulb.
1. Headlight coupler
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U5C4E0E0.book Page 26 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6 3. Connect the headlight coupler.
Installing the headlight unit
1. Install the headlight unit by install-
ing the screws.
2. Connect the coupler to the head-
light cover.
3. Install the headlight cover by in-
stalling the bolts.
4. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU38380

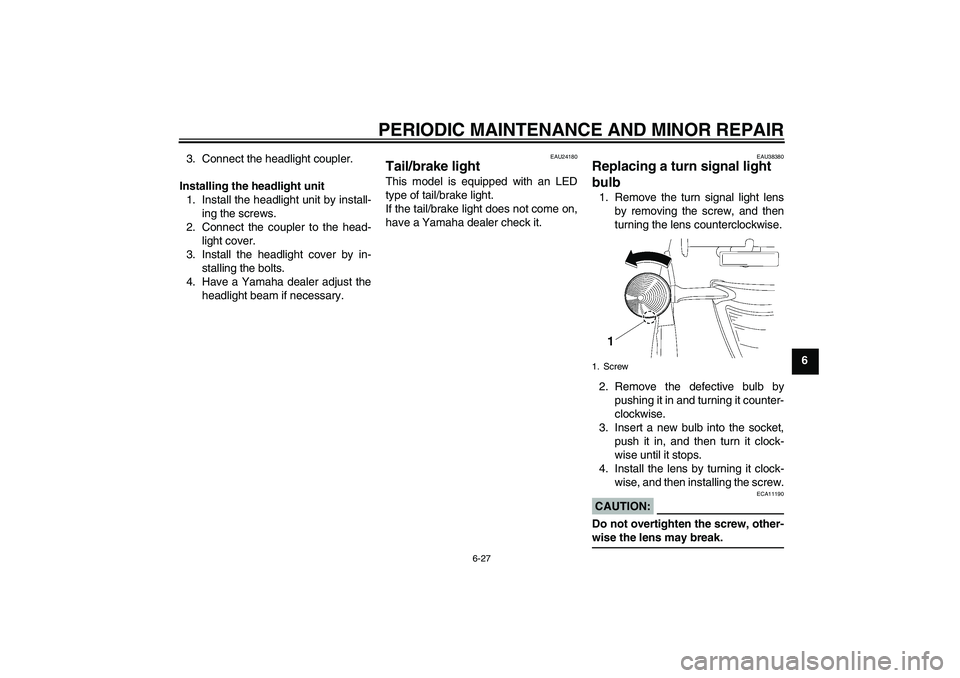

Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw, and then
turning the lens counterclockwise.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by turning it clock-
wise, and then installing the screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.1. Screw
U5C4E0E0.book Page 27 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
EAU24330
License plate light If the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAU40760

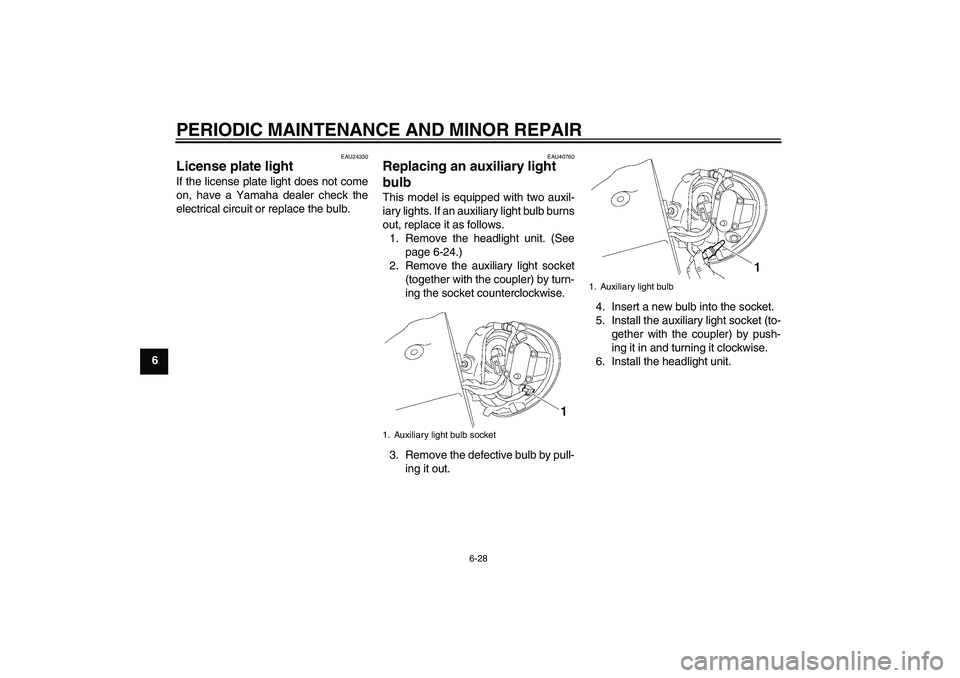

Replacing an auxiliary light
bulb This model is equipped with two auxil-
iary lights. If an auxiliary light bulb burns
out, replace it as follows.
1. Remove the headlight unit. (See
page 6-24.)
2. Remove the auxiliary light socket
(together with the coupler) by turn-
ing the socket counterclockwise.
3. Remove the defective bulb by pull-
ing it out.4. Insert a new bulb into the socket.
5. Install the auxiliary light socket (to-
gether with the coupler) by push-
ing it in and turning it clockwise.
6. Install the headlight unit.1. Auxiliary light bulb socket
1. Auxiliary light bulb
U5C4E0E0.book Page 28 Monday, March 13, 2006 10:29 AM
