YAMAHA XV1900A 2006 Service Manual

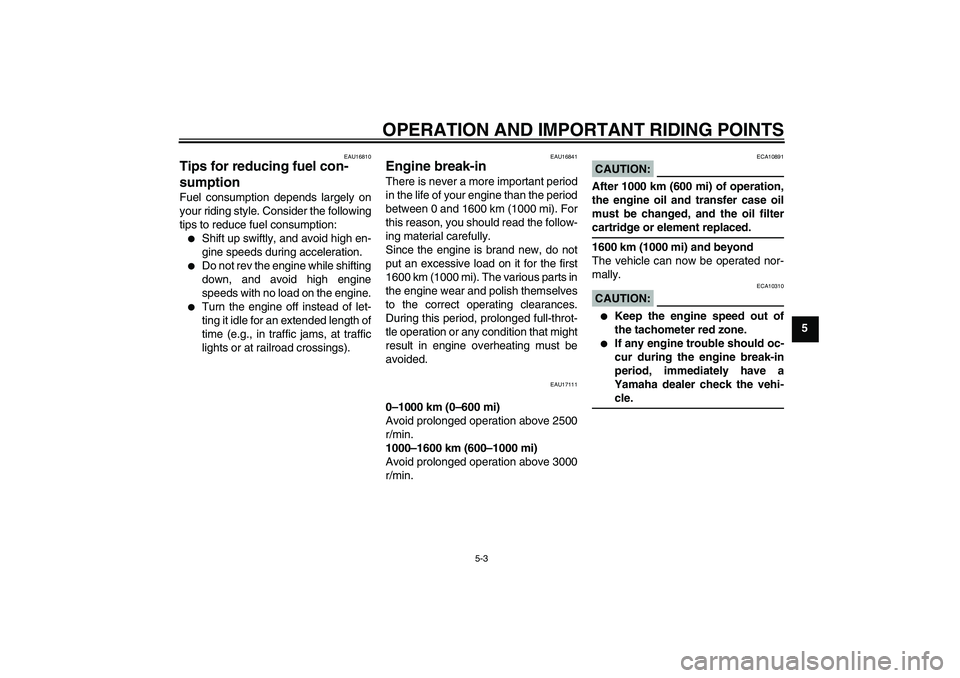

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810
Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17111
0–1000 km (0–600 mi)
Avoid prolonged operation above 2500
r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 3000
r/min.
CAUTION:
ECA10891
After 1000 km (600 mi) of operation,
the engine oil and transfer case oil
must be changed, and the oil filtercartridge or element replaced.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10310


Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-cle.
U5C4E0E0.book Page 3 Monday, March 13, 2006 10:29 AM

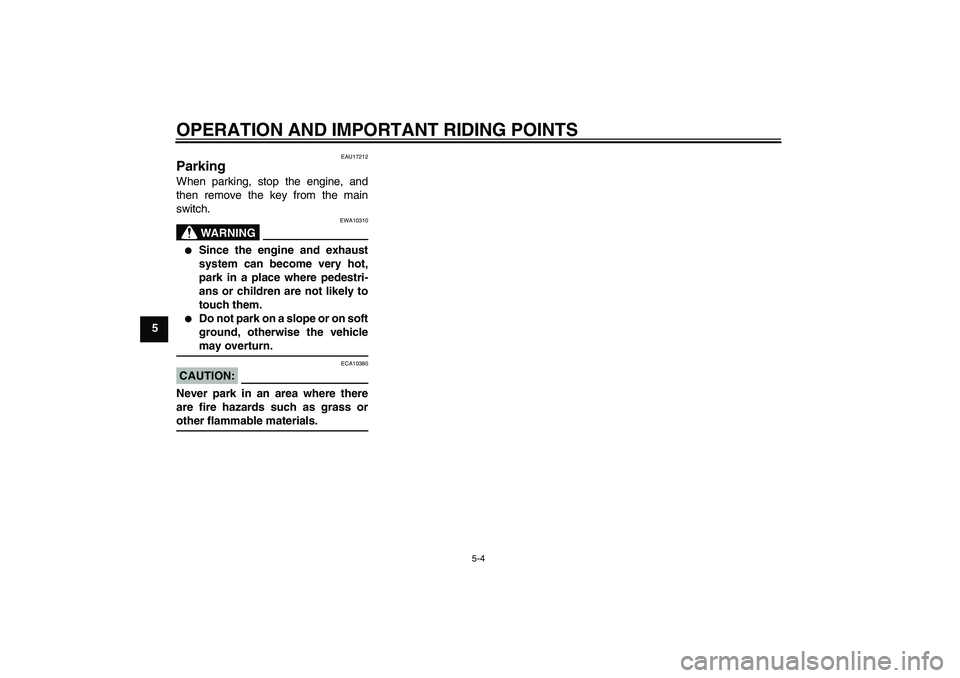

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17212
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.U5C4E0E0.book Page 4 Monday, March 13, 2006 10:29 AM

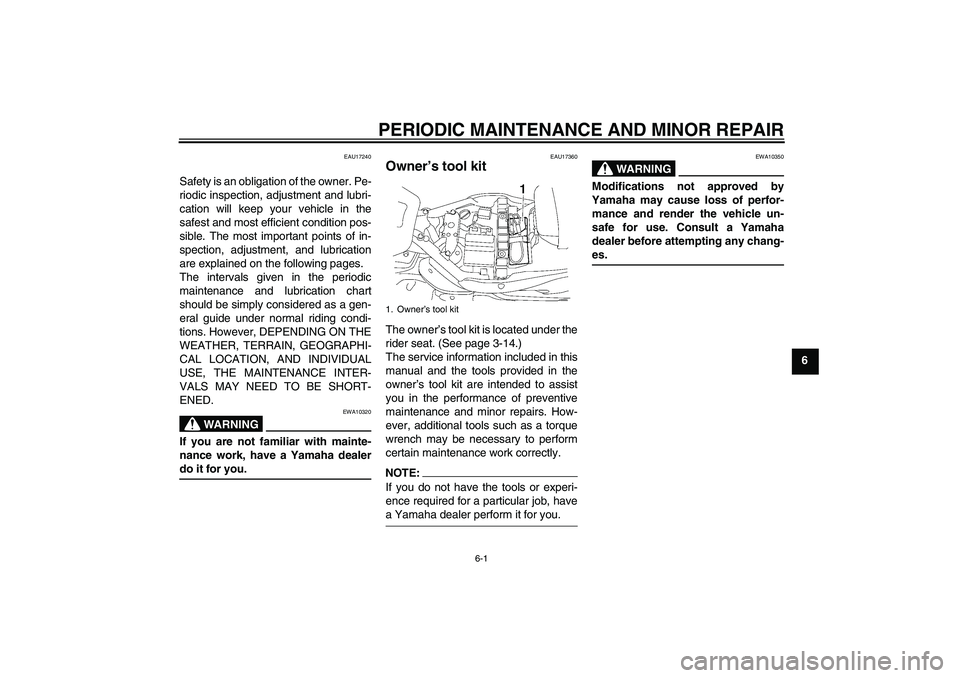

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU17240
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU17360
Owner’s tool kit The owner’s tool kit is located under the
rider seat. (See page 3-14.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-es.
1. Owner’s tool kit
U5C4E0E0.book Page 1 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17705

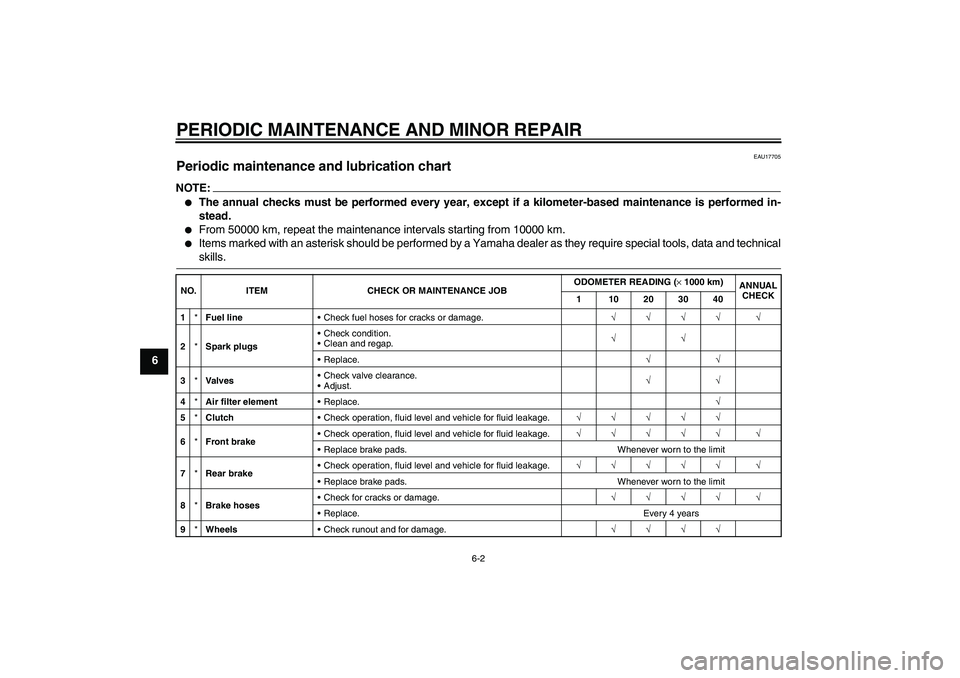

Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 50000 km, repeat the maintenance intervals starting from 10000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.√√
4*Air filter elementReplace.√
5*ClutchCheck operation, fluid level and vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
U5C4E0E0.book Page 2 Monday, March 13, 2006 10:29 AM

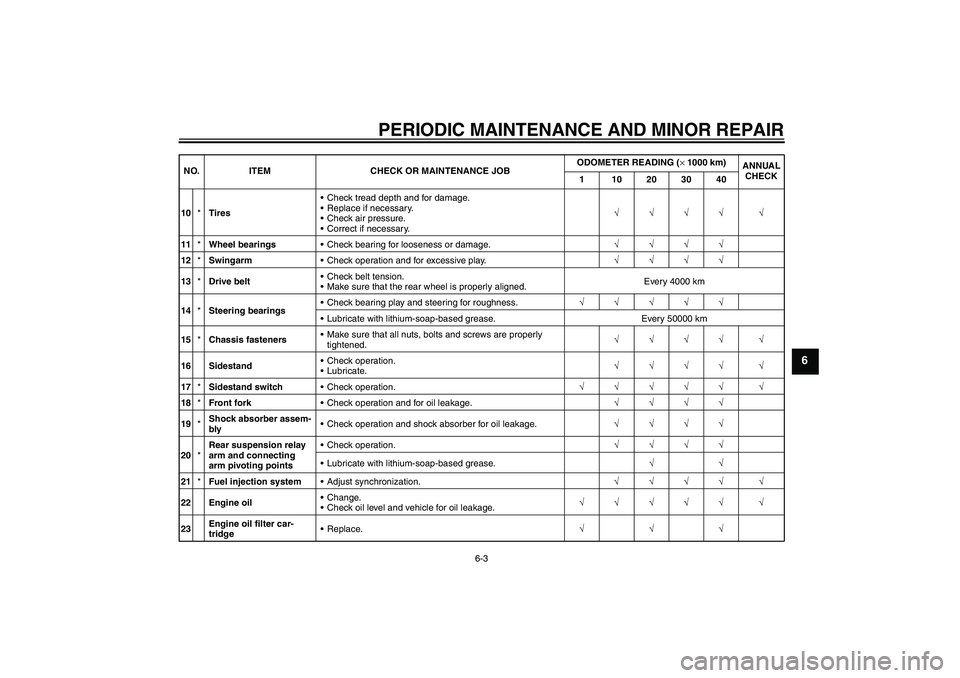

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
13*Drive beltCheck belt tension.
Make sure that the rear wheel is properly aligned.Every 4000 km
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16 SidestandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
20*Rear suspension relay
arm and connecting
arm pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based grease.√√
21*Fuel injection systemAdjust synchronization.√√√√ √
22 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
23Engine oil filter car-
tridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U5C4E0E0.book Page 3 Monday, March 13, 2006 10:29 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU36771

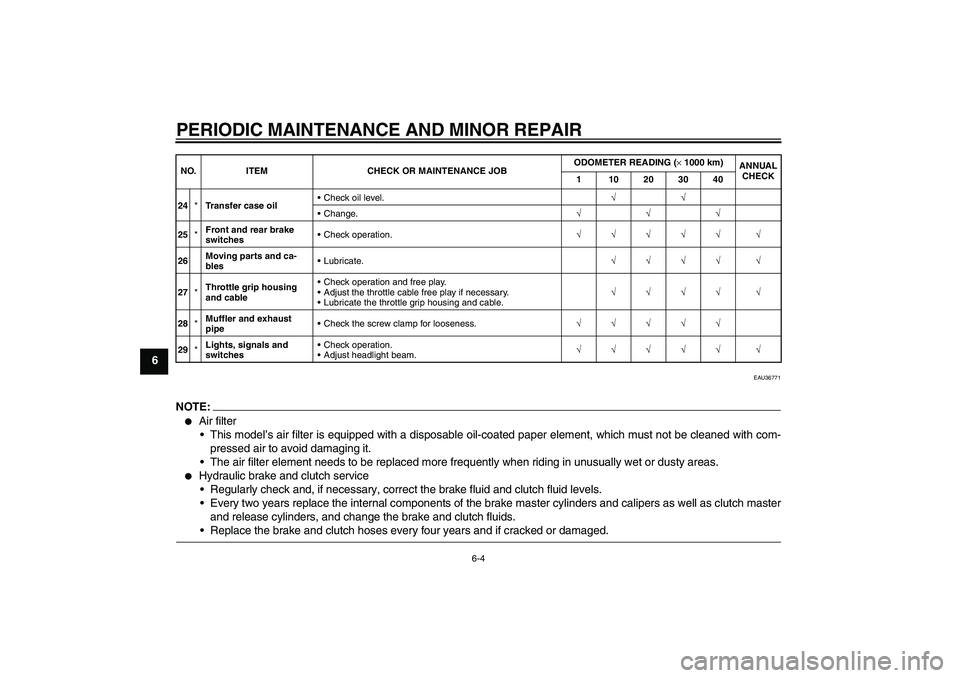

NOTE:

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
24*Transfer case oilCheck oil level.√√
Change.√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26Moving parts and ca-
blesLubricate.√√√√ √
27*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U5C4E0E0.book Page 4 Monday, March 13, 2006 10:29 AM

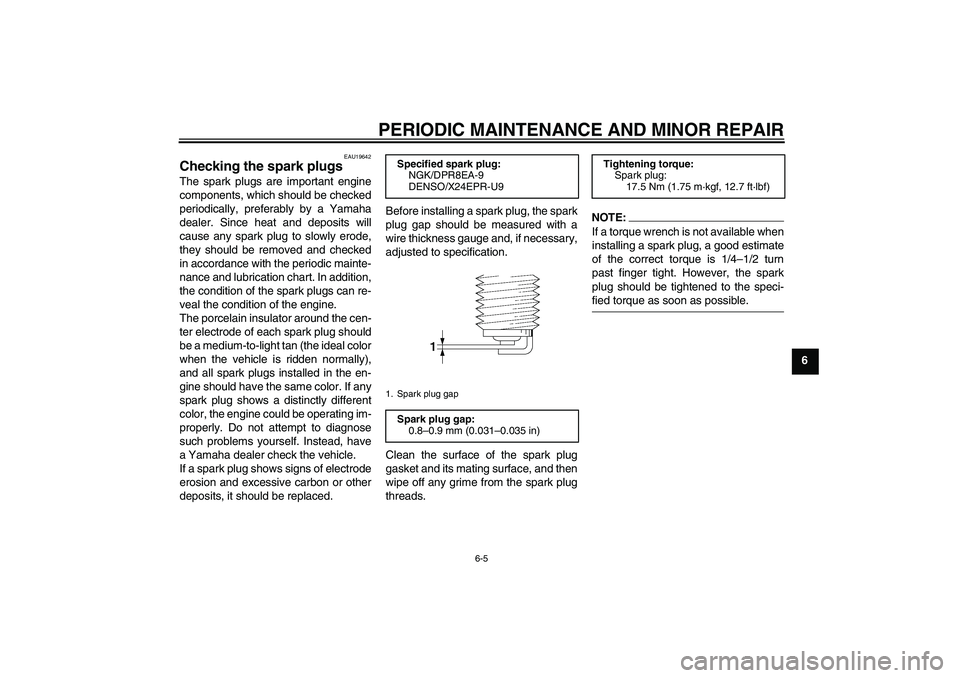

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:
If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
Specified spark plug:
NGK/DPR8EA-9
DENSO/X24EPR-U9
1. Spark plug gap
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U5C4E0E0.book Page 5 Monday, March 13, 2006 10:29 AM

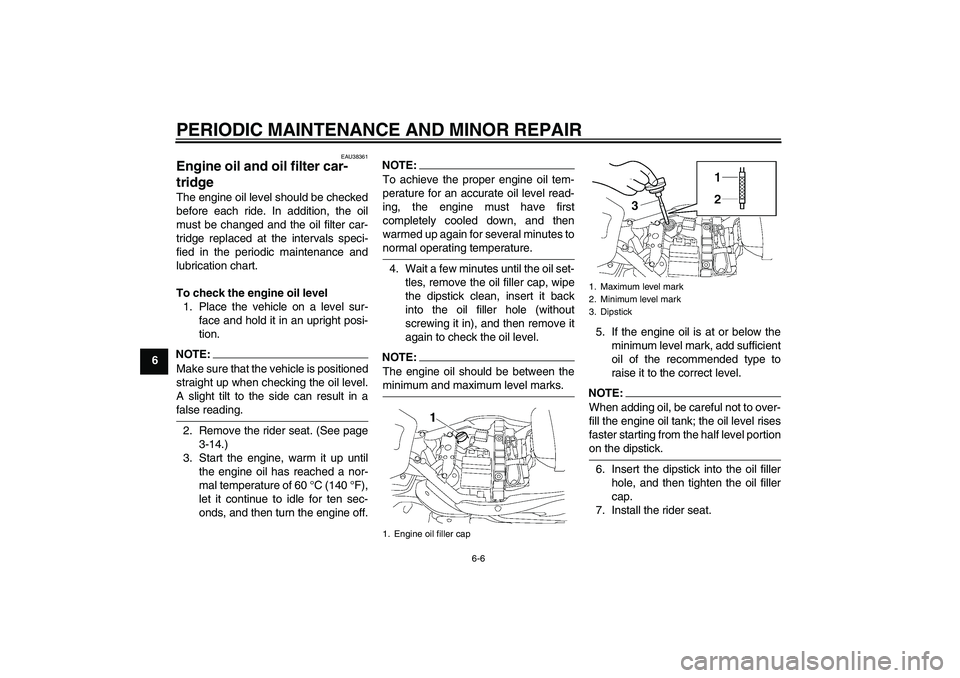

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU38361
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Remove the rider seat. (See page
3-14.)
3. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.
NOTE:To achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have first
completely cooled down, and then
warmed up again for several minutes tonormal operating temperature.
4. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.NOTE:The engine oil should be between theminimum and maximum level marks.5. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
NOTE:When adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portionon the dipstick.
6. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
7. Install the rider seat.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Dipstick
U5C4E0E0.book Page 6 Monday, March 13, 2006 10:29 AM

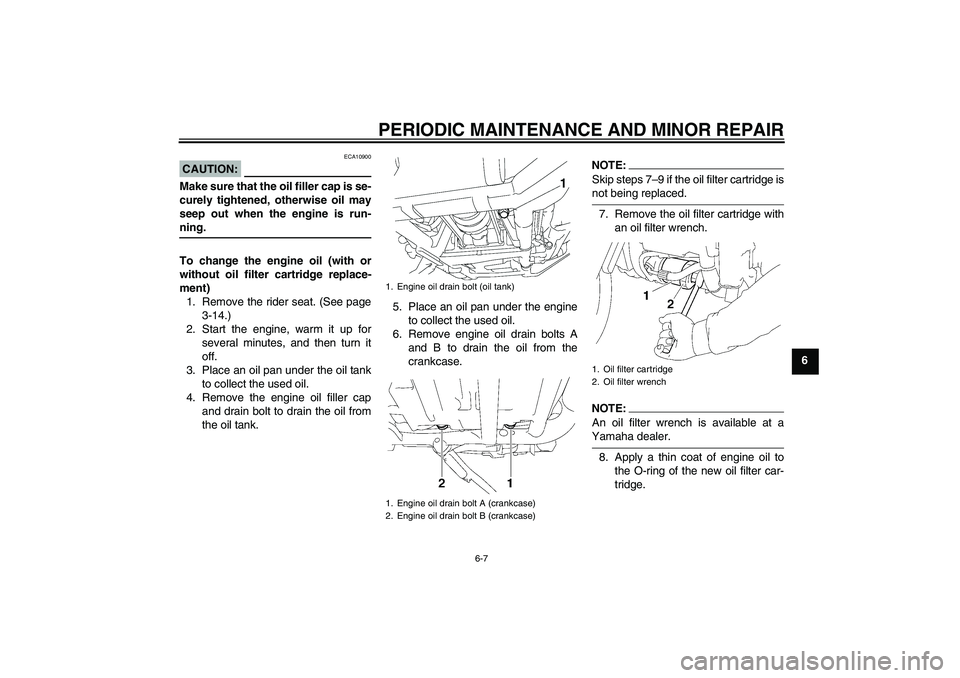

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
CAUTION:
ECA10900
Make sure that the oil filler cap is se-
curely tightened, otherwise oil may
seep out when the engine is run-ning.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Remove the rider seat. (See page
3-14.)
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Place an oil pan under the oil tank
to collect the used oil.
4. Remove the engine oil filler cap
and drain bolt to drain the oil from
the oil tank.5. Place an oil pan under the engine
to collect the used oil.
6. Remove engine oil drain bolts A
and B to drain the oil from the
crankcase.
NOTE:Skip steps 7–9 if the oil filter cartridge isnot being replaced.
7. Remove the oil filter cartridge with
an oil filter wrench.NOTE:An oil filter wrench is available at aYamaha dealer.
8. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.
1. Engine oil drain bolt (oil tank)
1. Engine oil drain bolt A (crankcase)
2. Engine oil drain bolt B (crankcase)
1. Oil filter cartridge
2. Oil filter wrench
U5C4E0E0.book Page 7 Monday, March 13, 2006 10:29 AM

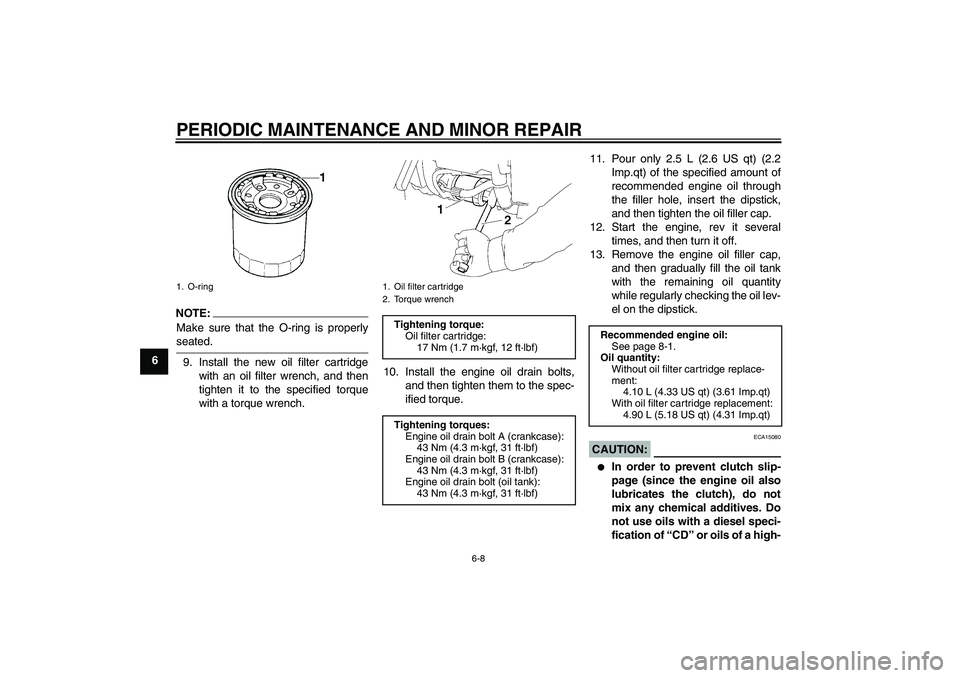

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
NOTE:
Make sure that the O-ring is properlyseated.
9. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.10. Install the engine oil drain bolts,
and then tighten them to the spec-
ified torque.11. Pour only 2.5 L (2.6 US qt) (2.2
Imp.qt) of the specified amount of
recommended engine oil through
the filler hole, insert the dipstick,
and then tighten the oil filler cap.
12. Start the engine, rev it several
times, and then turn it off.
13. Remove the engine oil filler cap,
and then gradually fill the oil tank
with the remaining oil quantity
while regularly checking the oil lev-
el on the dipstick.
CAUTION:
ECA15080


In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
1. O-ring
1. Oil filter cartridge
2. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torques:
Engine oil drain bolt A (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt B (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt (oil tank):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
4.10 L (4.33 US qt) (3.61 Imp.qt)
With oil filter cartridge replacement:
4.90 L (5.18 US qt) (4.31 Imp.qt)
U5C4E0E0.book Page 8 Monday, March 13, 2006 10:29 AM
