YAMAHA XV1900A 2009 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-7

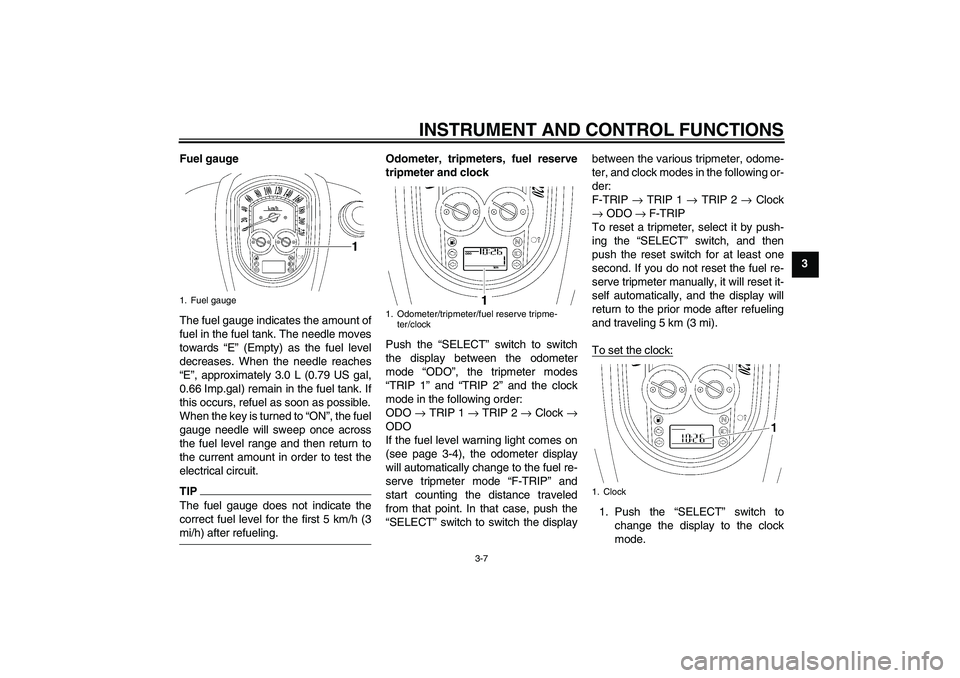

3 Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
“E”, approximately 3.0 L (0.79 US gal,
0.66 Imp.gal) remain in the fuel tank. If
this occurs, refuel as soon as possible.
When the key is turned to “ON”, the fuel
gauge needle will sweep once across
the fuel level range and then return to
the current amount in order to test the
electrical circuit.
TIPThe fuel gauge does not indicate the
correct fuel level for the first 5 km/h (3mi/h) after refueling.Odometer, tripmeters, fuel reserve
tripmeter and clock
Push the “SELECT” switch to switch
the display between the odometer
mode “ODO”, the tripmeter modes
“TRIP 1” and “TRIP 2” and the clock
mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock →
ODO
If the fuel level warning light comes on
(see page 3-4), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, push the
“SELECT” switch to switch the displaybetween the various tripmeter, odome-
ter, and clock modes in the following or-
der:
F-TRIP → TRIP 1 → TRIP 2 → Clock
→ ODO → F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” switch, and then
push the reset switch for at least one
second. If you do not reset the fuel re-
serve tripmeter manually, it will reset it-
self automatically, and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
To set the clock:
1. Push the “SELECT” switch to
change the display to the clock
mode.
1. Fuel gauge
1. Odometer/tripmeter/fuel reserve tripme-
ter/clock
1. Clock
U5C4E3E0.book Page 7 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
32. Push the “SELECT” and reset
switches together for at least two
seconds.
3. When the hour digits start flashing,
push the reset switch to set the
hours.
4. Push the “SELECT” switch, and
the minute digits will start flashing.
5. Push the reset switch to set the
minutes.
6. Push the “SELECT” switch and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If a problem is detected in any of those
circuits, the engine trouble warning light
will come on or flash, and the odome-
ter/tripmeter/clock display will indicate
a two-digit error code.
The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash, and the
display will indicate a two-digit error
code.
TIPIf the display indicates error code 52,
this could be caused by transponder in-
terference. If this error code appears,try the following.
1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registeringkey and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
NOTICE
ECA11590
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
U5C4E3E0.book Page 8 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9

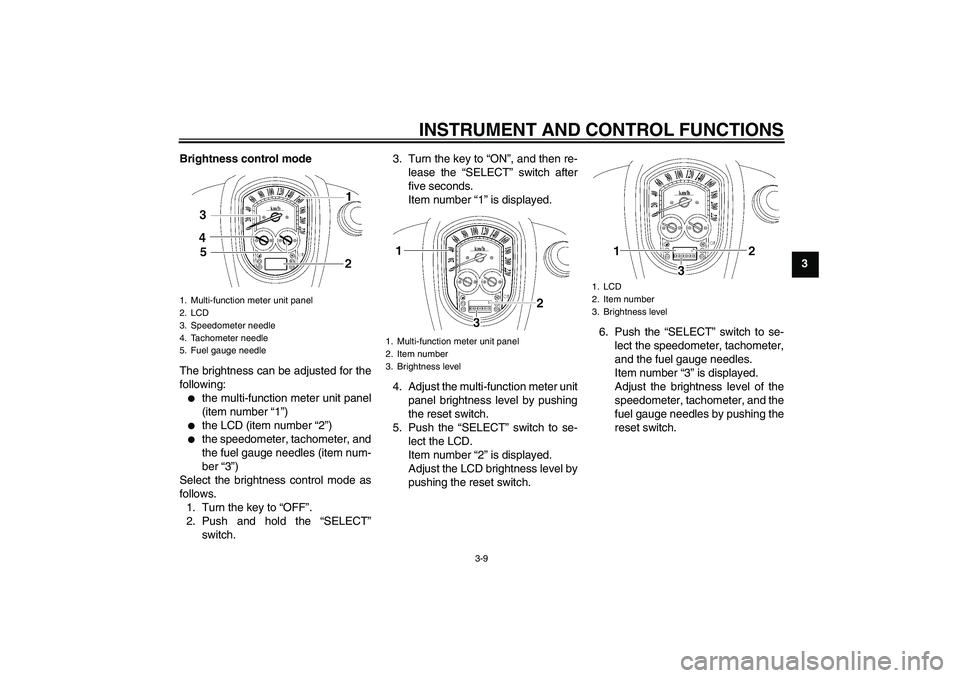

3 Brightness control mode
The brightness can be adjusted for the
following:


the multi-function meter unit panel
(item number “1”)


the LCD (item number “2”)


the speedometer, tachometer, and
the fuel gauge needles (item num-
ber “3”)
Select the brightness control mode as
follows.
1. Turn the key to “OFF”.
2. Push and hold the “SELECT”
switch.3. Turn the key to “ON”, and then re-
lease the “SELECT” switch after
five seconds.
Item number “1” is displayed.
4. Adjust the multi-function meter unit
panel brightness level by pushing
the reset switch.
5. Push the “SELECT” switch to se-
lect the LCD.
Item number “2” is displayed.
Adjust the LCD brightness level by
pushing the reset switch.6. Push the “SELECT” switch to se-
lect the speedometer, tachometer,
and the fuel gauge needles.
Item number “3” is displayed.
Adjust the brightness level of the
speedometer, tachometer, and the
fuel gauge needles by pushing the
reset switch.
1. Multi-function meter unit panel
2. LCD
3. Speedometer needle
4. Tachometer needle
5. Fuel gauge needle
1. Multi-function meter unit panel
2. Item number
3. Brightness level
1. LCD
2. Item number
3. Brightness level
U5C4E3E0.book Page 9 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3

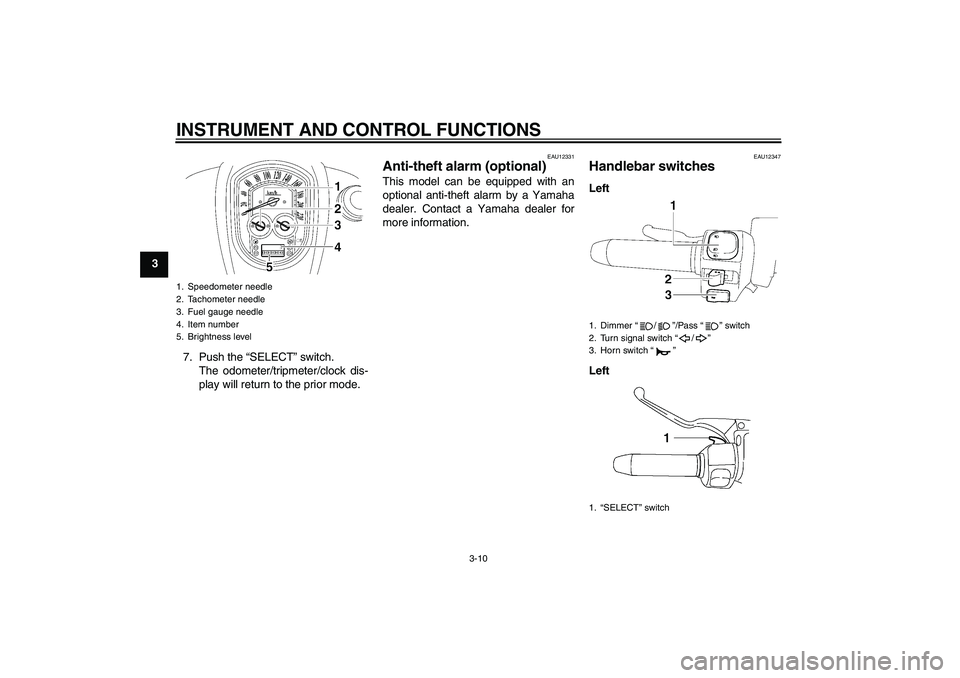

7. Push the “SELECT” switch.
The odometer/tripmeter/clock dis-
play will return to the prior mode.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12347
Handlebar switches Left
Left
1. Speedometer needle
2. Tachometer needle
3. Fuel gauge needle
4. Item number
5. Brightness level
1. Dimmer“/”/Pass“” switch
2. Turn signal switch“/”
3. Horn switch“”
1.“SELECT” switch
U5C4E3E0.book Page 10 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 Right
EAU40750
Dimmer“/”/Pass“” switch
Set this switch to“” for the high
beam and to“” for the low beam.
To flash the high beam, press on the
low-beam side“” of the dimmer
switch while the headlight is on low-
beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU44600
“SELECT” switch
This switch is used to perform selec-
tions in the odometer, tripmeter, to set
the clock and to set the brightness
mode of the multi-function meter unit.
See “Multi-function meter unit” on page
3-5 for detailed information.
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
U5C4E3E0.book Page 11 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU12820

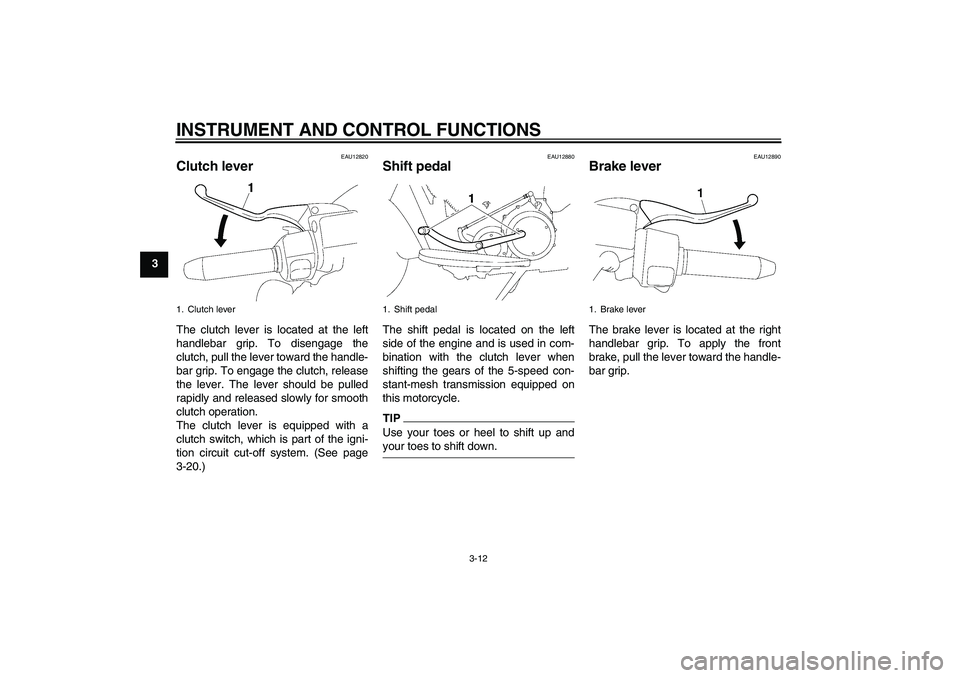

Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-20.)
EAU12880
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.TIPUse your toes or heel to shift up andyour toes to shift down.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1. Shift pedal
1. Brake lever
U5C4E3E0.book Page 12 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
EAU12941

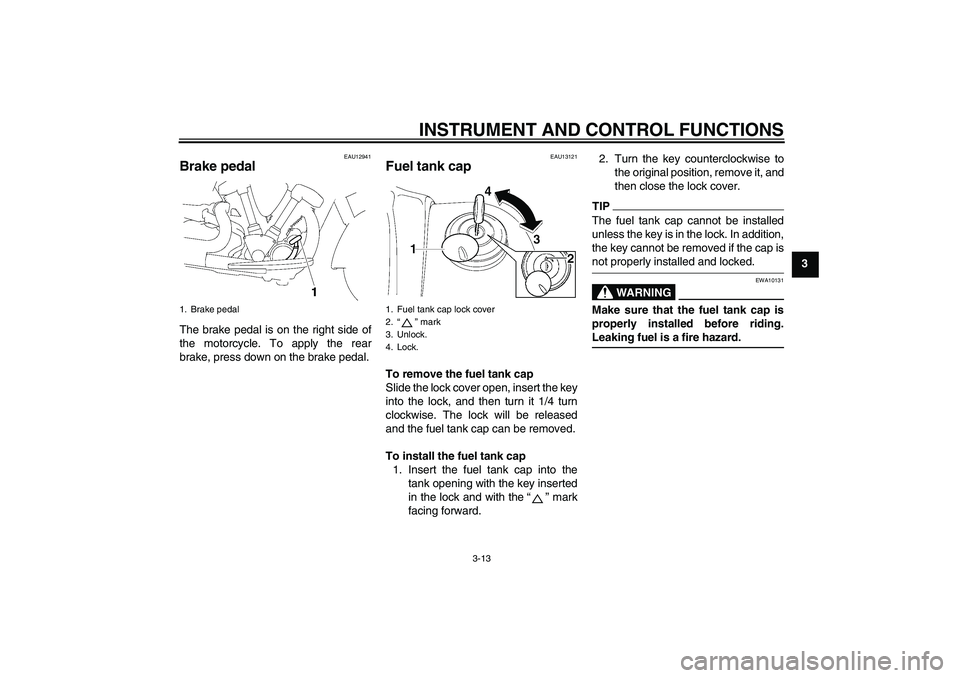

Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13121
Fuel tank cap To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the“” mark
facing forward.2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
TIPThe fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly installed and locked.
WARNING
EWA10131
Make sure that the fuel tank cap is
properly installed before riding.Leaking fuel is a fire hazard.
1. Brake pedal
1. Fuel tank cap lock cover
2.“” mark
3. Unlock.
4. Lock.
U5C4E3E0.book Page 13 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3
EAU13212

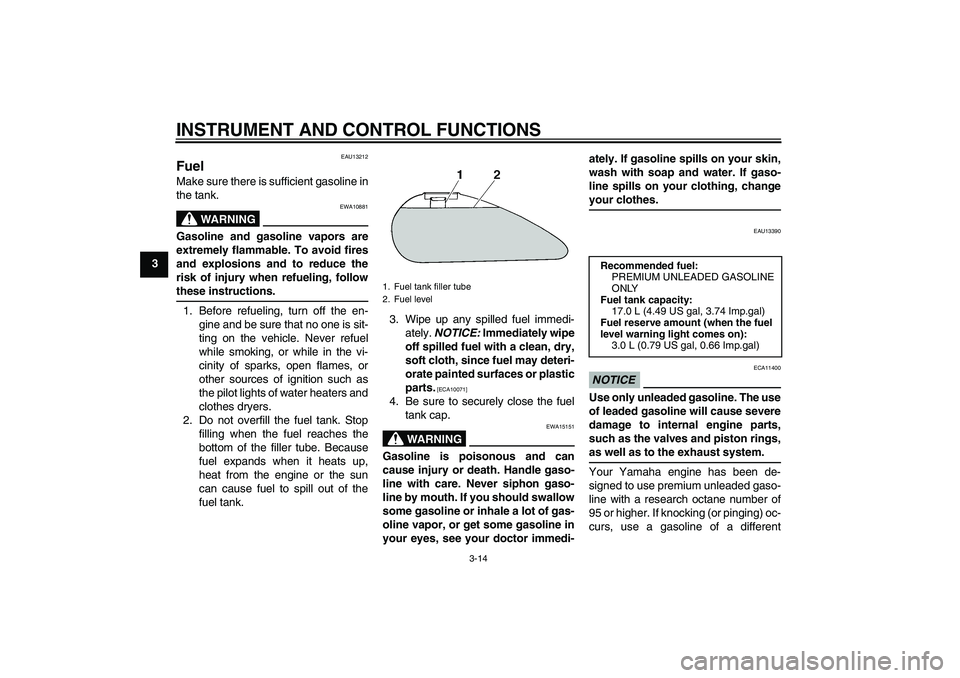

Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, followthese instructions.
1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU13390
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different
1. Fuel tank filler tube
2. Fuel level
Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
17.0 L (4.49 US gal, 3.74 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
3.0 L (0.79 US gal, 0.66 Imp.gal)
U5C4E3E0.book Page 14 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3 brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.
EAU13412
Fuel tank breather hose Before operating the motorcycle:

Check the fuel tank breather hose
connection.


Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.


Make sure that the fuel tank
breather hose is not blocked, and
clean it if necessary.
EAU13433
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:

Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.


Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.


Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.


Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up ofheat.
1. Fuel tank breather hose
U5C4E3E0.book Page 15 Tuesday, September 16, 2008 10:25 AM

INSTRUMENT AND CONTROL FUNCTIONS

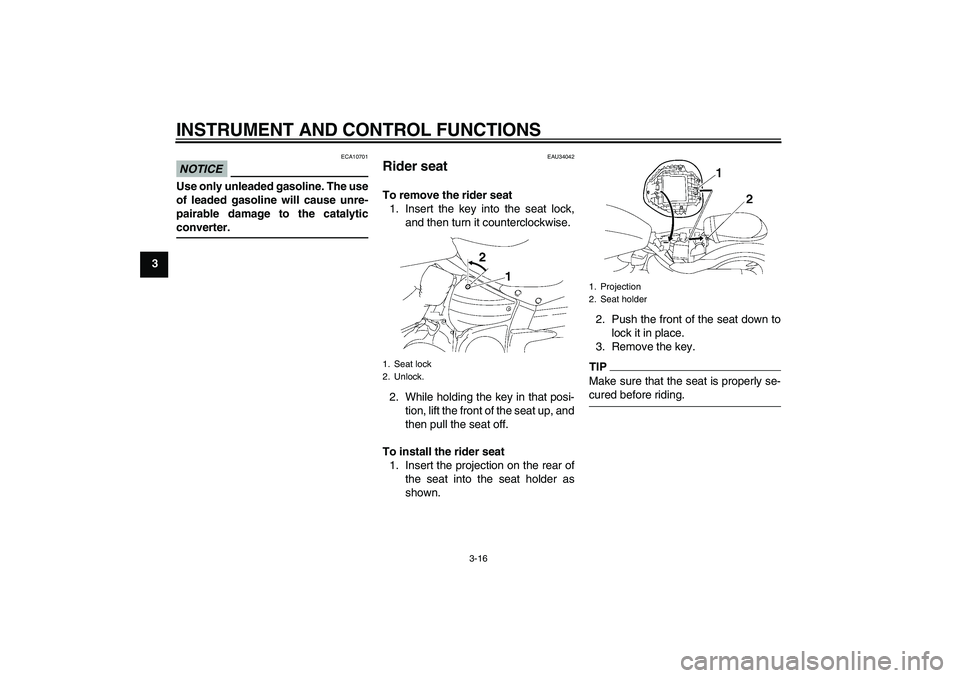

3-16
3
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalyticconverter.
EAU34042
Rider seat To remove the rider seat
1. Insert the key into the seat lock,
and then turn it counterclockwise.
2. While holding the key in that posi-
tion, lift the front of the seat up, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the rear of
the seat into the seat holder as
shown.2. Push the front of the seat down to
lock it in place.
3. Remove the key.
TIPMake sure that the seat is properly se-cured before riding.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
U5C4E3E0.book Page 16 Tuesday, September 16, 2008 10:25 AM
