PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU38368
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. A slight tilt to the side can
result in a false reading.
2. Remove the rider seat. (See page
3-16.)
3. Start the engine, warm it up until
the engine oil has reached a nor-
mal temperature of 60 °C (140 °F),
let it continue to idle for ten sec-
onds, and then turn the engine off.TIPTo achieve the proper engine oil tem-
perature for an accurate oil level read-
ing, the engine must have firstcompletely cooled down, and then
warmed up again for several minutes to
normal operating temperature.
4. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the engine oil dipstick clean, insert
it back into the oil filler hole (with-
out screwing it in), and then re-
move it again to check the oil level.TIPThe engine oil should be between theminimum and maximum level marks.
5. If the engine oil is at or below the
minimum level mark, add sufficient
oil of the recommended type to
raise it to the correct level.
TIPWhen adding oil, be careful not to over-
fill the engine oil tank; the oil level rises
faster starting from the half level portionon the dipstick.
6. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
7. Install the rider seat.
1. Engine oil filler cap
1. Maximum level mark
2. Minimum level mark
3. Engine oil dipstick
U5C4E3E0.book Page 8 Tuesday, September 16, 2008 10:25 AM
Page 52 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
NOTICE
ECA10900
Make sure that the oil filler cap is se-
curely tightened, otherwise oil may
seep out when the engine is run-ning.

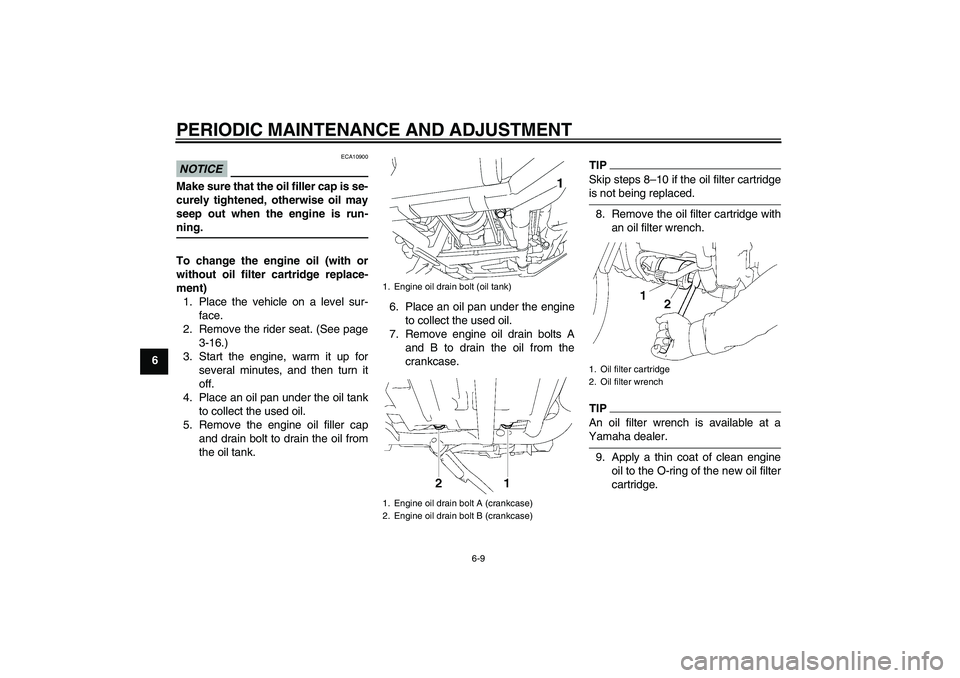

To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Place the vehicle on a level sur-
face.
2. Remove the rider seat. (See page
3-16.)
3. Start the engine, warm it up for
several minutes, and then turn it
off.
4. Place an oil pan under the oil tank
to collect the used oil.
5. Remove the engine oil filler cap
and drain bolt to drain the oil from
the oil tank.6. Place an oil pan under the engine
to collect the used oil.
7. Remove engine oil drain bolts A
and B to drain the oil from the
crankcase.
TIPSkip steps 8–10 if the oil filter cartridgeis not being replaced.
8. Remove the oil filter cartridge with
an oil filter wrench.TIPAn oil filter wrench is available at aYamaha dealer.
9. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
1. Engine oil drain bolt (oil tank)
1. Engine oil drain bolt A (crankcase)
2. Engine oil drain bolt B (crankcase)
1. Oil filter cartridge
2. Oil filter wrench
U5C4E3E0.book Page 9 Tuesday, September 16, 2008 10:25 AM
Page 53 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
TIPMake sure that the O-ring is properlyseated.
10. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.11. Install the engine oil drain bolts,
and then tighten them to the spec-
ified torques.12. Pour only 2.5 L (2.6 US qt,
2.2 Imp.qt) of the specified amount
of recommended engine oil
through the filler hole, insert the
dipstick, and then tighten the oil fill-
er cap.
13. Start the engine, rev it several
times, and then turn it off.
14. Remove the engine oil filler cap,
and then gradually fill the oil tank
with the remaining oil quantity
while regularly checking the oil lev-
el on the dipstick.
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-tem have cooled down.
1. O-ring
1. Oil filter cartridge
2. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torques:
Engine oil drain bolt A (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt B (crankcase):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Engine oil drain bolt (oil tank):
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
4.10 L (4.33 US qt, 3.61 Imp.qt)
With oil filter cartridge replacement:
4.90 L (5.18 US qt, 4.31 Imp.qt)
U5C4E3E0.book Page 10 Tuesday, September 16, 2008 10:25 AM
Page 54 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
NOTICE
ECA15080
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the oil tank.
15. Install the engine oil filler cap.16. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
17. Turn the engine off, and then
check the oil level and correct it if
necessary.
18. Install the rider seat.
EAU20051
Transfer case oil The transfer case must be checked for
oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the vehicle. In addi-
tion, the transfer case oil level should
be checked and the oil must be
changed by a Yamaha dealer at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
1.“CD” specification
2.“ENERGY CONSERVING II”
1
2
U5C4E3E0.book Page 11 Tuesday, September 16, 2008 10:25 AM
Page 55 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-12
6
EAU36762
Air filter element The air filter element must be replaced
at the intervals specified in the periodic
maintenance and lubrication chart.
Have a Yamaha dealer replace the air
filter element.
EAU21382
Checking the throttle cable
free play The throttle cable free play should mea-
sure 4.0–6.0 mm (0.16–0.24 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
EAU21401
Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
1. Throttle cable free play
U5C4E3E0.book Page 12 Tuesday, September 16, 2008 10:25 AM
Page 56 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-13
6
EAU21562

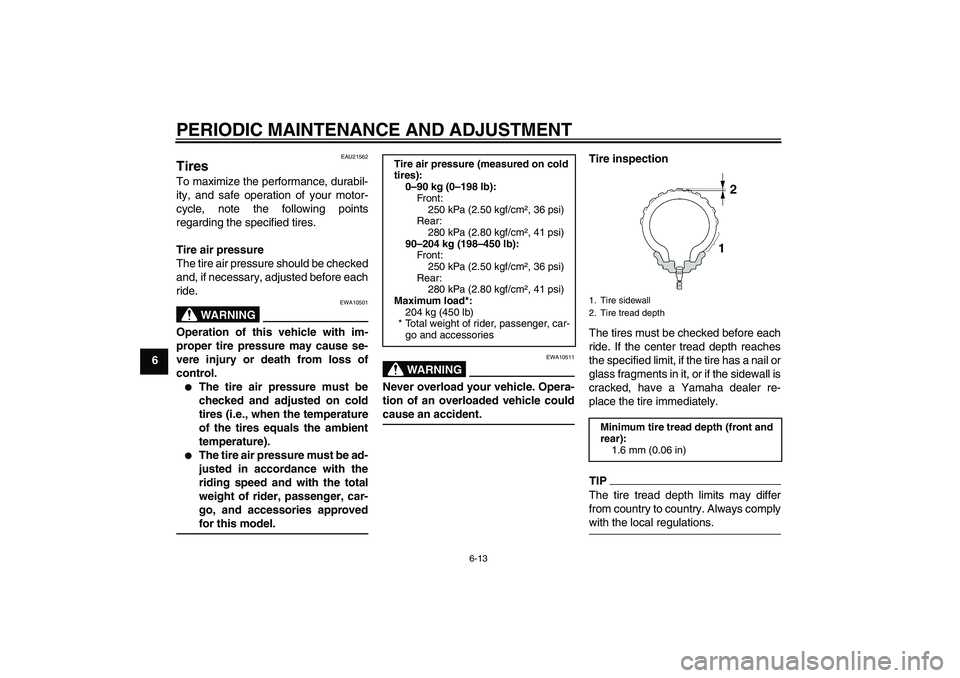

Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10501
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or death from loss of
control.
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA10511
Never overload your vehicle. Opera-
tion of an overloaded vehicle couldcause an accident.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
TIPThe tire tread depth limits may differ
from country to country. Always complywith the local regulations.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
90–204 kg (198–450 lb):
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Maximum load*:
204 kg (450 lb)
* Total weight of rider, passenger, car-
go and accessories
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
U5C4E3E0.book Page 13 Tuesday, September 16, 2008 10:25 AM
Page 57 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-14

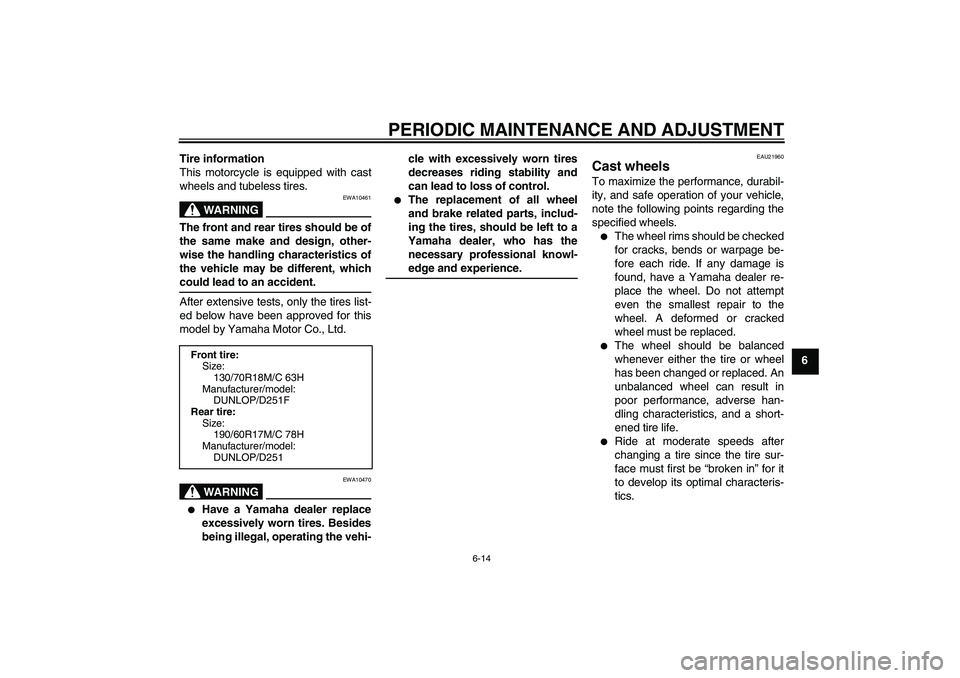

6 Tire information
This motorcycle is equipped with cast
wheels and tubeless tires.
WARNING
EWA10461
The front and rear tires should be of
the same make and design, other-
wise the handling characteristics of
the vehicle may be different, whichcould lead to an accident.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha Motor Co., Ltd.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
Front tire:
Size:
130/70R18M/C 63H
Manufacturer/model:
DUNLOP/D251F
Rear tire:
Size:
190/60R17M/C 78H
Manufacturer/model:
DUNLOP/D251
U5C4E3E0.book Page 14 Tuesday, September 16, 2008 10:25 AM
Page 58 of 88
PERIODIC MAINTENANCE AND ADJUSTMENT
6-15
6
EAU22073

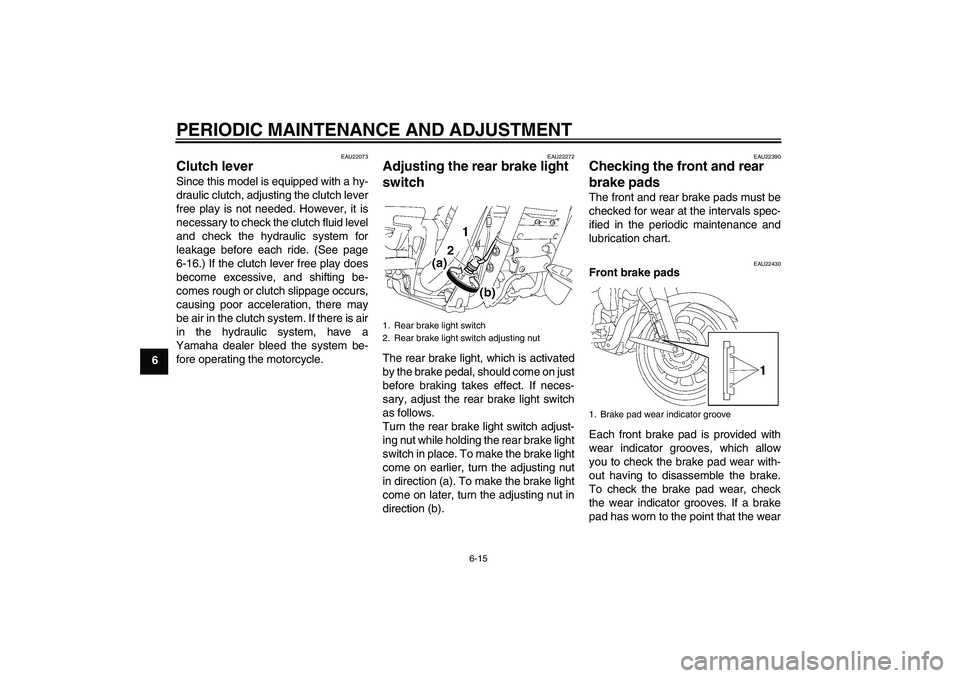

Clutch lever Since this model is equipped with a hy-
draulic clutch, adjusting the clutch lever
free play is not needed. However, it is
necessary to check the clutch fluid level
and check the hydraulic system for
leakage before each ride. (See page
6-16.) If the clutch lever free play does
become excessive, and shifting be-
comes rough or clutch slippage occurs,
causing poor acceleration, there may
be air in the clutch system. If there is air
in the hydraulic system, have a
Yamaha dealer bleed the system be-
fore operating the motorcycle.
EAU22272
Adjusting the rear brake light
switch The rear brake light, which is activated
by the brake pedal, should come on just
before braking takes effect. If neces-
sary, adjust the rear brake light switch
as follows.
Turn the rear brake light switch adjust-
ing nut while holding the rear brake light
switch in place. To make the brake light
come on earlier, turn the adjusting nut
in direction (a). To make the brake light
come on later, turn the adjusting nut in
direction (b).
EAU22390
Checking the front and rear
brake pads The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wear
1. Rear brake light switch
2. Rear brake light switch adjusting nut
1. Brake pad wear indicator groove
U5C4E3E0.book Page 15 Tuesday, September 16, 2008 10:25 AM
Page 59 of 88

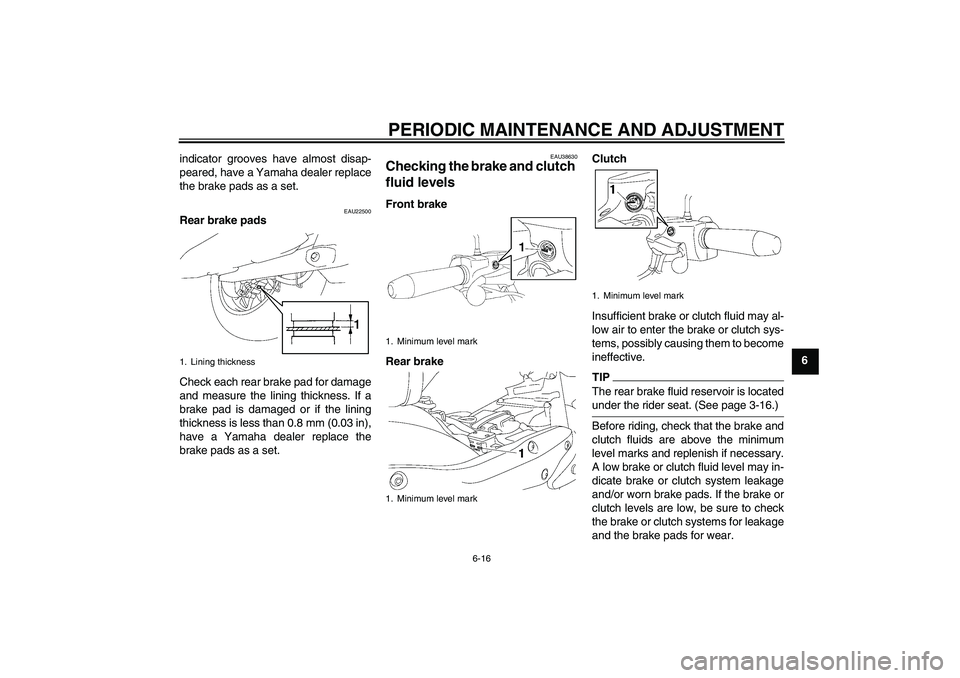

PERIODIC MAINTENANCE AND ADJUSTMENT
6-16
6 indicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22500
Rear brake pads
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.
EAU38630
Checking the brake and clutch
fluid levels Front brake
Rear brakeClutch
Insufficient brake or clutch fluid may al-
low air to enter the brake or clutch sys-
tems, possibly causing them to become
ineffective.
TIPThe rear brake fluid reservoir is locatedunder the rider seat. (See page 3-16.)
Before riding, check that the brake and
clutch fluids are above the minimum
level marks and replenish if necessary.
A low brake or clutch fluid level may in-
dicate brake or clutch system leakage
and/or worn brake pads. If the brake or
clutch levels are low, be sure to check
the brake or clutch systems for leakage
and the brake pads for wear.
1. Lining thickness
1. Minimum level mark
1. Minimum level mark
1. Minimum level mark
U5C4E3E0.book Page 16 Tuesday, September 16, 2008 10:25 AM
Page 60 of 88

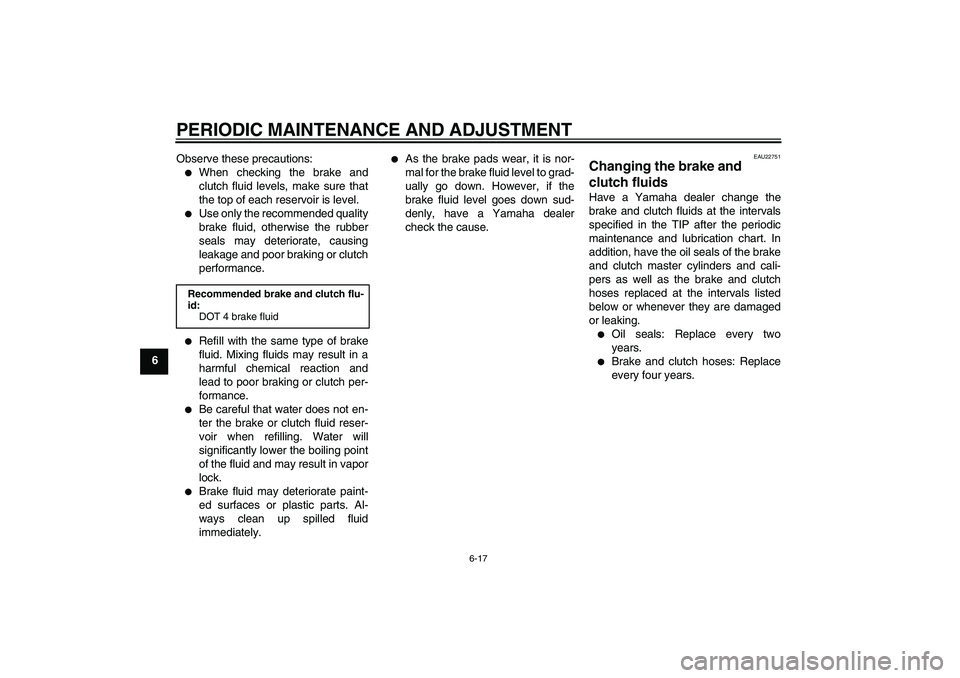

PERIODIC MAINTENANCE AND ADJUSTMENT
6-17
6Observe these precautions:
When checking the brake and
clutch fluid levels, make sure that
the top of each reservoir is level.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.
Be careful that water does not en-
ter the brake or clutch fluid reser-
voir when refilling. Water will
significantly lower the boiling point
of the fluid and may result in vapor
lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22751
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the TIP after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
Oil seals: Replace every two
years.
Brake and clutch hoses: Replace
every four years.
Recommended brake and clutch flu-
id:
DOT 4 brake fluid
U5C4E3E0.book Page 17 Tuesday, September 16, 2008 10:25 AM
