PERIODIC MAINTENANCE AND ADJUSTMENT
6-18
6
EAU23040
Drive belt slack The drive belt slack should be checked
and adjusted at the intervals specified
in the periodic maintenance and lubri-
cation chart.
EAU38410
To check the drive belt slack
1. Place the vehicle on the sidestand.
2. Note the current position of the
drive belt using the marks near the
drive belt check hole.TIPThe marks near the drive belt checkhole are 5.0 mm (0.2 in) apart.3. Note the position of the drive belt
with a force of 45 N (4.5 kgf, 10 lbf)
applied to the belt with a belt ten-
sion gauge as shown.
TIPA belt tension gauge is available at aYamaha dealer.
4. Calculate the drive belt slack by
subtracting the measurement not-
ed in step 2 from the measurement
noted in step 3.
5. If the drive belt slack is incorrect,
have a Yamaha dealer adjust it.
EAU23101
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING! Damage to the outer
sheath may interfere with proper ca-
ble operation and will cause the in-
ner cable to rust. Replace a
damaged cable as soon as possible
to prevent unsafe conditions.
[EWA10721]
1. Drive belt
2. Marks
3. Drive belt slack
1. Belt tension gauge
Drive belt slack:
7.5–13.0 mm (0.30–0.51 in)
Recommended lubricant:
Engine oil
U5C4E3E0.book Page 18 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU23111

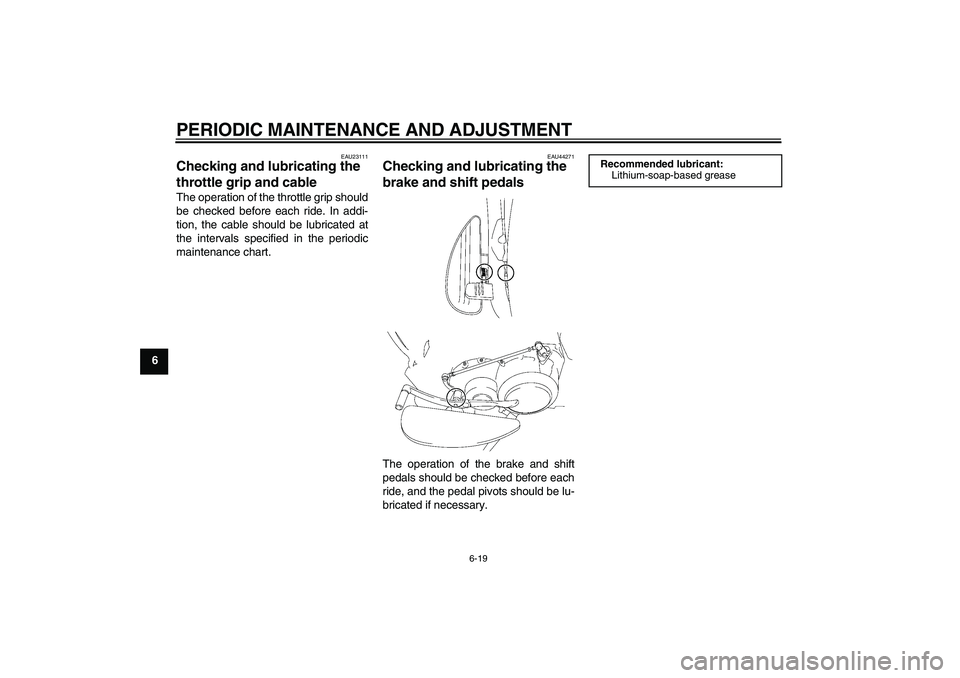

Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
EAU44271
Checking and lubricating the
brake and shift pedals The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Recommended lubricant:
Lithium-soap-based grease
U5C4E3E0.book Page 19 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
EAU43600

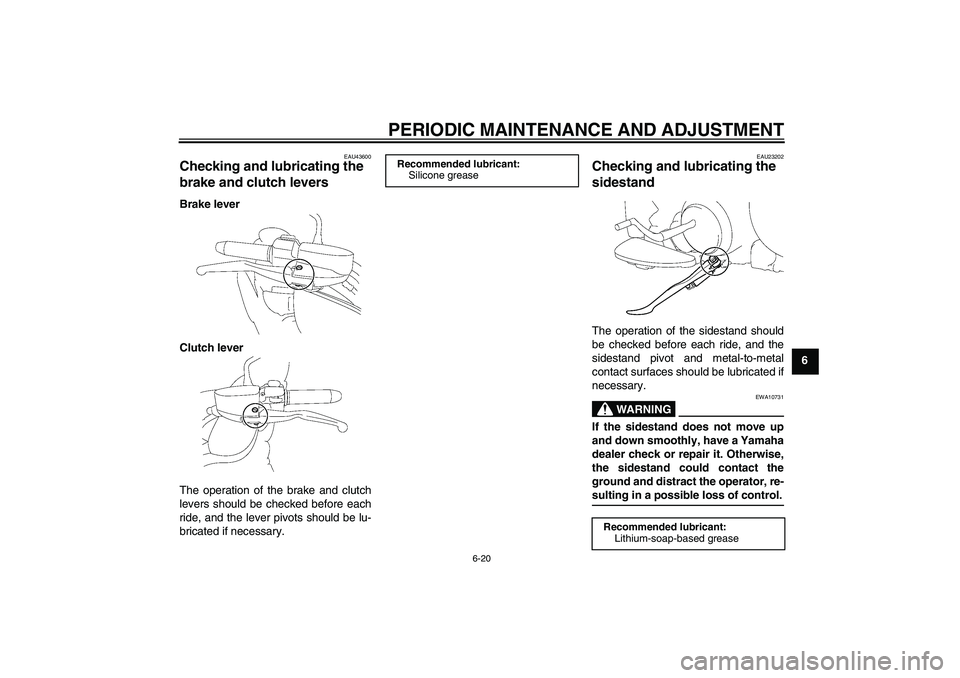

Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
EAU23202
Checking and lubricating the
sidestand The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated if
necessary.
WARNING
EWA10731
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-sulting in a possible loss of control.
Recommended lubricant:
Silicone grease
Recommended lubricant:
Lithium-soap-based grease
U5C4E3E0.book Page 20 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
EAU23250

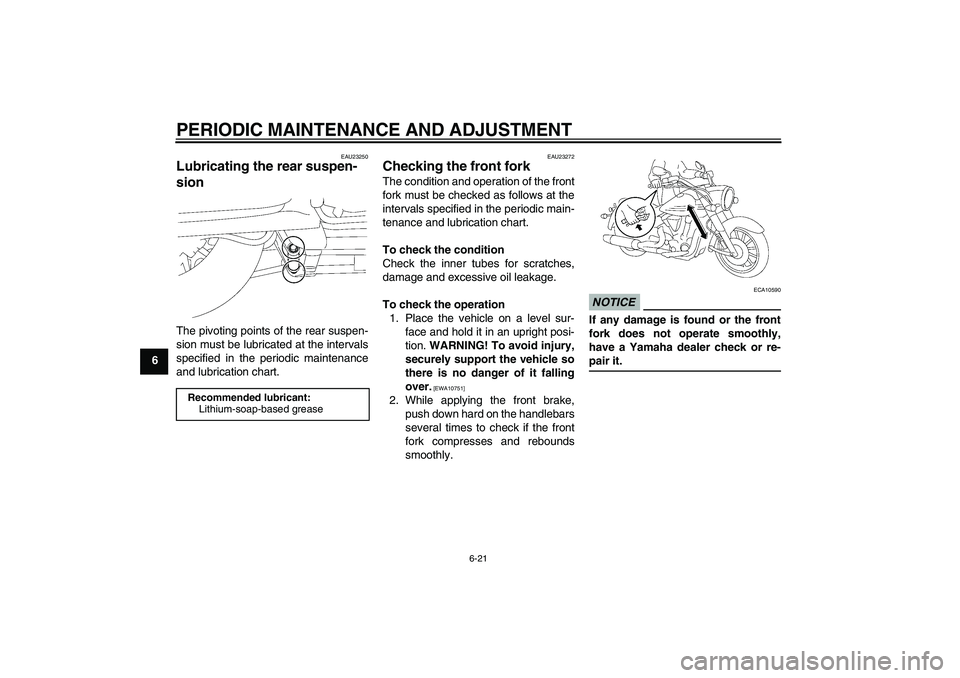

Lubricating the rear suspen-
sion The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU23272
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion. WARNING! To avoid injury,
securely support the vehicle so
there is no danger of it falling
over.
[EWA10751]
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
NOTICE
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
Recommended lubricant:
Lithium-soap-based grease
U5C4E3E0.book Page 21 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
EAU23283
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 6-29 for more
information.) WARNING! To
avoid injury, securely support
the vehicle so there is no danger
of it falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU33654
Battery This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWA10760


Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
1. Negative battery lead (black)
2. Positive battery lead (red)
3. Battery
U5C4E3E0.book Page 22 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-23

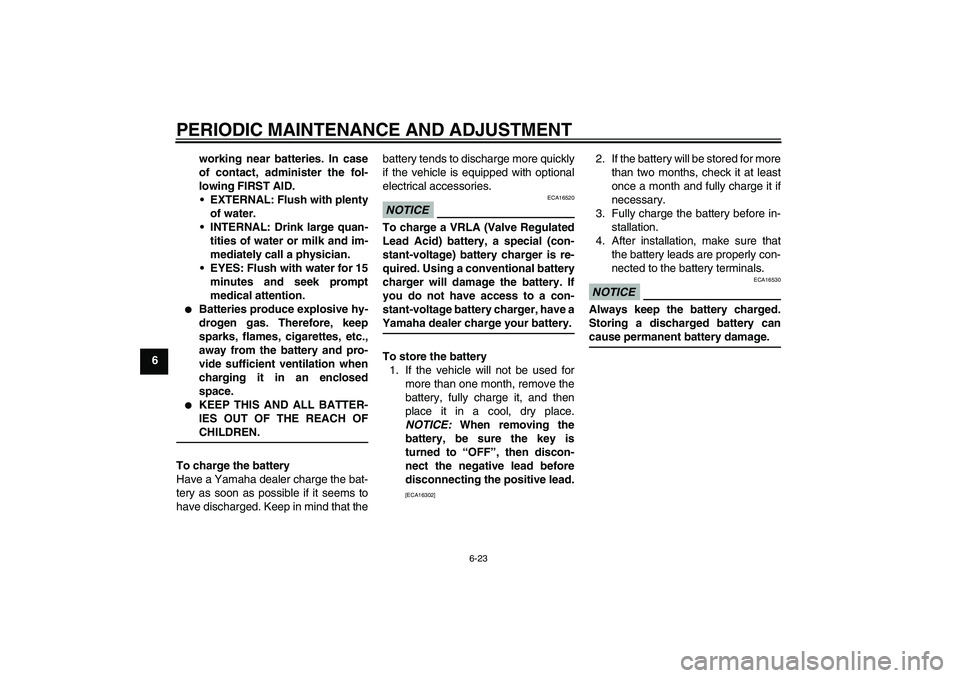

6working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.


Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.


KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that thebattery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
NOTICE
ECA16520
To charge a VRLA (Valve Regulated
Lead Acid) battery, a special (con-
stant-voltage) battery charger is re-
quired. Using a conventional battery
charger will damage the battery. If
you do not have access to a con-
stant-voltage battery charger, have aYamaha dealer charge your battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
NOTICE: When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive lead.
[ECA16302]
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16530
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
U5C4E3E0.book Page 23 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-24
6
EAU38373
Replacing the fuses The main fuse, the fuel injection system
fuse, and the fuse box, which contains
the fuses for the individual circuits, are
located under the rider seat. (See page
3-16.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended toavoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
1. Fuse box
2. Auxiliary DC connector fuse
3. Signaling system fuse
4. Ignition fuse
5. Backup fuse (for odometer, clock and immo-
bilizer system)
6. ECU (Electronic Control Unit) fuse
7. Headlight fuse
8. Parking lighting fuse
9. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
25.0 A
Fuel injection system fuse:
15.0 A
ECU (Electronic Control Unit) fuse:
10.0 A
Auxiliary DC connector fuse:
3.0 A
Parking lighting fuse:
10.0 A
Backup fuse:
10.0 A
U5C4E3E0.book Page 24 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-25
6
EAU38454

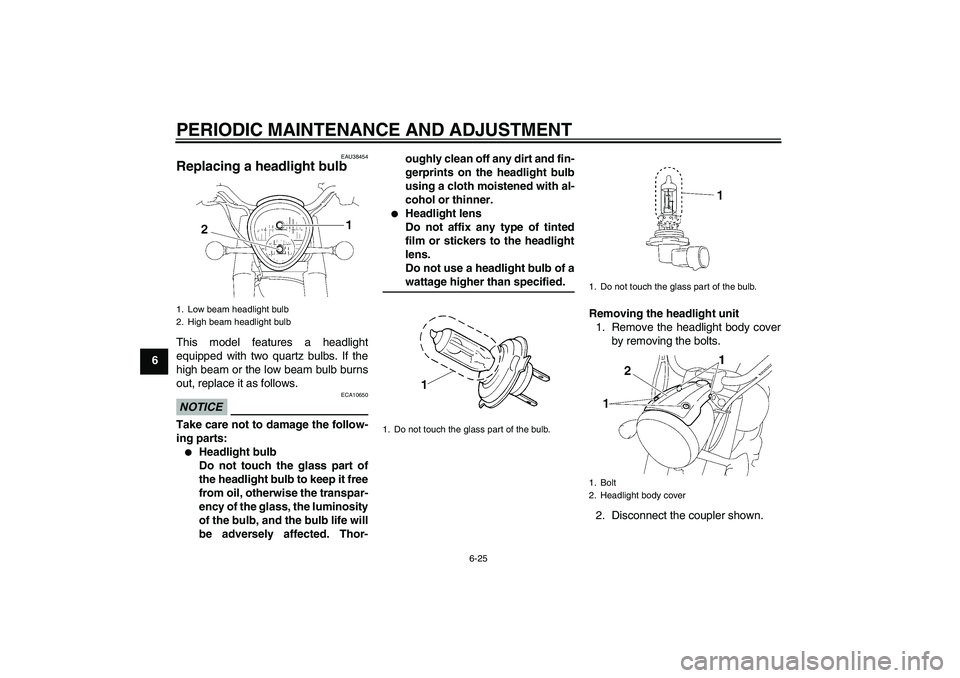

Replacing a headlight bulb This model features a headlight
equipped with two quartz bulbs. If the
high beam or the low beam bulb burns
out, replace it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:

Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.


Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
Removing the headlight unit
1. Remove the headlight body cover
by removing the bolts.
2. Disconnect the coupler shown.
1. Low beam headlight bulb
2. High beam headlight bulb
1. Do not touch the glass part of the bulb.
1. Do not touch the glass part of the bulb.
1. Bolt
2. Headlight body cover
U5C4E3E0.book Page 25 Tuesday, September 16, 2008 10:25 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26

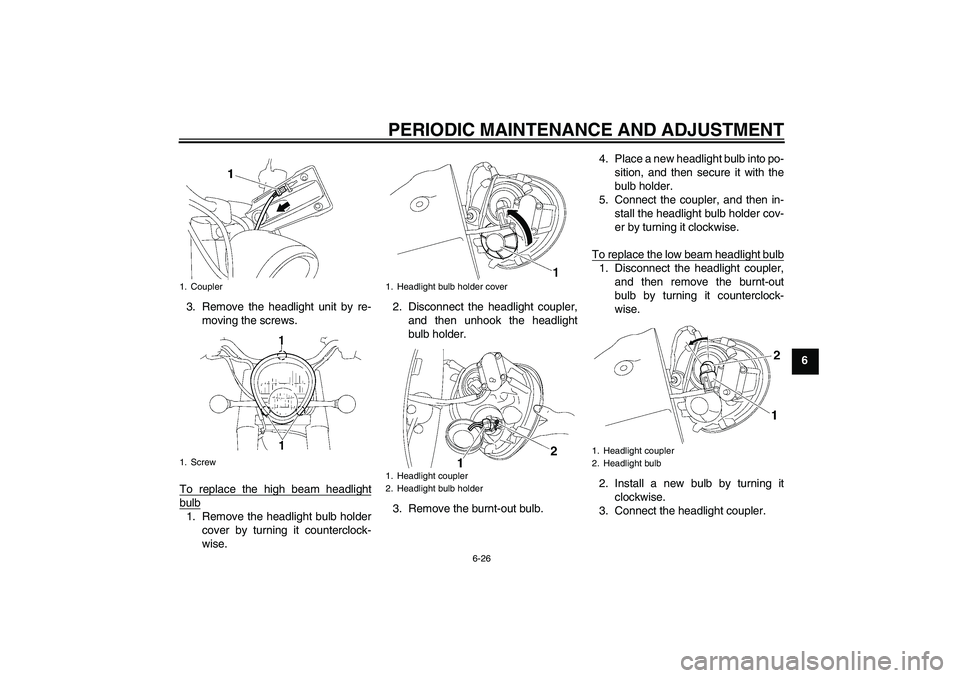

6 3. Remove the headlight unit by re-
moving the screws.
To replace the high beam headlight
bulb1. Remove the headlight bulb holder
cover by turning it counterclock-
wise.2. Disconnect the headlight coupler,
and then unhook the headlight
bulb holder.
3. Remove the burnt-out bulb.4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Connect the coupler, and then in-
stall the headlight bulb holder cov-
er by turning it clockwise.
To replace the low beam headlight bulb
1. Disconnect the headlight coupler,
and then remove the burnt-out
bulb by turning it counterclock-
wise.
2. Install a new bulb by turning it
clockwise.
3. Connect the headlight coupler.
1. Coupler
1. Screw
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
1. Headlight coupler
2. Headlight bulb
U5C4E3E0.book Page 26 Tuesday, September 16, 2008 10:25 AM

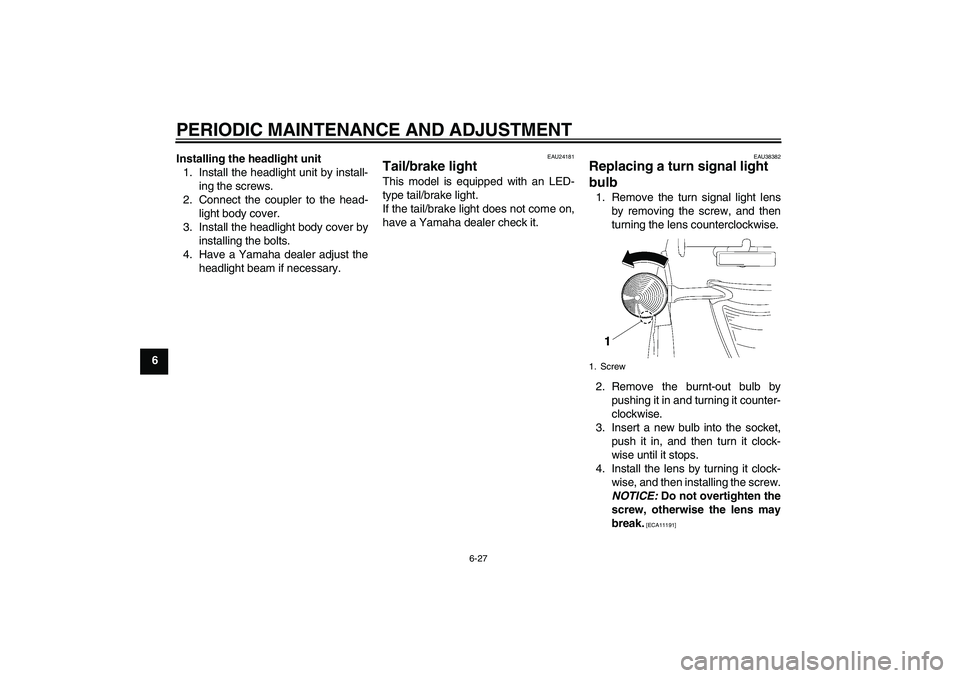

PERIODIC MAINTENANCE AND ADJUSTMENT
6-27
6Installing the headlight unit
1. Install the headlight unit by install-
ing the screws.
2. Connect the coupler to the head-
light body cover.
3. Install the headlight body cover by
installing the bolts.
4. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24181
Tail/brake light This model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
EAU38382
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw, and then
turning the lens counterclockwise.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by turning it clock-
wise, and then installing the screw.
NOTICE: Do not overtighten the
screw, otherwise the lens may
break.
[ECA11191]
1. Screw
U5C4E3E0.book Page 27 Tuesday, September 16, 2008 10:25 AM
