INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00185
CAUTION:@ Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts. @
EAU00191
NOTE:@ If knocking (or pinging) occurs, use
gasoline of a different brand or with a
higher octane grade. @
EAU02976

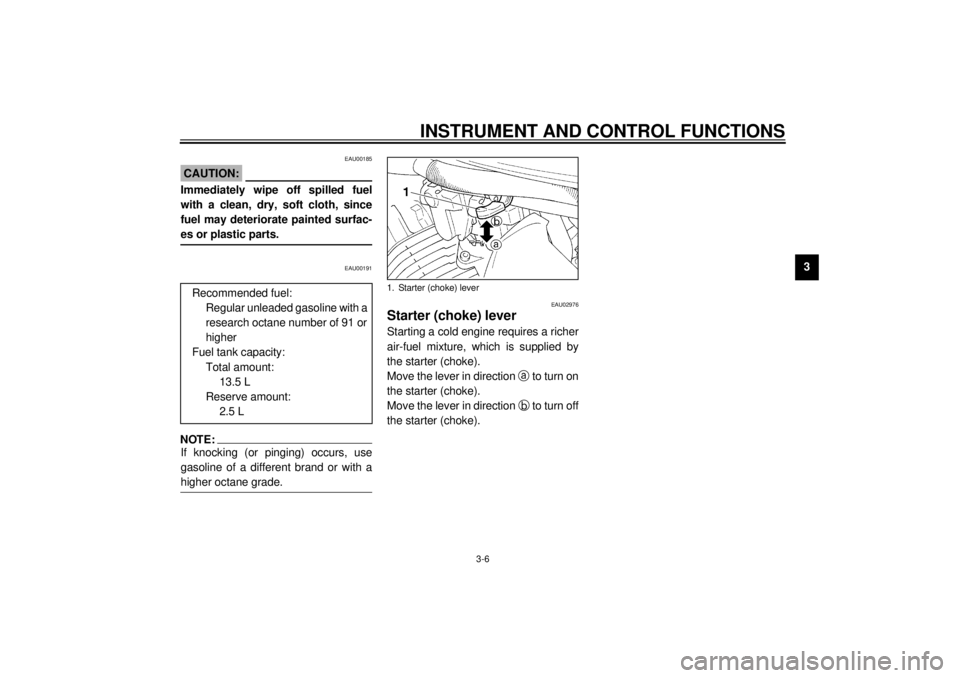

Starter (choke) leverStarting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction
a to turn on
the starter (choke).
Move the lever in direction
b to turn off
the starter (choke). Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher
Fuel tank capacity:
Total amount:
13.5 L
Reserve amount:
2.5 L1. Starter (choke) lever
E_3bt.book Page 6 Thursday, September 7, 2000 10:01 AM
Page 22 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU02934
Steering lock To lock the steering
1. Turn the handlebar all the way to
right.
2. Open the steering lock cover, and
then insert the key.
3. Turn the key 1/8 turn counter-
clockwise, push it in while turning
the handlebar slightly to the left,
and then turn the key 1/8 turn
clockwise.
4. Check that the steering is locked,
remove the key, and then close
the lock cover.To unlock the steering
1. Open the steering lock cover, and
then insert the key.
2. Push the key in, turn it 1/8 turn
counterclockwise so that it moves
out, and then release it.
3. Remove the key, and then close
the lock cover.
EAU02940
Seats Passenger seat
To remove the passenger seat1. Insert the key into the seat lock,
and then turn it clockwise.
2. Pull the passenger seat off.
1. Steering lock
1. Seat lock
2. Unlock.
E_3bt.book Page 7 Thursday, September 7, 2000 10:01 AM
Page 23 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
To install the passenger seat
1. Insert the projection on the rear of
the passenger seat into the seat
holder as shown, and then push
the front of the seat down to lock it
in place.
2. Turn the key counterclockwise,
and then remove it.Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolts, and then pull
the rider seat off.To install the rider seat
1. Insert the projections on the front
of the rider seat into the seat hold-
ers as shown, place the seat in the
original position, and then tighten
the bolts.
2. Install the passenger seat.NOTE:@ Make sure that the seats are properly
secured before riding. @
1. Projection
2. Seat holder
1. Bolt (´ 2)
1. Seat holder (´ 2)
2. Projection (´ 2)
E_3bt.book Page 8 Thursday, September 7, 2000 10:01 AM
Page 24 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00260
Helmet holderTo open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in
the original position, and then remove
the key.
EW000030
WARNING
@ Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident. @
EAU00300
Adjusting the shock absorber
assemblies Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.
EC000015
CAUTION:@ Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings. @
EW000040
WARNING
@ Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result. @
Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction
a. To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring on each shock absorber as-
sembly in direction
b.NOTE:@ Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber. @CI-01E
1. Unlock.
1. Spring preload adjusting ring
2. Position indicator
Minimum
(soft)Standard Maximum (hard)
Setting1 2 345
E_3bt.book Page 9 Thursday, September 7, 2000 10:01 AM
Page 25 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU00330
SidestandThe sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
motorcycle upright.NOTE:@ The built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation of
the ignition circuit cut-off system.) @
EW000044
WARNING
@ The motorcycle must not be ridden
with the sidestand down, or if the
sidestand cannot be properly
moved up (or does not stay up), oth-
erwise the sidestand could contact
the ground and distract the opera-
tor, resulting in a possible loss of
control. Yamaha’s ignition circuit
cut-off system has been designed to
assist the operator in fulfilling the
responsibility of raising the side-
stand before starting off. Therefore,
check this system regularly as de-
scribed below and have a Yamaha
dealer repair it if it does not function
properly. @
EAU03720
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.l
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
l
It prevents starting when the trans-
mission is in gear and the clutch
lever is pulled, but the sidestand is
still down.
l
It cuts the running engine when
the transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
EW000045
WARNING
_ If a malfunction is noted, have a
Yamaha dealer check the system
before riding. _
E_3bt.book Page 10 Thursday, September 7, 2000 10:01 AM
Page 26 of 96
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
CD-01E
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “ ”.
3. Turn the key to “ON”.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
NO
NOTE:This check is most reliable if performed with
a warmed-up engine.
YESYES NO
The system is OK.
The motorcycle can be ridden.
YES NO
E_3bt.book Page 11 Thursday, September 7, 2000 10:01 AM
Page 27 of 96
PRE-OPERATION CHECKS
4
Pre-operation check list ...................................................................... 4-1
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 28 of 96
4-1
4
EAU01114
4-PRE-OPERATION CHECKSThe condition of a vehicle is the owner’s responsibility. Vital components can start to deteriorate quickly and unexpectedly,
even if the vehicle remains unused (for example, as a result of exposure to the elements). Any damage, fluid leakage or loss
of tire air pressure could have serious consequences. Therefore, it is very important, in addition to a thorough visual inspec-
tion, to check the following points before each ride.
EAU03439
Pre-operation check list
CO-01E
ITEM CHECKS PAGE
Fuel• Check fuel level in fuel tank.
• Refuel if necessary.
• Check fuel line for leakage.3-5–3-6
Engine oil• Check oil level in engine.
• If necessary, add recommended oil to specified level.
• Check vehicle for oil leakage.6-7
Final gear oil• Check vehicle for oil leakage. 6-9–6-10
Front brake• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check lever free play.
• Adjust if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.6-19, 6-21–6-23
Rear brake• Check operation.
• Check pedal free play.
• Adjust if necessary.6-19–6-23
Clutch• Check operation.
• Lubricate cable if necessary.
• Check lever free play.
• Adjust if necessary.6-18
Throttle grip• Make sure that operation is smooth.
• Lubricate throttle grip, housing and cables if necessary.
• Check free play.
• If necessary, have Yamaha dealer make adjustment.6-14, 6-24
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 29 of 96
PRE-OPERATION CHECKS
4-2
4
NOTE:@ Pre-operation checks should be made each time the motorcycle is used. Such an inspection can be accomplished in a very
short time; and the added safety it assures is more than worth the time involved. @
EWA00033
WARNING
@ If any item in the Pre-operation check list is not working properly, have it inspected and repaired before operating
the motorcycle. @Control cables• Make sure that operation is smooth.
• Lubricate if necessary.6-24
Wheels and tires• Check for damage.
• Check tire condition and tread depth.
• Check air pressure.
• Correct if necessary.6-15–6-17
Brake and shift pedals• Make sure that operation is smooth.
• Lubricate pedal pivoting points if necessary.6-25
Brake and clutch levers• Make sure that operation is smooth.
• Lubricate lever pivoting points if necessary.6-25
Sidestand• Make sure that operation is smooth.
• Lubricate pivot if necessary.6-25–6-26
Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.
• Tighten if necessary.—
Instruments, lights, signals
and switches• Check operation.
• Correct if necessary.—
Sidestand switch• Check operation of ignition circuit cut-off system.
• If system is defective, have Yamaha dealer check vehicle.3-10
Battery• Check fluid level.
• Fill with distilled water if necessary.6-29–6-30 ITEM CHECKS PAGE
E_3bt.book Page 2 Thursday, September 7, 2000 10:01 AM
Page 30 of 96
E_3bt.book Page 3 Thursday, September 7, 2000 10:01 AM
