OPERATION AND IMPORTANT RIDING POINTS
5
Starting a cold engine ....................................................................... 5-1
Starting a warm engine ...................................................................... 5-2
Shifting .............................................................................................. 5-3
Recommended shift points (for Switzerland only) .............................. 5-3
Tips for reducing fuel consumption .................................................... 5-4
Engine break-in ................................................................................. 5-4
Parking ............................................................................................... 5-5
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 32 of 96
5-1
5
EAU00372
5-OPERATION AND IMPORTANT RIDING POINTS
EAU00373
WARNING
@ l
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.
l
Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
l
Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible loss
of control.
@
EAU02997*
Starting a cold engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:l
The transmission is in the neutral
position.
l
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EW000054
WARNING
@ l
Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-11.
l
Never ride with the sidestand
down.
@
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to “ ”.
2. Shift the transmission into the neu-
tral position.NOTE:@ When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit. @3. Turn the starter (choke) on and
completely close the throttle. (See
page 3-6 for starter (choke) opera-
tion.)
4. Start the engine by pushing the
start switch.NOTE:@ If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any one
attempt. @
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 33 of 96
OPERATION AND IMPORTANT RIDING POINTS
5-2
5 5. After starting the engine, move the
starter (choke) lever back halfway.
ECA00045
CAUTION:@ For maximum engine life, never ac-
celerate hard when the engine is
cold! @6. When the engine is warm, turn the
starter (choke) off.NOTE:@ The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off. @
EAU01258
Starting a warm engineFollow the same procedure as for start-
ing a cold engine with the exception
that the starter (choke) is not required
when the engine is warm.
E_3bt.book Page 2 Thursday, September 7, 2000 10:01 AM
Page 34 of 96
OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU00423
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the
illustration.NOTE:@ To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it. @
EC000048
CAUTION:@ l
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
l
Always use the clutch while
changing gears to avoid dam-
aging the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
@
EAU02941
Recommended shift points
(for Switzerland only)The recommended shift points during
acceleration are shown in the table
below.CF-01ENOTE:@ When shifting down two gears at a
time, reduce the speed accordingly
(e.g., down to 35 km/h when shifting
from 4th to 2nd gear). @
1. Shift pedal
N. Neutral position
Shift point
(km/h)
1st®2nd
2nd®3rd
3rd®4th
4th®5th23
36
50
60
E_3bt.book Page 3 Thursday, September 7, 2000 10:01 AM
Page 35 of 96
OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU00424
Tips for reducing fuel
consumptionFuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:l
Thoroughly warm up the engine.
l
Turn the starter (choke) off as
soon as possible.
l
Shift up swiftly, and avoid high en-
gine speeds during acceleration.
l
Do not rev the engine while shift-
ing down, and avoid high engine
speeds with no load on the engine.
l
Turn the engine off instead of let-
ting it idle for an extended length
of time (e.g., in traffic jams, at traf-
fic lights or at railroad crossings).
EAU00436
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1,000 km. For this rea-
son, you should read the following ma-
terial carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1,000 km. The various parts in the en-
gine wear and polish themselves to the
correct operating clearances. During
this period, prolonged full-throttle oper-
ation or any condition that might result
in engine overheating must be avoided.
EAU00444*
0–150 kml
Avoid prolonged operation above
1/3 throttle.
l
After every hour of operation, stop
the engine, and then let it cool for
five to ten minutes.
l
Vary the engine speed from time
to time. Do not operate the engine
at one set throttle position.
150–500 km
l
Avoid prolonged operation above
1/2 throttle.
l
Rev the engine freely through the
gears, but do not use full throttle at
any time.
500–1,000 km
Avoid prolonged operation above
3/4 throttle.
EC000056*
CAUTION:@ After 1,000 km of operation, the en-
gine oil and final gear oil must be
changed, and the oil filter element
replaced. @
E_3bt.book Page 4 Thursday, September 7, 2000 10:01 AM
Page 36 of 96
OPERATION AND IMPORTANT RIDING POINTS
5-5
51,000 km and beyond
Avoid prolonged full-throttle operation.
Vary the speed occasionally.
EC000049
CAUTION:@ If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle. @
EAU00460
ParkingWhen parking, stop the engine, and
then remove the key from the main
switch.
EW000058
WARNING
@ l
Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.
l
Do not park on a slope or on
soft ground, otherwise the
motorcycle may overturn.
@
E_3bt.book Page 5 Thursday, September 7, 2000 10:01 AM
Page 37 of 96

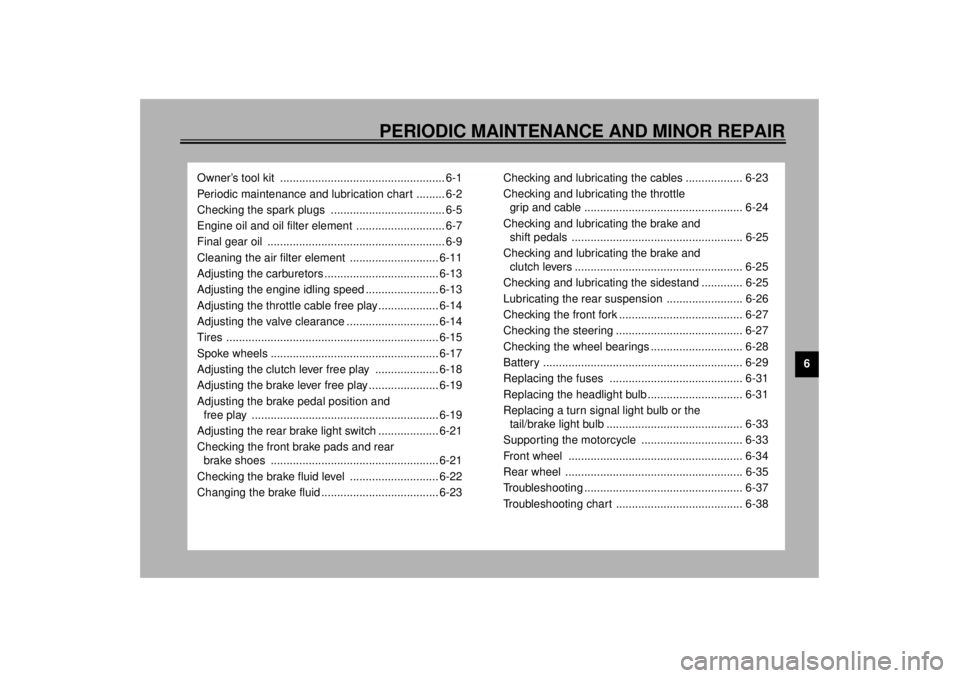

6
PERIODIC MAINTENANCE AND MINOR REPAIR
Owner’s tool kit .................................................... 6-1
Periodic maintenance and lubrication chart ......... 6-2
Checking the spark plugs .................................... 6-5
Engine oil and oil filter element ............................ 6-7
Final gear oil ........................................................ 6-9
Cleaning the air filter element ............................ 6-11
Adjusting the carburetors .................................... 6-13
Adjusting the engine idling speed ....................... 6-13
Adjusting the throttle cable free play ................... 6-14
Adjusting the valve clearance ............................. 6-14
Tires ................................................................... 6-15
Spoke wheels ..................................................... 6-17
Adjusting the clutch lever free play .................... 6-18
Adjusting the brake lever free play ...................... 6-19
Adjusting the brake pedal position and
free play ........................................................... 6-19
Adjusting the rear brake light switch ................... 6-21
Checking the front brake pads and rear
brake shoes ..................................................... 6-21
Checking the brake fluid level ............................ 6-22
Changing the brake fluid ..................................... 6-23Checking and lubricating the cables .................. 6-23
Checking and lubricating the throttle
grip and cable .................................................. 6-24
Checking and lubricating the brake and
shift pedals ...................................................... 6-25
Checking and lubricating the brake and
clutch levers ..................................................... 6-25
Checking and lubricating the sidestand ............. 6-25
Lubricating the rear suspension ........................ 6-26
Checking the front fork ....................................... 6-27
Checking the steering ........................................ 6-27
Checking the wheel bearings ............................. 6-28
Battery ............................................................... 6-29
Replacing the fuses .......................................... 6-31
Replacing the headlight bulb .............................. 6-31
Replacing a turn signal light bulb or the
tail/brake light bulb ........................................... 6-33
Supporting the motorcycle ................................ 6-33
Front wheel ....................................................... 6-34
Rear wheel ........................................................ 6-35
Troubleshooting .................................................. 6-37
Troubleshooting chart ........................................ 6-38
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 38 of 96
6-1
6
EAU00462
6-PERIODIC MAINTENANCE AND MINOR REPAIR
EAU00464
Safety is an obligation of the owner.
Periodic inspection, adjustment and lu-
brication will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
EW000060
WARNING
@ If you are not familiar with motor-
cycle maintenance work, have a
Yamaha dealer do it for you. @
EAU03713
Owner’s tool kit The tool kit is located under the pas-
senger seat. (See page 3-7 for passen-
ger seat removal procedures.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
NOTE:_ If you do not have the tools or experi-
ence required for a particular job, have
a Yamaha dealer perform it for you. _
EW000063
WARNING
_ Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-
es. _
1. Owner’s tool kit
E_3bt.book Page 1 Thursday, September 7, 2000 10:01 AM
Page 39 of 96
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU03685
Periodic maintenance and lubrication chart
NOTE:_ l
The annual checks must be performed every year, except if a kilometer-based maintenance is performed instead.
l
From 50,000 km, repeat the maintenance intervals starting from 10,000 km.
l
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and techni-
cal skills.
_CP-03ENO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
1
*Fuel line• Check fuel hoses and vacuum hose for cracks or damage.ÖÖÖÖ Ö
2*Fuel filter• Check condition.ÖÖ
3 Spark plugs• Check condition.
• Clean and regap.ÖÖ
• Replace.ÖÖ
4*Valves• Check valve clearance.
•Adjust.ÖÖÖÖ
5 Air filter element•Clean.ÖÖ
• Replace.ÖÖ
6*Battery• Check electrolyte level and specific gravity.
• Make sure that the breather hose is properly routed.ÖÖÖÖ Ö
7Clutch• Check operation.
•Adjust.ÖÖÖÖÖ
8*Front brake• Check operation, fluid level and vehicle for fluid leakage.
(See NOTE on page 6-4.)ÖÖÖÖÖ Ö
• Replace brake pads. Whenever worn to the limit
9*Rear brake• Check operation and adjust brake pedal freeplay.ÖÖÖÖÖ Ö
• Replace brake shoes. Whenever worn to the limit
E_3bt.book Page 2 Thursday, September 7, 2000 10:01 AM
Page 40 of 96
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10
*Brake hose• Check for cracks or damage.ÖÖÖÖ Ö
• Replace. (See NOTE on page 6-4.) Every 4 years
11*Wheels• Check runout, spoke tightness and for damage.
• Tighten spokes if necessary.ÖÖÖÖ
12*Tires• Check tread depth and for damage.
• Replace if necessary.
• Check air pressure.
• Correct if necessary.ÖÖÖÖ
13*Wheel bearings• Check bearing for looseness or damage.ÖÖÖÖ
14*Swingarm• Check operation and for excessive play.ÖÖÖÖ
• Lubricate with molybdenum disulfide grease. Every 50,000 km
15*Steering bearings• Check bearing play and steering for roughness.ÖÖÖÖÖ
• Lubricate with lithium-soap-based grease. Every 20,000 km
16*Chassis fasteners• Make sure that all nuts, bolts and screws are properly tightened.ÖÖÖÖ Ö
17 Sidestand• Check operation.
• Lubricate.ÖÖÖÖ Ö
18*Sidestand switch• Check operation.ÖÖÖÖÖ Ö
19*Front fork• Check operation and for oil leakage.ÖÖÖÖ
20*Rear shock absorber
assemblies• Check operation and shock absorbers for oil leakage.ÖÖÖÖ
21*Carburetors• Check starter (choke) operation.
• Adjust engine idling speed and synchronization.ÖÖÖÖÖ Ö
22 Engine oil• Change.ÖÖÖÖÖ Ö
23 Engine oil filter element•Replace.ÖÖÖ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
E_3bt.book Page 3 Thursday, September 7, 2000 10:01 AM
