PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU03541
NOTE:@l
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
l
Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
@24 Final gear oil• Check oil level and vehicle for oil leakage.ÖÖ Ö
• Change.ÖÖÖ
25
*Front and rear brake
switches• Check operation.ÖÖÖÖÖ Ö
26 Moving parts and cables• Lubricate.ÖÖÖÖ Ö
27*Lights, signals and
switches• Check operation.
• Adjust headlight beam.ÖÖÖÖÖ Ö NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (´1,000 km)
ANNUAL
CHECK
1 10203040
E_3bt.book Page 4 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU01486
Checking the spark plugs The spark plugs are important engine
components, which are easy to check.
Since heat and deposits will cause any
spark plug to slowly erode, the spark
plugs should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
To remove a spark plug
1. Remove the appropriate spark
plug cover (rear right or front left)
by removing the screws.
2. Remove the spark plug cap.3. Remove the spark plug as shown,
with the spark plug wrench includ-
ed in the owner’s tool kit.To check the spark plugs
1. Check that the porcelain insulator
around the center electrode on
each spark plug is a medium-to-
light tan (the ideal color when the
motorcycle is ridden normally).
2. Check that all spark plugs installed
in the engine have the same color.
NOTE:@ If any spark plug shows a distinctly dif-
ferent color, the engine could be defec-
tive. Do not attempt to diagnose such
problems yourself. Instead, have a
Yamaha dealer check the motorcycle. @3. Check each spark plug for elec-
trode erosion and excessive car-
bon or other deposits, and replace
it if necessary.
1. Spark plug cover
2. Screw (´ 2)
1. Spark plug wrench
Specified spark plug:
BPR6ES (NGK) or
W20EPR-U (DENSO)
E_3bt.book Page 5 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6 To install a spark plug
1. Measure the spark plug gap with a
wire thickness gauge and, if nec-
essary, adjust the gap to specifica-
tion.
2. Clean the surface of the spark
plug gasket and its mating sur-
face, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then tight-
en it to the specified torque.
NOTE:@ If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-
fied torque as soon as possible. @4. Install the spark plug cap.
5. Install the spark plug cover by in-
stalling the screws.
a. Spark plug gap
Spark plug gap:
0.7–0.8 mm
Tightening torque:
Spark plug:
20 Nm (2.0 m·kg)
E_3bt.book Page 6 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU02942
Engine oil and oil filter
element The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter ele-
ment replaced at the intervals specified
in the periodic maintenance and lubri-
cation chart.
To check the engine oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.NOTE:@ Make sure that the motorcycle is posi-
tioned straight up when checking the oil
level. A slight tilt to the side can result in
a false reading. @2. Start the engine, warm it up for
several minutes, and then turn it
off.3. Wait a few minutes until the oil set-
tles, and then check the oil level
through the check window located
at the bottom-left side of the crank-
case.
NOTE:@ The engine oil should be between the
minimum and maximum level marks. @4. If the engine oil is below the mini-
mum level mark, add sufficient oil
of the recommended type to raise
it to the correct level.To change the engine oil
(with or without oil filter element
replacement)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.1. Engine oil level check window
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
E_3bt.book Page 7 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6 3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:@ Skip steps 4–6 if the oil filter element is
not being replaced. @
4. Remove the oil filter element cover
by removing the bolts.5. Remove and replace the oil filter
element and O-ring.
6. Install the oil filter element cover
by installing the bolts and tighten-
ing them to the specified torque.
1. Engine oil drain bolt
1. Oil filter element cover
2. Bolt (´ 3)
1. O-ring
2. Oil filter elementTightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kg)
E_3bt.book Page 8 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6
NOTE:@ Make sure that the O-ring is properly
seated. @7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
8. Add the specified amount of the
recommended engine oil, and
then install and tighten the oil filler
cap.
EC000067
CAUTION:@ If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha deal-
er check the vehicle. @9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking,
immediately turn the engine off
and check for the cause.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU03714
Final gear oil The final gear case must be checked
for oil leakage before each ride. If any
leakage is found, have a Yamaha deal-
er check and repair the motorcycle. In
addition, the final gear oil level must be
checked and the oil changed as follows
at the intervals specified in the periodic
maintenance and lubrication chart.
EW000066
WARNING
_ l
Make sure that no foreign mate-
rial enters the final gear case.
l
Make sure that no oil gets on
the tire or wheel.
_
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kg)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter element
replacement:
2.6 L
With oil filter element
replacement:
2.8 L
Total amount (dry engine):
3.2 L
E_3bt.book Page 9 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6 To check the final gear oil level
1. Place the motorcycle on a level
surface and hold it in an upright
position.
NOTE:_ l
The final gear oil level must be
checked on a cold engine.
l
Make sure that the motorcycle is
positioned straight up when
checking the oil level. A slight tilt to
the side can result in a false
reading.

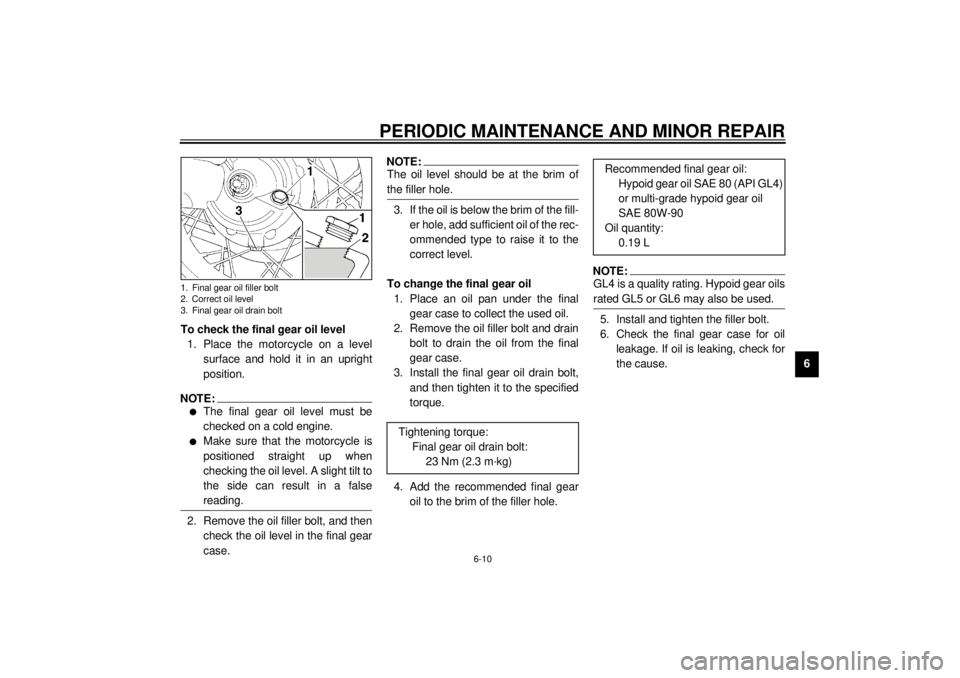

_2. Remove the oil filler bolt, and then
check the oil level in the final gear
case.
NOTE:_ The oil level should be at the brim of
the filler hole. _3. If the oil is below the brim of the fill-
er hole, add sufficient oil of the rec-
ommended type to raise it to the
correct level.
To change the final gear oil
1. Place an oil pan under the final
gear case to collect the used oil.
2. Remove the oil filler bolt and drain
bolt to drain the oil from the final
gear case.
3. Install the final gear oil drain bolt,
and then tighten it to the specified
torque.
4. Add the recommended final gear
oil to the brim of the filler hole.
NOTE:_ GL4 is a quality rating. Hypoid gear oils
rated GL5 or GL6 may also be used. _5. Install and tighten the filler bolt.
6. Check the final gear case for oil
leakage. If oil is leaking, check for
the cause.
1. Final gear oil filler bolt
2. Correct oil level
3. Final gear oil drain bolt
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kg)
Recommended final gear oil:
Hypoid gear oil SAE 80 (API GL4)
or multi-grade hypoid gear oil
SAE 80W-90
Oil quantity:
0.19 L
E_3bt.book Page 10 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
EAU03715
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the seats. (See page 3-7
for seat removal and installation
procedures.)

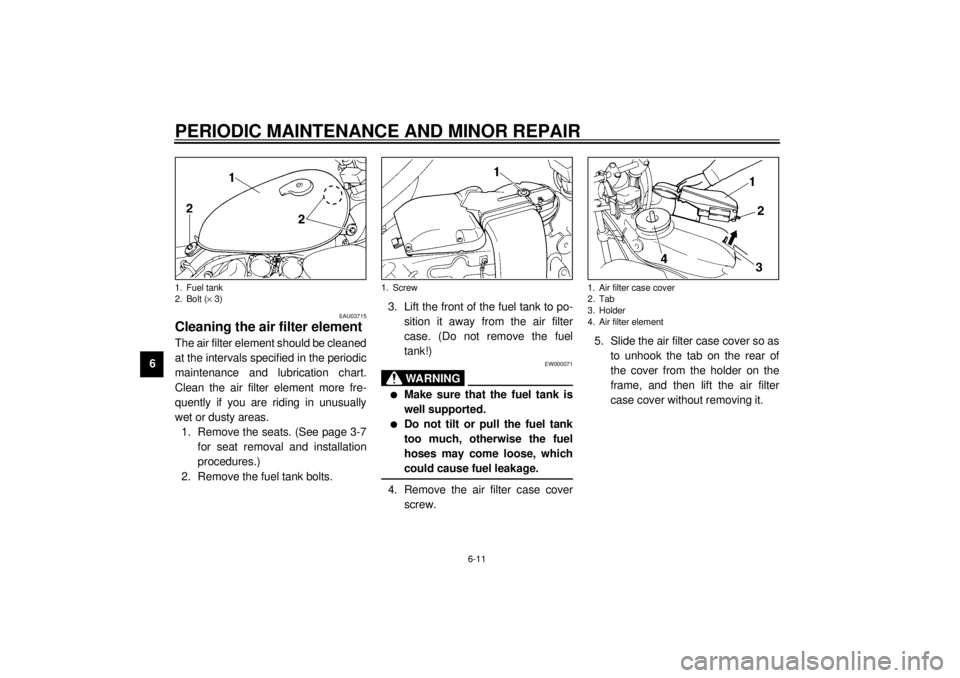

2. Remove the fuel tank bolts.3. Lift the front of the fuel tank to po-
sition it away from the air filter
case. (Do not remove the fuel
tank!)
EW000071
WARNING
_ l
Make sure that the fuel tank is
well supported.
l
Do not tilt or pull the fuel tank
too much, otherwise the fuel
hoses may come loose, which
could cause fuel leakage.
_4. Remove the air filter case cover
screw.5. Slide the air filter case cover so as
to unhook the tab on the rear of
the cover from the holder on the
frame, and then lift the air filter
case cover without removing it.
1. Fuel tank
2. Bolt (´ 3)
1. Screw
1. Air filter case cover
2. Tab
3. Holder
4. Air filter element
E_3bt.book Page 11 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-12

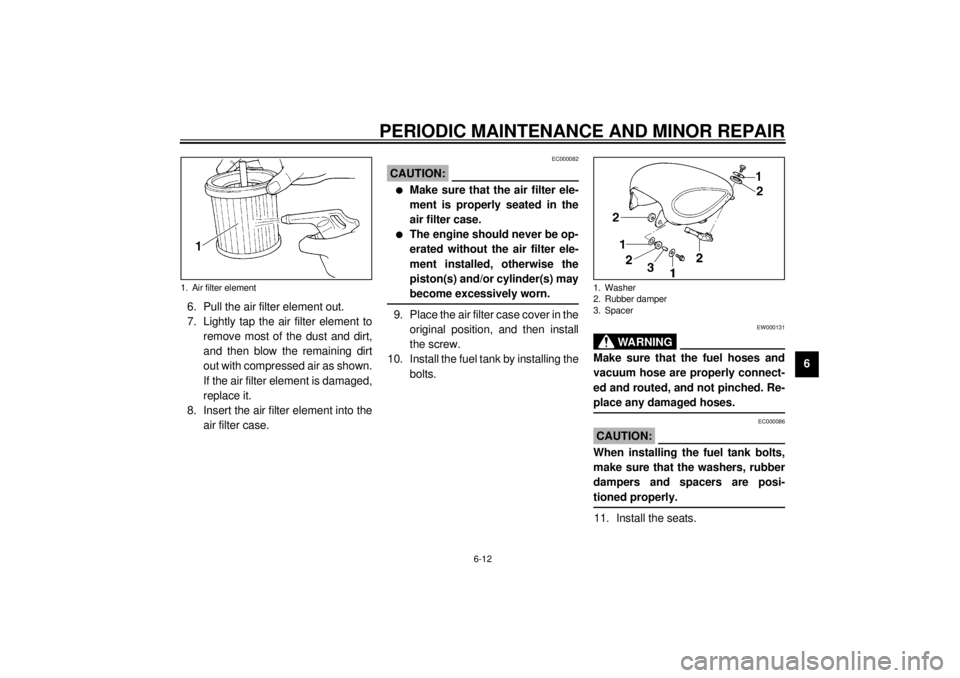

6 6. Pull the air filter element out.
7. Lightly tap the air filter element to
remove most of the dust and dirt,
and then blow the remaining dirt
out with compressed air as shown.
If the air filter element is damaged,
replace it.
8. Insert the air filter element into the
air filter case.
EC000082
CAUTION:_ l
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
l
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) may
become excessively worn.
_9. Place the air filter case cover in the
original position, and then install
the screw.
10. Install the fuel tank by installing the
bolts.
EW000131
WARNING
_ Make sure that the fuel hoses and
vacuum hose are properly connect-
ed and routed, and not pinched. Re-
place any damaged hoses. _
EC000086
CAUTION:_ When installing the fuel tank bolts,
make sure that the washers, rubber
dampers and spacers are posi-
tioned properly. _11. Install the seats.
1. Air filter element
1. Washer
2. Rubber damper
3. Spacer
E_3bt.book Page 12 Thursday, September 7, 2000 10:01 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
6
EAU00630

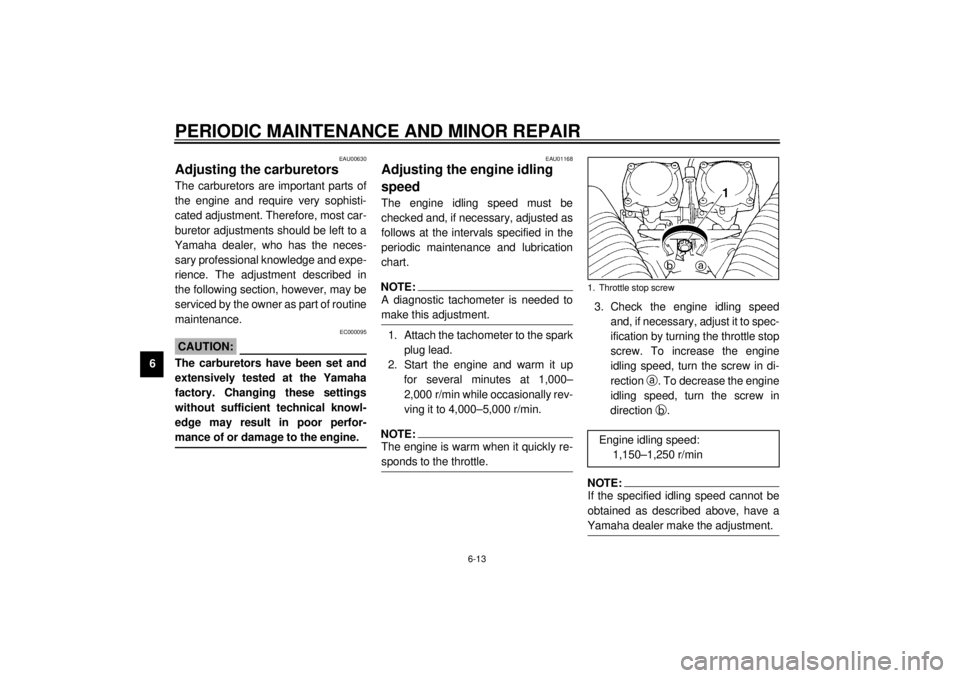

Adjusting the carburetorsThe carburetors are important parts of
the engine and require very sophisti-
cated adjustment. Therefore, most car-
buretor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience. The adjustment described in
the following section, however, may be
serviced by the owner as part of routine
maintenance.
EC000095
CAUTION:@ The carburetors have been set and
extensively tested at the Yamaha
factory. Changing these settings
without sufficient technical knowl-
edge may result in poor perfor-
mance of or damage to the engine. @
EAU01168
Adjusting the engine idling
speedThe engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.NOTE:@ A diagnostic tachometer is needed to
make this adjustment. @1. Attach the tachometer to the spark
plug lead.
2. Start the engine and warm it up
for several minutes at 1,000–
2,000 r/min while occasionally rev-
ving it to 4,000–5,000 r/min.NOTE:@ The engine is warm when it quickly re-
sponds to the throttle. @
3. Check the engine idling speed
and, if necessary, adjust it to spec-
ification by turning the throttle stop
screw. To increase the engine
idling speed, turn the screw in di-
rection
a. To decrease the engine
idling speed, turn the screw in
direction
b.NOTE:@ If the specified idling speed cannot be
obtained as described above, have a
Yamaha dealer make the adjustment. @1. Throttle stop screw
Engine idling speed:
1,150–1,250 r/min
E_3bt.book Page 13 Thursday, September 7, 2000 10:01 AM
