YAMAHA XVS1100A 2000 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU00109
Anti-theft alarm (optional) This motorcycle can be equipped with
an optional anti-theft alarm by a
Yamaha dealer. Contact a Yamaha
dealer for more information.
EAU00118
Handlebar switches
EAU00127
Turn signal switch
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When
released, the switch returns to the cen-
ter position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU00119
Pass switch “ ”
Press this switch to flash the headlight.
EAU00121
Dimmer switch
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU00129
Horn switch “ ”
Press this switch to sound the horn.
1. Turn signal switch
2. Pass switch“”
3. Dimmer switch
4. Horn switch “ ”
E_5KS.book Page 4 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU00138

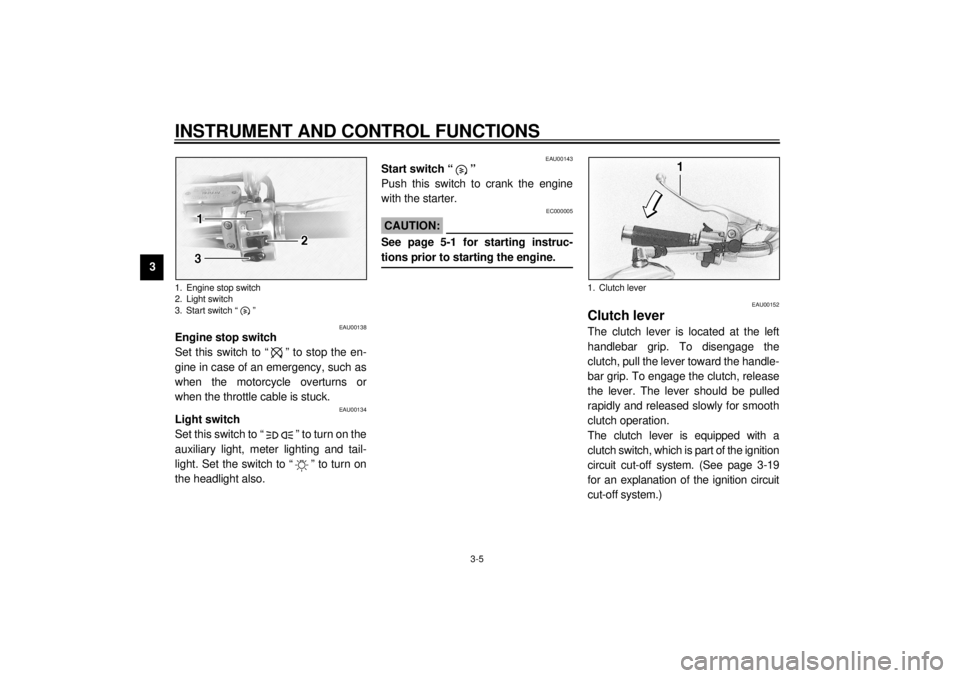

Engine stop switch
Set this switch to “ ” to stop the en-
gine in case of an emergency, such as
when the motorcycle overturns or
when the throttle cable is stuck.
EAU00134
Light switch
Set this switch to “ ” to turn on the
auxiliary light, meter lighting and tail-
light. Set the switch to “ ” to turn on
the headlight also.
EAU00143
Start switch “ ”
Push this switch to crank the engine
with the starter.
EC000005
CAUTION:@ See page 5-1 for starting instruc-
tions prior to starting the engine. @
EAU00152
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition
circuit cut-off system. (See page 3-19
for an explanation of the ignition circuit
cut-off system.)
1. Engine stop switch
2. Light switch
3. Start switch “ ”
1. Clutch lever
E_5KS.book Page 5 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU00157

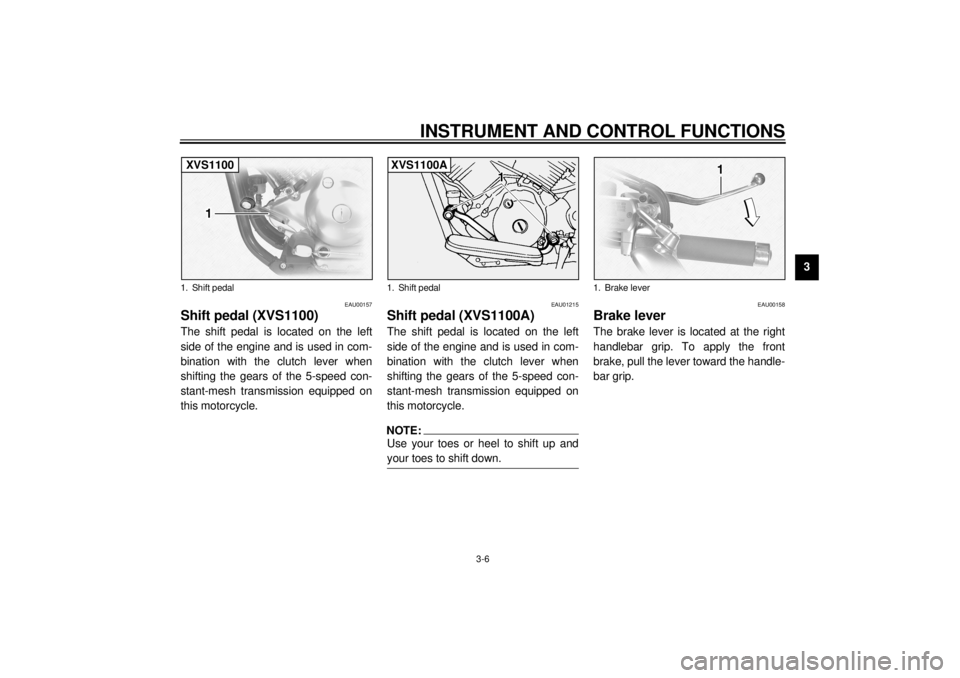

Shift pedal (XVS1100)The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU01215
Shift pedal (XVS1100A)The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.NOTE:Use your toes or heel to shift up and
your toes to shift down.
EAU00158
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Shift pedalXVS1100
1. Shift pedalXVS1100A
1. Brake lever
E_5KS.book Page 6 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU00162
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.1. Brake pedalXVS1100
1. Brake pedalXVS1100A
E_5KS.book Page 7 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU02917

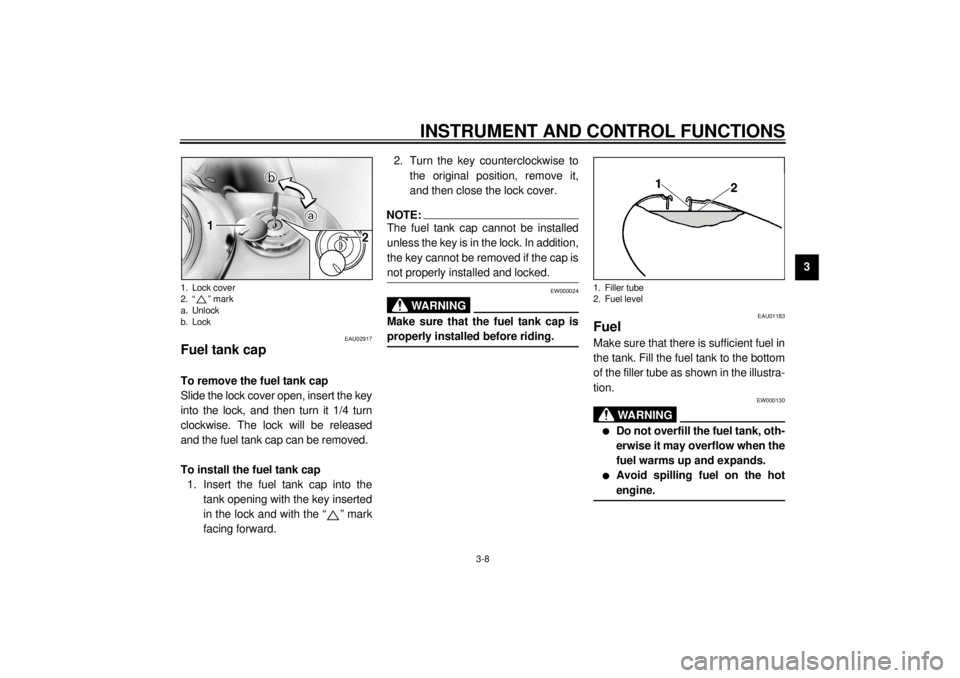

Fuel tank cap To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the “ ” mark
facing forward. 2. Turn the key counterclockwise to
the original position, remove it,
and then close the lock cover.
NOTE:@ The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked. @
EW000024
WARNING
@ Make sure that the fuel tank cap is
properly installed before riding. @
EAU01183
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown in the illustra-
tion.
EW000130
WARNING
@ l
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
l
Avoid spilling fuel on the hot
engine.
@
1. Lock cover
2. “ ” mark
a. Unlock
b. Lock
1. Filler tube
2. Fuel level
E_5KS.book Page 8 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU00185
CAUTION:@ Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-
es or plastic parts. @
EAU00191
NOTE:@ If knocking (or pinging) occurs, use
gasoline of a different brand or with a
higher octane grade. @
EAU02969
Fuel cock The fuel cock supplies fuel from the
tank to the carburetors while also filter-
ing it.
The fuel cock lever positions are ex-
plained as follows and shown in the il-
lustrations.
OFF
With the fuel cock lever in this position,
fuel will not flow. Always turn the fuel
cock lever to this position when the en-
gine is not running.ON
With the fuel cock lever in this position,
fuel flows to the carburetors. Turn the
fuel cock lever to this position when
starting the engine and riding. Recommended fuel:
Regular unleaded gasoline with a
research octane number of 91 or
higher
Fuel tank capacity:
Total amount:
17 L
Reserve amount:
4.5 L1. Pointed end positioned over “OFF”Off position
1. Pointed end positioned over “ON”Normal position
E_5KS.book Page 9 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3

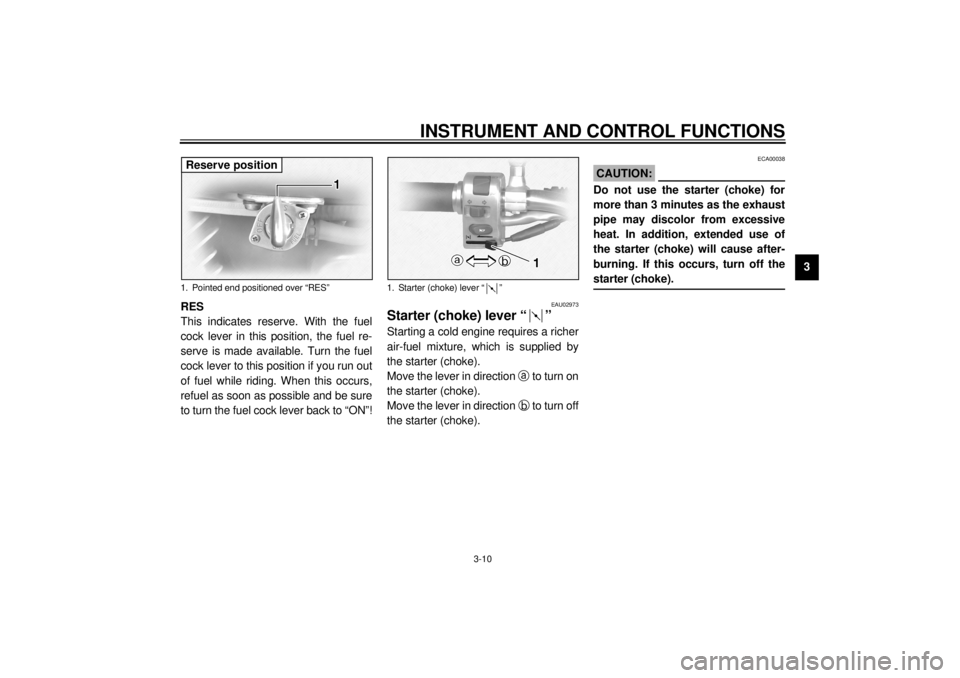

RES
This indicates reserve. With the fuel
cock lever in this position, the fuel re-
serve is made available. Turn the fuel
cock lever to this position if you run out
of fuel while riding. When this occurs,
refuel as soon as possible and be sure
to turn the fuel cock lever back to “ON”!
EAU02973
Starter (choke) lever “ ” Starting a cold engine requires a richer
air-fuel mixture, which is supplied by
the starter (choke).
Move the lever in direction
a to turn on
the starter (choke).
Move the lever in direction
b to turn off
the starter (choke).
ECA00038
CAUTION:@ Do not use the starter (choke) for
more than 3 minutes as the exhaust
pipe may discolor from excessive
heat. In addition, extended use of
the starter (choke) will cause after-
burning. If this occurs, turn off the
starter (choke). @
1. Pointed end positioned over “RES”Reserve position
1. Starter (choke) lever “ ”
E_5KS.book Page 10 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU01710

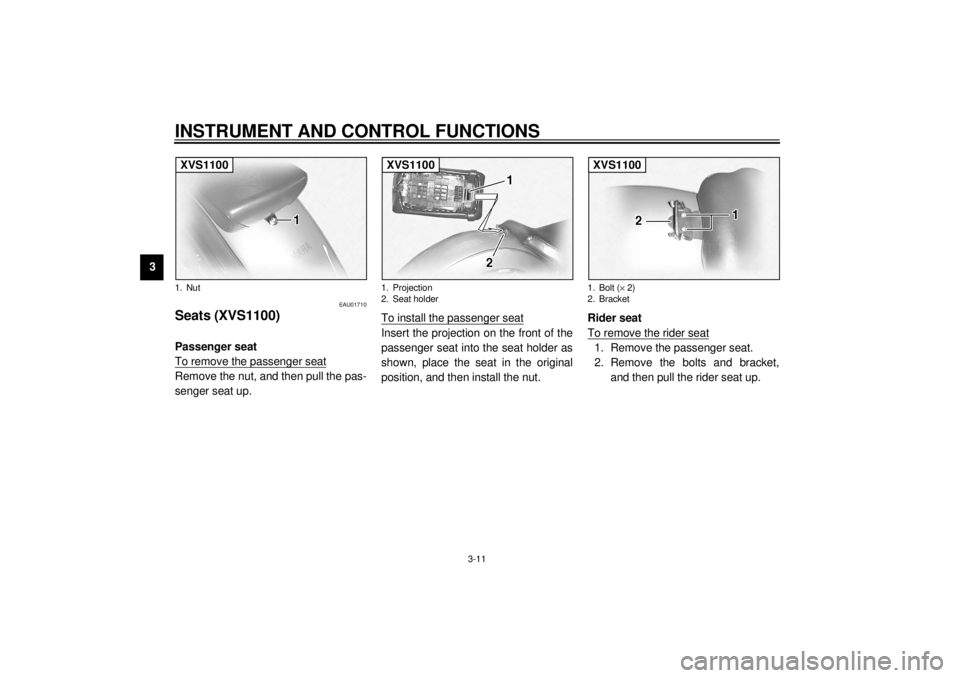

Seats (XVS1100) Passenger seat
To remove the passenger seatRemove the nut, and then pull the pas-
senger seat up.To install the passenger seat
Insert the projection on the front of the
passenger seat into the seat holder as
shown, place the seat in the original
position, and then install the nut.Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolts and bracket,
and then pull the rider seat up.
1. NutXVS1100
1. Projection
2. Seat holderXVS1100
1. Bolt (´ 2)
2. BracketXVS1100
E_5KS.book Page 11 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3

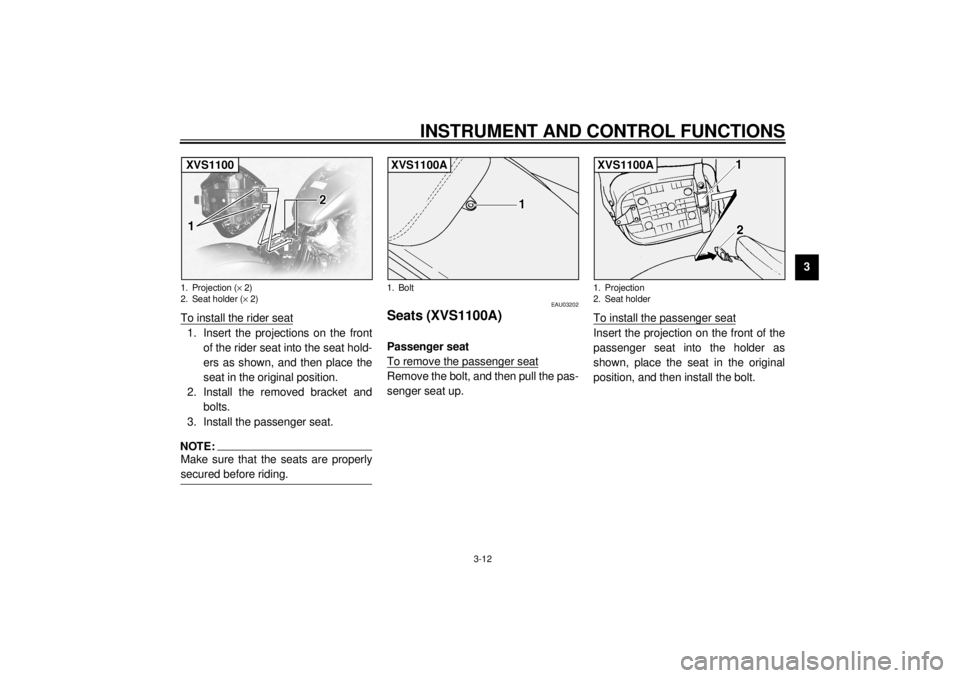

To install the rider seat
1. Insert the projections on the front
of the rider seat into the seat hold-
ers as shown, and then place the
seat in the original position.
2. Install the removed bracket and
bolts.
3. Install the passenger seat.NOTE:@ Make sure that the seats are properly
secured before riding. @
EAU03202
Seats (XVS1100A)Passenger seat
To remove the passenger seatRemove the bolt, and then pull the pas-
senger seat up.To install the passenger seat
Insert the projection on the front of the
passenger seat into the holder as
shown, place the seat in the original
position, and then install the bolt.
1. Projection (´ 2)
2. Seat holder (´ 2)XVS1100
1. BoltXVS1100A
1. Projection
2. Seat holderXVS1100A
E_5KS.book Page 12 Monday, August 21, 2000 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3

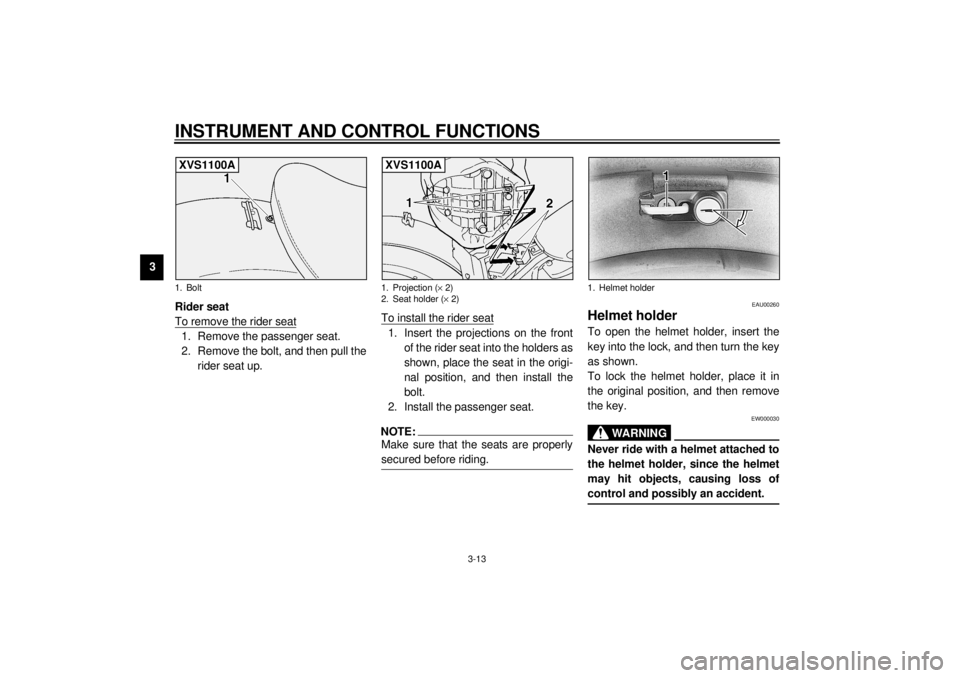

Rider seat
To remove the rider seat
1. Remove the passenger seat.
2. Remove the bolt, and then pull the
rider seat up.To install the rider seat
1. Insert the projections on the front
of the rider seat into the holders as
shown, place the seat in the origi-
nal position, and then install the
bolt.
2. Install the passenger seat.NOTE:@ Make sure that the seats are properly
secured before riding. @
EAU00260
Helmet holder To open the helmet holder, insert the
key into the lock, and then turn the key
as shown.
To lock the helmet holder, place it in
the original position, and then remove
the key.
EW000030
WARNING
@ Never ride with a helmet attached to
the helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an accident. @
1. BoltXVS1100A
1. Projection (´ 2)
2. Seat holder (´ 2)XVS1100A
1. Helmet holder
