fuse YAMAHA XVS250 2001 Owners Manual

TABLE OF CONTENTS
Adjusting the clutch lever free play ................. 6-19
Adjusting the brake lever free play .................. 6-20
Adjusting the brake pedal position and
free play ....................................................... 6-20
Adjusting the rear brake light switch ............... 6-22
Checking the front brake pads and
rear brake shoes ......................................... 6-22
Checking the brake fluid level ......................... 6-23
Changing the brake fluid ................................. 6-24
Drive chain slack ............................................. 6-24
Lubricating the drive chain .............................. 6-26
Checking and lubricating the cables ............... 6-27
Checking and lubricating the brake and
shift pedals .................................................. 6-27
Checking and lubricating the brake and
clutch levers ................................................ 6-28
Checking and lubricating the sidestand .......... 6-28
Checking the front fork .................................... 6-28
Checking the steering ..................................... 6-29
Checking the wheel bearings .......................... 6-30
Battery ............................................................. 6-30
Replacing the fuses ........................................ 6-32
Replacing the headlight bulb ........................... 6-33
Replacing the tail/brake light bulb ................... 6-35
Replacing a turn signal light bulb .................... 6-36
Supporting the motorcycle .............................. 6-36
Front wheel ..................................................... 6-37
Rear wheel ...................................................... 6-39Troubleshooting .............................................. 6-40
Troubleshooting chart ..................................... 6-41
MOTORCYCLE CARE AND STORAGE ............. 7-1
Care .................................................................. 7-1
Storage ............................................................. 7-4
SPECIFICATIONS ............................................... 8-1
Specifications .................................................... 8-1
Conversion table ............................................... 8-5
CONSUMER INFORMATION.............................. 9-1
Identification numbers ....................................... 9-1
Key identification number .................................. 9-1
Vehicle identification number ............................ 9-1
Model label ........................................................ 9-2
789
E_5kr.book Page 2 Tuesday, September 12, 2000 4:46 PM

2-1
2
EAU00026

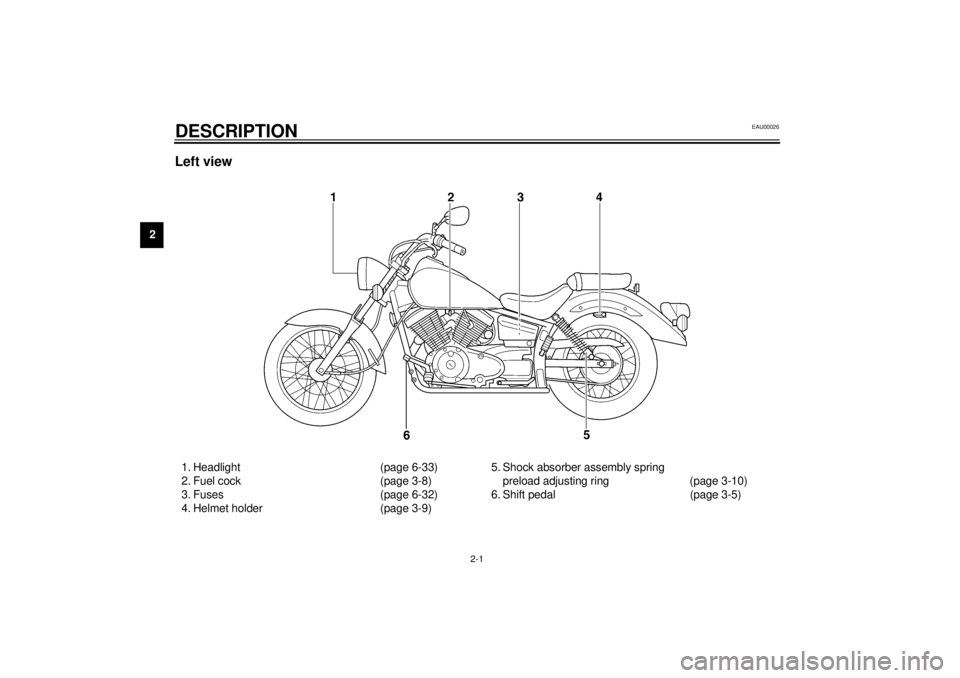

2-DESCRIPTION Left view1. Headlight (page 6-33)
2. Fuel cock (page 3-8)
3. Fuses (page 6-32)
4. Helmet holder (page 3-9)5. Shock absorber assembly spring
preload adjusting ring (page 3-10)
6. Shift pedal (page 3-5)
E_5kr.book Page 1 Tuesday, September 12, 2000 4:46 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6
EAU01749
Replacing the fuses The fuse boxes are located behind
panel B. (See page 6-6 for panel re-
moval and installation procedures.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
EC000103
CAUTION:_ Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire. _3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.

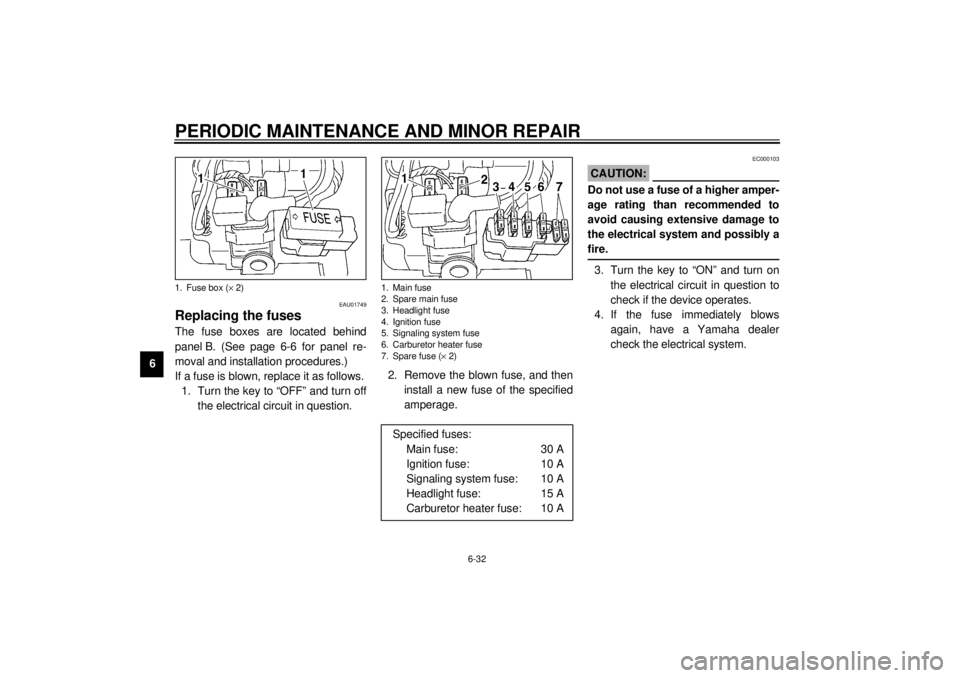

1. Fuse box (´ 2)
1. Main fuse
2. Spare main fuse
3. Headlight fuse
4. Ignition fuse
5. Signaling system fuse
6. Carburetor heater fuse
7. Spare fuse (´ 2)
Specified fuses:
Main fuse: 30 A
Ignition fuse: 10 A
Signaling system fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse: 10 A
E_5kr.book Page 32 Tuesday, September 12, 2000 4:46 PM

SPECIFICATIONS
8-4
8
Bulb voltage, wattage ´ quantity
Headlight 12 V, 60/55 W ´ 1
Tail/brake light 12 V, 5/21 W ´ 1
Turn signal light 12 V, 21 W ´ 4
Auxiliary light 12 V, 4 W ´ 1
Meter lighting 12 V, 1.7 W ´ 1
Neutral indicator light 12 V, 1.7 W ´ 1
High beam indicator light 12 V, 1.7 W ´ 1
Turn signal indicator light 12 V, 1.7 W ´ 1
Engine trouble warning light 12 V, 1.7 W ´ 1
Fuses
Main fuse 30 A
Headlight fuse 15 A
Signaling system fuse 10 A
Ignition fuse 10 A
Carburetor heater fuse 10 A
