YAMAHA YBR125 2010 Owner's Manual
Manufacturer: YAMAHA, Model Year: 2010, Model line: YBR125, Model: YAMAHA YBR125 2010Pages: 80, PDF Size: 2.54 MB

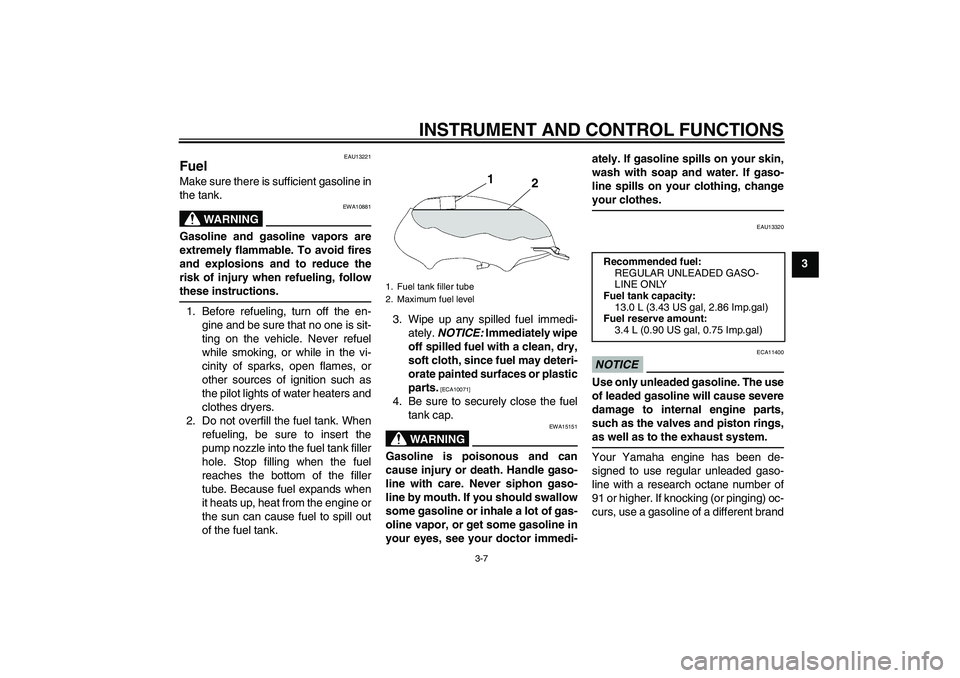

Page 21 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU13320
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
1. Fuel tank filler tube
2. Maximum fuel level
1
2
Recommended fuel:
REGULAR UNLEADED GASO-
LINE ONLY
Fuel tank capacity:
13.0 L (3.43 US gal, 2.86 Imp.gal)
Fuel reserve amount:
3.4 L (0.90 US gal, 0.75 Imp.gal)
U51DE0E0.book Page 7 Monday, November 2, 2009 10:34 AM

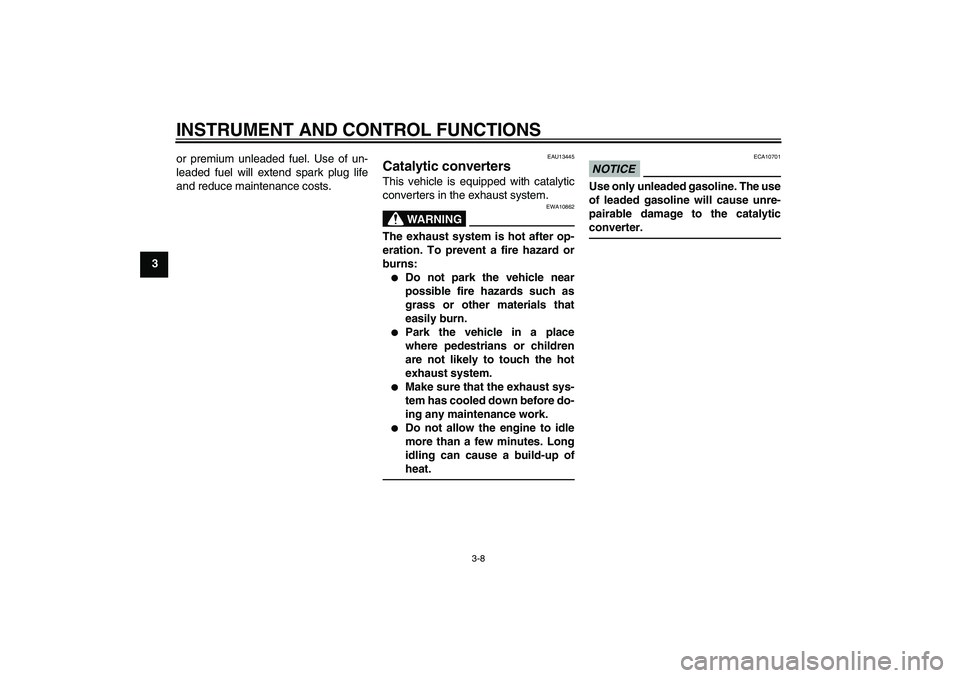

Page 22 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13445
Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
U51DE0E0.book Page 8 Monday, November 2, 2009 10:34 AM

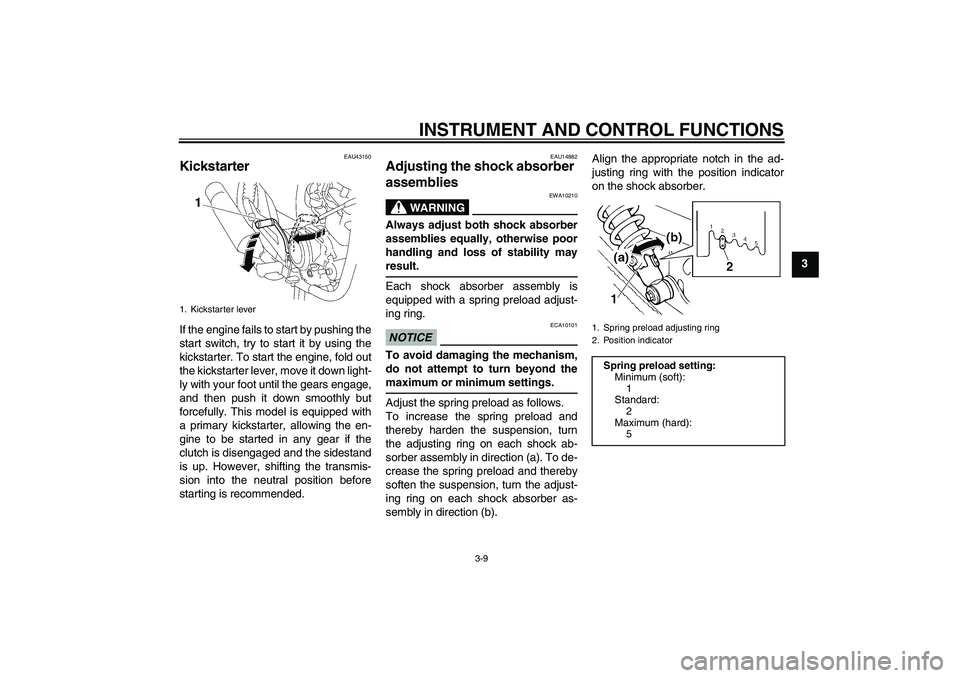

Page 23 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU43150
Kickstarter If the engine fails to start by pushing the
start switch, try to start it by using the
kickstarter. To start the engine, fold out
the kickstarter lever, move it down light-
ly with your foot until the gears engage,
and then push it down smoothly but
forcefully. This model is equipped with
a primary kickstarter, allowing the en-
gine to be started in any gear if the
clutch is disengaged and the sidestand
is up. However, shifting the transmis-
sion into the neutral position before
starting is recommended.
EAU14882
Adjusting the shock absorber
assemblies
WARNING
EWA10210
Always adjust both shock absorber
assemblies equally, otherwise poor
handling and loss of stability may
result.Each shock absorber assembly is
equipped with a spring preload adjust-
ing ring.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring on each shock ab-
sorber assembly in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring on each shock absorber as-
sembly in direction (b).Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
1. Kickstarter lever
1. Spring preload adjusting ring
2. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
2
Maximum (hard):
5
U51DE0E0.book Page 9 Monday, November 2, 2009 10:34 AM
Page 24 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU15112
Carrier
WARNING
EWA10171
Do not exceed the load limit of 3
kg (6.6 lb) for the carrier.
Do not exceed the maximum
load of 153 kg (337 lb) for the ve-
hicle.
EAU15303
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See page 3-11 for an explanation of
the ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as describedbelow and have a Yamaha dealer re-
pair it if it does not function proper-
ly.
1. Carrier
1
U51DE0E0.book Page 10 Monday, November 2, 2009 10:34 AM
Page 25 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU43162
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch, clutch
switch and neutral switch) has the fol-
lowing functions.
It prevents starting when the trans-
mission is in gear and the side-
stand is up, but the clutch lever is
not pulled.
It prevents starting when the trans-
mission is in gear and the clutch le-
ver is pulled, but the sidestand is
still down.
It cuts the running engine when the
transmission is in gear and the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
U51DE0E0.book Page 11 Monday, November 2, 2009 10:34 AM
Page 26 of 80
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
With the engine turned off:
1. Move the sidestand down.
2. Turn the key on.
3. Shift the transmission into the neutral position.
4. Push the start switch or push the kickstarter lever down.
Does the engine start?
With the engine still running:
5. Move the sidestand up.
6. Keep the clutch lever pulled.
7. Shift the transmission into gear.
8. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
9. Move the sidestand up.
10. Keep the clutch lever pulled.
11. Push the start switch or push the kickstarter lever down.
Does the engine start?
The system is OK. The motorcycle can be ridden.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U51DE0E0.book Page 12 Monday, November 2, 2009 10:34 AM

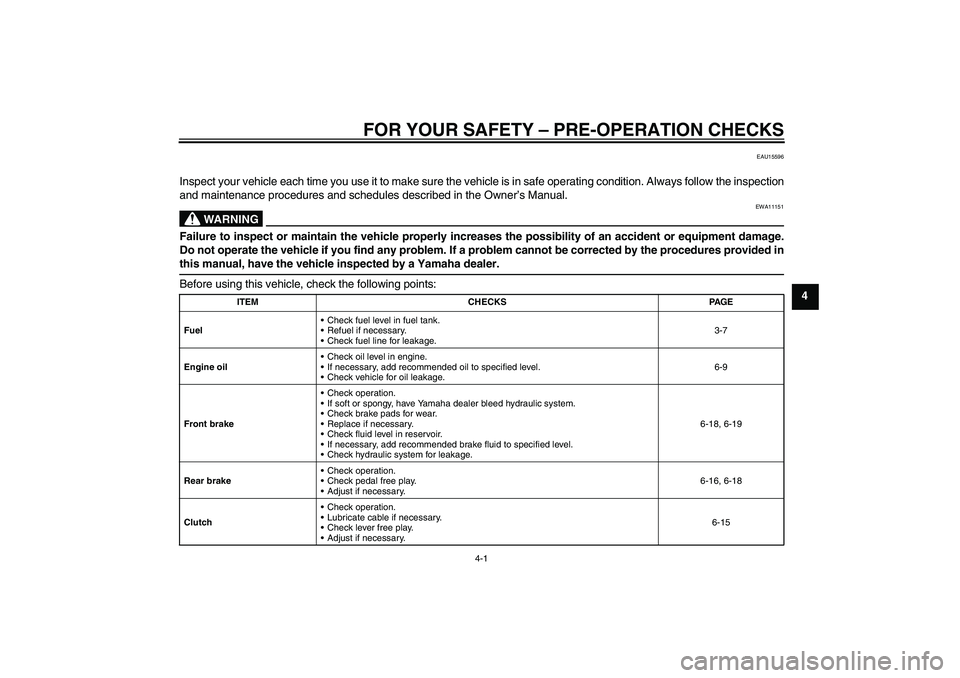

Page 27 of 80
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-7
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-18, 6-19
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.6-16, 6-18
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-15
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

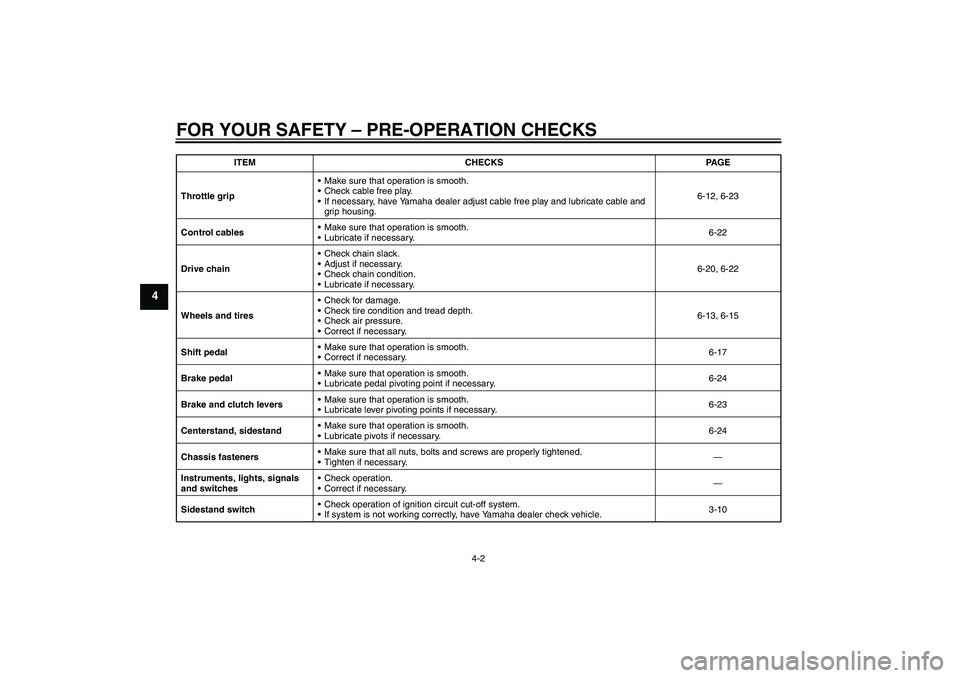

Page 28 of 80
FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-12, 6-23
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-22
Drive chainCheck chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-20, 6-22
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-13, 6-15
Shift pedalMake sure that operation is smooth.
Correct if necessary.6-17
Brake pedalMake sure that operation is smooth.
Lubricate pedal pivoting point if necessary.6-24
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-23
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-24
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switch Check operation of ignition circuit cut-off system.
If system is not working correctly, have Yamaha dealer check vehicle.3-10 ITEM CHECKS PAGE
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM
Page 29 of 80
OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accident
or injury.
EAU45310
TIPThis model is equipped with a lean an-
gle sensor to stop the engine in case of
a turnover. To start the engine after a
turnover, be sure to turn the main
switch to “OFF” and then to “ON”. Fail-
ing to do so will prevent the engine from
starting even though the engine will
crank when pushing the start switch.
EAU43185
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
See page 3-11 for more informa-
tion.
1. Turn the key to “ON”.
The engine trouble warning light
should come on for a few seconds,
then go off.
NOTICE
ECA16711
If the warning light does not come
on initially when the key is turned to
“ON”, or if the warning light remains
on, see page 3-2 for the warning light
circuit check.2. Shift the transmission into the neu-
tral position. (See page 5-2.) The
neutral indicator light should come
on. If not, ask a Yamaha dealer to
check the electrical circuit.
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
Page 30 of 80
OPERATION AND IMPORTANT RIDING POINTS
5-2
53. Start the engine by pushing the
start switch or by pushing the kick-
starter lever down. NOTICE: For
maximum engine life, never ac-
celerate hard when the engine is
cold!
[ECA11041]
If the engine fails to start when us-
ing the start switch, release it, wait
a few seconds, and then try again.
Each starting attempt should be as
short as possible to preserve the
battery. Do not crank the engine
more than 10 seconds on any one
attempt. If the engine does not
start with the starter motor, try us-
ing the kickstarter.
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.TIPTo shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of its
travel, and then slightly raise it.
NOTICE
ECA10260
Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.
Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand the
shock of forced shifting.
1. Shift pedal
2. Neutral position
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM
