SAFETY INFORMATION
1-4

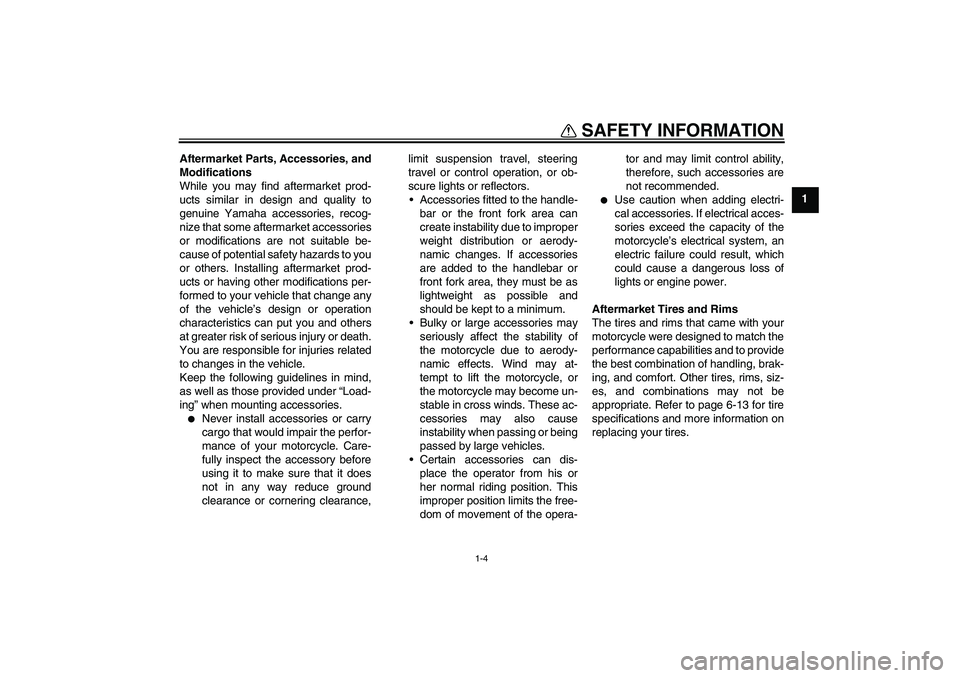

1 Aftermarket Parts, Accessories, and
Modifications
While you may find aftermarket prod-
ucts similar in design and quality to
genuine Yamaha accessories, recog-
nize that some aftermarket accessories
or modifications are not suitable be-
cause of potential safety hazards to you
or others. Installing aftermarket prod-
ucts or having other modifications per-
formed to your vehicle that change any
of the vehicle’s design or operation
characteristics can put you and others
at greater risk of serious injury or death.
You are responsible for injuries related
to changes in the vehicle.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.


Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,limit suspension travel, steering
travel or control operation, or ob-
scure lights or reflectors.
Accessories fitted to the handle-
bar or the front fork area can
create instability due to improper
weight distribution or aerody-
namic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may at-
tempt to lift the motorcycle, or
the motorcycle may become un-
stable in cross winds. These ac-
cessories may also cause
instability when passing or being
passed by large vehicles.
Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the free-
dom of movement of the opera-tor and may limit control ability,
therefore, such accessories are
not recommended.


Use caution when adding electri-
cal accessories. If electrical acces-
sories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match the
performance capabilities and to provide
the best combination of handling, brak-
ing, and comfort. Other tires, rims, siz-
es, and combinations may not be
appropriate. Refer to page 6-13 for tire
specifications and more information on
replacing your tires.
U5D1E1E0.book Page 4 Friday, September 5, 2008 1:17 PM

DESCRIPTION
2-1
2

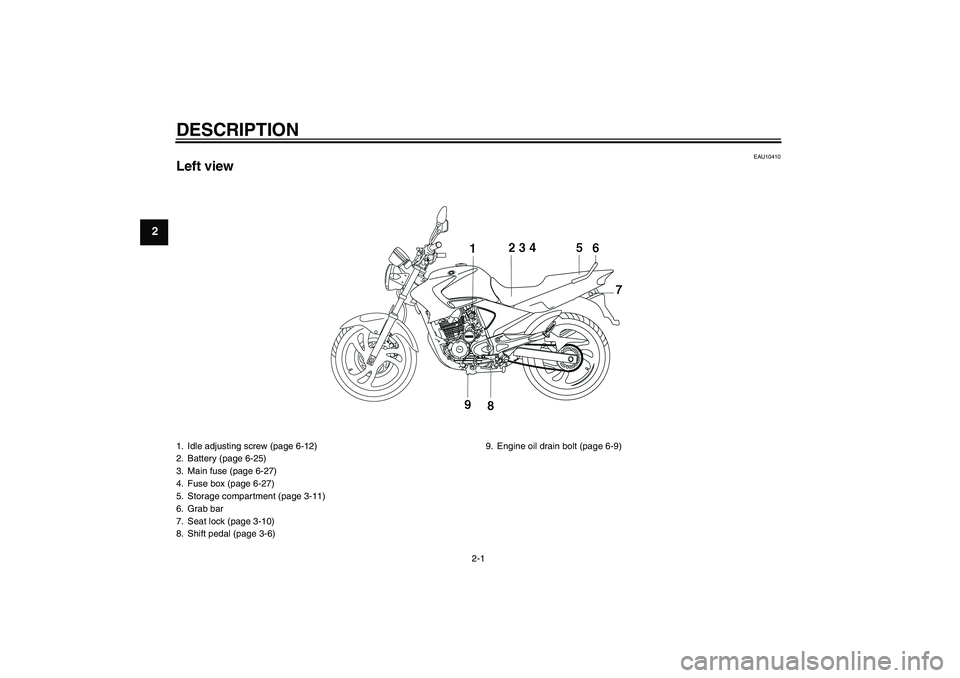

EAU10410
Left view1. Idle adjusting screw (page 6-12)
2. Battery (page 6-25)
3. Main fuse (page 6-27)
4. Fuse box (page 6-27)
5. Storage compartment (page 3-11)
6. Grab bar
7. Seat lock (page 3-10)
8. Shift pedal (page 3-6)9. Engine oil drain bolt (page 6-9)U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM

DESCRIPTION
2-2
2

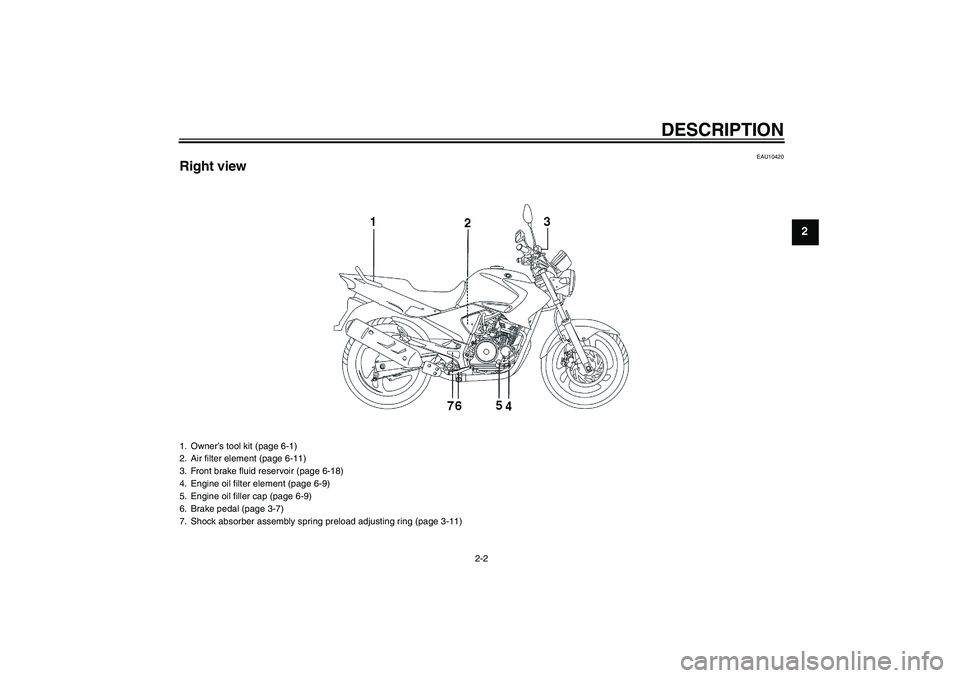

EAU10420
Right view1. Owner’s tool kit (page 6-1)
2. Air filter element (page 6-11)
3. Front brake fluid reservoir (page 6-18)
4. Engine oil filter element (page 6-9)
5. Engine oil filler cap (page 6-9)
6. Brake pedal (page 3-7)
7. Shock absorber assembly spring preload adjusting ring (page 3-11)
U5D1E1E0.book Page 2 Friday, September 5, 2008 1:17 PM

DESCRIPTION
2-3
2

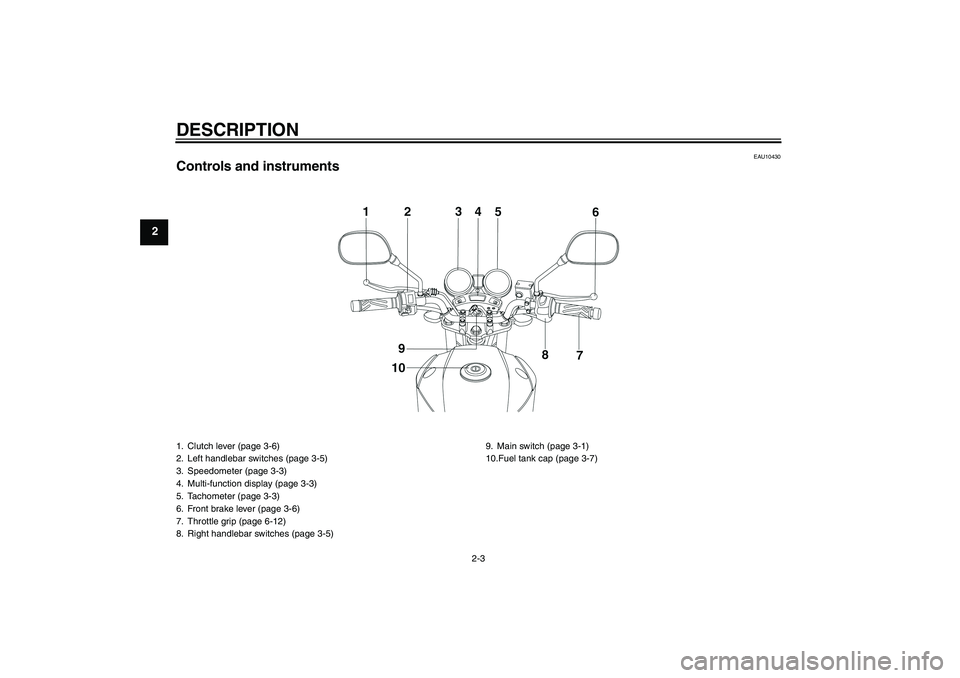

EAU10430
Controls and instruments1. Clutch lever (page 3-6)
2. Left handlebar switches (page 3-5)
3. Speedometer (page 3-3)
4. Multi-function display (page 3-3)
5. Tachometer (page 3-3)
6. Front brake lever (page 3-6)
7. Throttle grip (page 6-12)
8. Right handlebar switches (page 3-5)9. Main switch (page 3-1)
10.Fuel tank cap (page 3-7)U5D1E1E0.book Page 3 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460

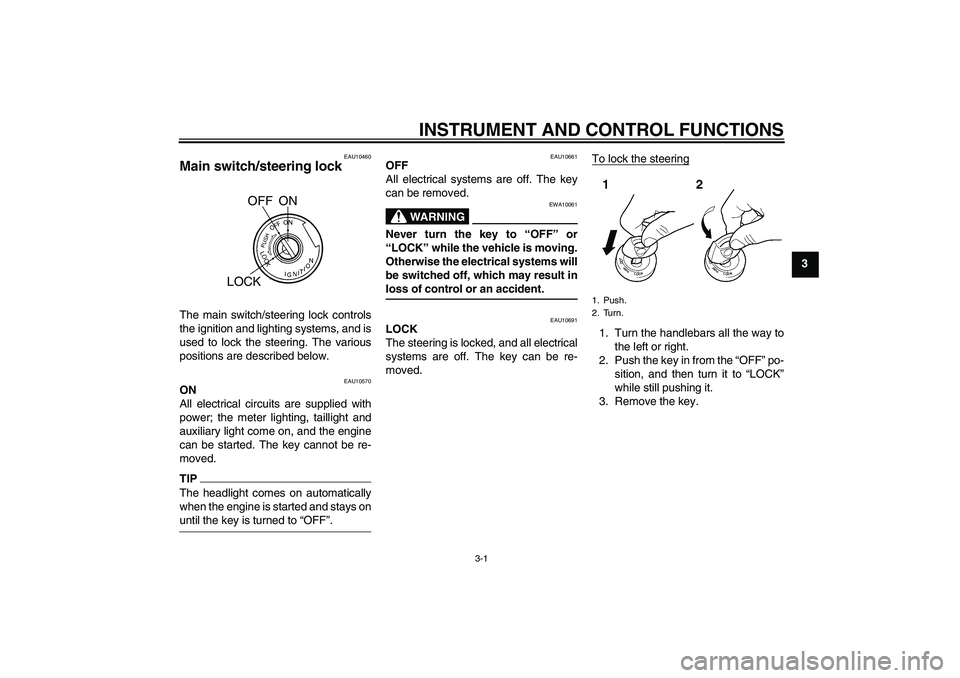

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10570
ON
All electrical circuits are supplied with
power; the meter lighting, taillight and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.TIPThe headlight comes on automatically
when the engine is started and stays onuntil the key is turned to “OFF”.
EAU10661
OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10061
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result inloss of control or an accident.
EAU10691
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
OFF ON
LOCK
1. Push.
2. Turn.
U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2

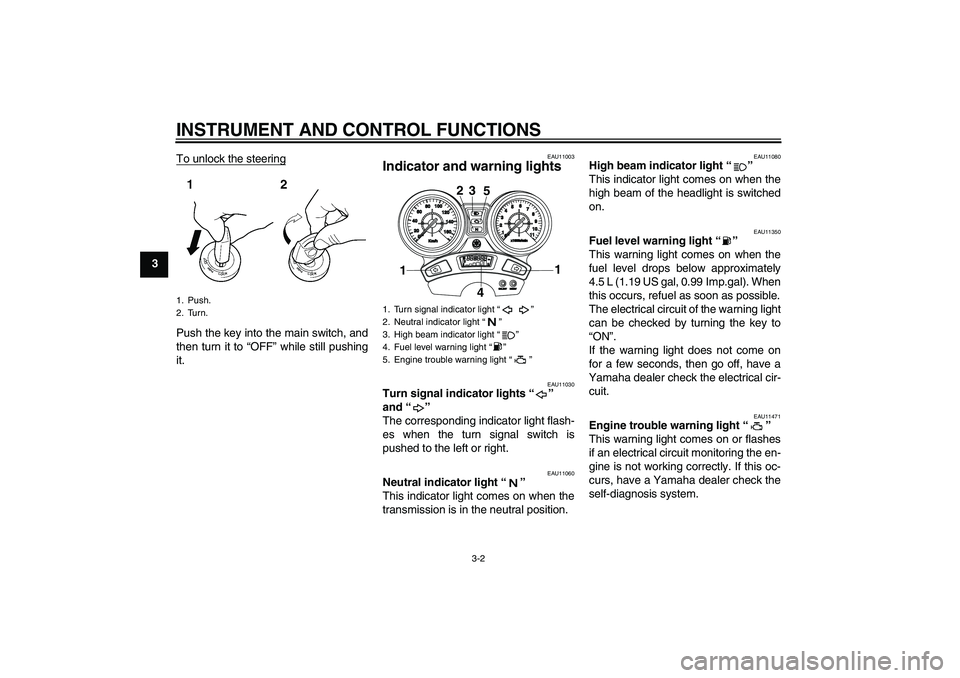

3To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
EAU11003
Indicator and warning lights
EAU11030
Turn signal indicator lights“”
and“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light“”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light“”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11350
Fuel level warning light“”
This warning light comes on when the
fuel level drops below approximately
4.5 L (1.19 US gal, 0.99 Imp.gal). When
this occurs, refuel as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
EAU11471
Engine trouble warning light“”
This warning light comes on or flashes
if an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
1. Push.
2. Turn.
1. Turn signal indicator light“”
2. Neutral indicator light“”
3. High beam indicator light“”
4. Fuel level warning light“”
5. Engine trouble warning light“”
Km/h
20 406080100
120
140
160
N
x1000r/min
10 456
7
8
9 3
2
1
Km
11
RESET SELECT
TRIP
ODO2
3
5
1
4 1
U5D1E1E0.book Page 2 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU11601

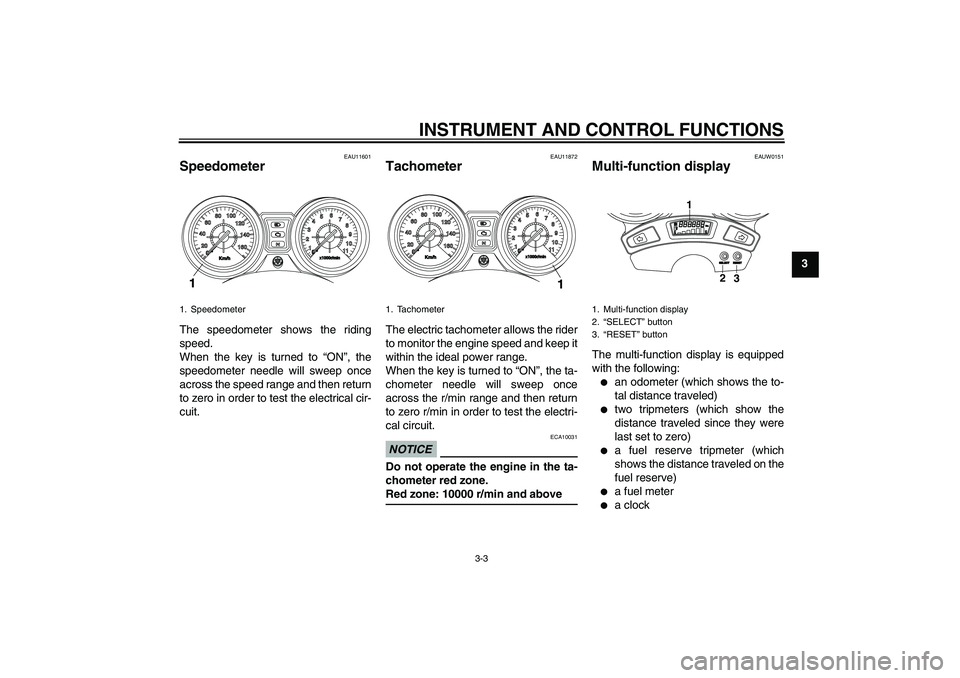

Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.NOTICE
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 10000 r/min and above
EAUW0151
Multi-function display The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)


a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a fuel meter


a clock
1. Speedometer
1. Tachometer
1. Multi-function display
2.“SELECT” button
3.“RESET” button
Km
RESET SELECT
TRIP
ODO
1
2
3
U5D1E1E0.book Page 3 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
TIPBe sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.

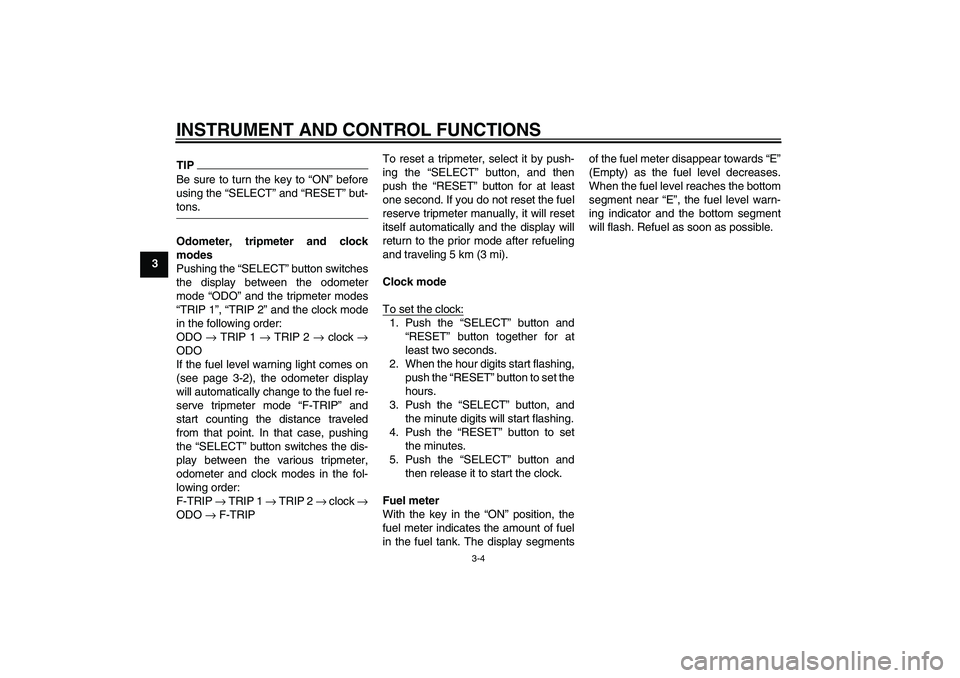

Odometer, tripmeter and clock
modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1”, “TRIP 2” and the clock mode
in the following order:
ODO → TRIP 1 → TRIP 2 → clock →
ODO
If the fuel level warning light comes on
(see page 3-2), the odometer display
will automatically change to the fuel re-
serve tripmeter mode “F-TRIP” and
start counting the distance traveled
from that point. In that case, pushing
the “SELECT” button switches the dis-
play between the various tripmeter,
odometer and clock modes in the fol-
lowing order:
F-TRIP → TRIP 1 → TRIP 2 → clock →
ODO → F-TRIPTo reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segmentsof the fuel meter disappear towards “E”
(Empty) as the fuel level decreases.
When the fuel level reaches the bottom
segment near “E”, the fuel level warn-
ing indicator and the bottom segment
will flash. Refuel as soon as possible.
U5D1E1E0.book Page 4 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12347

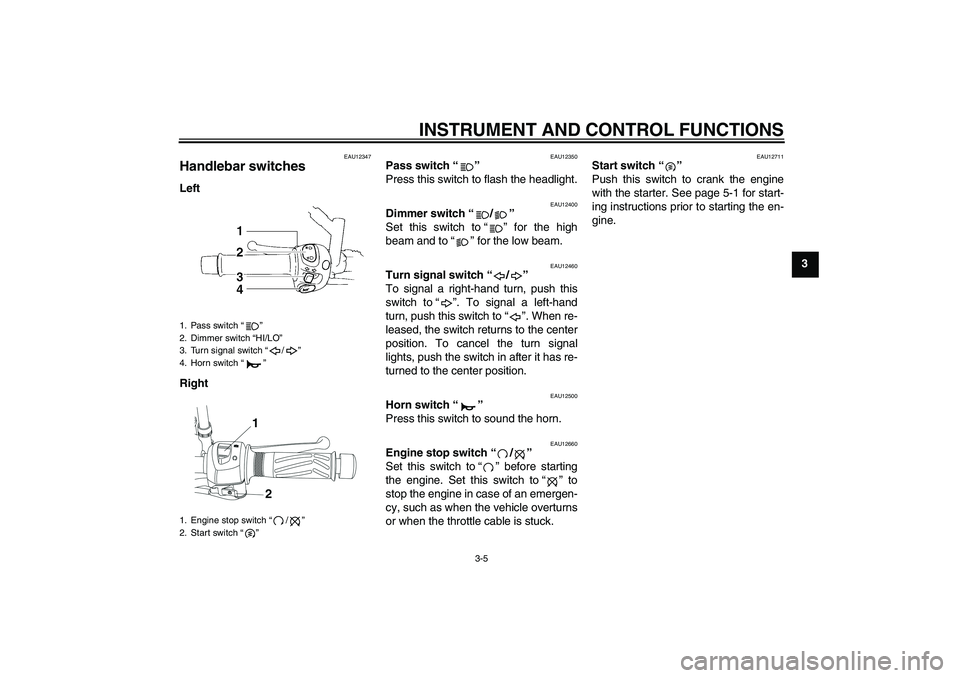

Handlebar switches Left
Right
EAU12350
Pass switch“”
Press this switch to flash the headlight.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
1. Pass switch“”
2. Dimmer switch “HI/LO”
3. Turn signal switch“/”
4. Horn switch“”
1. Engine stop switch“/”
2. Start switch“”
U5D1E1E0.book Page 5 Friday, September 5, 2008 1:17 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU12820

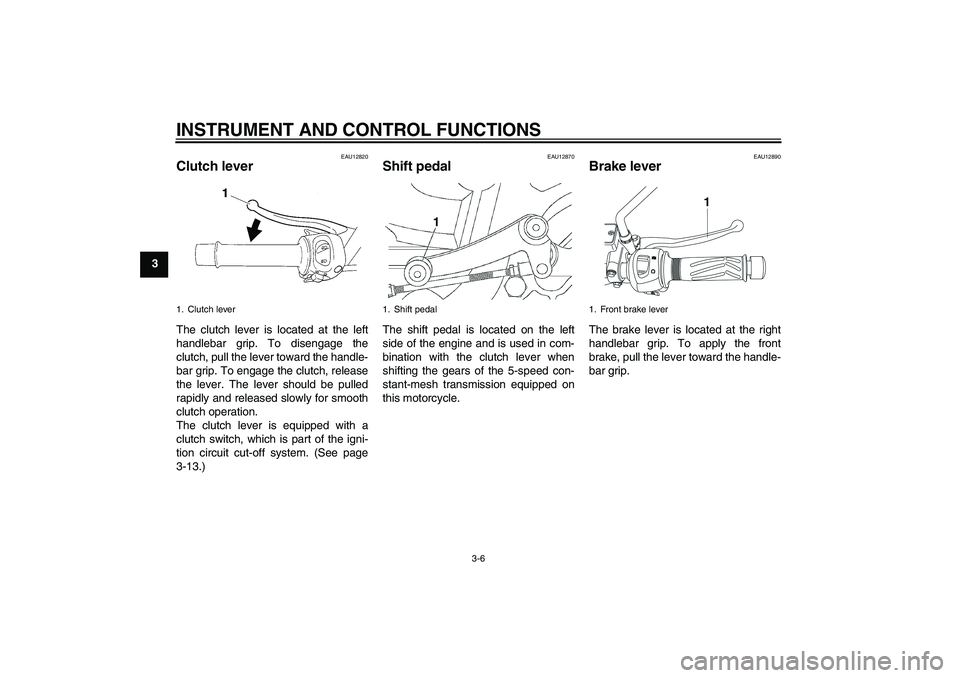

Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-13.)
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
1. Clutch lever
1. Shift pedal
1. Front brake lever
U5D1E1E0.book Page 6 Friday, September 5, 2008 1:17 PM
