MOTORCYCLE CARE AND STORAGE
7-4
7 5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-25.
TIPMake any necessary repairs beforestoring the motorcycle.
U5D1E1E0.book Page 4 Friday, September 5, 2008 1:17 PM

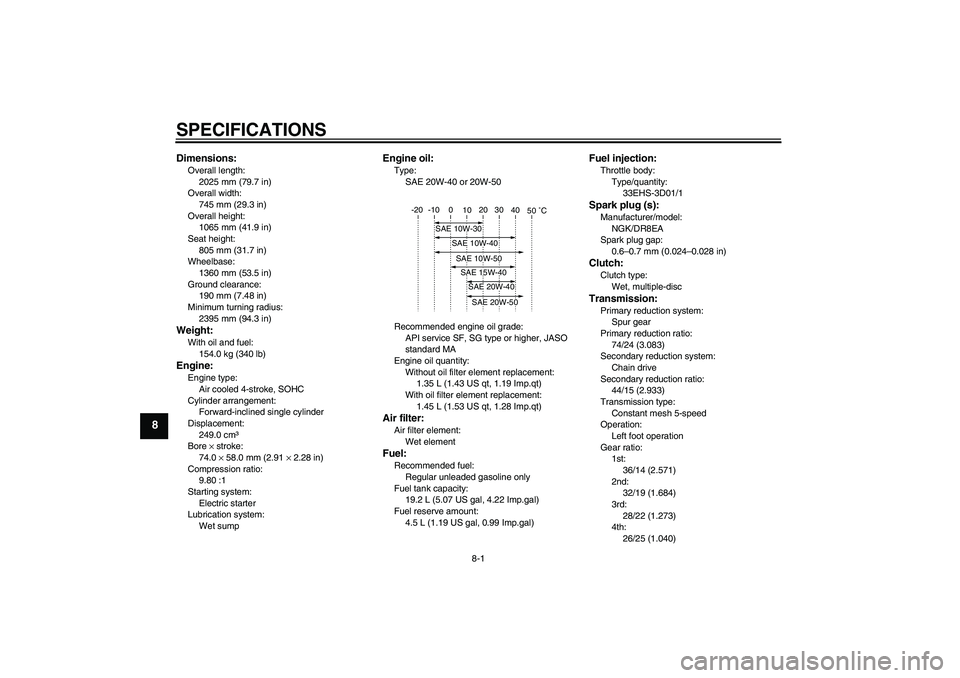

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2025 mm (79.7 in)
Overall width:
745 mm (29.3 in)
Overall height:
1065 mm (41.9 in)
Seat height:
805 mm (31.7 in)
Wheelbase:
1360 mm (53.5 in)
Ground clearance:
190 mm (7.48 in)
Minimum turning radius:
2395 mm (94.3 in)Weight:With oil and fuel:
154.0 kg (340 lb)Engine:Engine type:
Air cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
249.0 cm³
Bore × stroke:
74.0 × 58.0 mm (2.91 × 2.28 in)
Compression ratio:
9.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE 20W-40 or 20W-50
Recommended engine oil grade:
API service SF, SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter element replacement:
1.35 L (1.43 US qt, 1.19 Imp.qt)
With oil filter element replacement:
1.45 L (1.53 US qt, 1.28 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
19.2 L (5.07 US gal, 4.22 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal, 0.99 Imp.gal)
Fuel injection:Throttle body:
Type/quantity:
33EHS-3D01/1Spark plug (s):Manufacturer/model:
NGK/DR8EA
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
74/24 (3.083)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
44/15 (2.933)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
36/14 (2.571)
2nd:
32/19 (1.684)
3rd:
28/22 (1.273)
4th:
26/25 (1.040)
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40SAE 10W-50
U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM

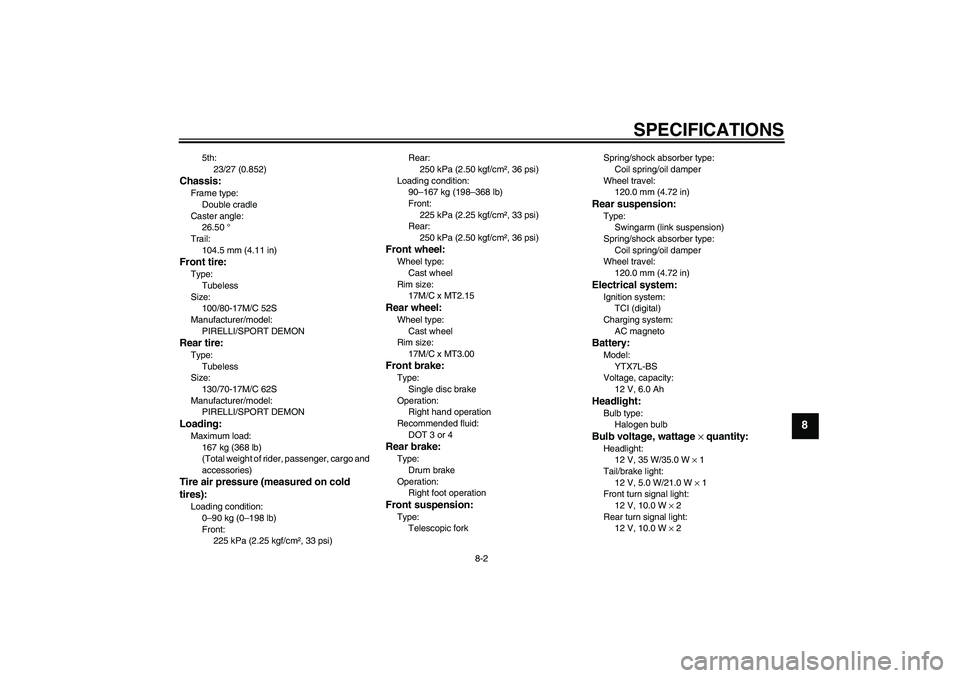

SPECIFICATIONS
8-2
8
5th:
23/27 (0.852)
Chassis:Frame type:
Double cradle
Caster angle:
26.50 °
Trail:
104.5 mm (4.11 in)Front tire:Type:
Tubeless
Size:
100/80-17M/C 52S
Manufacturer/model:
PIRELLI/SPORT DEMONRear tire:Type:
Tubeless
Size:
130/70-17M/C 62S
Manufacturer/model:
PIRELLI/SPORT DEMONLoading:Maximum load:
167 kg (368 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (2.25 kgf/cm², 33 psi)Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Loading condition:
90–167 kg (198–368 lb)
Front:
225 kPa (2.25 kgf/cm², 33 psi)
Rear:
250 kPa (2.50 kgf/cm², 36 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT2.15Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.00Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)Electrical system:Ignition system:
TCI (digital)
Charging system:
AC magnetoBattery:Model:
YTX7L-BS
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35.0 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U5D1E1E0.book Page 2 Friday, September 5, 2008 1:17 PM

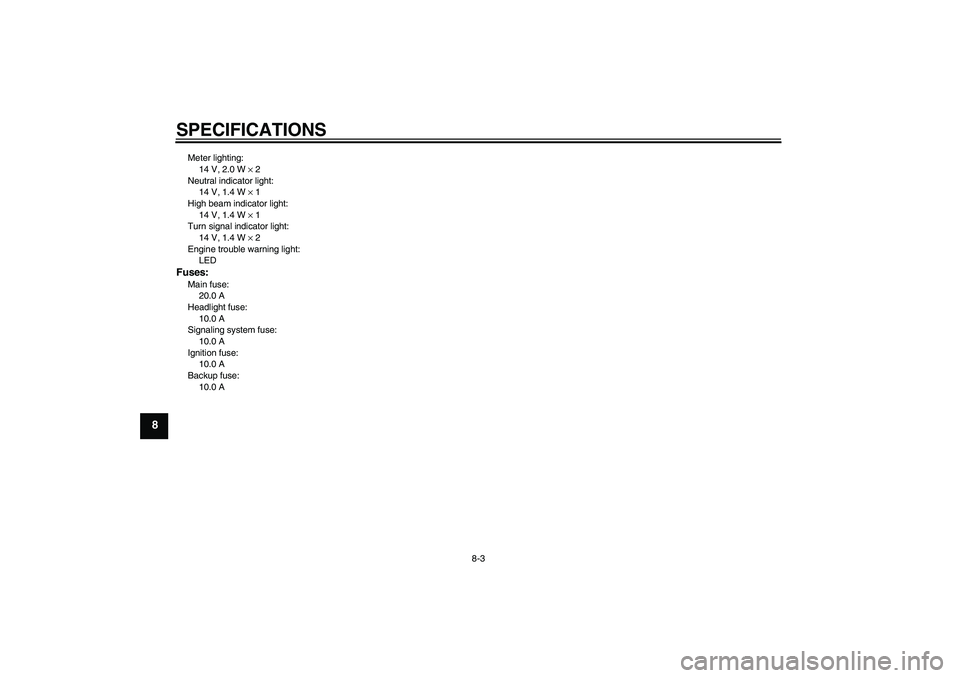

SPECIFICATIONS
8-3
8
Meter lighting:
14 V, 2.0 W × 2
Neutral indicator light:
14 V, 1.4 W × 1
High beam indicator light:
14 V, 1.4 W × 1
Turn signal indicator light:
14 V, 1.4 W × 2
Engine trouble warning light:
LEDFuses:Main fuse:
20.0 A
Headlight fuse:
10.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Backup fuse:
10.0 A
U5D1E1E0.book Page 3 Friday, September 5, 2008 1:17 PM

CONSUMER INFORMATION
9-1
9
EAU40790
Identification numbers Record the vehicle identification num-
ber and model label information in the
spaces provided below for assistance
when ordering spare parts from a
Yamaha dealer or for reference in case
the vehicle is stolen.
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.TIPThe vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
EAU26480
Model label
The model label is affixed to the frame
under the seat. (See page 3-10.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Vehicle identification number
1. Model label
U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM

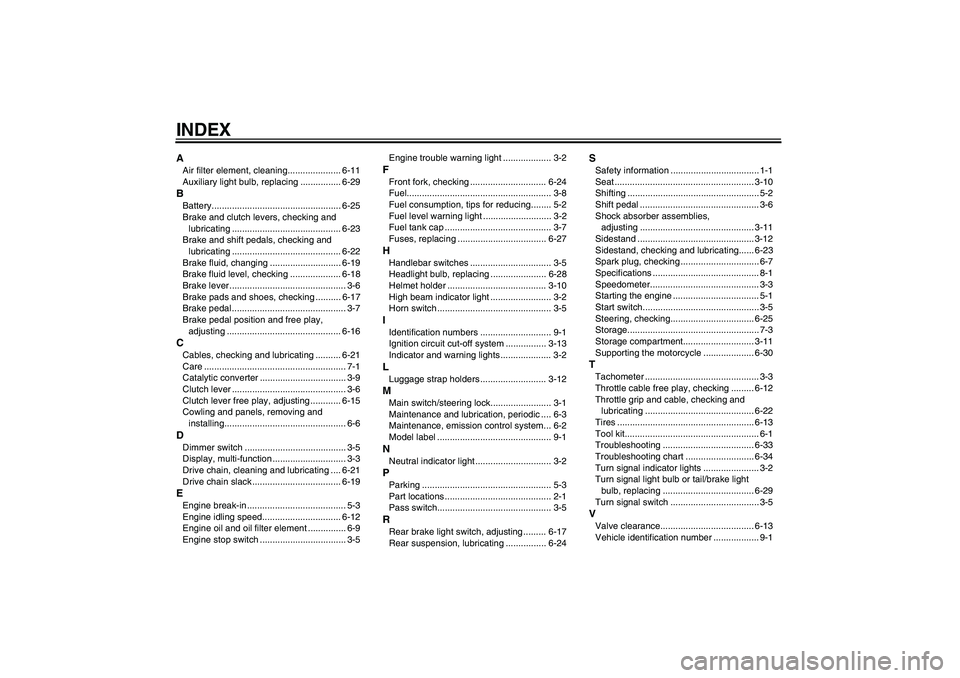

INDEXAAir filter element, cleaning..................... 6-11
Auxiliary light bulb, replacing ................ 6-29BBattery................................................... 6-25
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake and shift pedals, checking and
lubricating ........................................... 6-22
Brake fluid, changing ............................ 6-19
Brake fluid level, checking .................... 6-18
Brake lever .............................................. 3-6
Brake pads and shoes, checking .......... 6-17
Brake pedal ............................................. 3-7
Brake pedal position and free play,
adjusting ............................................. 6-16CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter .................................. 3-9
Clutch lever ............................................. 3-6
Clutch lever free play, adjusting ............ 6-15
Cowling and panels, removing and
installing................................................ 6-6DDimmer switch ........................................ 3-5
Display, multi-function ............................. 3-3
Drive chain, cleaning and lubricating .... 6-21
Drive chain slack ................................... 6-19EEngine break-in ....................................... 5-3
Engine idling speed............................... 6-12
Engine oil and oil filter element ............... 6-9
Engine stop switch .................................. 3-5Engine trouble warning light ................... 3-2
FFront fork, checking .............................. 6-24
Fuel......................................................... 3-8
Fuel consumption, tips for reducing........ 5-2
Fuel level warning light ........................... 3-2
Fuel tank cap .......................................... 3-7
Fuses, replacing ................................... 6-27HHandlebar switches ................................ 3-5
Headlight bulb, replacing ...................... 6-28
Helmet holder ....................................... 3-10
High beam indicator light ........................ 3-2
Horn switch ............................................. 3-5IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-13
Indicator and warning lights .................... 3-2LLuggage strap holders .......................... 3-12MMain switch/steering lock........................ 3-1
Maintenance and lubrication, periodic .... 6-3
Maintenance, emission control system... 6-2
Model label ............................................. 9-1NNeutral indicator light .............................. 3-2PParking ................................................... 5-3
Part locations .......................................... 2-1
Pass switch............................................. 3-5RRear brake light switch, adjusting ......... 6-17
Rear suspension, lubricating ................ 6-24
SSafety information ................................... 1-1
Seat ....................................................... 3-10
Shifting .................................................... 5-2
Shift pedal ............................................... 3-6
Shock absorber assemblies,
adjusting ............................................. 3-11
Sidestand .............................................. 3-12
Sidestand, checking and lubricating...... 6-23
Spark plug, checking ............................... 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-3
Starting the engine .................................. 5-1
Start switch.............................................. 3-5
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-11
Supporting the motorcycle .................... 6-30TTachometer ............................................. 3-3
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-22
Tires ...................................................... 6-13
Tool kit..................................................... 6-1
Troubleshooting .................................... 6-33
Troubleshooting chart ........................... 6-34
Turn signal indicator lights ...................... 3-2
Turn signal light bulb or tail/brake light
bulb, replacing .................................... 6-29
Turn signal switch ................................... 3-5VValve clearance..................................... 6-13
Vehicle identification number .................. 9-1
U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM

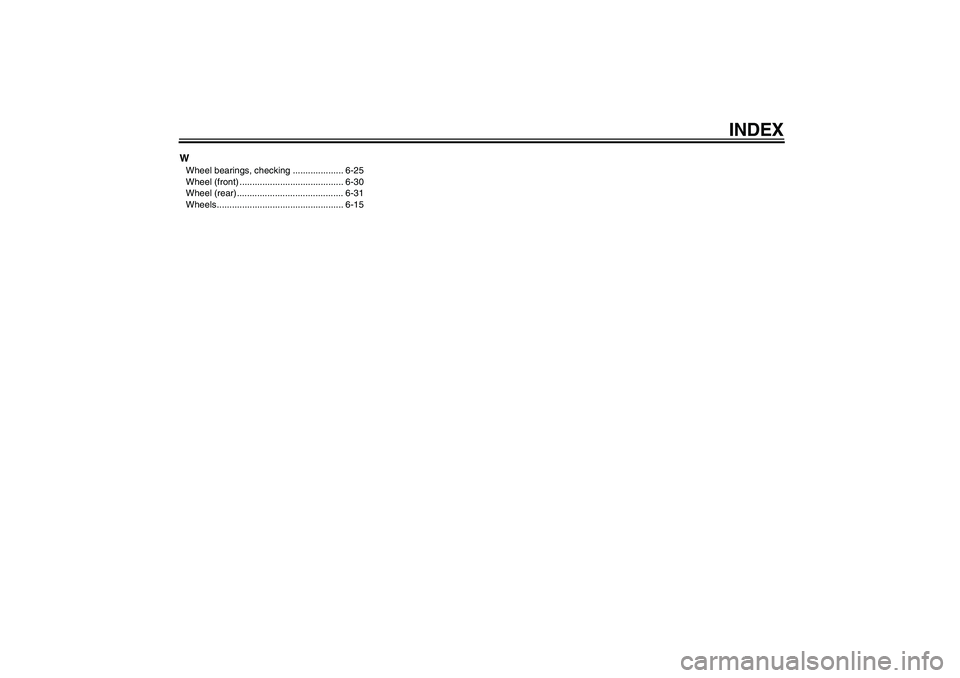

INDEX
WWheel bearings, checking .................... 6-25
Wheel (front) ......................................... 6-30
Wheel (rear).......................................... 6-31
Wheels.................................................. 6-15
