YAMAHA YBR250 2011 Repair Manual
Manufacturer: YAMAHA, Model Year: 2011, Model line: YBR250, Model: YAMAHA YBR250 2011Pages: 80, PDF Size: 4.9 MB
Page 61 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-28
6
EAU23782
Replacing the headlight bulb This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.NOTICE
ECA10660
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the bulb,
and the bulb life will be adversely af-
fected. Thoroughly clean off any dirt
and fingerprints on the headlight
bulb using a cloth moistened with al-cohol or thinner.
1. Remove the headlight unit by re-
moving the screws.2. Disconnect the headlight coupler,
and then remove the bulb cover.
3. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the burnt-out bulb.4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the headlight unit by install-
ing the screws.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.1. Do not touch the glass part of the bulb.
1. Screw
1. Headlight coupler
2. Bulb cover
1. Headlight bulb holder
U5D1E1E0.book Page 28 Friday, September 5, 2008 1:17 PM
Page 62 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-29
6
EAU24283
Replacing a turn signal light
bulb or the tail/brake light bulb 1. Remove the lens by removing the
screws.2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]EAU37271
Replacing the auxiliary light
bulb If the auxiliary light bulb burns out, re-
place it as follows.
1. Remove the headlight unit by re-
moving the screws.
2. Remove the socket (together with
the bulb) by pulling it out.
3. Remove the burnt out bulb by pull-
ing it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the
bulb) by pushing it in.
6. Install the headlight unit by install-
ing the screws.
1. Screw
1. Screw
1. Auxiliary light bulb
1
U5D1E1E0.book Page 29 Friday, September 5, 2008 1:17 PM

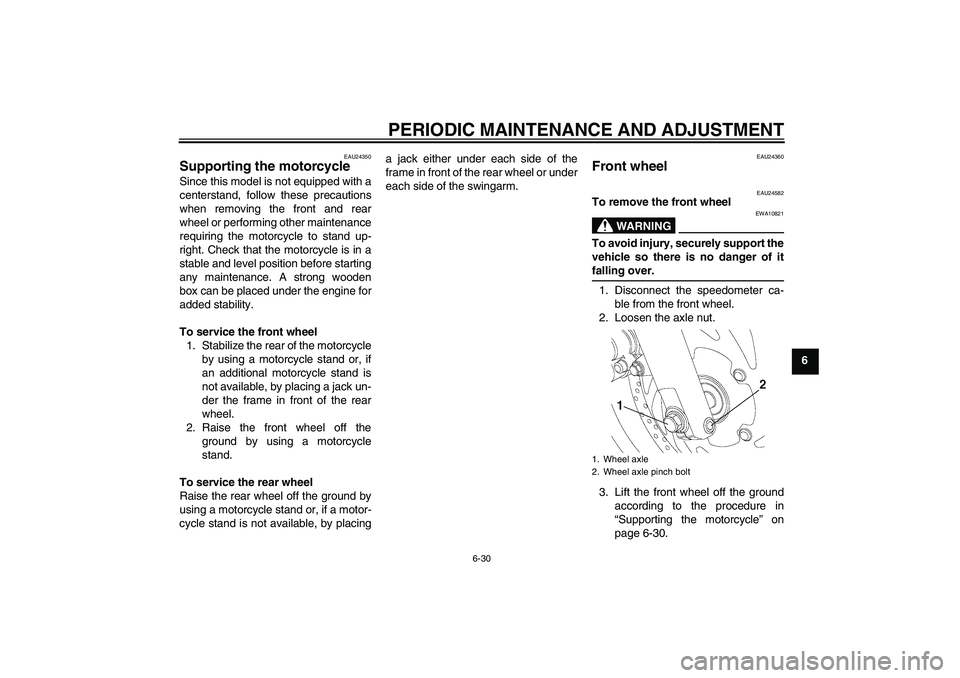

Page 63 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU24350
Supporting the motorcycle Since this model is not equipped with a
centerstand, follow these precautions
when removing the front and rear
wheel or performing other maintenance
requiring the motorcycle to stand up-
right. Check that the motorcycle is in a
stable and level position before starting
any maintenance. A strong wooden
box can be placed under the engine for
added stability.
To service the front wheel
1. Stabilize the rear of the motorcycle
by using a motorcycle stand or, if
an additional motorcycle stand is
not available, by placing a jack un-
der the frame in front of the rear
wheel.
2. Raise the front wheel off the
ground by using a motorcycle
stand.
To service the rear wheel
Raise the rear wheel off the ground by
using a motorcycle stand or, if a motor-
cycle stand is not available, by placinga jack either under each side of the
frame in front of the rear wheel or under
each side of the swingarm.
EAU24360
Front wheel
EAU24582
To remove the front wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Disconnect the speedometer ca-
ble from the front wheel.
2. Loosen the axle nut.
3. Lift the front wheel off the ground
according to the procedure in
“Supporting the motorcycle” on
page 6-30.1. Wheel axle
2. Wheel axle pinch bolt
U5D1E1E0.book Page 30 Friday, September 5, 2008 1:17 PM

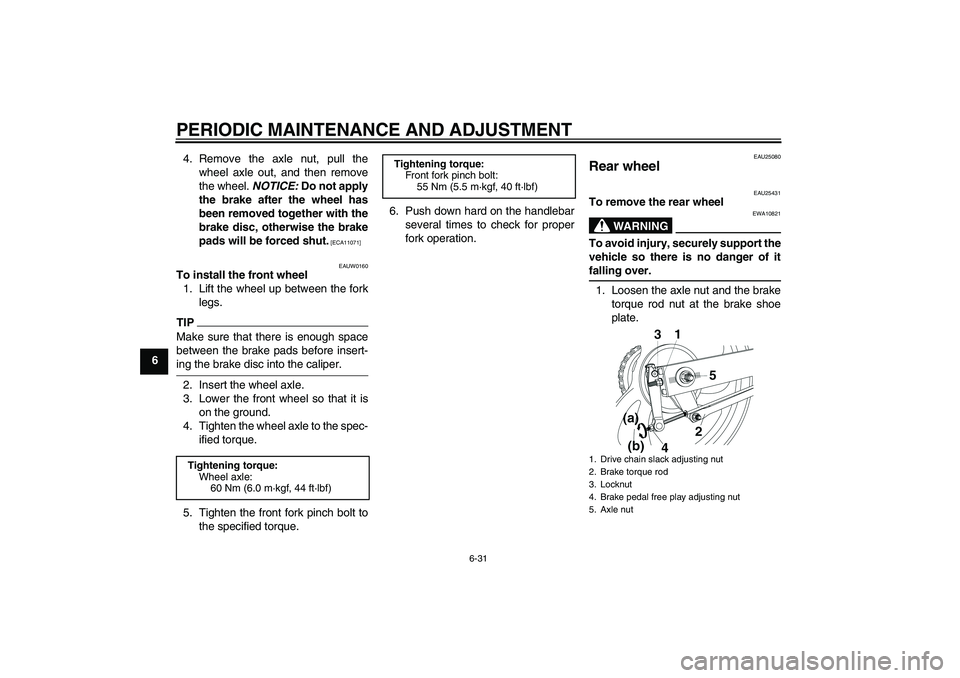

Page 64 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
64. Remove the axle nut, pull the
wheel axle out, and then remove
the wheel. NOTICE: Do not apply
the brake after the wheel has
been removed together with the
brake disc, otherwise the brake
pads will be forced shut.
[ECA11071]
EAUW0160
To install the front wheel
1. Lift the wheel up between the fork
legs.TIPMake sure that there is enough space
between the brake pads before insert-ing the brake disc into the caliper.
2. Insert the wheel axle.
3. Lower the front wheel so that it is
on the ground.
4. Tighten the wheel axle to the spec-
ified torque.
5. Tighten the front fork pinch bolt to
the specified torque.6. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25080
Rear wheel
EAU25431
To remove the rear wheel
WARNING
EWA10821
To avoid injury, securely support the
vehicle so there is no danger of itfalling over.
1. Loosen the axle nut and the brake
torque rod nut at the brake shoe
plate.
Tightening torque:
Wheel axle:
60 Nm (6.0 m·kgf, 44 ft·lbf)
Tightening torque:
Front fork pinch bolt:
55 Nm (5.5 m·kgf, 40 ft·lbf)
1. Drive chain slack adjusting nut
2. Brake torque rod
3. Locknut
4. Brake pedal free play adjusting nut
5. Axle nut
U5D1E1E0.book Page 31 Friday, September 5, 2008 1:17 PM

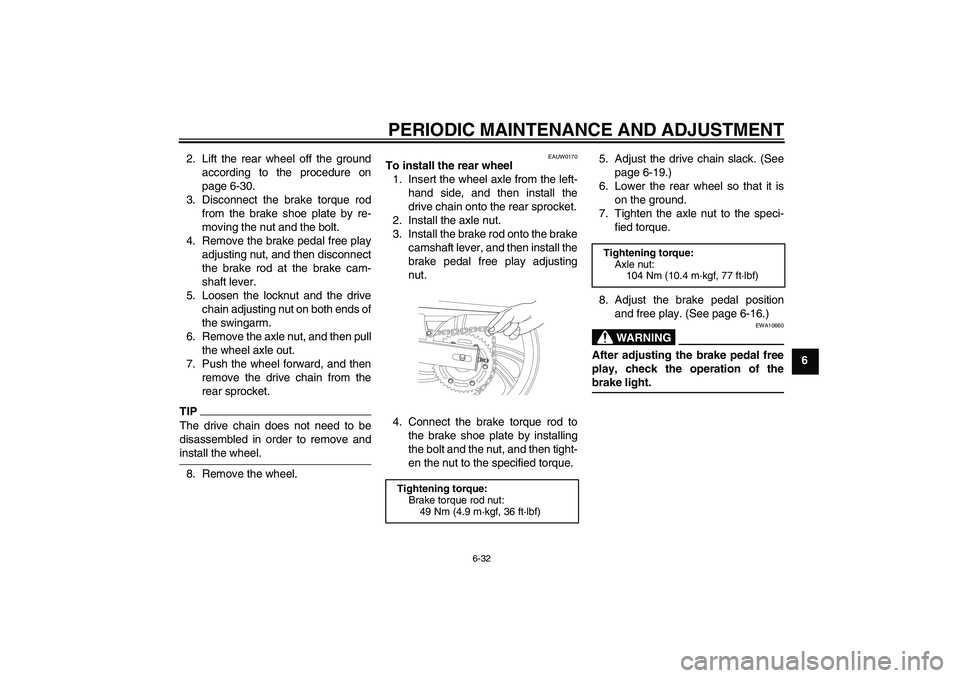

Page 65 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6 2. Lift the rear wheel off the ground
according to the procedure on
page 6-30.
3. Disconnect the brake torque rod
from the brake shoe plate by re-
moving the nut and the bolt.
4. Remove the brake pedal free play
adjusting nut, and then disconnect
the brake rod at the brake cam-
shaft lever.
5. Loosen the locknut and the drive
chain adjusting nut on both ends of
the swingarm.
6. Remove the axle nut, and then pull
the wheel axle out.
7. Push the wheel forward, and then
remove the drive chain from the
rear sprocket.
TIPThe drive chain does not need to be
disassembled in order to remove andinstall the wheel.
8. Remove the wheel.
EAUW0170
To install the rear wheel
1. Insert the wheel axle from the left-
hand side, and then install the
drive chain onto the rear sprocket.
2. Install the axle nut.
3. Install the brake rod onto the brake
camshaft lever, and then install the
brake pedal free play adjusting
nut.
4. Connect the brake torque rod to
the brake shoe plate by installing
the bolt and the nut, and then tight-
en the nut to the specified torque.5. Adjust the drive chain slack. (See
page 6-19.)
6. Lower the rear wheel so that it is
on the ground.
7. Tighten the axle nut to the speci-
fied torque.
8. Adjust the brake pedal position
and free play. (See page 6-16.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
Tightening torque:
Brake torque rod nut:
49 Nm (4.9 m·kgf, 36 ft·lbf)
Tightening torque:
Axle nut:
104 Nm (10.4 m·kgf, 77 ft·lbf)
U5D1E1E0.book Page 32 Friday, September 5, 2008 1:17 PM

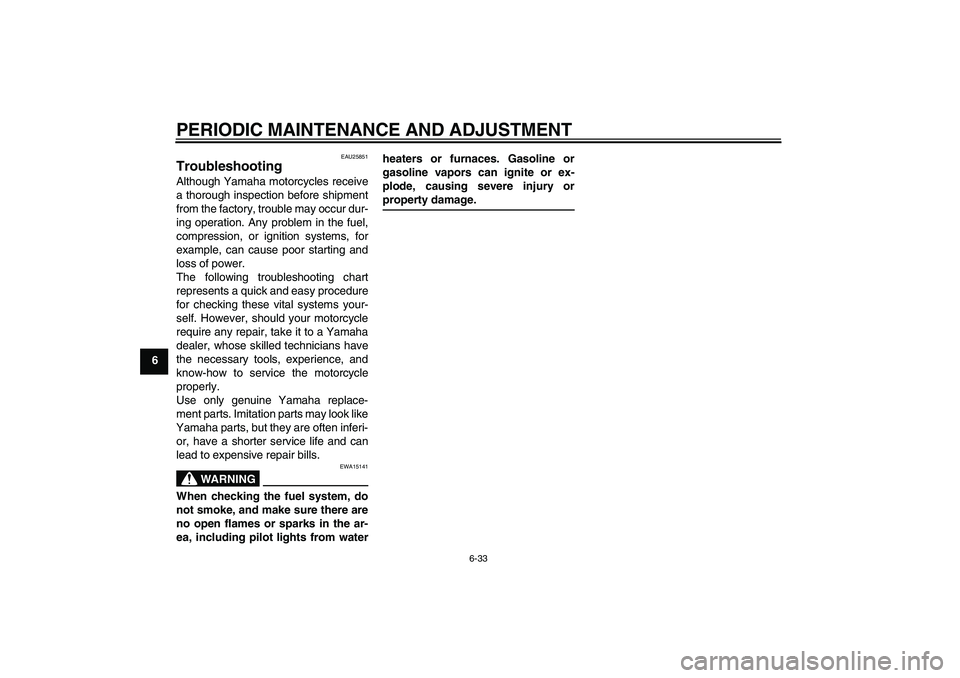

Page 66 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-33
6
EAU25851
Troubleshooting Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur dur-
ing operation. Any problem in the fuel,
compression, or ignition systems, for
example, can cause poor starting and
loss of power.
The following troubleshooting chart
represents a quick and easy procedure
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look like
Yamaha parts, but they are often inferi-
or, have a shorter service life and can
lead to expensive repair bills.
WARNING
EWA15141
When checking the fuel system, do
not smoke, and make sure there are
no open flames or sparks in the ar-
ea, including pilot lights from waterheaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
U5D1E1E0.book Page 33 Friday, September 5, 2008 1:17 PM
Page 67 of 80
PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
6
EAU25902

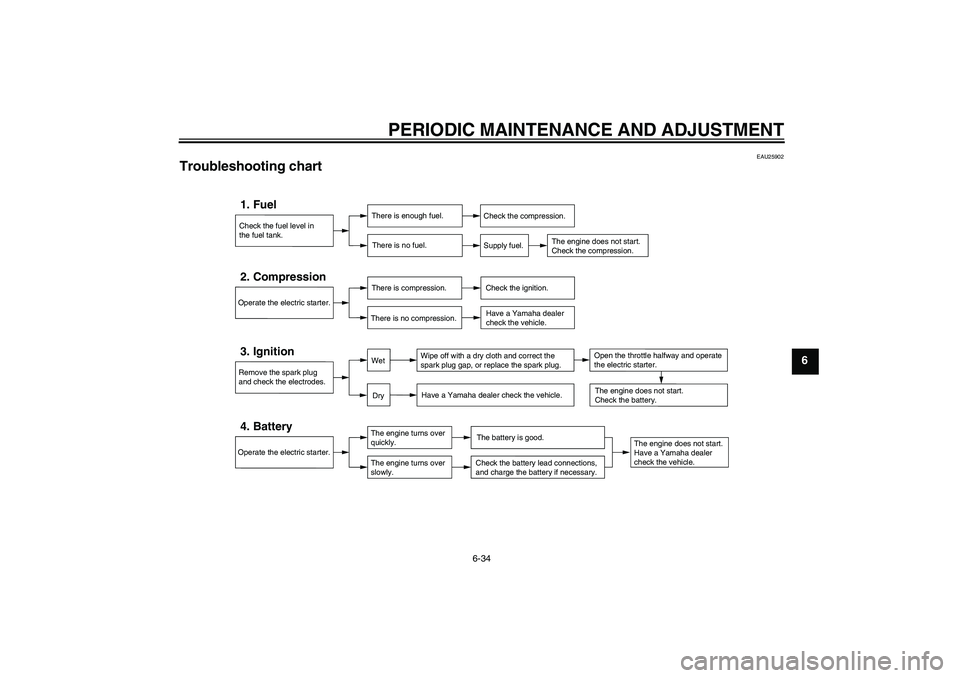

Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the battery lead connections,
and charge the battery if necessary.
DryWet
Open the throttle halfway and operate
the electric starter.
U5D1E1E0.book Page 34 Friday, September 5, 2008 1:17 PM

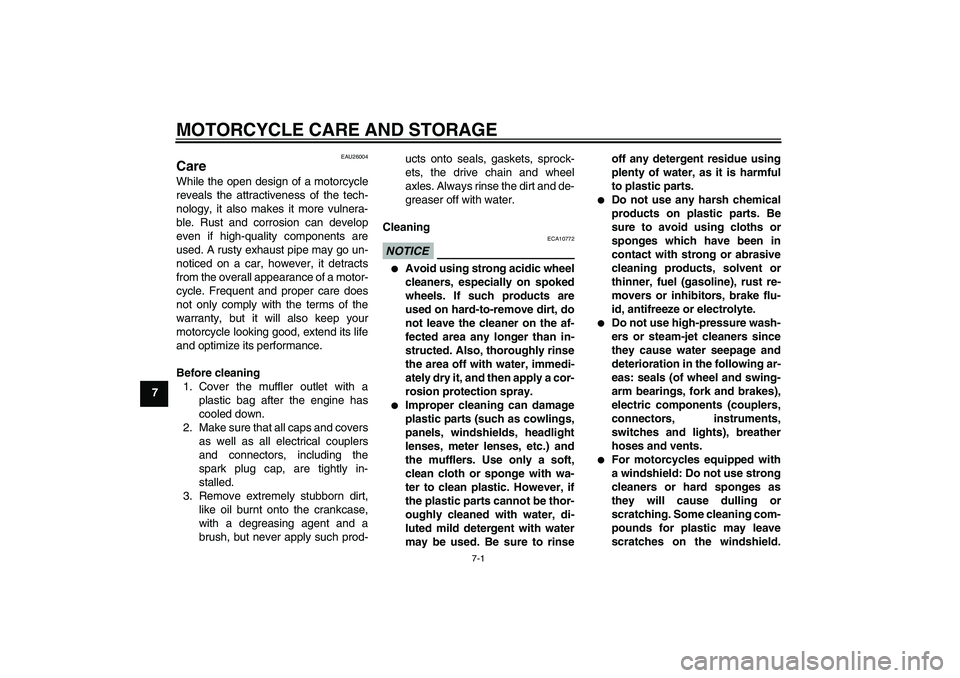

Page 68 of 80
MOTORCYCLE CARE AND STORAGE
7-1
7
EAU26004
Care While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your
motorcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE
ECA10772
Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.
Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinseoff any detergent residue using
plenty of water, as it is harmful
to plastic parts.
Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.
Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.
For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
U5D1E1E0.book Page 1 Friday, September 5, 2008 1:17 PM
Page 69 of 80
MOTORCYCLE CARE AND STORAGE
7-2
7 Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.
TIPSalt sprayed on roads in the winter mayremain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
NOTICE: Do not use warm water
since it increases the corrosive
action of the salt.
[ECA10791]
2. Apply a corrosion protection spray
on all metal, including chrome- and
nickel-plated, surfaces to prevent
corrosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
8. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11131
Contaminants on the brakes or tires
can cause loss of control.
Make sure that there is no oil or
wax on the brakes or tires.
If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
U5D1E1E0.book Page 2 Friday, September 5, 2008 1:17 PM
Page 70 of 80

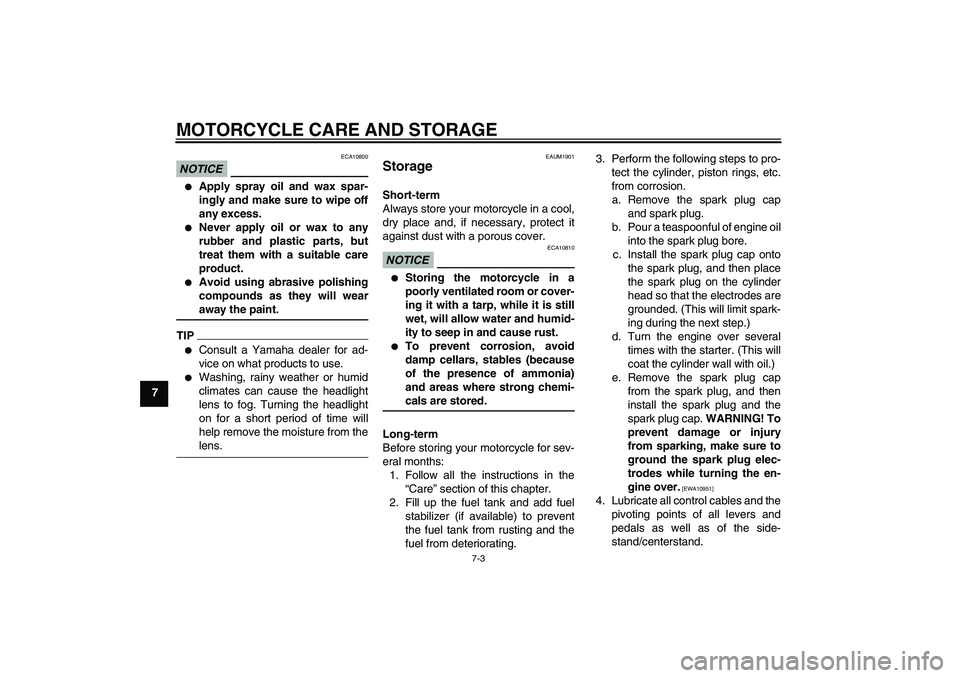

MOTORCYCLE CARE AND STORAGE
7-3
7
NOTICE
ECA10800
Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.
Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
Avoid using abrasive polishing
compounds as they will wearaway the paint.
TIP
Consult a Yamaha dealer for ad-
vice on what products to use.
Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from thelens.
EAUM1901
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.NOTICE
ECA10810
Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.
To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.3. Perform the following steps to pro-
tect the cylinder, piston rings, etc.
from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine oil
into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! To
prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
[EWA10951]
4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
U5D1E1E0.book Page 3 Friday, September 5, 2008 1:17 PM
