8-34

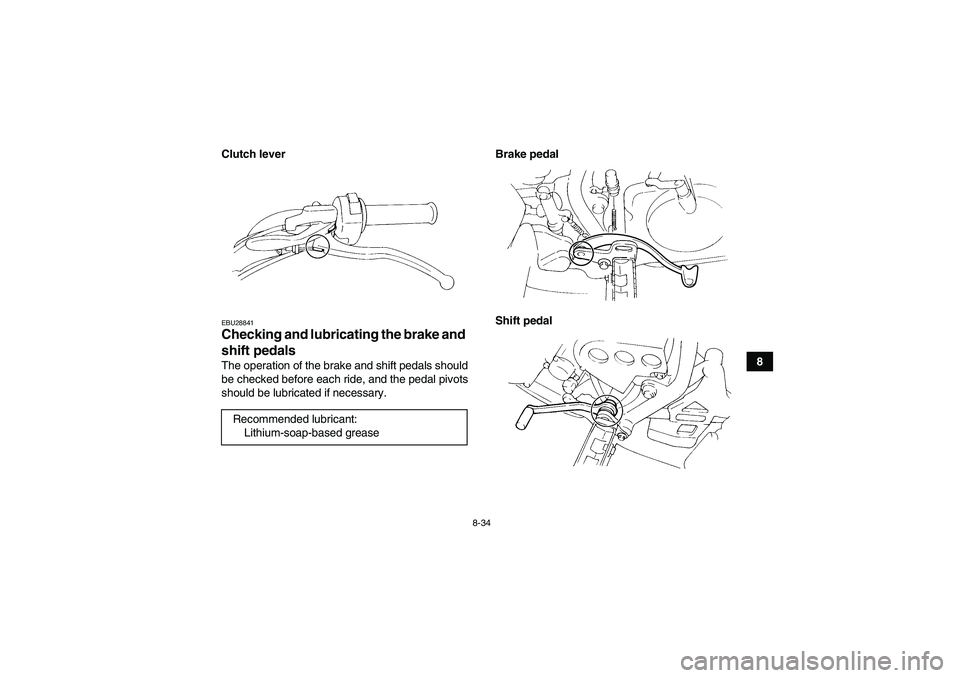

8 Clutch lever
EBU28841Checking and lubricating the brake and
shift pedals The operation of the brake and shift pedals should
be checked before each ride, and the pedal pivots
should be lubricated if necessary.Brake pedal
Shift pedal
Recommended lubricant:
Lithium-soap-based greaseU10P70E0.book Page 34 Thursday, July 21, 2011 8:51 AM

8-35
8
EBU24963Checking the wheel hub bearings The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.EBU24995Lubricating the swingarm pivots The swingarm pivots must be lubricated by a
Yamaha dealer at the intervals specified in the pe-
riodic maintenance and lubrication chart.
EBU25004Lubricating the rear suspension relay
arm and connecting arm pivoting
points The rear suspension relay arm and connecting
arm pivoting points must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U10P70E0.book Page 35 Thursday, July 21, 2011 8:51 AM

8-36
8

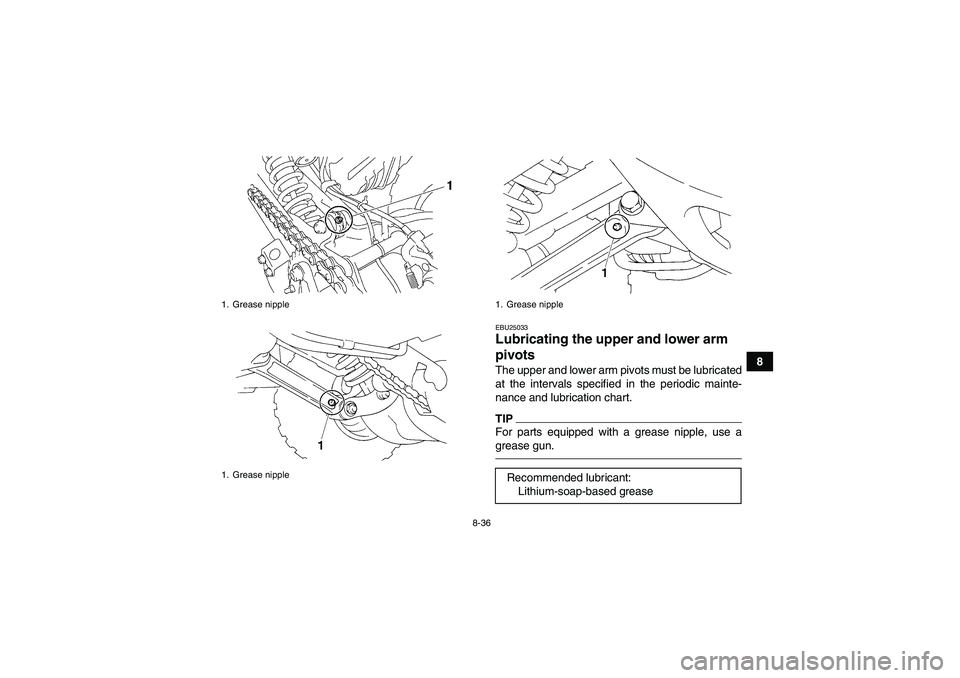

EBU25033Lubricating the upper and lower arm
pivots The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
1. Grease nipple
1. Grease nipple
1. Grease nippleRecommended lubricant:
Lithium-soap-based grease
U10P70E0.book Page 36 Thursday, July 21, 2011 8:51 AM

8-37

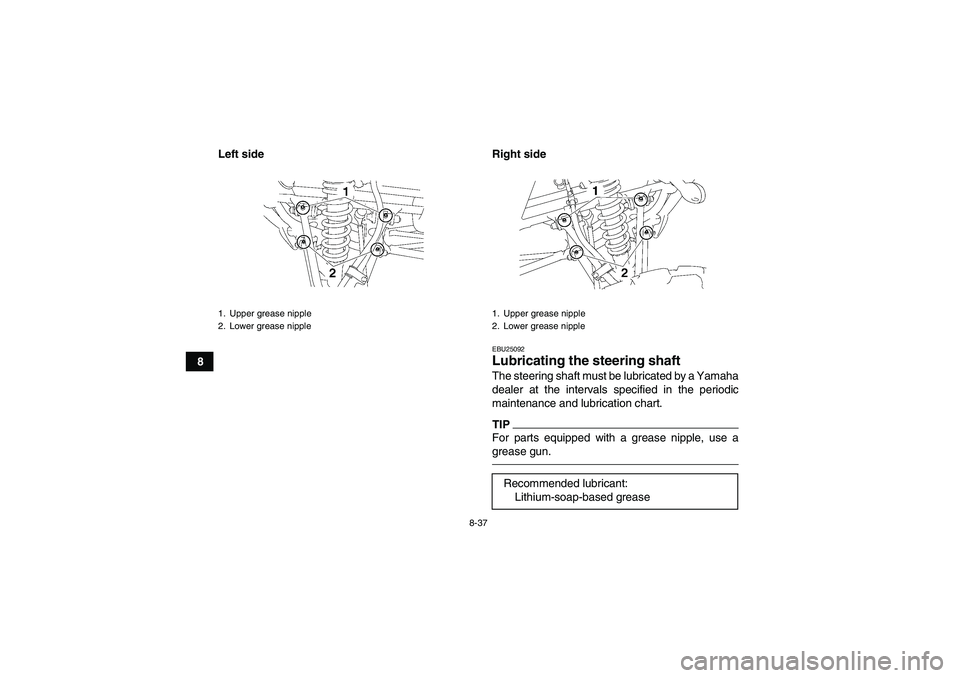

8Left side Right side
EBU25092Lubricating the steering shaft The steering shaft must be lubricated by a Yamaha
dealer at the intervals specified in the periodic
maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
1. Upper grease nipple
2. Lower grease nipple
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant:
Lithium-soap-based grease
U10P70E0.book Page 37 Thursday, July 21, 2011 8:51 AM

8-38
8

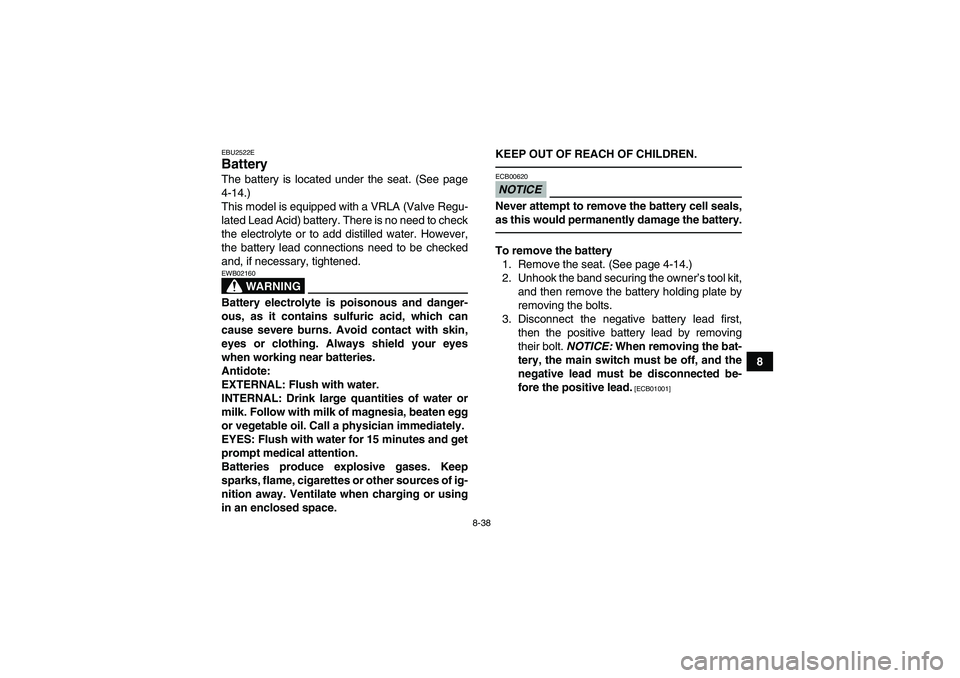

EBU2522EBattery The battery is located under the seat. (See page
4-14.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to check
the electrolyte or to add distilled water. However,
the battery lead connections need to be checked
and, if necessary, tightened.
WARNING
EWB02160Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can
cause severe burns. Avoid contact with skin,
eyes or clothing. Always shield your eyes
when working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of ig-
nition away. Ventilate when charging or using
in an enclosed space.KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00620Never attempt to remove the battery cell seals,
as this would permanently damage the battery.To remove the battery
1. Remove the seat. (See page 4-14.)
2. Unhook the band securing the owner’s tool kit,
and then remove the battery holding plate by
removing the bolts.
3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01001]
U10P70E0.book Page 38 Thursday, July 21, 2011 8:51 AM

8-39
8

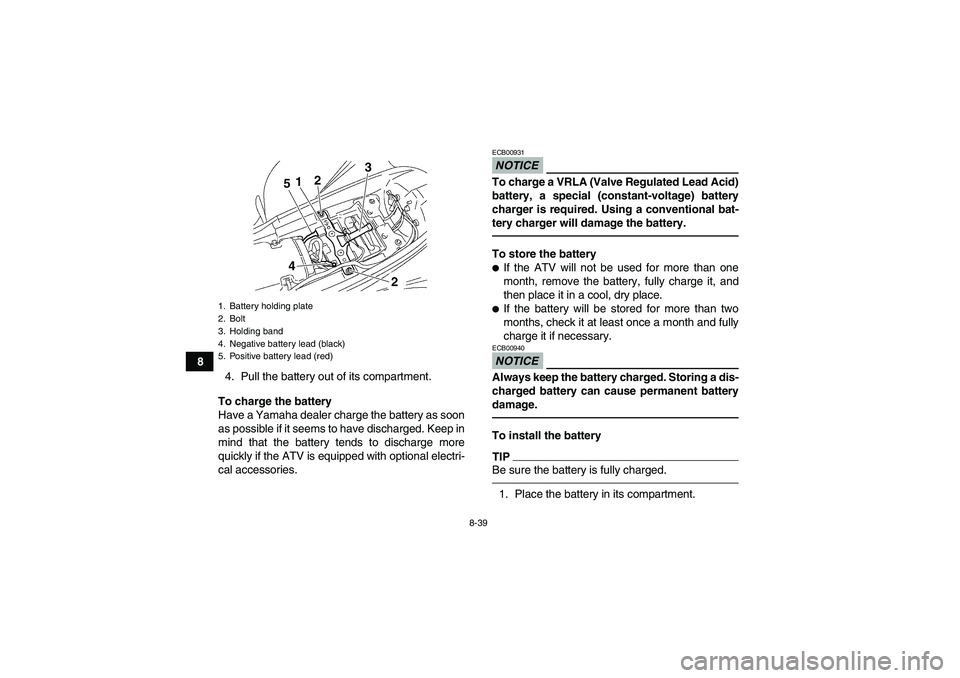

4. Pull the battery out of its compartment.
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep in
mind that the battery tends to discharge more
quickly if the ATV is equipped with optional electri-
cal accessories.
NOTICEECB00931To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery.To store the battery
If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00940Always keep the battery charged. Storing a dis-
charged battery can cause permanent battery
damage.To install the batteryTIPBe sure the battery is fully charged.1. Place the battery in its compartment.
1. Battery holding plate
2. Bolt
3. Holding band
4. Negative battery lead (black)
5. Positive battery lead (red)
3
2
1
54
U10P70E0.book Page 39 Thursday, July 21, 2011 8:51 AM

8-40
8 2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01110]
3. Install the battery holding plate by installing
the bolts, and then hook the band to secure
the owner’s tool kit.
4. Install the seat. (See page 4-14.)
EBU28153Replacing a fuse The main fuse and signaling system fuse are locat-
ed under the seat. (See page 4-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off all electrical
circuits.NOTICEECB00640To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
1. Positive battery lead (red)
2. Negative battery lead (black)
2
1. Main fuse
2. Spare main fuse
3. Accessory fuse
U10P70E0.book Page 40 Thursday, July 21, 2011 8:51 AM

8-41
82. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the spec-
ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02172]
3. Turn the key to “ON” and turn on the electrical
circuits to check if the devices operate.
4. If the fuse immediately blows again, have a
Yamaha dealer check the electrical system.EBU28160Headlight bulb If the headlight bulb burns out, have a Yamaha
dealer replace it.
EBU28170Headlight beam If a headlight beam adjustment is necessary, have
a Yamaha dealer perform it.EBU25601Replacing the tail/brake light bulb If the tail/brake light bulb burns out, replace it as
follows.
1. Remove the lens by removing the screws.
2. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise. Specified fuses:
Main fuse:
15.0 A
Accessory fuse:
7.5 A1. Screw
U10P70E0.book Page 41 Thursday, July 21, 2011 8:51 AM

8-42
8 3. Insert a new bulb into the socket, push it in,
and then turn it clockwise until it stops.
4. Install the lens by installing the screws.
NOTICE: Do not overtighten the screws,
otherwise the lens may break.
[ECB00701]
EBU28031
Replacing a turn signal light bulb 1. Remove the turn signal light lens by removing
the screw.2. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise.
3. Insert a new bulb into the socket, push it in,
and then turn it clockwise until it stops.
4. Install the lens by installing the screw.
NOTICE: Do not overtighten the screw,
otherwise the lens may break.
[ECB00871]
EBU28183
Replacing the license plate light bulb If the license plate light bulb burns out, replace it as
follows.
1. Remove the license plate light body by remov-
ing the screw.
1. Tail/brake light bulb
1. Screw
U10P70E0.book Page 42 Thursday, July 21, 2011 8:51 AM

8-43
82. Remove the license plate light bulb socket (to-
gether with the bulb).3. Remove the burnt-out bulb by pulling it out.
4. Insert a new bulb into the socket.
1. Screw
2. License plate light body
1. License plate light bulb socket
1. License plate light bulb
