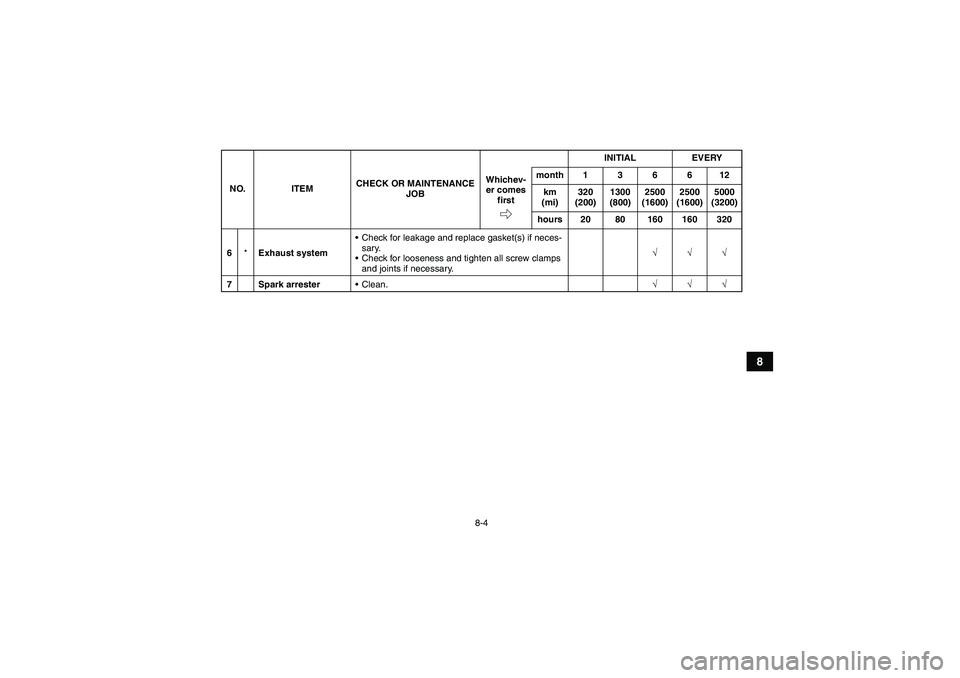

8-4
8
6*Exhaust systemCheck for leakage and replace gasket(s) if neces-
sary.
Check for looseness and tighten all screw clamps
and joints if necessary.√√√
7 Spark arresterClean.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U10P70E0.book Page 4 Thursday, July 21, 2011 8:51 AM

8-5
8
EBU21865General maintenance and lubrication chart TIP
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance inter-
vals. However, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance
intervals should be followed.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools,
data and technical skills.NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
1 Air filter elementClean and replace if necessary.Every 20–40 hours (more often in wet or
dusty areas)
2*ClutchCheck operation and adjust if necessary.√ √√√
3*Front brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation and correct if necessary.
Check fluid level and ATV for fluid leakage, and
correct if necessary.√√√√√
Replace brake pads. Whenever worn to the limit
U10P70E0.book Page 5 Thursday, July 21, 2011 8:51 AM

8-6
8
5*Brake hosesCheck for cracks or other damage, and replace if
necessary.√√√√
Replace. Every 4 years
6*Parking brakeCheck operation and adjust if necessary.√√√√√
7*WheelsCheck runout and for damage, and replace if nec-
essary.√ √√√
8*TiresCheck tread depth and for damage, and replace if
necessary.
Check air pressure and balance, and correct if
necessary.√ √√√
9*Wheel hub bearingsCheck for looseness or damage, and replace if
necessary.√ √√√
10*Swingarm pivotsCheck operation and for excessive play, and re-
place bearings if necessary.
Lubricate with lithium-soap-based grease.√√√
11*Upper and lower
arm pivotsLubricate with lithium-soap-based grease.√√√
12 Drive chainCheck chain slack and adjust if necessary.
Check rear wheel alignment and correct if neces-
sary.
Clean and lubricate.√√√√√
13*Drive chain rollersCheck for wear and replace if necessary.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
U10P70E0.book Page 6 Thursday, July 21, 2011 8:51 AM

8-7
8
14*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
15*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
16*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation and correct if necessary.
Lubricate with lithium-soap-based grease.√√√√
17*Steering shaftLubricate with lithium-soap-based grease.√√√
18*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
19 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
20Engine oil filter ele-
mentClean or replace if necessary.√√√
21 Engine oil strainerClean.√√√
22*Moving parts and
cablesLubricate.√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U10P70E0.book Page 7 Thursday, July 21, 2011 8:51 AM

8-8
8
EBU23071TIP
Some maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and
change the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.23*Throttle leverCheck operation.
Check throttle lever free play, and adjust if neces-
sary.
Lubricate cable and lever housing.√√√√√
24*Front and rear brake
switchesCheck operation and correct if necessary.√√√√√
25*Lights and switchesCheck operation and correct if necessary.
Adjust headlight beam.√√√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320U10P70E0.book Page 8 Thursday, July 21, 2011 8:51 AM

8-9
8
EBU23213Checking the spark plug The spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the spark
plug should be removed and checked in accor-
dance with the periodic maintenance and lubrica-
tion chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug
1. Remove the spark plug cap.2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s tool
kit.
To check the spark plug
1. Check that the porcelain insulator around the
center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
U10P70E0.book Page 9 Thursday, July 21, 2011 8:51 AM

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV.2. Check the spark plug for electrode erosion
and excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick-
ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug
1. Clean the surface of the spark plug gasket
and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug
wrench, and then tighten it to the specified
torque. Specified spark plug:
NGK/DR8EA
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
U10P70E0.book Page 10 Thursday, July 21, 2011 8:51 AM

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the specified
torque as soon as possible.3. Install the spark plug cap.EBU2327EEngine oil and oil filter element The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading.3. Remove the engine oil filler cap, and then
wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without
screwing it in), and then remove it again to
check the oil level.TIPThe engine oil should be between the minimum
and maximum level marks.
Tightening torque:
Spark plug:
18 Nm (1.8 m·kgf, 13 ft·lbf)
U10P70E0.book Page 11 Thursday, July 21, 2011 8:51 AM

8-12
8
5. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
NOTICE: Be sure the engine oil is at the
correct level, otherwise engine damage
may result.
[ECB00851]
6. Insert the dipstick into the oil filler hole, and
then tighten the engine oil filler cap.To change the engine oil (with or without oil fil-
ter element cleaning)
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the engine to collect
the used oil.
4. Remove the engine oil filler cap, and then re-
move the engine oil drain bolt to drain the oil
from the crankcase. NOTICE: When remov-
ing the engine oil drain bolt, the compres-
sion spring, oil strainer and O-ring will fall
out. Take care not to lose these parts.
[ECB00311]
1. Engine oil dipstick
2. Maximum level mark
3. Minimum level mark
4. Engine oil filler capU10P70E0.book Page 12 Thursday, July 21, 2011 8:51 AM

8-13
8
TIPSkip steps 5–9 if the oil filter element is not being
cleaned.5. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement and the O-ring.6. Clean the oil strainer and oil filter element with
solvent.
7. Install the oil filter element and a new O-ring.
TIPMake sure that the O-ring is properly seated.8. Apply a thin coat of clean engine oil to the O-
ring.
9. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
1. Engine oil drain bolt
2. O-ring
3. Compression spring
4. Oil strainer
1. Oil filter element cover
2. Bolt
3. Oil filter element
4. O-ring
U10P70E0.book Page 13 Thursday, July 21, 2011 8:51 AM
