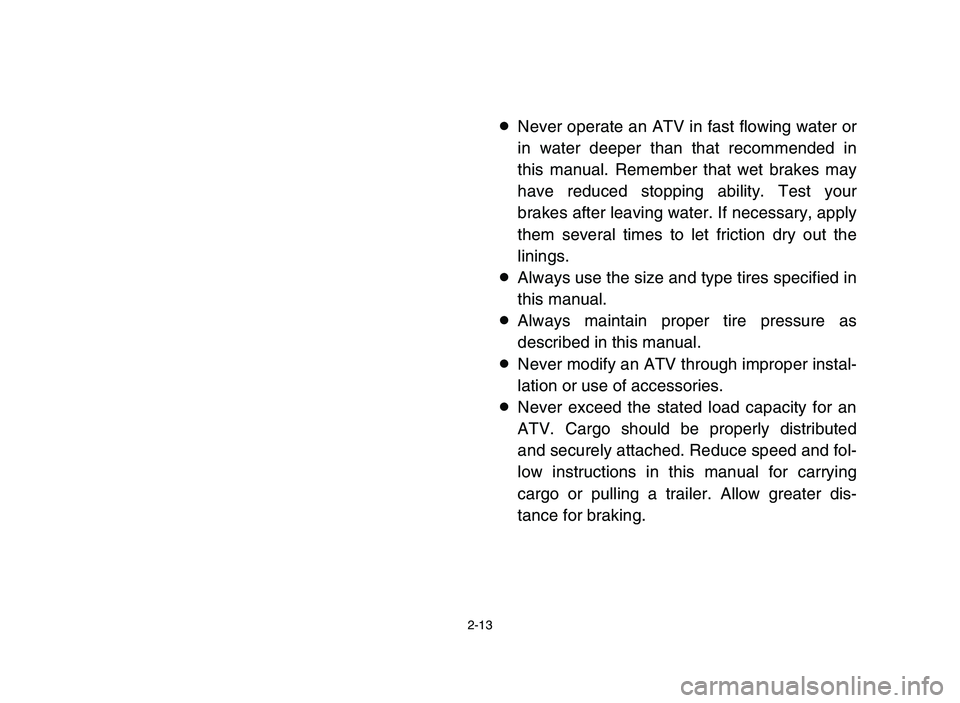

2-13
8Never operate an ATV in fast flowing water or
in water deeper than that recommended in
this manual. Remember that wet brakes may
have reduced stopping ability. Test your
brakes after leaving water. If necessary, apply
them several times to let friction dry out the
linings.
8Always use the size and type tires specified in
this manual.
8Always maintain proper tire pressure as
described in this manual.
8Never modify an ATV through improper instal-
lation or use of accessories.
8Never exceed the stated load capacity for an
ATV. Cargo should be properly distributed
and securely attached. Reduce speed and fol-
low instructions in this manual for carrying
cargo or pulling a trailer. Allow greater dis-
tance for braking.
5YF-9-62 ~3 3/4/05 9:55 PM Page 48

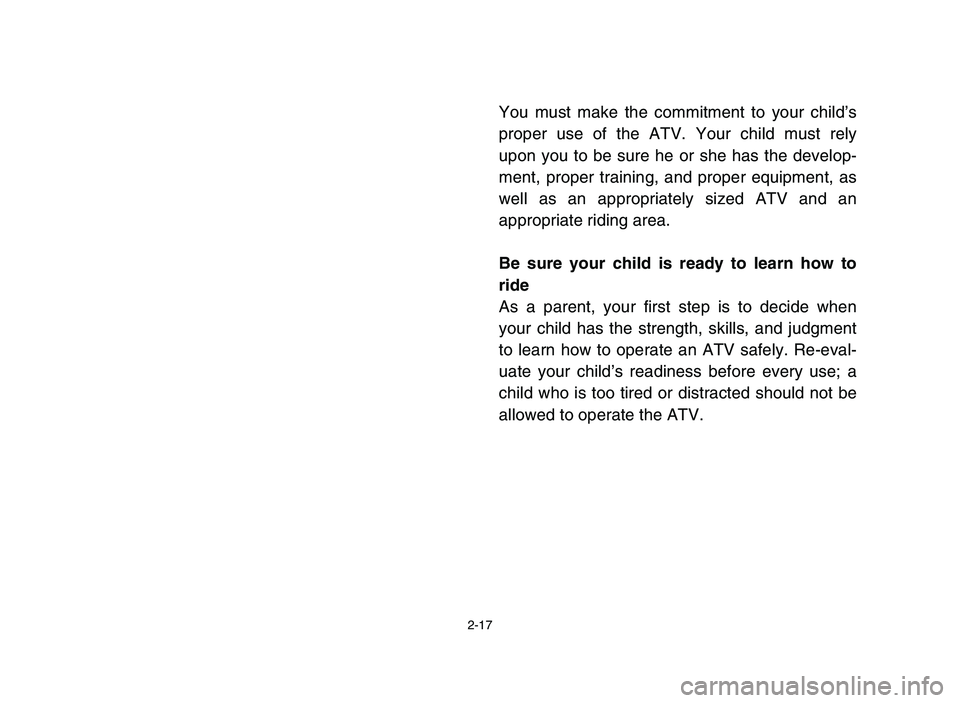

You must make the commitment to your child’s
proper use of the ATV. Your child must rely
upon you to be sure he or she has the develop-
ment, proper training, and proper equipment, as
well as an appropriately sized ATV and an
appropriate riding area.
Be sure your child is ready to learn how to
ride
As a parent, your first step is to decide when
your child has the strength, skills, and judgment
to learn how to operate an ATV safely. Re-eval-
uate your child’s readiness before every use; a
child who is too tired or distracted should not be
allowed to operate the ATV.
2-17
5YF-9-62 ~3 3/4/05 9:55 PM Page 52

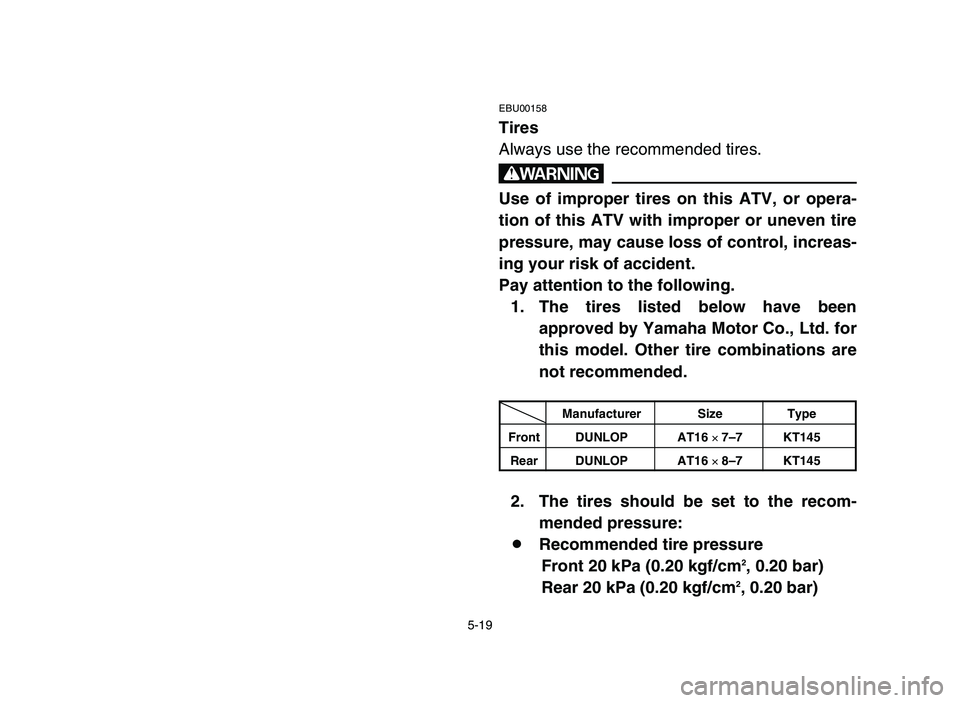

5-19
EBU00158
Tires
Always use the recommended tires.
w
Use of improper tires on this ATV, or opera-
tion of this ATV with improper or uneven tire
pressure, may cause loss of control, increas-
ing your risk of accident.
Pay attention to the following.
1. The tires listed below have been
approved by Yamaha Motor Co., Ltd. for
this model. Other tire combinations are
not recommended.
2. The tires should be set to the recom-
mended pressure:
8Recommended tire pressure
Front 20 kPa (0.20 kgf/cm
2, 0.20 bar)
Rear 20 kPa (0.20 kgf/cm2, 0.20 bar)
Manufacturer Size Type
Front DUNLOP AT16 ×7–7 KT145
Rear DUNLOP AT16 ×8–7 KT145
5YF-9-62 4~5 3/4/05 9:58 PM Page 46

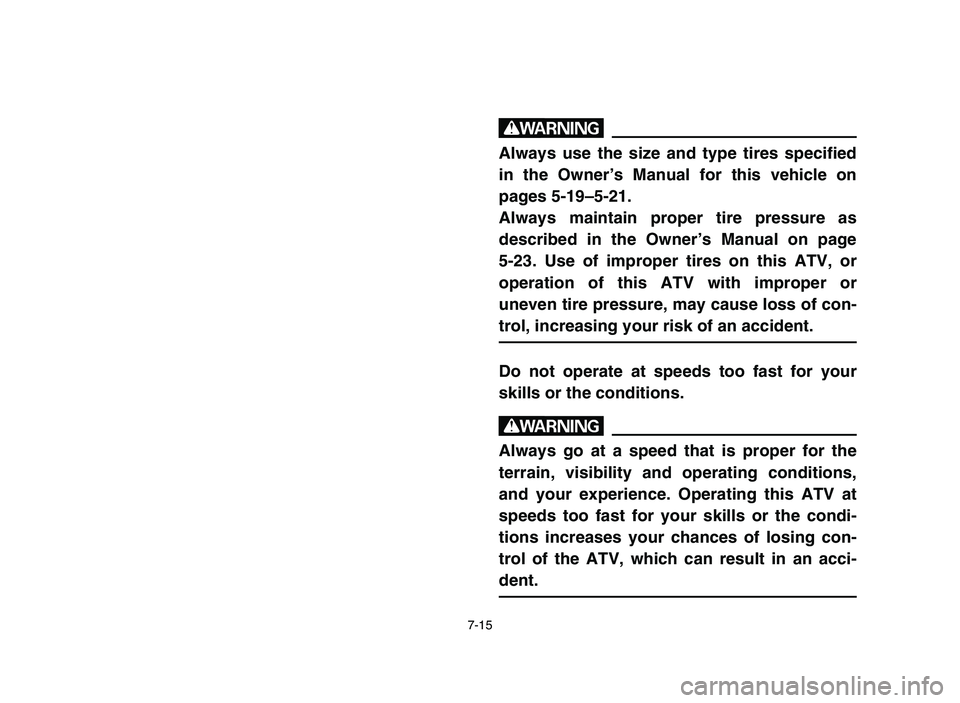

7-15
w
Always use the size and type tires specified
in the Owner’s Manual for this vehicle on
pages 5-19–5-21.
Always maintain proper tire pressure as
described in the Owner’s Manual on page
5-23. Use of improper tires on this ATV, or
operation of this ATV with improper or
uneven tire pressure, may cause loss of con-
trol, increasing your risk of an accident.
Do not operate at speeds too fast for your
skills or the conditions.
w
Always go at a speed that is proper for the
terrain, visibility and operating conditions,
and your experience. Operating this ATV at
speeds too fast for your skills or the condi-
tions increases your chances of losing con-
trol of the ATV, which can result in an acci-
dent.
5YF-9-62 7 2/22/05 9:02 AM Page 158

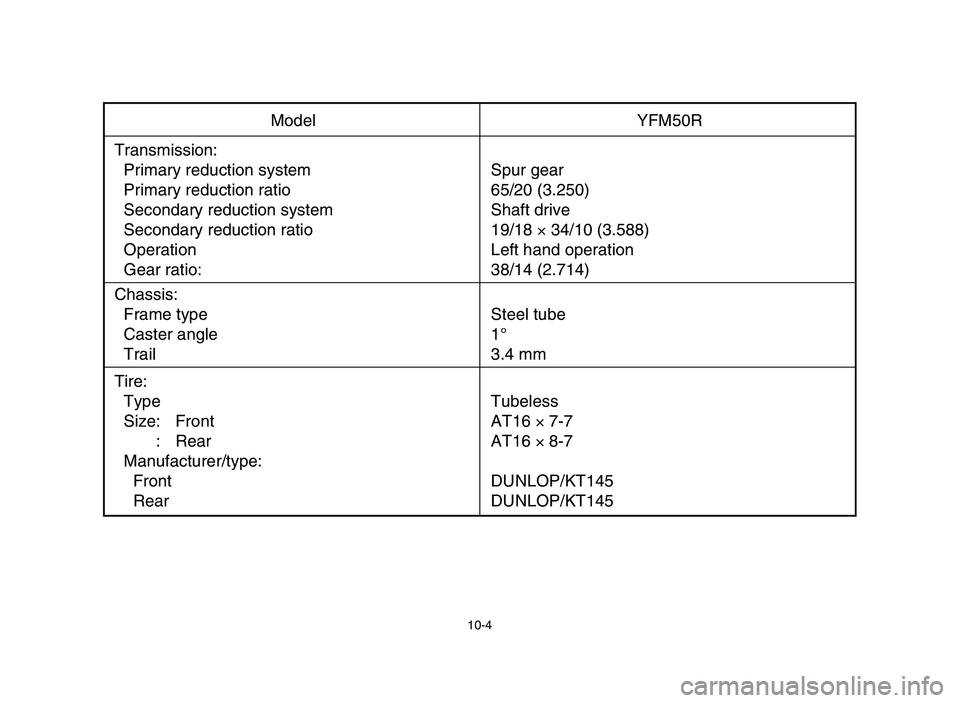

10-4
Model YFM50R
Transmission:
Primary reduction system Spur gear
Primary reduction ratio 65/20 (3.250)
Secondary reduction system Shaft drive
Secondary reduction ratio 19/18 ×34/10 (3.588)
Operation Left hand operation
Gear ratio: 38/14 (2.714)
Chassis:
Frame type Steel tube
Caster angle 1°
Trail 3.4 mm
Tire:
Type Tubeless
Size: Front AT16 ×7-7
: Rear AT16 ×8-7
Manufacturer/type:
Front DUNLOP/KT145
Rear DUNLOP/KT145
5YF-9-62 9~ 3/4/05 10:00 PM Page 311
