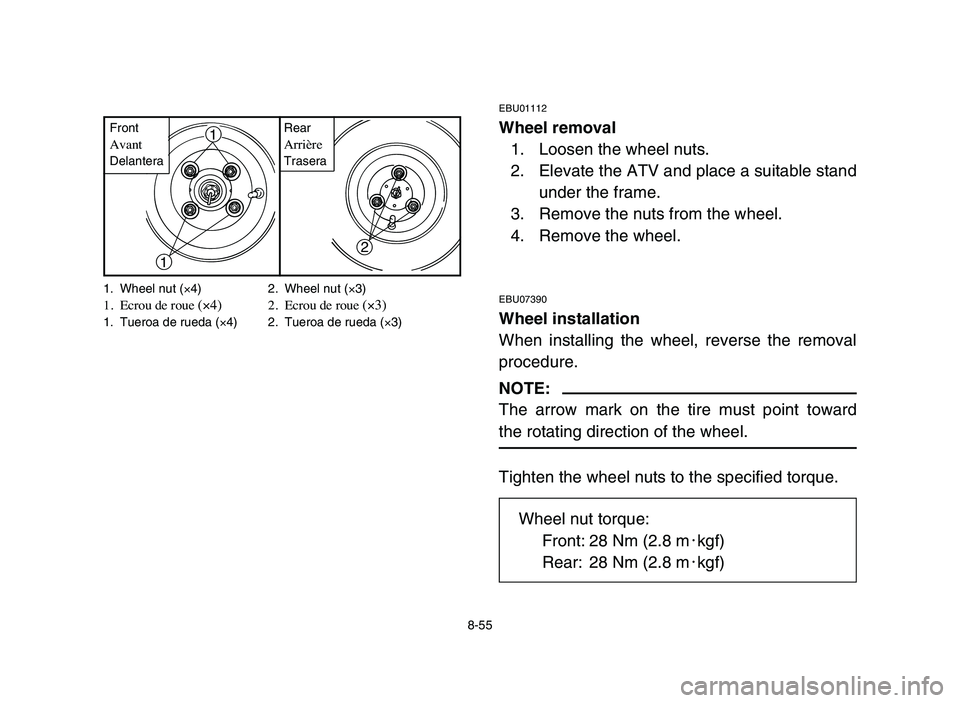

1. Wheel nut (×4) 2. Wheel nut (×3)1. Ecrou de roue (×4)2. Ecrou de roue (×3)1. Tueroa de rueda (×4) 2. Tueroa de rueda (×3)
8-55
EBU01112
Wheel removal
1. Loosen the wheel nuts.
2. Elevate the ATV and place a suitable stand
under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.
EBU07390
Wheel installation
When installing the wheel, reverse the removal
procedure.
NOTE:
The arrow mark on the tire must point toward
the rotating direction of the wheel.
Tighten the wheel nuts to the specified torque.
Wheel nut torque:
Front: 28 Nm (2.8 m0kgf)
Rear: 28 Nm (2.8 m0kgf)
1
12
FrontAvantDelantera
RearArrièreTrasera
5YF-9-62 8 2/23/05 6:56 PM Page 8-55
