3. Tighten the locknut to the specified torque. NOTICE: Always tighten the locknut
against the adjusting nut, and then tighten
it to the specified torque.
[ECB00081]

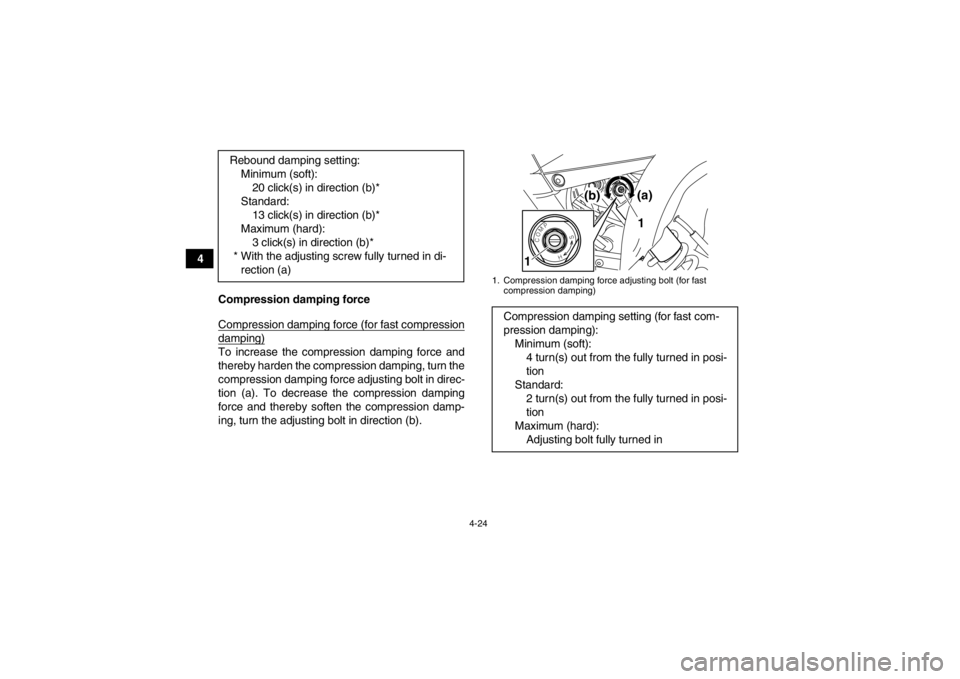

Rebound damping force
Turn the rebound damping force adjusting screw in
direction (a) to increase the rebound damping
force and thereby harden the damping, and in di-
rection (b) to decrease the rebound damping force
and thereby soften the damping.

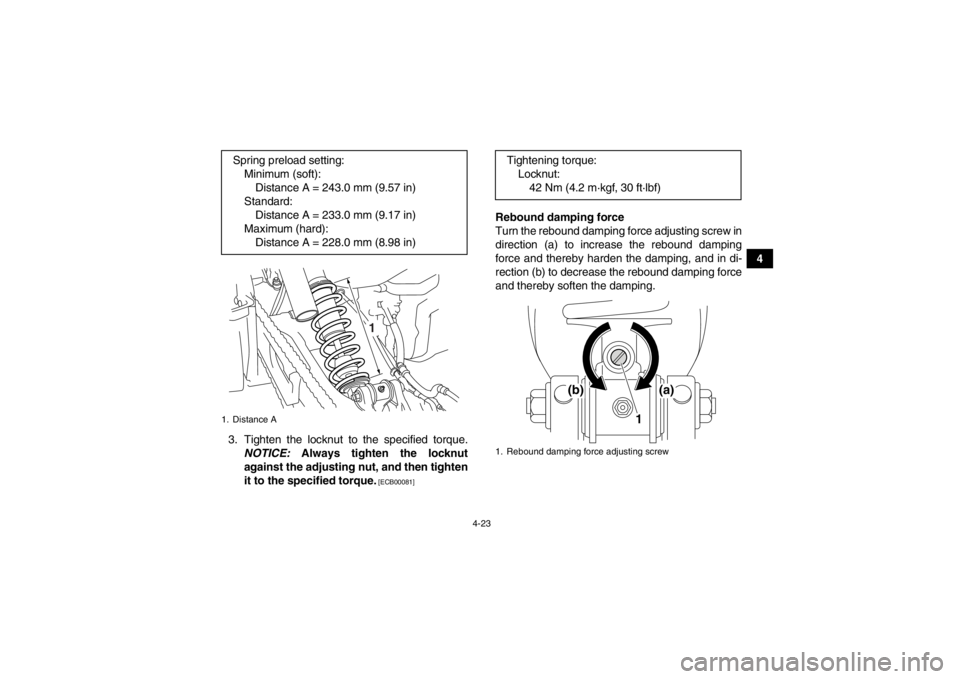

Spring preload setting:
Minimum (soft):Distance A = 243.0 mm (9.57 in)
Standard: Distance A = 233.0 mm (9.17 in)
Maximum (hard): Distance A = 228.0 mm (8.98 in)
1. Distance A
1
Tightening torque: Locknut:42 Nm (4.2 m·kgf, 30 ft·lbf)1. Rebound damping force adjusting screw
1
(b) (a)
U1PE60E0.book Page 23 Friday, March 2, 2012 1:22 PM

4-24

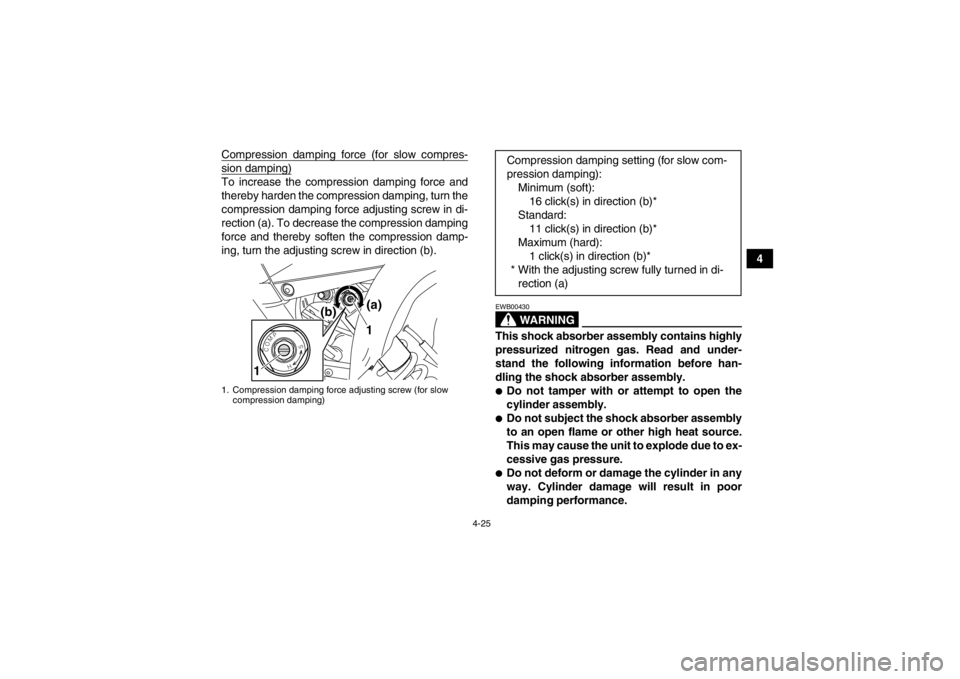

4Compression damping force
Compression damping force (for fast compression
damping)To increase the compression damping force and
thereby harden the compression damping, turn the
compression damping force adjusting bolt in direc-
tion (a). To decrease the compression damping
force and thereby soften the compression damp-
ing, turn the adjusting bolt in direction (b).Rebound damping setting:
Minimum (soft):20 click(s) in direction (b)*
Standard: 13 click(s) in direction (b)*
Maximum (hard): 3 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
1. Compression damping force adjusting bolt (for fast compression damping)Compression damping setting (for fast com-
pression damping):
Minimum (soft):4 turn(s) out from the fully turned in posi-
tion
Standard: 2 turn(s) out from the fully turned in posi-
tion
Maximum (hard): Adjusting bolt fully turned in
1
(b)
(a)
1
U1PE60E0.book Page 24 Friday, March 2, 2012 1:22 PM

4-25
4
Compression damping force (for slow compres-
sion damping)To increase the compression damping force and
thereby harden the compression damping, turn the
compression damping force adjusting screw in di-
rection (a). To decrease the compression damping
force and thereby soften the compression damp-
ing, turn the adjusting screw in direction (b).
WARNING
EWB00430This shock absorber assembly contains highly
pressurized nitrogen gas. Read and under-
stand the following information before han-
dling the shock absorber assembly.●Do not tamper with or attempt to open the
cylinder assembly.●Do not subject the shock absorber assembly
to an open flame or other high heat source.
This may cause the unit to explode due to ex-
cessive gas pressure.●Do not deform or damage the cylinder in any
way. Cylinder damage will result in poor
damping performance.
1. Compression damping force adjusting screw (for slow
compression damping)
1
(b)
(a)
1
Compression damping setting (for slow com-
pression damping):
Minimum (soft):16 click(s) in direction (b)*
Standard: 11 click(s) in direction (b)*
Maximum (hard): 1 click(s) in direction (b)*
* With the adjusting screw fully turned in di- rection (a)
U1PE60E0.book Page 25 Friday, March 2, 2012 1:22 PM

4-26
4
●Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
U1PE60E0.book Page 26 Friday, March 2, 2012 1:22 PM

5-1
5
EBU19201
PRE-OPERATION CHECKS
EBU19224Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWB00481Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEMROUTINE PAGE
Fuel Check fuel level in fuel tank, and add recommended fuel if neces-
sary.
Check fuel line for leakage. Correct if necessary. 4-10, 5-4
Engine oil Check oil level in engine oil tank, and add recommended oil to spec-
ified level if necessary.
Check ATV for oil leakage. Correct if necessary. 5-4, 8-13
Coolant Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.
Check cooling system for leakage. Correct if necessary. 5-4, 8-17
U1PE60E0.book Page 1 Friday, March 2, 2012 1:22 PM

5-2
5
Front brake Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear , and replace if necessary.
Check brake fluid level in reservoir, and add specified brake fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary. 5-4, 8-30, 8-31, 8-34
Rear brake Check operation. If soft or spongy, have Yamaha dealer bleed hy-
draulic system.
Check brake pads for wear , and replace if necessary.
Check brake fluid level in reservoir, and add specified brake fluid to specified level if necessary.
Check hydraulic system for leakage. Correct if necessary. 5-4, 8-30, 8-31, 8-34
Clutch Check operation, and correct if necessary.
Lubricate cable if necessary.
Check lever free play, and adjust if necessary. 8-37
Throttle lever Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.
Check lever free play, and adjust if necessary. 5-5, 8-28
Control cables Make sure that operation is smooth. Lubricate if necessary. 8-41
Drive chain Check chain slack, and adjust if necessary.
Check chain condition. Lubricate if necessary. 5-5, 8-38, 8-40
Wheels and tires Check wheel condition, and replace if damaged.
Check tire condition and tread depth. Replace if necessary.
Check air pressure. Correct if necessary. 5-5
Shift pedal Make sure that operation is smooth.
Correct if necessary.
8-42
Brake pedal Make sure that operation is smooth. Lubricate pedal pivoting point if
necessary. 8-42
ITEM ROUTINE PAGEU1PE60E0.book Page 2 Friday, March 2, 2012 1:22 PM

5-3
5
Brake and clutch levers Make sure that operation is smooth. Lubricate lever pivoting points if
necessary. 8-42
Chassis fasteners Make sure that all nuts, bolts and screws are properly tightened. 5-7
Instruments, lights and
switches Check operation, and correct if necessary. 5-7
ITEM ROUTINE PAGE
U1PE60E0.book Page 3 Friday, March 2, 2012 1:22 PM

5-4
5
EBU19541Fuel Make sure that there is sufficient fuel in the tank.
(See page 4-10.)EBU19560Engine oil Make sure that the engine oil is at the specified lev-
el. Add oil as necessary. (See page 8-13.)EBU19631Coolant Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-17.)TIPThe coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.EBU19712Front and rear brakes Brake lever and brake pedal●Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.
●Check for correct brake pedal height. (See page
8-34.) If the pedal height is incorrect, have a
Yamaha dealer adjust it.●Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary.
(See page 8-31.)
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer check the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-30.) Specified brake fluid:
DOT 4
U1PE60E0.book Page 4 Friday, March 2, 2012 1:22 PM

5-5
5
EBU19761Throttle lever Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.EBU19770Drive chain Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-38.)EBU19814Tires Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with im- proper tire pressure may cause severe injury
or death from loss of control or rollover. Tire
pressure below the minimum specified could also cause the tire to dislodge from the rim un-
der severe riding conditions.
[EWB02541]
Set tire
pressures to the following specifications:
The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect. Recommended tire pressure:
Fron t27.5 kPa (0.275 kgf/cm², 4.0 psi)
Rear 27.5 kPa (0.275 kgf/cm², 4.0 psi)
Minimum tire pressure: Fron t24.5 kPa (0.245 kgf/cm², 3.6 psi)
Rear 24.5 kPa (0.245 kgf/cm², 3.6 psi)
Maximum tire seating pressure: Fron t250 kPa (2.5 kgf/cm², 36 psi)
Rear 250 kPa (2.5 kgf/cm², 36 psi)
U1PE60E0.book Page 5 Friday, March 2, 2012 1:22 PM

5-6
5Tire wear limit
When the tire groove decreases to 3 mm (0.12 in)
due to wear, replace the tire. Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING
EWB02551Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Manufacturing Corporation of America.
1. Low-pressure tire gauge
1. Tire wear limit
U1PE60E0.book Page 6 Friday, March 2, 2012 1:22 PM
