YAMAHA YFM80R 2008 Owners Manual
Manufacturer: YAMAHA, Model Year: 2008, Model line: YFM80R, Model: YAMAHA YFM80R 2008Pages: 116, PDF Size: 4.81 MB
Page 1 of 116
This A
MANUAL DEL PROPIETARIO
5TH-28199-66
YFM80RX
MANUEL DU PROPRIÉTAIREOWNER’S MANUAL
Page 2 of 116
PRINTED IN JAPAN
2007.05-0.3x1 !
(E,F,S)
YAMAHA MOTOR CO., LTD.
Page 3 of 116
This A
5TH-28199-66-E0
YFM80RX
OWNER’S MANUAL
Page 4 of 116
Page 5 of 116

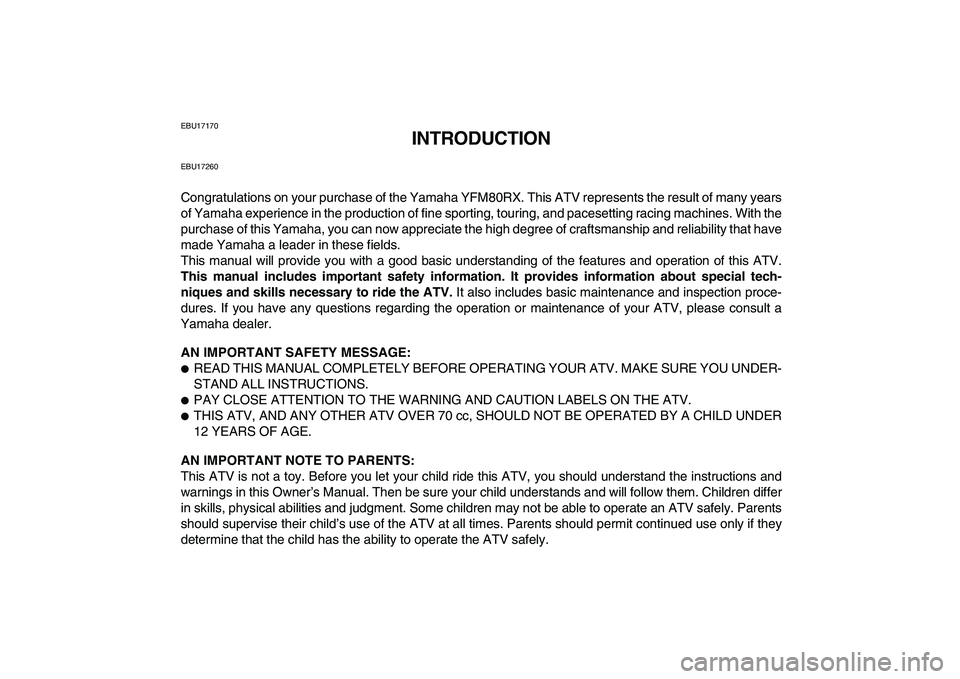

EBU17170
INTRODUCTION
EBU17260
Congratulations on your purchase of the Yamaha YFM80RX. This ATV represents the result of many years
of Yamaha experience in the production of fine sporting, touring, and pacesetting racing machines. With the
purchase of this Yamaha, you can now appreciate the high degree of craftsmanship and reliability that have
made Yamaha a leader in these fields.
This manual will provide you with a good basic understanding of the features and operation of this ATV.
This manual includes important safety information. It provides information about special tech-
niques and skills necessary to ride the ATV.
It also includes basic maintenance and inspection proce-
dures. If you have any questions regarding the operation or maintenance of your ATV, please consult a
Yamaha dealer.
AN IMPORTANT SAFETY MESSAGE:
READ THIS MANUAL COMPLETELY BEFORE OPERATING YOUR ATV. MAKE SURE YOU UNDER-
STAND ALL INSTRUCTIONS.
PAY CLOSE ATTENTION TO THE WARNING AND CAUTION LABELS ON THE ATV.
THIS ATV, AND ANY OTHER ATV OVER 70 cc, SHOULD NOT BE OPERATED BY A CHILD UNDER
12 YEARS OF AGE.
AN IMPORTANT NOTE TO PARENTS:
This ATV is not a toy. Before you let your child ride this ATV, you should understand the instructions and
warnings in this Owner’s Manual. Then be sure your child understands and will follow them. Children differ
in skills, physical abilities and judgment. Some children may not be able to operate an ATV safely. Parents
should supervise their child’s use of the ATV at all times. Parents should permit continued use only if they
determine that the child has the ability to operate the ATV safely.
Page 6 of 116

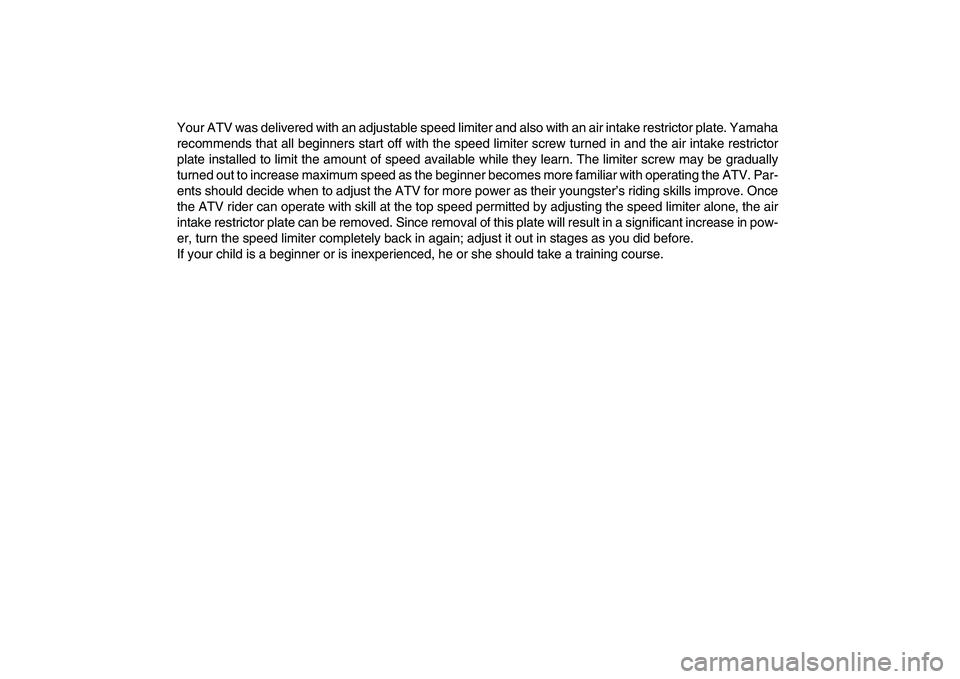

Your ATV was delivered with an adjustable speed limiter and also with an air intake restrictor plate. Yamaha
recommends that all beginners start off with the speed limiter screw turned in and the air intake restrictor
plate installed to limit the amount of speed available while they learn. The limiter screw may be gradually
turned out to increase maximum speed as the beginner becomes more familiar with operating the ATV. Par-
ents should decide when to adjust the ATV for more power as their youngster’s riding skills improve. Once
the ATV rider can operate with skill at the top speed permitted by adjusting the speed limiter alone, the air
intake restrictor plate can be removed. Since removal of this plate will result in a significant increase in pow-
er, turn the speed limiter completely back in again; adjust it out in stages as you did before.
If your child is a beginner or is inexperienced, he or she should take a training course.
Page 7 of 116
EBU17330
IMPORTANT MANUAL INFORMATION
EBU17341
FAILURE TO FOLLOW THE WARNINGS CONTAINED IN THIS MANUAL CAN RESULT IN SERIOUS IN-
JURY OR DEATH.
Particularly important information is distinguished in this manual by the following notations:
* Product and specifications are subject to change without notice.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED!
Failure to follow WARNING instructions could result in se
vere injur
y
or death
to the ATV operator, a bystander, or a person inspecting or
repairing the ATV.
A CAUTION indicates special precautions that must be taken to avoid
damage to the ATV.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:NOTE:
Page 8 of 116

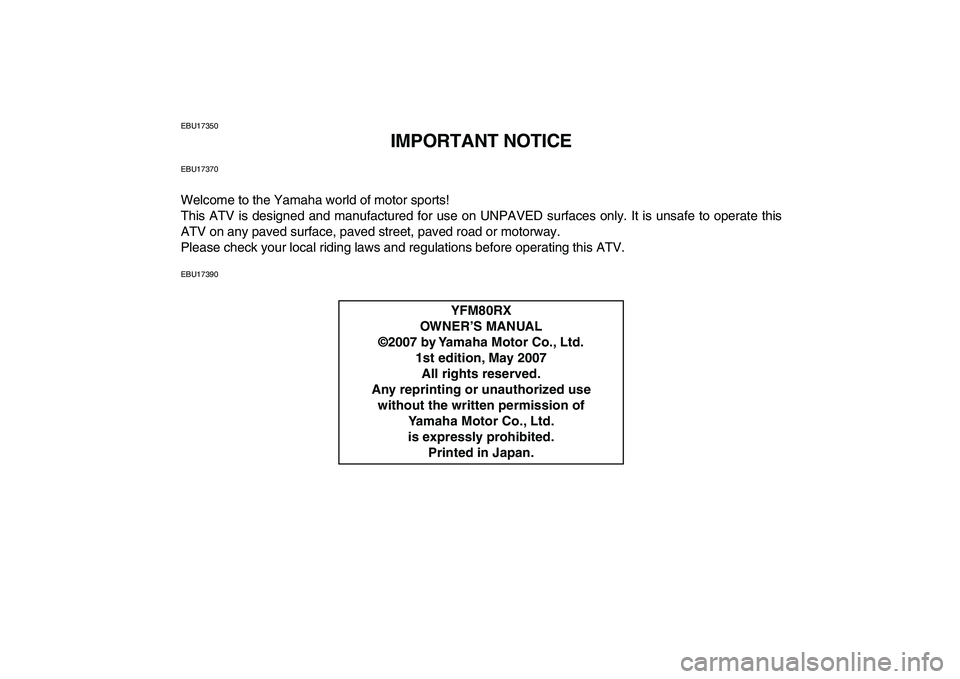

EBU17350
IMPORTANT NOTICE
EBU17370
Welcome to the Yamaha world of motor sports!
This ATV is designed and manufactured for use on UNPAVED surfaces only. It is unsafe to operate this
ATV on any paved surface, paved street, paved road or motorway.
Please check your local riding laws and regulations before operating this ATV.
EBU17390
YFM80RX
OWNER’S MANUAL
©2007 by Yamaha Motor Co., Ltd.
1st edition, May 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.
Printed in Japan.
Page 9 of 116
EBU17420
TABLE OF CONTENTS
SAFETY INFORMATION .............................. 1-1
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ............................ 2-1
DESCRIPTION .............................................. 3-1
Left view ..................................................... 3-1
Right view................................................... 3-1
Controls and instruments ........................... 3-2
INSTRUMENT AND CONTROL
FUNCTIONS .................................................. 4-1
Main switch ............................................... 4-1
Indicator light ............................................. 4-1
Handlebar switches ................................... 4-2
Throttle lever ............................................. 4-2
Speed limiter and air intake restrictor
plate ........................................................ 4-3
Front brake lever ....................................... 4-4
Brake pedal and rear brake lever .............. 4-5
Parking brake ............................................ 4-6
Shift pedal ................................................. 4-6
Fuel tank cap ............................................. 4-7
Fuel ........................................................... 4-7
Fuel cock ................................................... 4-8Choke ...................................................... 4-10
Seat ......................................................... 4-10
PRE-OPERATION CHECKS ..........................5-1
Pre-operation check list ............................. 5-1
Fuel ............................................................ 5-3
Engine oil ................................................... 5-3
Final gear oil .............................................. 5-3
Front and rear brakes ................................ 5-3
Throttle lever .............................................. 5-4
Tires ........................................................... 5-4
Measuring the tire pressure ....................... 5-5
Tire wear limit ............................................ 5-6
Chassis fasteners ...................................... 5-6
Instruments, lights and switches ................ 5-6
Battery ....................................................... 5-6
OPERATION...................................................6-1
Starting a cold engine ................................ 6-1
Starting a warm engine .............................. 6-3
Shifting ....................................................... 6-3
Engine break-in .......................................... 6-5
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-6
Accessories and loading ............................ 6-7
Page 10 of 116
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV.............. 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ...........................................7-2
BE CAREFUL WHERE YOU RIDE ............ 7-9
TURNING YOUR ATV ............................. 7-13
CLIMBING UPHILL .................................. 7-14
RIDING DOWNHILL................................. 7-17
CROSSING A SLOPE.............................. 7-18
CROSSING THROUGH SHALLOW
WATER ..................................................7-19
RIDING OVER ROUGH TERRAIN .......... 7-20
SLIDING AND SKIDDING ........................ 7-21
WHAT TO DO IF... ................................... 7-22
WHAT TO DO... ....................................... 7-22
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ...................... 8-1
Periodic maintenance chart for the
emission control system .......................... 8-3
General maintenance and lubrication
chart ........................................................ 8-5
Checking the spark plug ............................ 8-8
Engine oil .................................................. 8-9
Final gear oil ............................................ 8-12
Cleaning the air filter element ................. 8-13
Removing the air intake restrictor plate ... 8-17
Cleaning the spark arrester ..................... 8-17Adjusting the carburetor ........................... 8-18
Adjusting the engine idling speed ............ 8-18
Checking the throttle cable free play ....... 8-19
Timing chain ............................................ 8-20
Valve clearance ....................................... 8-20
Checking the front and rear brake
shoes .....................................................8-20
Adjusting the front brake lever free
play ........................................................8-21
Adjusting the rear brake lever and brake
pedal free play .......................................8-23
Adjusting the clutch free play ................... 8-26
Checking and lubricating the cables ........ 8-26
Checking and lubricating the front and
rear brake levers ....................................8-27
Checking and lubricating the brake and
shift pedals .............................................8-28
Checking the wheel hub bearings ............ 8-28
Lubricating the front knuckle pivots ......... 8-28
Lubricating the steering shaft ................... 8-28
Battery ..................................................... 8-29
Replacing the fuse ................................... 8-31
Removing a wheel ................................... 8-32
Installing a wheel ..................................... 8-33
Troubleshooting ....................................... 8-33
Troubleshooting chart .............................. 8-35
CLEANING AND STORAGE ..........................9-1
Cleaning ..................................................... 9-1
