EBU24781

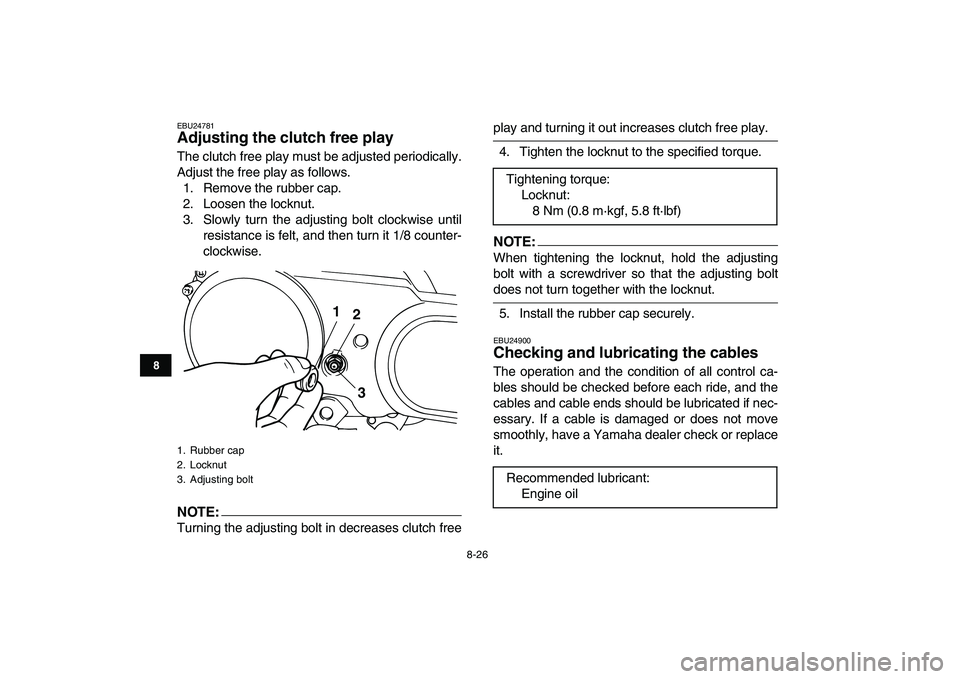

Adjusting the clutch free play
The clutch free play must be adjusted periodically.
Adjust the free play as follows.
1. Remove the rubber cap.
2. Loosen the locknut.
3. Slowly turn the adjusting bolt clockwise until
resistance is felt, and then turn it 1/8 counter-
clockwise.
NOTE:

Turning the adjusting bolt in decreases clutch free
play and turning it out increases clutch free play.
4. Tighten the locknut to the specified torque.
NOTE:

When tightening the locknut, hold the adjusting
bolt with a screwdriver so that the adjusting bolt
does not turn together with the locknut.
5. Install the rubber cap securely.
EBU24900
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
1. Rubber cap
2. Locknut
3. Adjusting bolt
1
2
3

Tightening torque:
Locknut:
8 Nm (0.8 m·kgf, 5.8 ft·lbf)
Recommended lubricant:
Engine oil

8-35
1
2
3
4
5
6
78
9
10
11

EBU25791

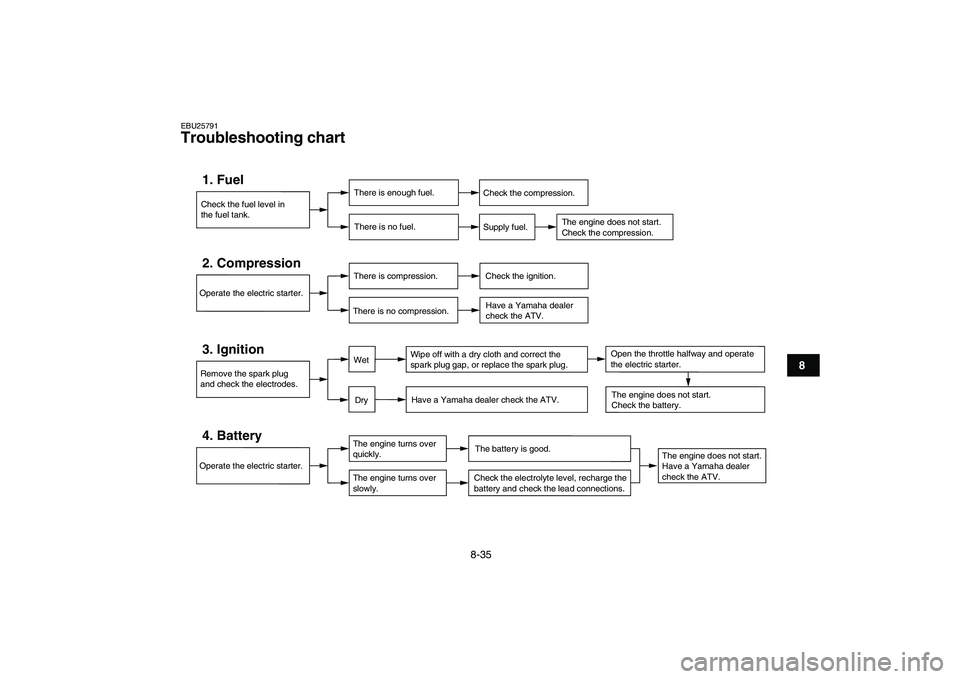

Troubleshooting chart
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the ATV.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the ATV.
The engine does not start.
Have a Yamaha dealer
check the ATV.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.Check the electrolyte level, recharge the
battery and check the lead connections.
DryWet
Open the throttle halfway and operate
the electric starter.
