Handlebar switches
EBU18070
Engine stop switch “ENG. STOP”
Set this switch to “RUN” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “OFF”.
EBU18090
Start switch “START”
Push this switch to crank the engine with the start-
er.CAUTION:
ECB00050
See the starting instructions on page 6-1 prior
to starting the engine.
EBU18280
Throttle lever
Once the engine is running, movement of the throt-
tle lever will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the hand is removed from
the throttle lever.
1. Engine stop switch “ENG. STOP”
2. Start switch “START”
12

6-1
1
2
3
4
56
7
8
9
10
11

EBU19880
OPERATION
EBU19900
Read the Owner’s Manual carefully before riding
the ATV.
WARNING

EWB00630
Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury. If there is a control or func-
tion you do not understand, ask your Yamaha
dealer.
EBU20221
Starting a cold engine
WARNING

EWB00640
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.
CAUTION:

ECB00150
See the “Engine break-in” section on page 6-5
prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the main switch to “ON” and the engine
stop switch to “RUN”.
4. Shift the transmission into neutral. The neutral
indicator light should come on. If the indicator
light does not come on, have a Yamaha deal-
er check the electrical circuit.
NOTE:

This model is equipped with an ignition circuit cut-
off system. The engine can be started under the
following conditions.

The transmission is in neutral.

The rear brake lever is applied with the transmis-
sion in any gear. However, it is recommended to
shift into neutral before starting the engine.
5. Use the choke in reference to the figure:

6-3
1
2
3
4
56
7
8
9
10
11

crank the engine more than 10 seconds on each
attempt.
7. If the engine is started with the choke in posi-
tion (1), the choke should be returned to posi-
tion (2) to warm up the engine. If the engine is
started with the choke in position (2), keep the
choke in this position to warm up the engine.
CAUTION:

ECB00160
For maximum engine life, always warm the en-
gine up before starting off. Never accelerate
hard when the engine is cold!
8. Continue warming up the engine until it idles
smoothly, then return the choke to position (3)
before riding.
NOTE:

The engine is warm when it responds normally to
the throttle with the choke turned off.
EBU20301
Starting a warm engine
Follow the same procedure as for starting a cold
engine, with the exception that the choke is not re-
quired when the engine is warm. Instead, start the
engine with the throttle slightly open.
EBU20550

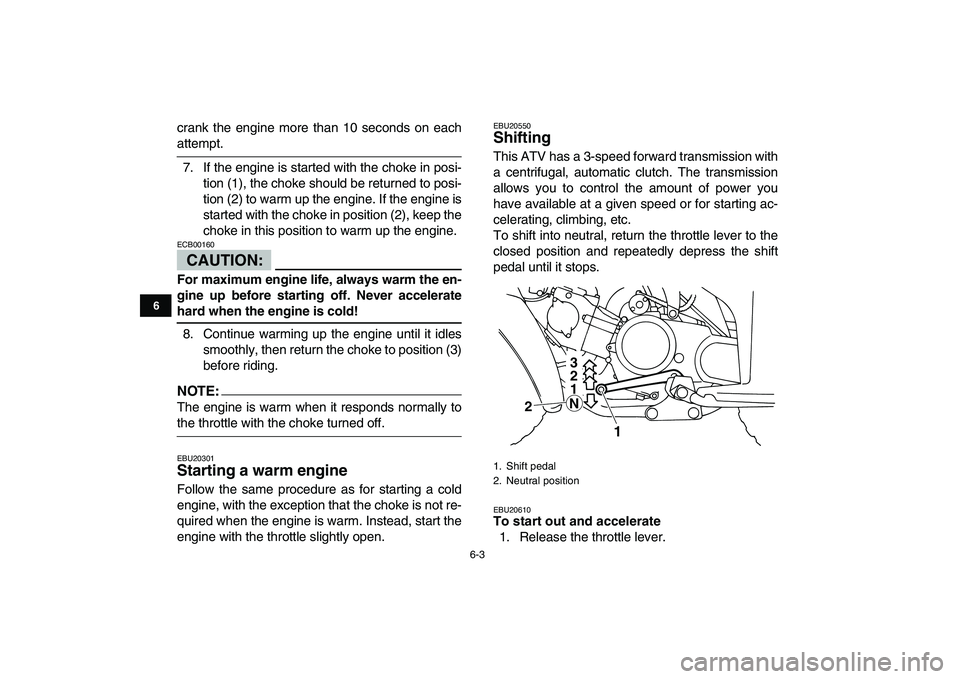

Shifting
This ATV has a 3-speed forward transmission with
a centrifugal, automatic clutch. The transmission
allows you to control the amount of power you
have available at a given speed or for starting ac-
celerating, climbing, etc.
To shift into neutral, return the throttle lever to the
closed position and repeatedly depress the shift
pedal until it stops.
EBU20610
To start out and accelerate
1. Release the throttle lever.
1. Shift pedal
2. Neutral position
3
2
1
1
N
2

7-12
1
2
3
4
5
67
8
9
10
11

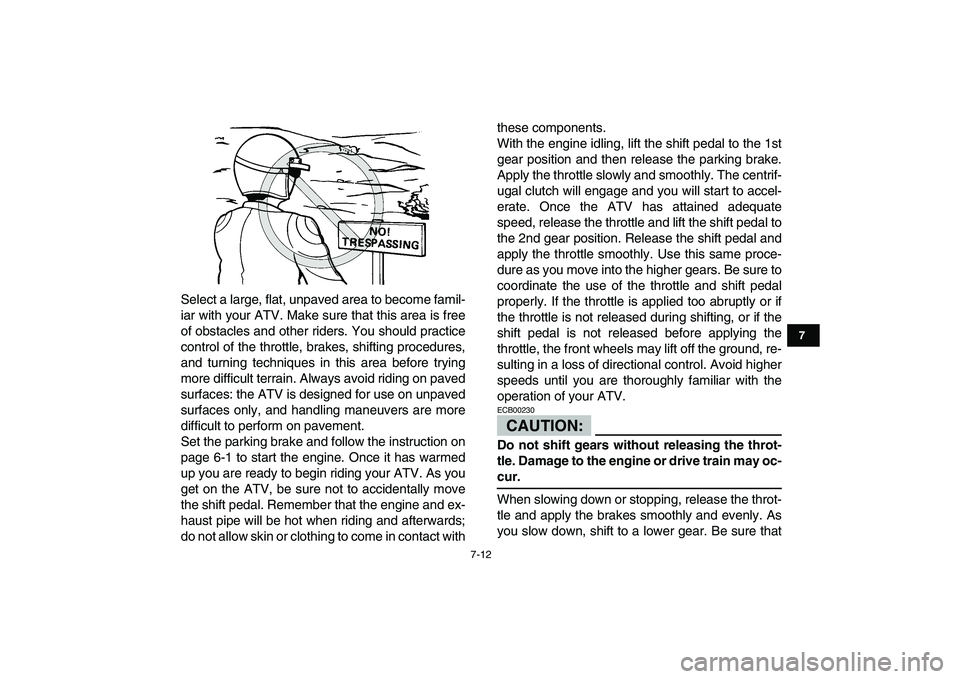

Select a large, flat, unpaved area to become famil-
iar with your ATV. Make sure that this area is free
of obstacles and other riders. You should practice
control of the throttle, brakes, shifting procedures,
and turning techniques in this area before trying
more difficult terrain. Always avoid riding on paved
surfaces: the ATV is designed for use on unpaved
surfaces only, and handling maneuvers are more
difficult to perform on pavement.
Set the parking brake and follow the instruction on
page 6-1 to start the engine. Once it has warmed
up you are ready to begin riding your ATV. As you
get on the ATV, be sure not to accidentally move
the shift pedal. Remember that the engine and ex-
haust pipe will be hot when riding and afterwards;
do not allow skin or clothing to come in contact withthese components.
With the engine idling, lift the shift pedal to the 1st
gear position and then release the parking brake.
Apply the throttle slowly and smoothly. The centrif-
ugal clutch will engage and you will start to accel-
erate. Once the ATV has attained adequate
speed, release the throttle and lift the shift pedal to
the 2nd gear position. Release the shift pedal and
apply the throttle smoothly. Use this same proce-
dure as you move into the higher gears. Be sure to
coordinate the use of the throttle and shift pedal
properly. If the throttle is applied too abruptly or if
the throttle is not released during shifting, or if the
shift pedal is not released before applying the
throttle, the front wheels may lift off the ground, re-
sulting in a loss of directional control. Avoid higher
speeds until you are thoroughly familiar with the
operation of your ATV.
CAUTION:
ECB00230
Do not shift gears without releasing the throt-
tle. Damage to the engine or drive train may oc-
cur.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. As
you slow down, shift to a lower gear. Be sure that

7-16
1
2
3
4
5
67
8
9
10
11

if possible.

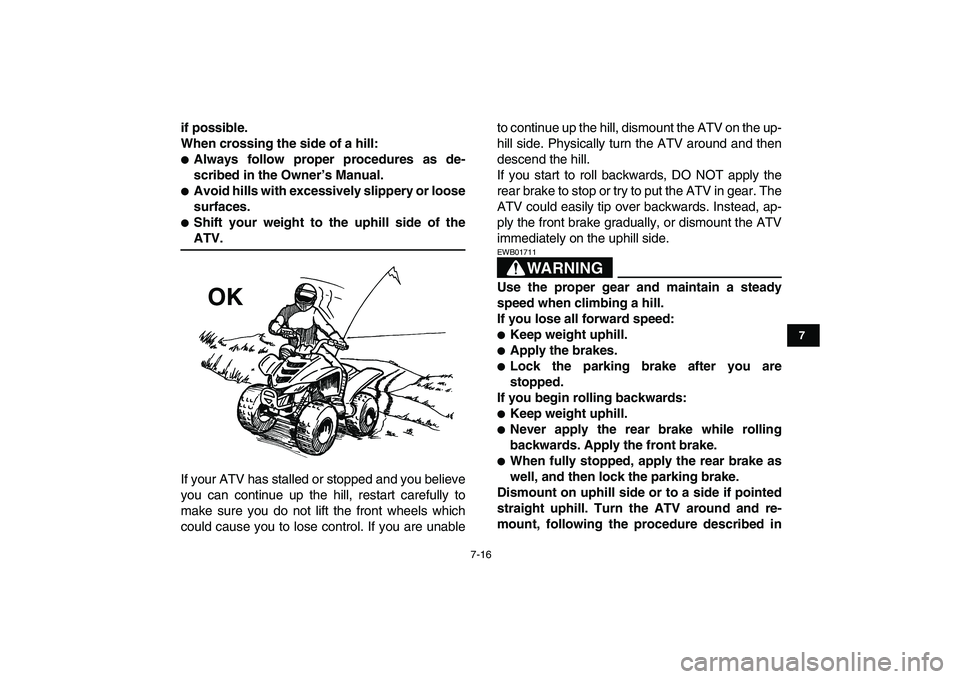

When crossing the side of a hill:

Always follow proper procedures as de-
scribed in the Owner’s Manual.

Avoid hills with excessively slippery or loose
surfaces.

Shift your weight to the uphill side of the
ATV.
If your ATV has stalled or stopped and you believe
you can continue up the hill, restart carefully to
make sure you do not lift the front wheels which
could cause you to lose control. If you are unableto continue up the hill, dismount the ATV on the up-
hill side. Physically turn the ATV around and then
descend the hill.
If you start to roll backwards, DO NOT apply the
rear brake to stop or try to put the ATV in gear. The
ATV could easily tip over backwards. Instead, ap-
ply the front brake gradually, or dismount the ATV
immediately on the uphill side.
WARNING
EWB01711
Use the proper gear and maintain a steady
speed when climbing a hill.
If you lose all forward speed:

Keep weight uphill.

Apply the brakes.

Lock the parking brake after you are
stopped.
If you begin rolling backwards:

Keep weight uphill.

Never apply the rear brake while rolling
backwards. Apply the front brake.

When fully stopped, apply the rear brake as
well, and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and re-
mount, following the procedure described in
OK

7-22
1
2
3
4
5
67
8
9
10
11
WARNING

EWB01661
Learn to safely control skidding or sliding by
practicing at low speeds and on level, smooth
terrain.
On extremely slippery surfaces, such as ice,
go slowly and be very cautious in order to re-
duce the chance of skidding or sliding out of
control.

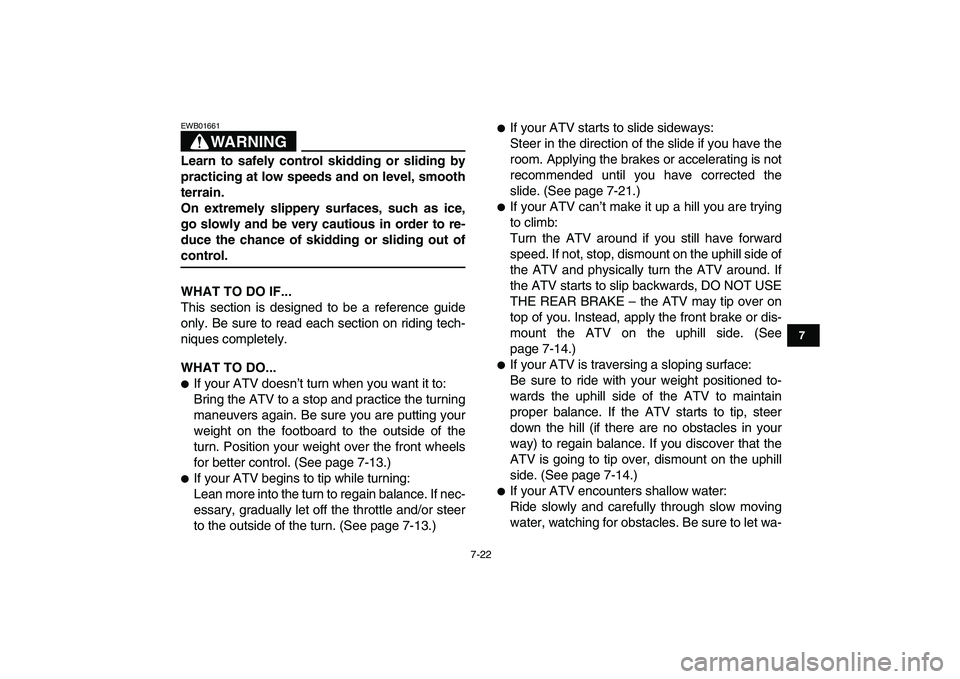

WHAT TO DO IF...
This section is designed to be a reference guide
only. Be sure to read each section on riding tech-
niques completely.
WHAT TO DO...

If your ATV doesn’t turn when you want it to:
Bring the ATV to a stop and practice the turning
maneuvers again. Be sure you are putting your
weight on the footboard to the outside of the
turn. Position your weight over the front wheels
for better control. (See page 7-13.)

If your ATV begins to tip while turning:
Lean more into the turn to regain balance. If nec-
essary, gradually let off the throttle and/or steer
to the outside of the turn. (See page 7-13.)

If your ATV starts to slide sideways:
Steer in the direction of the slide if you have the
room. Applying the brakes or accelerating is not
recommended until you have corrected the
slide. (See page 7-21.)

If your ATV can’t make it up a hill you are trying
to climb:
Turn the ATV around if you still have forward
speed. If not, stop, dismount on the uphill side of
the ATV and physically turn the ATV around. If
the ATV starts to slip backwards, DO NOT USE
THE REAR BRAKE – the ATV may tip over on
top of you. Instead, apply the front brake or dis-
mount the ATV on the uphill side. (See
page 7-14.)

If your ATV is traversing a sloping surface:
Be sure to ride with your weight positioned to-
wards the uphill side of the ATV to maintain
proper balance. If the ATV starts to tip, steer
down the hill (if there are no obstacles in your
way) to regain balance. If you discover that the
ATV is going to tip over, dismount on the uphill
side. (See page 7-14.)

If your ATV encounters shallow water:
Ride slowly and carefully through slow moving
water, watching for obstacles. Be sure to let wa-

8-19
1
2
3
4
5
6
78
9
10
11

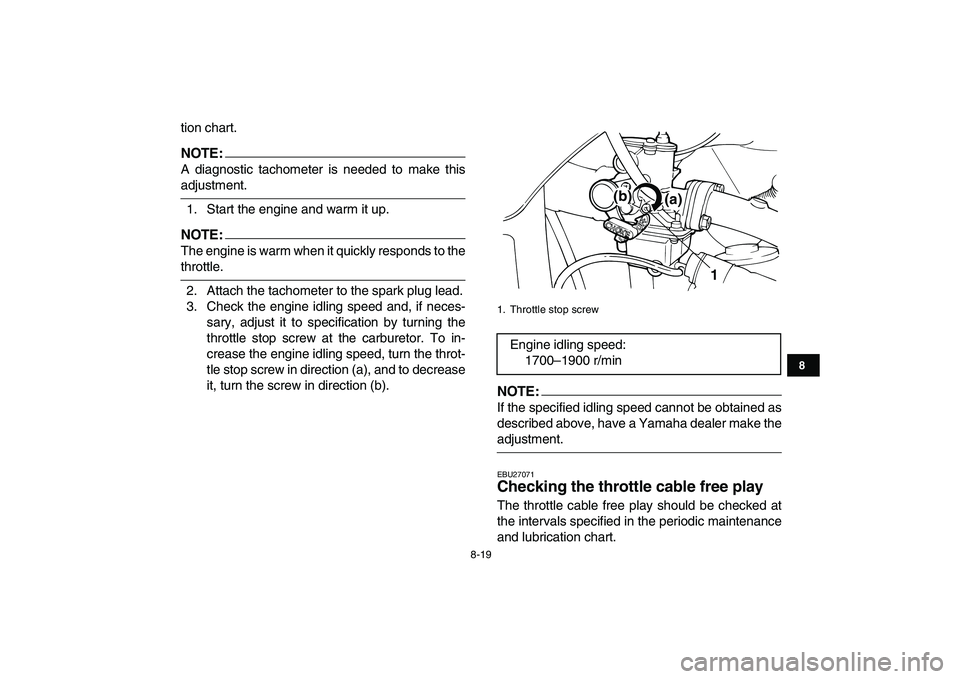

tion chart.
NOTE:

A diagnostic tachometer is needed to make this
adjustment.
1. Start the engine and warm it up.
NOTE:

The engine is warm when it quickly responds to the
throttle.
2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-
sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
NOTE:

If the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment.
EBU27071
Checking the throttle cable free play
The throttle cable free play should be checked at
the intervals specified in the periodic maintenance
and lubrication chart.
1. Throttle stop screw
Engine idling speed:
1700–1900 r/min
1 (a) (b)

9-1
1
2
3
4
5
6
7
89
10
11

EBU25860
CLEANING AND STORAGE
EBU25880
Cleaning
Frequent, thorough cleaning of your ATV will not
only enhance its appearance but will improve its
general performance and extend the useful life of
many components.
1. Before cleaning the ATV:
a. Block off the end of the exhaust pipe to
prevent water entry. A plastic bag and
strong rubber band may be used.
b. Make sure the spark plug and all filler caps
are properly installed.
2. If the engine case is excessively greasy, apply
degreaser with a paint brush. Do not apply de-
greaser to the wheel axles.
3. Rinse the dirt and degreaser off with a garden

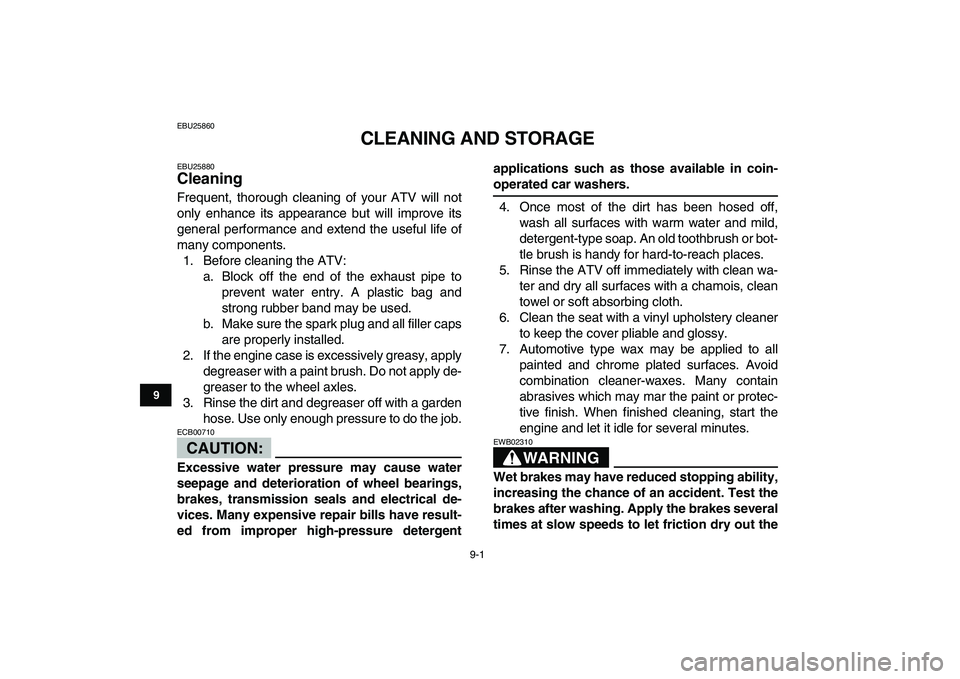

hose. Use only enough pressure to do the job.
CAUTION:

ECB00710
Excessive water pressure may cause water
seepage and deterioration of wheel bearings,
brakes, transmission seals and electrical de-
vices. Many expensive repair bills have result-
ed from improper high-pressure detergentapplications such as those available in coin-
operated car washers.
4. Once most of the dirt has been hosed off,
wash all surfaces with warm water and mild,
detergent-type soap. An old toothbrush or bot-
tle brush is handy for hard-to-reach places.
5. Rinse the ATV off immediately with clean wa-
ter and dry all surfaces with a chamois, clean
towel or soft absorbing cloth.
6. Clean the seat with a vinyl upholstery cleaner
to keep the cover pliable and glossy.
7. Automotive type wax may be applied to all
painted and chrome plated surfaces. Avoid
combination cleaner-waxes. Many contain
abrasives which may mar the paint or protec-
tive finish. When finished cleaning, start the
engine and let it idle for several minutes.WARNING
EWB02310
Wet brakes may have reduced stopping ability,
increasing the chance of an accident. Test the
brakes after washing. Apply the brakes several
times at slow speeds to let friction dry out the

INDEX
A
Accessories and loading ................................................ 6-7
Air filter element, cleaning ............................................ 8-13
Air intake restrictor plate, removing.............................. 8-17
B
Battery .................................................................. 5-6
,
8-29
Brake and shift pedals, checking and lubricating ......... 8-28
Brake lever and brake pedal free play (rear),
adjusting..................................................................... 8-23
Brake lever free play, adjusting the front...................... 8-21
Brake lever, front ............................................................ 4-4
Brake levers, checking and lubricating......................... 8-27
Brake pedal and rear brake lever ................................... 4-5
Brakes, front and rear .................................................... 5-3
Brake shoes, checking the front and rear .................... 8-20
C
Cables, checking and lubricating ................................. 8-26
Carburetor, adjusting.................................................... 8-18
Chassis fasteners........................................................... 5-6
Choke ........................................................................... 4-10
Cleaning ......................................................................... 9-1
Clutch free play, adjusting ............................................ 8-26
E
Engine break-in .............................................................. 6-5
Engine, cold start ........................................................... 6-1
Engine idling speed ...................................................... 8-18Engine oil ............................................................... 5-3
,
8-9
Engine, starting a warm ................................................. 6-3
Engine stop switch ......................................................... 4-2
F
Final gear oil......................................................... 5-3
,
8-12
Front knuckle pivots, lubricating ................................... 8-28
Fuel ........................................................................ 4-7
,
5-3
Fuel cock ........................................................................ 4-8
Fuel tank cap.................................................................. 4-7
Fuse, replacing............................................................. 8-31
H
Handlebar switches ........................................................ 4-2
I
Identification numbers .................................................. 11-1
Indicator light .................................................................. 4-1
Instruments, lights and switches .................................... 5-6
K
Key identification number ............................................. 11-1
L
Label locations ............................................................... 2-1
M
Main switch .................................................................... 4-1
Maintenance and lubrication chart ................................. 8-5
Maintenance chart, emission control system ................. 8-3
Model label ................................................................... 11-2
