YAMAHA YFM90R 2020 Owners Manual

8-14
8
EBU34472Transmission oilThe transmission case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the transmission oil must be changed
at the intervals specified in the periodic mainte-
nance and lubrication chart.
To change the transmission oil1. Place the ATV on a level surface.
2. Place an oil pan under the transmission case to collect the used oil.
3. Remove the transmission oil filler cap and its O-ring from the transmission case. 4. Remove the transmission oil drain bolt and its
gasket to drain the oil from the transmission
case.
1. Transmission oil filler cap
2. O-ring12
UBD364E0.book Page 14 Monday, January 28, 2019 9:30 AM

8-15
85. Install the transmission oil drain bolt and its
new gasket, and then tighten the bolt to the
specified torque.
6. Refill with the specified amount of the recom- mended oil. NOTICE: Make sure that no
foreign material enters the transmission
case.
[ECB03380]
7. Check the oil filler cap O-ring for damage, and replace it if necessary.
8. Install and tighten the oil filler cap.
9. Check the transmission case for oil leakage. If oil is leaking, check for the cause.EBU34110Cleaning the air filter elementThe air filter element should be serviced at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean or, if necessary, replace
the air filter element more frequently if you are rid-
ing in unusually wet or dusty areas.TIPThere is a check hose at the bottom of the air filter
case. If dust or water collects in this hose, empty
the hose and clean the air filter element and air fil-
ter case.
1. Transmission oil drain bolt
2. GasketTightening torque:Transmission oil drain bolt:22 N·m (2.2 kgf·m, 16 lb·ft)
12
Recommended oil:See page 10-1.
Oil quantity: 0.35 L (0.37 US qt, 0.31 Imp.qt)
UBD364E0.book Page 15 Monday, January 28, 2019 9:30 AM

8-16
8

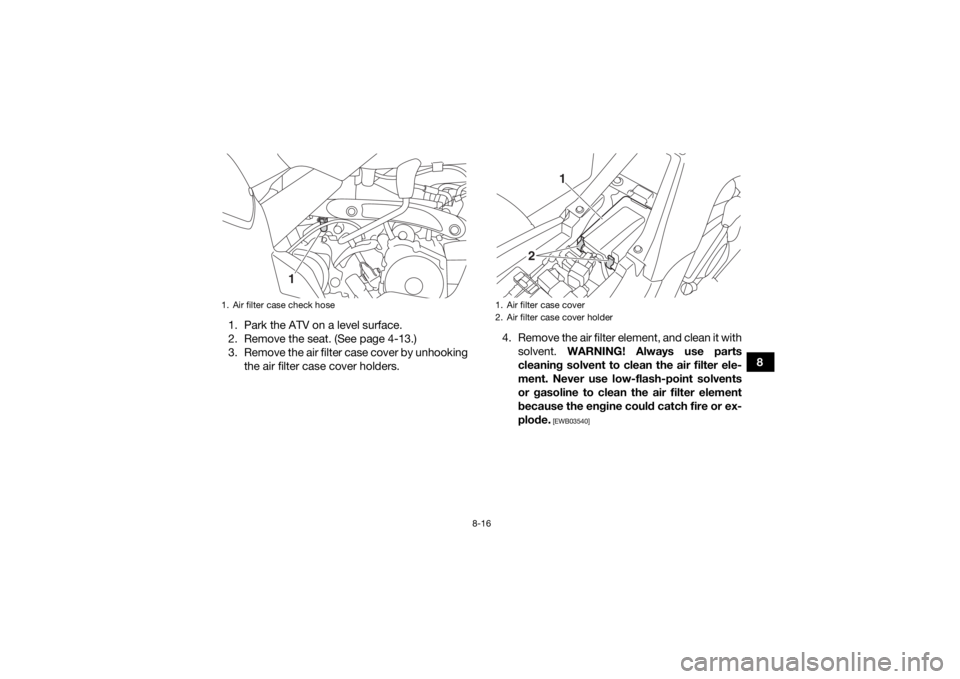

1. Park the ATV on a level surface.
2. Remove the seat. (See page 4-13.)
3. Remove the air filter case cover by unhooking
the air filter case cover holders. 4. Remove the air filter element, and clean it with
solvent. WARNING! Always use parts
cleaning solvent to clean the air filter ele-
ment. Never use low-flash-point solvents
or gasoline to clean the air filter element
because the engine could catch fire or ex-
plode.
[EWB03540]
1. Air filter case check hose
1
1. Air filter case cover
2. Air filter case cover holder
1
2
UBD364E0.book Page 16 Monday, January 28, 2019 9:30 AM

8-17
85. Squeeze the excess solvent out of the air filter
element and let it dry. NOTICE: Do not twist
the air filter element when squeezing it.
[ECB02310]
6. Check the air filter element and replace it if damaged.
7. Apply Yamaha foam air filter oil or other qual- ity foam air filter oil to the element.TIPThe air filter element should be wet but not drip-
ping. 8. Insert the air filter element into the air filtercase.
9. Install the air filter case cover by hooking the holders onto the air filter case. NOTICE:
Make sure that the air filter element is
properly seated in the air filter case. Never
operate the engine with the air filter ele-
1. Air filter element
1
UBD364E0.book Page 17 Monday, January 28, 2019 9:30 AM

8-18
8
ment removed. This will allow unfiltered air
to enter the engine, causing rapid engine
wear and possible engine damage. Addi-
tionally, operation without the air filter ele-
ment will affect carburetor jetting with
subsequent poor performance and possi-
ble engine overheating.
[ECB00462]
10. Install the seat.TIPThe air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated
more often if the ATV is operated in extremely dusty areas. When servicing the air filter element,
be sure to check the air inlet of the air filter case
for obstructions.
EBU33942Cleaning the spark arresterBe sure the exhaust pipe and muffler are cool be-
fore cleaning the spark arrester.
1. Remove the tailpipe bolt and nut.
2. Remove the spark arrester by pulling it out of the muffler.1. Spark arrester
2. Tailpipe bolt
3. Nut
1
2
3
UBD364E0.book Page 18 Monday, January 28, 2019 9:30 AM

8-19
83. Tap the spark arrester lightly, and then use a
wire brush to remove any carbon deposits.
4. Insert the spark arrester into the muffler and align the bolt hole.
5. Install the tailpipe bolt and nut, and then tight- en the nut to the specified torque.
WARNING
EWB02342Always let the exhaust system cool prior to
touching exhaust components.
Do not start the engine with the spark arrester
removed. Sparks or exhaust particulate can
cause eye injury, burns, or start a fire. EBU23941Adjusting the carburetorThe carburetor should be checked and, if neces-
sary, adjusted at the intervals specified in the pe-
riodic maintenance and lubrication chart. The
carburetor is an important part of the engine and
requires very sophisticated adjustment. There-
fore, most carburetor adjustments should be left to a Yamaha dealer, who has the necessary pro-
fessional knowledge and experience. The adjust-
ment described in the following section, however,
may be performed by the owner as part of routine
maintenance.
NOTICEECB00481The carburetor has been set and extensively
tested at the Yamaha factory. Changing these
settings without sufficient technical knowl-
edge may result in poor performance of or
damage to the engine. EBU24001Adjusting the engine idling speedThe engine idling speed must be checked and, if
necessary, adjusted as follows at the intervals
specified in the periodic maintenance and lubrica-
tion chart.TIPA diagnostic tachometer is needed to make this
adjustment. 1. Start the engine and warm it up.
Tightening torque:
Tailpipe nut:10 N·m (1.0 kgf·m, 7.4 lb·ft)
UBD364E0.book Page 19 Monday, January 28, 2019 9:30 AM

8-20
8
TIPThe engine is warm when it quickly responds to
the throttle. 2. Attach the tachometer to the spark plug lead.
3. Check the engine idling speed and, if neces-sary, adjust it to specification by turning the
throttle stop screw at the carburetor. To in-
crease the engine idling speed, turn the throt-
tle stop screw in direction (a), and to decrease
it, turn the screw in direction (b).
TIPIf the specified idling speed cannot be obtained as
described above, have a Yamaha dealer make the
adjustment. EBU38470Adjusting the throttle lever free play
1. Throttle stop screwEngine idling speed:1600–1800 r/min
(a)
(b)
1
1. Rubber cover
2. Throttle lever free play adjusting nut
3. Locknut
4. Throttle lever free playThrottle lever free play:1.5–4.0 mm (0.06–0.16 in)
1
3
2
4
(b)
(a)
UBD364E0.book Page 20 Monday, January 28, 2019 9:30 AM

8-21
8Periodically check the throttle lever free play and
adjust if necessary.
TIPThe engine idling speed must be checked and ad-
justed before adjusting the throttle lever free play. 1. Slide the rubber cover away from the locknut.
2. Loosen the locknut.
3. To increase the throttle lever free play, turn
the throttle lever free play adjusting nut in di-
rection (a). To decrease the throttle lever free
play, turn the adjusting nut in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.EBU24061Valve clearanceThe valve clearance changes with use, resulting in
improper air-fuel mixture and/or engine noise. To
prevent this from occurring, the valve clearance
must be adjusted by a Yamaha dealer at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
EBU29602BrakesReplacement of brake components requires pro-
fessional knowledge. Brake service should be
performed by a Yamaha dealer.
WARNING
EWB02572Operating with improperly serviced or adjust-
ed brakes could lead to a loss in braking ability
and an accident. EBU34511Checking the front and rear brake
shoesThe front and rear brake shoes must be checked
for wear at the intervals specified in the periodic
maintenance and lubrication chart. Without disas-
sembling the brake, this can be performed by
checking the position of the brake lever free play
adjusting bolts or nut.
Front brakes
To check front brake shoe wear, check the posi-
tion of the adjusting bolts. If a bolt extends more
than 12 mm (0.47 in) from its locknut, the brake
shoes need to be replaced.
UBD364E0.book Page 21 Monday, January 28, 2019 9:30 AM

8-22
8
Rear brake
To check rear brake shoe wear, check the position
of the adjusting nut. If the nut is more than 18 mm
(0.71 in) from the end of the bolt, the brake shoes
need to be replaced.
1. Upper adjusting bolt
2. Lower adjusting bolt
3. No more than 12 mm (0.47 in)
3
2 1
1. Rear brake lever free play adjusting nut
2. Bolt
3. No more than 18 mm (0.71 in)
12
3
UBD364E0.book Page 22 Monday, January 28, 2019 9:30 AM

8-23
8
EBU24334Adjusting the front brake lever free
playPeriodically check the front brake lever free play
and adjust if necessary.1. Loosen the upper locknut and fully turn in the upper adjusting bolt.
2. Loosen the lower locknut.
3. Turn the lower adjusting bolt in direction (a) to increase the lever free play, and in direction
(b) to decrease it. 4. Tighten the lower locknut.
5. While applying the front brake, turn out the
upper adjusting bolt until the upper and lower
cable lengths are equal. The cable joint will
become vertical.1. Front brake lever free playFront brake lever free play:20.0–25.0 mm (0.79–0.98 in)
1
1. Upper locknut
2. Upper adjusting bolt
3. Lower locknut
4. Lower adjusting bolt
1 2
4
3 (a)
(b)
UBD364E0.book Page 23 Monday, January 28, 2019 9:30 AM
